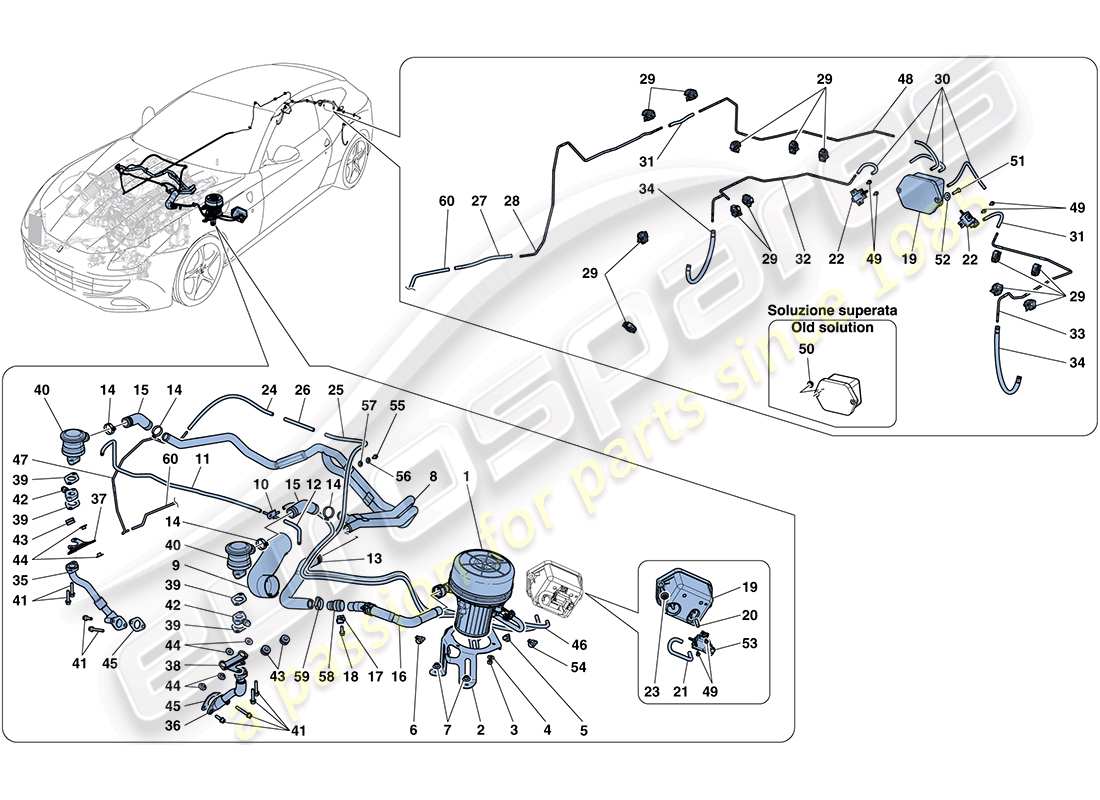

0008 - secondary air system
Ferrari FF (RHD) SECONDARY AIR SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 247795
SECONDARY AIR SYSTEM PUMP
from £227.49
from £227.49
# 002
MPN: 269285
PUMP MOUNTING BRACKET
from £58.91
from £58.91
# 003
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 004
MPN: 11194674
WASHER
from £0.53
from £0.53
# 005
MPN: 253769
CLIP
from £0.47
from £0.47
# 006
MPN: 198253
CLIP
from £2.13
from £2.13
# 007
MPN: 14039614
NUT
from £0.53
from £0.53
# 008
MPN: 274980
ALUMINIUM PIPE
from £175.16
from £175.16
# 009
MPN: 276428
HEAT REFLECTIVE SLEEVE
from £31.88
from £31.88
# 009
MPN: 276435
SELF-ADHESIVE ALUMINIUM STRIP
from £3.50
from £3.50
# 010
MPN: 257691
THREE WAY
-Applicable from Ass. No. 100181- -Applicable after depletion of 275374-
from £0.80
from £0.80
This part replaces part number 275374
# 010
MPN: 275374
THREE WAY
-After depletion, also order pipe 141235 ref. 12, pipe 122761 ref. 11, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion-
Supersession
Supersession
# 011
MPN: 122761
RUBBER PIPE
-D. 3.5 X 665- -Between 3-way union and RH pneumatic valve- -Applicable from Ass. No. 100181- -Applicable after depletion of 275542-
from £52.04
from £52.04
This part replaces part number 169700 - and 1 more. Click to view details
# 011
MPN: 275542
RUBBER PIPE
-D. 3.5 X 665- -Between 3-way union and RH pneumatic valve- -After depletion, also order three-way connector 257691 ref. 10, pipe 141235 ref. 12, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion-
Supersession
Supersession
# 012
MPN: 141235
RUBBER PIPE
-D. 3.5-8 X 90- -Between 3-way union and LH pneumatic valve- -Applicable from Ass. No. 100181- -Applicable after depletion of 253376-
from £2.12
from £2.12
This part replaces part number 253376
# 012
MPN: 253376
RUBBER PIPE
-D. 3.5-8 X 90- -Between 3-way union and LH pneumatic valve- -After depletion, also order three-way connector 257691 ref. 10, pipe 122761 ref. 11, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion-
Supersession
Supersession
# 013
MPN: 267082
CONNECTOR PIPE
from £10.84
from £10.84
# 014
MPN: 13432970
COLLAR
from £0.80
from £0.80
This part replaces part number 13432908
# 015
MPN: 261051
CONNECTOR PIPE
from £37.59
from £37.59
# 016
MPN: 267148
COMPL. HOSE
from £27.58
from £27.58
# 017
MPN: 267133
BRACKET
from £12.85
from £12.85
# 018
MPN: 231617
SCREW
-M6 X 18-
from £0.54
from £0.54
This part replaces part number 14433124 which we have in stock
# 019
MPN: 198339
VACUUM ACCUMULATOR TANK
from £15.19
from £15.19
# 020
MPN: 225098
CAP FOR UNION
from £0.98
from £0.98
# 021
MPN: 115149
RUBBER PIPE
from £20.43
from £20.43
# 022
MPN: 184363
ON/OFF SOLENOID VALVE
-Applicable until depletion-
Supersession
Supersession
# 022
MPN: 315769
ON/OFF SOLENOID VALVE
-Applicable after depletion of 184363-
from £28.93
from £28.93
This part replaces part number 184363
# 023
MPN: 14039614
NUT
from £0.53
from £0.53
# 024
MPN: 125826
RUBBER PIPE
-D. 3.5-8 X 320- -Applicable up to Ass. No. 100180-
from £6.19
from £6.19
# 024
MPN: 159542
RUBBER PIPE
-D. 3.5-8 X 260- -Applicable from Ass. No. 100181 up to Ass. No. 100212-
from £1.29
from £1.29
This part replaces part number 264424 - and 1 more. Click to view details
# 024
MPN: 194323
RUBBER PIPE
-D. 3.5-8 X 330- -Applicable from Ass. No. 100213-
from £6.93
from £6.93
# 025
MPN: 276433
RUBBER PIPE
-D. 3.5-8 X 1500-
from £25.55
from £25.55
# 026
MPN: 261684
RUBBER PIPE
-D. 3.5-8 X 95-
from £1.87
from £1.87
This part replaces part number 321333 which we have in stock
# 027
MPN: 115147
RUBBER PIPE
-D. 3.5-8 X 170-
from £2.95
from £2.95
This part replaces part number 321332
# 028
MPN: 269071
RIGID PIPE
-Applicable up to Ass. No. 102897- -Applicable until depletion-
Supersession
Supersession
# 028
MPN: 280573
RIGID PIPE
-Applicable from Ass. No. 102898- -Applicable after depletion of 269071-
from £40.29
from £40.29
This part replaces part number 269071
# 029
MPN: 234284
CLIP
-1 compartment-
from £0.51
from £0.51
# 029
MPN: 234285
CLIP
-2 compartments-
from £0.52
from £0.52
# 030
MPN: 255096
RUBBER PIPE
-D. 3.5 X 140-
from £5.49
from £5.49
# 030
MPN: 277038
RUBBER PIPE
-D. 3.5 X 300-
from £16.79
from £16.79
# 030
MPN: 277041
RUBBER PIPE
-D. 3.5 X 180-
from £20.93
from £20.93
# 031
MPN: 199691
RUBBER PIPE
-D. 3.5 X 120-
from £1.61
from £1.61
# 032
MPN: 269074
RH RIGID PIPE
from £31.01
from £31.01
# 033
MPN: 269073
LH RIGID PIPE
from £16.66
from £16.66
# 034
MPN: 168069
RUBBER PIPE
-D. 3-11.5 X 250-
from £14.92
from £14.92
# 035
MPN: 257255
RH SECONDARY AIR INLET PIPE
from £64.82
from £64.82
# 036
MPN: 257256
LH SECONDARY AIR INLET PIPE
from £68.23
from £68.23
# 037
MPN: 257257
RH BRACKET
from £7.16
from £7.16
# 038
MPN: 257258
LH BRACKET
from £7.16
from £7.16
# 039
MPN: 186781
GASKET
from £2.89
from £2.89
# 040
MPN: 171175
SECONDARY AIR SYSTEM VALVE
from £103.65
from £103.65
# 041
MPN: 231618
SCREW
-M6 X 20-
from £0.53
from £0.53
# 041
MPN: 231621
SCREW
-M6 X 30-
from £0.53
from £0.53
This part replaces part number 216568
# 041
MPN: 231623
SCREW
-M6 X 40-
from £0.53
from £0.53
# 042
MPN: 264020
SPACER ASSEMBLY
from £20.16
from £20.16
This part replaces part number 252813 - and 2 more. Click to view details
# 043
MPN: 177576
GROMMET
from £1.40
from £1.40
# 044
MPN: 183898
FLANGED BUSHING
from £1.88
from £1.88
# 045
MPN: 202980
GASKET
from £1.66
from £1.66
# 046
MPN: 276430
RUBBER PIPE
-D. 3.5-8 X 1180- -After depletion, also order three-way connector 257691 ref. 10, pipe 141235 ref. 12, pipe 122761 ref. 11- -Applicable up to Ass. No. 100180- -Applicable until depletion-
Supersession
Supersession
# 046
MPN: 279281
RUBBER PIPE
-D. 3.5-8 X 1180- -Applicable from Ass. No. 100181- -Applicable after depletion of 276430-
from £17.74
from £17.74
This part replaces part number 276430
# 047
MPN: 276506
RUBBER PIPE
-D. 3.5-8 X 730- -Applicable up to Ass. No. 100212-
from £25.55
from £25.55
# 047
MPN: 280051
RUBBER PIPE
-D. 3.5 -8mm- -Applicable from Ass. No. 100213- -No longer supplied- -Replaced by 289048-
Supersession
Supersession
# 047
MPN: 289048
RUBBER PIPE
-D. 3.5-8 X 950-
from £39.33
from £39.33
This part replaces part number 280051
# 048
MPN: 269072
RIGID PIPE
from £16.86
from £16.86
# 049
MPN: 15516204
SCREW
-M4 X 12-
from £0.52
from £0.52
# 050
MPN: 14059111
NUT
-Applicable up to Ass. No. 105159-
from £0.47
from £0.47
# 051
MPN: 14304424
SCREW
-Applicable from Ass. No. 105160-
from £0.53
from £0.53
# 052
MPN: 11181574
WASHER
-Applicable from Ass. No. 105160-
from £0.54
from £0.54
# 053
MPN: 184363
ON/OFF SOLENOID VALVE
-Applicable up to Ass. No. 106476- -Applicable until depletion-
Supersession
Supersession
# 053
MPN: 283001
SOLENOID VALVE COMPLETE WITH PIPE
-Applicable from Ass. No. 106477-
from £150.13
from £150.13
# 053
MPN: 315769
ON/OFF SOLENOID VALVE
-Applicable up to Ass. No. 106476- -Applicable after depletion of 184363-
from £28.93
from £28.93
This part replaces part number 184363
# 054
MPN: 262559
CLIP
from £0.57
from £0.57
# 055
MPN: 14305124
SCREW
-No longer supplied- -Replaced by 233600-
from £0.53
from £0.53
This part replaces part number 14305121
# 055
MPN: 233600
SCREW
-M6 X 12-
from £0.54
from £0.54
# 056
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 057
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 058
MPN: 249483
COUPLING
from £2.03
from £2.03
# 059
MPN: 13432970
COLLAR
from £0.84
from £0.84
This part replaces part number 13432908
# 060
MPN: 268394
EMISSION CONTROL SYSTEM PIPE, REAR UNDERBODY SECTION
from £51.97
from £51.97
-part-diagram-0009.webp "FERRARI FF (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (RHD) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (RHD) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (RHD) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (RHD) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (RHD) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (RHD) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (RHD) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (RHD) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (RHD) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (RHD) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (RHD) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (RHD) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (RHD) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (RHD) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (RHD) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (RHD) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (RHD) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (RHD) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (RHD) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (RHD) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (RHD) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (RHD) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (RHD) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (RHD) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (RHD) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (RHD) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (RHD) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (RHD) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (RHD) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (RHD) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (RHD) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
