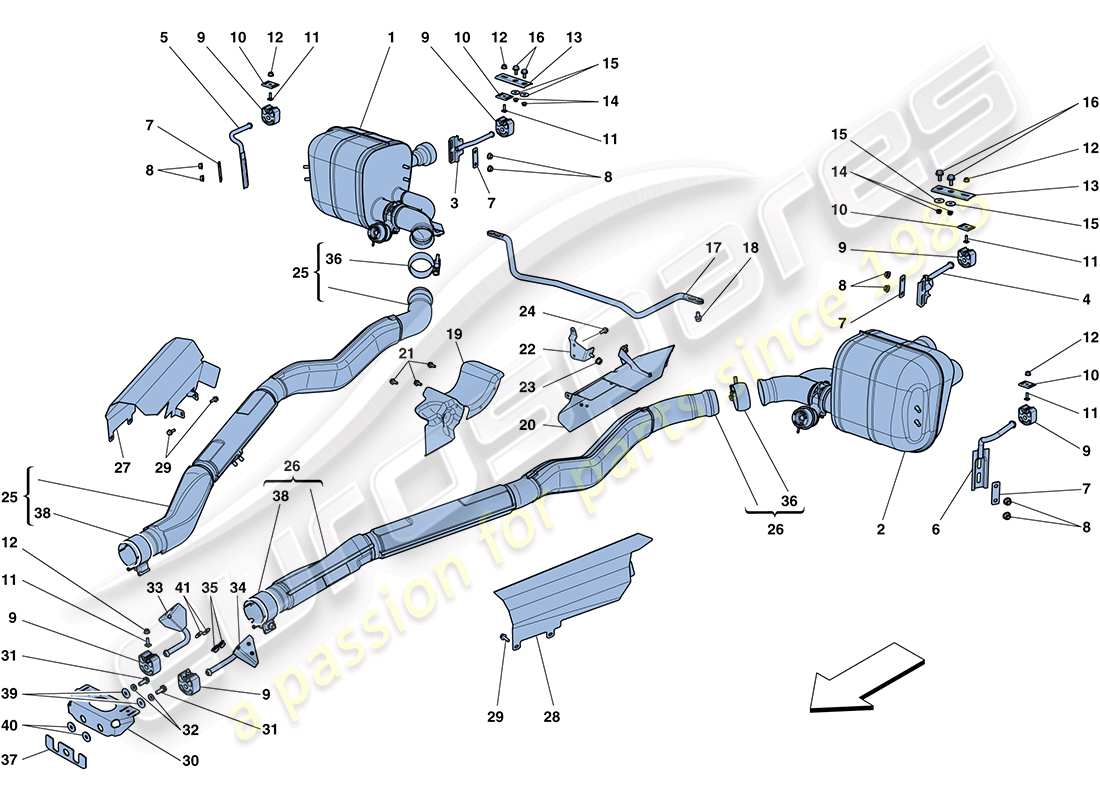

Ferrari FF (RHD) SILENCERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 272319
                                                              REAR RH SILENCER
                                                              -After depletion, replace as a pair- -Applicable up to Ass. No. 105118- -Applicable until depletion-
                                                              from £1,384.40
                                                              from £1,384.40
                                                              # 001
                                                              MPN: 281931
                                                              REAR RH SILENCER
                                                              -Applicable from Ass. No. 105119- -Applicable after depletion of 272319-
                                                              from £2,132.81
                                                              from £2,132.81
                                                              This part replaces part number 272319
                                                              # 002
                                                              MPN: 272320
                                                              REAR LH SILENCER
                                                              -After depletion, replace as a pair- -Applicable up to Ass. No. 105118- -Applicable until depletion-
                                                              from £1,384.40
                                                              from £1,384.40
                                                              # 002
                                                              MPN: 281932
                                                              REAR LH SILENCER
                                                              -Applicable from Ass. No. 105119- -Applicable after depletion of 272320-
                                                              from £1,173.05
                                                              from £1,173.05
                                                              This part replaces part number 272320 - and 1 more. Click to view details
                                                              # 003
                                                              MPN: 268174
                                                              REAR RH BRACKET
                                                              from £25.55
                                                              from £25.55
                                                              # 004
                                                              MPN: 268176
                                                              REAR LH BRACKET
                                                              from £25.55
                                                              from £25.55
                                                              # 005
                                                              MPN: 250283
                                                              RH LATERAL BRACKET
                                                              from £27.14
                                                              from £27.14
                                                              # 006
                                                              MPN: 250285
                                                              LH LATERAL BRACKET
                                                              from £27.14
                                                              from £27.14
                                                              # 007
                                                              MPN: 240597
                                                              PLATE
                                                              from £5.78
                                                              from £5.78
                                                              # 008
                                                              MPN: 14059311
                                                              NUT
                                                              from £0.51
                                                              from £0.51
                                                              # 009
                                                              MPN: 239798
                                                              FLEXIBLE SILENCER MOUNTING BUSH
                                                              from £40.36
                                                              from £40.36
                                                              # 010
                                                              MPN: 240598
                                                              PLATE
                                                              from £7.71
                                                              from £7.71
                                                              This part replaces part number 799014
                                                              # 011
                                                              MPN: 250222
                                                              SQUARE HEADED SCREW
                                                              -M6 X 18.5-
                                                              from £1.59
                                                              from £1.59
                                                              # 012
                                                              MPN: 14058421
                                                              NUT
                                                              from £0.77
                                                              from £0.77
                                                              This part replaces part number 14075721
                                                              # 013
                                                              MPN: 266812
                                                              AR BRACKET
                                                              from £5.21
                                                              from £5.21
                                                              # 014
                                                              MPN: 13046224
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 015
                                                              MPN: 12647024
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 016
                                                              MPN: 16287127
                                                              SCREW
                                                              -M8 X 20-
                                                              from £0.47
                                                              from £0.47
                                                              # 017
                                                              MPN: 272615
                                                              SILENCER CROSS PIECE
                                                              from £234.72
                                                              from £234.72
                                                              # 018
                                                              MPN: 231627
                                                              SCREW
                                                              -M8 X 16- -No longer supplied- -Replaced by 280460-
                                                              from £0.53
                                                              from £0.53
                                                              # 018
                                                              MPN: 280460
                                                              SCREW
                                                              -M8 X 14-
                                                              from £2.44
                                                              from £2.44
                                                              # 019
                                                              MPN: 272274
                                                              RH GEARBOX HEAT SHIELD
                                                              from £58.20
                                                              from £58.20
                                                              # 020
                                                              MPN: 272275
                                                              LH GEARBOX HEAT SHIELD
                                                              -Applicable until depletion-
                                                              from £47.22
                                                              from £47.22
                                                              # 020
                                                              MPN: 294603
                                                              LH GEARBOX HEAT SHIELD
                                                              -Applicable after depletion of 272275-
                                                              from £56.36
                                                              from £56.36
                                                              This part replaces part number 272275 which we have in stock - and 1 more. Click to view details
                                                              # 021
                                                              MPN: 231617
                                                              SCREW
                                                              -M6 X 18-
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 14433124 which we have in stock
                                                              # 022
                                                              MPN: 263583
                                                              BRACKET
                                                              -On LH strut-
                                                              from £17.36
                                                              from £17.36
                                                              # 023
                                                              MPN: 14040611
                                                              NUT
                                                              from £0.54
                                                              from £0.54
                                                              # 024
                                                              MPN: 16286124
                                                              SCREW
                                                              -M6 X 20-
                                                              from £0.52
                                                              from £0.52
                                                              # 027
                                                              MPN: 272668
                                                              RH FRONT GEARBOX HEAT SHIELD
                                                              from £27.30
                                                              from £27.30
                                                              # 028
                                                              MPN: 269417
                                                              LH FRONT GEARBOX HEAT SHIELD
                                                              from £27.30
                                                              from £27.30
                                                              # 029
                                                              MPN: 16286124
                                                              SCREW
                                                              -M6 X 20-
                                                              from £0.48
                                                              from £0.48
                                                              # 030
                                                              MPN: 272447
                                                              EXTENSION MOUNTING BRACKET
                                                              from £19.27
                                                              from £19.27
                                                              # 031
                                                              MPN: 16043524
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 032
                                                              MPN: 11193874
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 11193879 which we have in stock
                                                              # 033
                                                              MPN: 267836
                                                              REMOVABLE BRACKET ON RH REAR EXTENSION
                                                              from £20.88
                                                              from £20.88
                                                              # 034
                                                              MPN: 267837
                                                              REMOVABLE BRACKET ON LH REAR EXTENSION
                                                              from £20.88
                                                              from £20.88
                                                              # 035
                                                              MPN: 14059311
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 035
                                                              MPN: 179808
                                                              NUT
                                                              -No longer supplied- -Replaced by 14059311-
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 124525
                                                              # 036
                                                              MPN: 229100
                                                              SPHERICAL CLAMP
                                                              from £23.55
                                                              from £23.55
                                                              # 037
                                                              MPN: 280730
                                                              SHIM
                                                              from £6.72
                                                              from £6.72
                                                              # 038
                                                              MPN: 292231
                                                              RING CLAMP
                                                              from £13.71
                                                              from £13.71
                                                              # 039
                                                              MPN: 12647024
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 040
                                                              MPN: 12648424
                                                              WASHER
                                                              from £1.08
                                                              from £1.08
                                                              # 041
                                                              MPN: 13578324
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 13578311
