0021 - Transmission Housing

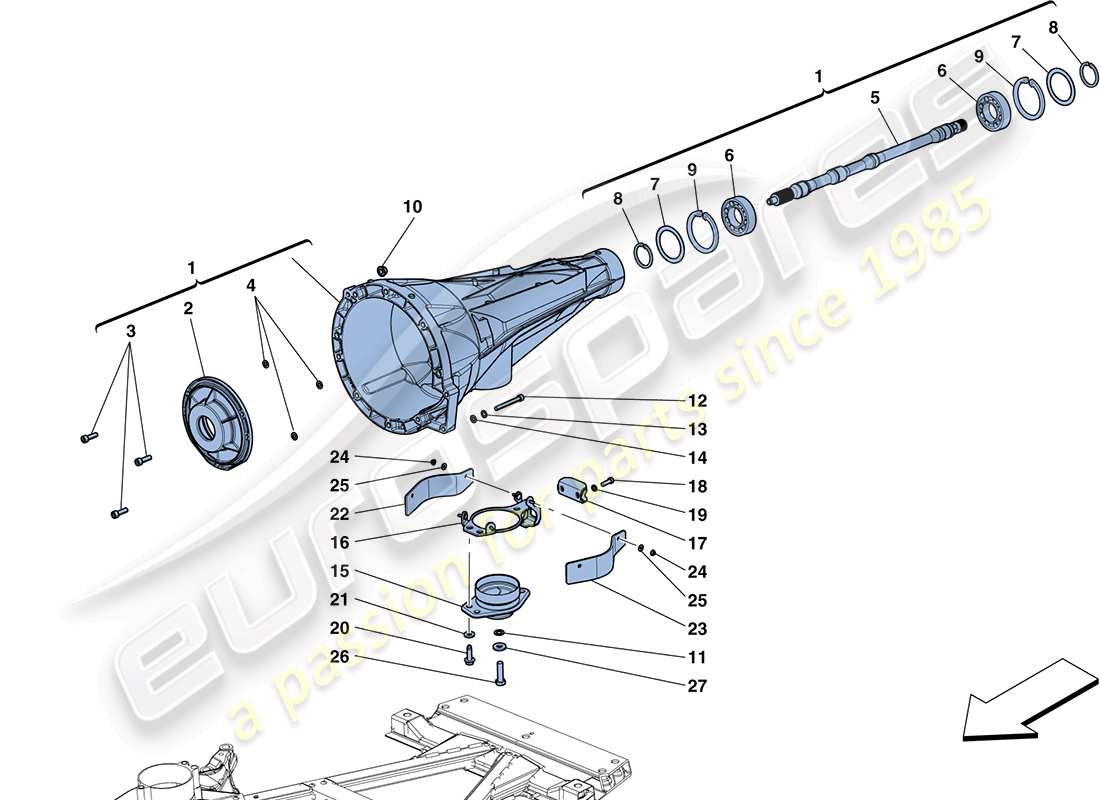

Ferrari FF (RHD) TRANSMISSION HOUSING Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

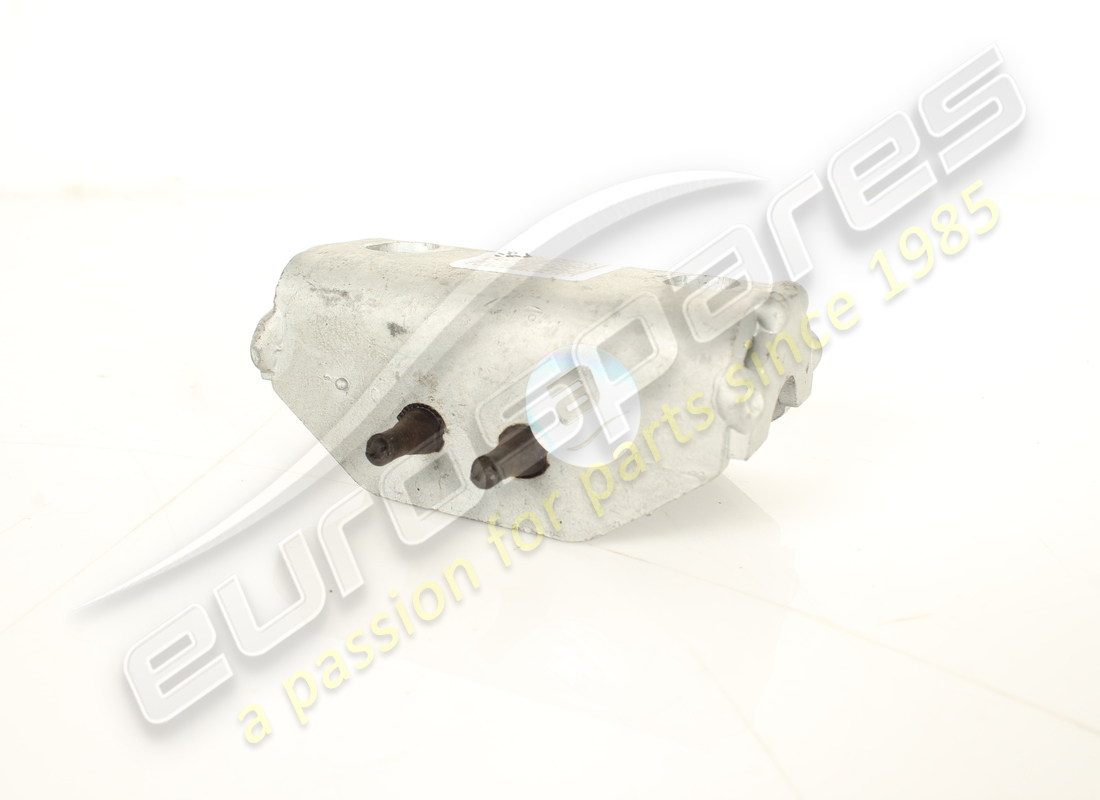

# 001
MPN: 277346
COMPL. TRANSMISSION HOUSING
from £879.25
from £879.25
# 002
MPN: 251921
TRANSMISSION HOUSING FLANGE
from £297.76
from £297.76
# 003
MPN: 14306424
SCREW
from £0.52
from £0.52
This part replaces part number 14306324 - and 2 more. Click to view details
# 004
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 005
MPN: 277347
TRANSMISSION HOUSING SHAFT
from £2,182.09
from £2,182.09
# 006
MPN: 253629
COMPLETE BEARING
from £357.17
from £357.17
This part replaces part number 252525
# 007
MPN: 253627
CONTAINMENT RING
from £124.06
from £124.06
This part replaces part number 249427
# 008
MPN: 11068874
SEEGER RING
from £7.96
from £7.96
# 009
MPN: 11062474
SNAP RING
from £3.06
from £3.06
# 010
MPN: 14059421
NUT
from £0.52
from £0.52
This part replaces part number 156462
# 011
MPN: 127498
WASHER
from £0.54
from £0.54
This part replaces part number 106854
# 012
MPN: 14309024
SCREW
-M8 X 70-
from £0.78
from £0.78
This part replaces part number 14309021 which we have in stock
# 013
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 014
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 015
MPN: 247141
RUBBER BUSHING
from £55.76
from £55.76
# 016
MPN: 269400
LIMITER BRACKET
from £50.40
from £50.40
# 017
MPN: 269246
RETAINER BRACKET
from £51.67
from £51.67
# 018
MPN: 13028734
SCREW
-M8 X 25-
from £0.53
from £0.53
This part replaces part number 14814434 which we have in stock
# 019
MPN: 14499424
WASHER
Supersession
Supersession
This part replaces part number 14499401 which we have in stock
# 020
MPN: 18754324
SCREW
-M10 X 1,25 X 32-
from £0.92
from £0.92
This part replaces part number 18754424
# 020
MPN: 18754424
SCREW
-M10 X 1.25 X 35- -No longer supplied- -Replaced by 18754324-
Supersession
Supersession
# 021
MPN: 269664
WASHER
from £2.21
from £2.21
# 022
MPN: 253910
RH TRANSMISSION HOUSING BUSHING HEAT SHIELD
-No longer supplied- -Replaced by 295117-
from £33.64
from £33.64
# 022
MPN: 295117
RH TRANSMISSION HOUSING BUSHING HEAT SHIELD
from £26.63
from £26.63
# 023
MPN: 253911
LH TRANSMISSION HOUSING BUSHING HEAT SHIELD
-No longer supplied- -Replaced by 295118-
from £33.64
from £33.64
# 023
MPN: 295118
LH TRANSMISSION HOUSING BUSHING HEAT SHIELD
from £26.63
from £26.63
# 024
MPN: 14059114
NUT
from £0.53
from £0.53
# 025
MPN: 12638124
WASHER
from £0.53
from £0.53
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 026
MPN: 11599524
SCREW
-M12 X 1.75 X 45-
from £0.54
from £0.54
# 027
MPN: 12648524
WASHER
from £0.53
from £0.53
