0045 - AC SYSTEM COMPRESSOR

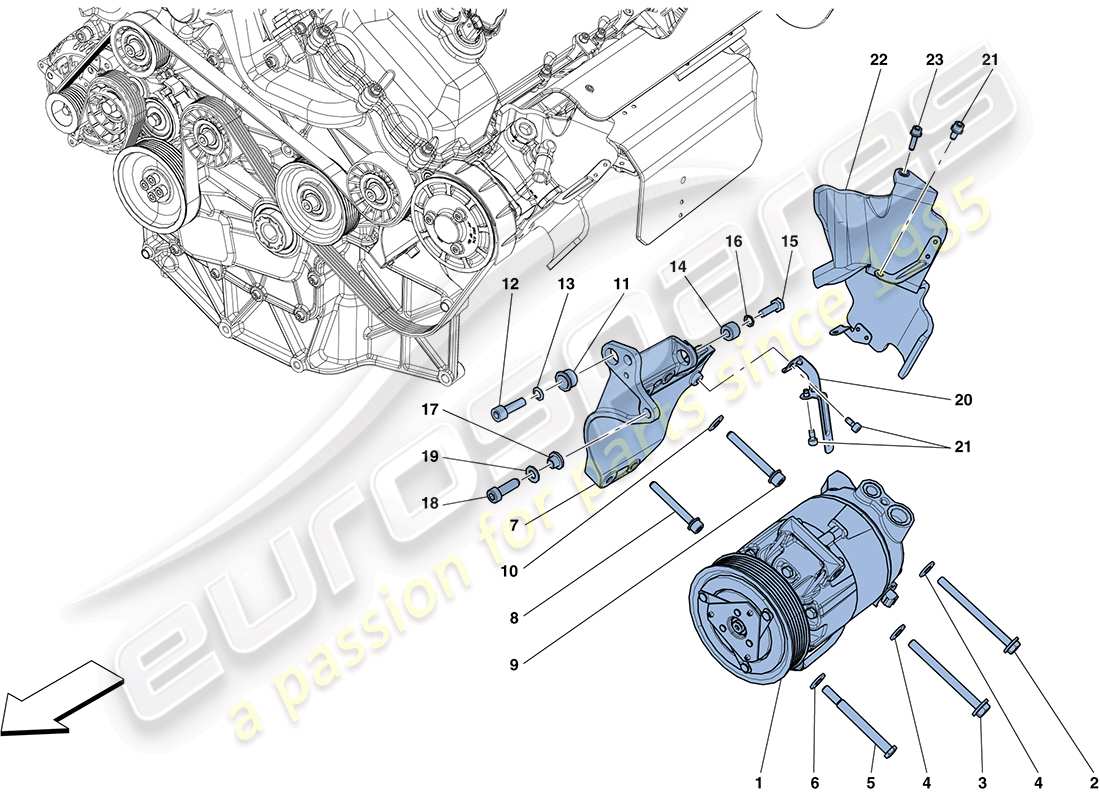

Ferrari FF (RHD) AC SYSTEM COMPRESSOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 265692
AIR CONDITIONING COMPRESSOR
-After depletion order 287796 + bracket 288450 ref.7- -Applicable up to engine No. 211026- -Applicable until depletion-
from £1,289.73
from £1,289.73
# 001
MPN: 287796
AIR CONDITIONING COMPRESSOR
-Applicable from engine No. 211027-
from £720.10
from £720.10
# 002
MPN: 16046134
SCREW
-M8 X 100-
from £0.69
from £0.69
# 003
MPN: 16045024
SCREW
-M8 X 90-
from £0.55
from £0.55
This part replaces part number 125924 - and 1 more. Click to view details
# 004
MPN: 11193874
WASHER
from £0.54
from £0.54
This part replaces part number 11193879 which we have in stock
# 005
MPN: 14306424
SCREW
from £0.53
from £0.53
This part replaces part number 14306324 - and 2 more. Click to view details
# 006
MPN: 11186374
WASHER
from £0.64
from £0.64
# 007
MPN: 248387
BRACKET
-For AC compressor and power steering pump- -Applicable until depletion-
from £153.27
from £153.27
# 007
MPN: 278143
BRACKET
-For AC compressor and power steering pump- -Applicable up to engine No. 211026- -Applicable after depletion of 248387-
from £178.80
from £178.80
This part replaces part number 248387 which we have in stock
# 007
MPN: 288450
BRACKET
-For AC compressor and power steering pump- -Applicable from engine No. 211027- -Applicable until depletion-
Supersession
Supersession
# 007
MPN: 325656
BRACKET
-For AC compressor and power steering pump- -Applicable from engine No. 211027- -Applicable after depletion of 288450-
from £194.27
from £194.27
This part replaces part number 288450
# 008
MPN: 231630
SCREW
-M8 X 65-
from £0.72
from £0.72
# 009
MPN: 14306924
SCREW
-M8 X 50-
from £0.54
from £0.54
This part replaces part number 14306921 which we have in stock
# 010
MPN: 11193874
WASHER
from £0.54
from £0.54
This part replaces part number 11193879 which we have in stock
# 011
MPN: 248389
BUSHING
from £3.39
from £3.39
# 012
MPN: 14306424
SCREW
from £0.53
from £0.53
This part replaces part number 14306324 - and 2 more. Click to view details
# 013
MPN: 178341
WASHER
from £0.54
from £0.54
# 014
MPN: 260393
BUSHING
from £1.72
from £1.72
# 015
MPN: 16043624
SCREW
-M8 X 25-
from £0.53
from £0.53
This part replaces part number 106526 - and 1 more. Click to view details
# 016
MPN: 178341
WASHER
from £0.54
from £0.54
# 017
MPN: 249541
BUSHING
-Applicable for bracket 248387 ref. 7-
from £47.43
from £47.43
# 018
MPN: 13028734
SCREW
-M8 X 25-
from £0.53
from £0.53
This part replaces part number 14814434 which we have in stock
# 019
MPN: 11193874
WASHER
from £0.54
from £0.54
This part replaces part number 11193879 which we have in stock
# 020
MPN: 259273
BRACKET
from £14.97
from £14.97
# 021
MPN: 233600
SCREW
-M6 X 12-
from £0.53
from £0.53
# 022
MPN: 277031
HEAT SHIELD
-Applicable until depletion-
from £43.38
from £43.38
# 022
MPN: 294313
HEAT SHIELD
-Applicable after depletion of 277031-
from £94.14
from £94.14
This part replaces part number 277031 which we have in stock
# 023
MPN: 231618
SCREW
-M6 X 20- -No longer supplied- -Replaced by 231620-
from £0.54
from £0.54
# 023
MPN: 231620
SCREW
-M6 X 25-
from £0.54
from £0.54
