0105 - CHASSIS COMPLETION

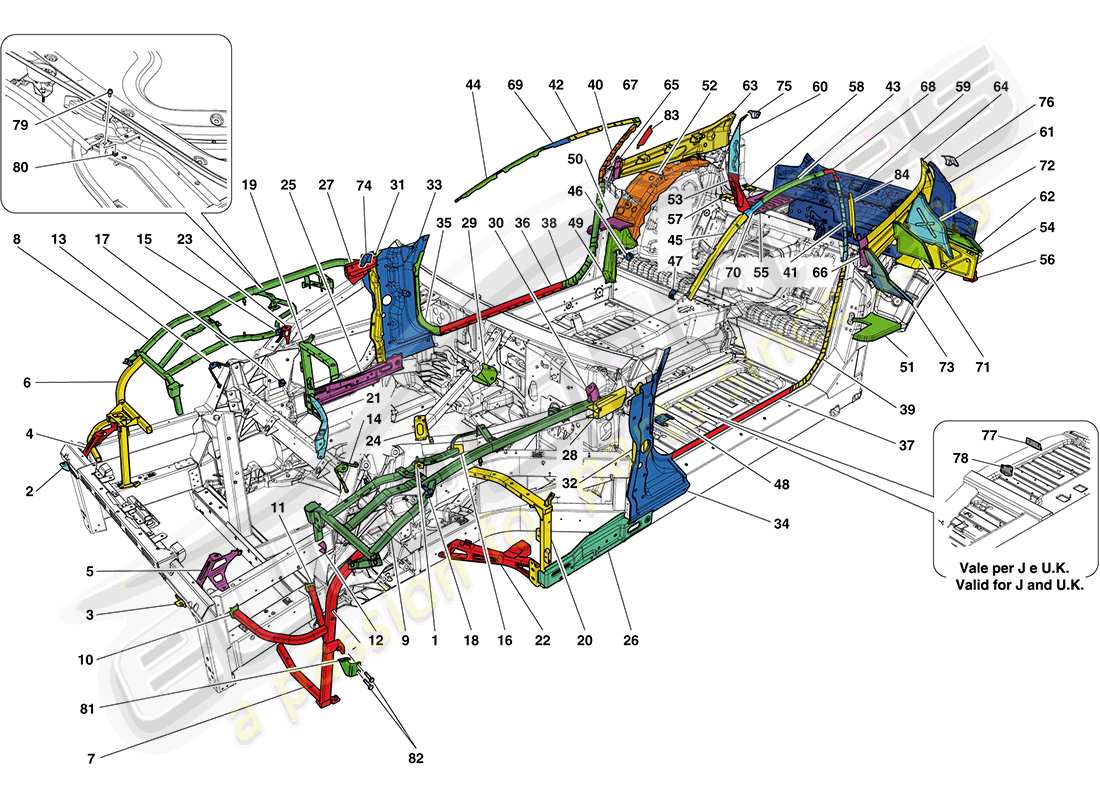

Ferrari FF (RHD) CHASSIS COMPLETION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 272826
ACCELEROMETER MOUNTING BRACKET
from £6.85
from £6.85
# 002
MPN: 82895400
FRONT FASTENER BRACKET FOR RH HEADLIGHT
from £145.95
from £145.95
# 003
MPN: 82895500
FRONT FASTENER BRACKET FOR LH HEADLIGHT
from £145.95
from £145.95
# 004
MPN: 82983200
RH LATERAL BRACKET
from £23.28
from £23.28
# 005
MPN: 82983300
LH LATERAL BRACKET
from £23.28
from £23.28
# 006
MPN: 83243700
FRONT TRELLIS FOR RH HEADLIGHT
from £476.60
from £476.60
# 007
MPN: 83243800
FRONT TRELLIS FOR LH HEADLIGHT
Supersession
Supersession
# 008
MPN: 83552600
FRONT RH FENDER TRELLIS
from £1,205.79
from £1,205.79
# 009
MPN: 83552700
FRONT LH FENDER TRELLIS
from £1,205.79
from £1,205.79
# 010
MPN: 83244900
LOWER FRONT CORNER TUBE CONNECTION
from £146.41
from £146.41
# 011
MPN: 83342500
INTERNAL FRONT CONNECTOR ELEMENT
from £6.19
from £6.19
# 012
MPN: 271344
FRONT WHEEL BAY SHIELD FASTENER BRACKET
from £6.44
from £6.44
# 013
MPN: 272931
RH LATERAL ENGINE SHIELD FASTENER BRACKET
from £8.98
from £8.98
# 014
MPN: 272930
LH LATERAL ENGINE SHIELD FASTENER BRACKET
from £8.98
from £8.98
# 015
MPN: 83557100
MOUNTING FOR INTERNAL RH FRONT FENDER TUBE
from £43.86
from £43.86
# 016
MPN: 83557200
MOUNTING FOR INTERNAL LH FRONT FENDER TUBE
from £43.86
from £43.86
# 017
MPN: 271348
RH REAR WHEEL BAY SHIELD FASTENER BRACKET
from £8.10
from £8.10
# 018
MPN: 271346
LH REAR WHEEL BAY SHIELD FASTENER BRACKET
from £8.10
from £8.10
# 019
MPN: 83450000
RH TRELLIS PILLAR
-Not for GD-
from £417.02
from £417.02
# 019
MPN: 84008900
RH TRELLIS PILLAR
-Applicable for GD-
from £364.90
from £364.90
# 020
MPN: 83450100
LH TRELLIS PILLAR
-Not for GD-
from £417.02
from £417.02
# 020
MPN: 84009000
LH TRELLIS PILLAR
-Applicable for GD-
from £364.90
from £364.90
# 021
MPN: 83783200
RH REAR TRELLIS CROSS-MEMBER
-Request ASM authorisation-
Supersession
Supersession
# 022
MPN: 83783400
LH REAR TRELLIS CROSS-MEMBER
-Request ASM authorisation-
from £77.10
from £77.10
# 023
MPN: 272933
RH LATERAL SHIELD FASTENER BRACKET
from £14.15
from £14.15
# 024
MPN: 272932
LH LATERAL SHIELD FASTENER BRACKET
from £14.15
from £14.15
# 025
MPN: 83033900
LOWER FASTENER BEAM FOR RH FENDER
-Request ASM authorisation-
Supersession
Supersession
# 026
MPN: 83034000
LOWER FASTENER BEAM FOR LH FENDER
-Request ASM authorisation-
Supersession
Supersession
# 027
MPN: 83440700
RH BRACE
from £72.83
from £72.83
# 028
MPN: 83440800
LH BRACE
from £72.83
from £72.83
# 029
MPN: 269275
CENTRAL WINDSCREEN WIPER FASTENER BRACKET
-Not for GD- -No longer supplied- -Replaced by 84563600-
Supersession
Supersession
# 029
MPN: 277953
CENTRAL WINDSCREEN WIPER FASTENER BRACKET
-Applicable for GD-
from £9.71
from £9.71
# 029
MPN: 84563600
CENTRAL WINDSCREEN WIPER FASTENER BRACKET
-Not for GD-
from £18.24
from £18.24
This part replaces part number 269275
# 030
MPN: 269274
LH WINDSCREEN WIPER FASTENER BRACKET
from £19.71
from £19.71
# 031
MPN: 268478
RH PILLAR MOUNTING LIP
from £49.63
from £49.63
# 032
MPN: 268477
LH PILLAR MOUNTING LIP
from £49.63
from £49.63
# 033
MPN: 265592
EXTERNAL RH PILLAR TRUSS
from £108.39
from £108.39
# 034
MPN: 265593
EXTERNAL LH PILLAR TRUSS
from £108.39
from £108.39
# 035
MPN: 81656700
PROFILE LINKING LH PILLAR WITH FLANK
from £328.84
from £328.84
# 035
MPN: 81656800
PROFILE LINKING RH PILLAR WITH FLANK
from £328.84
from £328.84
# 036
MPN: 83251800
LOWER RH PROFILE
from £29.92
from £29.92
# 037
MPN: 83251900
LOWER LH PROFILE
from £29.92
from £29.92
# 038
MPN: 81668200
PROFILE LINKING RH PILLAR WITH FLANK
from £61.59
from £61.59
# 039
MPN: 81668100
PROFILE LINKING LH PILLAR WITH FLANK
from £61.59
from £61.59
# 040
MPN: 83249900
UPPER RH PILLAR CONNECTOR PROFILE
from £36.49
from £36.49
# 041
MPN: 83250000
UPPER LH PILLAR CONNECTOR PROFILE
from £36.49
from £36.49
# 042
MPN: 83249500
RH ROOF BEAM CONNECTOR PROFILE
-Applicable up to Ass. No. 131045-
from £43.79
from £43.79
# 043
MPN: 83249600
LH ROOF BEAM CONNECTOR PROFILE
-Applicable up to Ass. No. 131045-
from £43.79
from £43.79
# 044
MPN: 83249100
UPPER RH CONNECTOR PROFILE
-Applicable up to Ass. No. 131045-
from £37.22
from £37.22
# 045
MPN: 83249200
UPPER LH CONNECTOR PROFILE
-Applicable up to Ass. No. 131045-
from £37.22
from £37.22
# 046
MPN: 261658
REAR SEAT CUSHION BRACKET
from £16.35
from £16.35
# 047
MPN: 272141
FASTENER BRACKET FOR LOWER REAR SEAT SUBSTRUCTURE
from £6.93
from £6.93
# 048
MPN: 253872
BRACKET
from £17.55
from £17.55
# 049
MPN: 83827500
REAR CONNECTOR PLATE FOR RH SILL MEMBER
from £24.97
from £24.97
# 049
MPN: 83827600
REAR CONNECTOR PLATE FOR LH SILL MEMBER
from £24.97
from £24.97
# 050
MPN: 84018600
LATERAL FRONT PARTITION ON RH REAR WHEELHOUSE
from £21.38
from £21.38
# 051
MPN: 84018700
LATERAL FRONT PARTITION ON LH REAR WHEELHOUSE
from £21.38
from £21.38
# 052
MPN: 83356700
RH REAR WHEELHOUSE
from £109.16
from £109.16
# 052
MPN: 83356800
LH REAR WHEELHOUSE
from £101.00
from £101.00
# 053
MPN: 83780500
REAR SHIELD FOR INNER RH REAR WHEELHOUSE
from £191.13
from £191.13
# 054
MPN: 83781400
REAR SHIELD FOR INNER LH REAR WHEELHOUSE
from £191.13
from £191.13
# 055
MPN: 82677500
RH SPARE WHEEL TUB FILLER PANEL
from £511.53
from £511.53
# 056
MPN: 82677600
LH SPARE WHEEL TUB FILLER PANEL
from £548.08
from £548.08
# 057
MPN: 270137
FRONT BRACKET FOR RH LUGGAGE RETAINER HOOK
from £11.67
from £11.67
# 057
MPN: 270139
FRONT BRACKET FOR LH LUGGAGE RETAINER HOOK
from £11.67
from £11.67
# 058
MPN: 270140
REAR BRACKET FOR RH LUGGAGE RETAINER HOOK
from £12.41
from £12.41
# 058
MPN: 270141
REAR BRACKET FOR LH LUGGAGE RETAINER HOOK
from £12.41
from £12.41
# 059
MPN: 83213900
COMPL. BACK PANEL
-Standard- -Applicable up to Ass. No. 105159- -Applicable until depletion-
from £703.71
from £703.71
# 059
MPN: 83881500
COMPL. BACK PANEL
-Version with power assisted tailgate- -Applicable up to Ass. No. 105159- -Applicable until depletion-
from £649.95
from £649.95
# 059
MPN: 84705500
COMPL. BACK PANEL
-Applicable for both Standard version and version with power assisted tailgate- -For vehicles up to Ass.ly No. 105159, also order screw 14304424 (q.ty 2) and washer 11181574 (q.ty 2)- -Not for CINA, USA, CDN, GOLFO, USA LIGHT- -Applicable from Ass. No. 105160-
from £473.97
from £473.97
# 059
MPN: 84821900
COMPL. BACK PANEL
-Applicable for both Standard version and version with power assisted tailgate- -For vehicles up to Ass.ly No. 105159, also order screw 14304424 (q.ty 2) and washer 11181574 (q.ty 2)- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT- -Applicable from Ass. No. 105160-
from £463.41
from £463.41
# 060
MPN: 83738600
RH CONNECTION
from £401.92
from £401.92
# 061
MPN: 83738700
LH CONNECTION
from £401.92
from £401.92
# 062
MPN: 83441600
LH REAR WHEELHOUSE FILLER PANEL
from £234.49
from £234.49
# 063
MPN: 83282800
RH LATERAL SUBSTRUCTURE
from £131.35
from £131.35
# 064
MPN: 83282900
LH LATERAL SUBSTRUCTURE
from £131.35
from £131.35
# 065
MPN: 83251200
CONNECTOR FOR RH LATERAL PILLAR SUBSTRUCTURE
-Applicable up to Ass. No. 131045-
from £16.79
from £16.79
# 065
MPN: 87485400
CONNECTOR FOR RH LATERAL PILLAR SUBSTRUCTURE
-Applicable from Ass. No. 131046-
from £21.21
from £21.21
# 066
MPN: 83251300
CONNECTOR FOR LH LATERAL PILLAR SUBSTRUCTURE
-Applicable up to Ass. No. 131045-
from £16.79
from £16.79
# 066
MPN: 87485100
CONNECTOR FOR LH LATERAL PILLAR SUBSTRUCTURE
-Applicable from Ass. No. 131046-
from £21.21
from £21.21
# 067
MPN: 83251000
RH CONNECTION
-Applicable up to Ass. No. 131045-
from £16.05
from £16.05
# 067
MPN: 87460000
RH CONNECTION
-Applicable from Ass. No. 131046-
from £35.20
from £35.20
# 068
MPN: 83251100
LH CONNECTION
-Applicable up to Ass. No. 131045-
from £16.05
from £16.05
# 068
MPN: 87459900
LH CONNECTION
-Applicable from Ass. No. 131046-
from £35.20
from £35.20
# 069
MPN: 83249300
RH CASTING CONNECTOR PROFILE
-Applicable up to Ass. No. 131045-
from £14.60
from £14.60
# 070
MPN: 83249400
LH CASTING CONNECTOR PROFILE
-Applicable up to Ass. No. 131045-
from £14.60
from £14.60
# 071
MPN: 84019000
RH REAR LATERAL PARTITION
from £21.38
from £21.38
# 071
MPN: 84019100
LH REAR LATERAL PARTITION
from £21.38
from £21.38
# 072
MPN: 82599700
RH EXTERNAL LATERAL SHIELD
from £182.59
from £182.59
# 072
MPN: 82640400
LH EXTERNAL LATERAL SHIELD
from £182.59
from £182.59
# 073
MPN: 84018800
RH CENTRAL LATERAL PARTITION
from £24.93
from £24.93
# 073
MPN: 84018900
LH CENTRAL LATERAL PARTITION
from £24.93
from £24.93
# 074
MPN: 277951
RH WINDSCREEN WIPER FASTENER BRACKET
-Applicable for GD-
from £21.17
from £21.17
# 075
MPN: 84304300
RH BRACKET
from £30.93
from £30.93
# 076
MPN: 84304400
LH BRACKET
from £35.40
from £35.40
# 077
MPN: 281012
NAVIGATOR BRACKET
-Not for Geneva version- -Applicable for J-
from £23.72
from £23.72
# 078
MPN: 281013
REAR NAVIGATOR BRACKET
-Not for Geneva version- -Applicable for J-
from £18.05
from £18.05
# 079
MPN: 14304187
SCREW
-M5 X 12-
from £0.53
from £0.53
This part replaces part number 87658800
# 080
MPN: 14197890
CAGE NUT
from £0.53
from £0.53
# 081
MPN: 82963700
OUTER RH HEADLIGHT FASTENER BRACKET
from £145.95
from £145.95
# 081
MPN: 82963800
OUTER LH HEADLIGHT FASTENER BRACKET
from £145.95
from £145.95
# 082
MPN: 81591700
SCREW
from £1.23
from £1.23
# 083
MPN: 87485500
CONNECTOR FOR RH LOWER REAR B-PILLAR
-Applicable from Ass. No. 131046-
from £19.29
from £19.29
# 084
MPN: 87485200
CONNECTOR FOR LH LOWER REAR B-PILLAR
-Applicable from Ass. No. 131046-
from £19.29
from £19.29
# 085
MPN: 82964900
COMPL. INNER FASTENER BRACKET FOR RH HEADLIGHT
from £39.85
from £39.85
# 085
MPN: 82965000
COMPL. INNER FASTENER BRACKET FOR LH HEADLIGHT
from £39.85
from £39.85
-part-diagram-0106.webp "FERRARI FF (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (RHD) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (RHD) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (RHD) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (RHD) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (RHD) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (RHD) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (RHD) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (RHD) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (RHD) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (RHD) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (RHD) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (RHD) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (RHD) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (RHD) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (RHD) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (RHD) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (RHD) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (RHD) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (RHD) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (RHD) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (RHD) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (RHD) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (RHD) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (RHD) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (RHD) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (RHD) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (RHD) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (RHD) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (RHD) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (RHD) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (RHD) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (RHD) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
