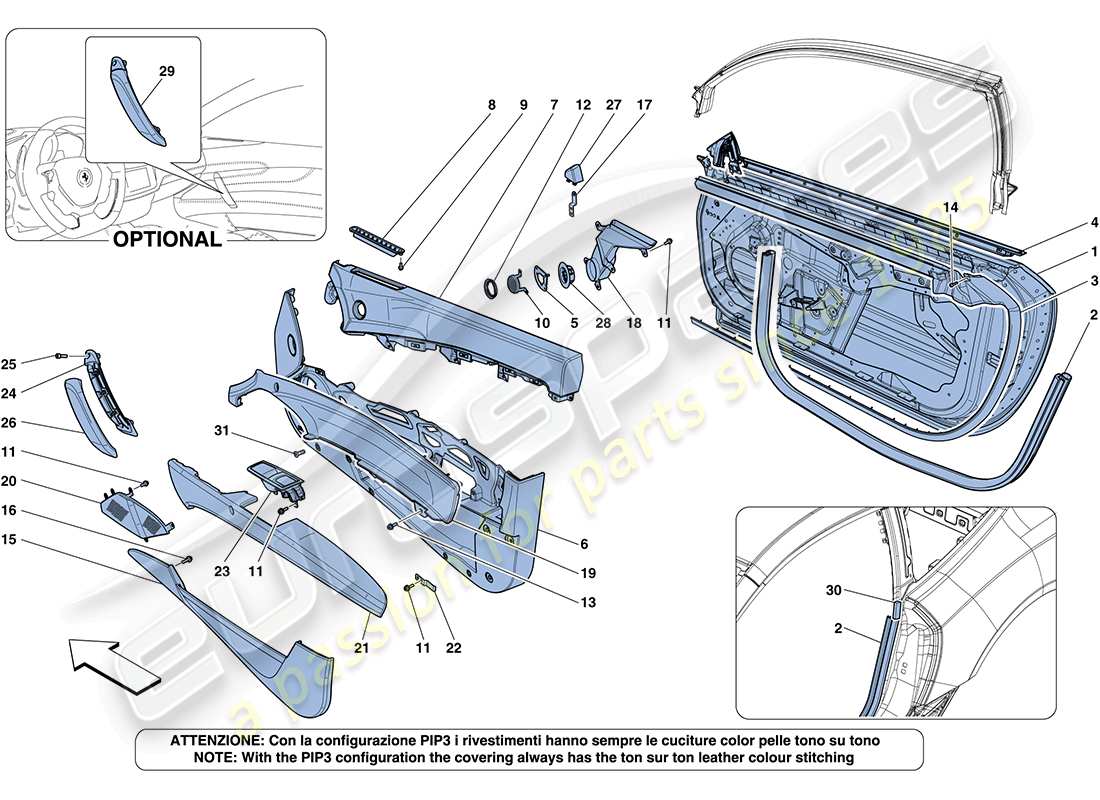

0114 - DOORS - SUBSTRUCTURE AND TRIM
Ferrari FF (RHD) DOORS - SUBSTRUCTURE AND TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 83207711
COMPL. RH LATERAL DOOR
-Not for GD-
from £600.00
from £600.00
# 001
MPN: 83207811
COMPL. LH LATERAL DOOR
-Not for GD-
from £2,214.96
from £2,214.96
# 001
MPN: 83992211
COMPL. RH LATERAL DOOR
-Applicable for GD-
from £2,224.03
from £2,224.03
# 001
MPN: 83992311
COMPL. LH LATERAL DOOR
-Applicable for GD-
from £1,228.52
from £1,228.52
# 002
MPN: 83461800

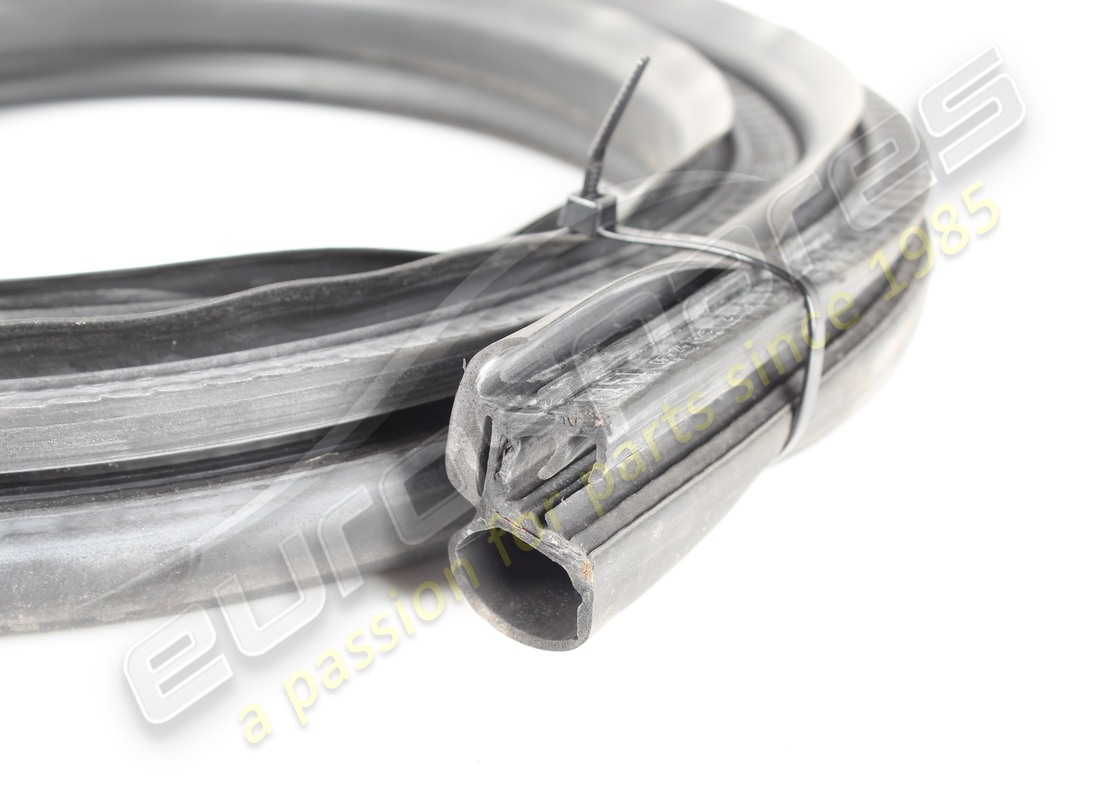

LOWER DOOR PERIMETER SEAL
from £107.68
from £107.68
# 003
MPN: 82208200
RH INT. WINDOW SCRAPER SEAL
-No longer supplied- -Replaced by 84311900-
Supersession
Supersession
# 003
MPN: 82208300
LH INT. WINDOW SCRAPER SEAL
-No longer supplied- -Replaced by 84312000-
Supersession
Supersession
# 003
MPN: 84311900
RH INT. WINDOW SCRAPER SEAL
from £96.73
from £96.73
This part replaces part number 82208200 - and 1 more. Click to view details
# 003
MPN: 84312000
LH INT. WINDOW SCRAPER SEAL
from £96.73
from £96.73
This part replaces part number 82208300 - and 1 more. Click to view details
# 004
MPN: 82208000
RH EXT. WINDOW SCRAPER SEAL
from £141.80
from £141.80
# 004
MPN: 82208100
LH EXT. WINDOW SCRAPER SEAL
from £77.99
from £77.99
# 005
MPN: 82539400
ADAPTOR FOR TWEETER
from £3.21
from £3.21
# 006
MPN: 83698700
RH INNER DOOR TRIM
-Leather Leather- -INTP- -INTS- -DSH5-
from £802.76
from £802.76
# 006
MPN: 83698800
LH INNER DOOR TRIM
-Leather Leather- -INTP- -INTS- -DSH5-
from £802.76
from £802.76
# 007
MPN: 83752700
UPPER PART OF RH DOOR PANEL
-Leather Leather- -INTP- -INTS- -DSH5- -PIP3- -STC1- -STC2-
from £1,308.15
from £1,308.15
UPPER PART OF RH DOOR PANEL Genuine Ferrari Part - Used In stock
DAMAGED ON FIXING BRACKET - in black
DAMAGED ON FIXING BRACKET - in black
# 007
MPN: 83752800
UPPER PART OF LH DOOR PANEL
-Leather Leather- -INTP- -INTS- -DSH5- -PIP3- -STC1- -STC2-
from £2,378.46
from £2,378.46
# 008
MPN: 820149..
RH DEMISTER
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 008
MPN: 820150..
LH DEMISTER
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 009
MPN: 16082301
SCREW
-No longer supplied- -Replaced by 82238700-
from £0.53
from £0.53
# 009
MPN: 82238700
SCREW
from £1.27
from £1.27
# 010
MPN: 830482..
RH DOOR TWEETER GRILLE
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 010
MPN: 835450..
LH DOOR TWEETER GRILLE
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 011
MPN: 68176200
SCREW
-M5 X 10-
from £0.64
from £0.64
This part replaces part number 81911300
# 012
MPN: 83624400
RH CHROME BEZEL
from £6.08
from £6.08
# 012
MPN: 83624500
LH CHROME BEZEL
from £6.08
from £6.08
# 013
MPN: 85691900
SCREW
-M5 X 8-
from £0.51
from £0.51
# 014
MPN: 65752800
SCREW
from £1.56
from £1.56
This part replaces part number 294485 - and 1 more. Click to view details
# 015
MPN: 837011..
EXTERIOR PANEL OF RH DOOR POCKET
-Leather- -STC1- -STC2-
Supersession
Supersession
# 015
MPN: 837012..
EXTERIOR PANEL OF LH DOOR POCKET
-Leather- -STC1- -STC2-
Supersession
Supersession
# 016
MPN: 68176300
SCREW
-M5 X 12- -No longer supplied- -Replaced by 85692200-
from £0.48
from £0.48
This part replaces part number 81911200
# 016
MPN: 85692200
SCREW
-M5 X 12-
from £0.47
from £0.47
# 017
MPN: 83415000
BRACKET
from £29.79
from £29.79
# 018
MPN: 82014700
RH DOOR AIR DUCT
from £32.11
from £32.11
# 018
MPN: 82014800
LH DOOR AIR DUCT
from £32.11
from £32.11
# 019
MPN: 837017..
INTERNAL RH DOOR TRIM INSERT
-Leather- -STC1- -STC2-
Supersession
Supersession
# 019
MPN: 837018..
INTERNAL LH DOOR TRIM INSERT
-Leather- -STC1- -STC2-
Supersession
Supersession
# 019
MPN: 843539..
INTERNAL RH DOOR TRIM INSERT
-Alcantara- -STC1- -STC2-
Supersession
Supersession
# 019
MPN: 843540..
INTERNAL LH DOOR TRIM INSERT
-Alcantara- -STC1- -STC2-
Supersession
Supersession
# 020
MPN: 830871..
RH DOOR WOOFER GRILLE
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 020
MPN: 830872..
LH DOOR WOOFER GRILLE
-See colour grid for associating leather colour with paintwork colour-
Supersession
Supersession
# 021
MPN: 837025..
RH ARMREST
-Leather- -STC1- -STC2-
Supersession
Supersession
# 021
MPN: 837026..
LH ARMREST
-Leather- -STC1- -STC2-
Supersession
Supersession
# 021
MPN: 843541..
RH ARMREST
-Alcantara- -STC1- -STC2-
Supersession
Supersession
# 021
MPN: 843543..
LH ARMREST
-Alcantara- -STC1- -STC2-
# 022
MPN: 82830500
ARMREST BRACKET
from £148.88
from £148.88
# 023
MPN: 82014100
RH DOOR HANDLE
-Not for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
Supersession
Supersession
# 023
MPN: 82014200
LH DOOR HANDLE
-Not for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
Supersession
Supersession
# 023
MPN: 83924400
RH DOOR HANDLE
-Carbon- -Not for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
from £406.81
from £406.81
# 023
MPN: 83924700
LH DOOR HANDLE
-Carbon- -Not for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
from £219.27
from £219.27
# 023
MPN: 83998700
RH DOOR HANDLE
-Applicable for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
Supersession
Supersession
# 023
MPN: 83998800
LH DOOR HANDLE
-Applicable for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
Supersession
Supersession
# 023
MPN: 84238200
LH DOOR HANDLE
-Carbon- -Applicable for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
Supersession
Supersession
# 023
MPN: 84238300
RH DOOR HANDLE
-Carbon- -Applicable for GD- -Applicable up to Ass. No. 108934- -Applicable until depletion-
Supersession
Supersession
# 023
MPN: 84924400
LH DOOR HANDLE
-Not for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 82014200-
from £85.14
from £85.14
This part replaces part number 82014200 - and 1 more. Click to view details
# 023
MPN: 84924500
LH DOOR HANDLE
-Applicable for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 83998800-
from £160.55
from £160.55
This part replaces part number 83998800
# 023
MPN: 84924600
LH DOOR HANDLE
-Carbon- -Not for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 83924700-
from £261.73
from £261.73
This part replaces part number 83924700 which we have in stock
# 023
MPN: 84924700
LH DOOR HANDLE
-Carbon- -Applicable for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 84238200-
from £261.73
from £261.73
This part replaces part number 84238200
# 023
MPN: 84925000
RH DOOR HANDLE
-Not for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 82014100-
from £85.14
from £85.14
This part replaces part number 82014100 - and 1 more. Click to view details
# 023
MPN: 84925100
RH DOOR HANDLE
-Applicable for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 83998700-
from £160.55
from £160.55
This part replaces part number 83998700
# 023
MPN: 84925200
RH DOOR HANDLE
-Carbon- -Not for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 83924400-
from £261.73
from £261.73
This part replaces part number 83924400 which we have in stock
# 023
MPN: 84925300
RH DOOR HANDLE
-Carbon- -Applicable for GD- -Applicable from Ass. No. 108935- -Applicable after depletion of 84238300-
from £261.73
from £261.73
This part replaces part number 84238300
# 024
MPN: 836128..
RH DOOR PULL HANDLE BODY
-Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2-
Supersession
Supersession
# 024
MPN: 836130..
LH DOOR PULL HANDLE BODY
-Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2-
Supersession
Supersession
# 025
MPN: 80731600
SCREW
-M6 X 40-
from £2.52
from £2.52
# 025
MPN: 84340000
SCREW
-M6 X 45- -For carbon version-
from £1.05
from £1.05
# 026
MPN: 839819..
COMPL. RH DOOR PULL HANDLE TRIM
-Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2-
Supersession
Supersession
# 026
MPN: 839820..
COMPL. LH DOOR PULL HANDLE TRIM
-Leather- -PIP3- -Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert- -STC1- -STC2-
Supersession
Supersession
# 027
MPN: 82018600
RH DOOR INNER CORNER TRIANGLE TRIM
-Black-
from £19.84
from £19.84
# 027
MPN: 82018700
LH DOOR INNER CORNER TRIANGLE TRIM
-Black-
from £19.84
from £19.84
# 028
MPN: 83155100
LATERAL AIR VENT SURROUND
from £8.76
from £8.76
# 029
MPN: 84006600
COMPL. LH DOOR PULL
-Carbon- -Applicable until depletion-
from £531.33
from £531.33
# 029
MPN: 84007000
COMPL. RH DOOR PULL
-Carbon- -Applicable until depletion-
from £531.33
from £531.33
# 029
MPN: 85630300
COMPL. LH DOOR PULL
-Carbon- -Applicable after depletion of 84006600-
from £1,153.07
from £1,153.07
This part replaces part number 84006600 which we have in stock
# 029
MPN: 85630400
COMPL. RH DOOR PULL
-Carbon- -Applicable after depletion of 84007000-
from £1,153.07
from £1,153.07
This part replaces part number 84007000 which we have in stock
# 030
MPN: 84599800
PLUG
-L= 70- -Supplied with door seal- -No longer supplied- -Replaced by 84877100-
Supersession
Supersession
# 030
MPN: 84877100
PLUG
-L. 40 mm- -Supplied with door seal-
from £5.99
from £5.99
This part replaces part number 84599800
# 031
MPN: 14441234
SCREW
from £0.51
from £0.51
This part replaces part number 307346
-part-diagram-0115.webp "FERRARI FF (RHD) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (RHD) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (RHD) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (RHD) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (RHD) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (RHD) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (RHD) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (RHD) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (RHD) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (RHD) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (RHD) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (RHD) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (RHD) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (RHD) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (RHD) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (RHD) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (RHD) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (RHD) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (RHD) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (RHD) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (RHD) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (RHD) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (RHD) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (RHD) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (RHD) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (RHD) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (RHD) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (RHD) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (RHD) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (RHD) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (RHD) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (RHD) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (RHD) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (RHD) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (RHD) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (RHD) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (RHD) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (RHD) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (RHD) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (RHD) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (RHD) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (RHD) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (RHD) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (RHD) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (RHD) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (RHD) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (RHD) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (RHD) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (RHD) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (RHD) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (RHD) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (RHD) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (RHD) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (RHD) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (RHD) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (RHD) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (RHD) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (RHD) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (RHD) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (RHD) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (RHD) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (RHD) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (RHD) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (RHD) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (RHD) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (RHD) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (RHD) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (RHD) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (RHD) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (RHD) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (RHD) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (RHD) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (RHD) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (RHD) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (RHD) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (RHD) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (RHD) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (RHD) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (RHD) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (RHD) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (RHD) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (RHD) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (RHD) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (RHD) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (RHD) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
