0130 - Windscreen Wiper, Windscreen Washer and Horns

Ferrari FF (RHD) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS Parts Diagram

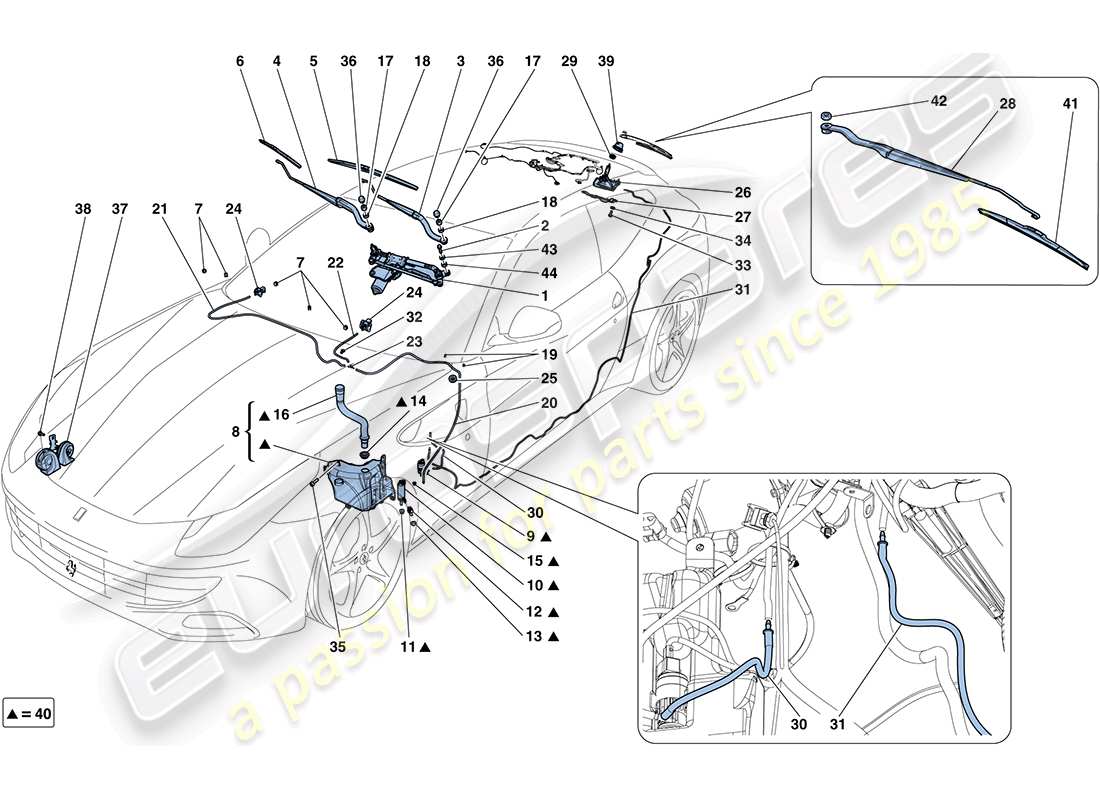

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 84108900
                                            WINDSCREEN WIPER WITH MOTOR AND LINKAGES
                                            -Not for GD-
                                            from £277.75
                                            from £277.75
                                            WINDSCREEN WIPER WITH MOTOR Genuine Ferrari Part - New (to order)
                                            WINDSCREEN WIPER WITH MOTOR Genuine Ferrari Part - Used In stock
                                            # 001
                                            MPN: 84198200
                                            WINDSCREEN WIPER WITH MOTOR AND LINKAGES
                                            -Applicable for GD-
                                            from £764.68
                                            from £764.68
                                            WINDSCREEN WIPER WITH MOTOR Genuine Ferrari Part - New In stock
                                            # 002
                                            MPN: 10903034
                                            SCREW
                                            -M6 X 35-
                                            from £0.53
                                            from £0.53
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 002
                                            MPN: 11612934
                                            SCREW
                                            -M6 X 28- -No longer supplied- -Replaced by 10903034-
                                            from £1.55
                                            from £1.55
                                            SCREW Genuine Ferrari Part - New (to order)
                                            # 003
                                            MPN: 83994400
                                            DRIVER SIDE WINDSCREEN WIPER ARM
                                            -Applicable for GD-
                                            from £182.44
                                            from £182.44
                                            DRIVER SIDE WINDSCREEN WIPER Genuine Ferrari Part - New (to order)
                                            # 003
                                            MPN: 84142200
                                            DRIVER SIDE WINDSCREEN WIPER ARM
                                            -Not for GD-
                                            from £124.06
                                            from £124.06
                                            DRIVER SIDE WINDSCREEN WIPER Genuine Ferrari Part - New (to order)
                                            # 004
                                            MPN: 82196200
                                            PASSENGER SIDE WINDSCREEN WIPER ARM
                                            -Not for GD-
                                            from £114.29
                                            from £114.29
                                            PASSENGER SIDE WINDSCREEN WI Genuine Ferrari Part - New (to order)
                                            # 004
                                            MPN: 83994500
                                            PASSENGER SIDE WINDSCREEN WIPER ARM
                                            -Applicable for GD-
                                            from £92.32
                                            from £92.32
                                            PASSENGER SIDE WINDSCREEN WI Genuine Ferrari Part - New (to order)
                                            PASSENGER SIDE WINDSCREEN WI Genuine Ferrari Part - Used In stock
                                            # 005
                                            MPN: 82196700
                                            DRIVER SIDE WINDSCREEN WIPER BLADE
                                            -Not for GD-
                                            from £55.38
                                            from £55.38
                                            DRIVER SIDE WINDSCREEN WIPER BLADE Genuine Ferrari Part - New In stock
                                            # 005
                                            MPN: 83994600
                                            PASSENGER SIDE WINDSCREEN WIPER BLADE
                                            -Applicable for GD-
                                            from £20.56
                                            from £20.56
                                            PASSENGER SIDE WINDSCREEN WI Genuine Ferrari Part - New (to order)
                                            PASSENGER SIDE WINDSCREEN WI Genuine Ferrari Part - Used In stock
                                            # 006
                                            MPN: 82196500
                                            PASSENGER SIDE WINDSCREEN WIPER BLADE
                                            -Not for GD-
                                            from £42.35
                                            from £42.35
                                            PASSENGER SIDE WINDSCREEN WIPER BLADE Genuine Ferrari Part - New In stock
                                            # 006
                                            MPN: 83994700
                                            DRIVER SIDE WINDSCREEN WIPER BLADE
                                            -Applicable for GD-
                                            from £36.56
                                            from £36.56
                                            DRIVER SIDE WINDSCREEN WIPER Genuine Ferrari Part - New In stock
                                            DRIVER SIDE WINDSCREEN WIPER Genuine Ferrari Part - Used In stock
                                            # 007
                                            MPN: 14501087
                                            CLIP
                                            from £0.51
                                            from £0.51
                                            CLIP Genuine Ferrari Part - New In stock
                                            # 008
                                            MPN: 82197000
                                            COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
                                            -Applicable until depletion-
                                            from £354.03
                                            from £354.03
                                            WINDSCREEN HEADLIGHT WASHER RESERVOIR COMPLETE Genuine Ferrari Part - New (to order)
                                            # 008
                                            MPN: 84028400
                                            COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
                                            -Version with rear windscreen wiper- -Applicable until depletion-
                                            from £326.16
                                            from £326.16
                                            WINDSCREEN HEADLIGHT WASHER RESERVOIR COMPLETE Genuine Ferrari Part - New (to order)
                                            # 009
                                            MPN: 81632900
                                            WINDSCREEN WASHER PUMP
                                            from £41.36
                                            from £41.36
                                            WIPER PUMP Genuine Ferrari Part - New (to order)
                                            WIPER PUMP Genuine Ferrari Part - Used In stock
                                            # 009
                                            MPN: 84028600
                                            DUAL OUTLET SCREEN WASHER PUMP
                                            -Version with rear windscreen wiper-
                                            from £44.89
                                            from £44.89
                                            DUAL OUTLET SCREEN WASHER PU Genuine Ferrari Part - New (to order)
                                            # 010
                                            MPN: 81633000
                                            HEADLIGHT WASHER PUMP
                                            from £52.32
                                            from £52.32
                                            This part replaces part number 81284700 - and 2 more. Click to view details
                                            HEADLIGHTS WASHER PUMP Genuine Ferrari Part - New (to order)
                                            HEADLIGHTS WASHER PUMP Genuine Ferrari Part - Used In stock
                                            # 011
                                            MPN: 65511700
                                            GASKET
                                            from £3.24
                                            from £3.24
                                            GASKET Genuine Ferrari Part - New In stock
                                            GASKET Genuine Maserati Part - New (to order)
                                            # 012
                                            MPN: 81633100
                                            FLUID LEVEL SENSOR
                                            from £39.69
                                            from £39.69
                                            LIQUID LEVEL DETECTOR Genuine Ferrari Part - New (to order)
                                            LIQUID LEVEL DETECTOR Genuine Ferrari Part - Used In stock
                                            # 013
                                            MPN: 81633200
                                            GASKET
                                            -For sensor-
                                            from £12.30
                                            from £12.30
                                            GASKET Genuine Ferrari Part - New (to order)
                                            # 014
                                            MPN: 82198600
                                            FILLER PIPE SEAL
                                            from £14.52
                                            from £14.52
                                            FILLER PIPE SEAL Genuine Ferrari Part - New (to order)
                                            # 015
                                            MPN: 65775100
                                            GASKET
                                            from £3.19
                                            from £3.19
                                            GASKET Genuine Ferrari Part - New In stock
                                            GUARNIZIONE POMPA LAVACRISTA Genuine Maserati Part - New (to order)
                                            # 016
                                            MPN: 82198700
                                            FILLER PIPE
                                            from £33.87
                                            from £33.87
                                            FILLER PIPE Genuine Ferrari Part - New (to order)
                                            # 017
                                            MPN: 10791021
                                            NUT
                                            from £0.53
                                            from £0.53
                                            NUT Genuine Ferrari Part - New In stock
                                            NUT. Genuine Maserati Part - New (to order)
                                            # 018
                                            MPN: 10730514
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 10730521 which we have in stock
                                            WASHER Genuine Ferrari Part - New In stock
                                            MACHINED WASHER D. 10.2 -20X Genuine Maserati Part - New (to order)
                                            # 019
                                            MPN: 14569480
                                            CLIP
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 81580800
                                            CLIP Genuine Ferrari Part - New In stock
                                            WIRE RETAINING CLIP Genuine Maserati Part - New (to order)
                                            # 019
                                            MPN: 217854
                                            CLIP
                                            from £0.54
                                            from £0.54
                                            CLIP Genuine Ferrari Part - New In stock
                                            # 020
                                            MPN: 82199600
                                            PIPE FROM ELECTRIC PUMP
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 021
                                            MPN: 82199700
                                            PIPE FROM VALVE TO RH NOZZLE
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 022
                                            MPN: 82199800
                                            PIPE FROM VALVE TO LH NOZZLE
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 023
                                            MPN: 82984600
                                            CHECK VALVE
                                            from £4.98
                                            from £4.98
                                            CHECK VALVE Genuine Ferrari Part - New (to order)
                                            # 024
                                            MPN: 83480800
                                            SPRAY NOZZLE
                                            -Heated nozzles-
                                            from £35.14
                                            from £35.14
                                            SPRAY NOZZLE Genuine Ferrari Part - New (to order)
                                            # 024
                                            MPN: 84019400
                                            SPRAY NOZZLE
                                            from £2.81
                                            from £2.81
                                            SPRAY NOZZLE Genuine Ferrari Part - New (to order)
                                            # 025
                                            MPN: 10396780
                                            GROMMET
                                            from £1.08
                                            from £1.08
                                            RING Genuine Ferrari Part - New In stock
                                            CABLE GROMMET Genuine Maserati Part - New (to order)
                                            # 026
                                            MPN: 82751800
                                            REAR SCREEN WIPER
                                            -Version with rear windscreen wiper-
                                            from £106.93
                                            from £106.93
                                            REAR SCREEN WIPER Genuine Ferrari Part - New (to order)
                                            REAR SCREEN WIPER Genuine Ferrari Part - Used In stock
                                            # 027
                                            MPN: 83629200
                                            BRACKET
                                            -Version with rear windscreen wiper-
                                            from £26.49
                                            from £26.49
                                            BRACKET Genuine Ferrari Part - New (to order)
                                            BRACKET Genuine Ferrari Part - Used In stock
                                            # 028
                                            MPN: 82752000
                                            REAR SCREEN WIPER ARM
                                            -Version with rear windscreen wiper- -No longer supplied- -Replaced by 84191500-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 028
                                            MPN: 84191500
                                            REAR SCREEN WIPER ARM
                                            -Version with rear windscreen wiper-
                                            from £68.23
                                            from £68.23
                                            This part replaces part number 82752000 - and 1 more. Click to view details
                                            REAR SCREEN WIPER ARM Genuine Ferrari Part - New In stock
                                            REAR SCREEN WIPER ARM Genuine Ferrari Part - Used In stock
                                            # 029
                                            MPN: 82322600
                                            GASKET
                                            -Version with rear windscreen wiper-
                                            from £3.99
                                            from £3.99
                                            GASKET Genuine Ferrari Part - New (to order)
                                            # 030
                                            MPN: 84176500
                                            PIPE FROM RESERVOIR TO DISCONNECTOR UNION
                                            -Version with rear windscreen wiper-
                                            from £72.90
                                            from £72.90
                                            PIPE FROM RESERVOIR TO DISCO Genuine Ferrari Part - New In stock
                                            # 031
                                            MPN: 84176600
                                            COMPL. PASSENGER COMPARTMENT REAR SCREEN WASHER PIPE
                                            -Version with rear windscreen wiper-
                                            from £72.90
                                            from £72.90
                                            COMPLETE PASSENGER COMPARTMENT Genuine Ferrari Part - New (to order)
                                            # 032
                                            MPN: 81097300
                                            CLIP
                                            from £1.61
                                            from £1.61
                                            CLIP Genuine Ferrari Part - New (to order)
                                            # 033
                                            MPN: 11625724
                                            SCREW
                                            -M6 X 16-
                                            from £0.62
                                            from £0.62
                                            SCREW WITH WASHER Genuine Ferrari Part - New In stock
                                            SCREW. Genuine Maserati Part - New In stock
                                            # 034
                                            MPN: 14447021
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 14447001
                                            WASHER Genuine Ferrari Part - New (to order)
                                            # 035
                                            MPN: 81290900
                                            SCREW
                                            -M6 X 20 X 22- -Fastening tank to chassis-
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 67578600
                                            SCREW WITH DOUBLE WASHER M6 x 20 x 22 Genuine Ferrari Part - New (to order)
                                            # 036
                                            MPN: 15811787
                                            PROTECTIVE CAP
                                            from £0.60
                                            from £0.60
                                            PROTECTION BOOT Genuine Ferrari Part - New In stock
                                            PROTECTION BOOT. Genuine Maserati Part - New (to order)
                                            # 037
                                            MPN: 251347
                                            HORN COMPLETE WITH BRACKET
                                            from £26.18
                                            from £26.18
                                            HORN COMPLETE WITH BRACKET Genuine Ferrari Part - New (to order)
                                            # 038
                                            MPN: 16287224
                                            SCREW
                                            -M8 X 25- -No longer supplied- -Replaced by 16287224-
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 16287221
                                            SCREW Genuine Ferrari Part - New In stock
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 038
                                            MPN: 16287224
                                            SCREW
                                            -M8 X 25-
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 16287221
                                            SCREW Genuine Ferrari Part - New In stock
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 039
                                            MPN: 82813100
                                            SPRAY NOZZLE COVER
                                            -No longer supplied- -Replaced by 84307100-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 039
                                            MPN: 84307100
                                            SPRAY NOZZLE COVER
                                            from £1.82
                                            from £1.82
                                            This part replaces part number 82813100
                                            SPRAY NOZZLE COVER Genuine Ferrari Part - New (to order)
                                            # 040
                                            MPN: 82197100
                                            COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
                                            from £120.41
                                            from £120.41
                                            COMPLETE WINDSCREEN /HEADLIGHT Genuine Ferrari Part - New In stock
                                            COMPLETE WINDSCREEN /HEADLIGHT Genuine Ferrari Part - Used In stock
                                            WITHOUT PUMPS
                                            # 040
                                            MPN: 84028500
                                            COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
                                            -Version with rear windscreen wiper-
                                            from £240.84
                                            from £240.84
                                            COMPLETE WINDSCREEN/HEADLIGHT Genuine Ferrari Part - New (to order)
                                            # 041
                                            MPN: 80843800
                                            WINDSCREEN WIPER BLADE
                                            -Version with rear windscreen wiper-
                                            from £34.95
                                            from £34.95
                                            PASSENGER SIDE WINDSCREEN WIPER BRUSH Genuine Ferrari Part - New In stock
                                            # 042
                                            MPN: 13046112
                                            NUT
                                            -Version with rear windscreen wiper-
                                            from £0.54
                                            from £0.54
                                            NUT Genuine Ferrari Part - New In stock
                                            # 043
                                            MPN: 12601274
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                            WASHER Genuine Ferrari Part - New In stock
                                            WASHER Genuine Maserati Part - New In stock
                                            # 044
                                            MPN: 12640624
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 12640601 - and 1 more. Click to view details
                                            WASHER Genuine Ferrari Part - New In stock
                                            WASHER Genuine Maserati Part - New In stock
                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
