0132 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM

Ferrari FF (RHD) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM Parts Diagram

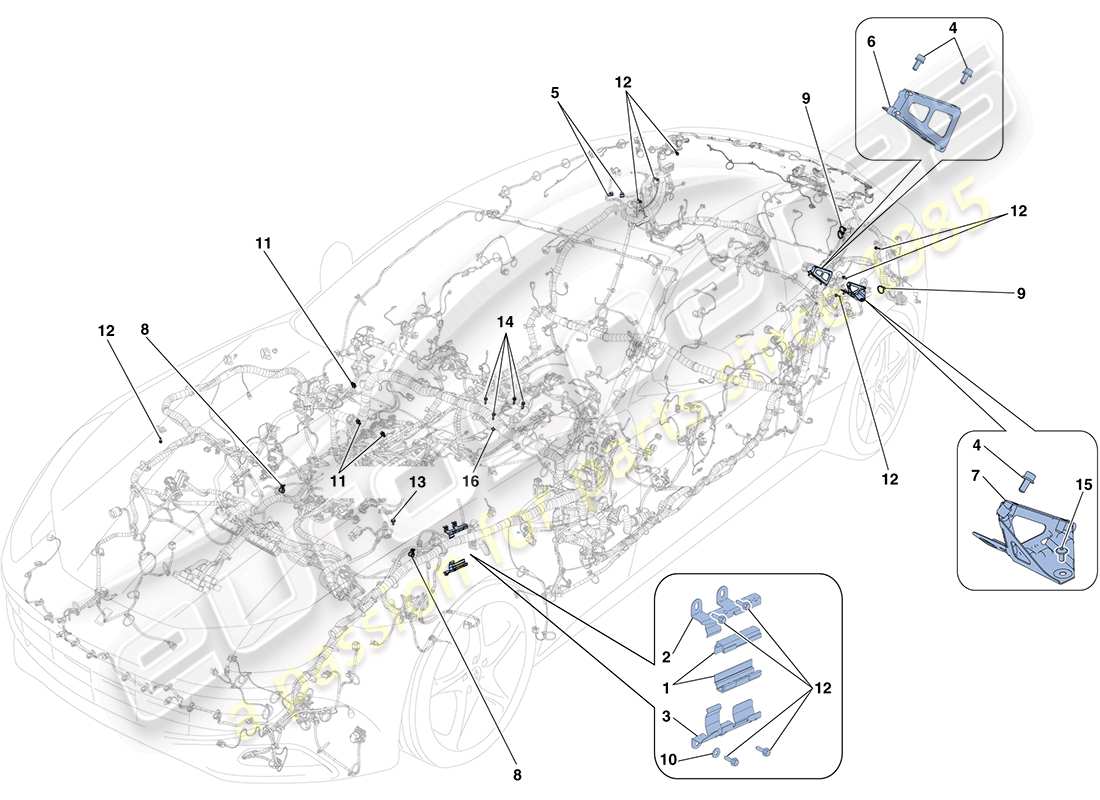

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 191531
                      PLUG
                      from £1.48
                      from £1.48
                      # 002
                      MPN: 275483
                      UPPER BRACKET
                      from £8.40
                      from £8.40
                      # 003
                      MPN: 275484
                      LOWER BRACKET
                      from £8.40
                      from £8.40
                      # 004
                      MPN: 231616
                      SCREW
                      -M6 X 14-
                      from £0.53
                      from £0.53
                      This part replaces part number 14305724 which we have in stock
                      # 005
                      MPN: 266000
                      CLIP
                      from £0.56
                      from £0.56
                      # 006
                      MPN: 271674
                      RH AUDIO AMPLIFIER BRACKET
                      from £18.55
                      from £18.55
                      # 007
                      MPN: 271675
                      LH AUDIO AMPLIFIER BRACKET
                      from £18.54
                      from £18.54
                      # 008
                      MPN: 10441290
                      BRACKET WITH SHEATH
                      -D. 10-
                      from £0.51
                      from £0.51
                      # 009
                      MPN: 10815787
                      RING CLAMP
                      from £0.54
                      from £0.54
                      # 010
                      MPN: 12638124
                      WASHER
                      from £0.54
                      from £0.54
                      This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                      # 011
                      MPN: 14189071
                      BRACKET FOR SCREWS
                      from £0.53
                      from £0.53
                      # 012
                      MPN: 16285127
                      SCREW
                      -M5 X 16- -No longer supplied- -Replaced by 85692300-
                      from £0.50
                      from £0.50
                      # 012
                      MPN: 85692300
                      SCREW
                      -M5 X 20-
                      from £0.47
                      from £0.47
                      This part replaces part number 83914200
                      # 013
                      MPN: 16287024
                      SCREW
                      -M8 X 16-
                      from £0.53
                      from £0.53
                      # 014
                      MPN: 16286124
                      SCREW
                      -M6 X 20-
                      from £0.51
                      from £0.51
                      # 015
                      MPN: 64460500
                      SCREW
                      -M5 X 10- -No longer supplied- -Replaced by 85692000-
                      from £0.84
                      from £0.84
                      # 015
                      MPN: 85692000
                      SCREW
                      -M5 X 10-
                      from £0.54
                      from £0.54
                      # 016
                      MPN: 81744400
                      CLIP
                      from £0.54
                      from £0.54
                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
