0001 - crankcase

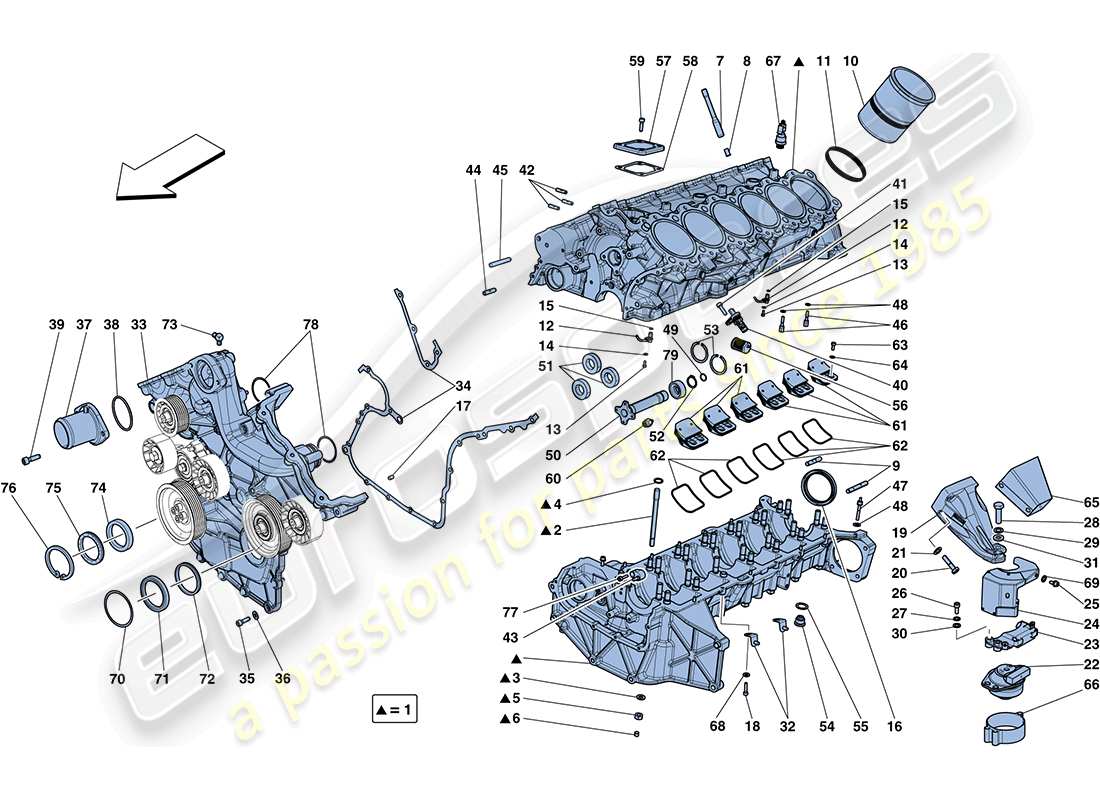

Ferrari FF (USA) CRANKCASE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 268167
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Applicable up to engine No. 175376-
from £4,197.56
from £4,197.56
# 001
MPN: 278465
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Lead free- -Applicable for EU GS, UK- -Applicable from engine No. 175377 up to engine No. 197093-
from £2,153.63
from £2,153.63
# 001
MPN: 289960
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Not for EU GS, UK- -Applicable up to engine No. 197093-
from £4,197.56
from £4,197.56
# 001
MPN: 295394
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Not for EU GS, UK- -Applicable from engine No. 197094- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 295396
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Lead free- -Applicable for EU GS- -Applicable from engine No. 197094 up to engine No. 287242-
from £4,804.10
from £4,804.10
This part replaces part number 295394
# 001
MPN: 295396
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Lead free- -Applicable for UK- -Applicable from engine No. 197094 up to engine No. 286830-
from £4,804.10
from £4,804.10
This part replaces part number 295394
# 001
MPN: 295396
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Not for EU GS, UK- -Applicable from engine No. 197094 up to engine No. 291190-
from £4,804.10
from £4,804.10
This part replaces part number 295394
# 001
MPN: 313700
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Lead free- -Applicable for EU GS- -Applicable from engine No. 287243-
from £6,444.45
from £6,444.45
# 001
MPN: 313700
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Lead free- -Applicable for UK- -Applicable from engine No. 286831-
from £6,444.45
from £6,444.45
# 001
MPN: 313700
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
-Not for EU GS, UK- -Applicable from engine No. 291191-
from £6,444.45
from £6,444.45
# 002
MPN: 190426
STUD BOLT
-M12 X 1.75- -Inner positioning-
from £17.29
from £17.29
# 002
MPN: 217796
STUD BOLT
-M12 X 1.75- -Outer positioning-
from £5.39
from £5.39
This part replaces part number 215652
# 003
MPN: 178348
WASHER
from £0.49
from £0.49
# 004
MPN: 134704
O-RING
from £0.66
from £0.66
# 005
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 006
MPN: 176421
ALIGNMENT DOWEL
from £2.58
from £2.58
# 007
MPN: 217968
STUD BOLT
-Fastening cylinder heads-
from £7.64
from £7.64
This part replaces part number 194755
# 008
MPN: 185360
ALIGNMENT DOWEL
from £1.75
from £1.75
# 009
MPN: 13546734
STUD BOLT
-M10 X 1.25 X 20- -Shank length 40- -Fastening gearbox housing to upper RH zone of crankcase- -No longer supplied- -Replaced by 13546834-
from £0.78
from £0.78
# 009
MPN: 13546834
STUD BOLT
-M10 X 1.25 X 20- -Shank length 45- -Fastening gearbox housing to RH side lower crankcase shell-
from £0.91
from £0.91
# 009
MPN: 13546834
STUD BOLT
-M10 X 1.25 X 20- -Shank length 45- -Fastening gearbox housing to upper RH zone of crankcase-
from £0.92
from £0.92
# 009
MPN: 13546834
STUD BOLT
-M10 X 1.25 X 20- -Shank length 45- -Fastening gearbox housing to upper RH zone of crankcase-
from £0.92
from £0.92
# 009
MPN: 13546934
STUD BOLT
-M10 X 1.25 X 20- -Shank length 50- -Fastening gearbox housing, dowel section-
from £1.20
from £1.20
# 009
MPN: 13547034
STUD BOLT
-M10 X 1.25 X 20- -Shank length 55- -Fastening gearbox housing to RH side lower crankcase shell-
from £1.81
from £1.81
# 009
MPN: 13547234
STUD BOLT
-M10 X 1.25 X 20- -Shank length 65- -Fastening gearbox housing-
from £8.60
from £8.60
# 010
MPN: 266366
CYLINDER SLEEVE
-D. 94-
from £167.71
from £167.71
# 011
MPN: 186251
O-RING
from £1.58
from £1.58
# 012
MPN: 264087
COMPL. PISTON COOLING NOZZLE
from £15.43
from £15.43
This part replaces part number 221381
# 013
MPN: 14302921
SCREW
-M4 X 10-
from £0.50
from £0.50
This part replaces part number 3099423
# 014
MPN: 11181474
WASHER
from £0.50
from £0.50
# 015
MPN: 164877
O-RING
from £0.50
from £0.50
# 016
MPN: 200323
GASKET
from £24.95
from £24.95
This part replaces part number 163989 - and 1 more. Click to view details
# 017
MPN: 175611
ALIGNMENT DOWEL
from £1.16
from £1.16
# 018
MPN: 231620
SCREW
-M6 X 25-
from £0.50
from £0.50
# 019
MPN: 262743
RH ENGINE STRUT
from £347.56
from £347.56
# 019
MPN: 262744
LH ENGINE STRUT
from £191.16
from £191.16
# 020
MPN: 11234734
SCREW
-M10 X 1.25 X 45-
from £0.48
from £0.48
# 021
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 022
MPN: 259756
COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH
from £233.09
from £233.09
# 022
MPN: 259757
COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH
from £233.09
from £233.09
# 023
MPN: 272340
RH BUSH TRAVEL LIMITER BRACKET
-No longer supplied- -Replaced by 280116-
Supersession
Supersession
# 023
MPN: 272341
LH BUSH TRAVEL LIMITER BRACKET
-No longer supplied- -Replaced by 280115-
Supersession
Supersession
# 023
MPN: 280019
LH BUSH TRAVEL LIMITER BRACKET
-Applicable from engine No. 179031- -Applicable after depletion of 280115-
from £42.14
from £42.14
This part replaces part number 280115 - and 1 more. Click to view details
# 023
MPN: 280020
RH BUSH TRAVEL LIMITER BRACKET
-Applicable from engine No. 179031- -Applicable after depletion of 280116-
from £42.14
from £42.14
This part replaces part number 280116 - and 1 more. Click to view details
# 023
MPN: 280115
LH BUSH TRAVEL LIMITER BRACKET
-After depletion, replace as a pair- -Applicable up to engine No. 179030- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 272341
# 023
MPN: 280116
RH BUSH TRAVEL LIMITER BRACKET
-After depletion, replace as a pair- -Applicable up to engine No. 179030- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 272340
# 024
MPN: 272342
RH BUSHING HEAT SHIELD
-No longer supplied- -Replaced by 282736-
from £40.95
from £40.95
# 024
MPN: 272343
LH BUSHING HEAT SHIELD
-No longer supplied- -Replaced by 282738-
from £47.25
from £47.25
# 024
MPN: 282736
RH BUSHING HEAT SHIELD
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 272342 which we have in stock
# 024
MPN: 282738
LH BUSHING HEAT SHIELD
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 272343 which we have in stock
# 024
MPN: 333758
LH BUSHING HEAT SHIELD
-Applicable after depletion of 282738-
from £54.52
from £54.52
This part replaces part number 282738 - and 1 more. Click to view details
# 024
MPN: 336871
RH BUSHING HEAT SHIELD
-Applicable after depletion of 282736-
from £54.52
from £54.52
This part replaces part number 282736 - and 1 more. Click to view details
# 025
MPN: 231616
SCREW
-M6 X 14-
from £0.53
from £0.53
This part replaces part number 14305724 which we have in stock
# 026
MPN: 274859
SCREW
-M10 X 1.25 X 130-
from £8.04
from £8.04
# 027
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 028
MPN: 14422634
SCREW
-M12 X 1.75-
from £1.44
from £1.44
# 029
MPN: 13550521
WASHER
from £0.53
from £0.53
This part replaces part number 107027
# 030
MPN: 14496624
WASHER
-D. 10.5-21 X 2-
from £0.52
from £0.52
This part replaces part number 14496601 - and 2 more. Click to view details
# 031
MPN: 127498
WASHER
from £0.54
from £0.54
This part replaces part number 106854
# 032
MPN: 149694
PIPE MOUNTING BRACKET
-Applicable up to engine No. 189182-
from £3.84
from £3.84
This part replaces part number 223375
# 032
MPN: 226548
PIPE MOUNTING BRACKET
-No longer supplied- -Replaced by 149694-
from £65.68
from £65.68
# 032
MPN: 260001
WIRING HARNESS MOUNTING BRACKET
-Applicable from engine No. 189183-
from £7.74
from £7.74
# 032
MPN: 320585
FASTENER BRACKET FOR RH REAR OXYGEN SENSOR CABLE
from £4.15
from £4.15
# 033
MPN: 261583
FRONT CRANKCASE COVER
-No longer supplied- -Replaced by 319865-
Supersession
Supersession
# 033
MPN: 319865
FRONT CRANKCASE COVER
from £1,031.77
from £1,031.77
This part replaces part number 261583
# 034
MPN: 264402
GASKET BETWEEN CRANKCASE AND FRONT COVER
-Applicable until depletion-
Supersession
Supersession
# 034
MPN: 317647
GASKET BETWEEN CRANKCASE AND FRONT COVER
-Applicable after depletion of 264402-
from £27.00
from £27.00
This part replaces part number 264402
# 035
MPN: 14304824
SCREW
-M6 X 55-
from £0.54
from £0.54
This part replaces part number 14304821
# 035
MPN: 14304824
SCREW
-M6 X 55-
from £0.53
from £0.53
This part replaces part number 14304821
# 035
MPN: 14305524
SCREW
-M6 X 30-
from £0.54
from £0.54
# 035
MPN: 14305924
SCREW
-M6 X 45-
from £0.52
from £0.52
# 035
MPN: 231618
SCREW
-M6 X 20-
from £0.51
from £0.51
# 035
MPN: 231622
SCREW
-M6 X 35-
from £0.53
from £0.53
# 035
MPN: 231625
SCREW
-M6 X 50-
from £0.51
from £0.51
# 036
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 036
MPN: 216292
GASKET
from £2.08
from £2.08
# 037
MPN: 268695
WATER INLET
from £46.12
from £46.12
# 038
MPN: 134907
GASKET
from £1.16
from £1.16
# 039
MPN: 231618
SCREW
-M6 X 20-
from £0.53
from £0.53
# 040
MPN: 276125
RPM SENSOR
from £31.87
from £31.87
# 041
MPN: 231618
SCREW
-M6 X 20-
from £0.54
from £0.54
# 042
MPN: 13516824
STUD BOLT
from £0.50
from £0.50
This part replaces part number 13516821
# 043
MPN: 234002
CHAIN COOLING NOZZLE
from £64.08
from £64.08
# 044
MPN: 13543124
STUD BOLT
-M8 X 16- -Shank length 16 mm-
from £3.98
from £3.98
This part replaces part number 13543121
# 045
MPN: 13543824
STUD BOLT
-M8 X 16- -Shank length 40 mm-
from £2.26
from £2.26
This part replaces part number 13543821
# 046
MPN: 214412
STUD BOLT
from £6.84
from £6.84
# 047
MPN: 219283
STUD BOLT
from £8.60
from £8.60
# 048
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 049
MPN: 186272
GASKET
from £0.54
from £0.54
# 050
MPN: 212592
PUMP ARRAY DRIVE SHAFT
from £135.09
from £135.09
# 051
MPN: 155996
BEARING
from £6.69
from £6.69
# 052
MPN: 11067276
SEEGER RING
from £0.53
from £0.53
# 053
MPN: 11381076
SEEGER RING
from £1.11
from £1.11
This part replaces part number 11060276
# 054
MPN: 104280
MAGNETIC PLUG
from £4.95
from £4.95
This part replaces part number 523977
# 055
MPN: 10261860
GASKET
from £0.54
from £0.54
This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
# 056
MPN: 187162
CENTRAL ENGINE OIL FILTER
from £16.10
from £16.10
# 057
MPN: 208451
INSPECTION HATCH COVER
from £17.74
from £17.74
# 058
MPN: 248026
GASKET
-Applicable until depletion-
Supersession
Supersession
# 058
MPN: 317312
GASKET
-Applicable after depletion of 248026-
from £1.80
from £1.80
This part replaces part number 248026
# 059
MPN: 231618
SCREW
-M6 X 20-
from £0.53
from £0.53
# 060
MPN: 257379
STUD BOLT
-Fastening front cover-
from £5.84
from £5.84
# 061
MPN: 255136
COMPLETE VALVE HOLDER
-No longer supplied- -Replaced by 300580-
from £133.70
from £133.70
This part replaces part number 235830
# 061
MPN: 300580
COMPLETE VALVE HOLDER
from £149.45
from £149.45
# 062
MPN: 154691
GASKET
from £0.88
from £0.88
# 063
MPN: 13026924
SCREW
-M6 X 14-
from £0.50
from £0.50
# 064
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
# 065
MPN: 261068
SHIELD ON ENGINE STRUT
-No longer supplied- -Replaced by 301195-
Supersession
Supersession
# 065
MPN: 301195
SHIELD ON ENGINE STRUT
from £23.36
from £23.36
This part replaces part number 261068 - and 1 more. Click to view details
# 066
MPN: 257168
ENGINE MOUNTING BUSH COLLAR
from £12.60
from £12.60
# 067
MPN: 201207
PRESSURE TRANSMITTER
-No longer supplied- -Replaced by 304074-
Supersession
Supersession
# 067
MPN: 304074
PRESSURE TRANSMITTER
from £127.40
from £127.40
This part replaces part number 201207
# 068
MPN: 11193274
WASHER
from £0.54
from £0.54
This part replaces part number 11193279 which we have in stock
# 069
MPN: 12644424
WASHER
-Applicable for shield 282736 and 282738 ref. 24-
from £0.53
from £0.53
This part replaces part number 12644401 - and 1 more. Click to view details
# 070
MPN: 263649
GASKET
-D. 71.44 X 3.53-
from £5.34
from £5.34
# 071
MPN: 274642
GASKET
-D. 49.5 X 65 X 8-
from £16.28
from £16.28
# 072
MPN: 274641
GASKET
-D. 49.5 X 62 X 7-
from £15.54
from £15.54
# 073
MPN: 271811
CONNECTOR
from £16.71
from £16.71
# 074
MPN: 258593
BEARING
from £12.88
from £12.88
# 075
MPN: 258572
GASKET
-D. 34.9 X 62 X 7-
from £12.77
from £12.77
# 076
MPN: 11061076
SEEGER RING
from £0.60
from £0.60
This part replaces part number 11061075 - and 1 more. Click to view details
# 077
MPN: 282398
SCREW
-M6 X 30- -No longer supplied-
from £0.54
from £0.54
# 078
MPN: 183010
GASKET
from £1.04
from £1.04
# 079
MPN: 184384
GASKET
from £10.05
from £10.05
-part-diagram-0002.webp "FERRARI FF (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (USA) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (USA) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (USA) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (USA) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (USA) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (USA) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (USA) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (USA) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (USA) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (USA) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (USA) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (USA) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (USA) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (USA) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (USA) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (USA) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (USA) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (USA) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (USA) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (USA) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (USA) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (USA) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (USA) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (USA) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (USA) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (USA) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (USA) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (USA) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (USA) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (USA) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (USA) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (USA) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (USA) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (USA) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (USA) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (USA) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (USA) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (USA) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (USA) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (USA) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (USA) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (USA) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (USA) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (USA) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (USA) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (USA) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (USA) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (USA) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (USA) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (USA) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (USA) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (USA) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (USA) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (USA) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (USA) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (USA) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (USA) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (USA) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (USA) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (USA) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
