ferrari ff (usa) timing system - drive parts diagram

0006 - timing system - drive

Ferrari FF (USA) TIMING SYSTEM - DRIVE Parts Diagram

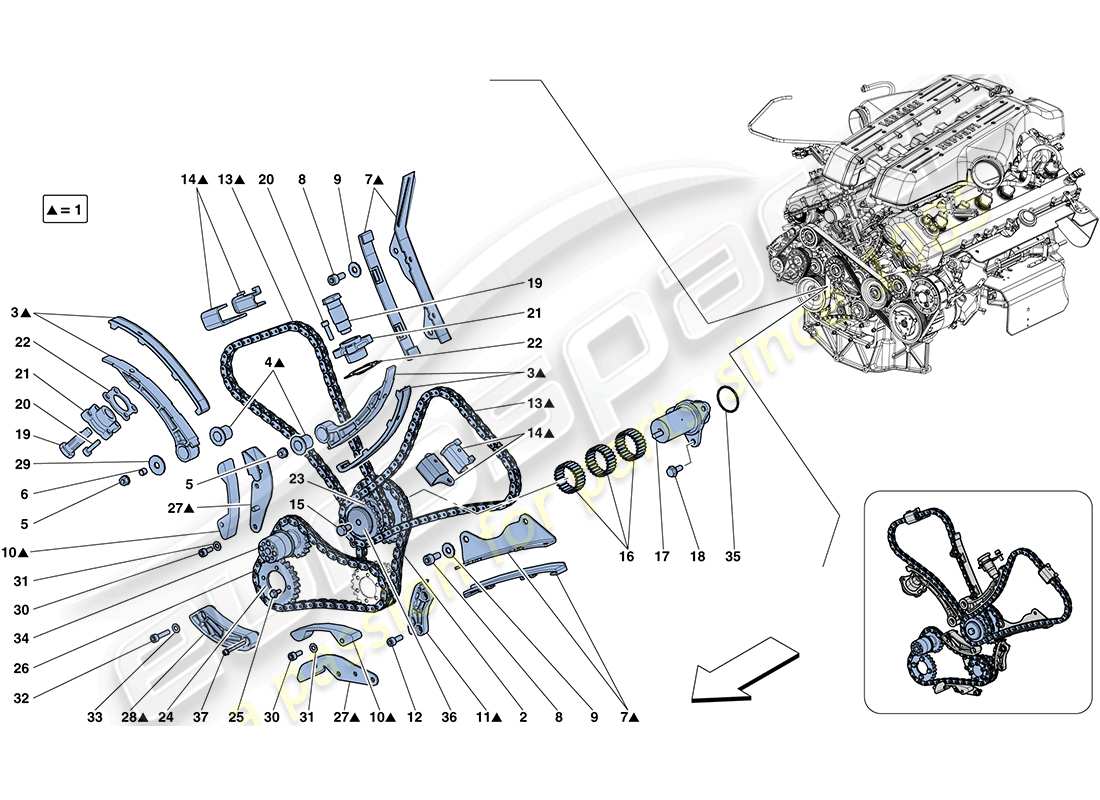

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 258396
                                                VALVE TIMING AND PUMP DRIVE SYSTEM
                                                -Applicable until depletion-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 001
                                                MPN: 316577
                                                VALVE TIMING AND PUMP DRIVE SYSTEM
                                                -Applicable after depletion of 258396-
                                                from £1,133.40
                                                from £1,133.40
                                                This part replaces part number 258396
                                                VALVE TIMING AND PUMP DRIVE Genuine Ferrari Part - New In stock
                                                # 002
                                                MPN: 175286
                                                CHAIN
                                                from £23.79
                                                from £23.79
                                                TRANSMISSION CHAIN. Genuine Ferrari Part - New (to order)
                                                TRANSMISSION CHAIN 23X236X48 Genuine Maserati Part - New (to order)
                                                # 003
                                                MPN: 260614
                                                MOBILE SHOE
                                                from £224.79
                                                from £224.79
                                                MOBILE SHOE Genuine Ferrari Part - New (to order)
                                                # 004
                                                MPN: 175303
                                                BUSHING
                                                from £12.94
                                                from £12.94
                                                BUSHING. Genuine Ferrari Part - New (to order)
                                                MOVABLE RUNNER FAST. BUSHING Genuine Maserati Part - New (to order)
                                                # 005
                                                MPN: 177778
                                                NUT
                                                from £1.01
                                                from £1.01
                                                This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
                                                NUT Genuine Ferrari Part - New In stock
                                                NUT Genuine Maserati Part - New (to order)
                                                # 006
                                                MPN: 183929
                                                BUSHING
                                                from £3.93
                                                from £3.93
                                                BUSHING. Genuine Ferrari Part - New (to order)
                                                # 007
                                                MPN: 198034
                                                FIXED SHOE
                                                from £40.28
                                                from £40.28
                                                FIXED TENSION Genuine Ferrari Part - New (to order)
                                                # 008
                                                MPN: 14306224
                                                SCREW
                                                -M8 X 16-
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 14306221 - and 1 more. Click to view details
                                                SCREW TCEI MM 8X16 Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 009
                                                MPN: 163759
                                                WASHER
                                                from £7.76
                                                from £7.76
                                                WASHER Genuine Ferrari Part - New (to order)
                                                WASHER Genuine Maserati Part - New (to order)
                                                # 010
                                                MPN: 257626
                                                SHOE
                                                from £40.01
                                                from £40.01
                                                SHOE Genuine Ferrari Part - New (to order)
                                                CHAIN TENSIONER Genuine Maserati Part - New (to order)
                                                # 011
                                                MPN: 186181
                                                FIXED SHOE
                                                -Applicable until depletion-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                Genuine Maserati Part (no longer available to order)
                                                # 011
                                                MPN: 306094
                                                FIXED SHOE
                                                -Applicable after depletion of 186181-
                                                from £21.23
                                                from £21.23
                                                This part replaces part number 186181
                                                FIXED SHOE Genuine Ferrari Part - New In stock
                                                Pattino Fisso Genuine Maserati Part - New (to order)
                                                # 012
                                                MPN: 14432224
                                                SCREW
                                                -M6 X 22- -No longer supplied- -Replaced by 231619-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 14432221
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 012
                                                MPN: 231619
                                                SCREW
                                                -M6 X 22-
                                                from £0.53
                                                from £0.53
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New (to order)
                                                # 013
                                                MPN: 254263
                                                CHAIN
                                                from £57.81
                                                from £57.81
                                                CHAIN Genuine Ferrari Part - New (to order)
                                                # 014
                                                MPN: 239566
                                                FIXED SHOE
                                                from £24.87
                                                from £24.87
                                                UPPER FIXED TENSION Genuine Ferrari Part - New (to order)
                                                # 015
                                                MPN: 16043124
                                                SCREW
                                                -M8 X 14-
                                                from £0.30
                                                from £0.30
                                                This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                SCREW Genuine Ferrari Part - Used In stock
                                                Removed from 458 engine 178999
                                                # 016
                                                MPN: 267808
                                                ROLLER BEARING CAGE
                                                from £7.74
                                                from £7.74
                                                ROLLER BEARING CAGE Genuine Ferrari Part - New (to order)
                                                ROLLER CAGE Genuine Maserati Part - New (to order)
                                                # 017
                                                MPN: 267743
                                                MOUNTING
                                                -Applicable up to engine No. 197093-
                                                from £103.57
                                                from £103.57
                                                MOUNTING Genuine Ferrari Part - New (to order)
                                                # 017
                                                MPN: 291974
                                                MOUNTING
                                                -Applicable from engine No. 197094-
                                                from £109.53
                                                from £109.53
                                                MOUNTING Genuine Ferrari Part - New (to order)
                                                # 018
                                                MPN: 13026924
                                                SCREW
                                                -M6 X 14- -Applicable up to engine No. 197093-
                                                from £0.53
                                                from £0.53
                                                SCREW Genuine Ferrari Part - New (to order)
                                                SCREW. Genuine Maserati Part - New (to order)
                                                # 018
                                                MPN: 13027024
                                                SCREW
                                                -M6 X 14- -Applicable from engine No. 197094-
                                                from £0.52
                                                from £0.52
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New In stock
                                                # 019
                                                MPN: 197880
                                                HYDRAULIC TENSIONER
                                                from £42.84
                                                from £42.84
                                                HYDRAULIC TIGHTENER Genuine Ferrari Part - New (to order)
                                                HYDRAULIC TIGHTENER Genuine Ferrari Part - Used In stock
                                                # 020
                                                MPN: 14433124
                                                SCREW
                                                -M6 X 18- -No longer supplied- -Replaced by 231617-
                                                from £0.48
                                                from £0.48
                                                This part replaces part number 14433121
                                                SCREW M6X18 Genuine Ferrari Part - New In stock
                                                SCREW FOR CAM COVER ASSEM Genuine Maserati Part - New In stock
                                                # 020
                                                MPN: 231617
                                                SCREW
                                                -M6 X 18-
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 14433124 which we have in stock
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                # 021
                                                MPN: 252512
                                                BUSHING
                                                from £50.44
                                                from £50.44
                                                BUSHING Genuine Ferrari Part - New (to order)
                                                # 022
                                                MPN: 250055
                                                GASKET
                                                -No longer supplied- -Replaced by 317022-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                # 022
                                                MPN: 317022
                                                GASKET
                                                from £1.73
                                                from £1.73
                                                This part replaces part number 250055
                                                GASKET Genuine Ferrari Part - New (to order)
                                                # 023
                                                MPN: 264129
                                                DRIVE GEAR
                                                from £571.99
                                                from £571.99
                                                DRIVE GEAR Genuine Ferrari Part - New (to order)
                                                # 024
                                                MPN: 187656
                                                PUMP DRIVE GEAR
                                                from £206.83
                                                from £206.83
                                                TOOTHED WHEEL CONTROL PUMP. Genuine Ferrari Part - New (to order)
                                                # 025
                                                MPN: 186668
                                                SCREW
                                                -M5 X 12-
                                                from £8.56
                                                from £8.56
                                                SCREW. Genuine Ferrari Part - New (to order)
                                                # 026
                                                MPN: 253294
                                                CHAIN
                                                from £297.26
                                                from £297.26
                                                CHAIN Genuine Ferrari Part - New (to order)
                                                CHAIN Genuine Ferrari Part - Used In stock
                                                # 027
                                                MPN: 254327
                                                MOUNTING
                                                from £945.98
                                                from £945.98
                                                MOUNTING Genuine Ferrari Part - New (to order)
                                                # 028
                                                MPN: 260615
                                                FIXED SHOE
                                                from £840.06
                                                from £840.06
                                                FIXED SHOE Genuine Ferrari Part - New (to order)
                                                # 029
                                                MPN: 175306
                                                SHOULDER
                                                from £2.51
                                                from £2.51
                                                WASHER. Genuine Ferrari Part - New (to order)
                                                SHOULDERING ON RUNNER FULCRUM Genuine Maserati Part - New (to order)
                                                # 030
                                                MPN: 14305724
                                                SCREW
                                                -M6 X 14- -No longer supplied- -Replaced by 231616-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 11567624 - and 2 more. Click to view details
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 030
                                                MPN: 231616
                                                SCREW
                                                -M6 X 14-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 14305724 which we have in stock
                                                Genuine Ferrari Part (no longer available to order)
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 031
                                                MPN: 11197774
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 032
                                                MPN: 14305424
                                                SCREW
                                                -M6 X 25- -No longer supplied- -Replaced by 231620-
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 14305421 - and 2 more. Click to view details
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 032
                                                MPN: 231620
                                                SCREW
                                                -M6 X 25-
                                                from £0.54
                                                from £0.54
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW WITH WASHE Genuine Maserati Part - New (to order)
                                                # 033
                                                MPN: 11197774
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER Genuine Maserati Part - New In stock
                                                # 034
                                                MPN: 260228
                                                GEAR WHEEL
                                                from £95.08
                                                from £95.08
                                                GEAR WHEEL Genuine Ferrari Part - New (to order)
                                                # 035
                                                MPN: 140071
                                                GASKET
                                                -Applicable up to engine No. 197093-
                                                from £0.51
                                                from £0.51
                                                GASKET Genuine Ferrari Part - New In stock
                                                O-RING D. 29.87- 8X 100 Genuine Maserati Part - New In stock
                                                # 035
                                                MPN: 154191
                                                GASKET
                                                -Applicable from engine No. 197094-
                                                from £0.79
                                                from £0.79
                                                GASKET Genuine Ferrari Part - New In stock
                                                O-RING D. 44.17- 8X 100 Genuine Maserati Part - New In stock
                                                # 036
                                                MPN: 264130
                                                BUSHING
                                                from £57.66
                                                from £57.66
                                                BUSHING Genuine Ferrari Part - New (to order)
                                                # 037
                                                MPN: 14305921
                                                SCREW
                                                -M6 X 45-
                                                from £0.54
                                                from £0.54
                                                SCREW Genuine Ferrari Part - New In stock
                                                Genuine Maserati Part (no longer available to order)
                                                # 037
                                                MPN: 231624
                                                SCREW
                                                -M6 X 45- -No longer supplied- -Replaced by 14305921-
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 14305924
                                                SCREW Genuine Ferrari Part - New (to order)
                                                SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New (to order)
