ferrari ff (usa) secondary air system parts diagram

0008 - secondary air system

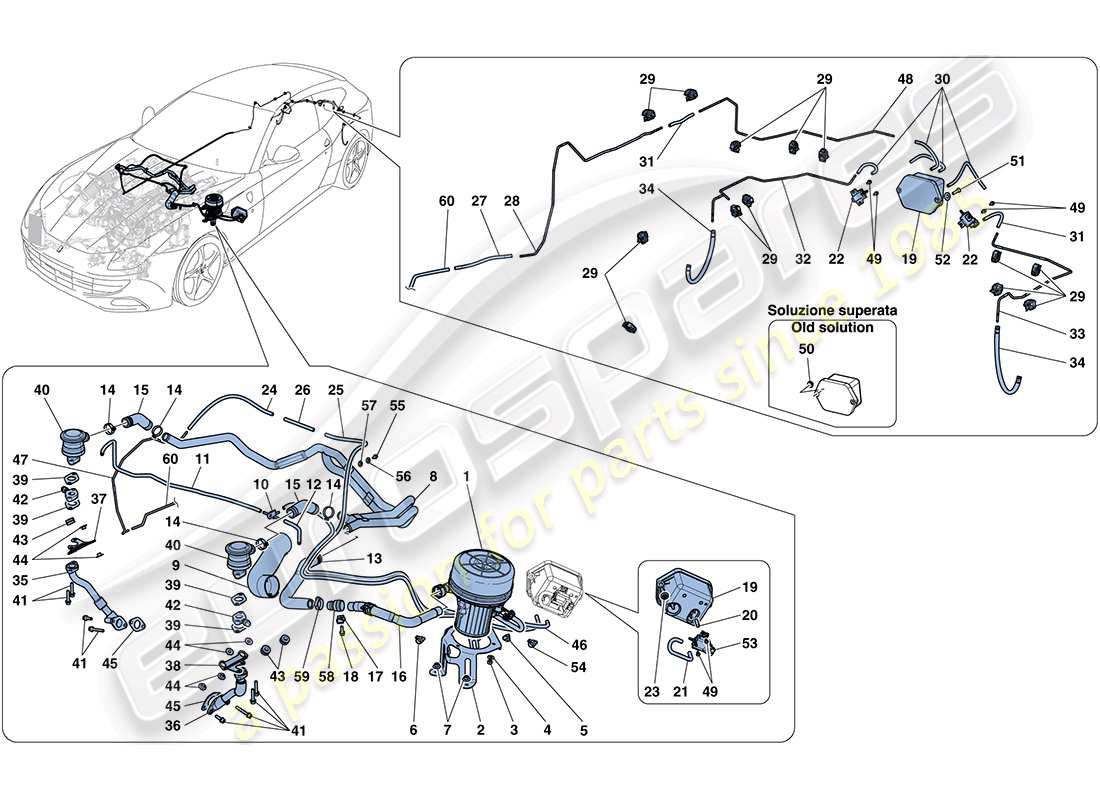

Ferrari FF (USA) SECONDARY AIR SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 247795
                                                                            SECONDARY AIR SYSTEM PUMP
                                                                            from £224.64
                                                                            from £224.64
                                                                            # 002
                                                                            MPN: 269285
                                                                            PUMP MOUNTING BRACKET
                                                                            from £58.17
                                                                            from £58.17
                                                                            # 003
                                                                            MPN: 15896214
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 15896211
                                                                            # 004
                                                                            MPN: 11194674
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 005
                                                                            MPN: 253769
                                                                            CLIP
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 006
                                                                            MPN: 198253
                                                                            CLIP
                                                                            from £2.11
                                                                            from £2.11
                                                                            # 007
                                                                            MPN: 14039614
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 008
                                                                            MPN: 274980
                                                                            ALUMINIUM PIPE
                                                                            from £172.95
                                                                            from £172.95
                                                                            # 009
                                                                            MPN: 276428
                                                                            HEAT REFLECTIVE SLEEVE
                                                                            from £31.48
                                                                            from £31.48
                                                                            # 009
                                                                            MPN: 276435
                                                                            SELF-ADHESIVE ALUMINIUM STRIP
                                                                            from £3.45
                                                                            from £3.45
                                                                            # 010
                                                                            MPN: 257691
                                                                            THREE WAY
                                                                            -Applicable from Ass. No. 100181- -Applicable after depletion of 275374-
                                                                            from £0.79
                                                                            from £0.79
                                                                            This part replaces part number 275374
                                                                            # 010
                                                                            MPN: 275374
                                                                            THREE WAY
                                                                            -After depletion, also order pipe 141235 ref. 12, pipe 122761 ref. 11, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 011
                                                                            MPN: 122761
                                                                            RUBBER PIPE
                                                                            -D. 3.5 X 665- -Between 3-way union and RH pneumatic valve- -Applicable from Ass. No. 100181- -Applicable after depletion of 275542-
                                                                            from £51.38
                                                                            from £51.38
                                                                            This part replaces part number 169700 - and 1 more. Click to view details
                                                                            # 011
                                                                            MPN: 275542
                                                                            RUBBER PIPE
                                                                            -D. 3.5 X 665- -Between 3-way union and RH pneumatic valve- -After depletion, also order three-way connector 257691 ref. 10, pipe 141235 ref. 12, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 012
                                                                            MPN: 141235
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 90- -Between 3-way union and LH pneumatic valve- -Applicable from Ass. No. 100181- -Applicable after depletion of 253376-
                                                                            from £2.07
                                                                            from £2.07
                                                                            This part replaces part number 253376
                                                                            # 012
                                                                            MPN: 253376
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 90- -Between 3-way union and LH pneumatic valve- -After depletion, also order three-way connector 257691 ref. 10, pipe 122761 ref. 11, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 013
                                                                            MPN: 267082
                                                                            CONNECTOR PIPE
                                                                            from £10.70
                                                                            from £10.70
                                                                            # 014
                                                                            MPN: 13432970
                                                                            COLLAR
                                                                            from £0.78
                                                                            from £0.78
                                                                            This part replaces part number 13432908
                                                                            # 015
                                                                            MPN: 261051
                                                                            CONNECTOR PIPE
                                                                            from £37.13
                                                                            from £37.13
                                                                            # 016
                                                                            MPN: 267148
                                                                            COMPL. HOSE
                                                                            from £27.24
                                                                            from £27.24
                                                                            # 017
                                                                            MPN: 267133
                                                                            BRACKET
                                                                            from £12.69
                                                                            from £12.69
                                                                            # 018
                                                                            MPN: 231617
                                                                            SCREW
                                                                            -M6 X 18-
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 14433124 which we have in stock
                                                                            # 019
                                                                            MPN: 198339
                                                                            VACUUM ACCUMULATOR TANK
                                                                            from £15.19
                                                                            from £15.19
                                                                            # 020
                                                                            MPN: 225098
                                                                            CAP FOR UNION
                                                                            from £0.95
                                                                            from £0.95
                                                                            # 021
                                                                            MPN: 115149
                                                                            RUBBER PIPE
                                                                            from £20.17
                                                                            from £20.17
                                                                            # 022
                                                                            MPN: 184363
                                                                            ON/OFF SOLENOID VALVE
                                                                            -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 022
                                                                            MPN: 315769
                                                                            ON/OFF SOLENOID VALVE
                                                                            -Applicable after depletion of 184363-
                                                                            from £28.56
                                                                            from £28.56
                                                                            This part replaces part number 184363
                                                                            # 023
                                                                            MPN: 14039614
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 024
                                                                            MPN: 125826
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 320- -Applicable up to Ass. No. 100180-
                                                                            from £6.12
                                                                            from £6.12
                                                                            # 024
                                                                            MPN: 159542
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 260- -Applicable from Ass. No. 100181 up to Ass. No. 100212-
                                                                            from £1.27
                                                                            from £1.27
                                                                            This part replaces part number 264424 - and 1 more. Click to view details
                                                                            # 024
                                                                            MPN: 194323
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 330- -Applicable from Ass. No. 100213-
                                                                            from £6.84
                                                                            from £6.84
                                                                            # 025
                                                                            MPN: 276433
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 1500-
                                                                            from £25.23
                                                                            from £25.23
                                                                            # 026
                                                                            MPN: 261684
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 95-
                                                                            from £1.84
                                                                            from £1.84
                                                                            This part replaces part number 321333 which we have in stock
                                                                            # 027
                                                                            MPN: 115147
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 170-
                                                                            from £2.95
                                                                            from £2.95
                                                                            This part replaces part number 321332
                                                                            # 028
                                                                            MPN: 269071
                                                                            RIGID PIPE
                                                                            -Applicable up to Ass. No. 102897- -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 028
                                                                            MPN: 280573
                                                                            RIGID PIPE
                                                                            -Applicable from Ass. No. 102898- -Applicable after depletion of 269071-
                                                                            from £39.78
                                                                            from £39.78
                                                                            This part replaces part number 269071
                                                                            # 029
                                                                            MPN: 234284
                                                                            CLIP
                                                                            -1 compartment-
                                                                            from £0.51
                                                                            from £0.51

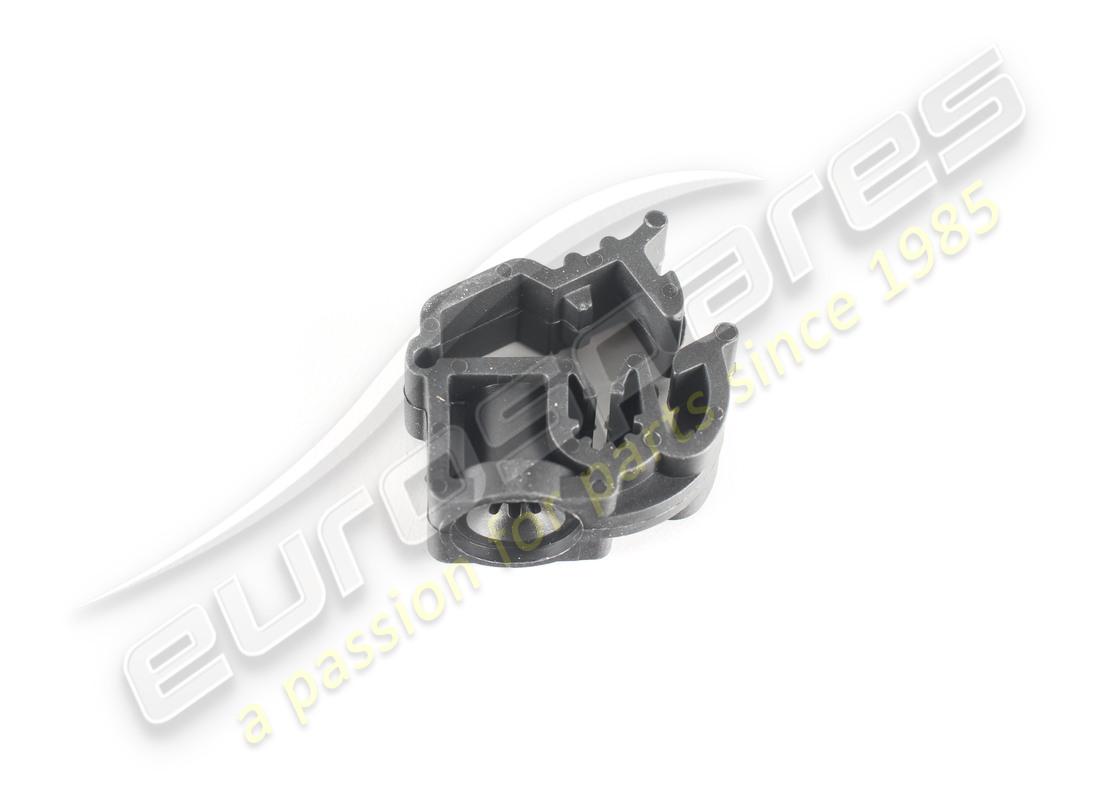

                                                                            # 029
                                                                            MPN: 234285
                                                                            CLIP
                                                                            -2 compartments-
                                                                            from £0.52
                                                                            from £0.52
                                                                            # 030
                                                                            MPN: 255096
                                                                            RUBBER PIPE
                                                                            -D. 3.5 X 140-
                                                                            from £5.41
                                                                            from £5.41
                                                                            # 030
                                                                            MPN: 277038
                                                                            RUBBER PIPE
                                                                            -D. 3.5 X 300-
                                                                            from £16.58
                                                                            from £16.58
                                                                            # 030
                                                                            MPN: 277041
                                                                            RUBBER PIPE
                                                                            -D. 3.5 X 180-
                                                                            from £20.67
                                                                            from £20.67
                                                                            # 031
                                                                            MPN: 199691
                                                                            RUBBER PIPE
                                                                            -D. 3.5 X 120-
                                                                            from £1.59
                                                                            from £1.59
                                                                            # 032
                                                                            MPN: 269074
                                                                            RH RIGID PIPE
                                                                            from £30.62
                                                                            from £30.62
                                                                            # 033
                                                                            MPN: 269073
                                                                            LH RIGID PIPE
                                                                            from £16.45
                                                                            from £16.45
                                                                            # 034
                                                                            MPN: 168069
                                                                            RUBBER PIPE
                                                                            -D. 3-11.5 X 250-
                                                                            from £14.92
                                                                            from £14.92
                                                                            # 035
                                                                            MPN: 257255
                                                                            RH SECONDARY AIR INLET PIPE
                                                                            from £64.01
                                                                            from £64.01
                                                                            # 036
                                                                            MPN: 257256
                                                                            LH SECONDARY AIR INLET PIPE
                                                                            from £67.38
                                                                            from £67.38
                                                                            # 037
                                                                            MPN: 257257
                                                                            RH BRACKET
                                                                            from £7.07
                                                                            from £7.07
                                                                            # 038
                                                                            MPN: 257258
                                                                            LH BRACKET
                                                                            from £7.07
                                                                            from £7.07
                                                                            # 039
                                                                            MPN: 186781
                                                                            GASKET
                                                                            from £2.86
                                                                            from £2.86
                                                                            # 040
                                                                            MPN: 171175
                                                                            SECONDARY AIR SYSTEM VALVE
                                                                            from £101.58
                                                                            from £101.58
                                                                            # 041
                                                                            MPN: 231618
                                                                            SCREW
                                                                            -M6 X 20-
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 041
                                                                            MPN: 231621
                                                                            SCREW
                                                                            -M6 X 30-
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 216568
                                                                            # 041
                                                                            MPN: 231623
                                                                            SCREW
                                                                            -M6 X 40-
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 042
                                                                            MPN: 264020
                                                                            SPACER ASSEMBLY
                                                                            from £19.90
                                                                            from £19.90
                                                                            This part replaces part number 252813 - and 2 more. Click to view details
                                                                            # 043
                                                                            MPN: 177576
                                                                            GROMMET
                                                                            from £1.37
                                                                            from £1.37
                                                                            # 044
                                                                            MPN: 183898
                                                                            FLANGED BUSHING
                                                                            from £1.86
                                                                            from £1.86
                                                                            # 045
                                                                            MPN: 202980
                                                                            GASKET
                                                                            from £1.64
                                                                            from £1.64
                                                                            # 046
                                                                            MPN: 276430
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 1180- -After depletion, also order three-way connector 257691 ref. 10, pipe 141235 ref. 12, pipe 122761 ref. 11- -Applicable up to Ass. No. 100180- -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 046
                                                                            MPN: 279281
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 1180- -Applicable from Ass. No. 100181- -Applicable after depletion of 276430-
                                                                            from £17.52
                                                                            from £17.52
                                                                            This part replaces part number 276430
                                                                            # 047
                                                                            MPN: 276506
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 730- -Applicable up to Ass. No. 100212-
                                                                            from £25.23
                                                                            from £25.23
                                                                            # 047
                                                                            MPN: 280051
                                                                            RUBBER PIPE
                                                                            -D. 3.5 -8mm- -Applicable from Ass. No. 100213- -No longer supplied- -Replaced by 289048-
                                                                            Supersession
                                                                            Supersession
                                                                            # 047
                                                                            MPN: 289048
                                                                            RUBBER PIPE
                                                                            -D. 3.5-8 X 950-
                                                                            from £38.84
                                                                            from £38.84
                                                                            This part replaces part number 280051
                                                                            # 048
                                                                            MPN: 269072
                                                                            RIGID PIPE
                                                                            from £16.65
                                                                            from £16.65
                                                                            # 049
                                                                            MPN: 15516204
                                                                            SCREW
                                                                            -M4 X 12-
                                                                            from £0.52
                                                                            from £0.52
                                                                            # 050
                                                                            MPN: 14059111
                                                                            NUT
                                                                            -Applicable up to Ass. No. 105159-
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 051
                                                                            MPN: 14304424
                                                                            SCREW
                                                                            -Applicable from Ass. No. 105160-
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 052
                                                                            MPN: 11181574
                                                                            WASHER
                                                                            -Applicable from Ass. No. 105160-
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 053
                                                                            MPN: 184363
                                                                            ON/OFF SOLENOID VALVE
                                                                            -Applicable up to Ass. No. 106476- -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 053
                                                                            MPN: 283001
                                                                            SOLENOID VALVE COMPLETE WITH PIPE
                                                                            -Applicable from Ass. No. 106477-
                                                                            from £148.25
                                                                            from £148.25
                                                                            # 053
                                                                            MPN: 315769
                                                                            ON/OFF SOLENOID VALVE
                                                                            -Applicable up to Ass. No. 106476- -Applicable after depletion of 184363-
                                                                            from £28.56
                                                                            from £28.56
                                                                            This part replaces part number 184363
                                                                            # 054
                                                                            MPN: 262559
                                                                            CLIP
                                                                            from £0.56
                                                                            from £0.56
                                                                            # 055
                                                                            MPN: 14305124
                                                                            SCREW
                                                                            -No longer supplied- -Replaced by 233600-
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 14305121
                                                                            # 055
                                                                            MPN: 233600
                                                                            SCREW
                                                                            -M6 X 12-
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 056
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 057
                                                                            MPN: 12643724
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                            # 058
                                                                            MPN: 249483
                                                                            COUPLING
                                                                            from £2.00
                                                                            from £2.00
                                                                            # 059
                                                                            MPN: 13432970
                                                                            COLLAR
                                                                            from £0.83
                                                                            from £0.83
                                                                            This part replaces part number 13432908
                                                                            # 060
                                                                            MPN: 268394
                                                                            EMISSION CONTROL SYSTEM PIPE, REAR UNDERBODY SECTION
                                                                            from £51.31
                                                                            from £51.31
