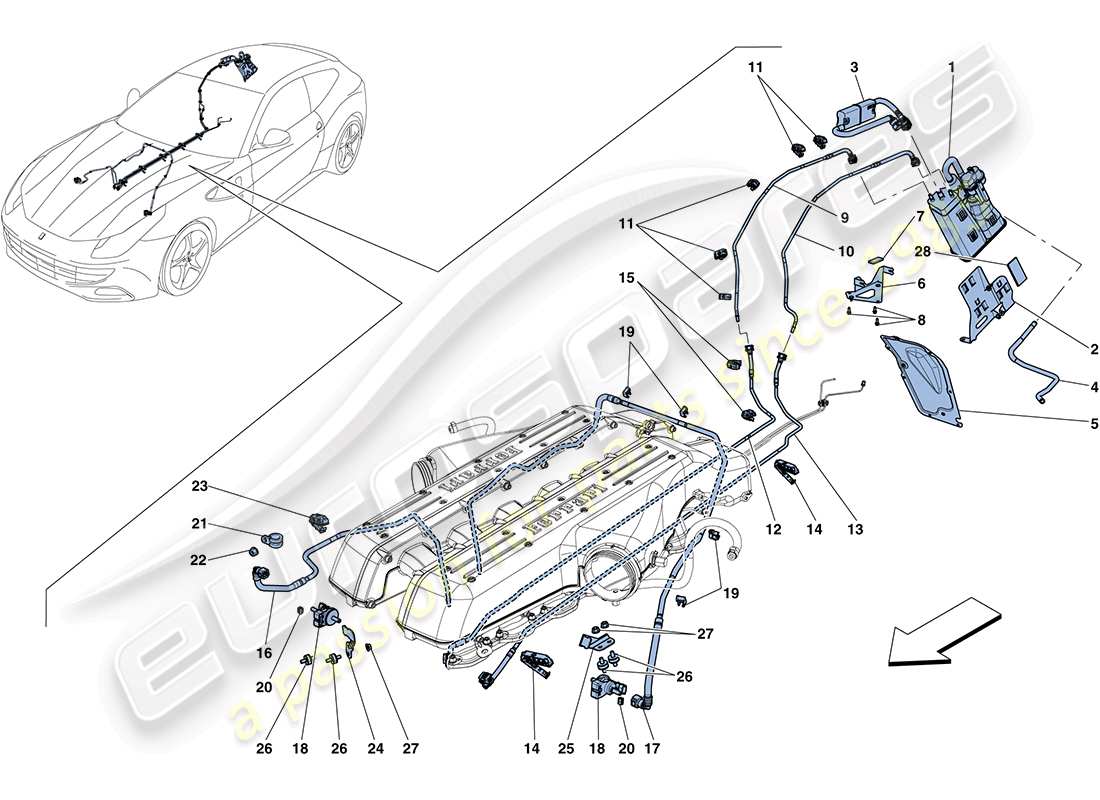

Ferrari FF (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 260616

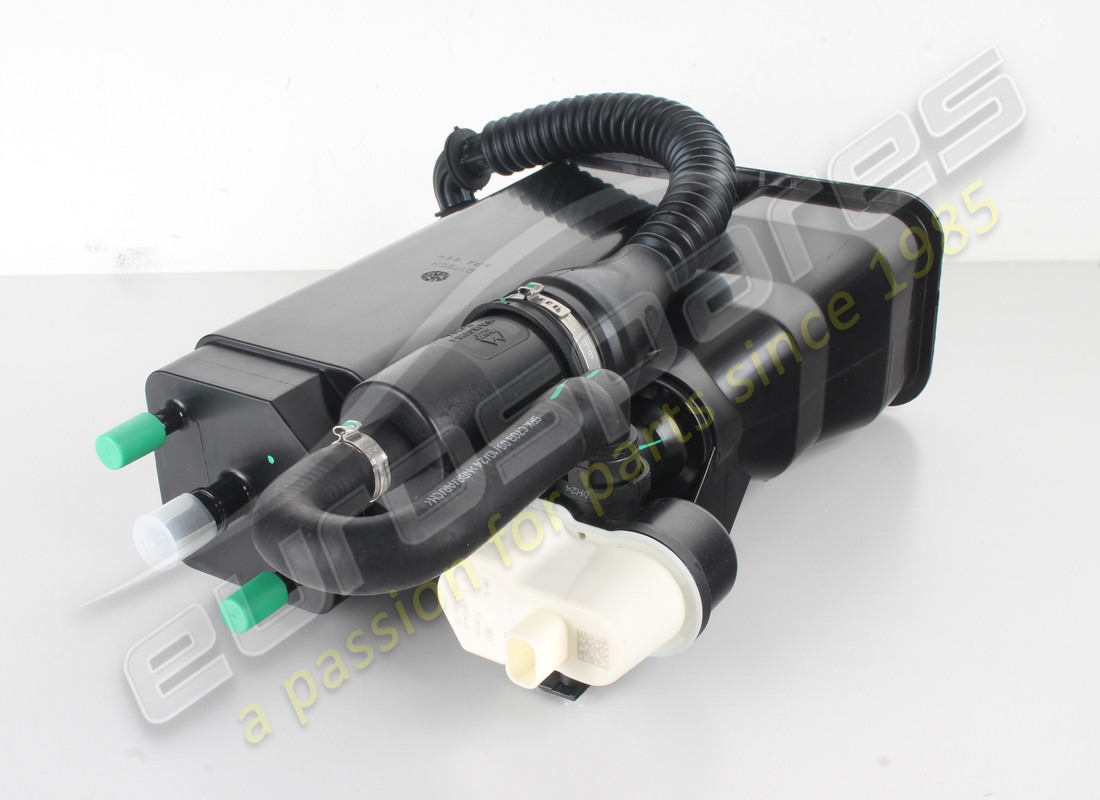

                                COMPL. VAPOUR FILTER WITH DIAGNOSTIC SOCKET
                                -Applicable up to Ass. No. 100985-
                                Supersession
                                Supersession
                                This part replaces part number 250402 - and 2 more. Click to view details
                                # 001
                                MPN: 278734
                                COMPL. VAPOUR FILTER WITH DIAGNOSTIC SOCKET
                                -Applicable from Ass. No. 100986- -No longer supplied- -Replaced by 282523-
                                Supersession
                                Supersession
                                # 001
                                MPN: 282523
                                COMPL. VAPOUR FILTER WITH DIAGNOSTIC SOCKET
                                -Replaces 278734-
                                from £161.32
                                from £161.32
                                This part replaces part number 278734 - and 1 more. Click to view details
                                # 002
                                MPN: 272252
                                COMPL. CANISTER BRACKET
                                -Applicable up to Ass. No. 102075- -Applicable until depletion-
                                Supersession
                                Supersession
                                # 002
                                MPN: 282521
                                COMPL. CANISTER BRACKET
                                -Applicable from Ass. No. 102076- -Applicable after depletion of 272252-
                                from £46.05
                                from £46.05
                                This part replaces part number 272252
                                # 003
                                MPN: 266580
                                VAPOUR SEPARATOR KIT
                                from £62.69
                                from £62.69
                                # 004
                                MPN: 274347
                                OBD AIR FILTER INLET PIPE
                                from £24.97
                                from £24.97
                                # 005
                                MPN: 84177700
                                CANISTER PROTECTION COVER
                                from £124.25
                                from £124.25
                                # 006
                                MPN: 272338
                                VAPOUR SEPARATOR BRACKET
                                from £26.94
                                from £26.94
                                # 007
                                MPN: 217156
                                RUBBER SHIM
                                from £0.54
                                from £0.54
                                # 008
                                MPN: 11568027
                                SCREW
                                -M6 X 18-
                                from £0.82
                                from £0.82
                                # 009
                                MPN: 266583
                                RH FLUSH PIPE, REAR SECTION
                                -Applicable until depletion-
                                from £22.70
                                from £22.70
                                # 009
                                MPN: 292199
                                RH FLUSH PIPE, REAR SECTION
                                -Applicable after depletion of 266583-
                                from £27.10
                                from £27.10
                                This part replaces part number 266583 which we have in stock - and 1 more. Click to view details
                                # 010
                                MPN: 266584
                                LH FLUSH PIPE, REAR SECTION
                                -Applicable until depletion-
                                from £22.70
                                from £22.70
                                # 010
                                MPN: 292200
                                LH FLUSH PIPE, REAR SECTION
                                -Applicable after depletion of 266584-
                                from £27.10
                                from £27.10
                                This part replaces part number 266584 which we have in stock - and 1 more. Click to view details
                                # 011
                                MPN: 244277
                                CLIP
                                from £0.69
                                from £0.69
                                # 012
                                MPN: 268392
                                RH FLUSH PIPE, UNDERBODY SECTION
                                -Applicable until depletion-
                                from £30.49
                                from £30.49
                                # 012
                                MPN: 292198
                                RH FLUSH PIPE, UNDERBODY SECTION
                                -Applicable after depletion of 268392-
                                from £32.40
                                from £32.40
                                This part replaces part number 268392 which we have in stock - and 1 more. Click to view details
                                # 013
                                MPN: 268393
                                LH FLUSH PIPE, UNDERBODY SECTION
                                -Applicable until depletion-
                                from £34.41
                                from £34.41
                                # 013
                                MPN: 292197
                                LH FLUSH PIPE, UNDERBODY SECTION
                                -Applicable after depletion of 268393-
                                from £32.40
                                from £32.40
                                This part replaces part number 268393 which we have in stock - and 1 more. Click to view details
                                # 014
                                MPN: 241118
                                CLIP
                                -5 compartments-
                                from £0.76
                                from £0.76
                                # 015
                                MPN: 234285
                                CLIP
                                -2 compartments-
                                from £0.54
                                from £0.54
                                # 015
                                MPN: 244277
                                CLIP
                                from £0.70
                                from £0.70
                                # 016
                                MPN: 270782
                                RH FLUSH PIPE
                                -Applicable until depletion-
                                Supersession
                                Supersession
                                # 016
                                MPN: 292201
                                RH FLUSH PIPE
                                -Applicable after depletion of 270782-
                                from £51.38
                                from £51.38
                                This part replaces part number 270782
                                # 017
                                MPN: 272393
                                LH FLUSH PIPE
                                -Applicable until depletion-
                                Supersession
                                Supersession
                                # 017
                                MPN: 292202
                                LH FLUSH PIPE
                                -Applicable after depletion of 272393-
                                from £28.26
                                from £28.26
                                This part replaces part number 272393 - and 1 more. Click to view details
                                # 018
                                MPN: 254425
                                FLUSH VALVE
                                from £14.33
                                from £14.33
                                This part replaces part number 237683 - and 3 more. Click to view details
                                # 019
                                MPN: 206536
                                CLIP
                                from £0.52
                                from £0.52
                                # 019
                                MPN: 235682
                                CLIP
                                -No longer supplied- -Replaced by 206536-
                                from £0.52
                                from £0.52
                                # 020
                                MPN: 254427
                                CLIP
                                from £0.53
                                from £0.53
                                # 021
                                MPN: 10441290
                                BRACKET WITH SHEATH
                                -D. 10-
                                from £0.53
                                from £0.53
                                # 022
                                MPN: 13046012
                                NUT
                                from £1.59
                                from £1.59
                                # 023
                                MPN: 244277
                                CLIP
                                from £0.70
                                from £0.70
                                # 024
                                MPN: 275616
                                BRACKET FOR RH FLUSH VALVE
                                from £7.29
                                from £7.29
                                # 025
                                MPN: 275615
                                BRACKET FOR LH FLUSH VALVE
                                from £7.29
                                from £7.29
                                # 026
                                MPN: 225408
                                CYLINDRICAL BUSHING
                                from £4.32
                                from £4.32
                                # 027
                                MPN: 14059214
                                NUT
                                from £0.53
                                from £0.53
                                # 028
                                MPN: 255515
                                VIBRATION DAMPER
                                from £1.24
                                from £1.24
                                This part replaces part number 84069800 which we have in stock - and 1 more. Click to view details
