0012 - INTAKE MANIFOLD

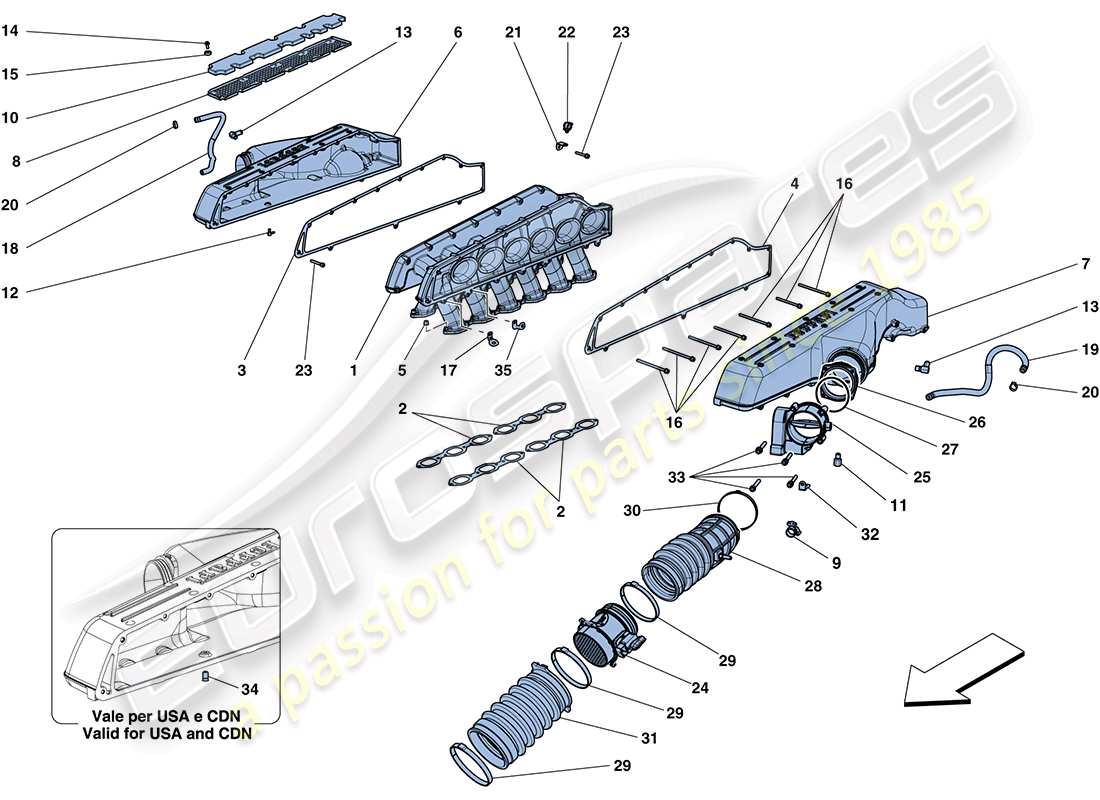

Ferrari FF (USA) INTAKE MANIFOLD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 271909
COMPL. INTAKE MANIFOLD
-Applicable up to engine No. 176320-
from £1,921.62
from £1,921.62
# 001
MPN: 280957
COMPL. INTAKE MANIFOLD
-Applicable from engine No. 176321-
from £2,676.51
from £2,676.51

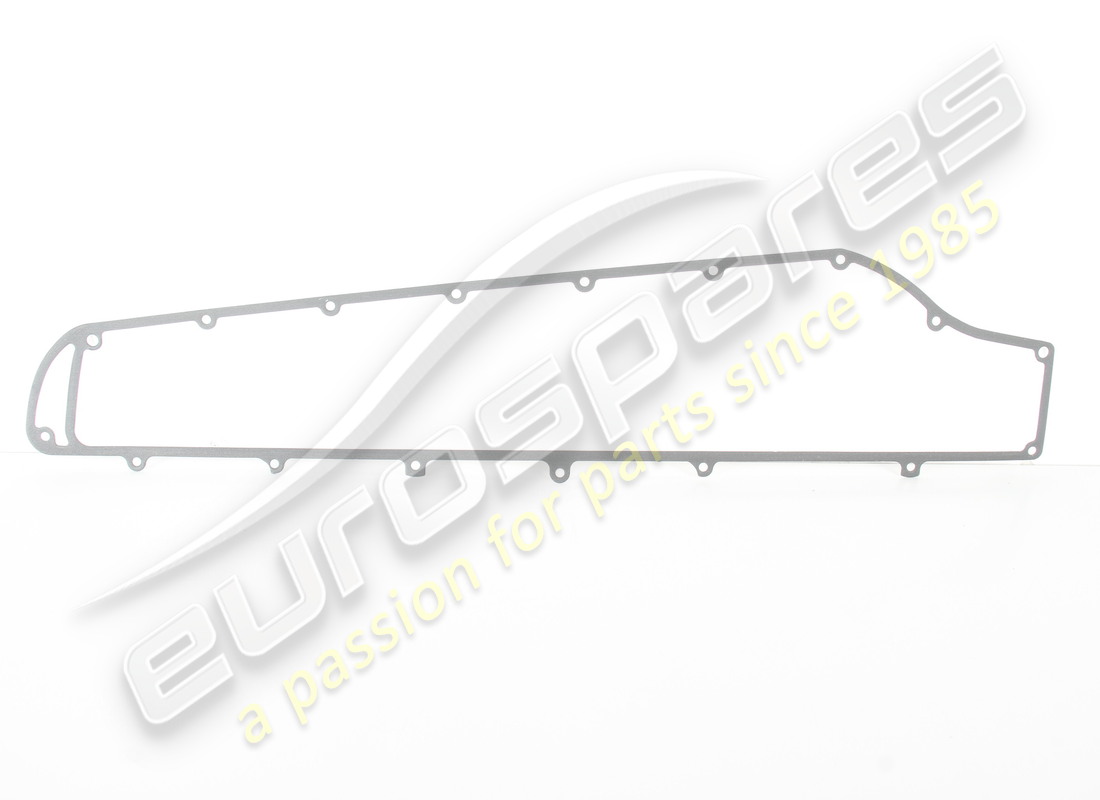

# 002
MPN: 259680
GASKET
-Applicable until depletion-
Supersession
Supersession

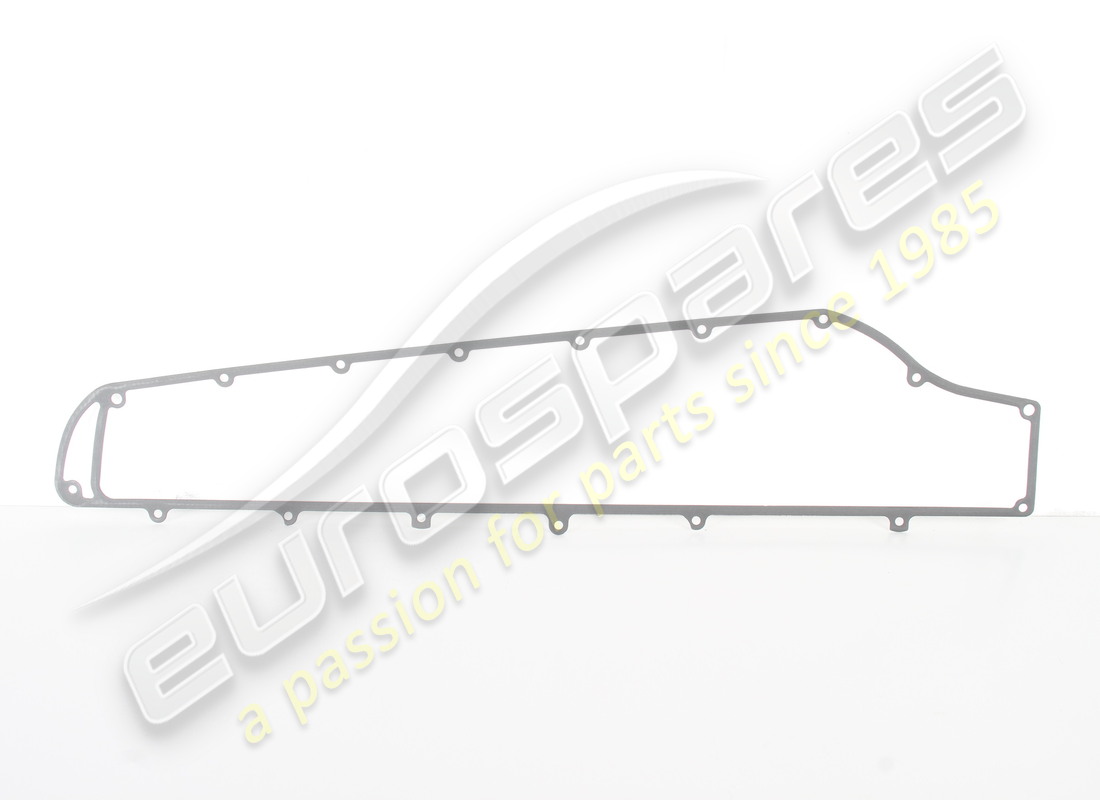

# 002
MPN: 318409
GASKET
-Applicable after depletion of 259680-
from £138.97
from £138.97
This part replaces part number 259680
# 003
MPN: 276948
RH SEAL
-Applicable until depletion-
Supersession
Supersession
# 003
MPN: 317648
RH SEAL
-Applicable after depletion of 276948-
from £37.60
from £37.60
This part replaces part number 276948
# 004
MPN: 276946
LH SEAL
-Applicable until depletion-
Supersession
Supersession
# 004
MPN: 317649
LH SEAL
-Applicable after depletion of 276946-
from £37.60
from £37.60
This part replaces part number 276946
# 005
MPN: 228265
NUT
from £0.51
from £0.51
# 006

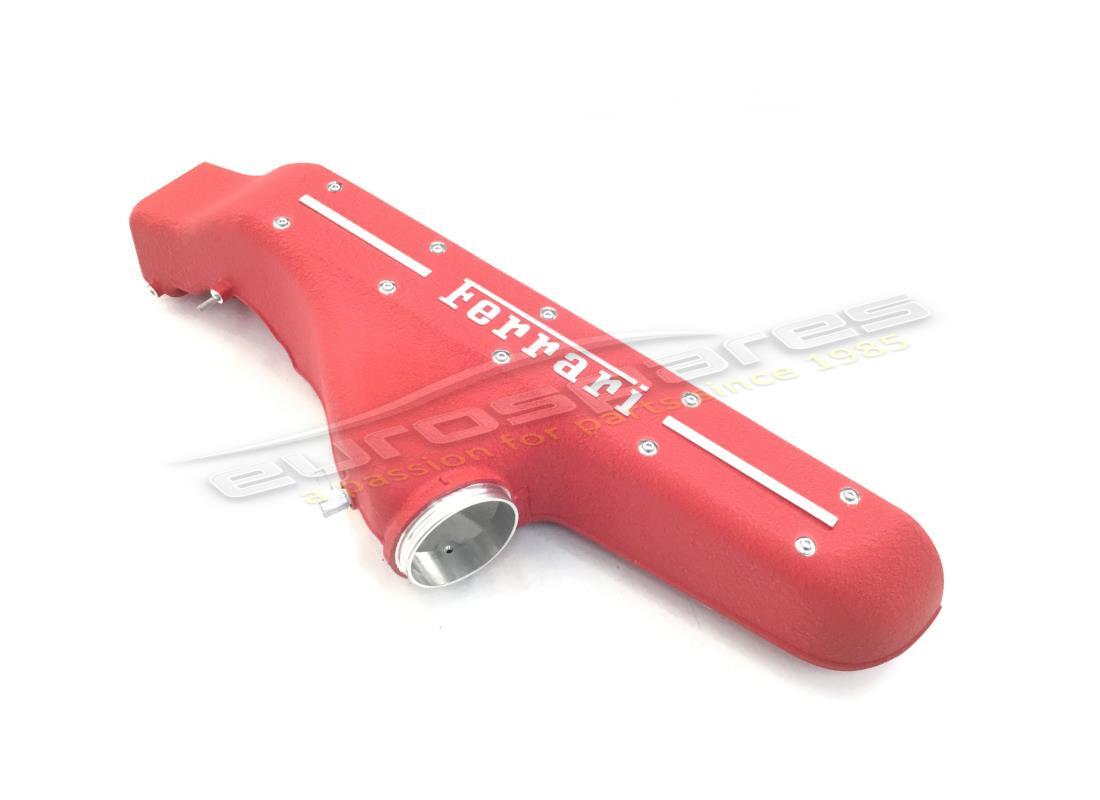

MPN: 276950
RH INTAKE PLENUM
-Applicable until depletion-
Supersession
Supersession
# 006
MPN: 815966
RH INTAKE PLENUM
-Applicable after depletion of 276950-
from £948.73
from £948.73
This part replaces part number 276950

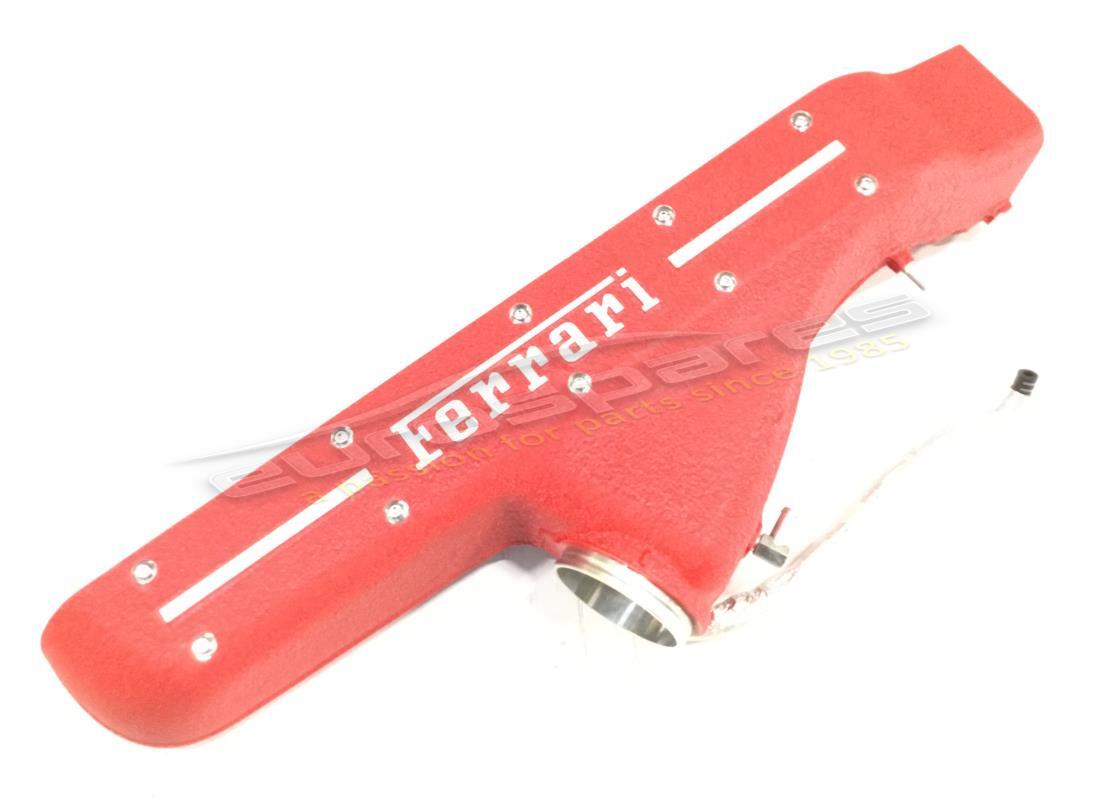

# 007
MPN: 276952
LH INTAKE PLENUM
-Applicable until depletion-
Supersession
Supersession
# 007
MPN: 815967
LH INTAKE PLENUM
-Applicable after depletion of 276952-
from £948.73
from £948.73
This part replaces part number 276952
# 008
MPN: 257849
COMPL. RH LINER HOLDER FRAME
from £218.92
from £218.92
# 008
MPN: 257850
COMPL. LH LINER HOLDER FRAME
from £218.92
from £218.92
# 009
MPN: 178430
CLIP
from £0.53
from £0.53
# 010
MPN: 257851
RUBBER LINER
from £21.90
from £21.90
# 011
MPN: 268877
CONNECTOR
from £36.49
from £36.49
# 012
MPN: 268875
CONNECTOR
-Not for USA, CDN, USA LIGHT- -Applicable up to engine No. 176320-
from £20.12
from £20.12
# 012
MPN: 274736
CONNECTOR
-Not for USA, CDN, USA LIGHT- -Applicable from engine No. 176321-
# 013
MPN: 198223
CONNECTOR
-Applicable until depletion-
from £30.32
from £30.32
# 013
MPN: 287234
CONNECTOR
-Applicable after depletion of 198223- -No longer supplied- -Replaced by 291079-
Supersession
Supersession
# 013
MPN: 291079
CONNECTOR
from £131.35
from £131.35
This part replaces part number 287234
# 014
MPN: 259328
SCREW
-M6 X 14 X 1- -No longer supplied- -Replaced by 287120-
Supersession
Supersession
# 014
MPN: 287120
SCREW
-M6 X 14 X 1-
from £25.26
from £25.26
This part replaces part number 259328
# 015
MPN: 216292
GASKET
from £2.08
from £2.08

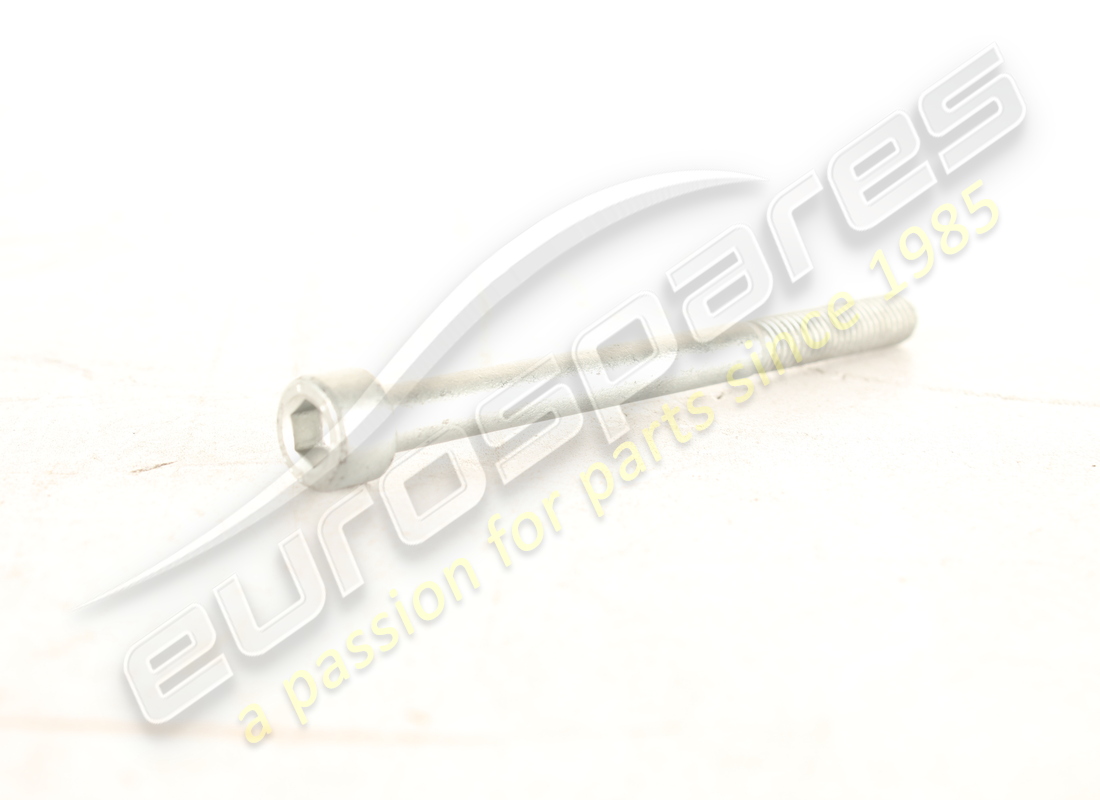

# 016
MPN: 14300424
SCREW
-M6 X 95- -Fastening plenums in lower area- -No longer supplied- -Replaced by 14300434-
Supersession
Supersession
# 016
MPN: 14300434
SCREW
-M6 X 95- -Fastening plenums in lower area-
from £1.41
from £1.41
This part replaces part number 14300424
# 016
MPN: 14300524
SCREW
-M6 X 75- -Lower rear fastening for LH plenum in area under pump- -No longer supplied- -Replaced by 14300534-
from £0.93
from £0.93
# 016
MPN: 14300534
SCREW
-M6 X 75- -Lower rear fastening for LH plenum in area under pump-
from £1.61
from £1.61
This part replaces part number 14300524
# 016
MPN: 14303824
SCREW
-M6 X 60- -Fastening plenum in area under RH pump- -No longer supplied- -Replaced by 14303834-
from £1.28
from £1.28
This part replaces part number 224997
# 016
MPN: 14303834
SCREW
-M6 X 60- -Fastening plenum in area under RH pump-
from £0.91
from £0.91
# 016
MPN: 155304
SCREW
-M6 X 85- -Fastening plenum in area under RH pump- -No longer supplied- -Replaced by 278351-
from £0.68
from £0.68
# 016
MPN: 270936
SCREW
-M6 X 40 X 1- -Fastening plenum to manifold- -Applicable until depletion-
Supersession
Supersession
# 016
MPN: 278351
SCREW
-M6 X 85- -Fastening plenum in area under RH pump-
from £3.62
from £3.62
This part replaces part number 155304
# 016
MPN: 285568
SCREW
-M6 X 40 X 1- -Fastening plenum to manifold- -Applicable after depletion of 270936-
from £0.47
from £0.47
This part replaces part number 270936
# 017
MPN: 262736
BRACKET
from £5.03
from £5.03
# 018
MPN: 276166
RH FLUSH PIPE
from £89.39
from £89.39
# 019
MPN: 276167
LH FLUSH PIPE
from £89.39
from £89.39
# 020
MPN: 13434670
COLLAR
from £0.51
from £0.51
# 021
MPN: 261374
BRACKET
from £121.62
from £121.62
# 022
MPN: 247440
CLIP
from £0.54
from £0.54
# 023
MPN: 233600
SCREW
-M6 X 12-
from £0.53
from £0.53
# 024
MPN: 245028
AIR FLOW METER
from £111.11
from £111.11
# 025
MPN: 179912
THROTTLE BODY
from £309.95
from £309.95
# 026
MPN: 240262
SHIM
from £61.82
from £61.82
This part replaces part number 195206 which we have in stock
# 027
MPN: 150302
GASKET
-Applicable up to engine No. 186322-
from £1.60
from £1.60
# 028
MPN: 269864
RH CONNECTOR PIPE
-Applicable for USA, CDN, USA LIGHT- -Applicable up to engine No. 195647-
from £105.81
from £105.81
# 028
MPN: 269865
LH CONNECTOR PIPE
-Applicable for USA, CDN, USA LIGHT- -Applicable up to engine No. 195647-
from £105.81
from £105.81
# 028
MPN: 269866
RH CONNECTOR PIPE
-Not for USA, CDN, USA LIGHT-
from £46.16
from £46.16
# 028
MPN: 269867
LH CONNECTOR PIPE
-Not for USA, CDN, USA LIGHT-
from £46.16
from £46.16
# 028
MPN: 282233
RH SLEEVE
-Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 195648-
from £68.01
from £68.01
# 028
MPN: 282234
LH SLEEVE
-Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 195648-
from £68.01
from £68.01
# 029
MPN: 190151
RING CLAMP
from £2.01
from £2.01
This part replaces part number 204436
# 030
MPN: 180046
RING CLAMP
from £1.29
from £1.29
# 031
MPN: 266404
CONNECTOR PIPE
from £32.63
from £32.63
# 032
MPN: 268987
CABLE RETAINER BRACKET
from £10.01
from £10.01
# 033
MPN: 14305924
SCREW
-M6 X 45- -No longer supplied- -Replaced by 231624-
from £0.48
from £0.48
# 033
MPN: 231624
SCREW
-M6 X 45-
from £0.51
from £0.51
# 034
MPN: 219786
THREADED PLUG
-Applicable for USA, CDN, USA LIGHT-
from £8.03
from £8.03
# 035
MPN: 285240
BRACKET
-Applicable for USA, CDN, USA LIGHT- -Applicable from engine No. 195648-
from £7.29
from £7.29
-part-diagram-0013.webp "FERRARI FF (USA) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (USA) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (USA) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (USA) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (USA) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (USA) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (USA) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (USA) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (USA) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (USA) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (USA) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (USA) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (USA) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (USA) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (USA) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (USA) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (USA) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (USA) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (USA) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (USA) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (USA) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (USA) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (USA) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (USA) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (USA) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (USA) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (USA) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (USA) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (USA) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (USA) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (USA) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (USA) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (USA) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (USA) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (USA) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (USA) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (USA) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (USA) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (USA) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (USA) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (USA) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (USA) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (USA) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (USA) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (USA) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (USA) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (USA) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (USA) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (USA) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (USA) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (USA) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (USA) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (USA) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (USA) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (USA) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (USA) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (USA) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (USA) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (USA) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (USA) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
