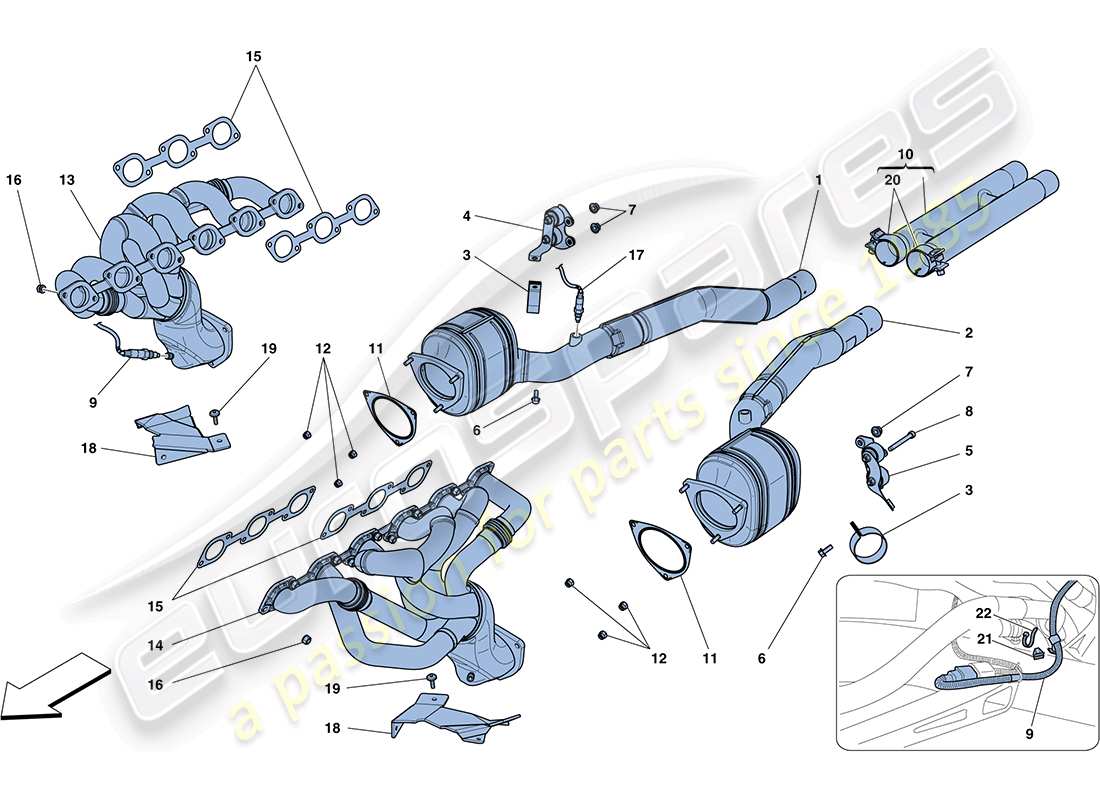

0014 - pre-catalytic converters and catalytic converters
Ferrari FF (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 273319
COMPL. RH CATALYTIC CONVERTER
from £2,383.49
from £2,383.49
# 002
MPN: 273320
COMPL. LH CATALYTIC CONVERTER
from £2,383.49
from £2,383.49
# 003
MPN: 270634
RING CLAMP
from £38.90
from £38.90
# 004
MPN: 274148
COMPL. RH MOUNTING
from £47.20
from £47.20
# 005
MPN: 274152
COMPL. LH MOUNTING
from £47.20
from £47.20
# 006
MPN: 16287127
SCREW
-M8 X 20-
from £0.47
from £0.47
# 007
MPN: 14059421
NUT
from £0.53
from £0.53
This part replaces part number 156462
# 008
MPN: 14359424
SCREW
-M8 X 75-
from £1.15
from £1.15
# 009
MPN: 217447
FRONT OXYGEN SENSOR
-L. 500 mm- -No longer supplied- -Replaced by 280463-
from £80.05
from £80.05
# 009
MPN: 280463
FRONT OXYGEN SENSOR
-L. 500 mm-
from £75.54
from £75.54
# 010
MPN: 266420
CENTRAL EXTENSION
-No longer supplied- -Replaced by 290100-
from £378.30
from £378.30
# 010
MPN: 290100
CENTRAL EXTENSION
-Applicable up to Ass. No. 107607- -Applicable until depletion-
from £815.25
from £815.25
This part replaces part number 266420 - and 1 more. Click to view details
# 010
MPN: 290124
CENTRAL EXTENSION
-Applicable from Ass. No. 107608- -Applicable after depletion of 290100-
from £158.90
from £158.90
This part replaces part number 290100 - and 1 more. Click to view details
# 011
MPN: 267362
GASKET
from £12.10
from £12.10
# 012
MPN: 138392
NUT
from £0.75
from £0.75
# 013
MPN: 272365
COMPL. RH EXHAUST MANIFOLD
-Applicable until depletion-
Supersession
Supersession
# 013
MPN: 281030
COMPL. RH EXHAUST MANIFOLD
-Applicable after depletion of 272365-
from £820.22
from £820.22
This part replaces part number 272365 - and 1 more. Click to view details
# 014
MPN: 272366
COMPL. LH EXHAUST MANIFOLD
-Applicable until depletion-
Supersession
Supersession
# 014
MPN: 281031
COMPL. LH EXHAUST MANIFOLD
-Applicable after depletion of 272366-
from £820.22
from £820.22
This part replaces part number 272366 - and 1 more. Click to view details
# 015
MPN: 212702
GASKET
from £6.93
from £6.93
# 016
MPN: 210971
NUT
from £1.14
from £1.14
# 017
MPN: 180915
REAR OXYGEN SENSOR
-L. 1200 mm-
from £26.25
from £26.25
This part replaces part number 177674 - and 3 more. Click to view details
# 018
MPN: 270865
RH ENGINE SUBFRAME HEAT SHIELD
from £24.81
from £24.81
This part replaces part number 270866
# 019
MPN: 168133
SCREW
-M5 X 20- -No longer supplied- -Replaced by 85692400-
from £0.58
from £0.58
# 019
MPN: 85692400
SCREW
-M5 X 20-
from £0.51
from £0.51
# 020
MPN: 292231
RING CLAMP
from £13.71
from £13.71
# 021
MPN: 291283
CLIP
from £0.53
from £0.53
# 022
MPN: 145854
RING CLAMP
from £0.53
from £0.53
