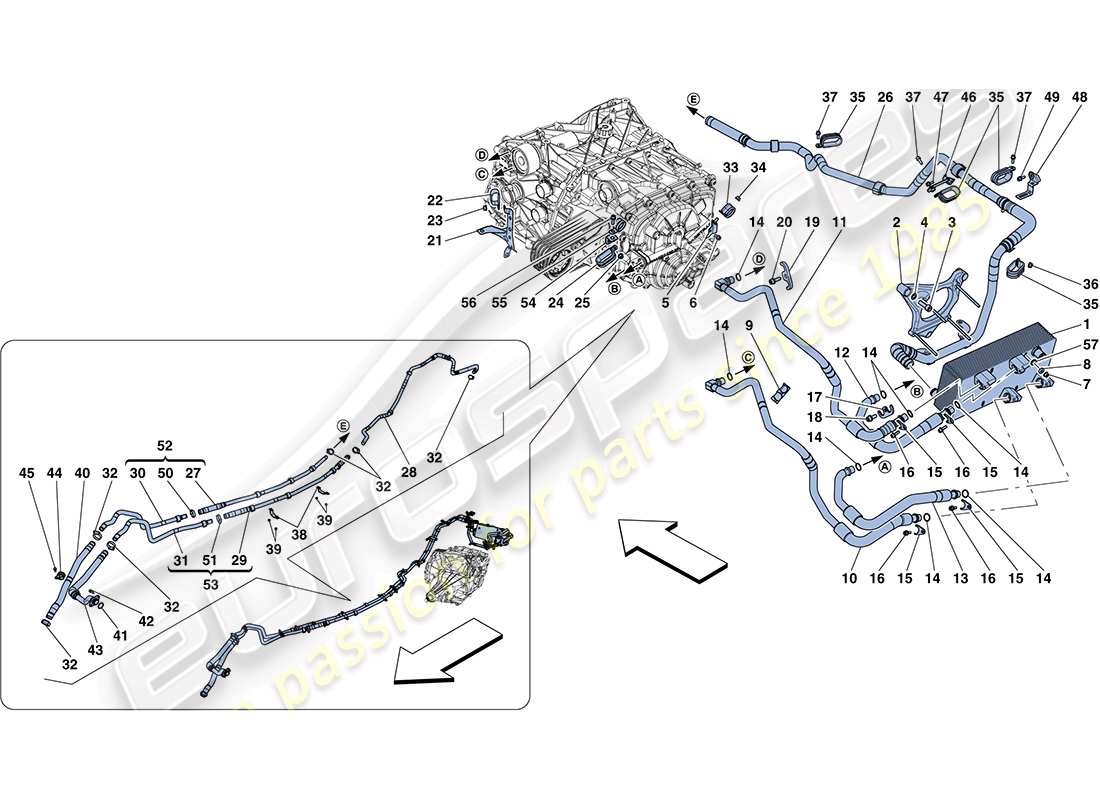

0016 - GEARBOX OIL LUBRICATION AND COOLING SYSTEM

Ferrari FF (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 266826
                                                                  OIL HEAT EXCHANGER
                                                                  -After depletion, order heat exchanger 326420, pipe 334873 ref. 10, pipe 334874 ref. 12 and pipe 334875 ref. 13- -Applicable up to Ass. No. 136854- -Applicable until depletion-
                                                                  from £415.35
                                                                  from £415.35
                                                                  This part replaces part number 262811 - and 1 more. Click to view details
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  OIL HEAT EXCHANGER Genuine Ferrari Part - Used In stock
                                                                  # 001
                                                                  MPN: 326420
                                                                  OIL HEAT EXCHANGER
                                                                  -Applicable from Ass. No. 136855- -Applicable after depletion of 266826-
                                                                  from £495.76
                                                                  from £495.76
                                                                  This part replaces part number 266826 which we have in stock - and 1 more. Click to view details
                                                                  OIL HEAT EXCHANGER Genuine Ferrari Part - New (to order)
                                                                  OIL HEAT EXCHANGER Genuine Ferrari Part - Used In stock
                                                                  # 002
                                                                  MPN: 268351
                                                                  GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT
                                                                  -Applicable up to Ass. No. 106667- -Applicable until depletion-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 002
                                                                  MPN: 290643
                                                                  GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT
                                                                  -Applicable from Ass. No. 106668- -Applicable after depletion of 268351- -No longer supplied- -Replaced by 318265-
                                                                  from £176.37
                                                                  from £176.37
                                                                  This part replaces part number 268351 - and 1 more. Click to view details
                                                                  MOUNTING Genuine Ferrari Part - New (to order)
                                                                  MOUNTING Genuine Ferrari Part - Used In stock
                                                                  # 002
                                                                  MPN: 318265
                                                                  GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT
                                                                  -Applicable from Ass. No. 106668-
                                                                  from £33.87
                                                                  from £33.87
                                                                  MOUNTING Genuine Ferrari Part - New (to order)
                                                                  MOUNTING Genuine Ferrari Part - Used In stock
                                                                  # 003
                                                                  MPN: 14307534
                                                                  SCREW
                                                                  -M10 X 1.25 X 30-
                                                                  from £1.51
                                                                  from £1.51
                                                                  SCREW Genuine Ferrari Part - New (to order)
                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                  # 004
                                                                  MPN: 12648321
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  WASHER Genuine Ferrari Part - New (to order)
                                                                  ROSETTA TRANC. D. 10.20-17X Genuine Maserati Part - New (to order)
                                                                  # 005
                                                                  MPN: 268359
                                                                  BRACKET
                                                                  from £9.48
                                                                  from £9.48
                                                                  This part replaces part number 268363
                                                                  COMPLETE BRACKET Genuine Ferrari Part - New In stock
                                                                  # 006
                                                                  MPN: 233600
                                                                  SCREW
                                                                  -M6 X 12-
                                                                  from £0.54
                                                                  from £0.54
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                  # 007
                                                                  MPN: 14058421
                                                                  NUT
                                                                  from £0.80
                                                                  from £0.80
                                                                  This part replaces part number 14075721
                                                                  NUT. Genuine Ferrari Part - New In stock
                                                                  NUT Genuine Maserati Part - New (to order)
                                                                  # 008
                                                                  MPN: 13604015
                                                                  SHIM
                                                                  from £0.53
                                                                  from £0.53
                                                                  SHIM Genuine Ferrari Part - New (to order)
                                                                  SPACER D.6.5-15X5 Genuine Maserati Part - New (to order)
                                                                  # 009
                                                                  MPN: 264810
                                                                  SHIM
                                                                  from £2.84
                                                                  from £2.84
                                                                  THICKNESS Genuine Ferrari Part - New (to order)
                                                                  # 010
                                                                  MPN: 262812
                                                                  ATF FLUID DELIVERY PIPE
                                                                  -Applicable up to Ass. No. 136854- -Applicable until depletion-
                                                                  from £223.17
                                                                  from £223.17
                                                                  ATF FLUID DELIVERY PIPE Genuine Ferrari Part - New In stock
                                                                  ATF FLUID DELIVERY PIPE Genuine Ferrari Part - Used In stock
                                                                  # 010
                                                                  MPN: 334873
                                                                  ATF FLUID DELIVERY PIPE
                                                                  -Applicable from Ass. No. 136855- -Applicable after depletion of 262812-
                                                                  from £123.67
                                                                  from £123.67
                                                                  This part replaces part number 262812 which we have in stock - and 1 more. Click to view details
                                                                  ATF FLUID DELIVERY PIPE Genuine Ferrari Part - New (to order)
                                                                  ATF FLUID DELIVERY PIPE Genuine Ferrari Part - Used In stock
                                                                  # 011
                                                                  MPN: 262813
                                                                  ATF FLUID RETURN PIPE
                                                                  from £132.56
                                                                  from £132.56
                                                                  ATF OIL RETURN PIPE Genuine Ferrari Part - New (to order)
                                                                  ATF OIL RETURN PIPE Genuine Ferrari Part - Used In stock
                                                                  # 012
                                                                  MPN: 262814
                                                                  GL OIL RETURN PIPE
                                                                  -Applicable up to Ass. No. 136854- -Applicable until depletion-
                                                                  from £59.16
                                                                  from £59.16
                                                                  GL OIL RETURN PIPE Genuine Ferrari Part - New In stock
                                                                  GL OIL RETURN PIPE Genuine Ferrari Part - Used In stock
                                                                  # 012
                                                                  MPN: 334874
                                                                  GL-5 OIL RETURN PIPE
                                                                  -Applicable from Ass. No. 136855- -Applicable after depletion of 262814-
                                                                  from £70.61
                                                                  from £70.61
                                                                  This part replaces part number 262814 which we have in stock - and 2 more. Click to view details
                                                                  GL OIL RETURN PIPE Genuine Ferrari Part - New (to order)
                                                                  GL OIL RETURN PIPE Genuine Ferrari Part - Used In stock
                                                                  # 013
                                                                  MPN: 262815
                                                                  GL OIL DELIVERY PIPE
                                                                  -Applicable up to Ass. No. 136854- -Applicable until depletion-
                                                                  from £64.90
                                                                  from £64.90
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  GL OIL DELIVERY PIPE Genuine Ferrari Part - Used In stock
                                                                  # 013
                                                                  MPN: 334875
                                                                  GL-5 OIL DELIVERY PIPE
                                                                  -Applicable from Ass. No. 136855- -Applicable after depletion of 262815-
                                                                  from £77.47
                                                                  from £77.47
                                                                  This part replaces part number 262815 which we have in stock - and 2 more. Click to view details
                                                                  GL OIL DELIVERY PIPE Genuine Ferrari Part - New (to order)
                                                                  GL OIL DELIVERY PIPE Genuine Ferrari Part - Used In stock
                                                                  # 014
                                                                  MPN: 254644
                                                                  GASKET
                                                                  from £0.51
                                                                  from £0.51
                                                                  This part replaces part number 14453481
                                                                  GASKET Genuine Ferrari Part - New In stock
                                                                  O.R. GASKET Genuine Maserati Part - New (to order)
                                                                  # 015
                                                                  MPN: 262827
                                                                  PIPE RETAINER FORK
                                                                  from £10.21
                                                                  from £10.21
                                                                  FORK Genuine Ferrari Part - New (to order)
                                                                  # 016
                                                                  MPN: 231617
                                                                  SCREW
                                                                  -M6 X 18-
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 14433124 which we have in stock
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                                  # 017
                                                                  MPN: 261824
                                                                  PIPE RETAINER FORK
                                                                  from £16.05
                                                                  from £16.05
                                                                  FORK Genuine Ferrari Part - New (to order)
                                                                  # 018
                                                                  MPN: 248471
                                                                  SCREW
                                                                  -M8 X 20-
                                                                  from £0.64
                                                                  from £0.64
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SCREW M8X20 Genuine Maserati Part - New (to order)
                                                                  # 019
                                                                  MPN: 236479
                                                                  PIPE RETAINER FORK
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 020
                                                                  MPN: 231628
                                                                  SCREW
                                                                  -M8 X 25-
                                                                  from £0.53
                                                                  from £0.53
                                                                  SCREW -M 8X25- Genuine Ferrari Part - New (to order)
                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                  # 021
                                                                  MPN: 274638
                                                                  BRACKET
                                                                  from £32.92
                                                                  from £32.92
                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                  # 022
                                                                  MPN: 265771
                                                                  BRACKET
                                                                  from £1.28
                                                                  from £1.28
                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                  # 023
                                                                  MPN: 14040611
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NUT Genuine Maserati Part - New In stock
                                                                  # 024
                                                                  MPN: 61712500
                                                                  BRACKET WITH SHEATH
                                                                  from £1.04
                                                                  from £1.04
                                                                  BRACKET WITH SHEATH Genuine Ferrari Part - New In stock
                                                                  # 025
                                                                  MPN: 14040611
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NUT Genuine Maserati Part - New In stock
                                                                  # 026
                                                                  MPN: 266779
                                                                  REAR WATER DELIVERY PIPE
                                                                  from £379.49
                                                                  from £379.49
                                                                  REAR WATER DELIVERY PIPE Genuine Ferrari Part - New (to order)
                                                                  # 027
                                                                  MPN: 271669
                                                                  CENTRAL WATER DELIVERY PIPE
                                                                  -No longer supplied- -Replaced by 281461-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 028
                                                                  MPN: 266781
                                                                  REAR WATER RETURN PIPE
                                                                  from £143.45
                                                                  from £143.45
                                                                  REAR WATER RETURN PIPE Genuine Ferrari Part - New (to order)
                                                                  REAR WATER RETURN PIPE Genuine Ferrari Part - Used In stock
                                                                  # 029
                                                                  MPN: 271668
                                                                  CENTRAL WATER RETURN PIPE
                                                                  -No longer supplied- -Replaced by 281462-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 030
                                                                  MPN: 275894
                                                                  COMPL. FRONT WATER DELIVERY PIPE
                                                                  -No longer supplied- -Replaced by 281461-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 031
                                                                  MPN: 275895
                                                                  COMPL. WATER RETURN PIPE
                                                                  -No longer supplied- -Replaced by 281462-
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 032
                                                                  MPN: 10860370
                                                                  JUBILEE CLAMP
                                                                  -No longer supplied- -Replaced by 262111-
                                                                  from £0.86
                                                                  from £0.86
                                                                  This part replaces part number 13127770
                                                                  SCREW COLLAR Genuine Ferrari Part - New (to order)
                                                                  # 032
                                                                  MPN: 262111
                                                                  JUBILEE CLAMP
                                                                  from £0.86
                                                                  from £0.86
                                                                  This part replaces part number 13127770
                                                                  SCREW COLLAR Genuine Ferrari Part - New In stock
                                                                  # 032
                                                                  MPN: 268210
                                                                  SCREW COLLAR
                                                                  -No longer supplied- -Replaced by 10860370-
                                                                  from £2.13
                                                                  from £2.13
                                                                  SCREW COLLAR Genuine Ferrari Part - New (to order)
                                                                  # 033
                                                                  MPN: 10442090
                                                                  BRACKET WITH SHEATH
                                                                  from £0.47
                                                                  from £0.47
                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                  BRACKET Genuine Maserati Part - New (to order)
                                                                  # 034
                                                                  MPN: 14040611
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NUT Genuine Maserati Part - New In stock
                                                                  # 035
                                                                  MPN: 248454
                                                                  BRACKET WITH SHEATH
                                                                  from £2.21
                                                                  from £2.21
                                                                  This part replaces part number 291949 - and 3 more. Click to view details
                                                                  BRACKET WITH SHEATH Genuine Ferrari Part - New (to order)
                                                                  BRACKET WITH SHEATH Genuine Ferrari Part - Used In stock
                                                                  # 036
                                                                  MPN: 14040611
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NUT Genuine Maserati Part - New In stock
                                                                  # 037
                                                                  MPN: 231617
                                                                  SCREW
                                                                  -M6 X 18-
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 14433124 which we have in stock
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                                  # 038
                                                                  MPN: 266783
                                                                  BRACKET
                                                                  from £8.16
                                                                  from £8.16
                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                  # 039
                                                                  MPN: 14040611
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  NUT Genuine Ferrari Part - New In stock
                                                                  NUT Genuine Maserati Part - New In stock
                                                                  # 040
                                                                  MPN: 271546
                                                                  FRONT WATER DELIVERY HOSE
                                                                  from £109.78
                                                                  from £109.78
                                                                  FRONT WATER DELIVERY HOSE Genuine Ferrari Part - New In stock
                                                                  FRONT WATER DELIVERY HOSE Genuine Ferrari Part - Used In stock
                                                                  # 041
                                                                  MPN: 250888
                                                                  GASKET
                                                                  from £0.54
                                                                  from £0.54
                                                                  GASKET Genuine Ferrari Part - New In stock
                                                                  # 042
                                                                  MPN: 231619
                                                                  SCREW
                                                                  -M6 X 22-
                                                                  from £0.53
                                                                  from £0.53
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New (to order)
                                                                  # 043
                                                                  MPN: 270155
                                                                  FRONT WATER RETURN HOSE
                                                                  from £57.66
                                                                  from £57.66
                                                                  FRONT WATER RETURN HOSE Genuine Ferrari Part - New (to order)
                                                                  # 044
                                                                  MPN: 10442290
                                                                  BRACKET WITH SHEATH
                                                                  from £0.53
                                                                  from £0.53
                                                                  CLAMP Genuine Ferrari Part - New In stock
                                                                  STAFFETTA CON GUAINA PER 1 T Genuine Maserati Part - New (to order)
                                                                  # 045
                                                                  MPN: 16286024
                                                                  SCREW
                                                                  -M6 X 16-
                                                                  from £0.53
                                                                  from £0.53
                                                                  VITE TE FLANGIATA M 6X16 Genuine Ferrari Part - New In stock
                                                                  SCREW. Genuine Maserati Part - New (to order)
                                                                  # 046
                                                                  MPN: 273830
                                                                  BRACKET
                                                                  from £21.46
                                                                  from £21.46
                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                  # 047
                                                                  MPN: 231617
                                                                  SCREW
                                                                  -M6 X 18-
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 14433124 which we have in stock
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                                  # 048
                                                                  MPN: 272486
                                                                  BRACKET
                                                                  from £10.28
                                                                  from £10.28
                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                  BRACKET Genuine Ferrari Part - Used In stock
                                                                  # 049
                                                                  MPN: 231617
                                                                  SCREW
                                                                  -M6 X 18-
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 14433124 which we have in stock
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                                  # 050
                                                                  MPN: 10860470
                                                                  COLLAR
                                                                  -No longer supplied- -Replaced by 281461-
                                                                  COLLAR Genuine Ferrari Part - New (to order)
                                                                  # 051
                                                                  MPN: 10860470
                                                                  COLLAR
                                                                  -No longer supplied- -Replaced by 281462-
                                                                  COLLAR Genuine Ferrari Part - New (to order)
                                                                  # 052
                                                                  MPN: 276790
                                                                  COMPL. WATER DELIVERY PIPE
                                                                  -No longer supplied- -Replaced by 281461-
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 271669 - and 1 more. Click to view details
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 052
                                                                  MPN: 281461
                                                                  COMPL. WATER DELIVERY PIPE
                                                                  from £157.04
                                                                  from £157.04
                                                                  This part replaces part number 276790
                                                                  COMPLETE FRONT WATER DELIVERY Genuine Ferrari Part - New (to order)
                                                                  # 053
                                                                  MPN: 276792
                                                                  COMPL. WATER RETURN PIPE
                                                                  -No longer supplied- -Replaced by 281462-
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 271668 - and 1 more. Click to view details
                                                                  Genuine Ferrari Part (no longer available to order)
                                                                  # 053
                                                                  MPN: 281462
                                                                  COMPL. WATER RETURN PIPE
                                                                  from £193.02
                                                                  from £193.02
                                                                  This part replaces part number 276792
                                                                  COMPLETE FRONT WATER RETURN PI Genuine Ferrari Part - New (to order)
                                                                  # 054
                                                                  MPN: 142060
                                                                  BRACKET
                                                                  from £3.53
                                                                  from £3.53
                                                                  BRACKET Genuine Ferrari Part - New (to order)
                                                                  # 055
                                                                  MPN: 10442190
                                                                  BRACKET WITH SHEATH
                                                                  from £0.53
                                                                  from £0.53
                                                                  BRACKET Genuine Ferrari Part - New In stock
                                                                  CLAMP WITH RUBBER PAD FOR Genuine Maserati Part - New In stock
                                                                  # 056
                                                                  MPN: 233600
                                                                  SCREW
                                                                  -M6 X 12-
                                                                  from £0.54
                                                                  from £0.54
                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                  # 057
                                                                  MPN: 12647624
                                                                  WASHER
                                                                  from £0.51
                                                                  from £0.51
                                                                  This part replaces part number 12647611
                                                                  WASHER Genuine Ferrari Part - New (to order)
                                                                  WASHER FOR FIXED TENSION Genuine Maserati Part - New (to order)
                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
