ferrari ff (usa) cooling - radiators and air ducts parts diagram

0020 - COOLING - RADIATORS AND AIR DUCTS

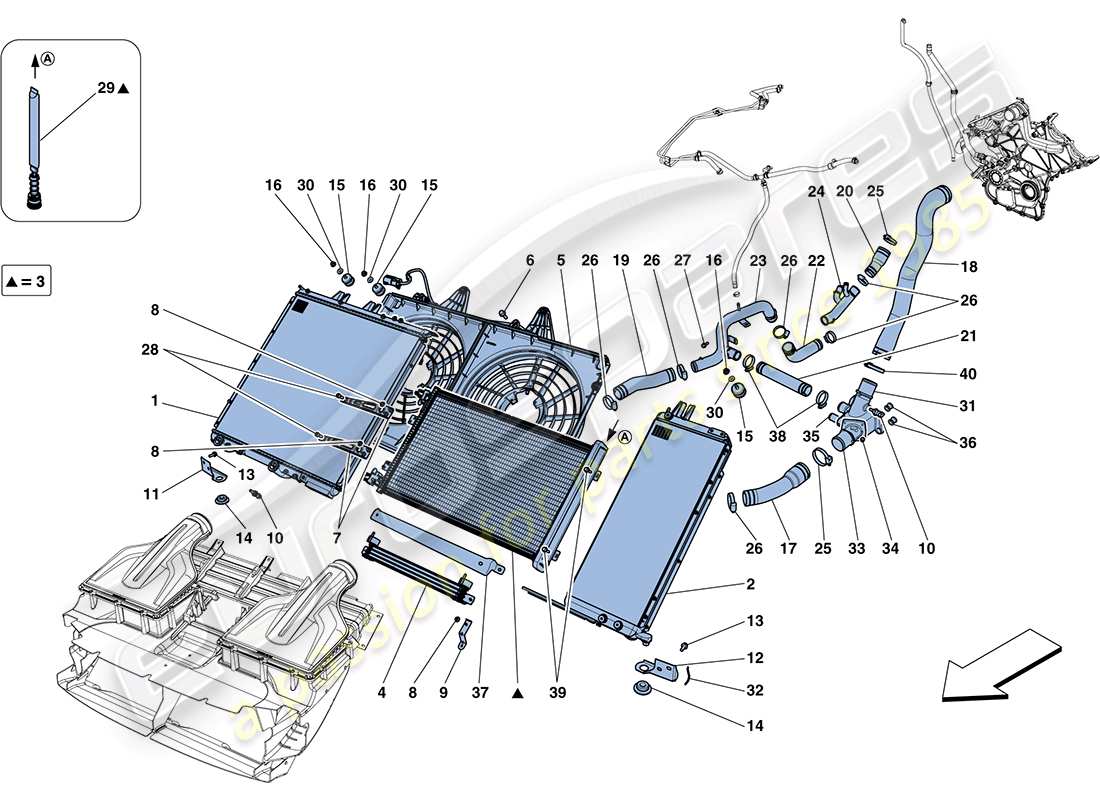

Ferrari FF (USA) COOLING - RADIATORS AND AIR DUCTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 001
                                                            MPN: 263427
                                                            ENGINE WATER RADIATOR
                                                            -No longer supplied- -Replaced by 277226-
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 277226
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 001
                                                            MPN: 263427
                                                            ENGINE WATER RADIATOR
                                                            -Applicable after depletion of 277226-
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 277226
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 001
                                                            MPN: 277226
                                                            ENGINE WATER RADIATOR
                                                            -Applicable until depletion-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 002
                                                            MPN: 263428
                                                            ENGINE OIL RADIATOR
                                                            -Applicable until depletion-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 002
                                                            MPN: 277227
                                                            ENGINE OIL RADIATOR
                                                            -Applicable after depletion of 263428-
                                                            from £382.68
                                                            from £382.68
                                                            This part replaces part number 263428 - and 1 more. Click to view details
                                                            ENGINE OIL RADIATOR Genuine Ferrari Part - New (to order)
                                                            ENGINE OIL RADIATOR Genuine Ferrari Part - Damaged In stock
                                                            SIDE FRAME BENT & BOTTOM BRACKET DAMAGED
                                                            # 003
                                                            MPN: 265489
                                                            AC FILTER CONDENSER
                                                            from £110.84
                                                            from £110.84
                                                            AC FILTER CONDENSER Genuine Ferrari Part - New In stock
                                                            AC FILTER CONDENSER Genuine Ferrari Part - Damaged In stock
                                                            SIDE EDGE DAMAGED ( STILL HOLDS PRESSURE )
                                                            # 004
                                                            MPN: 239202
                                                            POWER STEERING FLUID RADIATOR
                                                            from £97.20
                                                            from £97.20
                                                            OIL RADIATOR Genuine Ferrari Part - New (to order)
                                                            OIL RADIATOR Genuine Ferrari Part - Used In stock
                                                            # 005
                                                            MPN: 267211
                                                            COWL WITH ELECTRIC FANS
                                                            from £1,050.90
                                                            from £1,050.90
                                                            COWL WITH ELECTRIC FANS Genuine Ferrari Part - New (to order)
                                                            # 006
                                                            MPN: 16285227
                                                            SCREW
                                                            -M5 X 20-
                                                            from £0.50
                                                            from £0.50
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 007
                                                            MPN: 268656
                                                            CONDENSER MOUNTING BRACKET
                                                            from £21.17
                                                            from £21.17
                                                            CONDENSER MOUNTING BRACKET Genuine Ferrari Part - New (to order)
                                                            # 008
                                                            MPN: 13046012
                                                            NUT
                                                            from £1.51
                                                            from £1.51
                                                            NUT Genuine Ferrari Part - New (to order)
                                                            # 009
                                                            MPN: 268099
                                                            POWER STEERING FLUID RADIATOR MOUNTING BRACKET
                                                            from £54.73
                                                            from £54.73
                                                            POWER STEERING FLUID RADIATO Genuine Ferrari Part - New (to order)
                                                            # 011
                                                            MPN: 260033
                                                            LOWER RH BRACKET
                                                            from £20.42
                                                            from £20.42
                                                            LOWER RH BRACKET Genuine Ferrari Part - New (to order)
                                                            # 012
                                                            MPN: 260034
                                                            LOWER LH BRACKET
                                                            from £20.42
                                                            from £20.42
                                                            LOWER LH BRACKET Genuine Ferrari Part - New (to order)
                                                            # 013
                                                            MPN: 16287127
                                                            SCREW
                                                            -M8 X 20-
                                                            from £0.47
                                                            from £0.47
                                                            SCREW Genuine Ferrari Part - New (to order)
                                                            SCREW. Genuine Maserati Part - New (to order)
                                                            # 014
                                                            MPN: 138926
                                                            RUBBER PAD FOR PIN
                                                            from £2.83
                                                            from £2.83
                                                            PAD Genuine Ferrari Part - New (to order)
                                                            # 015
                                                            MPN: 271472
                                                            PLUG
                                                            from £7.66
                                                            from £7.66
                                                            PLUG Genuine Ferrari Part - New In stock
                                                            # 016
                                                            MPN: 14040711
                                                            NUT
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 14040715
                                                            NUT Genuine Ferrari Part - New In stock
                                                            NUT FOR GLASS GUIDE ASSEM Genuine Maserati Part - New In stock
                                                            # 017
                                                            MPN: 260080
                                                            WATER HOSE FROM VALVE TO RADIATOR
                                                            from £103.77
                                                            from £103.77
                                                            WATER HOSE FROM VALVE TO RAD Genuine Ferrari Part - New (to order)
                                                            # 018
                                                            MPN: 271689
                                                            WATER HOSE FROM ENGINE TO VALVE
                                                            from £273.66
                                                            from £273.66
                                                            WATER HOSE FROM ENGINE TO VA Genuine Ferrari Part - New (to order)
                                                            # 019
                                                            MPN: 258630
                                                            RETURN HOSE FROM RADIATOR
                                                            from £21.16
                                                            from £21.16
                                                            MANICOTTO RIT.DA RADIAT.A TU Genuine Ferrari Part - New In stock
                                                            # 020
                                                            MPN: 259067
                                                            RETURN HOSE TO PUMP
                                                            from £8.83
                                                            from £8.83
                                                            RETURN HOSE TO PUMP Genuine Ferrari Part - New (to order)
                                                            RETURN HOSE TO PUMP Genuine Ferrari Part - Used In stock
                                                            # 021
                                                            MPN: 270452
                                                            WATER HOSE FROM VALVE
                                                            from £36.49
                                                            from £36.49
                                                            WATER HOSE FROM VALVE Genuine Ferrari Part - New (to order)
                                                            # 022
                                                            MPN: 259070
                                                            CENTRAL RETURN HOSE
                                                            from £8.03
                                                            from £8.03
                                                            CENTRAL RETURN HOSE Genuine Ferrari Part - New (to order)
                                                            CENTRAL RETURN HOSE Genuine Ferrari Part - Used In stock
                                                            # 023
                                                            MPN: 276236
                                                            METAL WATER RECIRCULATION CONNECTOR PIPE
                                                            from £243.26
                                                            from £243.26
                                                            METAL WATER RECIRCULATION CO Genuine Ferrari Part - New (to order)
                                                            # 024
                                                            MPN: 259069
                                                            BRANCHED METAL PIPE TO PUMP
                                                            from £58.73
                                                            from £58.73
                                                            BRANCHED METAL PIPE TO PUMP Genuine Ferrari Part - New (to order)
                                                            BRANCHED METAL PIPE TO PUMP Genuine Ferrari Part - Used In stock
                                                            # 025
                                                            MPN: 13000790
                                                            SCREW COLLAR
                                                            -No longer supplied- -Replaced by 296783-
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 12173190 - and 1 more. Click to view details
                                                            SCREW COLLAR Genuine Ferrari Part - New In stock
                                                            SCREW COLLAR Genuine Maserati Part - New In stock
                                                            # 025
                                                            MPN: 296783
                                                            SCREW COLLAR
                                                            from £5.27
                                                            from £5.27
                                                            This part replaces part number 267701
                                                            COLLAR Genuine Ferrari Part - New In stock
                                                            # 026
                                                            MPN: 13000690
                                                            SCREW COLLAR
                                                            -No longer supplied- -Replaced by 296782-
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12174090 - and 2 more. Click to view details
                                                            SCREW COLLAR Genuine Ferrari Part - New In stock
                                                            SCREW COLLAR D. 32- 50X9 Genuine Maserati Part - New In stock
                                                            # 026
                                                            MPN: 296782
                                                            SCREW COLLAR
                                                            from £4.87
                                                            from £4.87
                                                            This part replaces part number 12174090
                                                            COLLAR Genuine Ferrari Part - New (to order)
                                                            # 027
                                                            MPN: 16286024
                                                            SCREW
                                                            -M6 X 16-
                                                            from £0.53
                                                            from £0.53
                                                            VITE TE FLANGIATA M 6X16 Genuine Ferrari Part - New In stock
                                                            SCREW. Genuine Maserati Part - New (to order)
                                                            # 028
                                                            MPN: 16284927
                                                            SCREW
                                                            -M5 X 10-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 029
                                                            MPN: 280880
                                                            DESICCATING FILTER
                                                            from £328.42
                                                            from £328.42
                                                            DESICCATING FILTER Genuine Ferrari Part - New (to order)
                                                            # 030
                                                            MPN: 12647024
                                                            WASHER
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 031
                                                            MPN: 267849
                                                            THERMOSTAT COMPARTMENT
                                                            from £96.34
                                                            from £96.34
                                                            THERMOSTAT COMPARTMENT Genuine Ferrari Part - New In stock
                                                            THERMOSTAT COMPARTMENT Genuine Ferrari Part - Used In stock
                                                            # 032
                                                            MPN: 67681200
                                                            GASKET
                                                            from £1.92
                                                            from £1.92
                                                            gasket. Genuine Ferrari Part - New (to order)
                                                            gasket. Genuine Ferrari Part - New (other) In stock
                                                            - L.=140mm - Valid for GD
                                                            # 033
                                                            MPN: 262913
                                                            THERMOSTAT/PRESSURE SWITCH
                                                            from £77.79
                                                            from £77.79
                                                            This part replaces part number 257544 - and 3 more. Click to view details
                                                            THERMOSTAT/PRESSURE SWITCH Genuine Ferrari Part - New In stock
                                                            Maserati PART 262913 Genuine Maserati Part - New (to order)
                                                            THERMOSTAT/PRESSURE SWITCH Genuine Ferrari Part - Used In stock
                                                            # 034
                                                            MPN: 231617
                                                            SCREW
                                                            -M6 X 18-
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 14433124 which we have in stock
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            SOCKET HEAD SCREW WITH WASHER M6X Genuine Maserati Part - New In stock
                                                            # 035
                                                            MPN: 228438
                                                            CONNECTOR
                                                            from £3.81
                                                            from £3.81
                                                            CONNECTOR Genuine Ferrari Part - New (to order)
                                                            THREADED UNION M20X1,5 Genuine Maserati Part - New (to order)
                                                            # 036
                                                            MPN: 267300
                                                            MOUNTING
                                                            from £6.02
                                                            from £6.02
                                                            This part replaces part number 294902 - and 1 more. Click to view details
                                                            MOUNTING Genuine Ferrari Part - New (to order)
                                                            MOUNTING Genuine Ferrari Part - New (other) In stock
                                                            SMALL IMPERFECTION
                                                            # 037
                                                            MPN: 289445
                                                            POWER STEERING RADIATOR SHIELD
                                                            from £76.86
                                                            from £76.86
                                                            POWER STEERING RADIATOR SHIE Genuine Ferrari Part - New (to order)
                                                            # 038
                                                            MPN: 13000590
                                                            SCREW COLLAR
                                                            -No longer supplied- -Replaced by 296780-
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 105622 - and 2 more. Click to view details
                                                            SCREW COLLAR Genuine Ferrari Part - New In stock
                                                            SCREW COLLAR Genuine Maserati Part - New (to order)
                                                            # 038
                                                            MPN: 296780
                                                            SCREW COLLAR
                                                            from £4.46
                                                            from £4.46
                                                            COLLAR Genuine Ferrari Part - New (to order)
                                                            # 039
                                                            MPN: 16285127
                                                            SCREW
                                                            -M5 X 16- -No longer supplied- -Replaced by 85692300-
                                                            from £0.51
                                                            from £0.51
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 039
                                                            MPN: 85692300
                                                            SCREW
                                                            -M5 X 20-
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 83914200
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 040
                                                            MPN: 272913
                                                            COLLAR
                                                            from £2.18
                                                            from £2.18
                                                            COLLAR Genuine Ferrari Part - New (to order)
                                                            SCREW COLLAR Genuine Maserati Part - New In stock
