0032 - PARKING BRAKE CONTROL

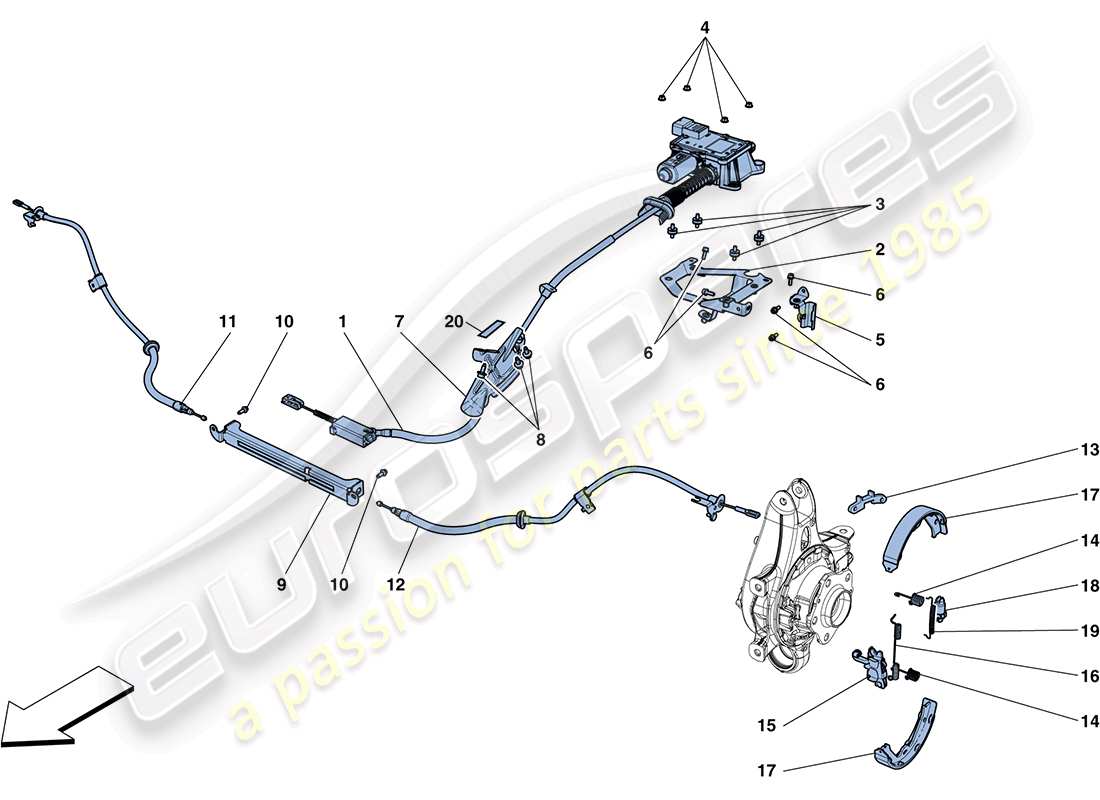

Ferrari FF (USA) PARKING BRAKE CONTROL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 269268
                              COMPL. ELECTRONIC ACTUATOR
                              -Applicable up to Ass. No. 100649- -Applicable until depletion-
                              Supersession
                              Supersession
                              # 001
                              MPN: 281146
                              COMPL. ELECTRONIC ACTUATOR
                              -Applicable from Ass. No. 100650- -Applicable after depletion of 269268-
                              from £1,064.75
                              from £1,064.75
                              This part replaces part number 269268
                              # 002
                              MPN: 272515
                              BRACKET
                              from £28.94
                              from £28.94
                              # 003
                              MPN: 225408
                              CYLINDRICAL BUSHING
                              from £4.32
                              from £4.32
                              # 004
                              MPN: 14059214
                              NUT
                              from £0.53
                              from £0.53
                              # 005
                              MPN: 274559
                              BRACKET
                              -Fastening EPB to rear part-
                              from £39.19
                              from £39.19
                              # 006
                              MPN: 231617
                              SCREW
                              -M6 X 18-
                              from £0.52
                              from £0.52
                              This part replaces part number 14433124 which we have in stock
                              # 007
                              MPN: 248300
                              EPB CABLE HEAT SHIELD
                              from £13.77
                              from £13.77
                              This part replaces part number 256074 - and 2 more. Click to view details
                              # 008
                              MPN: 11566224
                              SCREW
                              -M5 X 14-
                              from £0.53
                              from £0.53
                              # 009
                              MPN: 238549
                              EQUALISER BRACKET
                              -No longer supplied- -Replaced by 283126-
                              from £13.29
                              from £13.29
                              # 009
                              MPN: 283126
                              EQUALISER BRACKET
                              from £15.86
                              from £15.86
                              This part replaces part number 238549 which we have in stock - and 1 more. Click to view details
                              # 010
                              MPN: 11568027
                              SCREW
                              -M6 X 18-
                              from £0.86
                              from £0.86
                              # 011
                              MPN: 249701
                              RH PARKING BRAKE CABLE
                              from £64.52
                              from £64.52
                              # 012
                              MPN: 249700
                              LH PARKING BRAKE CABLE
                              from £64.52
                              from £64.52
                              # 013
                              MPN: 240953
                              REACTION PLATE
                              from £6.50
                              from £6.50
                              # 014
                              MPN: 240952
                              FASTENER SPRING
                              from £6.44
                              from £6.44
                              # 015
                              MPN: 254156
                              COMPL. PARKING BRAKE LEVER
                              from £40.94
                              from £40.94
                              This part replaces part number 234658 which we have in stock - and 2 more. Click to view details
                              # 016
                              MPN: 240947

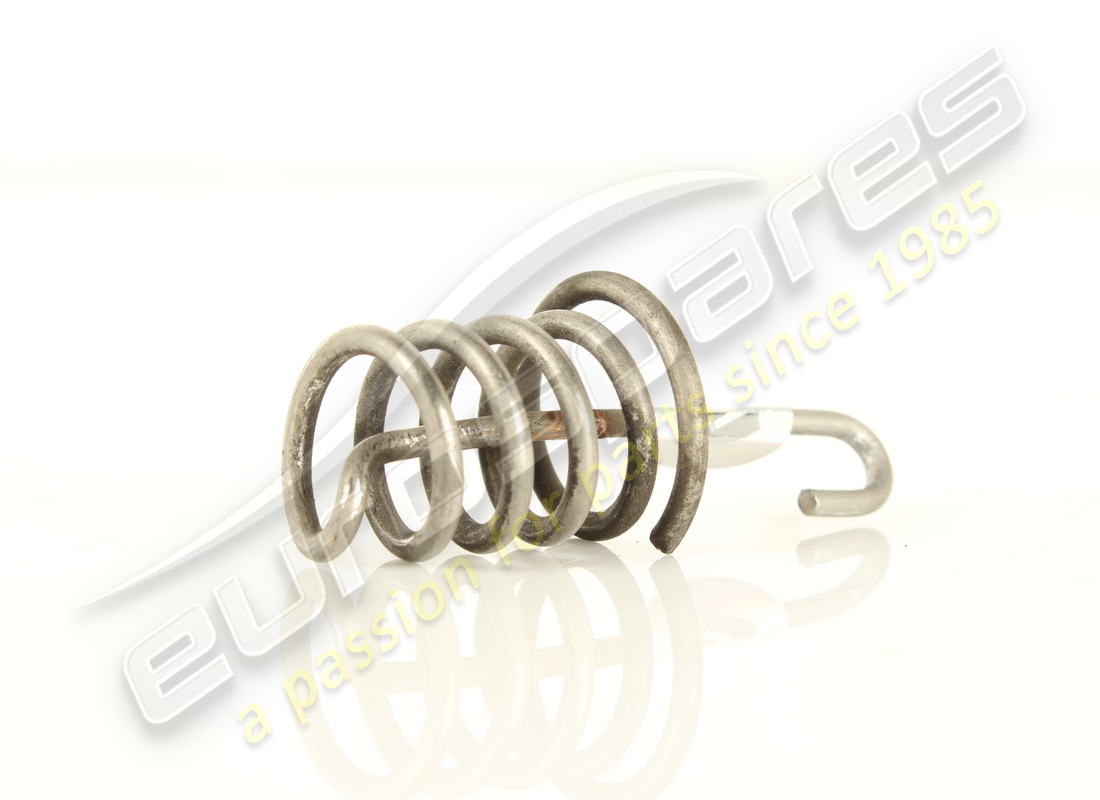

                              LONG EXTENSION SPRING
                              from £4.09
                              from £4.09
                              # 017
                              MPN: 240948
                              PARKING BRAKE SHOE
                              from £129.97
                              from £129.97
                              # 018
                              MPN: 186572
                              ADJUSTER
                              from £42.46
                              from £42.46
                              # 019
                              MPN: 243123
                              SHORT EXTENSION SPRING
                              from £4.09
                              from £4.09
                              # 020
                              MPN: 260355
                              ADHESIVE SEAL
                              from £2.84
                              from £2.84
