0034 - Steering Control

Ferrari FF (USA) STEERING CONTROL Parts Diagram

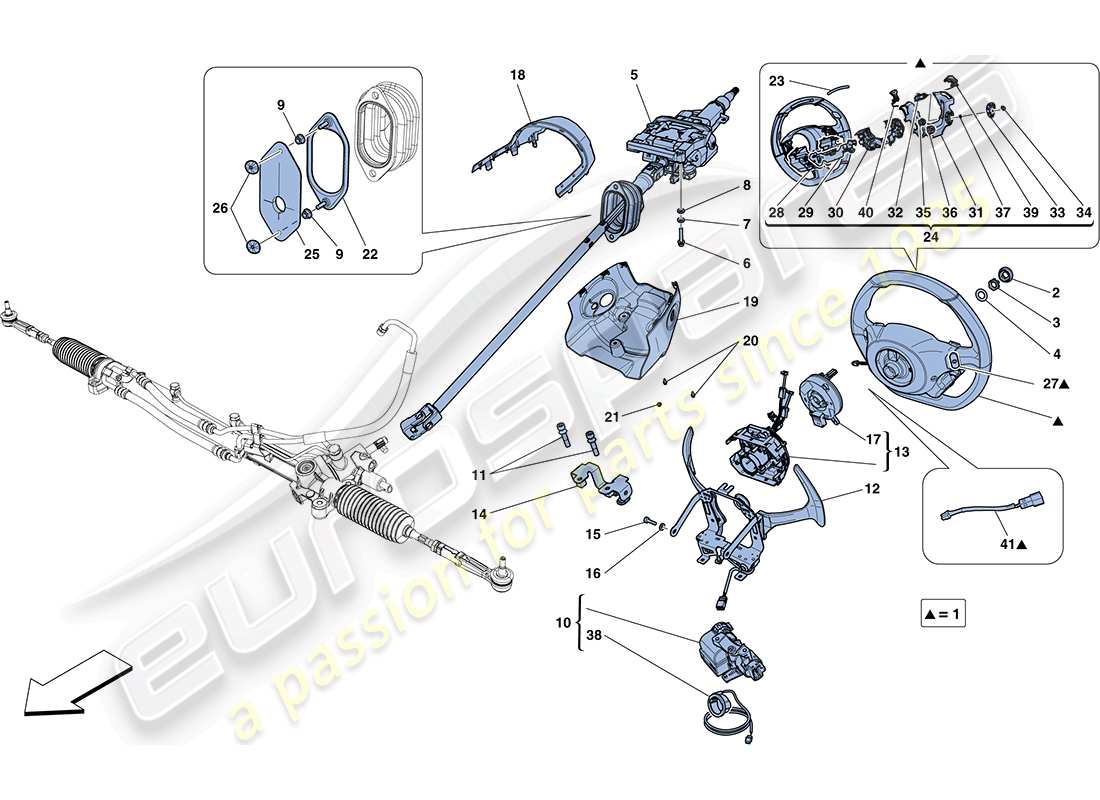

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 848441..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -STIC- -Applicable up to Ass. No. 115595-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 848442..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Carbon fibre with LED display- -STIC- -Applicable up to Ass. No. 115595-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 848443..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -With rear windscreen wiper- -STIC- -Applicable up to Ass. No. 115595-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 848444..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Carbon with rear windscreen wiper and LED display- -STIC- -Applicable up to Ass. No. 115595-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 855262..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Alutex with rear screen wiper- -STIC- -No longer supplied- -Replaced by 872335..-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 855263..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Alutex- -STIC- -No longer supplied- -Replaced by 872332..-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 860462..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -STIC- -Applicable from Ass. No. 115596- -No longer supplied- -Replaced by 872330..-
                                                        # 001
                                                        MPN: 860463..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Carbon fibre with LED display- -STIC- -Applicable from Ass. No. 115596- -No longer supplied- -Replaced by 872331..-
                                                        # 001
                                                        MPN: 860464..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -With rear windscreen wiper- -STIC- -Applicable from Ass. No. 115596- -No longer supplied- -Replaced by 872333..-
                                                        # 001
                                                        MPN: 860465..
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Carbon with rear windscreen wiper and LED display- -STIC- -Applicable from Ass. No. 115596- -No longer supplied- -Replaced by 872334..-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 872330
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -STIC- -Applicable from Ass. No. 115596-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 872331
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Carbon fibre with LED display- -STIC- -Applicable from Ass. No. 115596-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 872332
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Alutex- -STIC-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 872333
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -With rear windscreen wiper- -STIC- -Applicable from Ass. No. 115596-
                                                        from £1,309.48
                                                        from £1,309.48
                                                        # 001
                                                        MPN: 872334
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Carbon with rear windscreen wiper and LED display- -STIC- -Applicable from Ass. No. 115596-
                                                        Supersession
                                                        Supersession
                                                        # 001
                                                        MPN: 872335
                                                        COMPL. STEERING WHEEL
                                                        -Leather- -Alutex with rear screen wiper- -STIC-
                                                        Supersession
                                                        Supersession
                                                        # 002
                                                        MPN: 199406
                                                        NUT CAP
                                                        -No longer supplied- -Replaced by 299558-
                                                        from £0.54
                                                        from £0.54
                                                        # 002
                                                        MPN: 299558
                                                        NUT CAP
                                                        from £0.47
                                                        from £0.47
                                                        # 003
                                                        MPN: 199222
                                                        NUT
                                                        -M16 X 1.5- -No longer supplied- -Replaced by 299557-
                                                        from £1.00
                                                        from £1.00
                                                        # 003
                                                        MPN: 299557
                                                        NUT
                                                        -M16 X 1.5-
                                                        from £0.67
                                                        from £0.67
                                                        # 004
                                                        MPN: 152034
                                                        WASHER
                                                        from £3.86
                                                        from £3.86
                                                        # 005
                                                        MPN: 261857
                                                        COMPL. STEERING COLUMN
                                                        from £1,178.28
                                                        from £1,178.28
                                                        # 006
                                                        MPN: 14306924
                                                        SCREW
                                                        -M8 X 50-
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 14306921 which we have in stock
                                                        # 007
                                                        MPN: 10519624
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                        # 008
                                                        MPN: 11194074
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 11194071 - and 2 more. Click to view details
                                                        # 009
                                                        MPN: 14058419
                                                        NUT
                                                        from £0.60
                                                        from £0.60
                                                        # 010
                                                        MPN: 247058
                                                        STEERING LOCK
                                                        from £350.00
                                                        from £350.00
                                                        # 011
                                                        MPN: 192053
                                                        STEERING LOCK FASTENER SCREW
                                                        from £3.01
                                                        from £3.01
                                                        # 012
                                                        MPN: 260106
                                                        GEAR SHIFT PADDLE ASSEMBLY
                                                        -Carbon- -Applicable until depletion-
                                                        Supersession
                                                        Supersession
                                                        # 012
                                                        MPN: 274984
                                                        GEAR SHIFT PADDLE ASSEMBLY
                                                        from £791.25
                                                        from £791.25
                                                        # 012
                                                        MPN: 278724
                                                        GEAR SHIFT PADDLE ASSEMBLY
                                                        -Carbon- -Applicable after depletion of 260106-
                                                        from £989.66
                                                        from £989.66
                                                        This part replaces part number 260106 - and 5 more. Click to view details
                                                        # 012
                                                        MPN: 285436
                                                        SHIFT PADDLE ASSEMBLY
                                                        -Alutex-
                                                        from £1,220.49
                                                        from £1,220.49
                                                        # 013
                                                        MPN: 252246
                                                        COMPL. STEERING SENSOR MOUNTING
                                                        from £93.45
                                                        from £93.45
                                                        # 014
                                                        MPN: 258616
                                                        BRACKET MOUNTING
                                                        from £24.56
                                                        from £24.56
                                                        # 015
                                                        MPN: 14304187
                                                        SCREW
                                                        -M5 X 12-
                                                        from £0.52
                                                        from £0.52
                                                        This part replaces part number 87658800
                                                        # 016
                                                        MPN: 12601174
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                                        # 017
                                                        MPN: 259914
                                                        CLOCK SPRING CONTACT
                                                        from £147.51
                                                        from £147.51
                                                        This part replaces part number 187750
                                                        # 018
                                                        MPN: 847051..
                                                        UPPER STEERING COLUMN TRIM
                                                        Supersession
                                                        Supersession
                                                        # 019
                                                        MPN: 82056700
                                                        LOWER STEERING COLUMN TRIM
                                                        -Painted Lechler Black- -Applicable up to Ass. No. 104841-
                                                        from £172.60
                                                        from £172.60
                                                        # 019
                                                        MPN: 847048..
                                                        LOWER STEERING COLUMN TRIM
                                                        -Applicable from Ass. No. 104842- -No longer supplied- -Replaced by 84948400-
                                                        Supersession
                                                        Supersession
                                                        # 019
                                                        MPN: 849484..
                                                        LOWER STEERING COLUMN TRIM
                                                        Supersession
                                                        Supersession
                                                        # 019
                                                        MPN: 84948400
                                                        LOWER STEERING COLUMN TRIM
                                                        -Replaces 847048...- -Painted Technicoat Black- -Applicable from Ass. No. 104842-
                                                        from £313.81
                                                        from £313.81
                                                        This part replaces part number 84704800 - and 1 more. Click to view details
                                                        # 020
                                                        MPN: 11566227
                                                        SCREW
                                                        -M5 X 14- -No longer supplied- -Replaced by 256323-
                                                        from £0.68
                                                        from £0.68
                                                        # 020
                                                        MPN: 256323
                                                        SCREW
                                                        -M5 X 16- -No longer supplied- -Replaced by 85692200-
                                                        from £0.53
                                                        from £0.53
                                                        # 020
                                                        MPN: 85692200
                                                        SCREW
                                                        -M5 X 12-
                                                        from £0.47
                                                        from £0.47
                                                        # 021
                                                        MPN: 14059121
                                                        NUT
                                                        from £0.54
                                                        from £0.54
                                                        # 022
                                                        MPN: 237433
                                                        STEERING COLUMN GAITER FASTENER PLATE
                                                        from £14.85
                                                        from £14.85
                                                        # 023
                                                        MPN: 214236
                                                        LED FIXING PLATE
                                                        -Carbon-
                                                        from £200.98
                                                        from £200.98
                                                        # 024
                                                        MPN: 274783
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Standard version- -Applicable up to Ass. No. 115595-
                                                        from £2,167.28
                                                        from £2,167.28
                                                        # 024
                                                        MPN: 274784
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Carbon version with rear screen wiper- -Applicable up to Ass. No. 115595-
                                                        from £2,351.75
                                                        from £2,351.75
                                                        # 024
                                                        MPN: 274786
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Carbon version- -Applicable up to Ass. No. 115595-
                                                        from £2,022.90
                                                        from £2,022.90
                                                        # 024
                                                        MPN: 274787
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Standard version with rear screen wiper- -Applicable up to Ass. No. 115595-
                                                        from £2,026.63
                                                        from £2,026.63
                                                        # 024
                                                        MPN: 294204
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Standard version- -Applicable from Ass. No. 115596 up to Ass. No. 119605-
                                                        from £1,901.12
                                                        from £1,901.12
                                                        # 024
                                                        MPN: 294755
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Standard version with rear screen wiper- -Applicable from Ass. No. 115596 up to Ass. No. 119605-
                                                        from £2,026.63
                                                        from £2,026.63
                                                        # 024
                                                        MPN: 294757
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Carbon version- -Applicable from Ass. No. 115596 up to Ass. No. 119605-
                                                        from £2,022.90
                                                        from £2,022.90
                                                        # 024
                                                        MPN: 294758
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Carbon version with rear screen wiper- -Applicable from Ass. No. 115596 up to Ass. No. 119605-
                                                        from £2,335.35
                                                        from £2,335.35
                                                        # 024
                                                        MPN: 306478
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Alutex with rear screen wiper- -Applicable up to Ass. No. 119605-
                                                        # 024
                                                        MPN: 306479
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Alutex version- -Applicable up to Ass. No. 119605-
                                                        # 024
                                                        MPN: 308347
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Carbon version with rear screen wiper- -Applicable from Ass. No. 119606-
                                                        from £2,352.81
                                                        from £2,352.81
                                                        # 024
                                                        MPN: 308349
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Carbon version- -Applicable from Ass. No. 119606-
                                                        from £2,022.90
                                                        from £2,022.90
                                                        # 024
                                                        MPN: 308351
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Standard version with rear screen wiper- -Applicable from Ass. No. 119606-
                                                        from £2,026.63
                                                        from £2,026.63
                                                        # 024
                                                        MPN: 308353
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Alutex with rear screen wiper- -Applicable from Ass. No. 119606-
                                                        from £2,352.81
                                                        from £2,352.81
                                                        # 024
                                                        MPN: 308355
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Alutex version- -Applicable from Ass. No. 119606-
                                                        from £2,024.95
                                                        from £2,024.95
                                                        # 024
                                                        MPN: 308358
                                                        STEERING WHEEL MOUNTED CONTROLS
                                                        -Standard version- -Applicable from Ass. No. 119606-
                                                        from £1,901.12
                                                        from £1,901.12
                                                        # 025
                                                        MPN: 245266
                                                        STEERING COLUMN GAITER SOUNDPROOFING SEAL
                                                        from £6.85
                                                        from £6.85
                                                        # 026
                                                        MPN: 250645
                                                        RING NUT
                                                        from £0.53
                                                        from £0.53
                                                        # 027
                                                        MPN: 246475
                                                        RH NIT BUTTON
                                                        -Applicable up to Ass. No. 115595-
                                                        from £119.11
                                                        from £119.11
                                                        # 027
                                                        MPN: 246476
                                                        LH NIT BUTTON
                                                        -Applicable up to Ass. No. 115595-
                                                        from £119.11
                                                        from £119.11
                                                        # 027
                                                        MPN: 291692
                                                        RH NIT BUTTON
                                                        -Applicable from Ass. No. 115596-
                                                        from £597.84
                                                        from £597.84
                                                        # 027
                                                        MPN: 292879
                                                        LH NIT BUTTON
                                                        -Applicable from Ass. No. 115596-
                                                        from £597.84
                                                        from £597.84
                                                        # 028
                                                        MPN: 258336
                                                        MAIN SHELL
                                                        from £14.60
                                                        from £14.60
                                                        # 029
                                                        MPN: 249780
                                                        ELECTRONIC BOARD
                                                        -No longer supplied-
                                                        from £379.49
                                                        from £379.49
                                                        # 029
                                                        MPN: 249780
                                                        ELECTRONIC BOARD
                                                        -Without rear screen wiper- -Applicable from Ass. No. 115596 up to Ass. No. 119605-
                                                        from £379.49
                                                        from £379.49
                                                        # 029
                                                        MPN: 308346
                                                        ELECTRONICS (HW05-SW11)
                                                        -Without rear screen wiper- -Applicable from Ass. No. 119606-
                                                        from £379.49
                                                        from £379.49
                                                        # 029
                                                        MPN: 316617
                                                        ELECTRONICS (HW05-SW11)
                                                        -With rear windscreen wiper- -Applicable from Ass. No. 115596 up to Ass. No. 119605-
                                                        from £331.58
                                                        from £331.58
                                                        # 029
                                                        MPN: 316618
                                                        ELECTRONICS (HW05-SW11)
                                                        -With rear windscreen wiper- -Applicable from Ass. No. 119606-
                                                        from £331.58
                                                        from £331.58
                                                        # 029
                                                        MPN: 316646
                                                        ELECTRONICS (HW05-SW10)
                                                        -With rear windscreen wiper- -Applicable up to Ass. No. 115595-
                                                        from £607.25
                                                        from £607.25
                                                        # 029
                                                        MPN: 316922
                                                        ELECTRONICS (HW05-SW10)
                                                        -Without rear screen wiper- -Applicable up to Ass. No. 115595-
                                                        from £497.37
                                                        from £497.37
                                                        # 030
                                                        MPN: 258338
                                                        MAIN MOUNT
                                                        from £14.60
                                                        from £14.60
                                                        # 031
                                                        MPN: 260514
                                                        SURROUND
                                                        -Carbon-
                                                        from £1,263.73
                                                        from £1,263.73
                                                        # 031
                                                        MPN: 274996
                                                        SURROUND
                                                        from £284.61
                                                        from £284.61
                                                        # 032
                                                        MPN: 212752
                                                        ROTARY SELECTOR
                                                        from £401.39
                                                        from £401.39
                                                        # 033
                                                        MPN: 263856
                                                        MANETTINO DECAL
                                                        from £29.20
                                                        from £29.20
                                                        # 034
                                                        MPN: 210986
                                                        MANETTINO LEVER
                                                        from £80.29
                                                        from £80.29
                                                        # 035
                                                        MPN: 257739
                                                        SHOCK ABSORBER HEIGHT BUTTON
                                                        from £28.46
                                                        from £28.46
                                                        # 036
                                                        MPN: 257738
                                                        ENGINE START BUTTON
                                                        from £35.03
                                                        from £35.03
                                                        # 037
                                                        MPN: 308717
                                                        WASHER FOR STEERING WHEEL MANETTINO
                                                        from £2.61
                                                        from £2.61
                                                        # 038
                                                        MPN: 191664
                                                        IMMOBILIZER ANTENNA
                                                        from £18.61
                                                        from £18.61
                                                        # 039
                                                        MPN: 255430
                                                        RH TURN INDICATORS
                                                        from £118.96
                                                        from £118.96
                                                        # 040
                                                        MPN: 255429
                                                        LH TURN INDICATORS
                                                        from £118.96
                                                        from £118.96
                                                        # 041
                                                        MPN: 325936
                                                        CLOCK SPRING CONNECTOR HARNESS
                                                        -Only applicable for spare parts-
                                                        from £63.83
                                                        from £63.83
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
