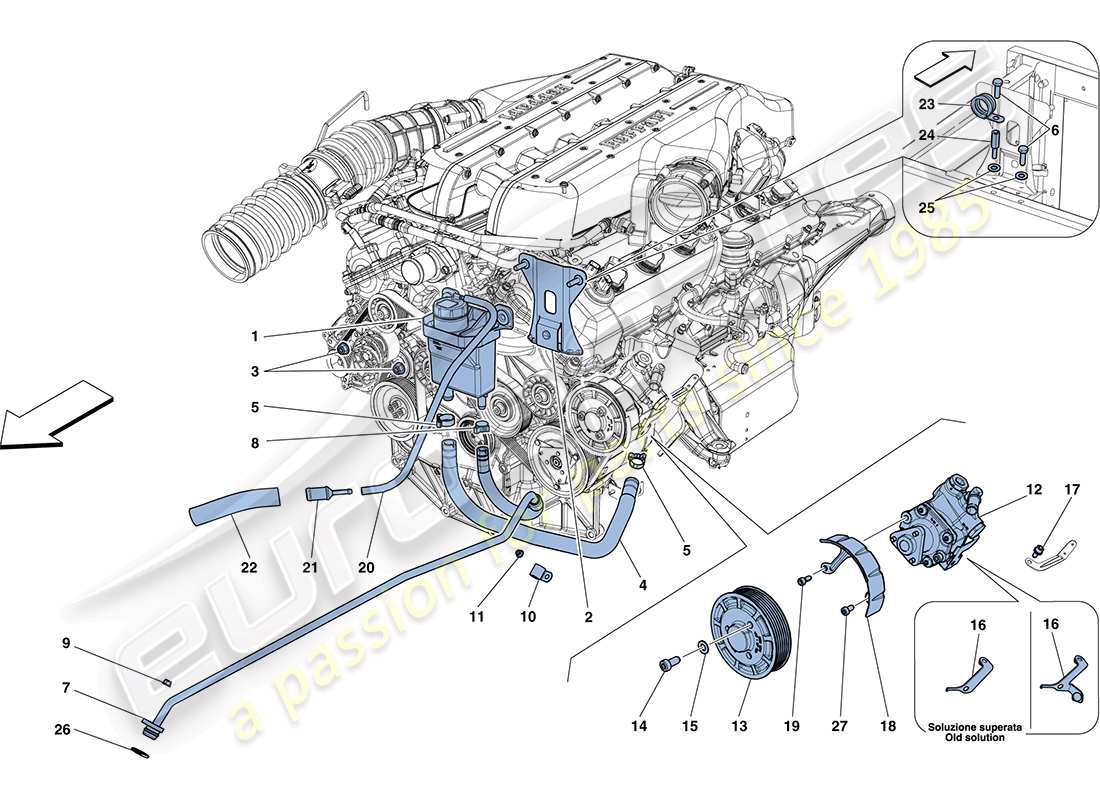

0035 - POWER STEERING PUMP AND RESERVOIR
Ferrari FF (USA) POWER STEERING PUMP AND RESERVOIR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 277696
COMPL. POWER STEERING FLUID RESERVOIR
-No longer supplied- -Replaced by 280021-
Supersession
Supersession
# 001
MPN: 280021
COMPL. POWER STEERING FLUID RESERVOIR
-Applicable until depletion-
from £20.85
from £20.85
This part replaces part number 199617 - and 3 more. Click to view details
# 001
MPN: 292342
COMPL. POWER STEERING FLUID RESERVOIR
-Applicable after depletion of 280021-
from £24.57
from £24.57
This part replaces part number 233605 which we have in stock - and 11 more. Click to view details
# 002
MPN: 267954
BRACKET
from £30.79
from £30.79
# 003
MPN: 13046212
NUT
from £5.95
from £5.95
# 004
MPN: 276797
PIPE FROM RESERVOIR TO POWER STEERING PUMP
from £21.80
from £21.80
# 005
MPN: 13126370
CLAMP
from £0.72
from £0.72
# 006
MPN: 10902424
SCREW
-M6 X 20- -Fastening bracket to chassis-
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 007
MPN: 268010
PIPE FROM RADIATOR TO POWER STEERING FLUID RESERVOIR
from £37.93
from £37.93
# 008
MPN: 13126070
COLLAR
from £0.62
from £0.62
# 009
MPN: 14058419
NUT
from £0.59
from £0.59
# 010
MPN: 10441390
BRACKET WITH SHEATH
-D. 12- -Fastening pipe to radiator-
from £0.51
from £0.51
# 011
MPN: 15896277
NUT
-Fastening pipe to radiator-
from £1.07
from £1.07
# 012
MPN: 272325
POWER STEERING PUMP
-No longer supplied- -Replaced by 277567-
Supersession
Supersession
# 012
MPN: 277567
POWER STEERING PUMP
from £708.99
from £708.99
This part replaces part number 272325 - and 2 more. Click to view details
# 013
MPN: 250874
PULLEY ON POWER STEERING PUMP
from £34.51
from £34.51
# 014
MPN: 13028324
SCREW
-M8 X 16-
from £2.40
from £2.40
# 015
MPN: 11193874
WASHER
from £0.54
from £0.54
This part replaces part number 11193879 which we have in stock
# 016
MPN: 272695
BRACKET
-On rear power steering pump body- -No longer supplied- -Replaced by 275397-
Supersession
Supersession
# 016
MPN: 275397
BRACKET
-On rear power steering pump body-
from £19.46
from £19.46
This part replaces part number 272695
# 017
MPN: 231627
SCREW
-M8 X 16-
from £0.54
from £0.54
# 018
MPN: 272016
BELT GUARD
from £17.04
from £17.04
# 019
MPN: 231627
SCREW
-M8 X 16-
from £0.54
from £0.54
# 020
MPN: 124790
RUBBER PIPE
-D. 3.5-8 X 400- -Applicable for GD-
from £3.03
from £3.03
# 020
MPN: 125826
RUBBER PIPE
-D. 3.5-8 X 320- -Not for GD-
from £6.12
from £6.12
# 021
MPN: 222606
BREATHER PIPE UNION
-Not for GD-
from £5.35
from £5.35
# 022
MPN: 277606
oil breather pipe
-L= 1685- -Not for GD-
from £6.49
from £6.49
# 023
MPN: 172995
BRACKET WITH SHEATH
from £2.23
from £2.23
# 024
MPN: 178772
STUD BOLT
from £5.70
from £5.70
# 025
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 026
MPN: 14457381
GASKET
from £0.54
from £0.54
# 027
MPN: 231616
SCREW
-M6 X 14-
from £0.54
from £0.54
This part replaces part number 14305724 which we have in stock
