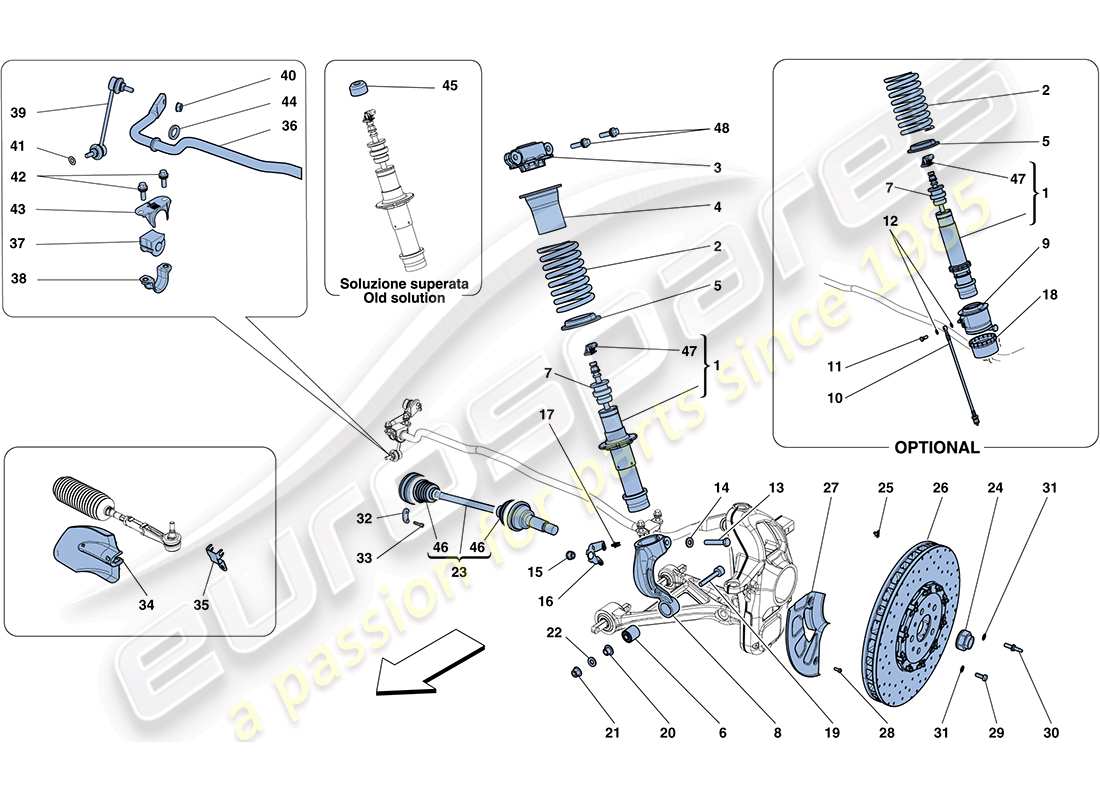

0036 - Front Suspension - Shock Absorber and Brake Disc
Ferrari FF (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 265748
FRONT SHOCK ABSORBER
from £1,411.70
from £1,411.70
# 001
MPN: 265765
FRONT SHOCK ABSORBER
Lifting System version
from £1,359.42
from £1,359.42
# 002
MPN: 257753
SPRING
from £61.56
from £61.56
# 002
MPN: 269638
SPRING
-Version with lifter-
from £51.99
from £51.99
# 003
MPN: 274308
STOP CAP
from £68.23
from £68.23
# 004
MPN: 212517
UPPER SPACER
from £3.65
from £3.65
# 005
MPN: 211236
LOWER SPACER
from £8.83
from £8.83
# 006
MPN: 157630
BALL JOINT
from £48.50
from £48.50
This part replaces part number 159262
# 007
MPN: 257412
ENDSTOP BUSH
-No longer supplied- -Replaced by 288828-
Supersession
Supersession
# 007
MPN: 257412
ENDSTOP BUSH
Supersession
Supersession
# 007
MPN: 288828
ENDSTOP BUSH
-No longer supplied- -Replaced by 257412-
from £20.88
from £20.88
This part replaces part number 257412 - and 2 more. Click to view details
# 008
MPN: 261913
LH STRUT OF SHOCK ABSORBER FOR 4WD
from £119.61
from £119.61
# 008
MPN: 261914
RH STRUT OF SHOCK ABSORBER FOR 4WD
from £119.61
from £119.61
# 009
MPN: 262384
COMPL. ACTUATOR
-Version with lifter-
from £446.74
from £446.74
# 010
MPN: 260408
RUBBER PIPE
-Version with lifter-
from £17.66
from £17.66
# 011
MPN: 261587
CONNECTION FOR UNION
-Version with lifter-
from £16.65
from £16.65
# 012
MPN: 259638
GASKET
-Version with lifter-
from £7.75
from £7.75
# 013
MPN: 15541234
SCREW
-M12 X 1.25 X 70-
from £0.99
from £0.99
# 014
MPN: 259664
WASHER
from £3.14
from £3.14
# 015
MPN: 259711
BUSHING
from £6.35
from £6.35
# 016
MPN: 263314
LH BRACKET
from £12.85
from £12.85
# 016
MPN: 263315
RH BRACKET
from £12.85
from £12.85
# 017
MPN: 261214
RAYMOND CLIP
from £0.75
from £0.75
# 018
MPN: 268474
DUST COVER
-Version with lifter-
from £6.19
from £6.19
# 019
MPN: 237297
SCREW
-M12 X 1.25 X 80-
from £15.87
from £15.87
# 020
MPN: 237821
BUSHING
from £2.78
from £2.78
# 021
MPN: 255271
NUT
from £0.44
from £0.44
This part replaces part number 14058721 - and 1 more. Click to view details
# 022
MPN: 12646921
WASHER
from £0.30
from £0.30
This part replaces part number 12646901 which we have in stock - and 1 more. Click to view details
# 023
MPN: 268199
FRONT AXLE SHAFT
-Replace as a pair- -Applicable up to Ass. No. 101049- -No longer supplied- -Replaced by 280511-
from £497.84
from £497.84
# 023
MPN: 280511
FRONT AXLE SHAFT
-Replaces 268199- -Applicable from Ass. No. 101050- -No longer supplied- -Replaced by 339613-
Supersession
Supersession
# 023
MPN: 339613
FRONT AXLE SHAFT
-Replaces 280511- -Applicable from Ass. No. 101050-
from £1,734.48
from £1,734.48
This part replaces part number 280511
# 024
MPN: 203780
NUT
from £14.27
from £14.27
This part replaces part number 187814
# 025
MPN: 204781
CLIP
-Fastening wear indicator cable-
from £0.47
from £0.47
This part replaces part number 12486580 - and 1 more. Click to view details
# 026
MPN: 274334
BRAKE DISC
-Applicable until depletion-
from £1,638.23
from £1,638.23
# 026
MPN: 315457
BRAKE DISC
-Applicable after depletion of 274334-
from £2,828.94
from £2,828.94
This part replaces part number 274334 which we have in stock
# 027
MPN: 260675
LH DISC SHIELD
from £22.63
from £22.63
# 027
MPN: 260676
RH DISC SHIELD
from £22.63
from £22.63
# 028
MPN: 190870
SCREW
-M6 X 14-
from £1.44
from £1.44
# 029
MPN: 228131
SCREW
-M8 X 20-
from £0.53
from £0.53
# 030
MPN: 104370
SCREW
from £5.66
from £5.66
This part replaces part number 139981
# 031
MPN: 228132
WASHER
from £0.53
from £0.53
# 032
MPN: 268410
PLATE
from £4.38
from £4.38
# 033
MPN: 14306931
SCREW
-M8 X 50-
from £0.52
from £0.52
# 034
MPN: 247997
LH BRAKE AIR FLAP
from £40.51
from £40.51
# 034
MPN: 247998
RH BRAKE AIR FLAP
from £40.51
from £40.51
# 035
MPN: 260586
ABS CABLE GUIDE BRACKET
from £9.27
from £9.27
# 036
MPN: 265000
STABILISER BAR
from £119.49
from £119.49
# 037
MPN: 236241
PLUG
from £15.52
from £15.52
# 038
MPN: 245822
RETAINER BRACKET
from £6.96
from £6.96
# 039
MPN: 247950
SPHERICAL TIE-ROD
-On lower LH arm-
from £31.03
from £31.03
# 039
MPN: 247952
SPHERICAL TIE-ROD
-On lower RH arm-
from £56.41
from £56.41
# 040
MPN: 12164714
NUT
from £0.53
from £0.53
This part replaces part number 10791014
# 041
MPN: 12601474
WASHER
from £0.53
from £0.53
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 042
MPN: 245843
SCREW
-M10 X 1.25 X 30-
from £1.34
from £1.34
# 043
MPN: 286144
BUSHING MOUNT
from £7.22
from £7.22
# 044
MPN: 10397680
GROMMET
from £0.59
from £0.59
# 045
MPN: 288829
STOP CAP
-No longer supplied-
from £28.10
from £28.10
# 046
MPN: 70006024
GAITER REPLACEMENT KIT
-Wheel/gearbox side-
from £79.99
from £79.99
# 046
MPN: 70006025
GAITER REPLACEMENT KIT
-Gearbox side-
from £79.99
from £79.99
# 047
MPN: 234671
UPPER CONNECTOR
from £41.61
from £41.61
This part replaces part number 245841
# 048
MPN: 248790
SCREW
from £2.14
from £2.14
-part-diagram-0037.webp "FERRARI FF (USA) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (USA) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (USA) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (USA) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (USA) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (USA) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (USA) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (USA) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (USA) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (USA) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (USA) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (USA) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (USA) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (USA) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (USA) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (USA) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (USA) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (USA) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (USA) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (USA) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (USA) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (USA) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (USA) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (USA) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (USA) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (USA) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (USA) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (USA) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (USA) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (USA) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (USA) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (USA) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (USA) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (USA) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (USA) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI FF (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI FF (USA) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (USA) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (USA) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (USA) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (USA) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (USA) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (USA) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (USA) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (USA) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (USA) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (USA) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (USA) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (USA) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (USA) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (USA) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (USA) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (USA) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (USA) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (USA) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (USA) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (USA) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (USA) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (USA) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (USA) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (USA) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (USA) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
