0037 - FRONT SUSPENSION - ARMS

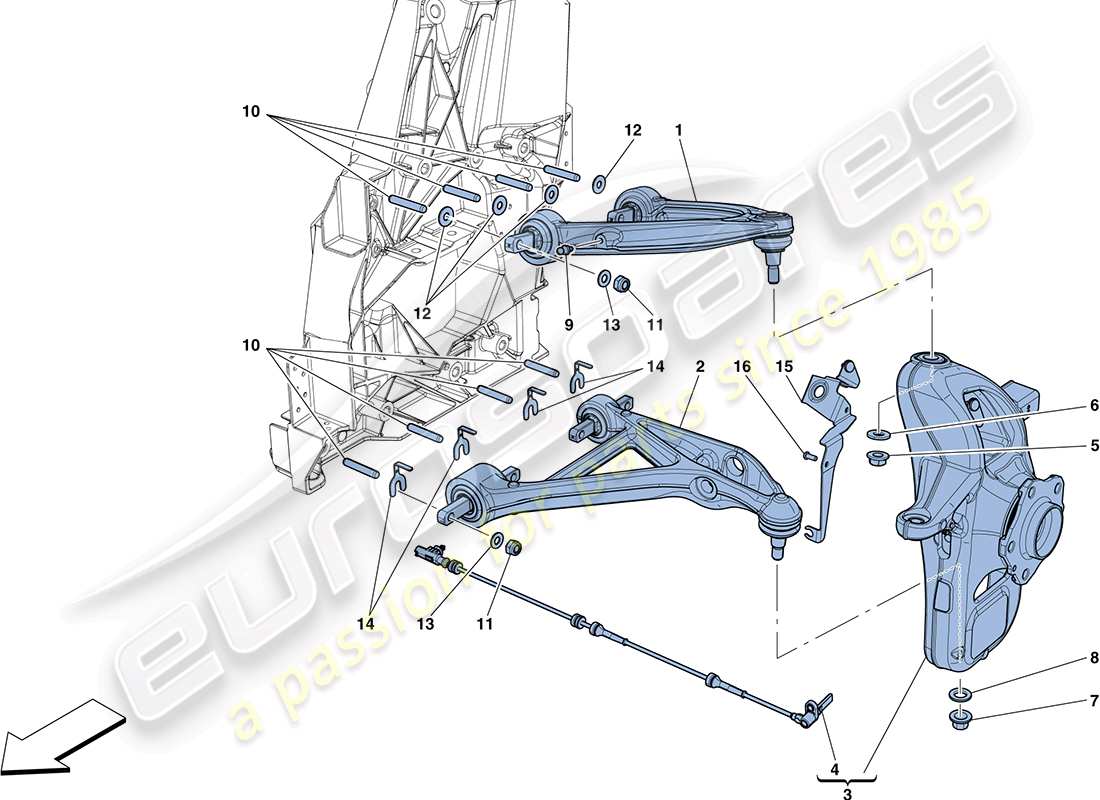

Ferrari FF (USA) FRONT SUSPENSION - ARMS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 269262

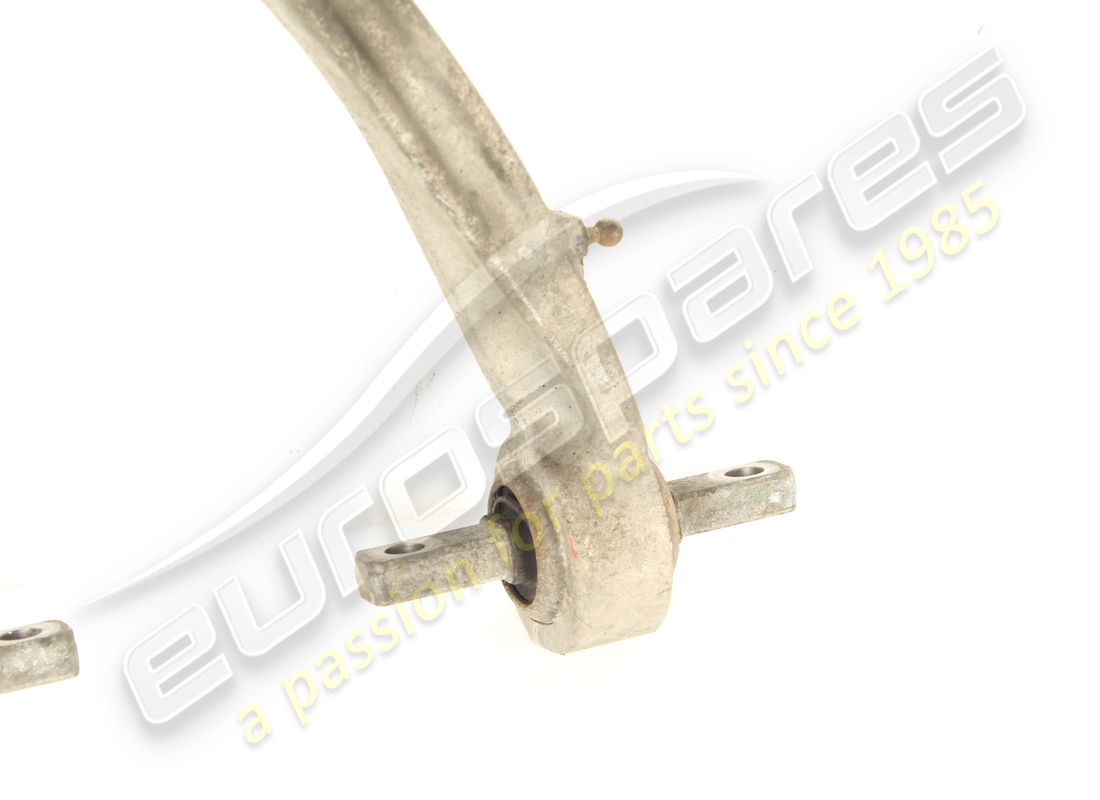

COMPL. LH FRONT UPPER ARM
from £509.13
from £509.13
# 001
MPN: 269263
COMPL. RH FRONT UPPER ARM
from £509.13
from £509.13
# 002
MPN: 268894
COMPL. LH FRONT LOWER ARM
-No longer supplied- -Replaced by 268896-
from £350.33
from £350.33
# 002
MPN: 268895
COMPL. RH FRONT LOWER ARM
-No longer supplied- -Replaced by 268897-
from £350.33
from £350.33
# 002
MPN: 268896
COMPL. LH FRONT LOWER ARM
from £397.77
from £397.77
# 002
MPN: 268897
COMPL. RH FRONT LOWER ARM
from £723.21
from £723.21
# 003
MPN: 268377

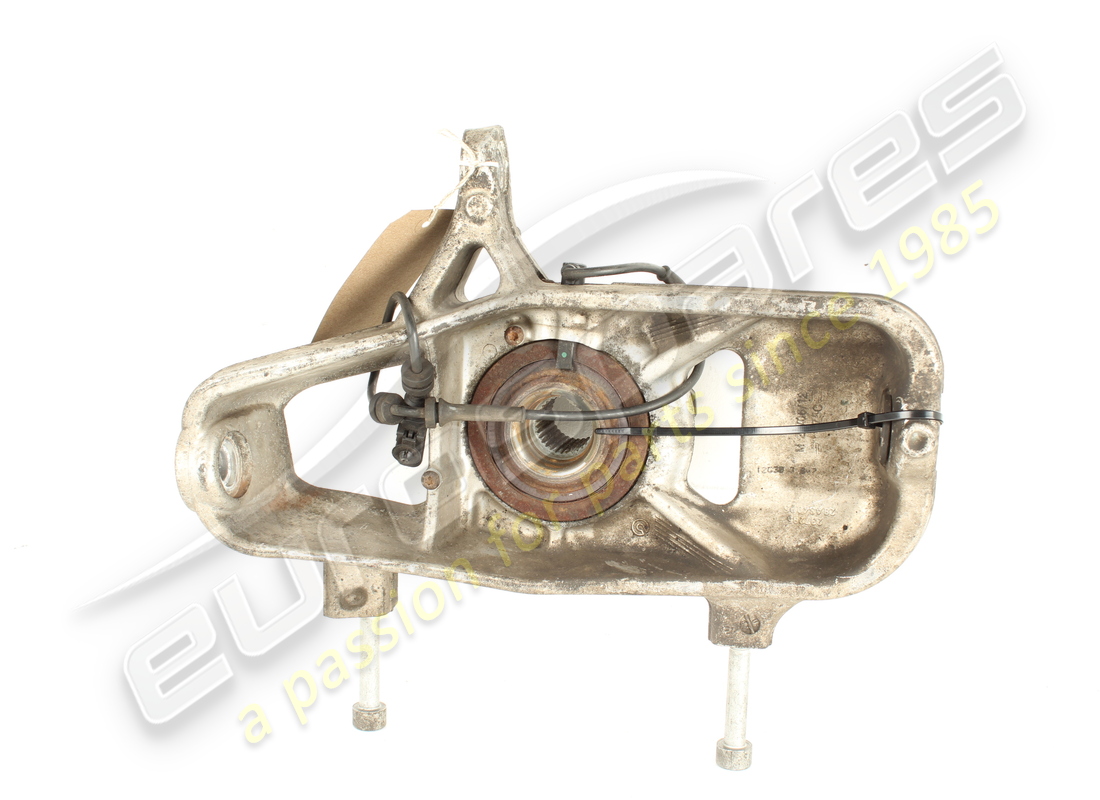

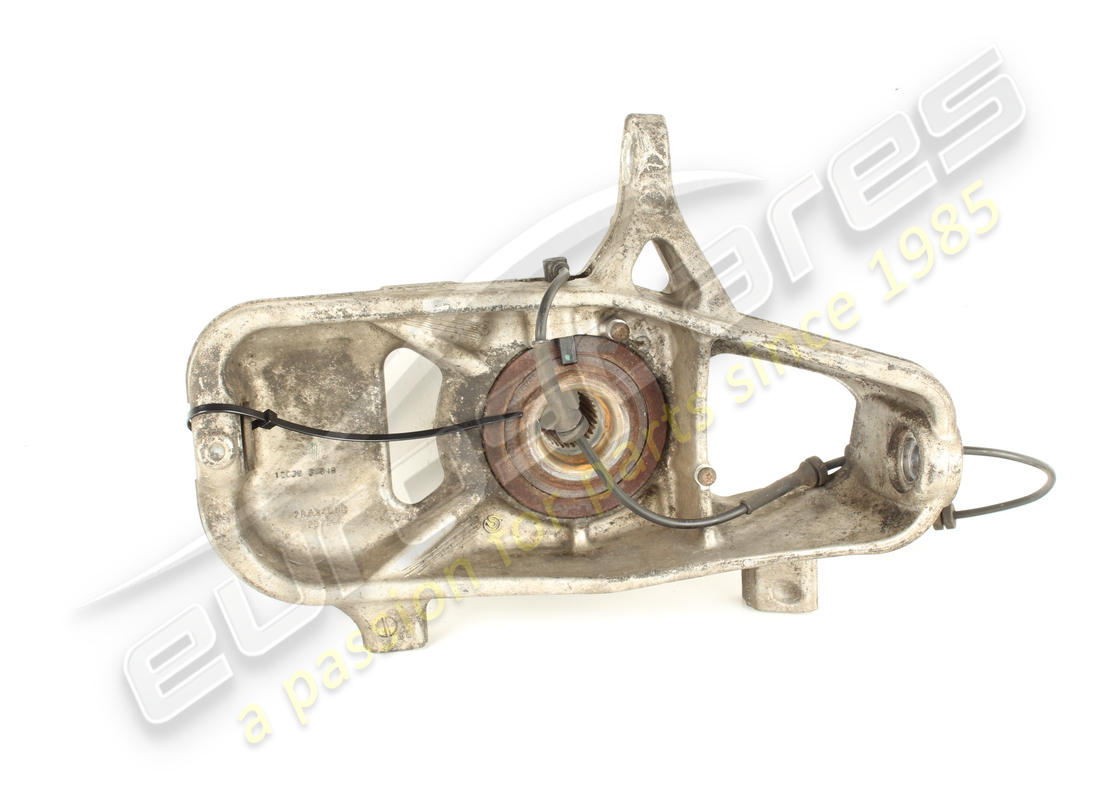

COMPL. LH FRONT HUB CARRIER
from £1,313.63
from £1,313.63
# 003
MPN: 268378
COMPL. RH FRONT HUB CARRIER
from £1,313.63
from £1,313.63
# 004
MPN: 259615
ABS SENSOR
from £108.83
from £108.83
# 005
MPN: 149807
NUT
from £0.63
from £0.63
# 006
MPN: 12646921
WASHER
from £0.30
from £0.30
This part replaces part number 12646901 which we have in stock - and 1 more. Click to view details
# 007
MPN: 203795
NUT
from £1.57
from £1.57
This part replaces part number 183417
# 008
MPN: 241689
WASHER
from £3.80
from £3.80
# 009
MPN: 216973
BALL JOINT
from £2.26
from £2.26
# 010
MPN: 264528
THREADED ROD
from £1.94
from £1.94
This part replaces part number 249294 which we have in stock
# 011
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 012
MPN: 12646821
WASHER
from £0.53
from £0.53
# 012
MPN: 14496624
WASHER
-D. 10.5-21 X 2-
from £0.53
from £0.53
This part replaces part number 14496601 - and 2 more. Click to view details
# 013
MPN: 14496624
WASHER
-D. 10.5-21 X 2-
from £0.48
from £0.48
This part replaces part number 14496601 - and 2 more. Click to view details
# 014
MPN: 238692
ADJUSTMENT SHIM
-Th. 0.5 mm-
from £3.32
from £3.32
# 014
MPN: 238693
ADJUSTMENT SHIM
-Th. 1 mm-
from £3.32
from £3.32
# 014
MPN: 238694
ADJUSTMENT SHIM
-Th. 2 mm-
from £3.32
from £3.32
# 014
MPN: 238881
ADJUSTMENT SHIM
-Th. 1.5 mm-
from £3.32
from £3.32
# 014
MPN: 238882
ADJUSTMENT SHIM
-Th. 2.5 mm-
from £3.32
from £3.32
# 014
MPN: 238883
ADJUSTMENT SHIM
-Th. 3 mm-
from £3.32
from £3.32
# 014
MPN: 238884
ADJUSTMENT SHIM
-Th. 3.5 mm-
from £3.32
from £3.32
# 014
MPN: 238885
ADJUSTMENT SHIM
-Th. 4 mm-
from £3.32
from £3.32
# 015
MPN: 274460
LH JOINT BRACKET
from £42.98
from £42.98
# 015
MPN: 274461
RH JOINT BRACKET
from £42.98
from £42.98
# 016
MPN: 190870
SCREW
-M6 X 14-
from £1.44
from £1.44
