0040 - Wheels

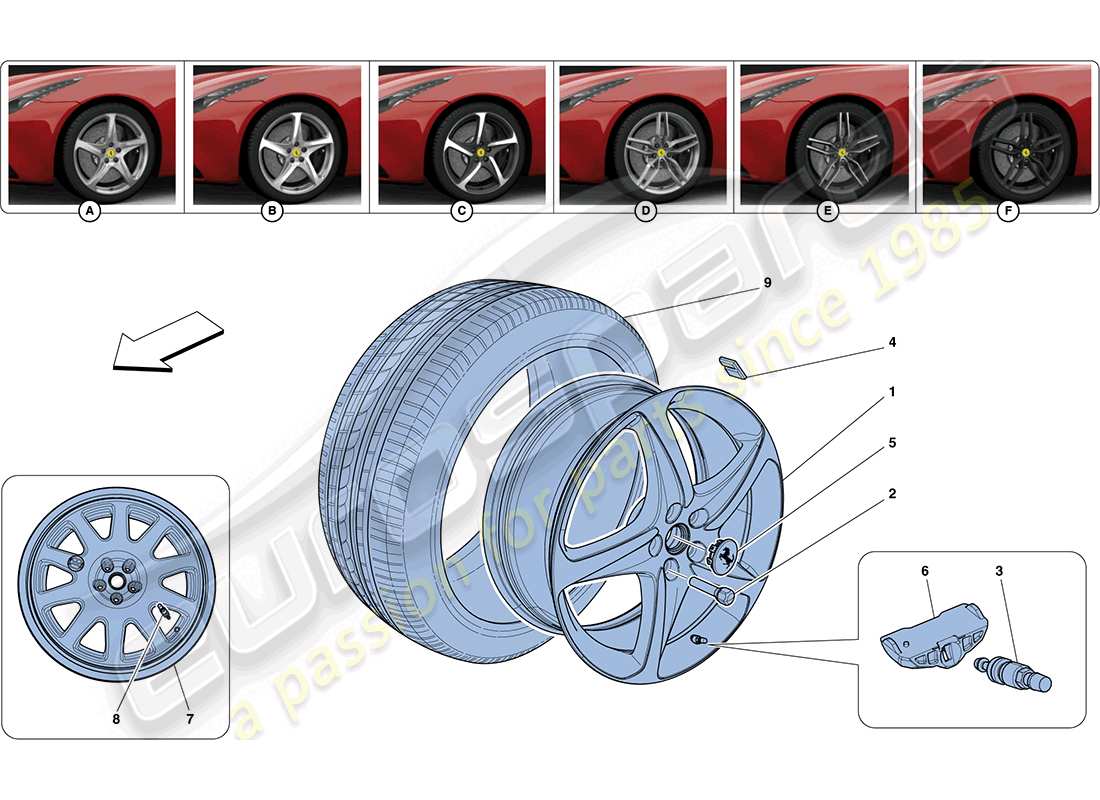

Ferrari FF (USA) WHEELS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 260697
FRONT WHEEL
-8.5J X 20- -Cast diamond cut silver- -See box B- -Modis code RMSD-
from £656.08
from £656.08
# 001
MPN: 260698
REAR WHEEL
-10.5J X 20- -Cast diamond cut silver- -See box B- -Modis code RMSD-
from £713.50
from £713.50
# 001
MPN: 272381
FRONT WHEEL
-8.5J X 20- -Forged, painted- -See box F- -Modis code RIFS-
from £1,583.30
from £1,583.30
# 001
MPN: 272382
REAR WHEEL
-10.5J X 20- -Forged, painted- -See box F- -Modis code RIFS-
from £1,214.92
from £1,214.92
# 001
MPN: 273270
FRONT WHEEL
-8.5J X 20- -Cast, diamond cut- -See box C- -Modis code RMST-
from £572.25
from £572.25
# 001
MPN: 273272
REAR WHEEL
-10.5J X 20- -Cast, diamond cut- -See box C- -Modis code RMST-
from £677.25
from £677.25
# 001
MPN: 274882
FRONT WHEEL
-8.5J X 20- -Cast, painted- -See box A- -Modis code STANDARD-
from £519.75
from £519.75
# 001
MPN: 274883
REAR WHEEL
-10.5J X 20- -Cast, painted- -See box A- -Modis code STANDARD-
from £538.25
from £538.25
# 001
MPN: 275585
FRONT WHEEL
-8.5J X 20- -Forged, diamond cut- -See box E- -Modis code RSFD-
from £2,213.59
from £2,213.59
# 001
MPN: 275586
REAR WHEEL
-10.5J X 20- -Forged, diamond cut- -See box E- -Modis code RSFD-
from £2,306.80
from £2,306.80
# 001
MPN: 280505
FRONT WHEEL
-8.5J X 20- -Forged painted silver- -See box D- -Modis code RMSV-
from £2,027.19
from £2,027.19
# 001
MPN: 280506
REAR WHEEL
-10.5J X 20- -Forged painted silver- -See box D- -Modis code RMSV-
from £2,120.40
from £2,120.40
# 002
MPN: 247702
WHEEL STUD
-After depletion, order Kit P/N 70006039 and replace all stud bolts- -Applicable until depletion-
from £7.50
from £7.50
This part replaces part number 192724 - and 1 more. Click to view details
# 002
MPN: 70006039
WHEEL STUD BOLT KIT
from £294.19
from £294.19
# 003
MPN: 185328
VALVE
from £12.33
from £12.33
# 004
MPN: 11096693
ADHESIVE WHEEL BALANCER WEIGHT
from £5.96
from £5.96
# 004
MPN: 212174
COUNTERWEIGHT
-5 g- -No longer supplied- -Replaced by 11096693-
from £2.36
from £2.36
# 004
MPN: 212175
COUNTERWEIGHT
-10 g- -No longer supplied- -Replaced by 11096693-
from £2.69
from £2.69
# 005
MPN: 226245
HUBCAP
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 108947
# 005
MPN: 281089
HUBCAP
-Carbon-
from £181.73
from £181.73
# 005
MPN: 340066
HUBCAP
-Applicable after depletion of 226245-
from £5.24
from £5.24
This part replaces part number 226245 - and 2 more. Click to view details
# 006
MPN: 248887
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
-Not for J- -No longer supplied- -Replaced by 282189-
from £52.50
from £52.50
# 006
MPN: 249363
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
-Applicable for J- -No longer supplied- -Replaced by 290569-
Supersession
Supersession
# 006
MPN: 282189
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
-Not for J-
from £49.04
from £49.04
This part replaces part number 239298 which we have in stock - and 3 more. Click to view details
# 006
MPN: 290569
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
-Applicable for J-
from £57.75
from £57.75
This part replaces part number 249363 - and 2 more. Click to view details
# 007
MPN: 240241
SPARE WHEEL RIM
-4.5J X 20-
from £994.82
from £994.82
# 008
MPN: 317250104
VALVE
from £5.43
from £5.43
# 009
-
FRONT TYRE
# 009
-
REAR TYRE
