ferrari ff (usa) vehicle lift system parts diagram

0042 - VEHICLE LIFT SYSTEM

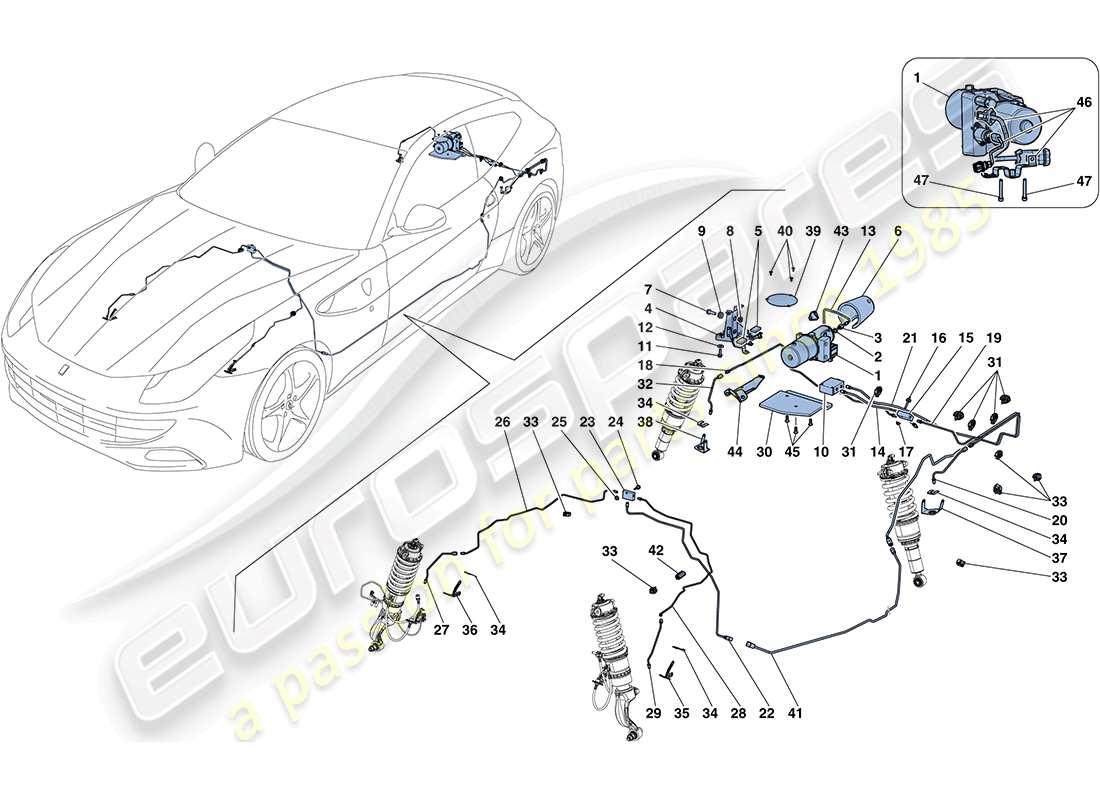

Ferrari FF (USA) VEHICLE LIFT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 001
                                                                    MPN: 257972
                                                                    ELECTRIC PUMP
                                                                    -After depletion, order electric pump 328447, pipe from pump to separator 328418 ref.13, KIT 70004745 ref.46, bracket 314656 ref.4, insulation 285319 ref.6, screw 14358924 ref.47 and ECU 343008 tab.134 ref.20- -This note applies only to vehicles in which electric pump 257972 is replaced with 844229 for the first time- -Applicable until depletion-
                                                                    from £2,233.29
                                                                    from £2,233.29
                                                                    ELECTRIC PUMP Genuine Ferrari Part - New (to order)
                                                                    ELECTRIC PUMP Genuine Ferrari Part - Used In stock
                                                                    # 001
                                                                    MPN: 328447
                                                                    ELECTRIC PUMP
                                                                    -Applicable after depletion of 257972- -No longer supplied- -Replaced by 844229-
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 001
                                                                    MPN: 844229
                                                                    ELECTRIC PUMP
                                                                    -Applicable after depletion of 257972-
                                                                    from £2,205.07
                                                                    from £2,205.07
                                                                    This part replaces part number 328447
                                                                    ELECTRIC PUMP Genuine Ferrari Part - New (to order)
                                                                    # 002
                                                                    MPN: 256502
                                                                    GASKET
                                                                    -Applicable for electric pump 257972 ref.1-
                                                                    from £0.54
                                                                    from £0.54
                                                                    GASKET Genuine Ferrari Part - New In stock
                                                                    # 003
                                                                    MPN: 255281
                                                                    ADAPTER UNION
                                                                    -M12- -Applicable for electric pump 257972 ref.1-
                                                                    from £42.85
                                                                    from £42.85
                                                                    ADAPTER UNION Genuine Ferrari Part - New (to order)
                                                                    # 004
                                                                    MPN: 268425
                                                                    PUMP MOUNTING BRACKET
                                                                    -Applicable for electric pump 257972 ref.1-
                                                                    from £69.19
                                                                    from £69.19
                                                                    PUMP MOUNTING BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 004
                                                                    MPN: 314656
                                                                    PUMP MOUNTING BRACKET
                                                                    -Applicable for electric pump 328447 ref.1-
                                                                    from £52.18
                                                                    from £52.18
                                                                    PUMP MOUNTING BRACKET Genuine Ferrari Part - New (to order)
                                                                    PUMP MOUNTING BRACKET Genuine Ferrari Part - Used In stock
                                                                    # 005
                                                                    MPN: 264740
                                                                    PLUG
                                                                    -40 x 24 mm-
                                                                    from £0.57
                                                                    from £0.57
                                                                    PLUG Genuine Ferrari Part - New (to order)
                                                                    # 006
                                                                    MPN: 264917
                                                                    Insulation
                                                                    -Applicable for electric pump 257972 ref.1-
                                                                    from £72.97
                                                                    from £72.97
                                                                    Insulation Genuine Ferrari Part - New (to order)
                                                                    # 006
                                                                    MPN: 285319
                                                                    Insulation
                                                                    -Applicable for electric pump 328447 ref.1-
                                                                    from £43.36
                                                                    from £43.36
                                                                    Insulation Genuine Ferrari Part - New (to order)
                                                                    Insulation Genuine Ferrari Part - Used In stock
                                                                    # 007
                                                                    MPN: 255049
                                                                    SCREW
                                                                    -M10 X 1.5 X 32- -No longer supplied- -Replaced by 304224-
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 007
                                                                    MPN: 304224
                                                                    SCREW
                                                                    -M10 X 1.5 X 28-
                                                                    from £7.32
                                                                    from £7.32
                                                                    This part replaces part number 255049
                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                    # 008
                                                                    MPN: 255048
                                                                    GROMMET SHIM
                                                                    from £1.56
                                                                    from £1.56
                                                                    GROMMET SHIM Genuine Ferrari Part - New In stock
                                                                    # 009
                                                                    MPN: 255047
                                                                    GROMMET
                                                                    from £2.10
                                                                    from £2.10
                                                                    GROMMET Genuine Ferrari Part - New In stock
                                                                    # 010
                                                                    MPN: 260390
                                                                    FLOW SEPARATOR
                                                                    from £642.21
                                                                    from £642.21
                                                                    FLOW SEPARATOR Genuine Ferrari Part - New (to order)
                                                                    FLOW SEPARATOR Genuine Ferrari Part - Used In stock
                                                                    # 011
                                                                    MPN: 210246
                                                                    SCREW
                                                                    -M8 X 25-
                                                                    from £0.93
                                                                    from £0.93
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    # 012
                                                                    MPN: 13578305
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    WASHER Genuine Ferrari Part - New (to order)
                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                    # 013
                                                                    MPN: 268838
                                                                    PIPE FROM PUMP TO FLOW SEPARATOR
                                                                    -Applicable for electric pump 257972 ref.1-
                                                                    from £58.93
                                                                    from £58.93
                                                                    PIPE FROM PUMP TO FLOW SEPAR Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM PUMP TO FLOW SEPAR Genuine Ferrari Part - Used In stock
                                                                    # 013
                                                                    MPN: 328418
                                                                    PIPE FROM PUMP TO FLOW SEPARATOR
                                                                    -Applicable for electric pump 328447 ref.1-
                                                                    from £23.29
                                                                    from £23.29
                                                                    PIPE FROM PUMP TO FLOW SEPAR Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM PUMP TO FLOW SEPAR Genuine Ferrari Part - Used In stock
                                                                    # 014
                                                                    MPN: 268839
                                                                    PIPE FROM SEPARATOR TO THREE WAY DISTRIBUTOR BLOCK
                                                                    from £35.37
                                                                    from £35.37
                                                                    PIPE FROM SEPARATOR TO THREE Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM SEPARATOR TO THREE Genuine Ferrari Part - Used In stock
                                                                    # 015
                                                                    MPN: 269858
                                                                    DISTRIBUTOR BLOCK
                                                                    from £11.80
                                                                    from £11.80
                                                                    DISTRIBUTOR BLOCK Genuine Ferrari Part - New (to order)
                                                                    DISTRIBUTOR BLOCK Genuine Ferrari Part - Used In stock
                                                                    # 016
                                                                    MPN: 258770
                                                                    CYLINDRICAL BUSHING
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 017
                                                                    MPN: 14039614
                                                                    NUT
                                                                    from £0.54
                                                                    from £0.54
                                                                    NUT Genuine Ferrari Part - New In stock
                                                                    DADO E AUTOBLOC C/ROS CON IM Genuine Maserati Part - New In stock
                                                                    # 018
                                                                    MPN: 268840
                                                                    PIPE FROM THREE WAY UNION TO REAR RH WHEEL SECTION
                                                                    from £70.69
                                                                    from £70.69
                                                                    PIPE FROM THREE WAY UNION TO Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM THREE WAY UNION TO Genuine Ferrari Part - Used In stock
                                                                    # 019
                                                                    MPN: 268842
                                                                    PIPE FROM THREE WAY UNION TO REAR LH WHEEL SECTION
                                                                    from £70.69
                                                                    from £70.69
                                                                    PIPE FROM THREE WAY UNION TO Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM THREE WAY UNION TO Genuine Ferrari Part - Used In stock
                                                                    # 020
                                                                    MPN: 271154
                                                                    PIPE FROM SECTION TO LH REAR WHEEL
                                                                    from £64.30
                                                                    from £64.30
                                                                    PIPE FROM SECTION TO LH REAR Genuine Ferrari Part - New (to order)
                                                                    # 021
                                                                    MPN: 274976
                                                                    REAR SECTION PIPE
                                                                    from £120.54
                                                                    from £120.54
                                                                    REAR SECTION PIPE Genuine Ferrari Part - New (to order)
                                                                    REAR SECTION PIPE Genuine Ferrari Part - Used In stock
                                                                    # 022
                                                                    MPN: 268846
                                                                    PIPE FROM FRONT UNDERBODY SECTION TO THREE-WAY UNION
                                                                    from £70.69
                                                                    from £70.69
                                                                    PIPE FROM FRONT UNDERBODY SE Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM FRONT UNDERBODY SE Genuine Ferrari Part - Used In stock
                                                                    # 023
                                                                    MPN: 269858
                                                                    DISTRIBUTOR BLOCK
                                                                    from £11.80
                                                                    from £11.80
                                                                    DISTRIBUTOR BLOCK Genuine Ferrari Part - New (to order)
                                                                    DISTRIBUTOR BLOCK Genuine Ferrari Part - Used In stock
                                                                    # 024
                                                                    MPN: 258770
                                                                    CYLINDRICAL BUSHING
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Ferrari Part (no longer available to order)
                                                                    # 025
                                                                    MPN: 14039614
                                                                    NUT
                                                                    from £0.54
                                                                    from £0.54
                                                                    NUT Genuine Ferrari Part - New In stock
                                                                    DADO E AUTOBLOC C/ROS CON IM Genuine Maserati Part - New In stock
                                                                    # 026
                                                                    MPN: 271160
                                                                    PIPE FROM THREE WAY UNION TO FRONT RH WHEEL SECTION
                                                                    from £128.52
                                                                    from £128.52
                                                                    PIPE FROM THREE WAY UNION TO Genuine Ferrari Part - New (to order)
                                                                    # 027
                                                                    MPN: 271161
                                                                    PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE
                                                                    from £64.30
                                                                    from £64.30
                                                                    PIPE FROM RH FRONT SECTION T Genuine Ferrari Part - New (to order)
                                                                    # 028
                                                                    MPN: 271158
                                                                    PIPE FROM THREE WAY UNION TO FRONT LH WHEEL SECTION
                                                                    from £70.69
                                                                    from £70.69
                                                                    PIPE FROM THREE WAY UNION TO Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM THREE WAY UNION TO Genuine Ferrari Part - Used In stock
                                                                    # 029
                                                                    MPN: 271159
                                                                    PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE
                                                                    from £32.11
                                                                    from £32.11
                                                                    PIPE FROM LH FRONT SECTION T Genuine Ferrari Part - New (to order)
                                                                    # 030
                                                                    MPN: 83676100
                                                                    HEAT SHIELD
                                                                    from £84.30
                                                                    from £84.30
                                                                    HEAT SHIELD Genuine Ferrari Part - New (to order)
                                                                    HEAT SHIELD Genuine Ferrari Part - Used In stock
                                                                    # 031
                                                                    MPN: 234285
                                                                    CLIP
                                                                    -2 compartments-
                                                                    from £0.53
                                                                    from £0.53
                                                                    CLIP Genuine Ferrari Part - New In stock
                                                                    # 032
                                                                    MPN: 271155
                                                                    PIPE FROM SECTION TO RH REAR WHEEL
                                                                    from £35.37
                                                                    from £35.37
                                                                    PIPE FROM SECTION TO RH REAR Genuine Ferrari Part - New (to order)
                                                                    PIPE FROM SECTION TO RH REAR Genuine Ferrari Part - Used In stock
                                                                    # 033
                                                                    MPN: 234284
                                                                    CLIP
                                                                    -1 compartment-
                                                                    from £0.52
                                                                    from £0.52
                                                                    CLIP Genuine Ferrari Part - New In stock
                                                                    # 034
                                                                    MPN: 116374
                                                                    CLIP
                                                                    from £1.16
                                                                    from £1.16
                                                                    CLIP Genuine Ferrari Part - New In stock
                                                                    CLIP Genuine Maserati Part - New (to order)
                                                                    # 035
                                                                    MPN: 271901
                                                                    FRONT LH BRACKET
                                                                    from £18.24
                                                                    from £18.24
                                                                    FRONT LH BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 036
                                                                    MPN: 271902
                                                                    FRONT RH BRACKET
                                                                    from £18.24
                                                                    from £18.24
                                                                    FRONT RH BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 037
                                                                    MPN: 271903
                                                                    REAR LH BRACKET
                                                                    from £16.79
                                                                    from £16.79
                                                                    REAR LH BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 038
                                                                    MPN: 271905
                                                                    REAR RH BRACKET
                                                                    from £16.79
                                                                    from £16.79
                                                                    REAR RH BRACKET Genuine Ferrari Part - New (to order)
                                                                    # 039
                                                                    MPN: 272640
                                                                    LIFT SYSTEM INSPECTION COVER
                                                                    from £13.26
                                                                    from £13.26
                                                                    LIFT SYSTEM INSPECTION COVER Genuine Ferrari Part - New (to order)
                                                                    LIFT SYSTEM INSPECTION COVER Genuine Ferrari Part - Used In stock
                                                                    # 040
                                                                    MPN: 68176300
                                                                    SCREW
                                                                    -M5 X 12- -No longer supplied- -Replaced by 85692200-
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 81911200
                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                    VITE TBFL M 5X12 ISO 7380 BD Genuine Maserati Part - New (to order)
                                                                    # 040
                                                                    MPN: 85692200
                                                                    SCREW
                                                                    -M5 X 12-
                                                                    from £0.47
                                                                    from £0.47
                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                    # 041
                                                                    MPN: 274974
                                                                    FLOOR SECTION PIPE
                                                                    from £83.12
                                                                    from £83.12
                                                                    FLOOR SECTION PIPE Genuine Ferrari Part - New (to order)
                                                                    FLOOR SECTION PIPE Genuine Ferrari Part - Used In stock
                                                                    # 042
                                                                    MPN: 262737
                                                                    RUBBER RETAINER
                                                                    from £3.56
                                                                    from £3.56
                                                                    RUBBER RETAINER Genuine Ferrari Part - New (to order)
                                                                    # 043
                                                                    MPN: 275321
                                                                    REAR CRASH BRACKET ON BACK PANEL
                                                                    from £23.35
                                                                    from £23.35
                                                                    REAR CRASH BRACKET ON BACK P Genuine Ferrari Part - New (to order)
                                                                    # 044
                                                                    MPN: 284283
                                                                    REAR CRASH BRACKET ON SERVICE TUB
                                                                    from £29.92
                                                                    from £29.92
                                                                    REAR CRASH BRACKET ON SERVIC Genuine Ferrari Part - New (to order)
                                                                    # 045
                                                                    MPN: 256490
                                                                    SCREW
                                                                    from £1.17
                                                                    from £1.17
                                                                    This part replaces part number 86607000
                                                                    SCREW Genuine Ferrari Part - New (to order)
                                                                    # 046
                                                                    MPN: 70004745
                                                                    MARELLI ELECTRIC PUMP REPLACEMENT KIT
                                                                    -Applicable for electric pump 328447 ref.1-
                                                                    from £407.38
                                                                    from £407.38
                                                                    F151 MARELLI PU REPLACEMENT Genuine Ferrari Part - New (to order)
                                                                    # 047
                                                                    MPN: 14358924
                                                                    SCREW
                                                                    -Applicable for electric pump 328447 ref.1-
                                                                    from £0.53
                                                                    from £0.53
                                                                    SCREW Genuine Ferrari Part - New In stock
