ferrari ff (usa) ac system - water and freon parts diagram

0046 - AC SYSTEM - WATER AND FREON

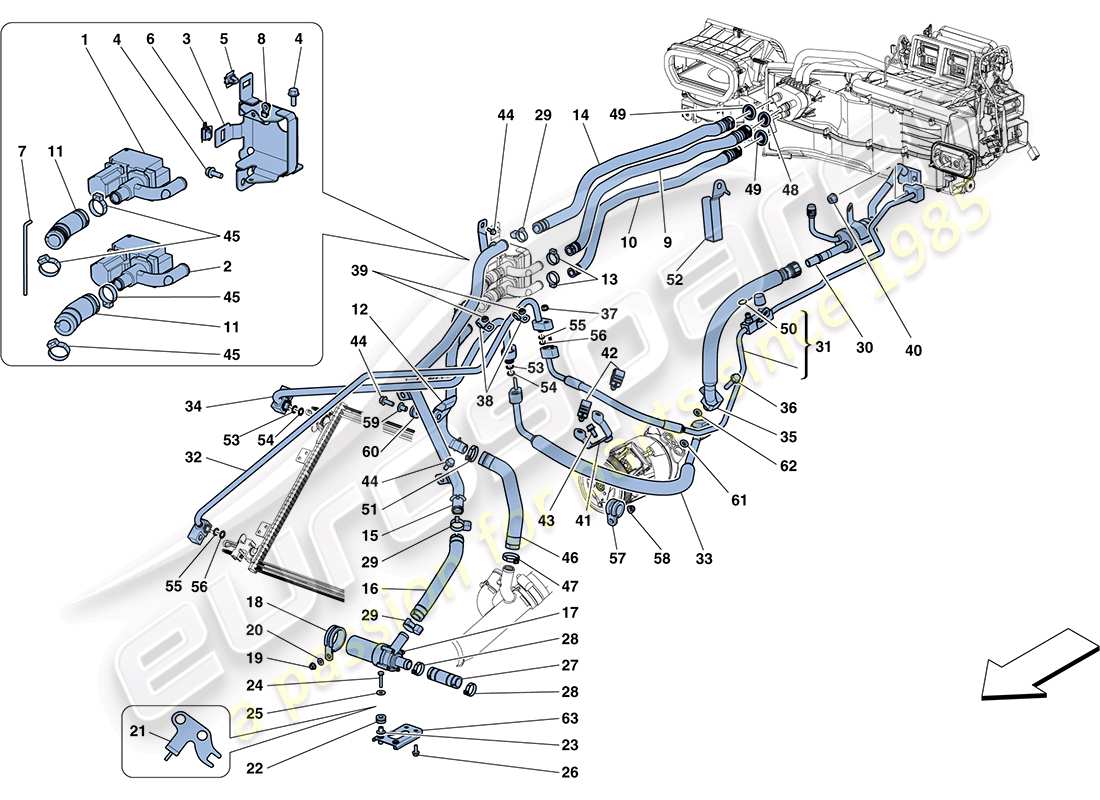

Ferrari FF (USA) AC SYSTEM - WATER AND FREON Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 67635900
                                                                                              RH CYLINDER BANK TGK VALVE
                                                                                              from £69.21
                                                                                              from £69.21
                                                                                              # 002
                                                                                              MPN: 67444900
                                                                                              LH CYLINDER BANK TGK VALVE
                                                                                              from £69.49
                                                                                              from £69.49
                                                                                              # 003
                                                                                              MPN: 84066200
                                                                                              TGK VALVE MOUNTING BRACKET
                                                                                              from £28.91
                                                                                              from £28.91
                                                                                              # 004
                                                                                              MPN: 16286024
                                                                                              SCREW
                                                                                              -M6 X 16-
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              # 005
                                                                                              MPN: 253769
                                                                                              CLIP
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 006
                                                                                              MPN: 252473
                                                                                              CLIP
                                                                                              from £0.88
                                                                                              from £0.88
                                                                                              # 007
                                                                                              MPN: 67933600
                                                                                              TGK VALVE FASTENER ROD
                                                                                              from £1.05
                                                                                              from £1.05
                                                                                              # 008
                                                                                              MPN: 64215300
                                                                                              TIE-ROD RETAINER CLIP
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 009
                                                                                              MPN: 266390
                                                                                              PIPE FROM HEATER TO UPPER TGK VALVE
                                                                                              from £33.69
                                                                                              from £33.69
                                                                                              # 010
                                                                                              MPN: 266391
                                                                                              PIPE FROM HEATER TO LOWER TGK VALVE
                                                                                              from £34.49
                                                                                              from £34.49
                                                                                              # 011
                                                                                              MPN: 267540
                                                                                              CONNECTOR PIPE
                                                                                              -No longer supplied- -Replaced by 292150-
                                                                                              # 011
                                                                                              MPN: 292150
                                                                                              CONNECTOR PIPE
                                                                                              from £12.68
                                                                                              from £12.68
                                                                                              # 012
                                                                                              MPN: 272507
                                                                                              PIPE FROM TGK TO ENGINE
                                                                                              -No longer supplied- -Replaced by 292161-
                                                                                              # 012
                                                                                              MPN: 292151
                                                                                              PIPE FROM TGK TO ENGINE
                                                                                              from £67.93
                                                                                              from £67.93
                                                                                              # 012
                                                                                              MPN: 292161
                                                                                              PIPE FROM TGK TO ENGINE
                                                                                              -No longer supplied- -Replaced by 292151-
                                                                                              from £153.65
                                                                                              from £153.65
                                                                                              # 013
                                                                                              MPN: 10860270
                                                                                              COLLAR
                                                                                              -Applicable until depletion-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 013
                                                                                              MPN: 13432670
                                                                                              COLLAR
                                                                                              -No longer supplied- -Replaced by 10860270-
                                                                                              from £3.43
                                                                                              from £3.43
                                                                                              # 013
                                                                                              MPN: 262109
                                                                                              COLLAR
                                                                                              -Applicable after depletion of 10860270-
                                                                                              from £0.62
                                                                                              from £0.62
                                                                                              This part replaces part number 10860270 - and 1 more. Click to view details
                                                                                              # 014
                                                                                              MPN: 276915
                                                                                              PIPE FROM PUMP TO AC UNIT
                                                                                              from £38.65
                                                                                              from £38.65
                                                                                              # 015
                                                                                              MPN: 271752
                                                                                              METAL PIPE TO PUMP
                                                                                              from £46.44
                                                                                              from £46.44
                                                                                              # 016
                                                                                              MPN: 267538
                                                                                              CONNECTOR PIPE
                                                                                              from £17.00
                                                                                              from £17.00
                                                                                              # 017
                                                                                              MPN: 65460300
                                                                                              WATER RECIRCULATION PUMP
                                                                                              from £128.52
                                                                                              from £128.52
                                                                                              This part replaces part number 70000900 - and 3 more. Click to view details
                                                                                              # 018
                                                                                              MPN: 107002
                                                                                              BRACKET WITH SHEATH
                                                                                              from £7.47
                                                                                              from £7.47
                                                                                              # 019
                                                                                              MPN: 14059214
                                                                                              NUT
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 020
                                                                                              MPN: 12620477
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12648207
                                                                                              # 021
                                                                                              MPN: 268073
                                                                                              PUMP MOUNTING BRACKET
                                                                                              from £10.19
                                                                                              from £10.19
                                                                                              # 022
                                                                                              MPN: 103549
                                                                                              GROMMET
                                                                                              from £0.69
                                                                                              from £0.69
                                                                                              # 023
                                                                                              MPN: 149707
                                                                                              SHIM
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 024
                                                                                              MPN: 10902824
                                                                                              SCREW
                                                                                              -M6 X 30-
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              This part replaces part number 10902821 which we have in stock
                                                                                              # 025
                                                                                              MPN: 12643724
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 109684 - and 4 more. Click to view details
                                                                                              # 026
                                                                                              MPN: 16286024
                                                                                              SCREW
                                                                                              -M6 X 16-
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 027
                                                                                              MPN: 260083
                                                                                              CONNECTOR PIPE
                                                                                              from £21.62
                                                                                              from £21.62
                                                                                              # 028
                                                                                              MPN: 13432970
                                                                                              COLLAR
                                                                                              from £0.82
                                                                                              from £0.82
                                                                                              This part replaces part number 13432908
                                                                                              # 029
                                                                                              MPN: 13097190
                                                                                              COLLAR
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 030
                                                                                              MPN: 266282
                                                                                              PIPE WITH JACKET
                                                                                              from £125.52
                                                                                              from £125.52
                                                                                              # 031
                                                                                              MPN: 266283
                                                                                              FILLER PIPE
                                                                                              from £195.01
                                                                                              from £195.01
                                                                                              # 032
                                                                                              MPN: 268518
                                                                                              PIPE FROM CONDENSER TO DISCONNECTOR UNION
                                                                                              from £123.97
                                                                                              from £123.97
                                                                                              # 033
                                                                                              MPN: 268369
                                                                                              PIPE FROM COMPRESSOR TO DISCONNECTOR UNION
                                                                                              from £93.98
                                                                                              from £93.98
                                                                                              # 034
                                                                                              MPN: 268519
                                                                                              PIPE FROM DISCONNECTOR UNION TO CONDENSER
                                                                                              from £192.48
                                                                                              from £192.48
                                                                                              # 035
                                                                                              MPN: 257933
                                                                                              PIPE BETWEEN DISCONNECTOR UNION-COMPRESSOR
                                                                                              from £166.55
                                                                                              from £166.55
                                                                                              # 036
                                                                                              MPN: 16044024
                                                                                              SCREW
                                                                                              -M8 X 40-
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 16044021
                                                                                              # 037
                                                                                              MPN: 14040614
                                                                                              NUT
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 038
                                                                                              MPN: 10441290
                                                                                              BRACKET WITH SHEATH
                                                                                              -D. 10-
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 038
                                                                                              MPN: 10441390
                                                                                              BRACKET WITH SHEATH
                                                                                              -D. 12-
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 039
                                                                                              MPN: 13046012
                                                                                              NUT
                                                                                              from £1.52
                                                                                              from £1.52
                                                                                              # 040
                                                                                              MPN: 14066021
                                                                                              NUT
                                                                                              from £1.58
                                                                                              from £1.58
                                                                                              This part replaces part number 14066017
                                                                                              # 041
                                                                                              MPN: 268487
                                                                                              BRACKET
                                                                                              -Fastening AC pipes to diagonal brace-
                                                                                              from £86.48
                                                                                              from £86.48
                                                                                              # 042
                                                                                              MPN: 259508
                                                                                              CLIP
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 042
                                                                                              MPN: 267177
                                                                                              CLIP
                                                                                              from £0.62
                                                                                              from £0.62
                                                                                              # 043
                                                                                              MPN: 231616
                                                                                              SCREW
                                                                                              -M6 X 14-
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              This part replaces part number 14305724 which we have in stock
                                                                                              # 044
                                                                                              MPN: 16286024
                                                                                              SCREW
                                                                                              -M6 X 16-
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              # 045
                                                                                              MPN: 10860270
                                                                                              COLLAR
                                                                                              -Applicable until depletion-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 045
                                                                                              MPN: 178053
                                                                                              CLAMP
                                                                                              -No longer supplied- -Replaced by 10860270-
                                                                                              from £0.94
                                                                                              from £0.94
                                                                                              # 045
                                                                                              MPN: 262109
                                                                                              COLLAR
                                                                                              -Applicable after depletion of 10860270-
                                                                                              from £0.60
                                                                                              from £0.60
                                                                                              This part replaces part number 10860270 - and 1 more. Click to view details
                                                                                              # 046
                                                                                              MPN: 273206
                                                                                              CONNECTOR PIPE
                                                                                              from £27.39
                                                                                              from £27.39
                                                                                              # 047
                                                                                              MPN: 10860270
                                                                                              COLLAR
                                                                                              -Applicable until depletion-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 047
                                                                                              MPN: 13433370
                                                                                              CLAMP
                                                                                              -No longer supplied- -Replaced by 10860270-
                                                                                              from £0.59
                                                                                              from £0.59
                                                                                              This part replaces part number 247921
                                                                                              # 047
                                                                                              MPN: 178053
                                                                                              CLAMP
                                                                                              -No longer supplied- -Replaced by 13433370-
                                                                                              from £0.98
                                                                                              from £0.98
                                                                                              # 047
                                                                                              MPN: 262109
                                                                                              COLLAR
                                                                                              -Applicable after depletion of 10860270-
                                                                                              from £0.62
                                                                                              from £0.62
                                                                                              This part replaces part number 10860270 - and 1 more. Click to view details
                                                                                              # 048
                                                                                              MPN: 81970900
                                                                                              GASKET
                                                                                              from £5.37
                                                                                              from £5.37
                                                                                              # 049
                                                                                              MPN: 81895900
                                                                                              GASKET
                                                                                              from £5.31
                                                                                              from £5.31
                                                                                              # 050
                                                                                              MPN: 66309300
                                                                                              O-RING
                                                                                              -No longer supplied-
                                                                                              from £0.94
                                                                                              from £0.94
                                                                                              This part replaces part number 175835 which we have in stock
                                                                                              # 051
                                                                                              MPN: 10860270
                                                                                              COLLAR
                                                                                              -Applicable until depletion-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 051
                                                                                              MPN: 13000390
                                                                                              SCREW COLLAR
                                                                                              -No longer supplied- -Replaced by 10860270-
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                              # 051
                                                                                              MPN: 296778
                                                                                              COLLAR
                                                                                              -Applicable after depletion of 10860270-
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 052
                                                                                              MPN: 272548
                                                                                              BRACKET
                                                                                              from £13.11
                                                                                              from £13.11
                                                                                              # 053
                                                                                              MPN: 68392700
                                                                                              O-RING
                                                                                              from £2.29
                                                                                              from £2.29
                                                                                              # 054
                                                                                              MPN: 66309700
                                                                                              O-RING
                                                                                              from £6.05
                                                                                              from £6.05
                                                                                              # 055
                                                                                              MPN: 68392000
                                                                                              O-RING
                                                                                              from £4.50
                                                                                              from £4.50
                                                                                              # 056
                                                                                              MPN: 68392100
                                                                                              O-RING
                                                                                              from £2.29
                                                                                              from £2.29
                                                                                              # 057
                                                                                              MPN: 10441490
                                                                                              BRACKET WITH SHEATH
                                                                                              -D. 14-
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 058
                                                                                              MPN: 14040611
                                                                                              NUT
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 059
                                                                                              MPN: 149707
                                                                                              SHIM
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 060
                                                                                              MPN: 103549
                                                                                              GROMMET
                                                                                              from £0.69
                                                                                              from £0.69
                                                                                              # 061
                                                                                              MPN: 67085400
                                                                                              O-RING
                                                                                              from £9.25
                                                                                              from £9.25
                                                                                              # 062
                                                                                              MPN: 67085300
                                                                                              O-RING
                                                                                              -Applicable until depletion-
                                                                                              from £15.13
                                                                                              from £15.13
                                                                                              This part replaces part number 10878180
                                                                                              # 062
                                                                                              MPN: 82068100
                                                                                              O-RING
                                                                                              -No longer supplied- -Replaced by 67085300-
                                                                                              from £8.94
                                                                                              from £8.94
                                                                                              This part replaces part number 67085300 which we have in stock
                                                                                              # 062
                                                                                              MPN: 82068100
                                                                                              O-RING
                                                                                              -Applicable after depletion of 67085300-
                                                                                              from £8.94
                                                                                              from £8.94
                                                                                              This part replaces part number 67085300 which we have in stock
                                                                                              # 063
                                                                                              MPN: 268075
                                                                                              BRACKET ON PUMP MOUNTING FRAME
                                                                                              from £15.23
                                                                                              from £15.23
