0047 - EVAPORATOR UNIT

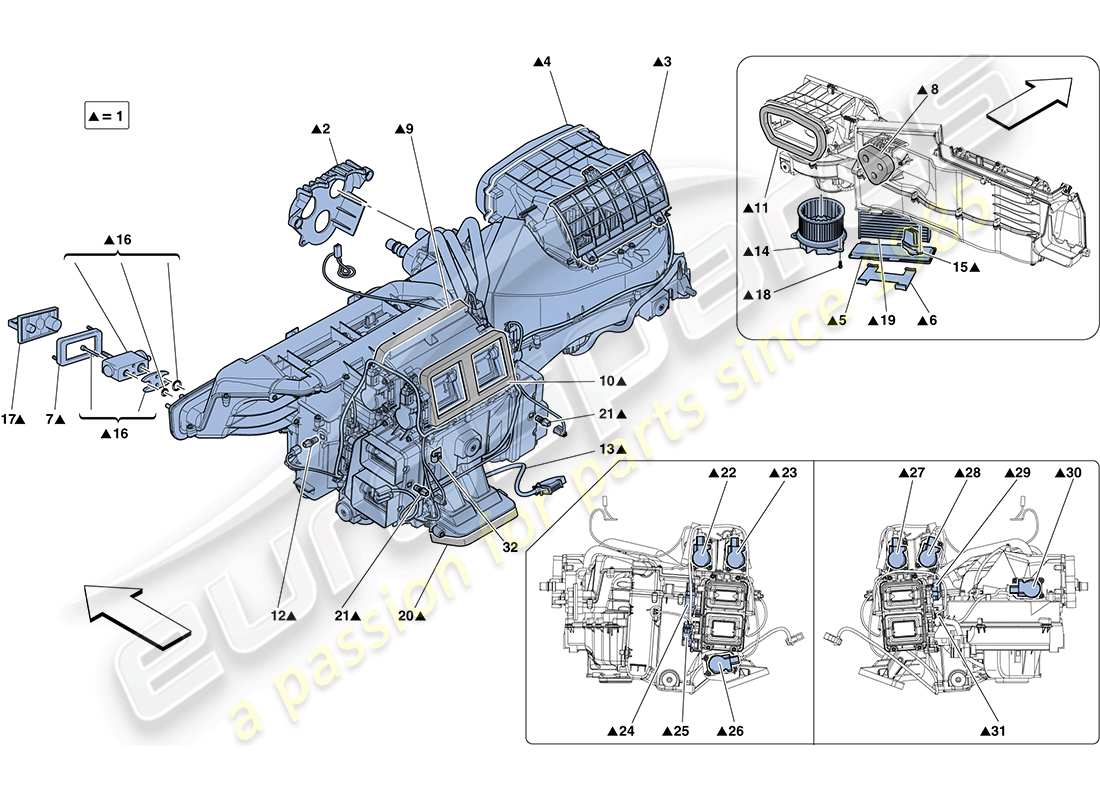

Ferrari FF (USA) EVAPORATOR UNIT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 001
                                                          MPN: 83391200
                                                          COMPL. AC UNIT
                                                          -Not for GD-
                                                          from £1,196.54
                                                          from £1,196.54
                                                          COMPLETE AC UNIT Genuine Ferrari Part - New (to order)
                                                          COMPLETE AC UNIT Genuine Ferrari Part - Used In stock
                                                          # 001
                                                          MPN: 83737100
                                                          COMPL. AC UNIT
                                                          -Applicable for GD-
                                                          from £2,404.53
                                                          from £2,404.53
                                                          COMPLETE AC UNIT Genuine Ferrari Part - New (to order)
                                                          # 002
                                                          MPN: 82045500
                                                          PIPE RETAINER
                                                          from £40.23
                                                          from £40.23
                                                          PIPES RETAINER Genuine Ferrari Part - New (to order)
                                                          # 003
                                                          MPN: 82045700
                                                          GRILLE
                                                          from £90.44
                                                          from £90.44
                                                          GRILL Genuine Ferrari Part - New (to order)
                                                          # 004
                                                          MPN: 82045800
                                                          FLANGE
                                                          from £91.23
                                                          from £91.23
                                                          FLANGE Genuine Ferrari Part - New (to order)
                                                          # 005
                                                          MPN: 68390600
                                                          FILTER COVER
                                                          from £16.10
                                                          from £16.10
                                                          FILTER COVER Genuine Ferrari Part - New (to order)
                                                          COPERCHIO FILTRO Genuine Maserati Part - New (to order)
                                                          # 006
                                                          MPN: 68390700
                                                          COVER FASTENER
                                                          from £7.10
                                                          from £7.10
                                                          COVER FIXING Genuine Ferrari Part - New (to order)
                                                          FISSAGGIO COPERCHIO FILTRO A Genuine Maserati Part - New (to order)
                                                          # 007
                                                          MPN: 82046200
                                                          GASKET
                                                          from £116.67
                                                          from £116.67
                                                          GASKET Genuine Ferrari Part - New (to order)
                                                          # 008
                                                          MPN: 82046400
                                                          WATER PIPE FILLER FOAM
                                                          from £76.62
                                                          from £76.62
                                                          WATER PIPE SINK Genuine Ferrari Part - New (to order)
                                                          # 009
                                                          MPN: 82046600
                                                          DEFROSTER DUCT FILLER FOAM
                                                          from £105.81
                                                          from £105.81
                                                          SINK FOR DEFROST DUCTING Genuine Ferrari Part - New (to order)
                                                          # 010
                                                          MPN: 82046800
                                                          FRONT FILLER FOAM
                                                          from £113.11
                                                          from £113.11
                                                          FRONT SINK Genuine Ferrari Part - New (to order)
                                                          # 011
                                                          MPN: 82046900
                                                          INTAKE FILLER FOAM
                                                          from £113.11
                                                          from £113.11
                                                          INLET SINK Genuine Ferrari Part - New (to order)
                                                          # 012
                                                          MPN: 83749200
                                                          EVAPORATOR SENSOR
                                                          from £109.91
                                                          from £109.91
                                                          EVAPORATOR SENSOR Genuine Ferrari Part - New (to order)
                                                          # 013
                                                          MPN: 84025000
                                                          AC WIRING HARNESS
                                                          -Not for GD-
                                                          from £547.35
                                                          from £547.35
                                                          WIRING HARNESS Genuine Ferrari Part - New (to order)
                                                          # 013
                                                          MPN: 84926900
                                                          AC WIRING HARNESS
                                                          -Applicable for GD-
                                                          from £547.35
                                                          from £547.35
                                                          CABLE Genuine Ferrari Part - New (to order)
                                                          # 014
                                                          MPN: 82048800
                                                          FAN
                                                          -Not for GD-
                                                          from £522.31
                                                          from £522.31
                                                          FAN Genuine Ferrari Part - New (to order)
                                                          # 014
                                                          MPN: 82048900
                                                          FAN
                                                          -Applicable for GD-
                                                          from £287.27
                                                          from £287.27
                                                          FAN Genuine Ferrari Part - New (to order)
                                                          FAN Genuine Ferrari Part - Used In stock
                                                          # 015
                                                          MPN: 82049000
                                                          LPM2
                                                          from £236.82
                                                          from £236.82
                                                          LPM2 Genuine Ferrari Part - New (to order)
                                                          # 016
                                                          MPN: 82073600
                                                          TXV SERVICE KIT
                                                          from £258.03
                                                          from £258.03
                                                          This part replaces part number 82049300 - and 1 more. Click to view details
                                                          SERVICE KIT TXV Genuine Ferrari Part - New In stock
                                                          # 017
                                                          MPN: 82049600
                                                          CAP
                                                          -No longer supplied-
                                                          CAP Genuine Ferrari Part - New (to order)
                                                          # 018
                                                          MPN: 68391900
                                                          SCREW
                                                          from £1.85
                                                          from £1.85
                                                          Genuine Ferrari Part (no longer available to order)
                                                          SCREW. Genuine Maserati Part - New (to order)
                                                          # 019
                                                          MPN: 82035700

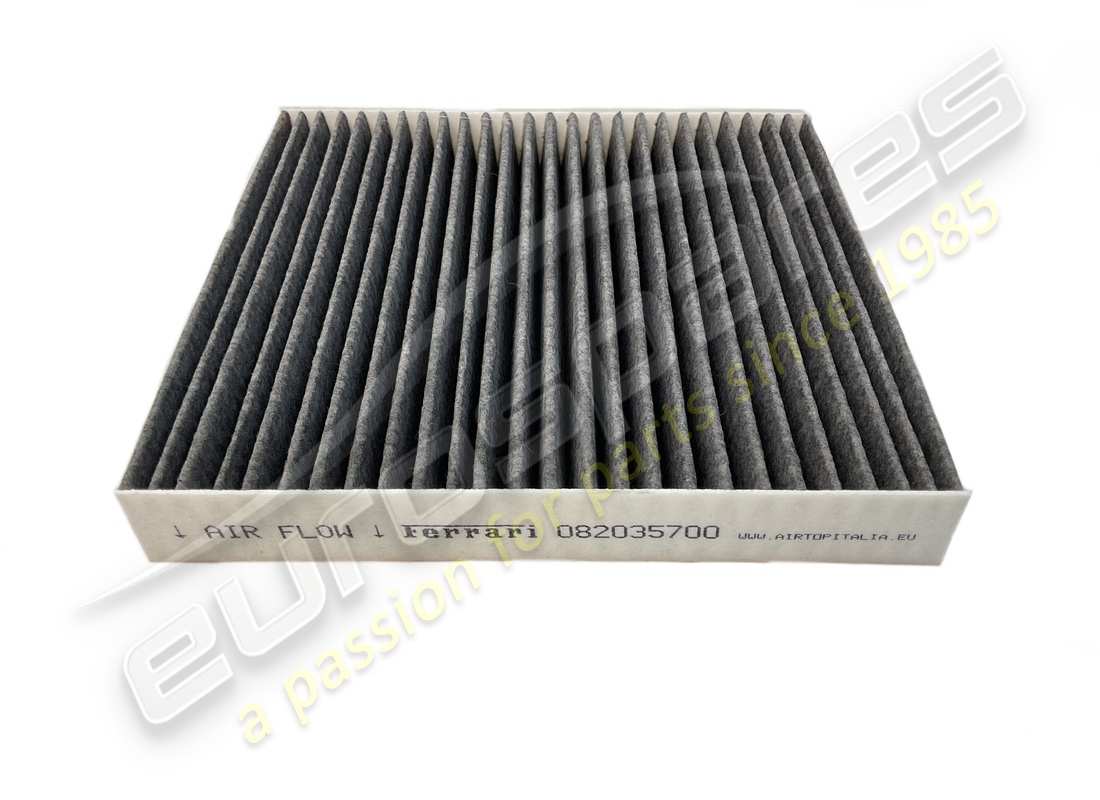

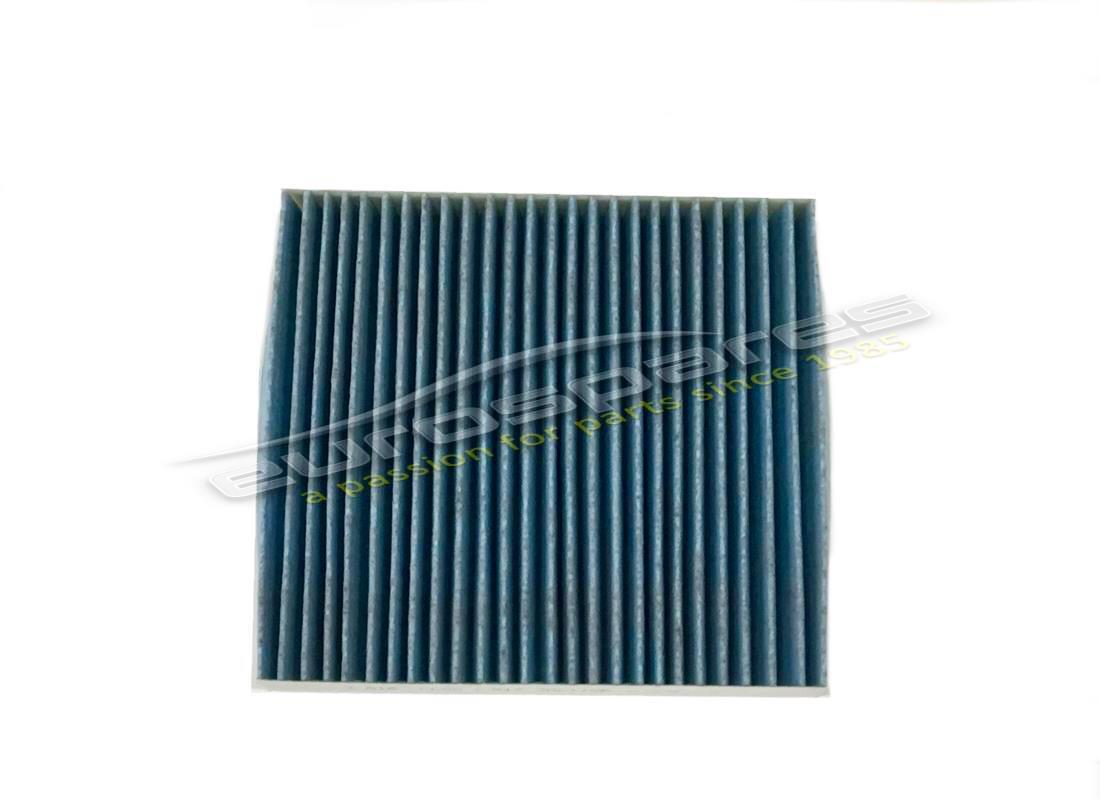

                                                          ANTI-POLLEN FILTER
                                                          from £23.63
                                                          from £23.63
                                                          POLLEN FILTER Genuine Ferrari Part - New In stock
                                                          POLLEN FILTER Eurospares Approved Part - New In stock
                                                          # 020
                                                          MPN: 84025100
                                                          REAR DUCT SEAL
                                                          from £153.27
                                                          from £153.27
                                                          REAR DUCT SEAL Genuine Ferrari Part - New (to order)
                                                          # 021
                                                          MPN: 68390100

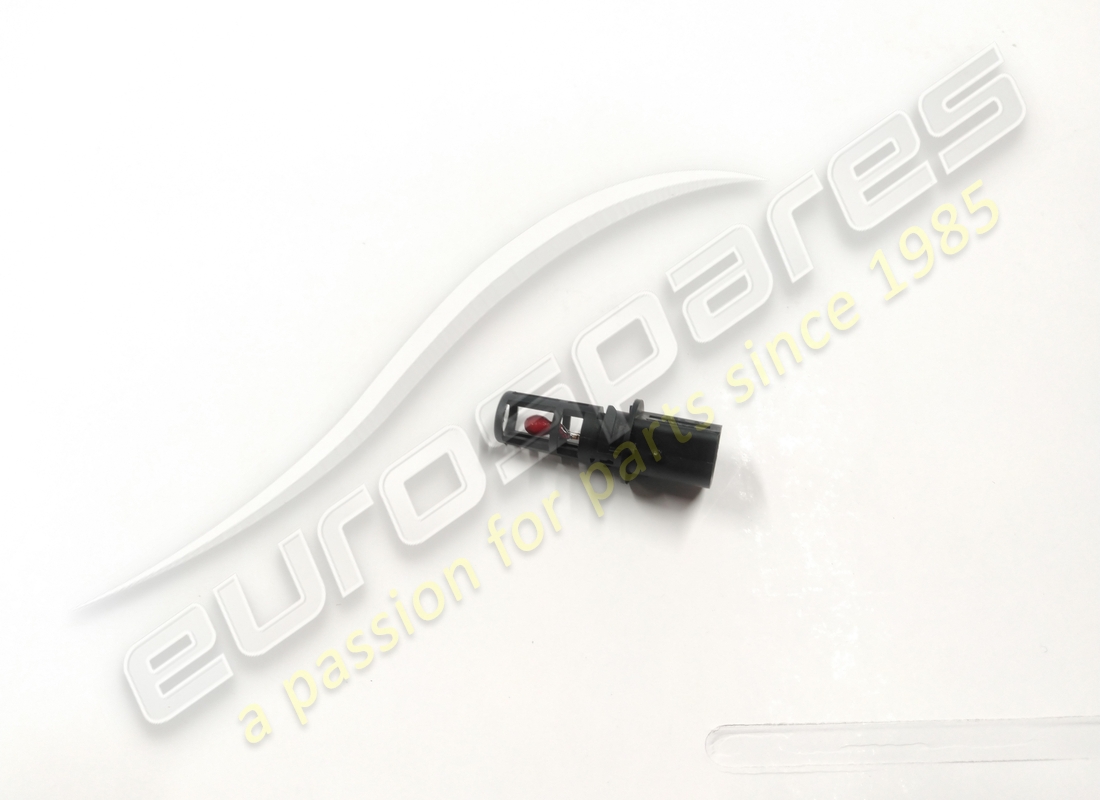

                                                          AIR SENSOR
                                                          from £8.89
                                                          from £8.89
                                                          SENSOR AIR Genuine Ferrari Part - New (to order)
                                                          SENSORE AIR QUALITY SENSOR F Genuine Maserati Part - New In stock
                                                          # 022
                                                          MPN: 82047900
                                                          ACTUATOR
                                                          from £88.16
                                                          from £88.16
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 023
                                                          MPN: 82047700
                                                          ACTUATOR
                                                          from £96.95
                                                          from £96.95
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 024
                                                          MPN: 82048100
                                                          ACTUATOR
                                                          from £88.16
                                                          from £88.16
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 025
                                                          MPN: 82048200
                                                          ACTUATOR
                                                          from £88.16
                                                          from £88.16
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 026
                                                          MPN: 83941300
                                                          ACTUATOR
                                                          from £160.55
                                                          from £160.55
                                                          HVAC ACTUATOR - REAR Genuine Ferrari Part - New (to order)
                                                          # 027
                                                          MPN: 82047600
                                                          ACTUATOR
                                                          from £88.16
                                                          from £88.16
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 028
                                                          MPN: 82047500
                                                          ACTUATOR
                                                          from £88.16
                                                          from £88.16
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 029
                                                          MPN: 82047400
                                                          ACTUATOR
                                                          from £88.16
                                                          from £88.16
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 030
                                                          MPN: 82047200
                                                          ACTUATOR
                                                          from £96.95
                                                          from £96.95
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 031
                                                          MPN: 82047300
                                                          ACTUATOR
                                                          from £88.16
                                                          from £88.16
                                                          ACTUATOR Genuine Ferrari Part - New (to order)
                                                          # 032
                                                          MPN: 266000
                                                          CLIP
                                                          from £0.56
                                                          from £0.56
                                                          CLIP Genuine Ferrari Part - New In stock
                                                          STICKY CLIP RAYMOND Genuine Maserati Part - New (to order)
