0100 - BODYSHELL - EXTERNAL TRIM

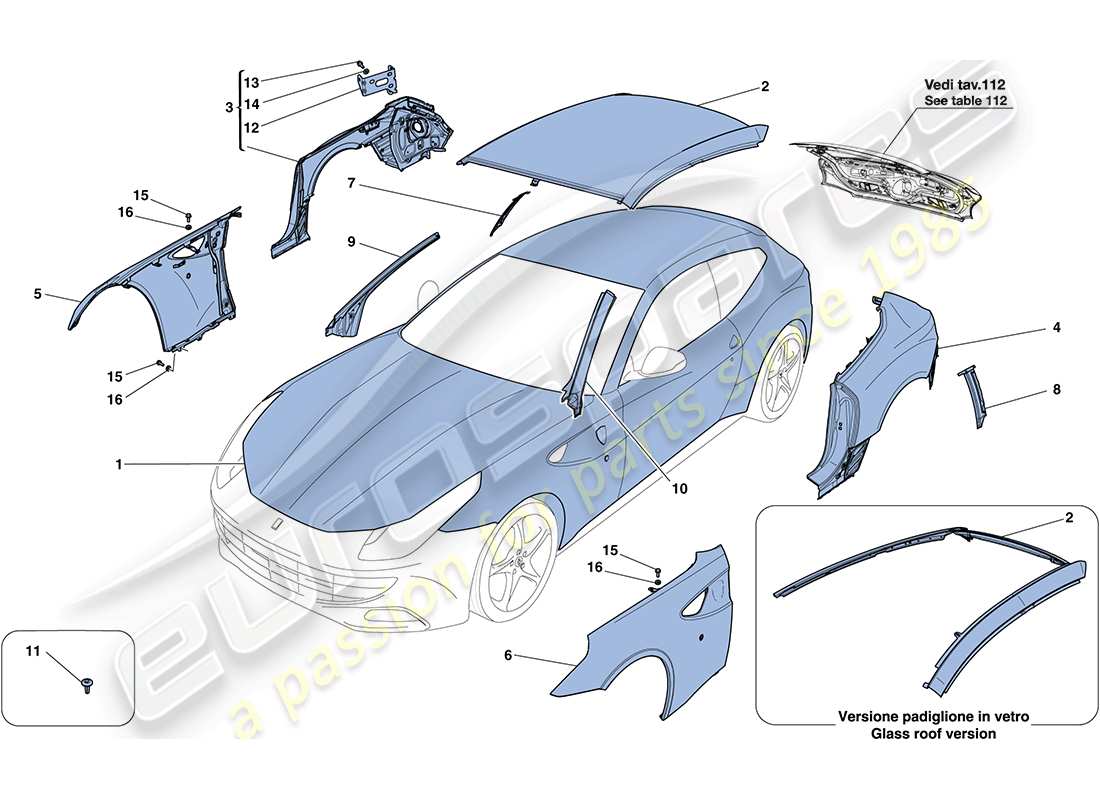

Ferrari FF (USA) BODYSHELL - EXTERNAL TRIM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
COMPLETE BODYSHELL
# 002
MPN: 83491511
OUTER ROOF SKIN
-Power assisted tailgate-
from £2,189.37
from £2,189.37
# 002
MPN: 83623111
OUTER ROOF SKIN
-Not for power assisted tailgate-
from £2,379.13
from £2,379.13
# 002
MPN: 84187711
OUTER ROOF SKIN
-Version with glass roof panel- -Not for power assisted tailgate-
from £1,250.29
from £1,250.29
# 002
MPN: 84187911
OUTER ROOF SKIN
-Version with glass roof panel- -Power assisted tailgate-
from £1,250.29
from £1,250.29
# 003
MPN: 83275611
COMPL. REAR RH FLANK
from £2,160.98
from £2,160.98
# 004
MPN: 83275711
COMPL. REAR LH FLANK
from £1,867.23
from £1,867.23

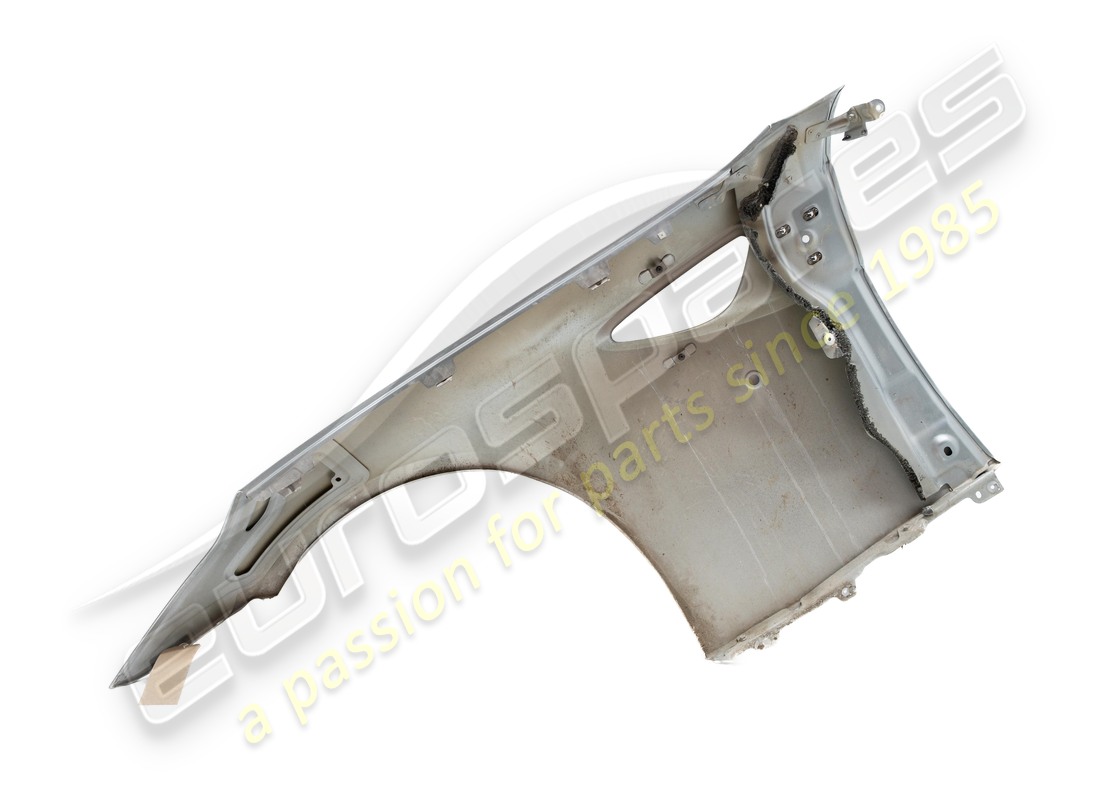

# 005
MPN: 83277011
COMPL. RH FRONT FENDER
-Version with shields-
from £2,269.81
from £2,269.81
# 005
MPN: 83277211
COMPL. RH FRONT FENDER
from £1,859.90
from £1,859.90
# 006
MPN: 83277111
COMPL. LH FRONT FENDER
-Version with shields-
from £2,269.81
from £2,269.81
# 006
MPN: 83277311
COMPL. LH FRONT FENDER
from £1,859.90
from £1,859.90
# 007
MPN: 83246811
RH UPPER EXTERNAL PILLAR TRIM
from £72.97
from £72.97
# 008
MPN: 83246911
LH UPPER EXTERNAL PILLAR TRIM
from £72.97
from £72.97
# 009
MPN: 83639111
RH PILLAR EXTERNAL TRIM
from £1,324.48
from £1,324.48
# 010
MPN: 83639211
LH PILLAR EXTERNAL TRIM
from £1,324.48
from £1,324.48
# 011
MPN: 65133800
RIVET
-4.8 x 6.5-
from £0.54
from £0.54
# 011
MPN: 67334600
RIVET
-4.8 x 8.5-
from £0.54
from £0.54
# 011
MPN: 84105100
RIVET
-4.8 x 5.0-
from £0.54
from £0.54
# 012
MPN: 84282600
FILLER NECK SHIELD BRACKET
from £8.03
from £8.03
# 013
MPN: 13833221
SCREW
from £0.70
from £0.70
# 014
MPN: 12624101
WASHER
from £0.52
from £0.52
# 015
MPN: 16286121
SCREW
from £0.48
from £0.48
# 016
MPN: 12643724
WASHER
from £0.48
from £0.48
This part replaces part number 109684 - and 3 more. Click to view details
