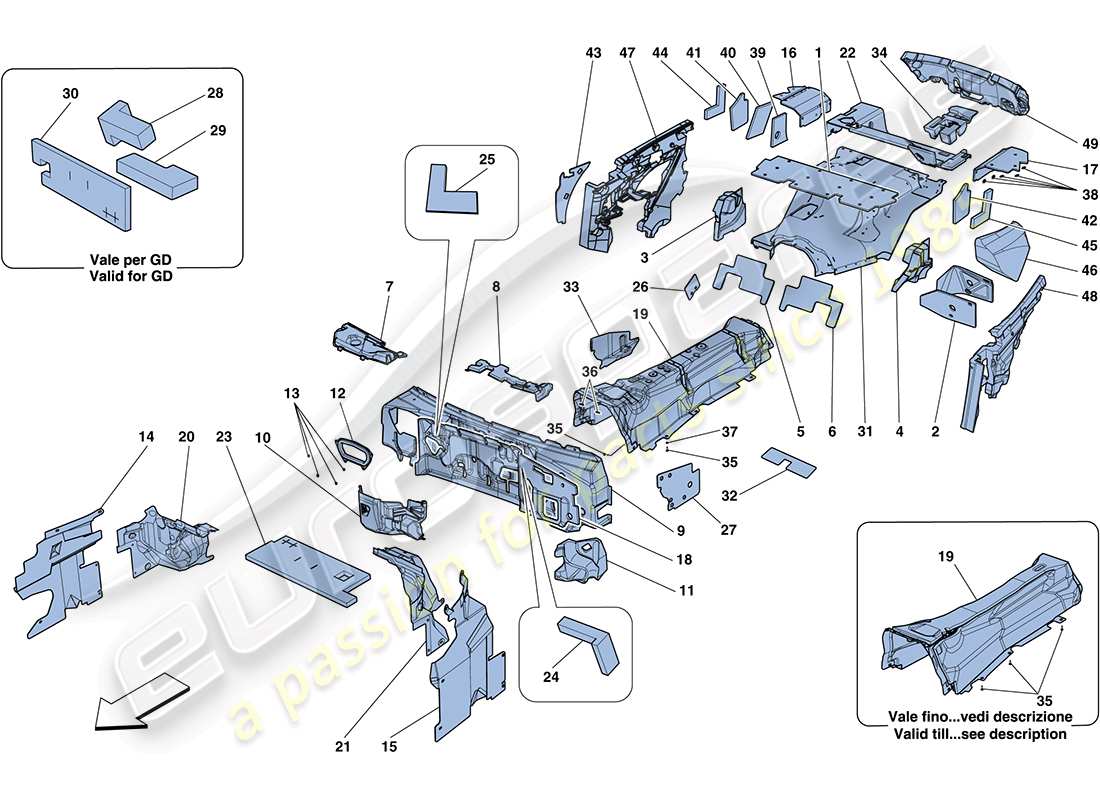

Ferrari FF (USA) INSULATION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 82324100
                                            TANK COVER INSULATION
                                            -Not for Geneva version-
                                            from £24.81
                                            from £24.81
                                            TANK COVER INSULATION Genuine Ferrari Part - New (to order)
                                            # 001
                                            MPN: 86390200
                                            TANK COVER INSULATION
                                            -Applicable for Geneva version-
                                            from £142.17
                                            from £142.17
                                            TANK COVER INSULATION Genuine Ferrari Part - New (to order)
                                            # 002
                                            MPN: 83290400
                                            INTERNAL REAR INSULATION, REAR LH PART
                                            from £8.50
                                            from £8.50
                                            INTERNAL REAR INSULATION, RE Genuine Ferrari Part - New (to order)
                                            # 003
                                            MPN: 82870300
                                            RH REAR SUSPENSION MOUNT CASTING INSULATION
                                            from £52.17
                                            from £52.17
                                            RH REAR SUSPENSION MOUNT CAS Genuine Ferrari Part - New (to order)
                                            # 004
                                            MPN: 82870400
                                            LH REAR SUSPENSION MOUNT CASTING INSULATION
                                            from £52.17
                                            from £52.17
                                            LH REAR SUSPENSION MOUNT CAS Genuine Ferrari Part - New (to order)
                                            # 005
                                            MPN: 82166300
                                            RH REAR SEAT BASE INSULATION
                                            from £10.82
                                            from £10.82
                                            RH REAR SEAT BASE INSULATION Genuine Ferrari Part - New (to order)
                                            # 006
                                            MPN: 82166400
                                            LH REAR SEAT BASE INSULATION
                                            from £10.82
                                            from £10.82
                                            LH REAR SEAT BASE INSULATION Genuine Ferrari Part - New (to order)
                                            # 007
                                            MPN: 81997400
                                            RH UNDERDASHBOARD INSULATION
                                            -Not for GD-
                                            from £33.14
                                            from £33.14
                                            RH UNDERDASHBOARD INSULATION Genuine Ferrari Part - New (to order)
                                            # 007
                                            MPN: 83940700
                                            RH UNDERDASHBOARD INSULATION
                                            -Applicable for GD-
                                            from £23.45
                                            from £23.45
                                            RH UNDERDASHBOARD INSULATION Genuine Ferrari Part - New (to order)
                                            # 008
                                            MPN: 81997600
                                            LH UNDERDASHBOARD INSULATION
                                            -Not for GD-
                                            from £18.23
                                            from £18.23
                                            LH UNDERDASHBOARD INSULATION Genuine Ferrari Part - New (to order)
                                            LH UNDERDASHBOARD INSULATION Genuine Ferrari Part - Used In stock
                                            # 008
                                            MPN: 83940800
                                            LH UNDERDASHBOARD INSULATION
                                            -Applicable for GD-
                                            from £25.76
                                            from £25.76
                                            LH UNDERDASHBOARD INSULATION Genuine Ferrari Part - New (to order)
                                            # 009
                                            MPN: 82298400
                                            FRONT FIREWALL
                                            -Standard- -Not for GD- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 009
                                            MPN: 84095200
                                            FRONT FIREWALL
                                            -Standard- -Not for GD- -Applicable after depletion of 82298400-
                                            from £114.75
                                            from £114.75
                                            This part replaces part number 82298400
                                            FRONT FIREWALL Genuine Ferrari Part - New (to order)
                                            # 009
                                            MPN: 84095200
                                            FRONT FIREWALL
                                            -Version with front camera with dual view- -Not for GD-
                                            from £114.75
                                            from £114.75
                                            This part replaces part number 82298400
                                            FRONT FIREWALL Genuine Ferrari Part - New (to order)
                                            # 009
                                            MPN: 84097600
                                            FRONT FIREWALL
                                            -Applicable for GD-
                                            from £92.43
                                            from £92.43
                                            FRONT FIREWALL Genuine Ferrari Part - New (to order)
                                            # 010
                                            MPN: 82298600
                                            PASSENGER SIDE FOOTREST INSULATION
                                            -Not for GD-
                                            from £33.56
                                            from £33.56
                                            PASSENGER SIDE FOOTREST INSU Genuine Ferrari Part - New (to order)
                                            # 010
                                            MPN: 83996100
                                            PASSENGER SIDE FOOTREST INSULATION
                                            -Applicable for GD-
                                            from £33.19
                                            from £33.19
                                            PASSENGER SIDE FOOTREST INSU Genuine Ferrari Part - New (to order)
                                            # 011
                                            MPN: 82298500
                                            DRIVER SIDE FOOTREST INSULATION
                                            -Not for GD-
                                            from £31.20
                                            from £31.20
                                            DRIVER SIDE FOOTREST INSULAT Genuine Ferrari Part - New (to order)
                                            # 011
                                            MPN: 83995900
                                            DRIVER SIDE FOOTREST INSULATION
                                            -Applicable for GD-
                                            from £30.84
                                            from £30.84
                                            DRIVER SIDE FOOTREST INSULAT Genuine Ferrari Part - New (to order)
                                            # 012
                                            MPN: 82971300
                                            COMPL. HVAC UNIT SHIM
                                            from £39.19
                                            from £39.19
                                            COMPLETE HVAC UNIT SHIM Genuine Ferrari Part - New (to order)
                                            # 013
                                            MPN: 13046011
                                            NUT
                                            from £0.51
                                            from £0.51
                                            NUT Genuine Ferrari Part - New In stock
                                            NUT FOR REAR TAIL LIGHT AS Genuine Maserati Part - New (to order)
                                            # 014
                                            MPN: 83603300
                                            RH MANIFOLD HEAT SHIELD
                                            -Not for GD-
                                            from £357.02
                                            from £357.02
                                            RH MANIFOLD HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            # 014
                                            MPN: 84086400
                                            RH MANIFOLD HEAT SHIELD
                                            -Applicable for GD-
                                            from £216.74
                                            from £216.74
                                            RH MANIFOLD HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            RH MANIFOLD HEAT SHIELD Genuine Ferrari Part - Used In stock
                                            # 015
                                            MPN: 83806800
                                            LH MANIFOLD HEAT SHIELD
                                            -Not for GD-
                                            from £343.29
                                            from £343.29
                                            LH MANIFOLD HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            # 015
                                            MPN: 84086500
                                            LH MANIFOLD HEAT SHIELD
                                            -Applicable for GD-
                                            from £394.08
                                            from £394.08
                                            LH MANIFOLD HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            # 016
                                            MPN: 83665800
                                            RH SILENCER HEAT SHIELD
                                            from £107.29
                                            from £107.29
                                            RH SILENCER HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            # 017
                                            MPN: 83665700
                                            LH SILENCER HEAT SHIELD
                                            from £107.29
                                            from £107.29
                                            LH SILENCER HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            # 018
                                            MPN: 83448600
                                            UPPER FIREWALL INSULATION
                                            -Not for GD- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 018
                                            MPN: 84001900
                                            UPPER FIREWALL INSULATION
                                            -Applicable for GD-
                                            from £475.31
                                            from £475.31
                                            UPPER FIREWALL INSULATION Genuine Ferrari Part - New (to order)
                                            # 018
                                            MPN: 85144700
                                            UPPER FIREWALL INSULATION
                                            -Not for GD- -Applicable after depletion of 83448600-
                                            from £78.83
                                            from £78.83
                                            This part replaces part number 83448600
                                            UPPER FIREWALL INSULATION Genuine Ferrari Part - New (to order)
                                            # 019
                                            MPN: 83723800
                                            COMPL. TUNNEL HEAT SHIELD
                                            -Applicable up to Ass. No. 111062-
                                            from £603.48
                                            from £603.48
                                            COMPLETE TUNNEL HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            COMPLETE TUNNEL HEAT SHIELD Genuine Ferrari Part - Used In stock
                                            # 019
                                            MPN: 84428100
                                            CENTRE CONSOLE HEAT SHIELD
                                            -Applicable from Ass. No. 111063-
                                            from £216.74
                                            from £216.74
                                            CENTRE CONSOLE HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            CENTRE CONSOLE HEAT SHIELD Genuine Ferrari Part - Used In stock
                                            # 020
                                            MPN: 83724300
                                            RH CATALYTIC CONVERTER HEAT SHIELD
                                            from £319.26
                                            from £319.26
                                            RH CATALYTIC CONVERTER HEAT Genuine Ferrari Part - New (to order)
                                            RH CATALYTIC CONVERTER HEAT Genuine Ferrari Part - Used In stock
                                            # 021
                                            MPN: 83724100
                                            LH CATALYTIC CONVERTER HEAT SHIELD
                                            from £319.27
                                            from £319.27
                                            LH CATALYTIC CONVERTER HEAT Genuine Ferrari Part - New (to order)
                                            LH CATALYTIC CONVERTER HEAT Genuine Ferrari Part - Used In stock
                                            # 022
                                            MPN: 83665600
                                            SERVICES TUB HEAT SHIELD
                                            from £357.61
                                            from £357.61
                                            SERVICES TUB HEAT SHIELD Genuine Ferrari Part - New (to order)
                                            # 023
                                            MPN: 83705600
                                            CENTRAL DASHBOARD INSULATION
                                            -Not for GD-
                                            from £50.99
                                            from £50.99
                                            CENTRAL DASHBOARD INSULATION Genuine Ferrari Part - New (to order)
                                            # 024
                                            MPN: 81341300
                                            LH DASHBOARD INSULATION
                                            -Not for GD-
                                            from £42.47
                                            from £42.47
                                            LH INSULATION Genuine Ferrari Part - New (to order)
                                            # 025
                                            MPN: 83636400
                                            RH DASHBOARD INSULATION
                                            -Not for GD-
                                            from £12.92
                                            from £12.92
                                            RH DASHBOARD INSULATION Genuine Ferrari Part - New (to order)
                                            # 026
                                            MPN: 83918300
                                            HEAT SHIELD UNDER REAR BUCKLE STALK
                                            from £15.99
                                            from £15.99
                                            HEAT SHIELD UNDER REAR BUCKL Genuine Ferrari Part - New (to order)
                                            # 027
                                            MPN: 83918100
                                            DRIVER SIDE TUNNEL HEAT SHIELD
                                            from £34.31
                                            from £34.31
                                            DRIVER SIDE TUNNEL HEAT SHIE Genuine Ferrari Part - New (to order)
                                            # 028
                                            MPN: 82332200
                                            LH INSULATION
                                            -Applicable for GD-
                                            from £53.05
                                            from £53.05
                                            LH INSULATION Genuine Ferrari Part - New (to order)
                                            # 029
                                            MPN: 82332300
                                            RH INSULATION
                                            -Applicable for GD-
                                            from £53.05
                                            from £53.05
                                            RH INSULATION Genuine Ferrari Part - New (to order)
                                            # 030
                                            MPN: 82332100
                                            CENTRE INSULATION
                                            -Applicable for GD-
                                            from £63.65
                                            from £63.65
                                            CENTRAL INSULATION Genuine Ferrari Part - New (to order)
                                            # 031
                                            MPN: 272650
                                            HEAT INSULATION FOR FUEL TANK
                                            -Applicable up to Ass. No. 115595- -Applicable until depletion-
                                            Supersession
                                            Supersession
                                            Genuine Ferrari Part (no longer available to order)
                                            # 031
                                            MPN: 292606
                                            HEAT INSULATION FOR FUEL TANK
                                            -Applicable from Ass. No. 115596- -Applicable after depletion of 272650-
                                            from £136.48
                                            from £136.48
                                            This part replaces part number 272650 - and 1 more. Click to view details
                                            HEAT INSULATION FOR FUEL TAN Genuine Ferrari Part - New (to order)
                                            HEAT INSULATION FOR FUEL TAN Genuine Ferrari Part - Used In stock
                                            # 032
                                            MPN: 83918000
                                            DRIVER SIDE UNDER-FOOTREST HEAT SHIELD
                                            -Not for GD-
                                            from £10.61
                                            from £10.61
                                            DRIVER SIDE UNDER-FOOTREST H Genuine Ferrari Part - New (to order)
                                            # 032
                                            MPN: 84430300
                                            DRIVER SIDE UNDER-FOOTREST HEAT SHIELD
                                            -Applicable for GD-
                                            from £15.97
                                            from £15.97
                                            DRIVER SIDE UNDER-FOOTREST H Genuine Ferrari Part - New (to order)
                                            # 033
                                            MPN: 83918200
                                            PASSENGER SIDE UNDER-FOOTREST HEAT SHIELD
                                            from £34.31
                                            from £34.31
                                            PASSENGER SIDE TUNNEL Genuine Ferrari Part - New (to order)
                                            # 034
                                            MPN: 83995400
                                            TUB PULER
                                            -Applicable up to Ass. No. 111222-
                                            from £46.66
                                            from £46.66
                                            TUB PULER Genuine Ferrari Part - New (to order)
                                            # 034
                                            MPN: 85213300
                                            TUB PULER
                                            -Applicable from Ass. No. 111223-
                                            from £46.66
                                            from £46.66
                                            TUB PULER Genuine Ferrari Part - New (to order)
                                            # 035
                                            MPN: 66091000
                                            SCREW
                                            -M6 X 25- -Applicable from Ass. No. 111063-
                                            from £2.57
                                            from £2.57
                                            This part replaces part number 65933600
                                            SCREW Genuine Ferrari Part - New In stock
                                            # 035
                                            MPN: 81290900
                                            SCREW
                                            -M6 X 20 X 22- -Applicable up to Ass. No. 111062-
                                            from £0.52
                                            from £0.52
                                            This part replaces part number 67578600
                                            SCREW WITH DOUBLE WASHER M6 x 20 x 22 Genuine Ferrari Part - New (to order)
                                            # 036
                                            MPN: 67315400
                                            WASHER
                                            -Applicable from Ass. No. 111063-
                                            from £0.53
                                            from £0.53
                                            WASHER Genuine Ferrari Part - New In stock
                                            RONDELLA Genuine Maserati Part - New In stock
                                            # 037
                                            MPN: 11193974
                                            WASHER
                                            -Applicable from Ass. No. 111063- -No longer supplied- -Replaced by 12642078-
                                            from £0.26
                                            from £0.26
                                            WASHER Genuine Ferrari Part - New In stock
                                            Conical Washer. D. 8.4-1 8.4-2 Genuine Maserati Part - New In stock
                                            WASHER Genuine Ferrari Part - Used In stock
                                            # 037
                                            MPN: 12642078
                                            WASHER
                                            from £0.50
                                            from £0.50
                                            This part replaces part number 12642006 which we have in stock
                                            WASHER Genuine Ferrari Part - New In stock
                                            # 038
                                            MPN: 67315400
                                            WASHER
                                            from £0.50
                                            from £0.50
                                            WASHER Genuine Ferrari Part - New In stock
                                            RONDELLA Genuine Maserati Part - New In stock
                                            # 039
                                            MPN: 86390700
                                            FRONT PULER, RH REAR FLANK
                                            -Applicable for Geneva version-
                                            from £175.16
                                            from £175.16
                                            FRONT PULER, RH REAR FLANK Genuine Ferrari Part - New (to order)
                                            # 040
                                            MPN: 86390800
                                            REAR PULER, RH REAR FLANK
                                            -Applicable for Geneva version-
                                            from £197.04
                                            from £197.04
                                            REAR PULER, RH REAR FLANK Genuine Ferrari Part - New (to order)
                                            # 041
                                            MPN: 86391200
                                            INSULATION BEHIND RH BELT RETRACTOR
                                            -Applicable for Geneva version-
                                            from £14.60
                                            from £14.60
                                            INSULATION BEHIND RH BELT RE Genuine Ferrari Part - New (to order)
                                            # 042
                                            MPN: 86391300
                                            INSULATION BEHIND LH BELT RETRACTOR
                                            -Applicable for Geneva version-
                                            from £14.60
                                            from £14.60
                                            INSULATION BEHIND LH BELT RE Genuine Ferrari Part - New (to order)
                                            # 043
                                            MPN: 82869800
                                            RH REAR FLANK CLOSURE INSULATION
                                            -Applicable for Geneva version-
                                            from £32.83
                                            from £32.83
                                            RH REAR FLANK CLOSURE INSULA Genuine Ferrari Part - New (to order)
                                            # 043
                                            MPN: 82869900
                                            RH REAR FLANK CLOSURE INSULATION
                                            -Applicable for Geneva version-
                                            from £32.83
                                            from £32.83
                                            LH REAR FLANK CLOSURE INSULA Genuine Ferrari Part - New (to order)
                                            # 044
                                            MPN: 84069300
                                            RH LUGGAGE COMPARTMENT SIDE NITTO
                                            from £9.96
                                            from £9.96
                                            RH LUGGAGE COMPARTMENT SIDE Genuine Ferrari Part - New (to order)
                                            # 045
                                            MPN: 84069400
                                            LH LUGGAGE COMPARTMENT SIDE NITTO
                                            from £9.96
                                            from £9.96
                                            LH LUGGAGE COMPARTMENT SIDE Genuine Ferrari Part - New (to order)
                                            # 046
                                            MPN: 84057200
                                            LH REAR FLANK PULER
                                            -Not for Geneva version- -Not for GD-
                                            from £77.14
                                            from £77.14
                                            LH REAR FLANK PULER Genuine Ferrari Part - New (to order)
                                            # 047
                                            MPN: 84057300
                                            RH REAR FLANK PULER
                                            from £72.32
                                            from £72.32
                                            RH REAR FLANK PULER Genuine Ferrari Part - New (to order)
                                            # 048
                                            MPN: 84057400
                                            LH REAR FLANK PULER
                                            from £72.32
                                            from £72.32
                                            LH REAR FLANK PULER Genuine Ferrari Part - New (to order)
                                            # 049
                                            MPN: 83995200
                                            TAILGATE PULER
                                            from £86.79
                                            from £86.79
                                            TAILGATE PULER Genuine Ferrari Part - New (to order)
                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
