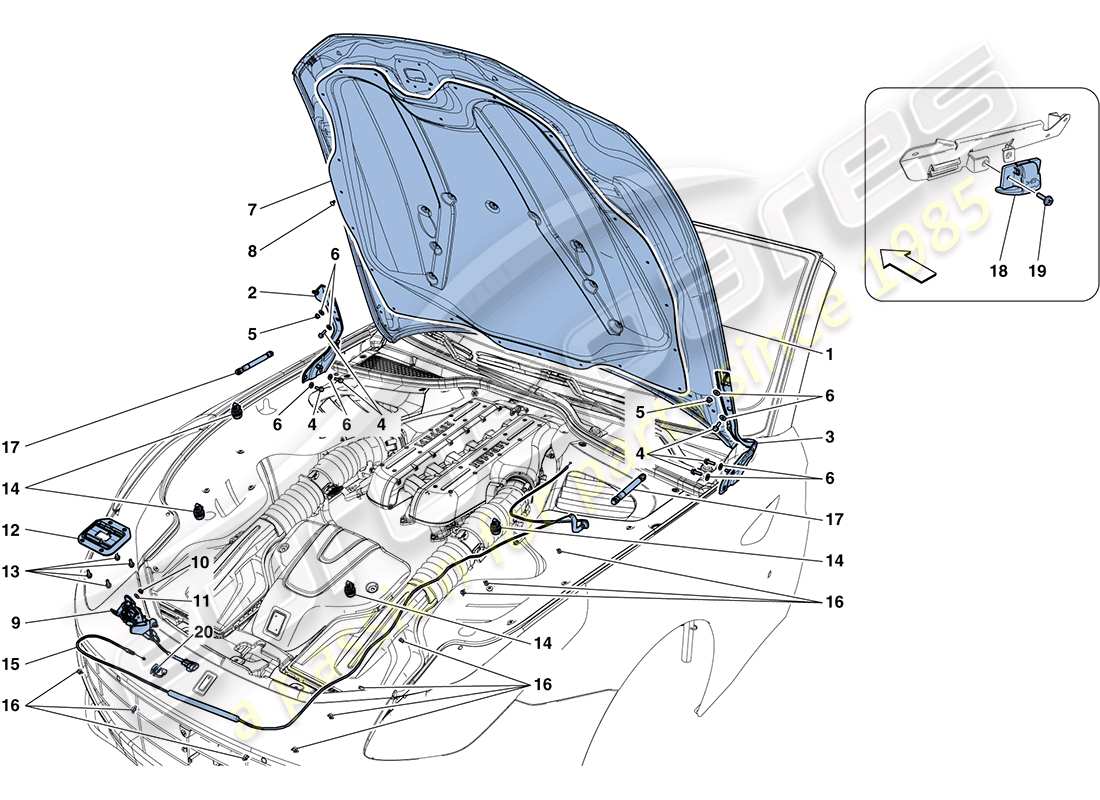

0111 - FRONT LID AND OPENING MECHANISM
Ferrari FF (USA) FRONT LID AND OPENING MECHANISM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 83029711
ENGINE COMPARTMENT LID
from £2,181.98
from £2,181.98
# 002
MPN: 81675100
COMPL. RH HINGE
from £71.44
from £71.44
# 003
MPN: 81675000
COMPL. LH HINGE
from £71.44
from £71.44
# 004
MPN: 16287124
SCREW
-M8 X 20-
from £0.77
from £0.77
# 004
MPN: 16287224
SCREW
-M8 X 25- -No longer supplied- -Replaced by 16287124-
from £0.50
from £0.50
This part replaces part number 16287221
# 005
MPN: 14059311
NUT
from £0.53
from £0.53
# 006
MPN: 12646724
WASHER
from £0.52
from £0.52
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
# 007
MPN: 82210300
UNDER-LID INSULATION
from £274.77
from £274.77
# 008
MPN: 14591687
FASTENER BUTTON
from £0.26
from £0.26
This part replaces part number 69767700 - and 1 more. Click to view details
# 009
MPN: 83752200
LID LOCK
from £90.64
from £90.64
# 010
MPN: 13046112
NUT
from £0.53
from £0.53
# 010
MPN: 14059211
NUT
-No longer supplied- -Replaced by 13046112-
from £0.53
from £0.53
# 011
MPN: 12647601
WASHER
-No longer supplied- -Replaced by 12647878-
from £0.47
from £0.47
# 011
MPN: 12647878
WASHER
from £1.92
from £1.92
# 012
MPN: 80246800
STRIKER PLATE
from £17.33
from £17.33
# 013
MPN: 81923100
SCREW
-M6 X 18-
from £0.53
from £0.53
This part replaces part number 16297034
# 014
MPN: 67161800
VIBRATION DAMPER
from £21.17
from £21.17
This part replaces part number 69773300
# 015
MPN: 82322400
LID RELEASE BOWDEN CABLE
-Not for GD- -Applicable up to Ass. No. 108015- -Applicable until depletion-
from £37.59
from £37.59
# 015
MPN: 83994200
LID RELEASE BOWDEN CABLE
-Applicable for GD- -Applicable until depletion-
Supersession
Supersession
# 015
MPN: 85045900
LID RELEASE BOWDEN CABLE
-Not for GD- -Applicable from Ass. No. 108016- -Applicable after depletion of 82322400-
from £40.14
from £40.14
# 015
MPN: 85046000
LID RELEASE BOWDEN CABLE
-Applicable for GD- -Applicable after depletion of 83994200-
from £40.86
from £40.86
This part replaces part number 83994200
# 016
MPN: 14569480
CLIP
from £0.47
from £0.47
This part replaces part number 81580800
# 017
MPN: 69767900
GAS STRUT
from £18.87
from £18.87
# 018
MPN: 67003800
ENGINE COMPARTMENT LID HANDLE
from £24.46
from £24.46
# 019
MPN: 65366700
SCREW
-M5 X 12- -No longer supplied- -Replaced by 85692200-
from £0.69
from £0.69
# 019
MPN: 85692200
SCREW
-M5 X 12-
from £0.47
from £0.47
# 020
MPN: 69708300
CLIP
from £0.77
from £0.77
