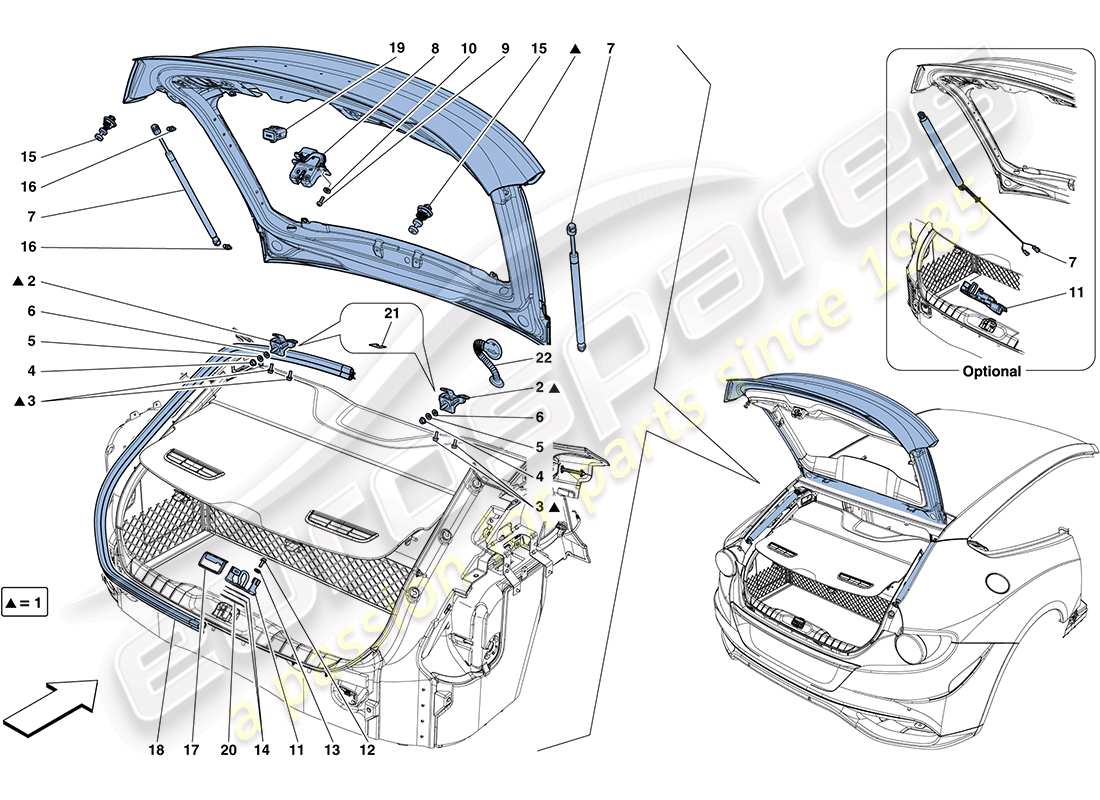

0112 - REAR LID AND OPENING MECHANISM

Ferrari FF (USA) REAR LID AND OPENING MECHANISM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 84025411
              TAILGATE ASSEMBLY
              -Not for USA, CDN, USA LIGHT-
              from £1,891.85
              from £1,891.85
              TAILGATE ASSEMBLY Genuine Ferrari Part - New In stock
              # 001
              MPN: 84416611
              TAILGATE ASSEMBLY
              -Applicable for USA, CDN, USA LIGHT-
              from £3,270.22
              from £3,270.22
              TAILGATE ASSEMBLY Genuine Ferrari Part - New In stock
              # 002
              MPN: 83347100
              COMPL. TAILGATE HINGE
              from £218.98
              from £218.98
              COMPLETE TAILGATE HINGE Genuine Ferrari Part - New In stock
              # 003
              MPN: 16286024
              SCREW
              -M6 X 16-
              from £0.51
              from £0.51
              VITE TE FLANGIATA M 6X16 Genuine Ferrari Part - New In stock
              SCREW. Genuine Maserati Part - New (to order)
              # 004
              MPN: 14059311
              NUT
              from £0.53
              from £0.53
              NUT Genuine Ferrari Part - New In stock
              NUT Genuine Maserati Part - New (to order)
              # 005
              MPN: 11194074
              WASHER
              -No longer supplied- -Replaced by 12646724-
              from £0.47
              from £0.47
              This part replaces part number 11194071 - and 2 more. Click to view details
              WASHER Genuine Ferrari Part - New In stock
              WASHER Genuine Maserati Part - New (to order)
              # 005
              MPN: 12646724
              WASHER
              -No longer supplied- -Replaced by 84653800-
              from £0.54
              from £0.54
              This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
              WASHER Genuine Ferrari Part - New In stock
              WASHER Genuine Maserati Part - New In stock
              # 005
              MPN: 84653800
              WASHER
              from £2.81
              from £2.81
              WASHER Genuine Ferrari Part - New (to order)
              # 006
              MPN: 11193979
              WASHER
              -Applicable until depletion-
              from £0.54
              from £0.54
              WASHER Genuine Ferrari Part - New (to order)
              # 006
              MPN: 80416000
              WASHER
              -Applicable after depletion of 11193979-
              from £0.86
              from £0.86
              WASHER Genuine Ferrari Part - New (to order)
              # 007
              MPN: 82209500
              STABILUS
              -Version with rear windscreen wiper- -Not for power assisted tailgate- -No longer supplied- -Replaced by 84076000-
              from £35.13
              from £35.13
              BOOT STRUT Genuine Ferrari Part - New In stock
              # 007
              MPN: 83461900
              STABILUS
              -Version with power assisted tailgate-
              from £740.83
              from £740.83
              STABILUS Genuine Ferrari Part - New (to order)
              STABILUS Genuine Ferrari Part - Used In stock
              # 007
              MPN: 84076000
              STABILUS
              -Not for version with power assisted tailgate-
              from £13.18
              from £13.18
              This part replaces part number 82209500 which we have in stock - and 1 more. Click to view details
              STABILUS Genuine Ferrari Part - New In stock
              STABILUS Genuine Ferrari Part - Used In stock
              # 008
              MPN: 83629100
              ELECTRIC LOCK
              -Applicable up to Ass. No. 102309-
              from £121.45
              from £121.45
              ELECTRIC LOCK Genuine Ferrari Part - New (to order)
              # 008
              MPN: 84537500
              ELECTRIC LOCK
              -Not for USA, CDN, USA LIGHT- -Applicable from Ass. No. 102310- -Applicable until depletion-
              Supersession
              Supersession
              Genuine Ferrari Part (no longer available to order)
              # 008
              MPN: 84820000
              ELECTRIC LOCK
              -Not for USA, CDN, USA LIGHT- -Applicable after depletion of 84537500- -Applicable until depletion-
              Supersession
              Supersession
              This part replaces part number 84537500
              Genuine Ferrari Part (no longer available to order)
              # 008
              MPN: 84820000
              ELECTRIC LOCK
              -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion-
              Supersession
              Supersession
              This part replaces part number 84537500
              Genuine Ferrari Part (no longer available to order)
              # 008
              MPN: 85051400
              ELECTRIC LOCK
              -Applicable after depletion of 84820000-
              from £59.26
              from £59.26
              This part replaces part number 84820000
              ELECTRIC LOCK Genuine Ferrari Part - New (to order)
              # 009
              MPN: 65864100
              SCREW
              -M6 X 15-
              from £0.83
              from £0.83
              This part replaces part number 65864200 which we have in stock
              SCREW Genuine Ferrari Part - New In stock
              # 010
              MPN: 14447021
              WASHER
              from £0.53
              from £0.53
              This part replaces part number 14447001
              WASHER Genuine Ferrari Part - New (to order)
              # 011
              MPN: 82209700
              LOCK STRIKER
              -Not for version with power assisted tailgate-
              from £7.36
              from £7.36
              LOCK STRIKER Genuine Ferrari Part - New In stock
              LOCK STRIKER Genuine Ferrari Part - Used In stock
              # 011
              MPN: 83629000
              LOCK STRIKER
              -Version with power assisted tailgate-
              from £198.35
              from £198.35
              LOCK STRIKER Genuine Ferrari Part - New In stock
              LOCK STRIKER Genuine Ferrari Part - Used In stock
              # 012
              MPN: 16043634
              SCREW
              -M8 X 35- -Applicable for both Standard version and version with power assisted tailgate- -Applicable from Ass. No. 111534-
              from £0.53
              from £0.53
              SCREW Genuine Ferrari Part - New In stock
              SCREW Genuine Maserati Part - New (to order)
              # 012
              MPN: 16287024
              SCREW
              -M8 X 16- -No longer supplied- -Replaced by 16287124-
              from £0.53
              from £0.53
              SCREW. Genuine Ferrari Part - New In stock
              SCREW. Genuine Maserati Part - New (to order)
              # 012
              MPN: 16287124
              SCREW
              -M8 X 20- -Applicable only for Standard version- -Applicable up to Ass. No. 105159-
              from £0.82
              from £0.82
              SCREW Genuine Ferrari Part - New In stock
              FLANGED HEX HEAD SCREW M8X20 Genuine Maserati Part - New (to order)
              # 012
              MPN: 16287224
              SCREW
              -M8 X 25- -Applicable only for version with power assisted tailgate- -Applicable up to Ass. No. 105159-
              from £0.53
              from £0.53
              This part replaces part number 16287221
              SCREW Genuine Ferrari Part - New In stock
              SCREW Genuine Maserati Part - New (to order)
              # 012
              MPN: 16287434
              SCREW
              -M8 X 35- -Applicable for both Standard version and version with power assisted tailgate- -Applicable from Ass. No. 105160 up to Ass. No. 111533- -No longer supplied- -Replaced by 16043634-
              from £1.62
              from £1.62
              SCREW Genuine Ferrari Part - New In stock
              # 013
              MPN: 11193974
              WASHER
              -Replaces 12646724- -Applicable from Ass. No. 111534- -No longer supplied- -Replaced by 12642078-
              from £0.26
              from £0.26
              WASHER Genuine Ferrari Part - New In stock
              Conical Washer. D. 8.4-1 8.4-2 Genuine Maserati Part - New In stock
              WASHER Genuine Ferrari Part - Used In stock
              # 013
              MPN: 12626224
              WASHER
              -Replaces 12646724- -Applicable from Ass. No. 111534-
              from £0.54
              from £0.54
              This part replaces part number 12626221
              WASHER Genuine Ferrari Part - New In stock
              WASHER Genuine Maserati Part - New In stock
              # 013
              MPN: 12642078
              WASHER
              from £0.50
              from £0.50
              This part replaces part number 12642006 which we have in stock
              WASHER Genuine Ferrari Part - New In stock
              # 013
              MPN: 12646724
              WASHER
              -Replaced by 11193974 and 12626224- -Applicable up to Ass. No. 111533- -No longer supplied-
              from £0.54
              from £0.54
              This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
              WASHER Genuine Ferrari Part - New In stock
              WASHER Genuine Maserati Part - New In stock
              # 013
              MPN: 14447821
              WASHER
              -No longer supplied- -Replaced by 12646724-
              Supersession
              Supersession
              Genuine Ferrari Part (no longer available to order)
              # 014
              MPN: 84147200
              SHIM
              -Th. 1 mm- -Applicable up to Ass. No. 105159- -No longer supplied-
              from £1.75
              from £1.75
              SHIM Genuine Ferrari Part - New (to order)
              # 014
              MPN: 84147600
              SHIM
              -Th. 0.5 mm- -Applicable up to Ass. No. 105159- -No longer supplied-
              from £1.75
              from £1.75
              SHIM Genuine Ferrari Part - New (to order)
              # 014
              MPN: 84704400
              POWER STRIKER SHIM
              -Th. 1 mm- -Applicable from Ass. No. 105160 up to Ass. No. 111533- -No longer supplied-
              from £4.86
              from £4.86
              POWER STRIKER SHIM Genuine Ferrari Part - New (to order)
              # 014
              MPN: 84704500
              POWER STRIKER SHIM
              -Th. 0.5 mm- -Applicable from Ass. No. 105160 up to Ass. No. 111533- -No longer supplied-
              from £4.25
              from £4.25
              POWER STRIKER SHIM Genuine Ferrari Part - New (to order)
              # 015
              MPN: 67161800
              VIBRATION DAMPER
              from £21.17
              from £21.17
              This part replaces part number 69773300
              ANTIVIBRATION PAD Genuine Ferrari Part - New In stock
              # 016
              MPN: 83653100
              PIN FOR STABILUS
              -Applicable after depletion of 83966600-
              from £13.45
              from £13.45
              This part replaces part number 83966600
              PIN FOR STABILUS Genuine Ferrari Part - New (to order)
              # 016
              MPN: 83966600
              PIN FOR STABILUS
              -Applicable until depletion-
              Supersession
              Supersession
              Genuine Ferrari Part (no longer available to order)
              # 017
              MPN: 83717700
              COSMETIC COVER
              from £1.77
              from £1.77
              COSMETIC COVER Genuine Ferrari Part - New (to order)
              COSMETIC COVER Genuine Ferrari Part - Used In stock
              # 018
              MPN: 82210100
              GASKET
              -No longer supplied- -Replaced by 84202200-
              Supersession
              Supersession
              Genuine Ferrari Part (no longer available to order)
              # 018
              MPN: 84202200
              GASKET
              -Applicable until depletion-
              Supersession
              Supersession
              This part replaces part number 82210100
              Genuine Ferrari Part (no longer available to order)
              # 018
              MPN: 84785000
              GASKET
              -Applicable after depletion of 84202200-
              from £162.93
              from £162.93
              This part replaces part number 84202200
              GASKET Genuine Ferrari Part - New (to order)
              # 019
              MPN: 281296
              TAILGATE OPEN BUTTON
              -Not for Geneva version- -Applicable until depletion-
              Supersession
              Supersession
              Genuine Ferrari Part (no longer available to order)
              # 019
              MPN: 291420
              TAILGATE OPEN BUTTON
              -Not for Geneva version- -Applicable after depletion of 281296-
              from £106.20
              from £106.20
              This part replaces part number 281296
              TAILGATE CLOSE BUTTON Genuine Ferrari Part - New (to order)
              # 019
              MPN: 311063
              TAILGATE OPEN BUTTON
              -Applicable for Geneva version-
              from £106.20
              from £106.20
              TAILGATE OPEN BUTTON Genuine Ferrari Part - New (to order)
              # 020
              MPN: 84718500
              STRIKER REINFORCEMENT PLATE
              from £6.57
              from £6.57
              STRIKER REINFORCEMENT PLATE Genuine Ferrari Part - New (to order)
              # 021
              MPN: 84651000
              SHIM
              -Th. 1 mm-
              from £1.80
              from £1.80
              SHIM Genuine Ferrari Part - New (to order)
              # 021
              MPN: 84651200
              SHIM
              -Th. 2 mm-
              from £1.80
              from £1.80
              SHIM Genuine Ferrari Part - New (to order)
              # 022
              MPN: 276042
              CABLE GROMMET
              -Applicable for Geneva version- -Applicable for EU GS, UK-
              from £12.73
              from £12.73
              CABLE GROMMET Genuine Ferrari Part - New (to order)
              CABLE GROMMET Genuine Ferrari Part - Used In stock
