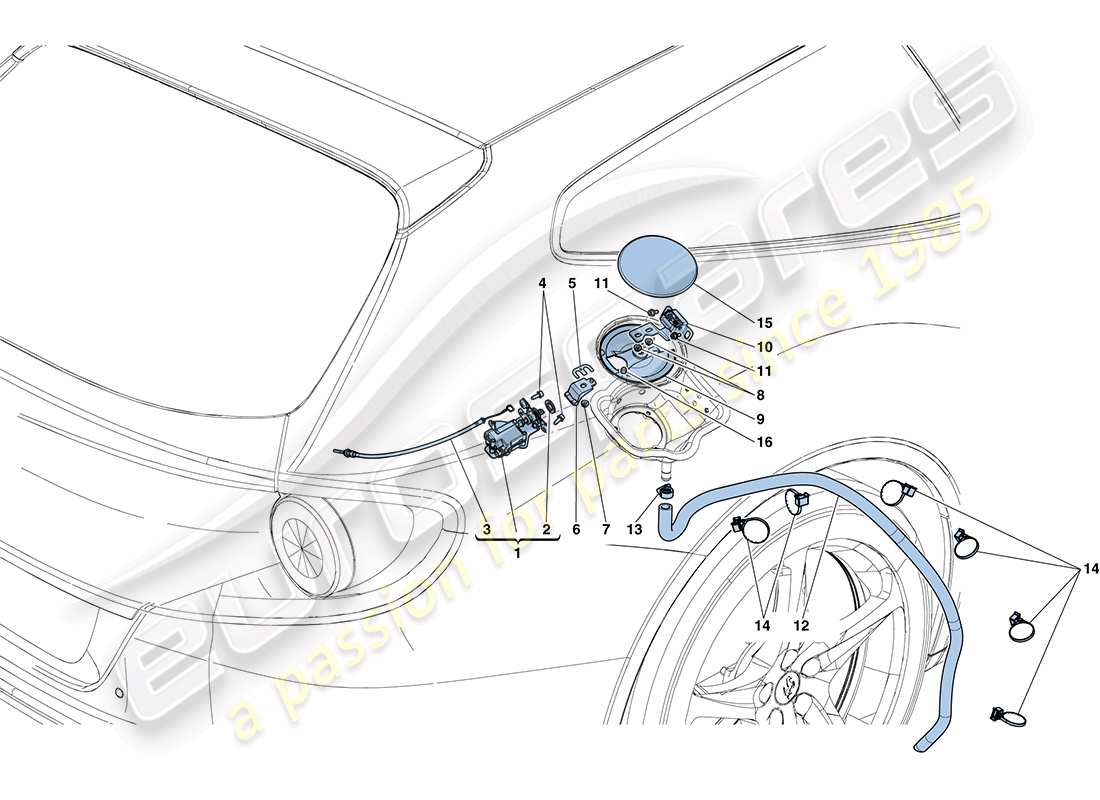

0113 - FUEL FILLER FLAP AND CONTROLS

Ferrari FF (USA) FUEL FILLER FLAP AND CONTROLS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 83350500
                    COMPL. FUEL FILLER FLAP ACTUATOR
                    -Applicable up to Ass. No. 108359- -Applicable until depletion-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 001
                    MPN: 85111000
                    COMPL. FUEL FILLER FLAP ACTUATOR
                    -Applicable from Ass. No. 108360- -Applicable after depletion of 83350500- -Applicable until depletion-
                    Supersession
                    Supersession
                    This part replaces part number 83350500
                    Genuine Ferrari Part (no longer available to order)
                    # 001
                    MPN: 86009000
                    COMPL. FUEL FILLER FLAP ACTUATOR
                    -Applicable from Ass. No. 108360- -Applicable after depletion of 85111000-
                    from £37.41
                    from £37.41
                    This part replaces part number 85111000 - and 3 more. Click to view details
                    COMPLETE FUEL FILLER FLAP ACTU Genuine Ferrari Part - New (to order)
                    COMPLETE FUEL FILLER FLAP ACTU Genuine Ferrari Part - Used In stock
                    # 002
                    MPN: 67067600
                    SEAL RING FOR BASE
                    from £2.11
                    from £2.11
                    GASKET Genuine Ferrari Part - New (to order)
                    # 003
                    MPN: 83350600
                    COMPL. ACTUATOR BOWDEN CABLE
                    -Applicable up to Ass. No. 108359- -Applicable until depletion-
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 003
                    MPN: 85111100
                    COMPL. ACTUATOR CORD
                    -Applicable from Ass. No. 108360- -Applicable after depletion of 83350600-
                    from £58.39
                    from £58.39
                    This part replaces part number 83350600
                    COMPLETE ACTUATOR BOWDEN CABLE Genuine Ferrari Part - New (to order)
                    # 004
                    MPN: 11566227
                    SCREW
                    -M5 X 14-
                    from £0.68
                    from £0.68
                    SCREW Genuine Ferrari Part - New In stock
                    # 005
                    MPN: 84046900
                    SPACER PLATE
                    from £2.73
                    from £2.73
                    SPACER PLATE Genuine Ferrari Part - New (to order)
                    SPACER PLATE Genuine Ferrari Part - Used In stock
                    # 006
                    MPN: 83993500
                    STRIKER FOR ACTUATOR
                    from £18.78
                    from £18.78
                    STRIKER FOR ACTUATOR Genuine Ferrari Part - New (to order)
                    STRIKER FOR ACTUATOR Genuine Ferrari Part - Used In stock
                    # 007
                    MPN: 14059111
                    NUT
                    from £0.47
                    from £0.47
                    NUT Genuine Ferrari Part - New In stock
                    NUT Genuine Maserati Part - New In stock
                    # 008
                    MPN: 14059111
                    NUT
                    from £0.47
                    from £0.47
                    NUT Genuine Ferrari Part - New In stock
                    NUT Genuine Maserati Part - New In stock
                    # 009
                    MPN: 83666400
                    INTERNAL COVER
                    from £5.90
                    from £5.90
                    INTERNAL COVER Genuine Ferrari Part - New In stock
                    INTERNAL COVER Genuine Ferrari Part - Used In stock
                    # 010
                    MPN: 83993700
                    COMPL. HINGE
                    from £29.30
                    from £29.30
                    COMPLETE HINGE Genuine Ferrari Part - New In stock
                    COMPLETE HINGE Genuine Ferrari Part - Used In stock
                    # 011
                    MPN: 11566227
                    SCREW
                    -M5 X 14-
                    from £0.68
                    from £0.68
                    SCREW Genuine Ferrari Part - New In stock
                    # 012
                    MPN: 81640000
                    DRAIN PIPE
                    from £48.16
                    from £48.16
                    DRAIN PIPE Genuine Ferrari Part - New (to order)
                    DRAIN PIPE Genuine Ferrari Part - Used In stock
                    # 013
                    MPN: 13000390
                    SCREW COLLAR
                    -No longer supplied- -Replaced by 296778-
                    from £0.53
                    from £0.53
                    This part replaces part number 12179590 - and 1 more. Click to view details
                    SCREW COLLAR Genuine Ferrari Part - New In stock
                    SCREW COLLAR Genuine Maserati Part - New In stock
                    # 013
                    MPN: 161490
                    COLLAR
                    -No longer supplied- -Replaced by 13000390-
                    from £1.40
                    from £1.40
                    SCREW COLLAR Genuine Ferrari Part - New In stock
                    SCREW COLLAR D.12-20X9 Genuine Maserati Part - New (to order)
                    # 013
                    MPN: 296778
                    COLLAR
                    Supersession
                    Supersession
                    Genuine Ferrari Part (no longer available to order)
                    # 014
                    MPN: 177553
                    CLIP
                    from £0.52
                    from £0.52
                    CLIP Genuine Ferrari Part - New In stock
                    CLAMP Genuine Maserati Part - New (to order)
                    # 014
                    MPN: 242384
                    CLIP
                    -No longer supplied- -Replaced by 177553-
                    from £0.52
                    from £0.52
                    This part replaces part number 10897487
                    CLIP Genuine Ferrari Part - New In stock
                    # 015
                    MPN: 81639111
                    FUEL FILLER FLAP
                    from £48.16
                    from £48.16
                    FUEL FILLER FLAP Genuine Ferrari Part - New (to order)
                    FUEL FILLER FLAP Genuine Ferrari Part - Used In stock
                    # 016
                    MPN: 81802300
                    RUBBER PAD
                    -No longer supplied- -Replaced by 83597100-
                    from £0.67
                    from £0.67
                    RUBBER Genuine Ferrari Part - New In stock
                    # 016
                    MPN: 83597100
                    RUBBER PAD
                    -No longer supplied- -Replaced by 84933800-
                    from £0.47
                    from £0.47
                    RUBBER Genuine Ferrari Part - New (to order)
                    # 016
                    MPN: 84933800
                    RUBBER PAD
                    from £2.11
                    from £2.11
                    RUBBER Genuine Ferrari Part - New In stock
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
