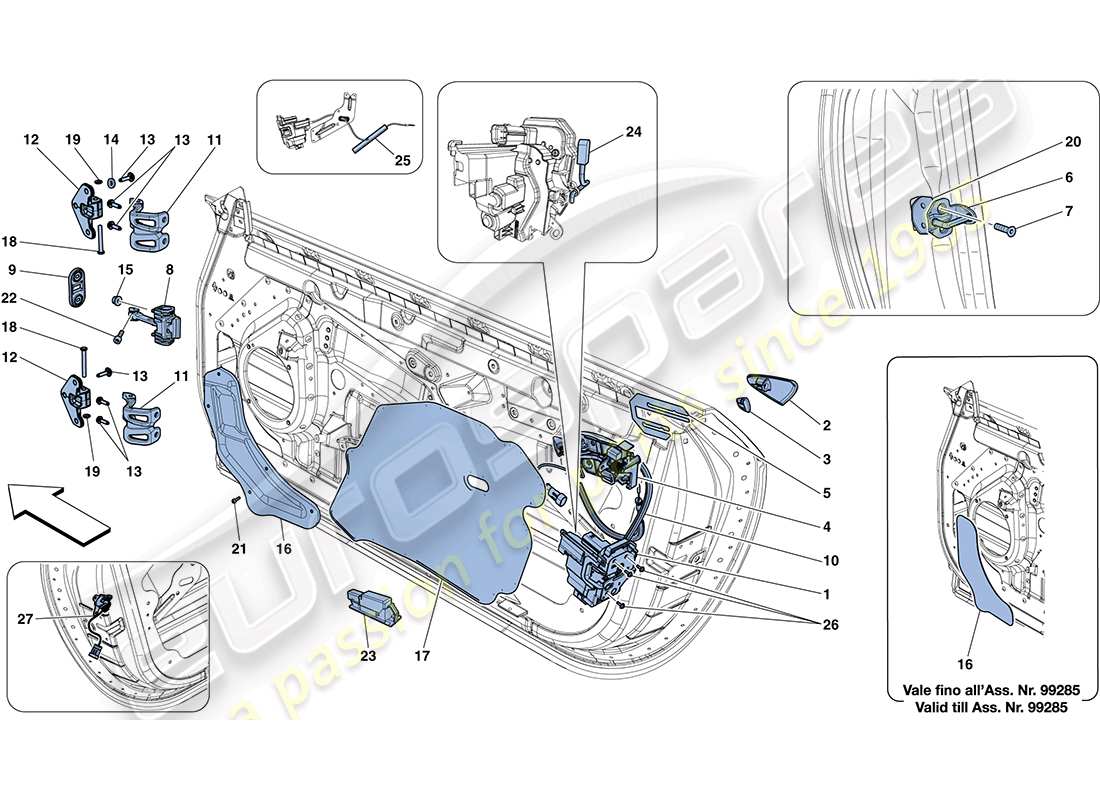

0115 - DOORS - OPENING MECHANISM AND HINGES

Ferrari FF (USA) DOORS - OPENING MECHANISM AND HINGES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price

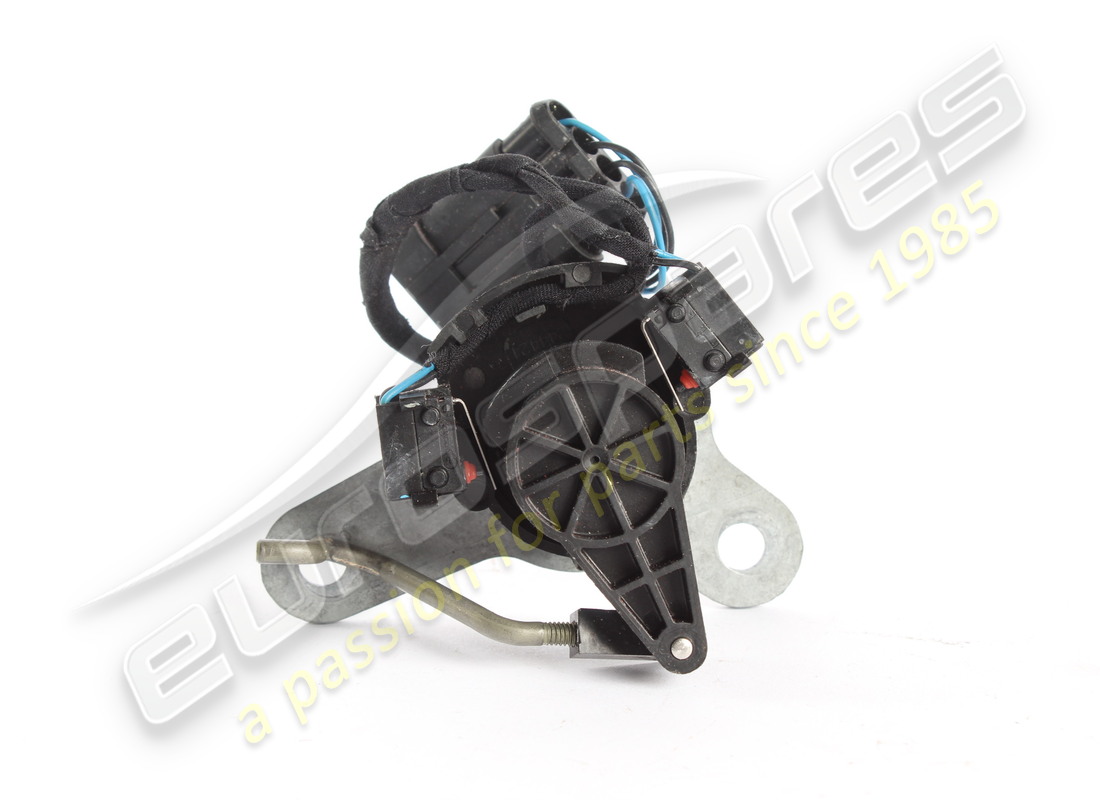

                                # 001
                                MPN: 83987500
                                COMPL. LH DOOR LOCK
                                -After depletion, order loose components- -Not for GD- -Applicable until depletion-
                                from £136.35
                                from £136.35
                                This part replaces part number 80182800 which we have in stock
                                LH DOOR LOCK Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 83987600
                                COMPL. RH DOOR LOCK
                                -After depletion, order loose components- -Not for GD- -Applicable until depletion-
                                from £129.53
                                from £129.53
                                This part replaces part number 80182700 which we have in stock - and 1 more. Click to view details
                                RH DOOR LOCK Genuine Ferrari Part - New (to order)
                                RH DOOR LOCK Genuine Ferrari Part - New (other) In stock
                                WITHOUT CABLE
                                # 001
                                MPN: 83987700
                                COMPL. LH DOOR LOCK
                                -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-
                                from £130.03
                                from £130.03
                                LH DOOR LOCK Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 83987800
                                COMPL. RH DOOR LOCK
                                -After depletion, order loose components- -Applicable for GD- -Applicable until depletion-
                                from £130.03
                                from £130.03
                                RH DOOR LOCK Genuine Ferrari Part - New In stock

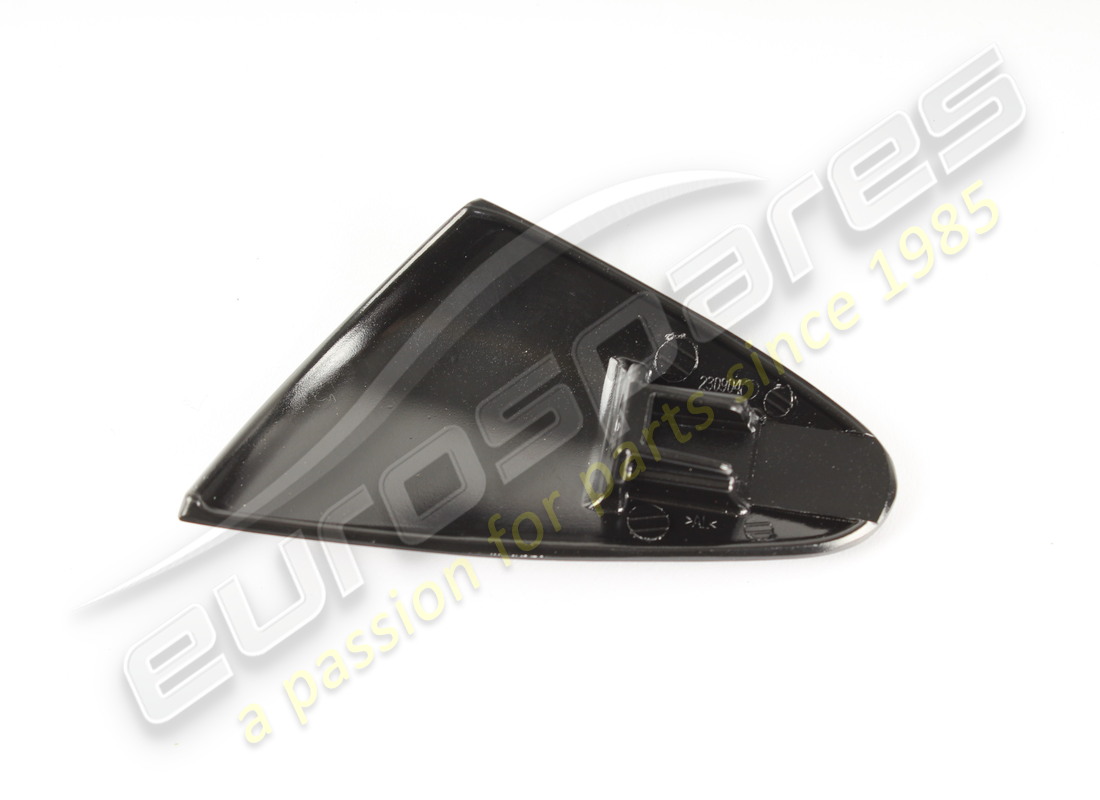

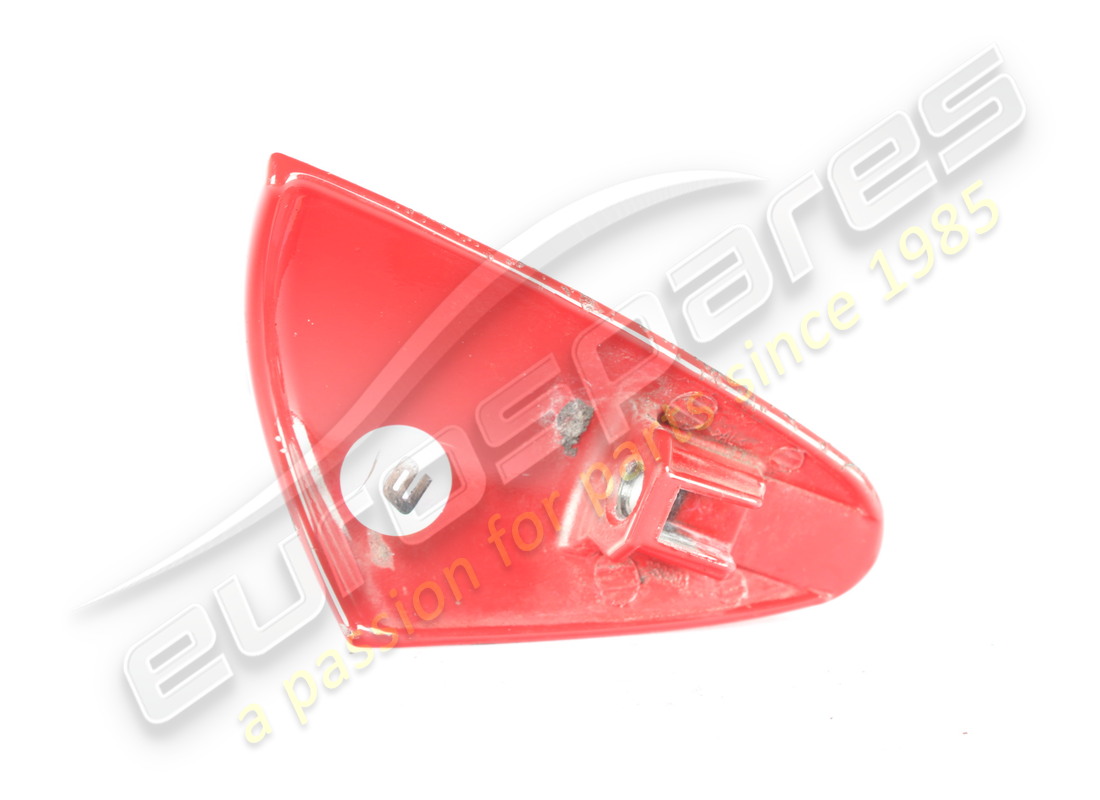

                                # 002
                                MPN: 69978900
                                RH OUTER DOOR HANDLE
                                from £15.24
                                from £15.24
                                This part replaces part number 69978910 - and 3 more. Click to view details
                                RH OUTER DOOR HANDLE Genuine Ferrari Part - New In stock
                                RH OUTER DOOR HANDLE Genuine Ferrari Part - Used In stock
                                # 002
                                MPN: 69978910
                                RH OUTER DOOR HANDLE
                                -No longer supplied- -Replaced by 69978900-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 002
                                MPN: 69979100
                                LH OUTER DOOR HANDLE
                                from £15.24
                                from £15.24
                                This part replaces part number 69979110 which we have in stock - and 2 more. Click to view details
                                LH OUTER DOOR HANDLE Genuine Ferrari Part - New (to order)
                                LH OUTER DOOR HANDLE Genuine Ferrari Part - Used In stock
                                # 002
                                MPN: 69979110
                                LH OUTER DOOR HANDLE
                                -No longer supplied- -Replaced by 69979100-
                                from £15.00
                                from £15.00
                                Genuine Ferrari Part (no longer available to order)
                                LH EXTERNAL DOOR HANDLE Genuine Ferrari Part - Used In stock

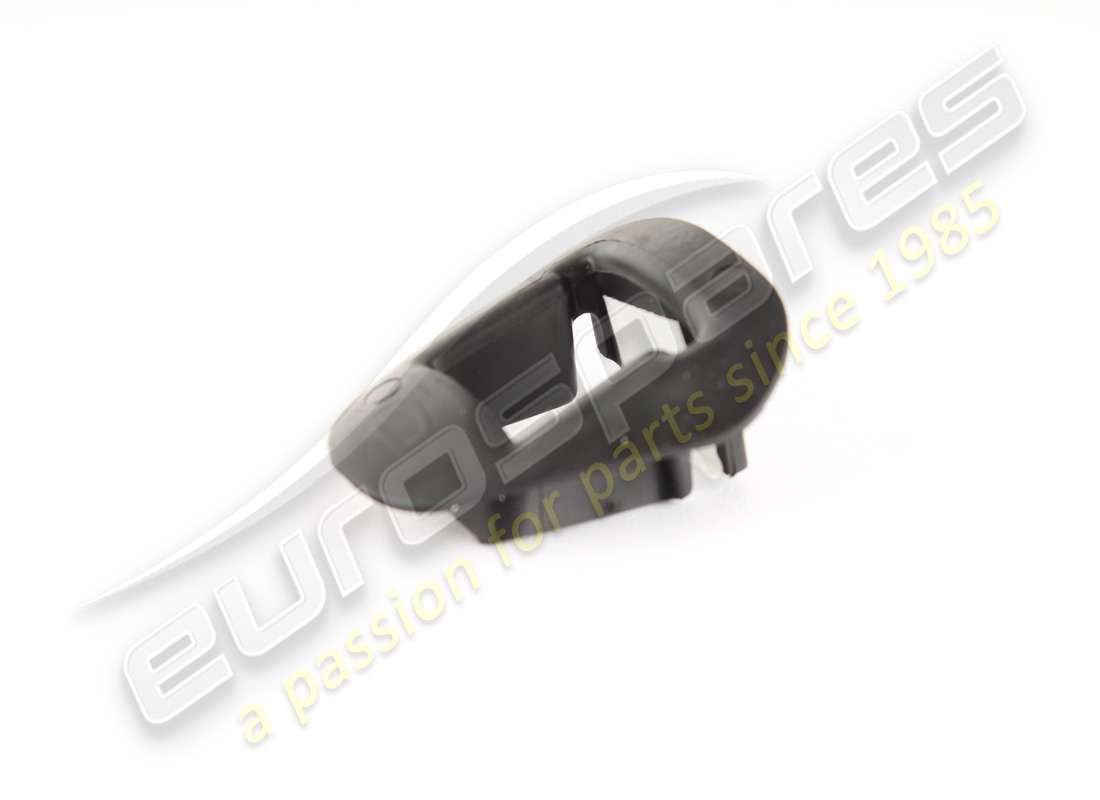

                                # 003
                                MPN: 81327900
                                LH SEAL
                                from £4.21
                                from £4.21
                                LH GASKET Genuine Ferrari Part - New (to order)
                                LH GASKET Genuine Ferrari Part - Used In stock
                                # 003
                                MPN: 81328000
                                RH SEAL
                                from £7.66
                                from £7.66
                                RH GASKET Genuine Ferrari Part - New In stock

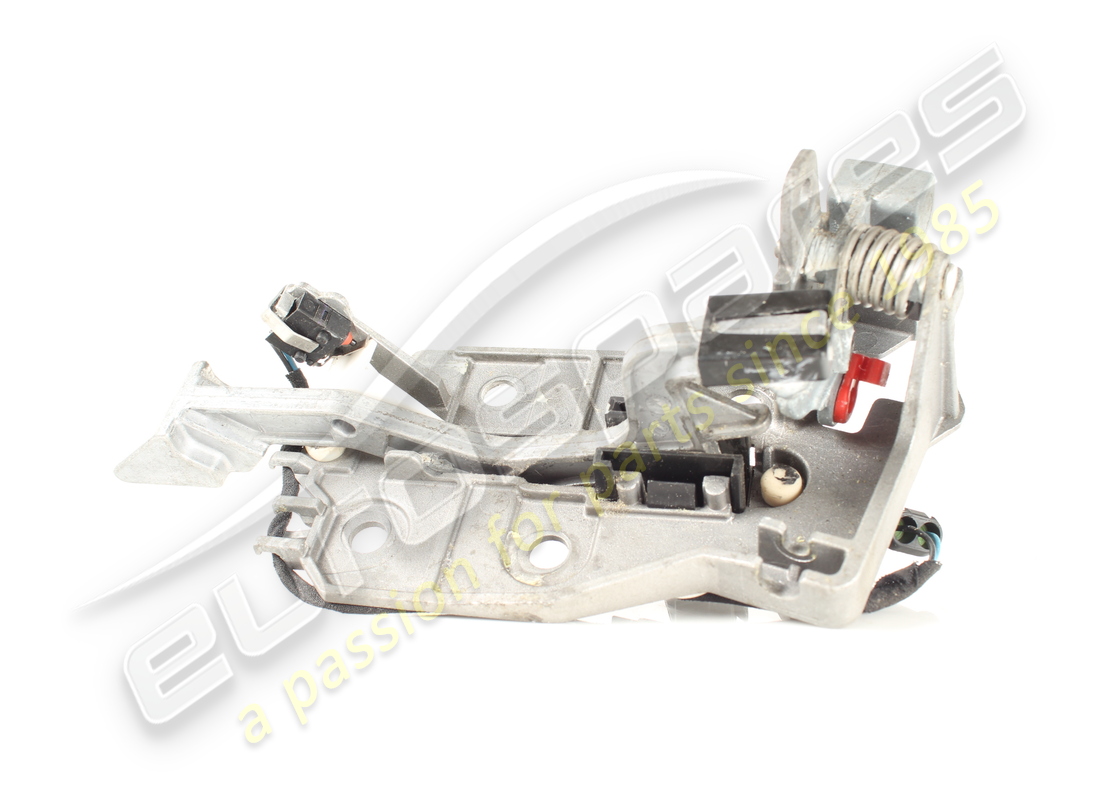

                                # 004
                                MPN: 80821600
                                RH OUTER DOOR HANDLE MODULE
                                from £133.85
                                from £133.85
                                RH HANDLE INNER BODY Genuine Ferrari Part - New (to order)
                                # 004
                                MPN: 80821800
                                LH OUTER DOOR HANDLE MODULE
                                from £133.85
                                from £133.85
                                LH HANDLE INNER BODY Genuine Ferrari Part - New In stock
                                # 005
                                MPN: 80821900
                                DOOR HANDLE SPACER
                                from £3.46
                                from £3.46
                                THICKNESS Genuine Ferrari Part - New (to order)
                                # 006
                                MPN: 69756900
                                DOOR LOCK STRIKER PLATE
                                -Applicable up to Ass. No. 114689-
                                from £4.90
                                from £4.90
                                STRIKER Genuine Ferrari Part - New In stock
                                STRIKER Genuine Ferrari Part - Used In stock
                                # 006
                                MPN: 85052500
                                DOOR LOCK STRIKER PLATE
                                -Grey- -Applicable from Ass. No. 114690-
                                from £5.47
                                from £5.47
                                STRIKER Genuine Ferrari Part - New In stock
                                STRIKER Genuine Ferrari Part - Used In stock
                                # 007
                                MPN: 14442434
                                SCREW
                                -M8 X 40- -No longer supplied- -Replaced by 84919600-
                                from £0.47
                                from £0.47
                                SCREW Genuine Ferrari Part - New In stock
                                # 007
                                MPN: 84919600
                                SCREW
                                -M8 X 45- -Applicable up to Ass. No. 114689-
                                from £0.84
                                from £0.84
                                SCREW Genuine Ferrari Part - New (to order)
                                # 007
                                MPN: 85052700
                                SCREW
                                -M8 X 45- -Grey- -Applicable from Ass. No. 114690-
                                from £0.74
                                from £0.74
                                SCREW Genuine Ferrari Part - New (to order)
                                # 008
                                MPN: 83275400
                                DOOR ARRESTER TIE-ROD
                                -Applicable up to Ass. No. 106597- -Applicable until depletion-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 008
                                MPN: 84873000
                                DOOR ARRESTER TIE-ROD
                                -For vehicles up to Ass. No. 106597, also order pair of tie rods and screws 84872900 ref.22- -Applicable from Ass. No. 106598- -Applicable after depletion of 83275400-
                                from £35.93
                                from £35.93
                                This part replaces part number 83275400 - and 1 more. Click to view details
                                DOOR ARRESTER TIE-ROD Genuine Ferrari Part - New (to order)
                                DOOR ARRESTER TIE-ROD Genuine Ferrari Part - Used In stock

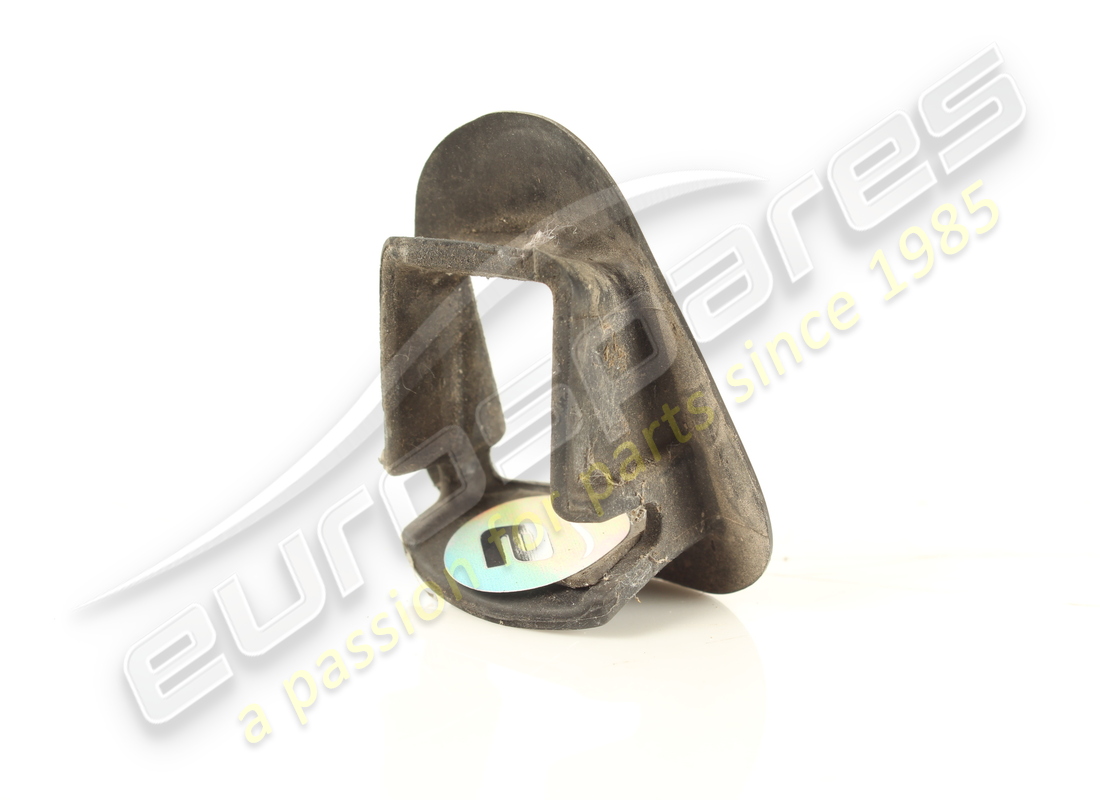

                                # 009
                                MPN: 83897000
                                DOOR ARRESTER TIE-ROD SEAL
                                from £4.61
                                from £4.61
                                DOOR ARRESTER TIE-ROD SEAL Genuine Ferrari Part - New (to order)
                                DOOR ARRESTER TIE-ROD SEAL Genuine Ferrari Part - Used In stock
                                # 010
                                MPN: 69877100
                                BOWDEN CABLE
                                from £13.46
                                from £13.46
                                BOWDEN CABLE Genuine Ferrari Part - New In stock
                                BOWDEN CABLE Genuine Ferrari Part - Used In stock
                                # 011
                                MPN: 83208000
                                DOOR HINGE, MOBILE PART
                                from £28.58
                                from £28.58
                                DOOR HINGE, MOBILE PART Genuine Ferrari Part - New (to order)
                                DOOR HINGE, MOBILE PART Genuine Ferrari Part - Used In stock
                                # 012
                                MPN: 84095000
                                DOOR HINGE, COMPL. FIXED PART
                                from £28.58
                                from £28.58
                                DOOR HINGE, COMPLETE FIXED PAR Genuine Ferrari Part - New (to order)
                                DOOR HINGE, COMPLETE FIXED PAR Genuine Ferrari Part - Used In stock
                                # 013
                                MPN: 16043834
                                SCREW
                                -M8 X 30-
                                from £0.47
                                from £0.47
                                This part replaces part number 16043824
                                SCREW Genuine Ferrari Part - New (to order)
                                HEX HEAD SCREW M 8X30 (16043834) Genuine Maserati Part - New (to order)
                                # 013
                                MPN: 83980800
                                SCREW
                                -M8 X 30- -No longer supplied- -Replaced by 16043834-
                                from £0.64
                                from £0.64
                                This part replaces part number 16043821
                                SCREW Genuine Ferrari Part - New (to order)
                                # 014
                                MPN: 12646778
                                WASHER
                                from £0.49
                                from £0.49
                                This part replaces part number 156093
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER (12646778) Genuine Maserati Part - New (to order)
                                # 015
                                MPN: 14059214
                                NUT
                                from £0.47
                                from £0.47
                                NUT. Genuine Ferrari Part - New In stock
                                NUT (14059214) Genuine Maserati Part - New (to order)
                                # 016
                                MPN: 82288800
                                FRONT RH MEMBRANE
                                -Applicable up to Ass. No. 99285-
                                from £33.40
                                from £33.40
                                FRONT RH MEMBRANE Genuine Ferrari Part - New (to order)
                                # 016
                                MPN: 82288900
                                LH FRONT MEMBRANE
                                -Applicable up to Ass. No. 99285-
                                from £18.37
                                from £18.37
                                LH FRONT MEMBRANE Genuine Ferrari Part - New In stock
                                LH FRONT MEMBRANE Genuine Ferrari Part - Used In stock
                                # 016
                                MPN: 84382900
                                RH DOOR WATERPROOFING BRACKET
                                -Applicable from Ass. No. 99286-
                                from £12.25
                                from £12.25
                                RH DOOR WATERPROOFING BRACKE Genuine Ferrari Part - New (to order)
                                RH DOOR WATERPROOFING BRACKE Genuine Ferrari Part - Used In stock
                                # 016
                                MPN: 84383000
                                LH DOOR WATERPROOFING BRACKET
                                -Applicable from Ass. No. 99286-
                                from £12.25
                                from £12.25
                                LH DOOR WATERPROOFING BRACKE Genuine Ferrari Part - New (to order)
                                LH DOOR WATERPROOFING BRACKE Genuine Ferrari Part - Used In stock
                                # 017
                                MPN: 82208700
                                RH REAR MEMBRANE
                                from £133.77
                                from £133.77
                                RH REAR MEMBRANE Genuine Ferrari Part - New (to order)
                                # 017
                                MPN: 82208800
                                LH REAR MEMBRANE
                                from £133.77
                                from £133.77
                                LH REAR MEMBRANE Genuine Ferrari Part - New (to order)

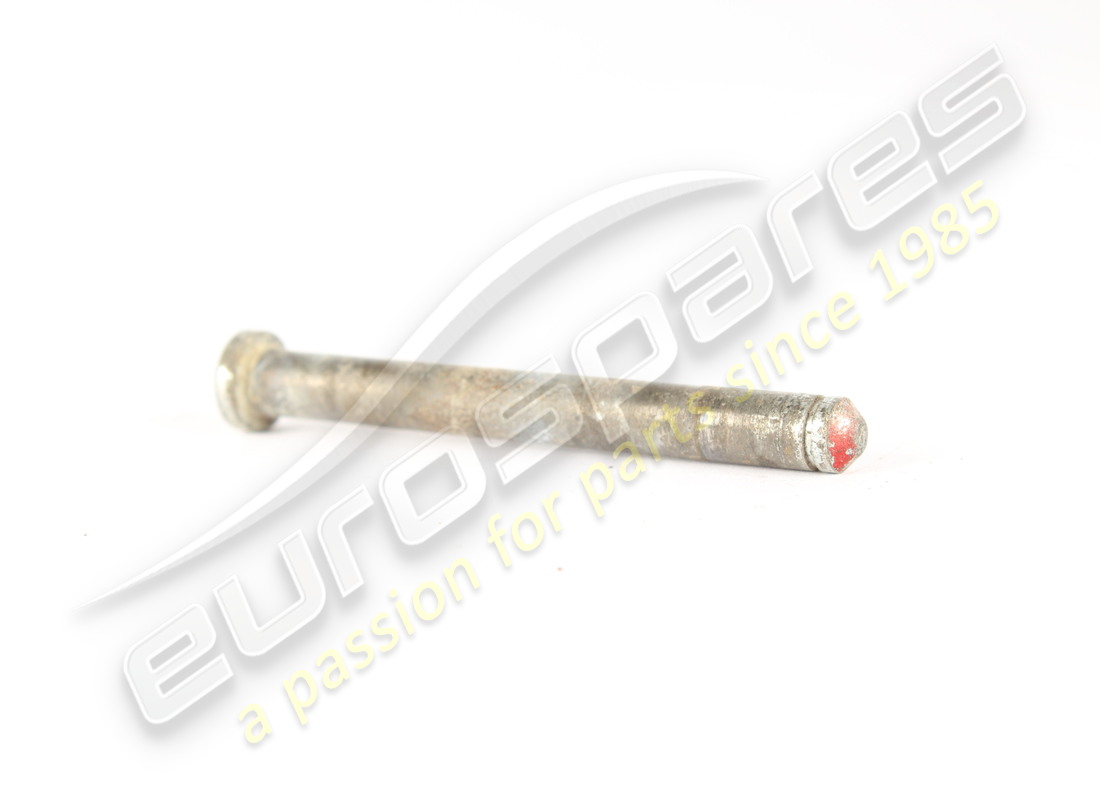

                                # 018
                                MPN: 83292400
                                PIN
                                from £6.13
                                from £6.13
                                PIN Genuine Ferrari Part - New (to order)
                                PIN Genuine Ferrari Part - Used In stock
                                # 019
                                MPN: 11087974
                                SNAP RING
                                from £0.48
                                from £0.48
                                This part replaces part number 11087976
                                FLEXIBLE RING Genuine Ferrari Part - New In stock

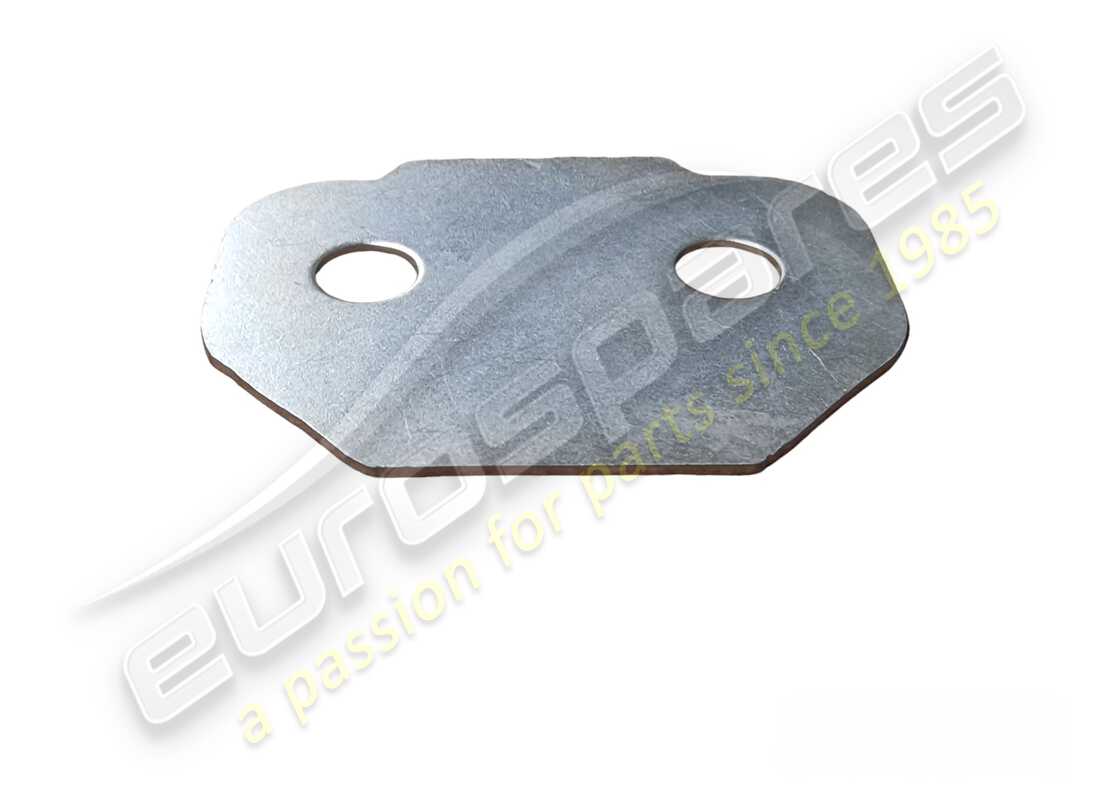

                                # 020
                                MPN: 80763800
                                DOOR STRIKER PLATE SHIM
                                -Applicable up to Ass. No. 114689-
                                from £1.87
                                from £1.87
                                THICKNESS Genuine Ferrari Part - New (to order)
                                THICKNESS Genuine Ferrari Part - Used In stock
                                # 020
                                MPN: 85052600
                                DOOR STRIKER PLATE SHIM
                                -Grey- -Applicable from Ass. No. 114690-
                                from £3.24
                                from £3.24
                                THICKNESS Genuine Ferrari Part - New In stock
                                # 021
                                MPN: 65366700
                                SCREW
                                -M5 X 12- -No longer supplied- -Replaced by 85692200-
                                from £0.50
                                from £0.50
                                SCREW Genuine Ferrari Part - New In stock
                                VITE TBEI M 5X 12 (65366700) Genuine Maserati Part - New (to order)
                                # 021
                                MPN: 85692200
                                SCREW
                                -M5 X 12-
                                from £0.47
                                from £0.47
                                SCREW Genuine Ferrari Part - New (to order)
                                # 022
                                MPN: 14442134
                                SCREW
                                -M8 X 25- -Applicable up to Ass. No. 106597-
                                from £0.47
                                from £0.47
                                SCREW. Genuine Ferrari Part - New (to order)
                                Maserati Part 14442134 (14442134) Genuine Maserati Part - New (to order)
                                # 022
                                MPN: 84872900
                                SCREW
                                -M8 X 25- -Black- -Applicable from Ass. No. 106598-
                                from £0.53
                                from £0.53
                                SCREW Genuine Ferrari Part - New (to order)

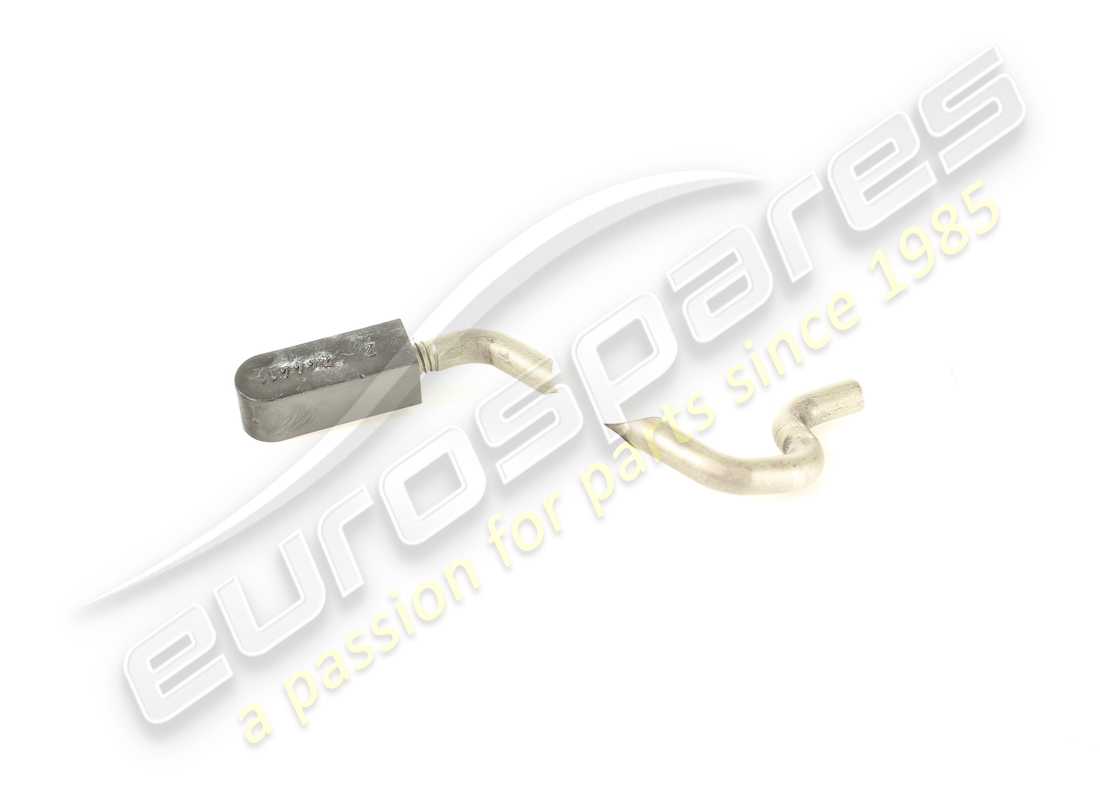

                                # 024
                                MPN: 82280100
                                COMPL. LH DOOR LATCH LEVER
                                -Not for GD-
                                from £11.14
                                from £11.14
                                COMPLETE LH DOOR LATCH LEVER Genuine Ferrari Part - New (to order)
                                # 024
                                MPN: 83999500
                                COMPL. RH DOOR LATCH LEVER
                                -Applicable for GD-
                                from £11.14
                                from £11.14
                                COMPLETE RH DOOR LATCH LEVER Genuine Ferrari Part - New (to order)
                                # 025
                                MPN: 82936500
                                PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE
                                from £1.49
                                from £1.49
                                PROTECTIVE SHEATH FOR INTERN Genuine Ferrari Part - New (to order)
                                # 026
                                MPN: 46401657
                                SCREW
                                -Applicable up to Ass. No. 106597-
                                from £0.52
                                from £0.52
                                SCREW Genuine Ferrari Part - New In stock
                                VITE TBEI M 6X12 TORX ROSETT (46401657) Genuine Maserati Part - New In stock
                                # 026
                                MPN: 84873500
                                SCREW
                                -Black- -Applicable from Ass. No. 106598- -No longer supplied- -Replaced by 85478900-
                                from £0.71
                                from £0.71
                                SCREW 6X12 Genuine Ferrari Part - New (to order)
                                # 026
                                MPN: 85478900
                                SCREW
                                -M6 X 12- -Applicable from Ass. No. 106598-
                                from £0.61
                                from £0.61
                                SCREW Genuine Ferrari Part - New (to order)
                                # 027
                                MPN: 82127900
                                LATCH HOLDER
                                -Not for GD-
                                from £43.93
                                from £43.93
                                LATCH HOLDER Genuine Ferrari Part - New (to order)
                                LATCH HOLDER Genuine Ferrari Part - Used In stock
                                # 027
                                MPN: 83999400
                                LATCH HOLDER
                                -Applicable for GD-
                                from £43.93
                                from £43.93
                                LATCH HOLDER Genuine Ferrari Part - New (to order)
                                LATCH HOLDER Genuine Ferrari Part - Used In stock

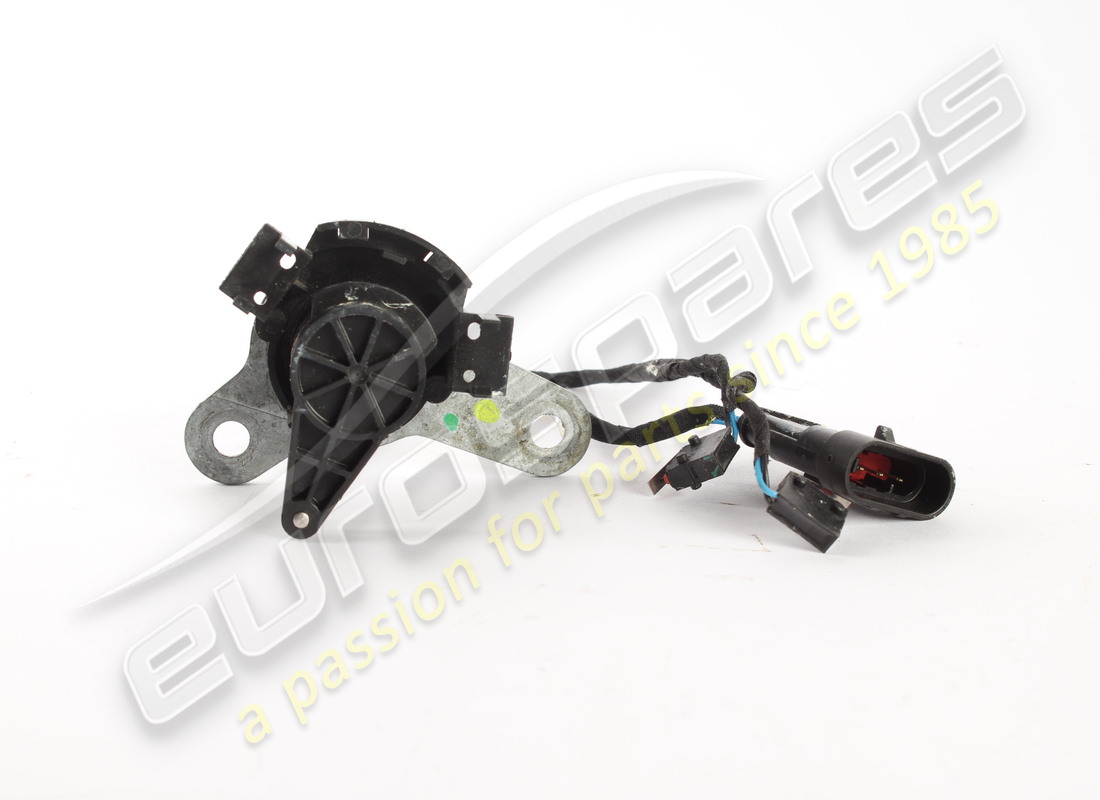

                                # 028
                                MPN: 80182700
                                RH DOOR LOCK
                                -Not for GD-
                                from £49.86
                                from £49.86
                                Genuine Ferrari Part (no longer available to order)
                                RH DOOR LOCK Genuine Ferrari Part - Used In stock
                                # 028
                                MPN: 80182800
                                LH DOOR LOCK
                                -Not for GD-
                                from £49.86
                                from £49.86
                                LH DOOR LOCK Genuine Ferrari Part - New In stock
                                LH DOOR LOCK Genuine Ferrari Part - Used In stock
                                # 028
                                MPN: 81015300
                                LH DOOR LOCK
                                -Applicable for GD-
                                from £98.73
                                from £98.73
                                LH DOOR LOCK Genuine Ferrari Part - New (to order)
                                # 028
                                MPN: 81015400
                                RH DOOR LOCK
                                -Applicable for GD-
                                from £98.73
                                from £98.73
                                RH DOOR LOCK Genuine Ferrari Part - New (to order)
                                # 029
                                MPN: 82596100
                                INNER DOOR HANDLE BOWDEN CABLE
                                from £25.99
                                from £25.99
                                INNER DOOR HANDLE BOWDEN CAB Genuine Ferrari Part - New (to order)
                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
