0117 - FRONT BUMPER

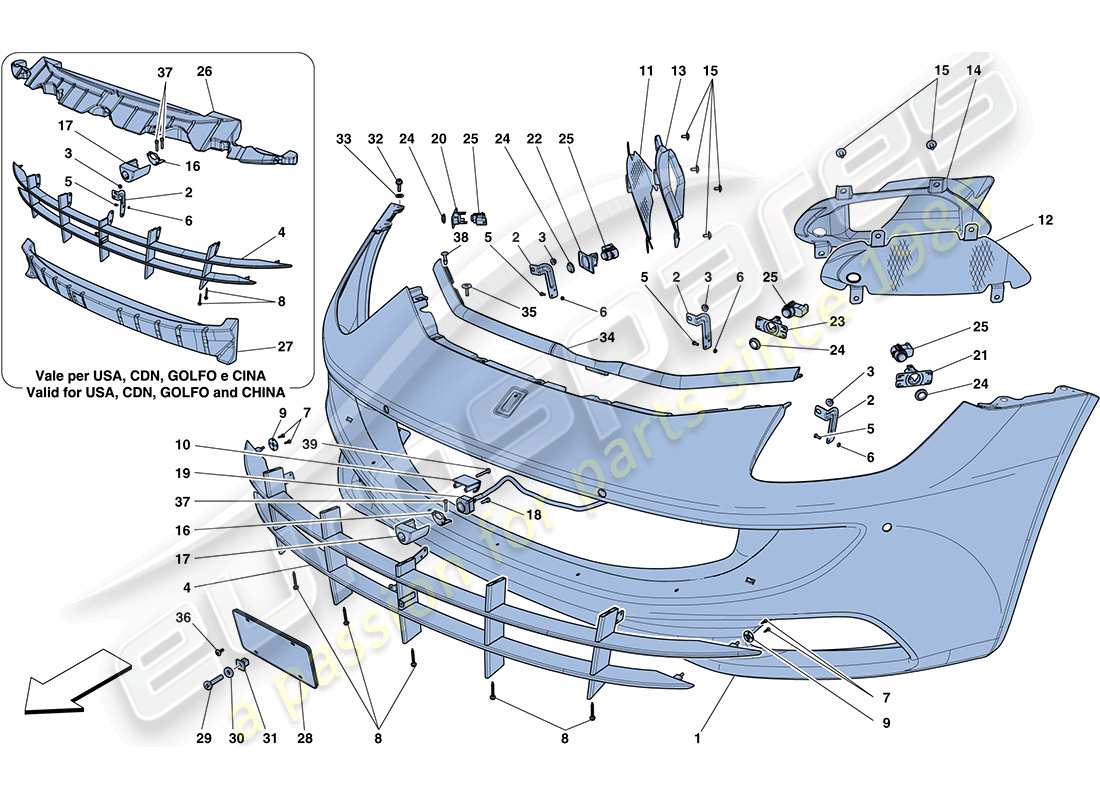

Ferrari FF (USA) FRONT BUMPER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 84259310
              FRONT BUMPER
              -Not for version with parking sensors- -Not for USA, CDN, GOLFO, USA LIGHT-
              from £3,028.65
              from £3,028.65
              # 001
              MPN: 84259410
              FRONT BUMPER
              -Version with parking sensors- -Sensors ordered separately- -Not for USA, CDN, GOLFO, USA LIGHT-
              from £3,028.65
              from £3,028.65
              # 001
              MPN: 84361210
              FRONT BUMPER
              -Not for version with parking sensors- -Applicable for GOLFO-
              from £3,028.65
              from £3,028.65
              # 001
              MPN: 84361310
              FRONT BUMPER
              -Version with parking sensors- -Sensors ordered separately- -Applicable for GOLFO-
              from £3,065.14
              from £3,065.14
              # 001
              MPN: 84538210
              FRONT BUMPER
              -Not for version with parking sensors- -Applicable for USA, CDN, USA LIGHT-
              from £2,992.15
              from £2,992.15
              # 001
              MPN: 84538610
              FRONT BUMPER
              -Version with parking sensors- -Sensors ordered separately- -Applicable for USA, CDN, USA LIGHT-
              from £2,969.28
              from £2,969.28
              # 002
              MPN: 84133700
              GRILLE FASTENER BRACKET
              -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £33.62
              from £33.62
              # 002
              MPN: 84133900
              GRILLE FASTENER BRACKET
              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £51.12
              from £51.12
              # 003
              MPN: 12578111
              NUT
              -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £0.53
              from £0.53
              # 003
              MPN: 12578111
              NUT
              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £0.51
              from £0.51
              # 004
              MPN: 84132900
              BUMPER GRILLE
              -Not for version with parking camera- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,398.07
              from £1,398.07
              # 004
              MPN: 84133000
              BUMPER GRILLE
              -Version with camera- -Not for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,223.30
              from £1,223.30
              # 004
              MPN: 84133100
              BUMPER GRILLE
              -Chrome accent version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,095.74
              from £1,095.74
              # 004
              MPN: 84133200
              BUMPER GRILLE
              -Chrome accent version with camera- -Not for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,153.41
              from £1,153.41
              # 004
              MPN: 84133300
              BUMPER GRILLE
              -Not for version with parking camera- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,153.41
              from £1,153.41
              # 004
              MPN: 84133400
              BUMPER GRILLE
              -Version with camera- -Not for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £672.82
              from £672.82
              # 004
              MPN: 84133500
              BUMPER GRILLE
              -Chrome accent version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,223.30
              from £1,223.30
              # 004
              MPN: 84133600
              BUMPER GRILLE
              -Chrome accent version with camera- -Not for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,399.15
              from £1,399.15
              # 004
              MPN: 84300700
              BUMPER GRILLE
              -Chromed- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,642.72
              from £1,642.72
              # 004
              MPN: 84318300
              BUMPER GRILLE
              -Chrome accent version with camera- -Not for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,572.82
              from £1,572.82
              # 004
              MPN: 84319200
              BUMPER GRILLE
              -Chromed- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,398.07
              from £1,398.07
              # 004
              MPN: 84319300
              BUMPER GRILLE
              -Chrome accent version with camera- -Not for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,399.15
              from £1,399.15
              # 004
              MPN: 86468400
              BUMPER GRILLE
              -Version with camera- -Applicable for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,447.00
              from £1,447.00
              # 004
              MPN: 86468800
              BUMPER GRILLE
              -Version with camera- -Applicable for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £2,532.24
              from £2,532.24
              # 004
              MPN: 86468900
              BUMPER GRILLE
              -Chrome accent version with camera- -Applicable for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £2,387.54
              from £2,387.54
              # 004
              MPN: 86469000
              BUMPER GRILLE
              -Chrome accent version with camera- -Applicable for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,311.56
              from £1,311.56
              # 004
              MPN: 86469100
              BUMPER GRILLE
              -Chrome accent version with camera- -Applicable for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £997.80
              from £997.80
              # 004
              MPN: 86538600
              BUMPER GRILLE
              -Chrome accent version with camera- -Applicable for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1,748.94
              from £1,748.94
              # 005
              MPN: 13270424
              SCREW
              -M3 X 8- -Not for CINA, USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 14641596-
              # 005
              MPN: 14641596
              RIVET
              -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              Supersession
              Supersession
              # 005
              MPN: 82113500
              SCREW
              -M6 X 18- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £1.49
              from £1.49
              # 006
              MPN: 12578111
              NUT
              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £0.51
              from £0.51
              # 006
              MPN: 16101714
              NUT
              -Not for CINA, USA, CDN, GOLFO, USA LIGHT- -No longer supplied-
              # 007
              MPN: 15642507
              SCREW
              from £3.87
              from £3.87
              # 008
              MPN: 84050100
              SCREW
              -Q.ty 6 for version with camera- -Not for CINA, USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 85593200-
              Supersession
              Supersession
              # 008
              MPN: 84151700
              SCREW
              -Q.ty 11 for version with camera- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 85593300-
              Supersession
              Supersession
              # 008
              MPN: 85593200
              SCREW
              -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £8.03
              from £8.03
              This part replaces part number 84050100
              # 008
              MPN: 85593300
              SCREW
              -Q.ty 11 for version with camera- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £2.11
              from £2.11
              This part replaces part number 84151700 - and 1 more. Click to view details
              # 009
              MPN: 85796500
              PLATE
              from £31.57
              from £31.57
              # 010
              MPN: 83718900
              CAP
              -Version with camera- -Not for Geneva version-
              from £80.29
              from £80.29
              # 010
              MPN: 86468500
              CAP
              -Version with camera- -Applicable for Geneva version-
              from £58.39
              from £58.39
              # 011
              MPN: 83302700
              LOWER RH LATERAL GRILLE
              -Black-
              from £181.39
              from £181.39
              # 011
              MPN: 84240200
              LOWER RH LATERAL GRILLE
              -Grey- -No longer supplied- -Replaced by 86046900-
              Supersession
              Supersession
              # 011
              MPN: 86046900
              LOWER RH LATERAL GRILLE
              -Grey-
              from £369.61
              from £369.61
              This part replaces part number 84240200
              # 012
              MPN: 83302800
              LOWER LH LATERAL GRILLE
              -Black-
              from £152.36
              from £152.36
              # 012
              MPN: 84240300
              LOWER LH LATERAL GRILLE
              -Grey- -No longer supplied- -Replaced by 86047000-
              Supersession
              Supersession
              # 012
              MPN: 86047000
              LOWER LH LATERAL GRILLE
              -Grey-
              from £369.61
              from £369.61
              This part replaces part number 84240300
              # 013
              MPN: 83565100
              RH AIR DUCT
              from £109.48
              from £109.48
              # 014
              MPN: 83565200
              LH AIR DUCT
              from £109.48
              from £109.48
              # 015
              MPN: 82115900
              SCREW
              -M6 X 14-
              from £0.51
              from £0.51
              # 016
              MPN: 82991100
              BRACKET
              -Version with camera- -Not for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £38.37
              from £38.37
              # 016
              MPN: 84157600
              BRACKET
              -Version with camera- -Not for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £36.49
              from £36.49
              # 016
              MPN: 86468600
              BRACKET
              -Version with camera- -Applicable for Geneva version-
              from £130.16
              from £130.16
              # 017
              MPN: 83314200
              HOUSING
              -Version with camera- -Not for Geneva version-
              from £34.66
              from £34.66
              # 017
              MPN: 86468700
              HOUSING
              -Version with camera- -Applicable for Geneva version-
              from £53.04
              from £53.04
              # 018
              MPN: 14417921
              SCREW
              -M3 X 6- -Version with camera-
              from £1.23
              from £1.23
              This part replaces part number 15842504
              # 018
              MPN: 15842504
              SCREW
              -M4 X 14- -Version with camera- -No longer supplied- -Replaced by 14417921-
              Supersession
              Supersession
              # 019
              MPN: 266789
              PARKING CAMERA
              -Version with camera- -Not for Geneva version-
              Supersession
              Supersession
              # 019
              MPN: 309756
              PARKING CAMERA
              -Version with camera- -Applicable for Geneva version- -Applicable until depletion-
              Supersession
              Supersession
              # 019
              MPN: 330655
              PARKING CAMERA
              -Version with camera- -Applicable for Geneva version- -Applicable after depletion of 309756- -No longer supplied- -Replaced by 839891-
              Supersession
              Supersession
              This part replaces part number 309756
              # 019
              MPN: 839891
              PARKING CAMERA
              -Version with camera- -Applicable for Geneva version-
              from £875.76
              from £875.76
              This part replaces part number 330655
              # 020
              MPN: 83776300
              RH EXTERNAL MOUNTING
              -Version with parking sensors-
              from £10.95
              from £10.95
              # 021
              MPN: 83776400
              LH EXTERNAL MOUNTING
              -Version with parking sensors-
              from £10.95
              from £10.95
              # 022
              MPN: 83776700
              RH INTERNAL MOUNTING
              -Version with parking sensors-
              from £10.95
              from £10.95
              # 023
              MPN: 83776800
              LH INTERNAL MOUNTING
              -Version with parking sensors-
              from £10.95
              from £10.95
              # 024
              MPN: 81544800
              CLEAR SILICONE RING
              -Version with parking sensors-
              from £4.37
              from £4.37
              # 025
              MPN: 239082
              PARKING SENSOR
              -Version with parking sensors-
              from £100.07
              from £100.07
              # 026
              MPN: 83313800
              UPPER IMPACT ABSORBER
              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £54.73
              from £54.73
              # 027
              MPN: 83313900
              LOWER IMPACT ABSORBER
              -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £64.59
              from £64.59
              # 028
              MPN: 82177600
              NUMBER PLATE HOLDER
              -Applicable for EU GS, UK-
              from £9.48
              from £9.48
              # 028
              MPN: 84074400
              NUMBER PLATE HOLDER
              -Applicable for USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 84378900-
              Supersession
              Supersession
              # 028
              MPN: 84316200
              NUMBER PLATE HOLDER
              -Applicable for J-
              from £118.63
              from £118.63
              # 028
              MPN: 84333400
              NUMBER PLATE HOLDER
              -Applicable for CINA-
              from £116.76
              from £116.76
              # 028
              MPN: 84378900
              NUMBER PLATE HOLDER
              -Applicable for USA, CDN, GOLFO, USA LIGHT-
              from £52.12
              from £52.12
              This part replaces part number 84074400
              # 028
              MPN: 84427600
              NUMBER PLATE HOLDER
              -Applicable for AUS-
              from £118.62
              from £118.62
              # 029
              MPN: 15687204
              SCREW
              -Fastening license plate to license plate mount- -Applicable for EU GS, AUS, UK, J-
              from £0.53
              from £0.53
              # 029
              MPN: 15687204
              SCREW
              -Fastening license plate to license plate mount- -Applicable for USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 15687275-
              from £0.53
              from £0.53
              # 029
              MPN: 15687270
              SCREW
              -Fastening license plate mount to bumper- -Applicable for EU GS, UK-
              from £0.53
              from £0.53
              This part replaces part number 15642670
              # 029
              MPN: 15687275
              SCREW
              -Fastening license plate to license plate mount- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £0.53
              from £0.53
              This part replaces part number 15687206
              # 029
              MPN: 15960304
              SCREW
              -Fastening license plate mount to bumper- -Applicable for EU GS, UK- -No longer supplied- -Replaced by 15687270-
              from £1.30
              from £1.30
              # 029
              MPN: 15960304
              SCREW
              -Fastening license plate mount to bumper- -Applicable for USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 16084377-
              from £1.30
              from £1.30
              # 029
              MPN: 16084370
              SCREW
              -Fastening license plate to license plate mount- -Applicable for AUS-
              from £0.83
              from £0.83
              # 029
              MPN: 16084377
              SCREW
              -Fastening license plate mount to bumper- -Applicable for USA, CDN, GOLFO, USA LIGHT-
              from £0.53
              from £0.53
              # 030
              MPN: 14498864
              WASHER
              -Fastening license plate mount to bumper- -Applicable for GOLFO- -No longer supplied-
              # 031
              MPN: 14215480
              BLOCK
              -Fastening license plate to license plate mount-
              from £0.53
              from £0.53
              This part replaces part number 14211580
              # 032
              MPN: 80874900
              SCREW
              -No longer supplied- -Replaced by 81290900-
              from £0.74
              from £0.74
              # 032
              MPN: 81045300
              SCREW
              -M6 X 16-
              Supersession
              Supersession
              # 032
              MPN: 81290900
              SCREW
              -M6 X 20 X 22-
              from £0.53
              from £0.53
              This part replaces part number 67578600
              # 033
              MPN: 12648224
              WASHER
              -No longer supplied-
              from £0.47
              from £0.47
              # 034
              MPN: 83313700
              UPPER SEAL
              from £72.35
              from £72.35
              # 035
              MPN: 80874700
              SCREW
              -No longer supplied- -Replaced by 83442900-
              Supersession
              Supersession
              # 035
              MPN: 83442900
              SCREW
              -M6 X 22-
              from £0.52
              from £0.52
              This part replaces part number 80874700
              # 036
              MPN: 14295596
              RIVET
              -Fastening license plate mount to bumper- -Applicable for AUS, USA, CDN, GOLFO, J, USA LIGHT-
              from £0.47
              from £0.47
              # 037
              MPN: 14304121
              SCREW
              -M5 X 12- -Version with camera- -Not for Geneva version- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £0.53
              from £0.53
              This part replaces part number 84158300
              # 037
              MPN: 14304121
              SCREW
              -M5 X 12- -Version with camera- -Applicable for Geneva version-
              from £0.53
              from £0.53
              This part replaces part number 84158300
              # 037
              MPN: 84158300
              SCREW
              -M5 X 10- -Version with camera- -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT- -No longer supplied- -Replaced by 14304121-
              Supersession
              Supersession
              # 037
              MPN: 85593200
              SCREW
              -Version with camera- -Not for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £8.03
              from £8.03
              This part replaces part number 84050100
              # 037
              MPN: 85593300
              SCREW
              -Version with camera- -Applicable for Geneva version- -Not for CINA, USA, CDN, GOLFO, USA LIGHT-
              from £2.11
              from £2.11
              This part replaces part number 84151700 - and 1 more. Click to view details
              # 038
              MPN: 84436400
              button
              from £0.47
              from £0.47
              # 039
              MPN: 15687404
              SCREW
              -M6 X 25- -Version with camera-
              from £1.13
              from £1.13
              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
