ferrari ff (usa) rear bumper parts diagram

0118 - REAR BUMPER

Ferrari FF (USA) REAR BUMPER Parts Diagram

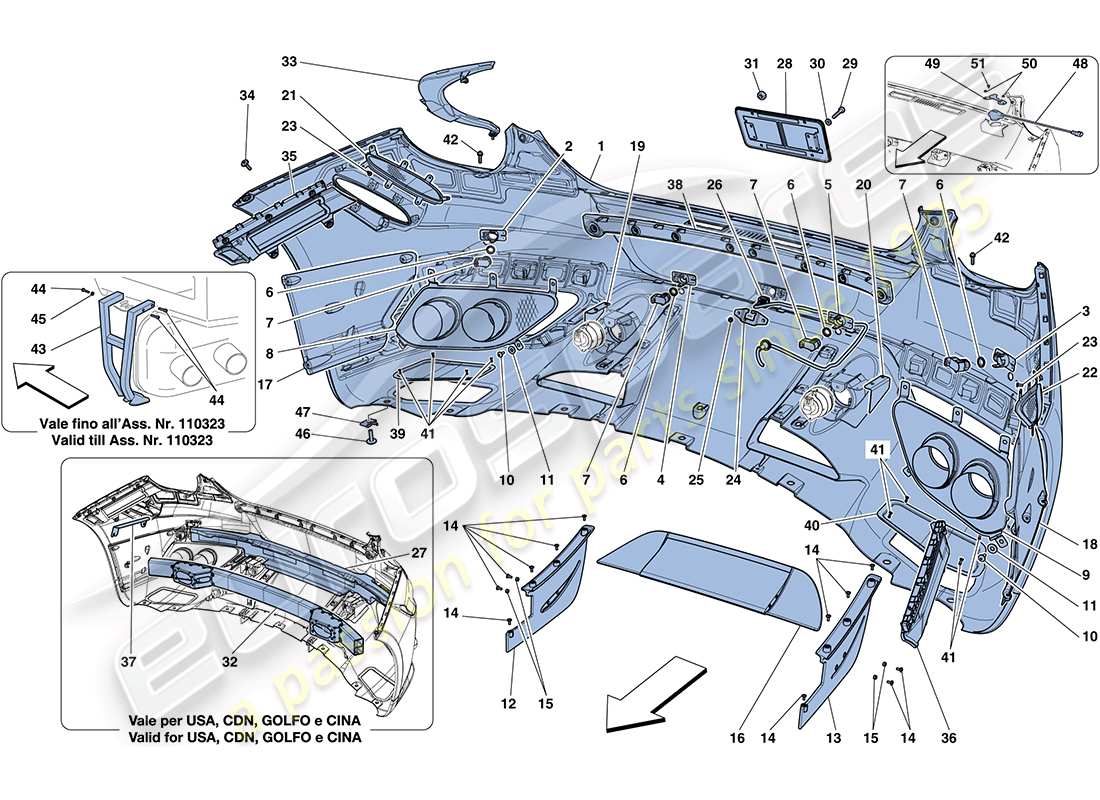

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 84260210

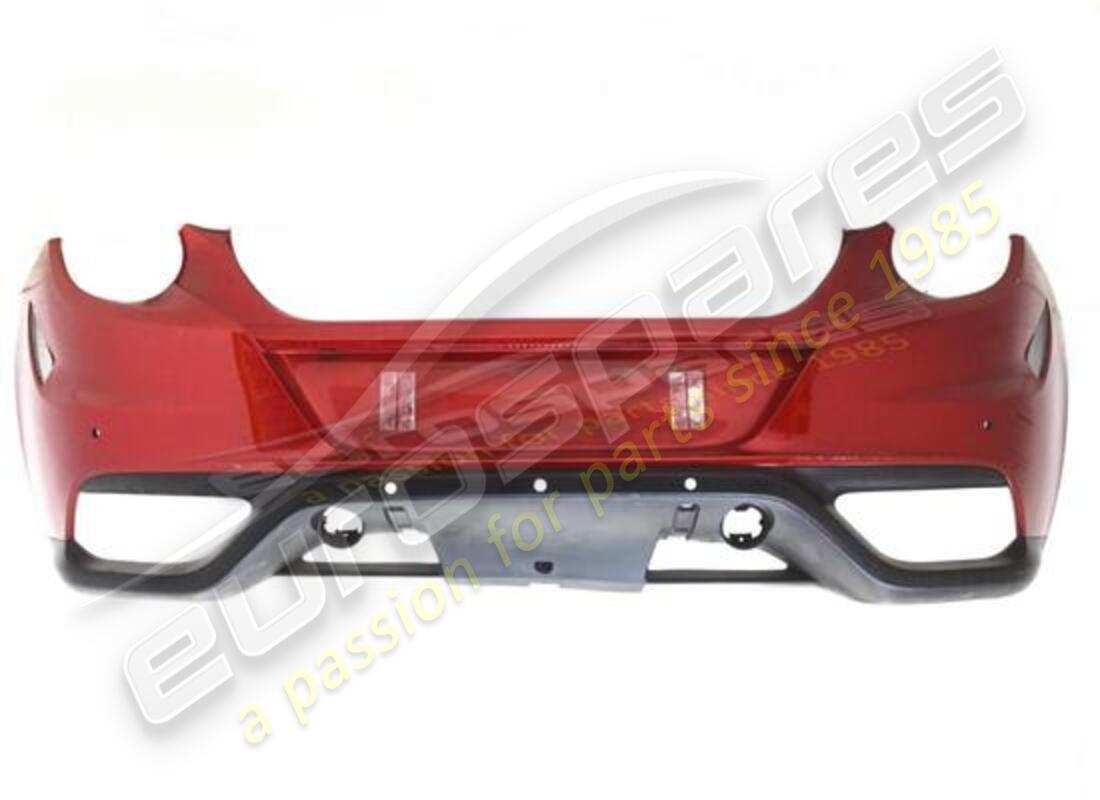

                                    REAR BUMPER
                                    -Not for version with parking camera- -Sensors ordered separately- -Not for Geneva version- -Not for USA, CDN, USA LIGHT-
                                    from £2,882.53
                                    from £2,882.53
                                    # 001
                                    MPN: 84260310
                                    REAR BUMPER
                                    -Version with camera- -Camera and sensors ordered separately- -Not for Geneva version- -Not for USA, CDN, USA LIGHT-
                                    from £1,363.95
                                    from £1,363.95
                                    # 001
                                    MPN: 84539110
                                    REAR BUMPER
                                    -Not for version with parking camera- -Sensors ordered separately- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
                                    from £2,932.98
                                    from £2,932.98
                                    # 001
                                    MPN: 84539210
                                    REAR BUMPER
                                    -Version with camera- -Camera and sensors ordered separately- -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
                                    from £2,932.98
                                    from £2,932.98
                                    # 001
                                    MPN: 86754110
                                    REAR BUMPER
                                    -Version with camera- -Camera and sensors ordered separately- -Applicable for Geneva version- -Not for USA, CDN, USA LIGHT-
                                    from £2,969.00
                                    from £2,969.00
                                    # 001
                                    MPN: 86754210
                                    REAR BUMPER
                                    -Version with camera- -Camera and sensors ordered separately- -Applicable for Geneva version- -Applicable for USA, CDN, USA LIGHT-
                                    from £2,969.00
                                    from £2,969.00
                                    # 002
                                    MPN: 83776500
                                    RH EXTERNAL MOUNTING
                                    from £19.60
                                    from £19.60
                                    # 003
                                    MPN: 83776600
                                    LH EXTERNAL MOUNTING
                                    from £19.60
                                    from £19.60
                                    # 004
                                    MPN: 83776900
                                    RH INTERNAL MOUNTING
                                    from £10.82
                                    from £10.82
                                    # 005
                                    MPN: 83777000
                                    LH INTERNAL MOUNTING
                                    from £24.62
                                    from £24.62
                                    # 006
                                    MPN: 81544800
                                    CLEAR SILICONE RING
                                    from £4.31
                                    from £4.31
                                    # 007
                                    MPN: 239082

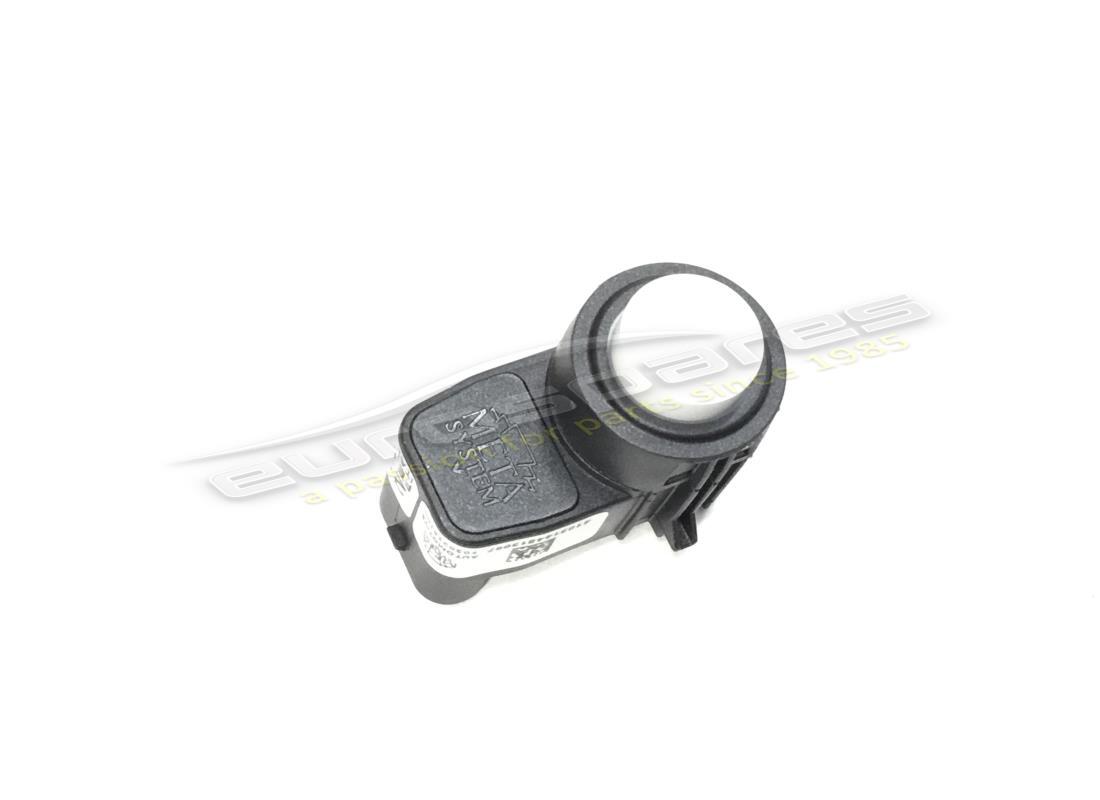

                                    PARKING SENSOR
                                    from £54.35
                                    from £54.35
                                    # 008
                                    MPN: 83316300

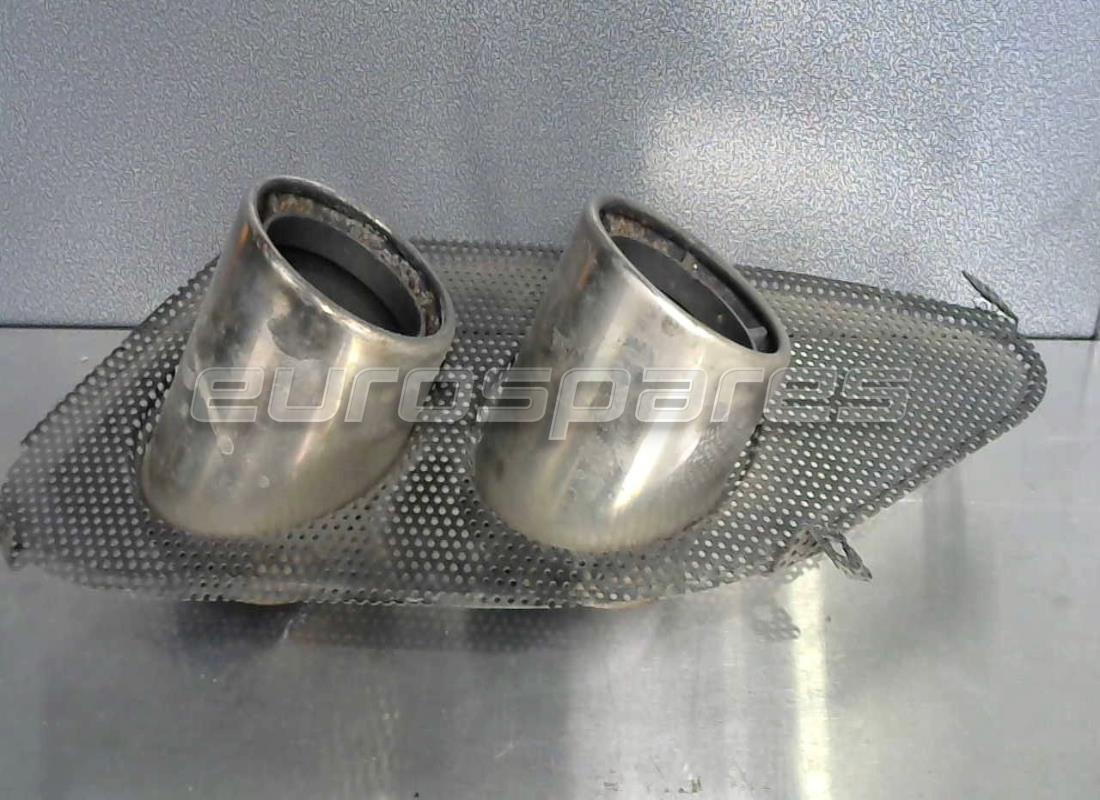

                                    GRILLE WITH RH TAILPIPES
                                    -Version with grille with casting- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    # 008
                                    MPN: 83953100
                                    GRILLE WITH RH TAILPIPES
                                    -Standard- -Applicable until depletion-
                                    from £447.09
                                    from £447.09
                                    # 008
                                    MPN: 84433400
                                    GRILLE WITH RH TAILPIPES
                                    -Standard- -Applicable after depletion of 83953100-
                                    from £298.63
                                    from £298.63
                                    This part replaces part number 83953100 which we have in stock - and 1 more. Click to view details
                                    # 008
                                    MPN: 84433600
                                    GRILLE WITH RH TAILPIPES
                                    -Version with grille with casting- -Applicable after depletion of 83316300-
                                    from £405.79
                                    from £405.79
                                    This part replaces part number 83316300
                                    # 009
                                    MPN: 83316400

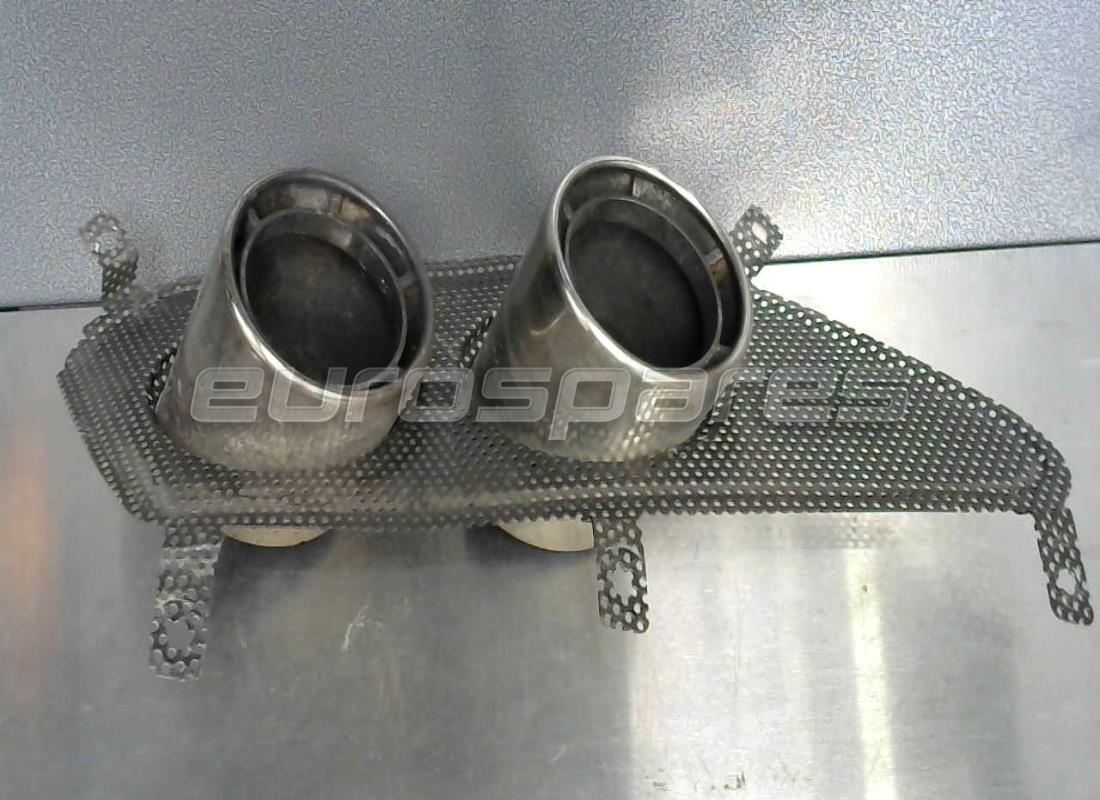

                                    GRILLE WITH LH TAILPIPES
                                    -Version with grille with casting- -Applicable until depletion-
                                    from £342.32
                                    from £342.32
                                    # 009
                                    MPN: 83953200
                                    GRILLE WITH LH TAILPIPES
                                    -Standard- -Applicable until depletion-
                                    Supersession
                                    Supersession
                                    # 009
                                    MPN: 84433500
                                    GRILLE WITH LH TAILPIPES
                                    -Standard- -Applicable after depletion of 83953200-
                                    from £298.63
                                    from £298.63
                                    This part replaces part number 83953200 - and 1 more. Click to view details
                                    # 009
                                    MPN: 84433700
                                    GRILLE WITH LH TAILPIPES
                                    -Version with grille with casting- -Applicable after depletion of 83316400-
                                    from £405.79
                                    from £405.79
                                    This part replaces part number 83316400 which we have in stock
                                    # 010
                                    MPN: 82113500

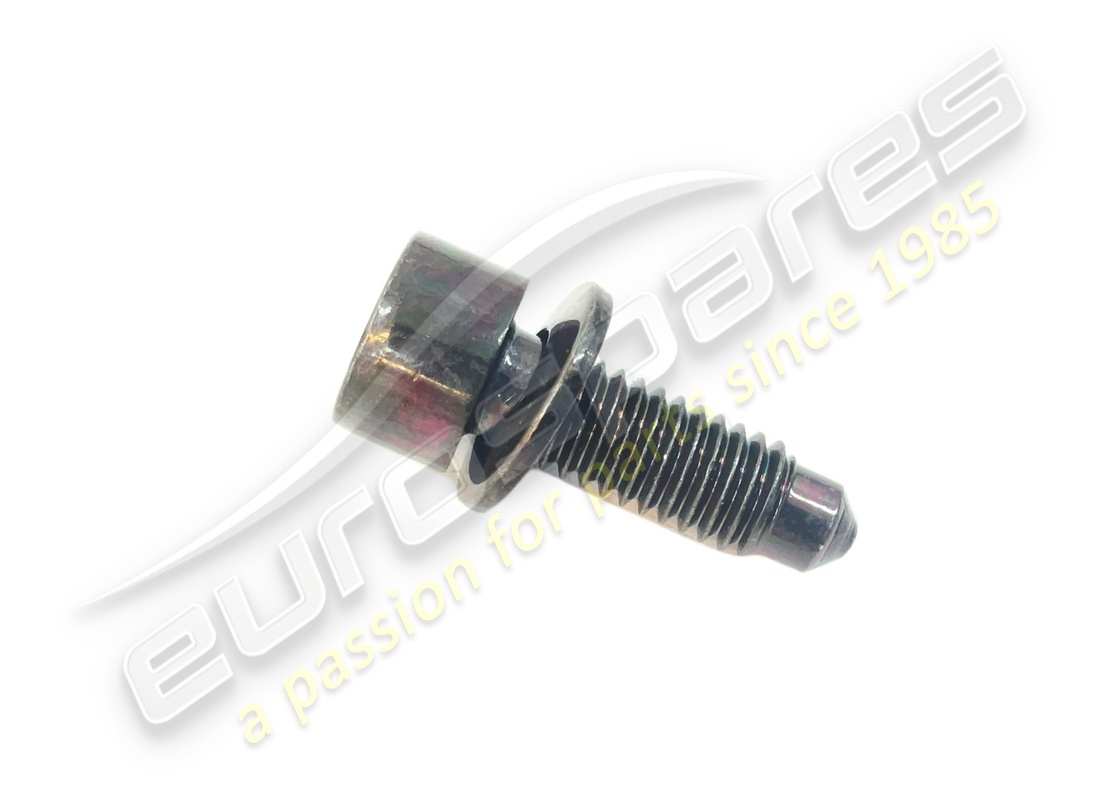

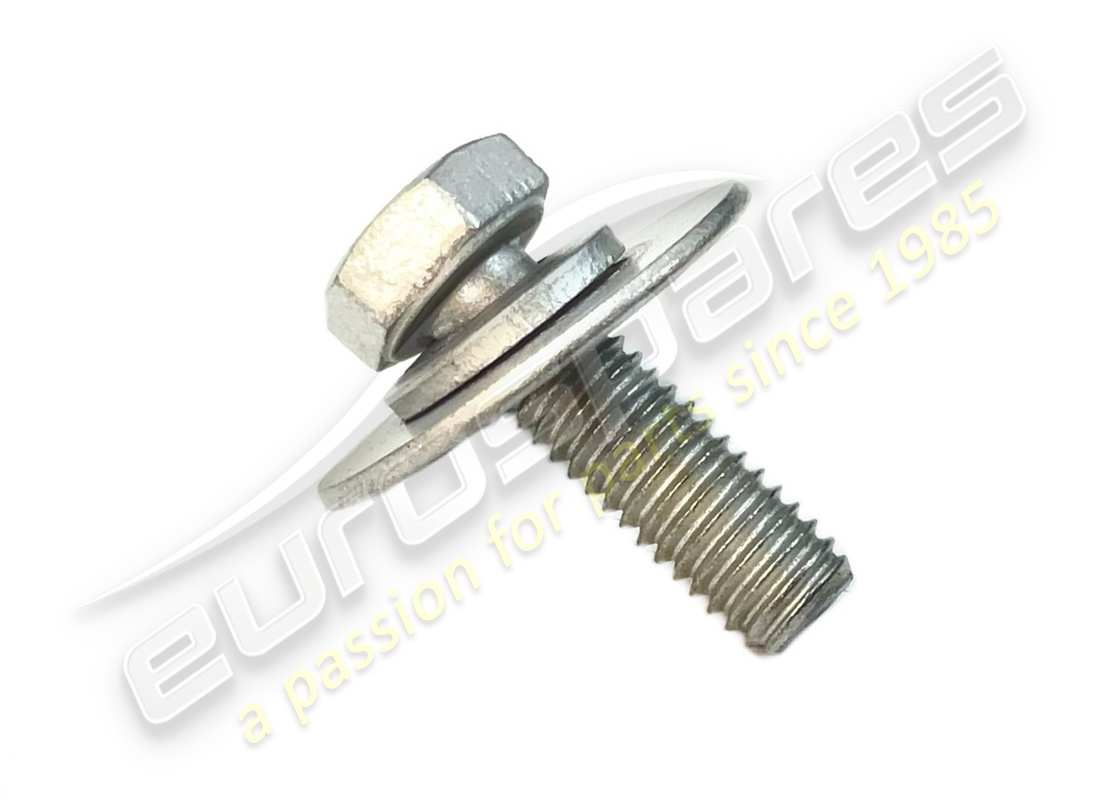

                                    SCREW
                                    -M6 X 18-
                                    from £1.46
                                    from £1.46

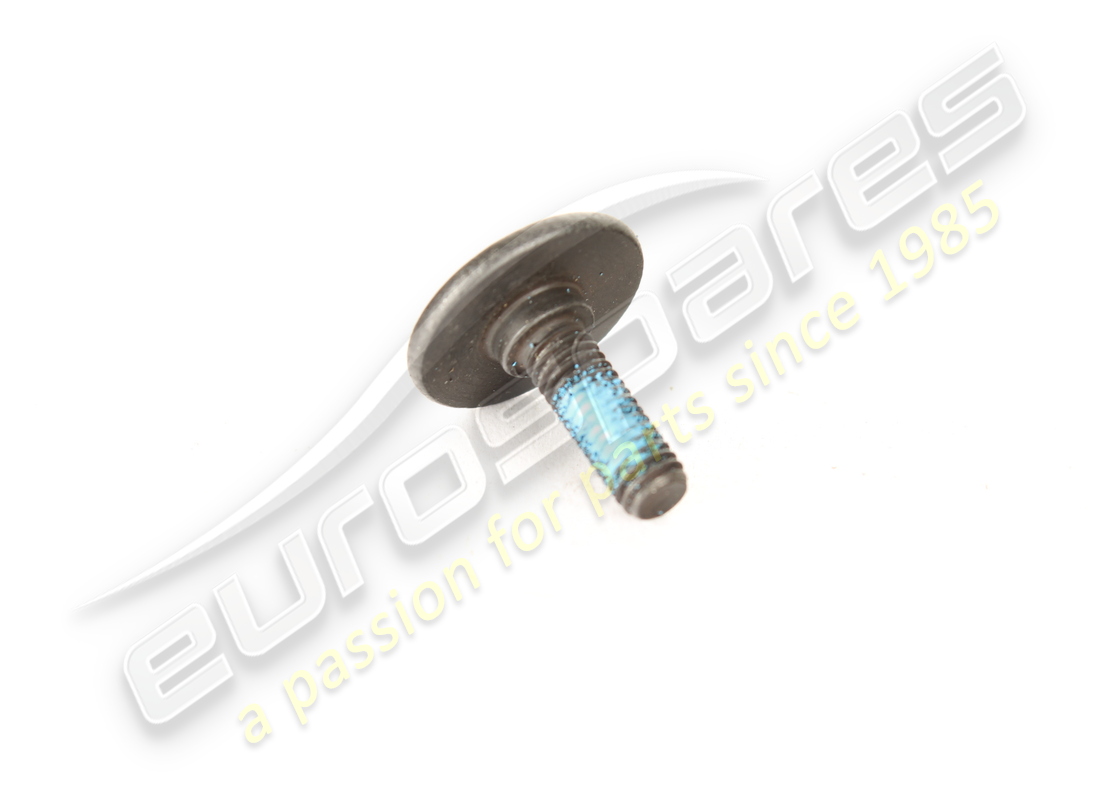

                                    # 011
                                    MPN: 81078500
                                    WASHER
                                    from £0.52
                                    from £0.52
                                    # 012
                                    MPN: 84022600
                                    RH FIN
                                    from £252.21
                                    from £252.21
                                    # 013
                                    MPN: 84022700
                                    LH FIN
                                    from £252.21
                                    from £252.21
                                    # 014
                                    MPN: 63343400

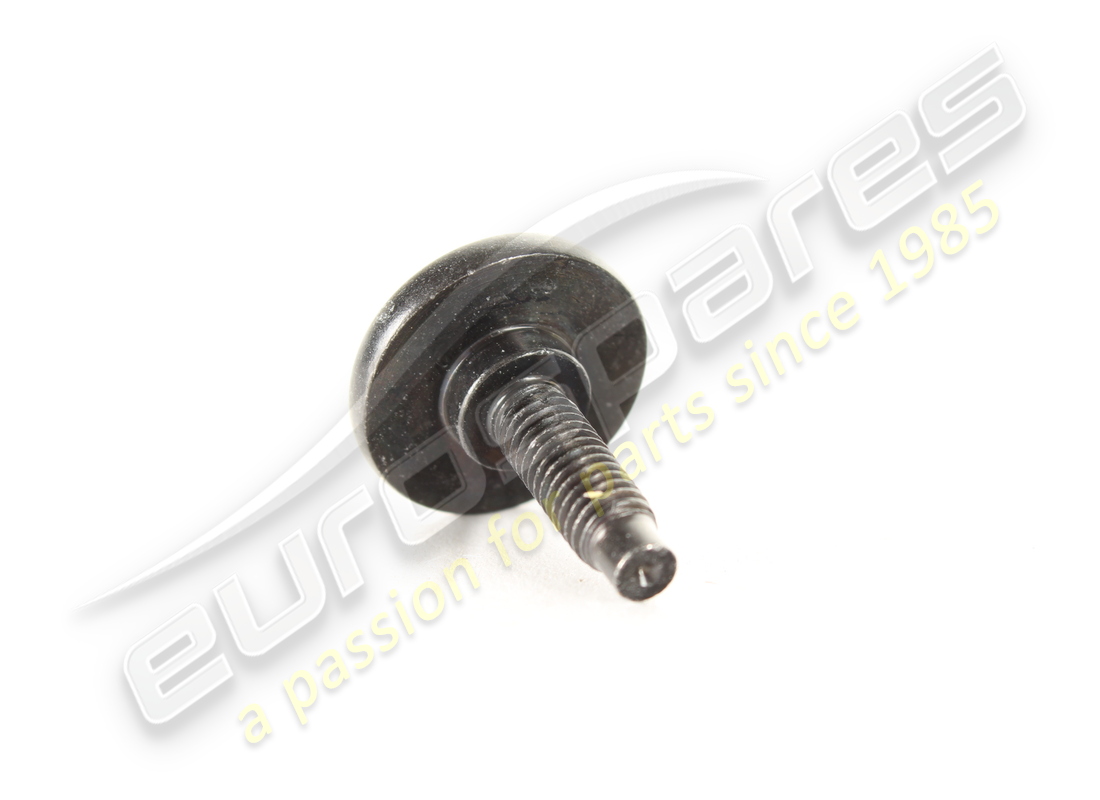

                                    SCREW
                                    from £1.39
                                    from £1.39
                                    # 014
                                    MPN: 65752800
                                    SCREW
                                    -No longer supplied- -Replaced by 63343400-
                                    from £1.45
                                    from £1.45
                                    This part replaces part number 294485 - and 1 more. Click to view details
                                    # 015
                                    MPN: 84029100
                                    BUSHING
                                    from £18.89
                                    from £18.89
                                    # 016
                                    MPN: 83613100

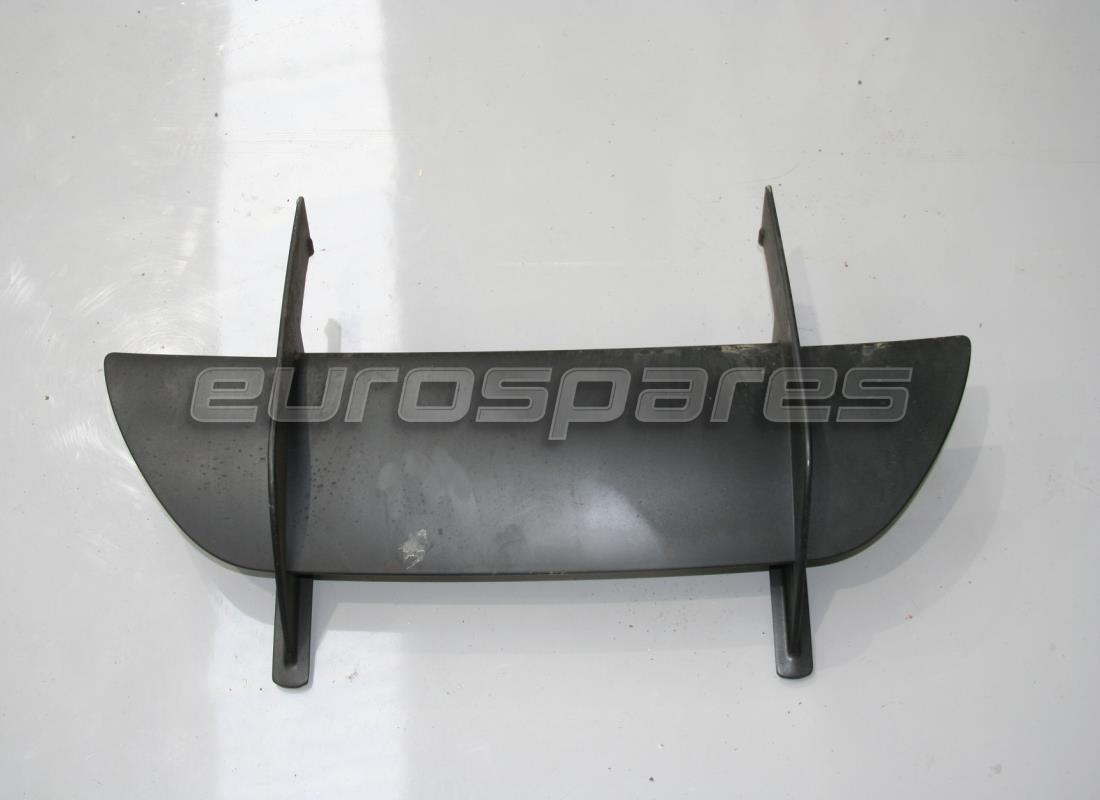

                                    REAR BUMPER SPOILER
                                    from £418.95
                                    from £418.95
                                    # 017
                                    MPN: 83321200
                                    RH LATERAL HEAT SHIELD
                                    -Applicable until depletion-
                                    # 018
                                    MPN: 83321300
                                    LH LATERAL HEAT SHIELD
                                    -Applicable until depletion-
                                    # 019
                                    MPN: 83321400
                                    RH REAR FOG LIGHT HEAT SHIELD
                                    -Applicable until depletion-
                                    # 020
                                    MPN: 83321500
                                    LH REAR FOG LIGHT HEAT SHIELD
                                    -Applicable until depletion-
                                    # 021
                                    MPN: 84022100
                                    RH LATERAL GRILLE
                                    -Black-
                                    from £120.80
                                    from £120.80
                                    # 021
                                    MPN: 84239500
                                    RH LATERAL GRILLE
                                    -Grey- -No longer supplied- -Replaced by 86014600-
                                    from £150.68
                                    from £150.68
                                    # 021
                                    MPN: 86014600
                                    RH LATERAL GRILLE
                                    -Grey-
                                    from £178.60
                                    from £178.60
                                    This part replaces part number 84239500 which we have in stock
                                    # 022
                                    MPN: 84022200
                                    LH LATERAL GRILLE
                                    -Black-
                                    from £120.80
                                    from £120.80
                                    # 022
                                    MPN: 84239600
                                    LH LATERAL GRILLE
                                    -Grey- -No longer supplied- -Replaced by 86014700-
                                    from £150.68
                                    from £150.68
                                    # 022
                                    MPN: 86014700
                                    LH LATERAL GRILLE
                                    -Grey-
                                    from £178.60
                                    from £178.60
                                    This part replaces part number 84239600 which we have in stock
                                    # 023
                                    MPN: 14643293
                                    RIVET
                                    from £4.63
                                    from £4.63
                                    # 024
                                    MPN: 84188100
                                    BRACKET
                                    -Version with camera- -Not for Geneva version-
                                    from £35.33
                                    from £35.33
                                    # 024
                                    MPN: 86479900
                                    CAMERA MOUNT
                                    -Version with camera- -Applicable for Geneva version-
                                    from £38.09
                                    from £38.09
                                    # 025
                                    MPN: 14039414
                                    NUT
                                    -Version with camera-
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 14039411
                                    # 026
                                    MPN: 266790

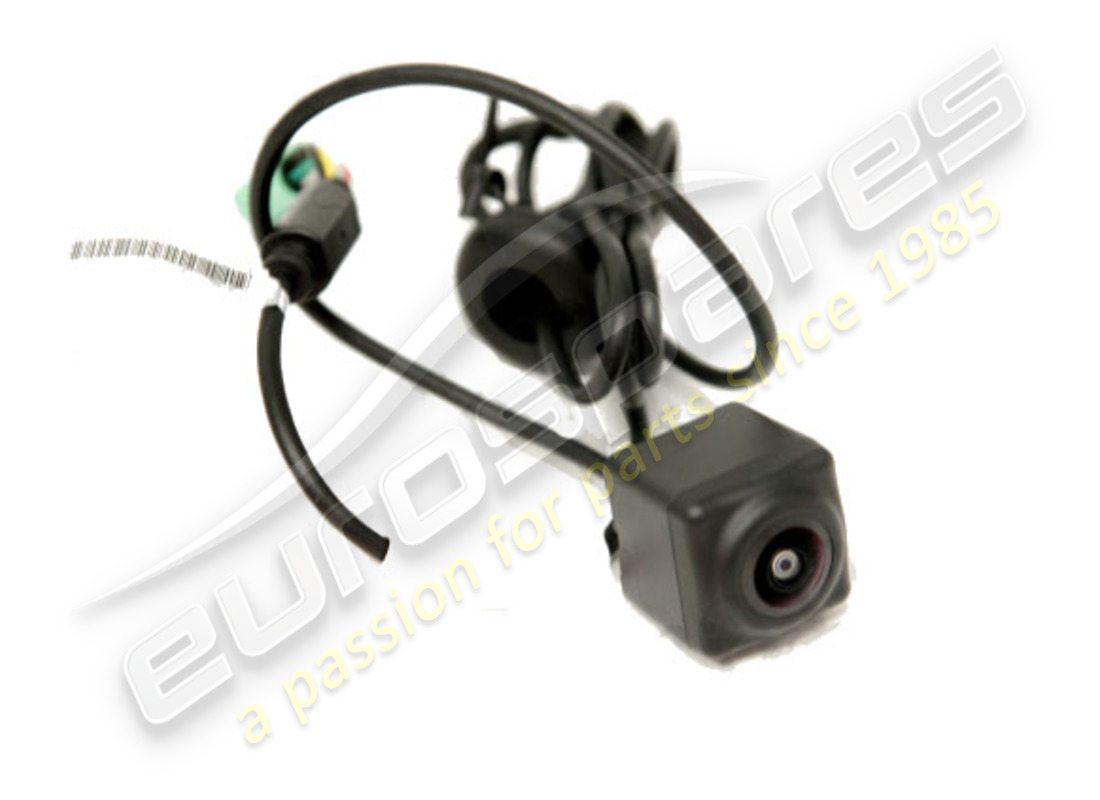

                                    PARKING CAMERA
                                    -Version with camera- -Not for Geneva version- -Applicable for Taiwan-
                                    Supersession
                                    Supersession
                                    # 026
                                    MPN: 309751
                                    PARKING CAMERA
                                    -Applicable for Geneva version-
                                    from £864.76
                                    from £864.76
                                    # 026
                                    MPN: 309758
                                    PARKING CAMERA
                                    -Applicable for Geneva version- -Version with front camera or Apple Car Play- -Applicable until depletion-
                                    from £1,433.13
                                    from £1,433.13
                                    # 026
                                    MPN: 330656
                                    PARKING CAMERA
                                    -Applicable for Geneva version- -Version with front camera or Apple Car Play- -Applicable after depletion of 309758- -No longer supplied- -Replaced by 839892-
                                    Supersession
                                    Supersession
                                    This part replaces part number 309758 which we have in stock
                                    # 026
                                    MPN: 339211
                                    PARKING CAMERA
                                    -Version with camera- -Not for Geneva version- -Not for Taiwan-
                                    Supersession
                                    Supersession
                                    # 026
                                    MPN: 839892
                                    PARKING CAMERA
                                    -Applicable for Geneva version- -Version with front camera or Apple Car Play-
                                    from £864.76
                                    from £864.76
                                    This part replaces part number 330656
                                    # 027
                                    MPN: 83322400
                                    IMPACT ABSORBER
                                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                                    from £74.22
                                    from £74.22
                                    # 028
                                    MPN: 82283100

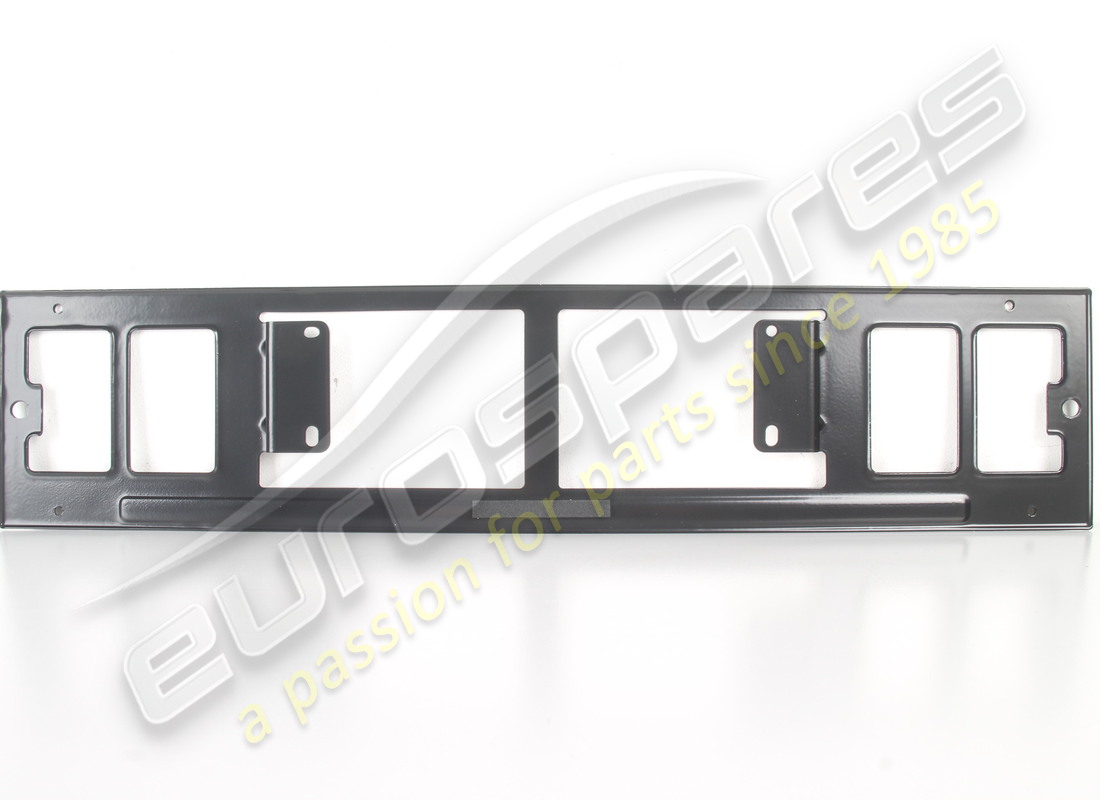

                                    NUMBER PLATE HOLDER
                                    -Applicable for UAE markets- -Applicable for EU GS, UK-
                                    from £35.68
                                    from £35.68
                                    # 028
                                    MPN: 82283200
                                    NUMBER PLATE HOLDER
                                    -Applicable for USA, CDN, USA LIGHT-
                                    from £91.51
                                    from £91.51
                                    # 028
                                    MPN: 82287200
                                    NUMBER PLATE HOLDER
                                    -Applicable for AUS, CINA-
                                    from £137.25
                                    from £137.25
                                    # 028
                                    MPN: 82289300
                                    NUMBER PLATE HOLDER
                                    -Applicable for J-
                                    from £137.25
                                    from £137.25
                                    # 028
                                    MPN: 82679900
                                    NUMBER PLATE HOLDER
                                    -Not for UAE markets- -Applicable for GOLFO-
                                    from £108.55
                                    from £108.55
                                    This part replaces part number 84200200
                                    # 028
                                    MPN: 84200200
                                    NUMBER PLATE HOLDER
                                    -Applicable for GOLFO- -No longer supplied- -Replaced by 82679900-
                                    Supersession
                                    Supersession
                                    # 029
                                    MPN: 15687204
                                    SCREW
                                    -Fastening license plate mount to bumper-
                                    from £0.53
                                    from £0.53
                                    # 029
                                    MPN: 65752800
                                    SCREW
                                    -Fastening license plate to license plate mount-
                                    from £1.49
                                    from £1.49
                                    This part replaces part number 294485 - and 1 more. Click to view details
                                    # 030
                                    MPN: 13550004
                                    WASHER
                                    -Fastening license plate to license plate mount- -No longer supplied-
                                    # 031
                                    MPN: 14098410
                                    NUT
                                    -No longer supplied-
                                    from £1.16
                                    from £1.16
                                    # 032
                                    MPN: 84071400
                                    CRASH-BOX CROSS MEMBER
                                    -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT-
                                    from £692.79
                                    from £692.79
                                    # 033
                                    MPN: 84243400
                                    RH TAILLIGHT GRILLE
                                    from £207.07
                                    from £207.07
                                    # 033
                                    MPN: 84243500
                                    LH TAILLIGHT GRILLE
                                    from £207.07
                                    from £207.07
                                    # 034
                                    MPN: 81290900
                                    SCREW
                                    -M6 X 20 X 22-
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 67578600
                                    # 035
                                    MPN: 84126900
                                    RH REAR LATERAL MOUNT
                                    from £78.15
                                    from £78.15
                                    # 036
                                    MPN: 84127000
                                    LH REAR LATERAL MOUNT
                                    from £50.94
                                    from £50.94
                                    # 037
                                    MPN: 84688200
                                    SIDE MARKER BRACKET
                                    -Applicable for USA, CDN, USA LIGHT-
                                    from £216.19
                                    from £216.19
                                    # 038
                                    MPN: 83316700
                                    CENTRAL MOUNTING BUMPER
                                    -Not for Geneva version-
                                    from £23.05
                                    from £23.05
                                    # 038
                                    MPN: 86480300
                                    CENTRE BUMPER MOUNT
                                    -Applicable for Geneva version-
                                    from £12.49
                                    from £12.49
                                    # 039
                                    MPN: 83359500
                                    RH HEAT VENT GRILLE
                                    -No longer supplied- -Replaced by 86060200-
                                    Supersession
                                    Supersession
                                    # 039
                                    MPN: 86060200
                                    RH HEAT VENT GRILLE
                                    from £72.05
                                    from £72.05
                                    This part replaces part number 83359500
                                    # 040
                                    MPN: 83359600
                                    LH HEAT VENT GRILLE
                                    -No longer supplied- -Replaced by 86060300-
                                    Supersession
                                    Supersession
                                    # 040
                                    MPN: 86060300
                                    LH HEAT VENT GRILLE
                                    from £72.05
                                    from £72.05
                                    This part replaces part number 83359600
                                    # 041
                                    MPN: 14641596
                                    RIVET
                                    Supersession
                                    Supersession
                                    # 042
                                    MPN: 256490
                                    SCREW
                                    from £1.18
                                    from £1.18
                                    This part replaces part number 86607000
                                    # 043
                                    MPN: 83889800
                                    RH TRELLIS
                                    -Applicable up to Ass. No. 110323-
                                    from £514.73
                                    from £514.73
                                    # 043
                                    MPN: 83889900
                                    LH TRELLIS
                                    -Applicable up to Ass. No. 110323-
                                    from £514.73
                                    from £514.73
                                    # 044
                                    MPN: 11568027
                                    SCREW
                                    -M6 X 18- -Applicable up to Ass. No. 110323-
                                    from £0.81
                                    from £0.81
                                    # 045
                                    MPN: 12643724
                                    WASHER
                                    -Applicable up to Ass. No. 110323-
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 109684 - and 4 more. Click to view details
                                    # 046
                                    MPN: 83442900
                                    SCREW
                                    -M6 X 22-
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 80874700
                                    # 047
                                    MPN: 80874300
                                    CLIP
                                    -Applicable from Ass. No. 110324-
                                    from £0.60
                                    from £0.60
                                    # 048
                                    MPN: 314630
                                    BATTERY CONDITIONER SOCKET
                                    -Applicable for Geneva version-
                                    from £120.45
                                    from £120.45
                                    This part replaces part number 85139800 - and 2 more. Click to view details
                                    # 048
                                    MPN: 85139800
                                    BATTERY CONDITIONER SOCKET
                                    -Applicable for Geneva version- -No longer supplied- -Replaced by 314630-
                                    Supersession
                                    Supersession
                                    # 049
                                    MPN: 86480200
                                    BATTERY CONDITIONER BRACKET
                                    -Applicable for Geneva version-
                                    from £331.49
                                    from £331.49
                                    # 050
                                    MPN: 14039414
                                    NUT
                                    -Applicable for Geneva version-
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 14039411
                                    # 051
                                    MPN: 309629
                                    SCREW
                                    -Applicable for Geneva version-
                                    from £1.31
                                    from £1.31
                                    This part replaces part number 290589
                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
