0125 - GLOVE COMPARTMENT

Ferrari FF (USA) GLOVE COMPARTMENT Parts Diagram

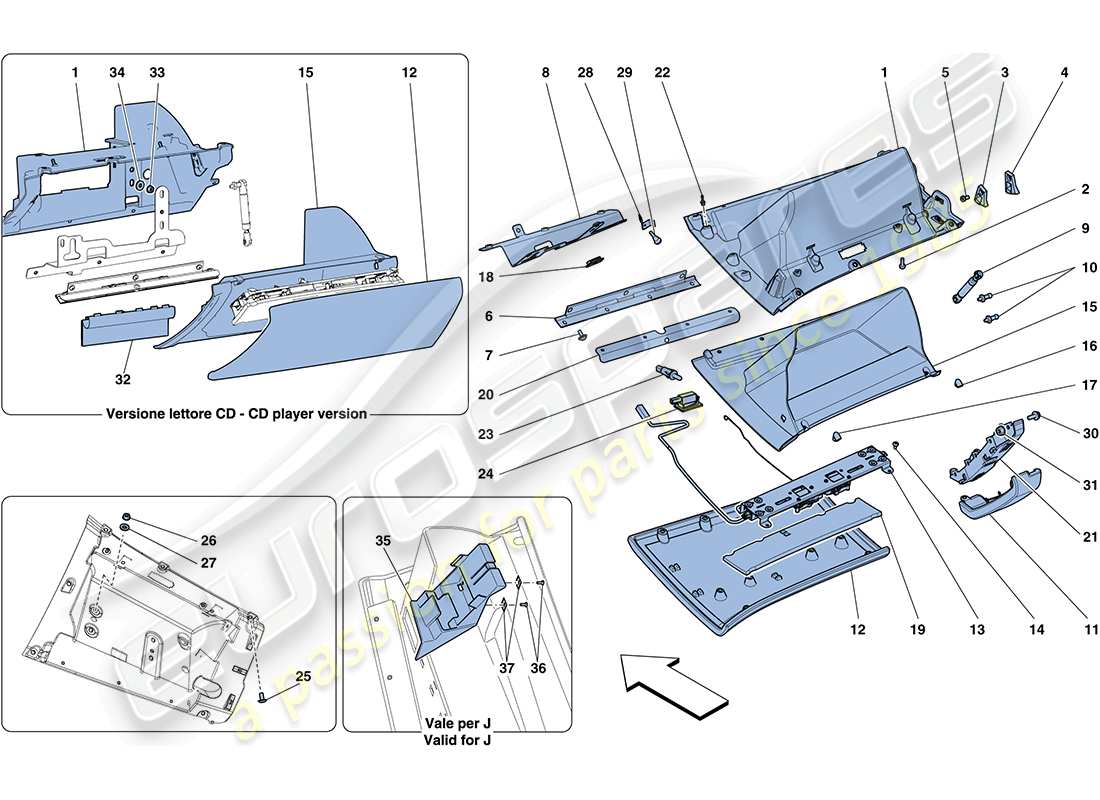

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 84144100
                              CUBBY
                              -Not for Geneva version- -Not for GD-
                              from £214.79
                              from £214.79
                              # 001
                              MPN: 84144100
                              CUBBY
                              -Applicable for Geneva version- -Version without CD player- -Not for GD-
                              from £214.79
                              from £214.79
                              # 001
                              MPN: 84151300
                              CUBBY
                              -Not for Geneva version- -Applicable for GD-
                              from £260.91
                              from £260.91
                              # 001
                              MPN: 84151300
                              CUBBY
                              -Applicable for Geneva version- -Version without CD player- -Applicable for GD-
                              from £260.91
                              from £260.91
                              # 001
                              MPN: 86472200
                              POCKET CHANGE TRAY
                              -Applicable for Geneva version- -Version with CD reader- -Not for GD-
                              from £390.53
                              from £390.53
                              # 001
                              MPN: 86517900
                              POCKET CHANGE TRAY
                              -Applicable for Geneva version- -Version with CD reader- -Applicable for GD-
                              from £474.38
                              from £474.38
                              # 002
                              MPN: 65361300
                              PIN
                              from £74.64
                              from £74.64
                              # 003
                              MPN: 67332500
                              RH LOCK STRIKER PLATE
                              from £2.02
                              from £2.02
                              # 004
                              MPN: 67332600
                              LH LOCK STRIKER PLATE
                              from £2.02
                              from £2.02
                              # 005
                              MPN: 13025728
                              SCREW
                              -M5 X 10-
                              from £2.25
                              from £2.25
                              # 006
                              MPN: 66854600
                              GLOVE COMPARTMENT DOOR HINGE
                              from £34.80
                              from £34.80
                              # 007
                              MPN: 68176300
                              SCREW
                              -M5 X 12- -No longer supplied- -Replaced by 85692200-
                              from £0.52
                              from £0.52
                              This part replaces part number 81911200
                              # 007
                              MPN: 85692200
                              SCREW
                              -M5 X 12-
                              from £0.47
                              from £0.47
                              # 008
                              MPN: 83855500
                              HINGE MOUNTING
                              -Not for Geneva version- -Not for USA, CDN, GD, USA LIGHT-
                              from £20.07
                              from £20.07
                              # 008
                              MPN: 83855500
                              HINGE MOUNTING
                              -Applicable for Geneva version- -Version without CD player- -Not for USA, CDN, GD, USA LIGHT-
                              from £20.07
                              from £20.07
                              # 008
                              MPN: 83855600
                              HINGE MOUNTING
                              -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
                              from £145.95
                              from £145.95
                              # 008
                              MPN: 83855600
                              HINGE MOUNTING
                              -Applicable for Geneva version- -Version without CD player- -Applicable for USA, CDN, USA LIGHT-
                              from £145.95
                              from £145.95
                              # 008
                              MPN: 83940100
                              HINGE MOUNTING
                              -Not for Geneva version- -Applicable for GD-
                              from £145.95
                              from £145.95
                              # 008
                              MPN: 83940100
                              HINGE MOUNTING
                              -Applicable for Geneva version- -Version without CD player- -Applicable for GD-
                              from £145.95
                              from £145.95
                              # 008
                              MPN: 86472500
                              HINGE MOUNTING
                              -Applicable for Geneva version- -Version with CD reader- -Not for USA, CDN, GD, USA LIGHT-
                              from £145.95
                              from £145.95
                              # 008
                              MPN: 86518000
                              HINGE MOUNTING
                              -Applicable for Geneva version- -Version with CD reader- -Applicable for GD-
                              from £145.95
                              from £145.95
                              # 008
                              MPN: 86518900
                              HINGE MOUNTING
                              -Applicable for Geneva version- -Version with CD reader- -Applicable for USA, CDN, USA LIGHT-
                              from £145.95
                              from £145.95
                              # 009
                              MPN: 84032400
                              RH BUSHING
                              from £24.74
                              from £24.74
                              # 010
                              MPN: 82839400
                              BALL-JOINT
                              from £39.35
                              from £39.35
                              # 011
                              MPN: 836825..
                              RH GLOVE COMPARTMENT TRIM
                              -Leather- -Not for GD-
                              Supersession
                              Supersession
                              # 011
                              MPN: 839403..
                              RH GLOVE COMPARTMENT TRIM
                              -Leather- -Applicable for GD-
                              # 012
                              MPN: 836821..
                              GLOVE COMPARTMENT LID
                              -Leather- -Not for USA, CDN, GD, USA LIGHT-
                              Supersession
                              Supersession
                              # 012
                              MPN: 837801..
                              GLOVE COMPARTMENT LID
                              -Leather- -Applicable for USA, CDN, USA LIGHT-
                              Supersession
                              Supersession
                              # 012
                              MPN: 839391..
                              GLOVE COMPARTMENT LID
                              -Leather- -Applicable for GD-
                              # 012
                              MPN: 865172..
                              GLOVE COMPARTMENT LID
                              -Leather- -Applicable for Geneva version- -Version with CD reader- -Not for USA, CDN, GD, USA LIGHT-
                              Supersession
                              Supersession
                              # 012
                              MPN: 865174..
                              GLOVE COMPARTMENT LID
                              -Leather- -Applicable for Geneva version- -Version with CD reader- -Applicable for GD-
                              # 012
                              MPN: 865187..
                              GLOVE COMPARTMENT LID
                              -Leather- -Applicable for Geneva version- -Version with CD reader- -Applicable for USA, CDN, USA LIGHT-
                              # 013
                              MPN: 83340200
                              GLOVE COMPARTMENT DOOR LOCK
                              -Not for Geneva version-
                              from £103.95
                              from £103.95
                              # 013
                              MPN: 83340200
                              GLOVE COMPARTMENT DOOR LOCK
                              -Applicable for Geneva version- -Version without CD player-
                              from £103.95
                              from £103.95
                              # 013
                              MPN: 86471400
                              GLOVE COMPARTMENT DOOR LOCK
                              -Applicable for Geneva version- -Version with CD reader- -Not for GD-
                              from £215.29
                              from £215.29
                              # 013
                              MPN: 86533500
                              GLOVE COMPARTMENT DOOR LOCK
                              -Applicable for Geneva version- -Version with CD reader- -Applicable for GD-
                              from £215.29
                              from £215.29
                              # 014
                              MPN: 81599200
                              SCREW
                              -M5 X 8- -No longer supplied- -Replaced by 85691900-
                              from £0.53
                              from £0.53
                              # 014
                              MPN: 85691900
                              SCREW
                              -M5 X 8- -No longer supplied- -Replaced by 85692000-
                              from £0.53
                              from £0.53
                              # 014
                              MPN: 85692000
                              SCREW
                              -M5 X 10-
                              from £0.53
                              from £0.53
                              # 015
                              MPN: 82194400
                              COMPARTMENT LID BACKING
                              -Not for Geneva version- -Not for GD-
                              from £203.18
                              from £203.18
                              # 015
                              MPN: 83939600
                              GLOVE COMPARTMENT DOOR BACKING
                              -Not for Geneva version- -Applicable for GD-
                              from £441.53
                              from £441.53
                              # 015
                              MPN: 86450700
                              GLOVE COMPARTMENT DOOR BACKING
                              -Applicable for Geneva version- -Version without CD player- -Not for J, GD-
                              from £398.61
                              from £398.61
                              # 015
                              MPN: 86483500
                              GLOVE COMPARTMENT DOOR BACKING
                              -Applicable for Geneva version- -Version without CD player- -Applicable for AUS, UK-
                              from £470.70
                              from £470.70
                              # 015
                              MPN: 86569000
                              GLOVE COMPARTMENT DOOR BACKING
                              -GS version- -Applicable for Geneva version- -Version without CD player- -Applicable for J-
                              from £398.72
                              from £398.72
                              # 015
                              MPN: 86570400
                              GLOVE COMPARTMENT DOOR BACKING
                              -GD version- -Applicable for Geneva version- -Version without CD player- -Applicable for J-
                              from £470.70
                              from £470.70
                              # 015
                              MPN: 86764500
                              GLOVE COMPARTMENT DOOR BACKING
                              -Applicable for Geneva version- -Version with CD reader- -Not for J, GD-
                              from £569.25
                              from £569.25
                              This part replaces part number 86471700
                              # 015
                              MPN: 86764700
                              GLOVE COMPARTMENT DOOR BACKING
                              -GS version- -Applicable for Geneva version- -Version with CD reader- -Applicable for J-
                              from £569.25
                              from £569.25
                              This part replaces part number 86564300
                              # 015
                              MPN: 86934800
                              GLOVE COMPARTMENT DOOR BACKING
                              -Applicable for Geneva version- -Version with CD reader- -Applicable for AUS, UK-
                              from £339.42
                              from £339.42
                              This part replaces part number 86517700
                              # 015
                              MPN: 86934900
                              GLOVE COMPARTMENT DOOR BACKING
                              -GD version- -Applicable for Geneva version- -Version with CD reader- -Applicable for J-
                              from £569.25
                              from £569.25
                              This part replaces part number 86570300
                              # 016
                              MPN: 83449700
                              RH COVER PLATE
                              -Not for GD- -No longer supplied-
                              # 016
                              MPN: 83939700
                              RH COVER PLATE
                              -Applicable for GD- -No longer supplied-
                              # 017
                              MPN: 83449800
                              LH COVER
                              -Not for GD- -No longer supplied-
                              # 017
                              MPN: 83939800
                              LH COVER
                              -Applicable for GD- -No longer supplied-
                              # 018
                              MPN: 81884900
                              IPOD CONNECTION COVER CAP
                              -Not for Geneva version-
                              from £5.82
                              from £5.82
                              # 019
                              MPN: 83449900
                              LOCK SOUNDPROOFING
                              from £7.29
                              from £7.29
                              # 020
                              MPN: 83855400
                              KNEE IMPACT BRACKET
                              -Not for GD-
                              from £39.71
                              from £39.71
                              # 020
                              MPN: 84496400
                              KNEE IMPACT BRACKET
                              -Applicable for GD-
                              from £72.97
                              from £72.97
                              # 021
                              MPN: 84144200
                              GLOVE COMPARTMENT END PIECE
                              -Not for GD-
                              from £46.71
                              from £46.71
                              # 021
                              MPN: 84151400
                              GLOVE COMPARTMENT END PIECE
                              -Applicable for GD-
                              from £50.63
                              from £50.63
                              # 022
                              MPN: 82535800
                              PRESS FASTENER PIN
                              from £0.86
                              from £0.86
                              # 023
                              MPN: 188266
                              GLOVE COMPARTMENT LIGHT BUTTON
                              from £9.81
                              from £9.81
                              # 025
                              MPN: 64460500
                              SCREW
                              -M5 X 10- -No longer supplied- -Replaced by 85692000-
                              from £0.78
                              from £0.78
                              # 025
                              MPN: 85692000
                              SCREW
                              -M5 X 10-
                              from £0.52
                              from £0.52
                              # 026
                              MPN: 14059121
                              NUT
                              from £0.53
                              from £0.53
                              # 027
                              MPN: 61148700
                              WASHER
                              from £0.53
                              from £0.53
                              # 028
                              MPN: 83044000
                              GLOVE COMPARTMENT DOOR FASTENER
                              from £4.38
                              from £4.38
                              # 029
                              MPN: 63879900
                              RUBBER PAD
                              from £8.85
                              from £8.85
                              # 029
                              MPN: 83597100
                              RUBBER PAD
                              -No longer supplied- -Replaced by 63879900-
                              from £0.47
                              from £0.47
                              # 030
                              MPN: 65366700
                              SCREW
                              -M5 X 12- -No longer supplied- -Replaced by 85692200-
                              from £0.66
                              from £0.66
                              # 030
                              MPN: 85692200
                              SCREW
                              -M5 X 12-
                              from £0.47
                              from £0.47
                              # 031
                              MPN: 14059111
                              NUT
                              from £0.47
                              from £0.47
                              # 032
                              MPN: 86642700
                              COMPL. GLOVE COMPARTMENT TRIM
                              -Applicable for Geneva version- -Version with CD reader-
                              from £180.48
                              from £180.48
                              # 033
                              MPN: 113647
                              NUT
                              -Version with CD reader-
                              from £0.53
                              from £0.53
                              # 034
                              MPN: 61148700
                              WASHER
                              -Version with CD reader-
                              from £0.54
                              from £0.54
                              # 035
                              MPN: 87355400
                              VICS CARD READER BASE
                              -GS version- -Applicable for J-
                              # 035
                              MPN: 87357100
                              VICS CARD READER BASE
                              -GD version- -Applicable for J-
                              # 036
                              MPN: 15538807
                              SCREW
                              -Applicable for J-
                              from £1.23
                              from £1.23
                              # 037
                              MPN: 14369574
                              BRACKET
                              -Applicable for J-
