0126 - AIRBAGS

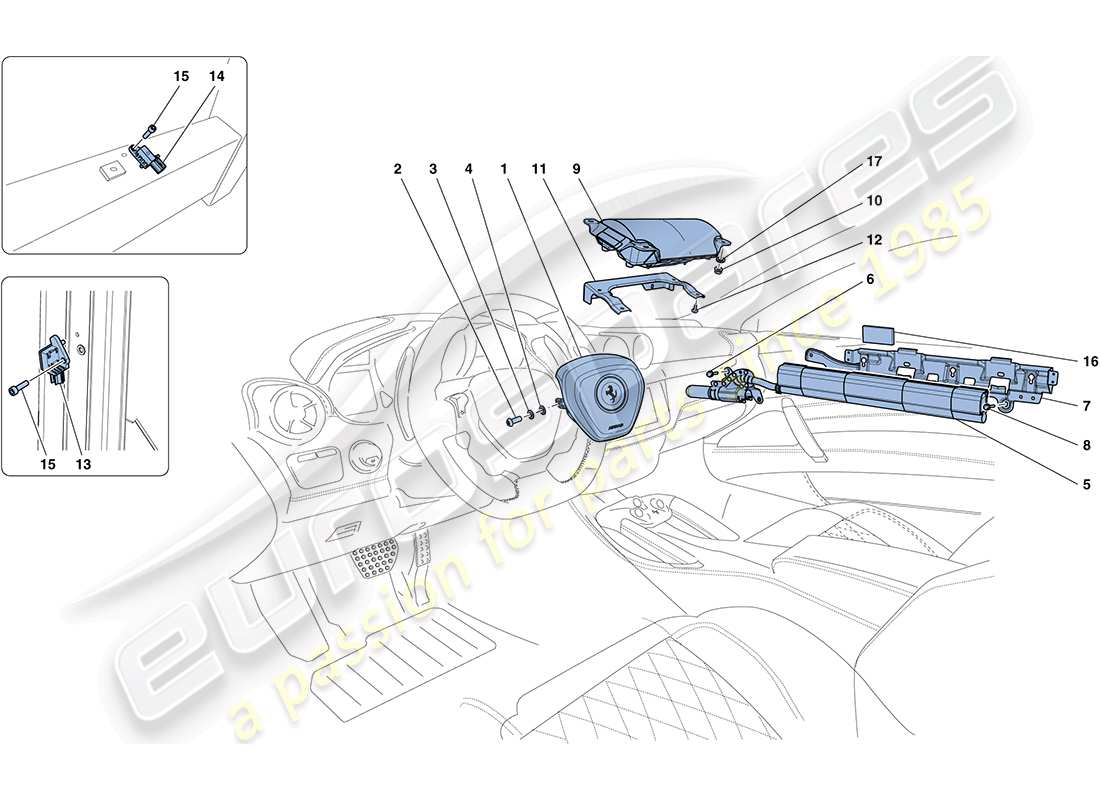

Ferrari FF (USA) AIRBAGS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 868789..
DRIVER SIDE AIRBAG MODULE
-Leather- -Applicable after depletion of 862236..-
Supersession
Supersession
# 001
MPN: 89461500
DRIVER SIDE AIRBAG
from £1,179.54
from £1,179.54
This part replaces part number 86878900 - and 1 more. Click to view details
# 002
MPN: 64882800
SCREW
-M6 X 16-
from £0.84
from £0.84
This part replaces part number 64470000
# 003
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 004
MPN: 127494
WASHER
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 005
MPN: 80314900
LH HEAD AIRBAG
from £835.07
from £835.07
# 005
MPN: 80315000
RH HEAD AIRBAG
from £835.07
from £835.07
# 006
MPN: 13273811
SCREW
-M5 X 8- -No longer supplied- -Replaced by 13287819-
from £0.47
from £0.47
# 006
MPN: 13287819
SCREW
-M5 X 12-
from £0.53
from £0.53
# 007
MPN: 83855800
RH SIDE AIRBAG BRACKET
from £65.55
from £65.55
# 007
MPN: 83855900
LH SIDE AIRBAG BRACKET
from £69.70
from £69.70
# 008
MPN: 14778114
SCREW
-M6 X 8- -No longer supplied- -Replaced by 69230200-
from £3.64
from £3.64
# 008
MPN: 65366700
SCREW
-M5 X 12- -No longer supplied- -Replaced by 85692200-
from £0.65
from £0.65
# 008
MPN: 69230200
SCREW
-M6 X 8-
from £1.17
from £1.17
This part replaces part number 81747700
# 008
MPN: 85692200
SCREW
-M5 X 12-
from £0.47
from £0.47
# 009
MPN: 69753600
PASSENGER AIRBAG
-No longer supplied- -Replaced by 89207500-
Supersession
Supersession
# 009
MPN: 89207500
PASSENGER AIRBAG
-Also order bracket 760164, ref.11-
from £729.75
from £729.75
This part replaces part number 69753600
# 010
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 011
MPN: 760164
AIRBAG BRACKET
-Applicable for airbag 89207500 ref.9-
from £20.07
from £20.07
This part replaces part number 82000500 - and 1 more. Click to view details
# 011
MPN: 82000500
AIRBAG BRACKET
-Applicable for airbag 69753600 ref.9- -No longer supplied- -Replaced by 760164-
Supersession
Supersession
# 012
MPN: 65864100
SCREW
-M6 X 15-
from £0.77
from £0.77
This part replaces part number 65864200 which we have in stock
# 013
MPN: 248428
SATELLITE CRASH SENSOR
from £19.49
from £19.49
# 014
MPN: 250753
FRONTAL CRASH AIRBAG SATELLITE SENSOR
from £35.08
from £35.08
# 015
MPN: 14305324
SCREW
-M6 X 20-
from £0.51
from £0.51
This part replaces part number 14305321
# 016
MPN: 159147
PLUG
-100 X 50 X 4 mm-
from £0.54
from £0.54
# 017
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
