0127 - DASHBOARD AND TUNNEL INSTRUMENTS

Ferrari FF (USA) DASHBOARD AND TUNNEL INSTRUMENTS Parts Diagram

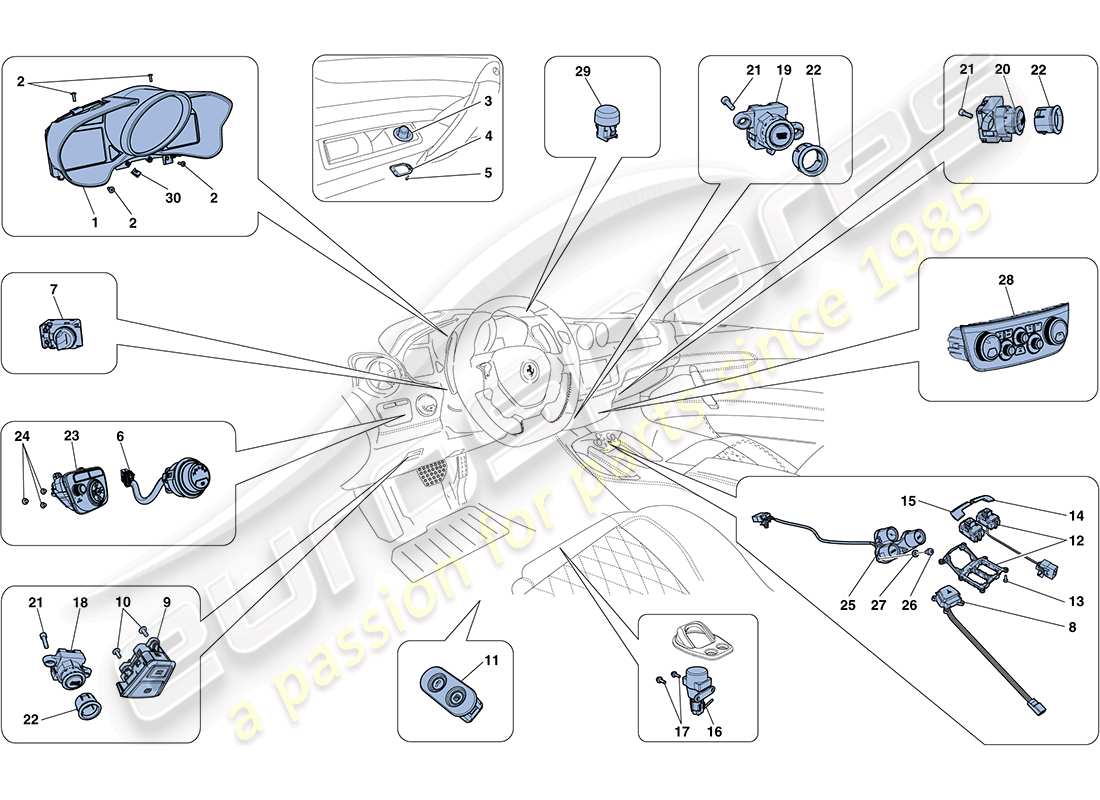

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 249858
                            INSTRUMENT PANEL
                            -Standard- -Not for Geneva version- -Not for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 270652
                            INSTRUMENT PANEL
                            -Yellow dial face- -Not for Geneva version- -Not for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 270653
                            INSTRUMENT PANEL
                            -Red dial face- -Not for Geneva version- -Not for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 270654
                            INSTRUMENT PANEL
                            -White dial face- -Not for Geneva version- -Not for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 272409
                            INSTRUMENT PANEL
                            -Standard- -Not for Geneva version- -Applicable for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 272412
                            INSTRUMENT PANEL
                            -Red dial face- -Not for Geneva version- -Applicable for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 272413
                            INSTRUMENT PANEL
                            -Yellow dial face- -Not for Geneva version- -Applicable for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 272414
                            INSTRUMENT PANEL
                            -White dial face- -Not for Geneva version- -Applicable for USA-
                            from £3,921.72
                            from £3,921.72
                            # 001
                            MPN: 274567
                            INSTRUMENT PANEL
                            -Standard background- -Carbon version- -Not for Geneva version- -Not for USA-
                            from £6,288.01
                            from £6,288.01
                            # 001
                            MPN: 274568
                            INSTRUMENT PANEL
                            -Yellow dial face- -Carbon version- -Not for Geneva version- -Not for USA-
                            from £3,458.41
                            from £3,458.41
                            # 001
                            MPN: 274569
                            INSTRUMENT PANEL
                            -Red dial face- -Carbon version- -Not for Geneva version- -Not for USA-
                            from £6,288.01
                            from £6,288.01
                            # 001
                            MPN: 274570
                            INSTRUMENT PANEL
                            -White dial face- -Carbon version- -Not for Geneva version- -Not for USA-
                            from £6,288.01
                            from £6,288.01
                            # 001
                            MPN: 274591
                            INSTRUMENT PANEL
                            -Standard background- -Carbon version- -Not for Geneva version- -Applicable for USA-
                            from £6,390.84
                            from £6,390.84
                            # 001
                            MPN: 274592
                            INSTRUMENT PANEL
                            -Red dial face- -Carbon version- -Not for Geneva version- -Applicable for USA-
                            from £6,390.84
                            from £6,390.84
                            # 001
                            MPN: 274593
                            INSTRUMENT PANEL
                            -Yellow dial face- -Carbon version- -Not for Geneva version- -Applicable for USA-
                            from £6,390.84
                            from £6,390.84
                            # 001
                            MPN: 274594
                            INSTRUMENT PANEL
                            -White dial face- -Carbon version- -Not for Geneva version- -Applicable for USA-
                            from £6,390.84
                            from £6,390.84
                            # 001
                            MPN: 309393
                            INSTRUMENT PANEL
                            -Standard- -Applicable for Geneva version- -Not for USA-
                            from £3,764.71
                            from £3,764.71
                            # 001
                            MPN: 309394
                            INSTRUMENT PANEL
                            -Red dial face- -Applicable for Geneva version- -Not for USA-
                            from £3,764.71
                            from £3,764.71
                            # 001
                            MPN: 309395
                            INSTRUMENT PANEL
                            -Yellow dial face- -Applicable for Geneva version- -Not for USA-
                            from £3,764.71
                            from £3,764.71
                            # 001
                            MPN: 309397
                            INSTRUMENT PANEL
                            -White dial face- -Applicable for Geneva version- -Not for USA-
                            from £3,764.71
                            from £3,764.71
                            # 001
                            MPN: 309398
                            INSTRUMENT PANEL
                            -Standard background- -Carbon version- -Applicable for Geneva version- -Not for USA-
                            from £6,288.01
                            from £6,288.01
                            # 001
                            MPN: 309399
                            INSTRUMENT PANEL
                            -Red dial face- -Carbon version- -Applicable for Geneva version- -Not for USA-
                            from £6,288.01
                            from £6,288.01
                            # 001
                            MPN: 309400
                            INSTRUMENT PANEL
                            -Yellow dial face- -Carbon version- -Applicable for Geneva version- -Not for USA-
                            from £3,458.41
                            from £3,458.41
                            # 001
                            MPN: 309401
                            INSTRUMENT PANEL
                            -White dial face- -Carbon version- -Applicable for Geneva version- -Not for USA-
                            from £6,288.01
                            from £6,288.01
                            # 001
                            MPN: 311505
                            INSTRUMENT PANEL
                            -Standard- -Applicable for Geneva version- -Applicable for USA-
                            from £4,117.42
                            from £4,117.42
                            # 001
                            MPN: 311506
                            INSTRUMENT PANEL
                            -Red dial face- -Applicable for Geneva version- -Applicable for USA-
                            from £4,117.42
                            from £4,117.42
                            # 001
                            MPN: 311507
                            INSTRUMENT PANEL
                            -Yellow dial face- -Applicable for Geneva version- -Applicable for USA-
                            from £4,117.42
                            from £4,117.42
                            # 001
                            MPN: 311509
                            INSTRUMENT PANEL
                            -White dial face- -Applicable for Geneva version- -Applicable for USA-
                            from £4,117.42
                            from £4,117.42
                            # 001
                            MPN: 311510
                            INSTRUMENT PANEL
                            -Standard background- -Carbon version- -Applicable for Geneva version- -Applicable for USA-
                            from £5,120.25
                            from £5,120.25
                            # 001
                            MPN: 311511
                            INSTRUMENT PANEL
                            -Red dial face- -Carbon version- -Applicable for Geneva version- -Applicable for USA-
                            from £5,120.25
                            from £5,120.25
                            # 001
                            MPN: 311512
                            INSTRUMENT PANEL
                            -Yellow dial face- -Carbon version- -Applicable for Geneva version- -Applicable for USA-
                            from £5,120.25
                            from £5,120.25
                            # 001
                            MPN: 311513
                            INSTRUMENT PANEL
                            -White dial face- -Carbon version- -Applicable for Geneva version- -Applicable for USA-
                            from £5,120.25
                            from £5,120.25
                            # 002
                            MPN: 65366700
                            SCREW
                            -M5 X 12- -No longer supplied- -Replaced by 85692200-
                            from £0.68
                            from £0.68
                            # 002
                            MPN: 68176400
                            SCREW
                            -M5 X 16- -No longer supplied- -Replaced by 65366700-
                            from £0.53
                            from £0.53
                            # 002
                            MPN: 85692200
                            SCREW
                            -M5 X 12-
                            from £0.47
                            from £0.47
                            # 003
                            MPN: 275355
                            REAR VIEW MIRROR CONTROL
                            from £164.20
                            from £164.20
                            # 004
                            MPN: 83490000
                            MIRROR CONTROLS BRACKET
                            from £99.86
                            from £99.86
                            # 005
                            MPN: 82238700
                            SCREW
                            from £1.23
                            from £1.23
                            # 006
                            MPN: 267997
                            LIGHTS AND REAR FOG LIGHT CONTROLS SATELLITE
                            -Not applicable for Korea-
                            from £190.46
                            from £190.46
                            # 006
                            MPN: 285327
                            LIGHTS AND REAR FOG LIGHT CONTROLS SATELLITE
                            -Applicable for Korea-
                            from £221.16
                            from £221.16
                            # 007
                            MPN: 193862
                            STEERING COLUMN ADJUSTMENT CONTROL
                            from £22.06
                            from £22.06
                            # 008
                            MPN: 246860
                            HAZARD WARNING LIGHT BUTTON
                            from £47.43
                            from £47.43
                            # 009
                            MPN: 232124
                            EPB SWITCH WITH AUTOPARK DISABLE
                            -No longer supplied- -Replaced by 820259..-
                            Supersession
                            Supersession
                            # 009
                            MPN: 820259..
                            EPB BUTTON WITH AUTOPARK DISABLE
                            -Plastic in interior leather trim colour-
                            Supersession
                            Supersession
                            # 010
                            MPN: 65752800
                            SCREW
                            from £1.54
                            from £1.54
                            This part replaces part number 294485 - and 1 more. Click to view details
                            # 011
                            MPN: 825535..
                            LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS
                            -Plastic in interior leather trim colour-
                            Supersession
                            Supersession
                            # 012
                            MPN: 82765000
                            COMPLETE POWER WINDOW CONTROLS
                            from £192.85
                            from £192.85
                            This part replaces part number 256867
                            # 013
                            MPN: 14418924
                            SCREW
                            -M4 X 8- -Not for carbon panel-
                            from £0.52
                            from £0.52
                            This part replaces part number 82609400
                            # 013
                            MPN: 15914707
                            SCREW
                            -Applicable for carbon panel-
                            from £0.53
                            from £0.53
                            # 014
                            MPN: 247883
                            RH POWER WINDOW SWITCH
                            from £15.93
                            from £15.93
                            # 015
                            MPN: 247885
                            LH POWER WINDOW SWITCH
                            from £18.03
                            from £18.03
                            # 017
                            MPN: 16285127
                            SCREW
                            -M5 X 16- -No longer supplied- -Replaced by 85692300-
                            from £0.53
                            from £0.53
                            # 017
                            MPN: 85692300
                            SCREW
                            -M5 X 20-
                            from £0.47
                            from £0.47
                            This part replaces part number 83914200
                            # 018
                            MPN: 267999
                            VEHICLE LIFT CONTROL
                            -Version with shock absorber with lifter-
                            from £87.57
                            from £87.57
                            This part replaces part number 276971
                            # 018
                            MPN: 276971
                            VEHICLE LIFT CONTROL
                            -Version with shock absorber with lifter- -No longer supplied- -Replaced by 267999-
                            Supersession
                            Supersession
                            # 019
                            MPN: 268002
                            CAMERA DUAL VIEW CONTROL
                            -Version with front camera with dual view-
                            from £48.16
                            from £48.16
                            This part replaces part number 276972 - and 2 more. Click to view details
                            # 019
                            MPN: 276972
                            CAMERA DUAL VIEW CONTROL
                            -Version with front camera with dual view- -No longer supplied- -Replaced by 268002-
                            Supersession
                            Supersession
                            # 020
                            MPN: 268001
                            GLOVE COMPARTMENT OPEN BUTTON
                            from £87.57
                            from £87.57
                            This part replaces part number 276973
                            # 020
                            MPN: 276973
                            GLOVE COMPARTMENT OPEN BUTTON
                            -No longer supplied- -Replaced by 268001-
                            Supersession
                            Supersession
                            # 021
                            MPN: 14418074
                            SCREW
                            -Fastening controls-
                            from £0.53
                            from £0.53
                            This part replaces part number 14418031
                            # 022
                            MPN: 268000
                            TRIM RING
                            -For controls-
                            from £14.60
                            from £14.60
                            # 023
                            MPN: 267998
                            TFT CONTROL
                            -Not for version with adaptive cruise control-
                            from £547.35
                            from £547.35
                            # 023
                            MPN: 273411
                            TFT CONTROL
                            -Version with adaptive cruise control-
                            from £598.43
                            from £598.43
                            # 024
                            MPN: 81599200
                            SCREW
                            -M5 X 8- -No longer supplied- -Replaced by 85691900-
                            from £0.54
                            from £0.54
                            # 024
                            MPN: 85691900
                            SCREW
                            -M5 X 8- -No longer supplied- -Replaced by 85692000-
                            from £0.53
                            from £0.53
                            # 024
                            MPN: 85692000
                            SCREW
                            -M5 X 10-
                            from £0.53
                            from £0.53
                            # 025
                            MPN: 249833
                            F1 GEARBOX CONTROL PANEL
                            -Not for USA, CDN, USA LIGHT-
                            from £248.15
                            from £248.15
                            # 025
                            MPN: 275922
                            F1 GEARBOX CONTROL PANEL
                            -Applicable for USA, CDN, USA LIGHT-
                            from £251.78
                            from £251.78
                            # 026
                            MPN: 14303024
                            SCREW
                            -M4 X 12- -Interior in carbon-
                            from £0.53
                            from £0.53
                            This part replaces part number 14303021 - and 1 more. Click to view details
                            # 026
                            MPN: 14418924
                            SCREW
                            -M4 X 8-
                            from £0.53
                            from £0.53
                            This part replaces part number 82609400
                            # 026
                            MPN: 14418924
                            SCREW
                            -M4 X 8- -Interior in carbon-
                            from £0.53
                            from £0.53
                            This part replaces part number 82609400
                            # 027
                            MPN: 12638124
                            WASHER
                            from £0.53
                            from £0.53
                            This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                            # 028
                            MPN: 82299100
                            AC CONTROL PANEL
                            -Not for USA, CDN, USA LIGHT-
                            from £1,597.67
                            from £1,597.67
                            # 028
                            MPN: 83781500
                            AC CONTROL PANEL
                            -Applicable for USA, CDN, USA LIGHT-
                            from £1,597.67
                            from £1,597.67
                            # 029
                            MPN: 236871
                            DUAL ZONE SUN SENSOR
                            from £31.31
                            from £31.31
                            # 030
                            MPN: 14372174
                            BRACKET
                            from £0.53
                            from £0.53
