0128 - HEADLIGHTS AND TAILLIGHTS

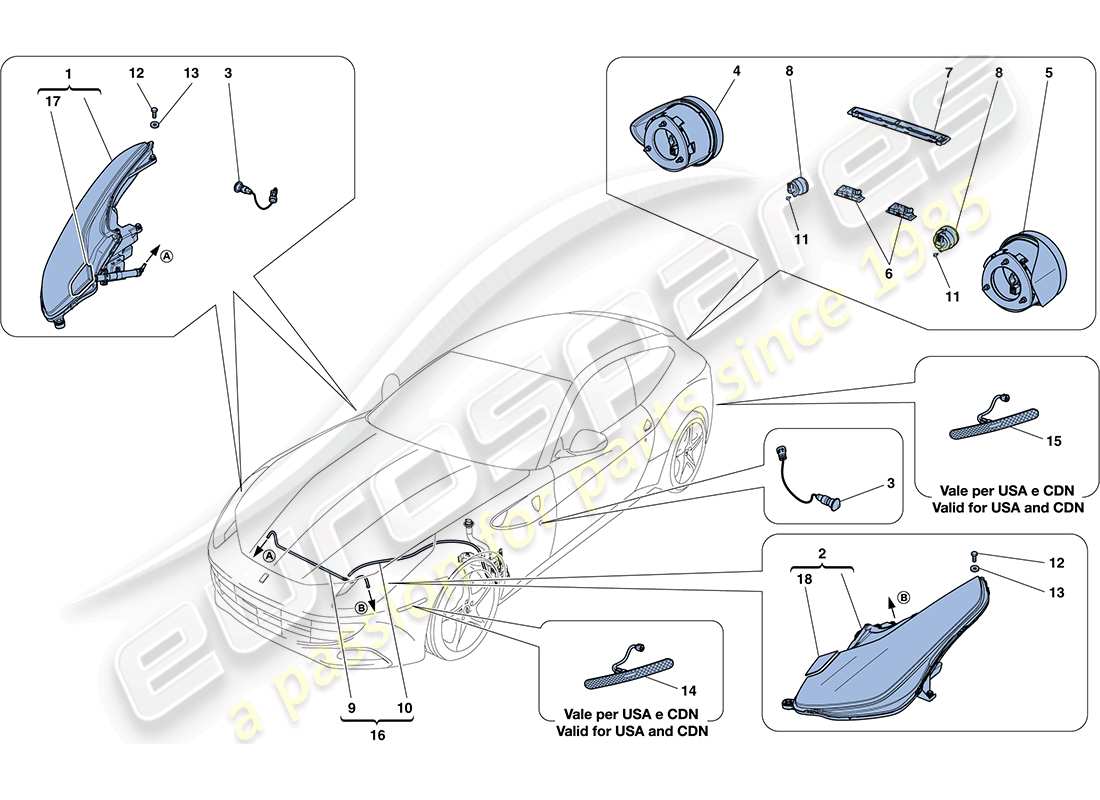

Ferrari FF (USA) HEADLIGHTS AND TAILLIGHTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 251357
                RH BIXENON HEADLIGHT
                -AFS2- -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                from £2,063.01
                from £2,063.01
                # 001
                MPN: 263425
                RH BIXENON HEADLIGHT
                -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                from £2,270.38
                from £2,270.38
                # 001
                MPN: 273619
                RH BIXENON HEADLIGHT
                -Applicable for J, GD-
                from £2,342.25
                from £2,342.25
                # 001
                MPN: 273621
                RH BIXENON HEADLIGHT
                -AFS2- -Applicable for J, GD-
                from £2,426.28
                from £2,426.28
                # 001
                MPN: 273628
                RH BIXENON HEADLIGHT
                -Applicable for USA, CDN, USA LIGHT-
                from £2,340.35
                from £2,340.35
                # 001
                MPN: 273630
                RH BIXENON HEADLIGHT
                -AFS2- -Applicable for USA, CDN, USA LIGHT-
                from £2,085.70
                from £2,085.70
                # 001
                MPN: 284062
                RH BIXENON HEADLIGHT
                -DBL- -Applicable for CINA-
                from £2,069.41
                from £2,069.41
                # 001
                MPN: 284064
                RH BIXENON HEADLIGHT
                -Applicable for CINA-
                from £1,954.29
                from £1,954.29
                # 002
                MPN: 251356
                LH BIXENON HEADLIGHT
                -AFS2- -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                from £2,063.01
                from £2,063.01
                # 002
                MPN: 263426
                LH BIXENON HEADLIGHT
                -Not for CINA, USA, CDN, J, GD, USA LIGHT-
                from £2,270.38
                from £2,270.38
                # 002
                MPN: 273620
                LH BIXENON HEADLIGHT
                -Applicable for J, GD-
                from £2,342.25
                from £2,342.25
                # 002
                MPN: 273629
                LH BIXENON HEADLIGHT
                -Applicable for USA, CDN, USA LIGHT-
                from £2,340.35
                from £2,340.35
                # 002
                MPN: 273631
                LH BIXENON HEADLIGHT
                -AFS2- -Applicable for USA, CDN, USA LIGHT-
                from £2,069.41
                from £2,069.41
                # 002
                MPN: 284061
                LH BIXENON HEADLIGHT
                -DBL- -Applicable for CINA-
                from £2,069.41
                from £2,069.41
                # 002
                MPN: 284063
                LH BIXENON HEADLIGHT
                -Applicable for CINA-
                from £1,954.29
                from £1,954.29
                # 003
                MPN: 165558
                LATERAL TURN INDICATOR
                from £9.03
                from £9.03
                This part replaces part number 180415 - and 1 more. Click to view details
                # 004
                MPN: 269047
                RH TAIL LIGHT
                -Not for USA, CDN, USA LIGHT-
                from £526.42
                from £526.42
                # 004
                MPN: 270493
                RH TAIL LIGHT
                -Applicable for USA, CDN, USA LIGHT-
                from £537.92
                from £537.92
                # 005
                MPN: 269048
                LH TAIL LIGHT
                -Not for USA, CDN, USA LIGHT-
                from £526.42
                from £526.42
                # 005
                MPN: 270494
                LH TAIL LIGHT
                -Applicable for USA, CDN, USA LIGHT-
                from £537.92
                from £537.92
                # 006
                MPN: 264480
                LICENSE PLATE LIGHT
                from £9.15
                from £9.15
                This part replaces part number 255368 which we have in stock - and 2 more. Click to view details
                # 007
                MPN: 251351
                THIRD STOP LIGHT
                -No longer supplied- -Replaced by 278048-
                Supersession
                Supersession
                # 007
                MPN: 278048
                THIRD STOP LIGHT
                from £136.05
                from £136.05
                This part replaces part number 251351
                # 007
                MPN: 278049
                THIRD STOP LIGHT
                -Privacy-
                from £96.83
                from £96.83
                # 008
                MPN: 68771800
                REAR FOG LIGHT
                from £37.70
                from £37.70
                # 009
                MPN: 82984800
                PIPE FROM SECTION TO SPRAY NOZZLES
                -Applicable until depletion-
                Supersession
                Supersession
                # 010
                MPN: 82984700
                PIPE FROM RESERVOIR TO SECTION
                -Applicable until depletion-
                Supersession
                Supersession
                # 011
                MPN: 15783204
                SCREW
                -M4 X 12-
                from £0.53
                from £0.53
                This part replaces part number 15783201
                # 012
                MPN: 10903224
                SCREW
                from £0.48
                from £0.48
                This part replaces part number 10903221
                # 013
                MPN: 12647604
                WASHER
                from £0.51
                from £0.51
                # 014
                MPN: 233797
                FRONT SIDE MARKER
                -Applicable for USA, CDN, USA LIGHT-
                from £103.10
                from £103.10
                # 015
                MPN: 233799
                REAR SIDE MARKER
                -Applicable for USA, CDN, USA LIGHT-
                from £103.10
                from £103.10
                # 016
                MPN: 82984500
                HEADLIGHT WASHER PIPE ASSEMBLY
                -Applicable after depletion of pipes 82984800 and 82984700-
                from £75.66
                from £75.66
                This part replaces part number 82984700 - and 1 more. Click to view details
                # 017
                MPN: 86557300
                RH HEADLAMP WASHER COVER
                from £144.12
                from £144.12
                # 018
                MPN: 86558200
                LH HEADLAMP WASHER COVER
                from £144.12
                from £144.12
