0129 - SHIELDS - EXTERNAL TRIM

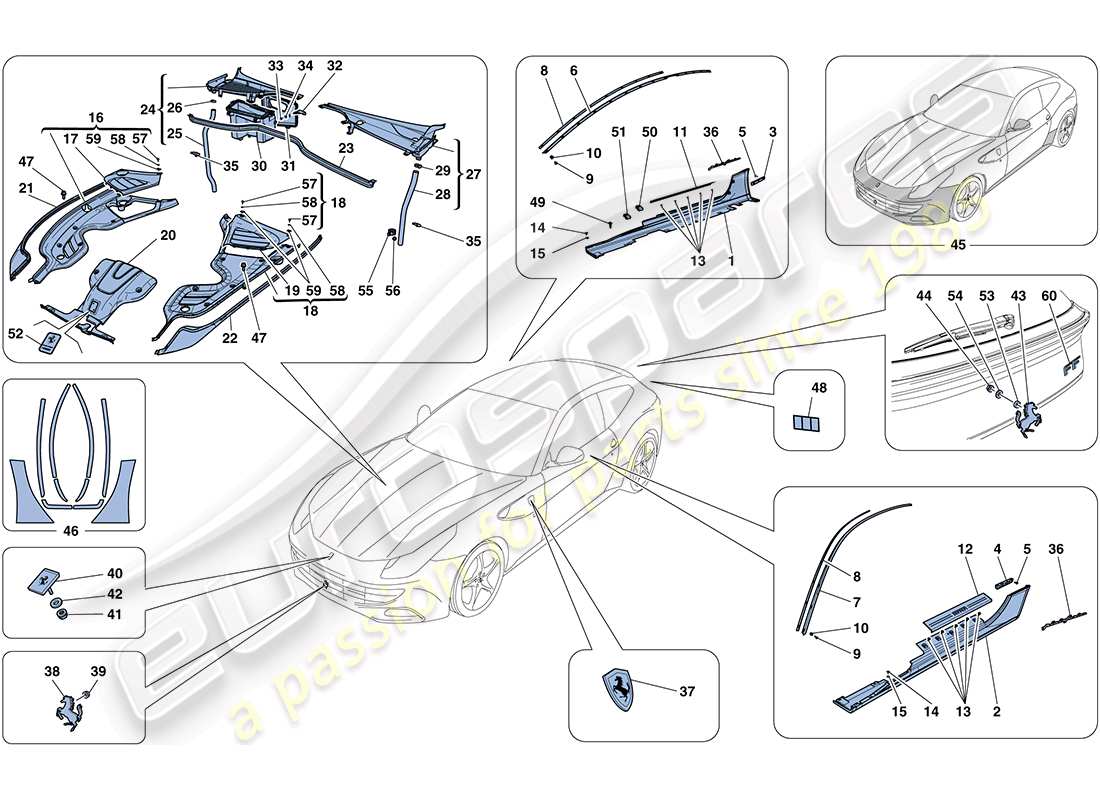

Ferrari FF (USA) SHIELDS - EXTERNAL TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 83314910

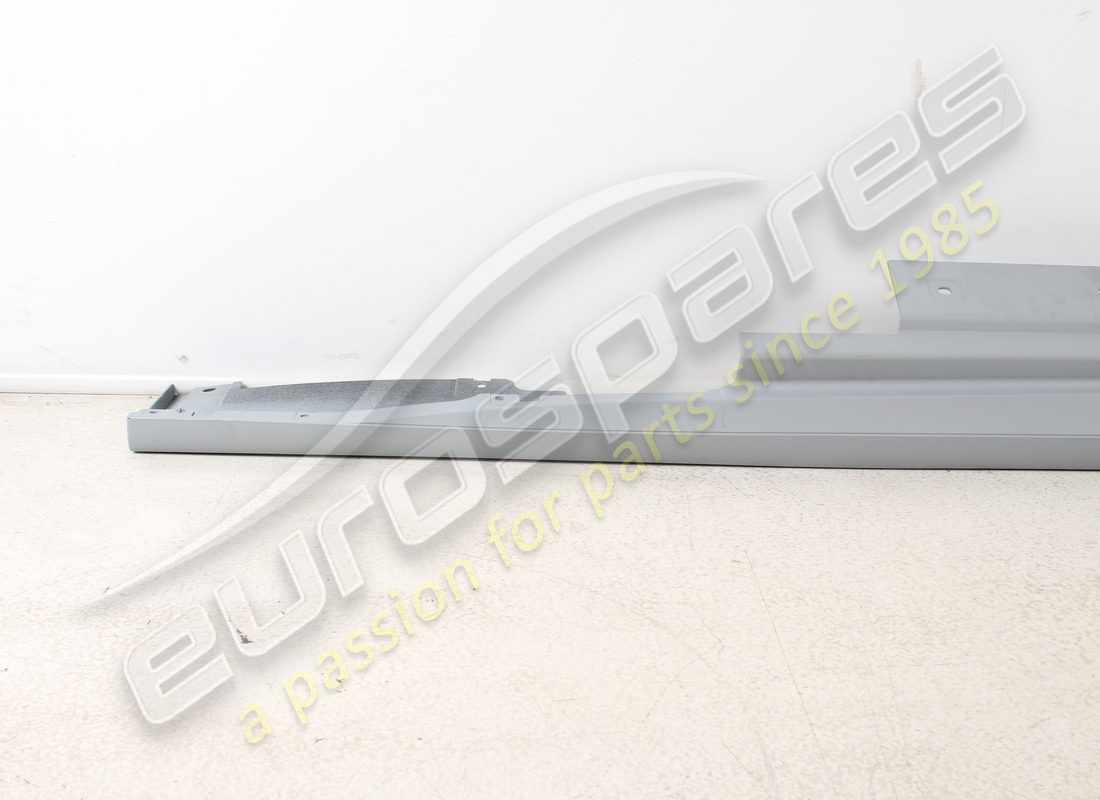

                                                                            RH SILL TRIM LATERAL TRIM
                                                                            from £1,240.66
                                                                            from £1,240.66
                                                                            This part replaces part number 83342210
                                                                            # 001
                                                                            MPN: 83342210
                                                                            RH SILL TRIM LATERAL TRIM
                                                                            -No longer supplied- -Replaced by 83314910-
                                                                            Supersession
                                                                            Supersession
                                                                            # 002
                                                                            MPN: 83315010
                                                                            LH SILL TRIM LATERAL TRIM
                                                                            from £1,240.66
                                                                            from £1,240.66
                                                                            This part replaces part number 83342310
                                                                            # 002
                                                                            MPN: 83342310
                                                                            LH SILL TRIM LATERAL TRIM
                                                                            -No longer supplied- -Replaced by 83315010-
                                                                            Supersession
                                                                            Supersession
                                                                            # 003
                                                                            MPN: 83315300
                                                                            REAR RH SILL TRIM BRACKET
                                                                            from £14.60
                                                                            from £14.60
                                                                            # 004
                                                                            MPN: 83315400
                                                                            REAR LH SILL TRIM BRACKET
                                                                            from £14.60
                                                                            from £14.60
                                                                            # 005
                                                                            MPN: 11625824
                                                                            SCREW
                                                                            -M6 X 18-
                                                                            from £0.52
                                                                            from £0.52
                                                                            # 006
                                                                            MPN: 82169700

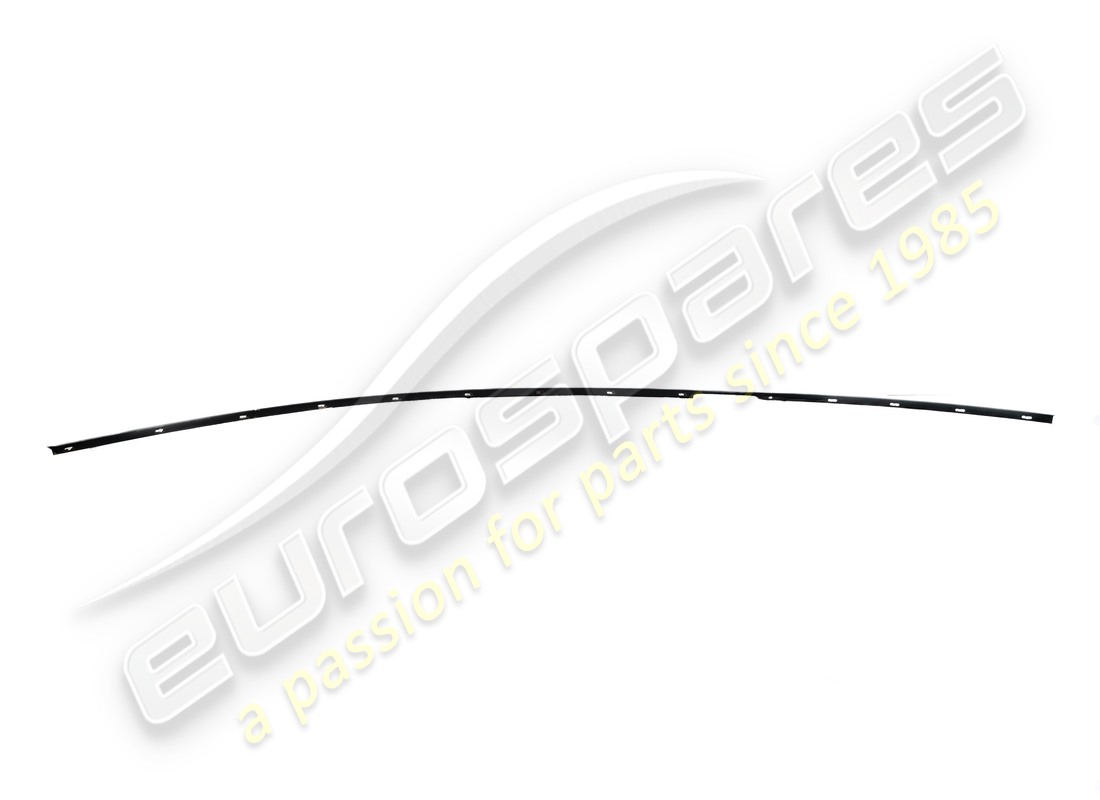

                                                                            RH ROOF GUTTER MOULDING
                                                                            from £524.28
                                                                            from £524.28
                                                                            # 007
                                                                            MPN: 82169800
                                                                            LH ROOF GUTTER MOULDING
                                                                            from £288.35
                                                                            from £288.35
                                                                            # 008
                                                                            MPN: 84020400
                                                                            GUTTER RAIL TRIM SEAL
                                                                            from £62.40
                                                                            from £62.40
                                                                            # 009
                                                                            MPN: 15538777

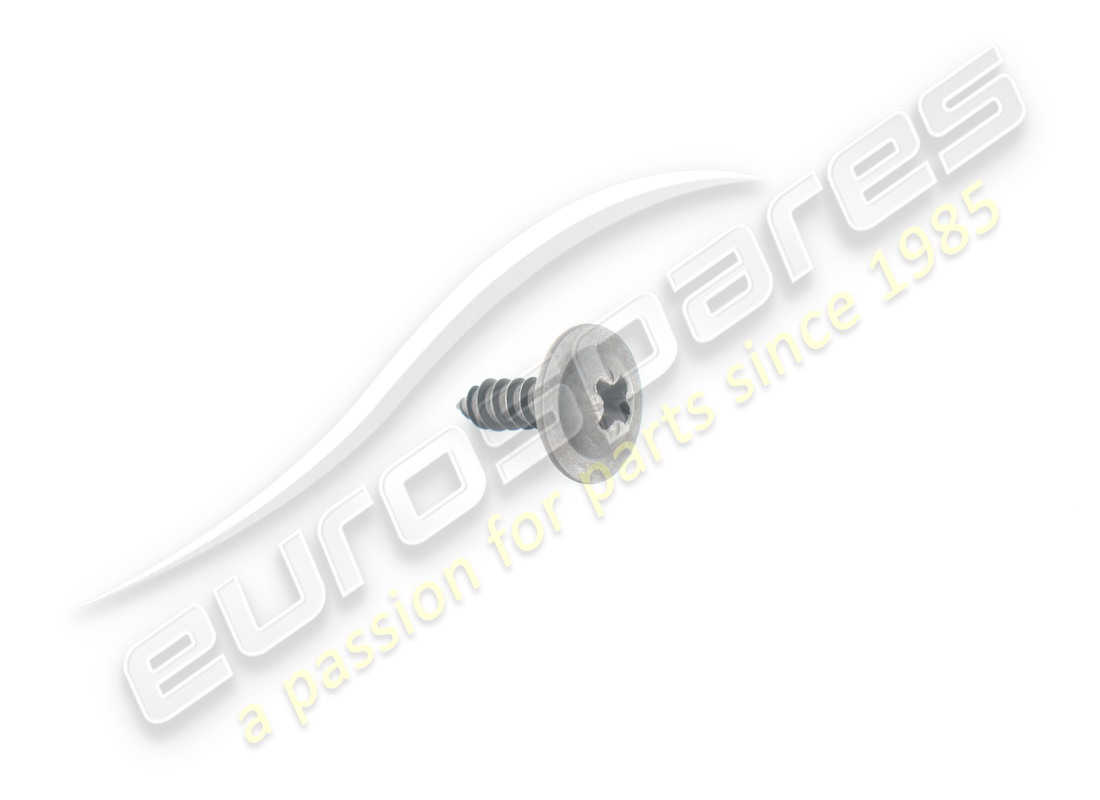

                                                                            SCREW
                                                                            from £0.50
                                                                            from £0.50
                                                                            # 009
                                                                            MPN: 16083501
                                                                            SCREW
                                                                            -No longer supplied- -Replaced by 15538777-
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 010
                                                                            MPN: 14215480
                                                                            BLOCK
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 14211580
                                                                            # 011
                                                                            MPN: 83315100

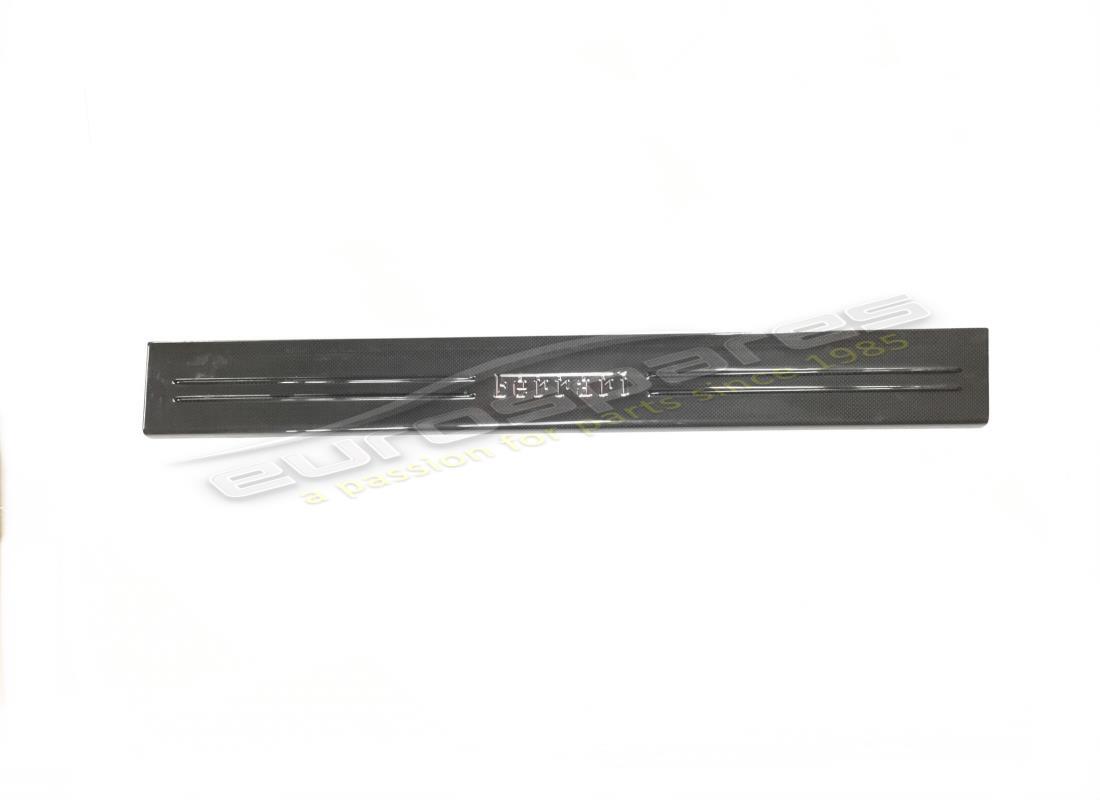

                                                                            RH KICKPLATE
                                                                            from £620.32
                                                                            from £620.32
                                                                            # 011
                                                                            MPN: 84004600

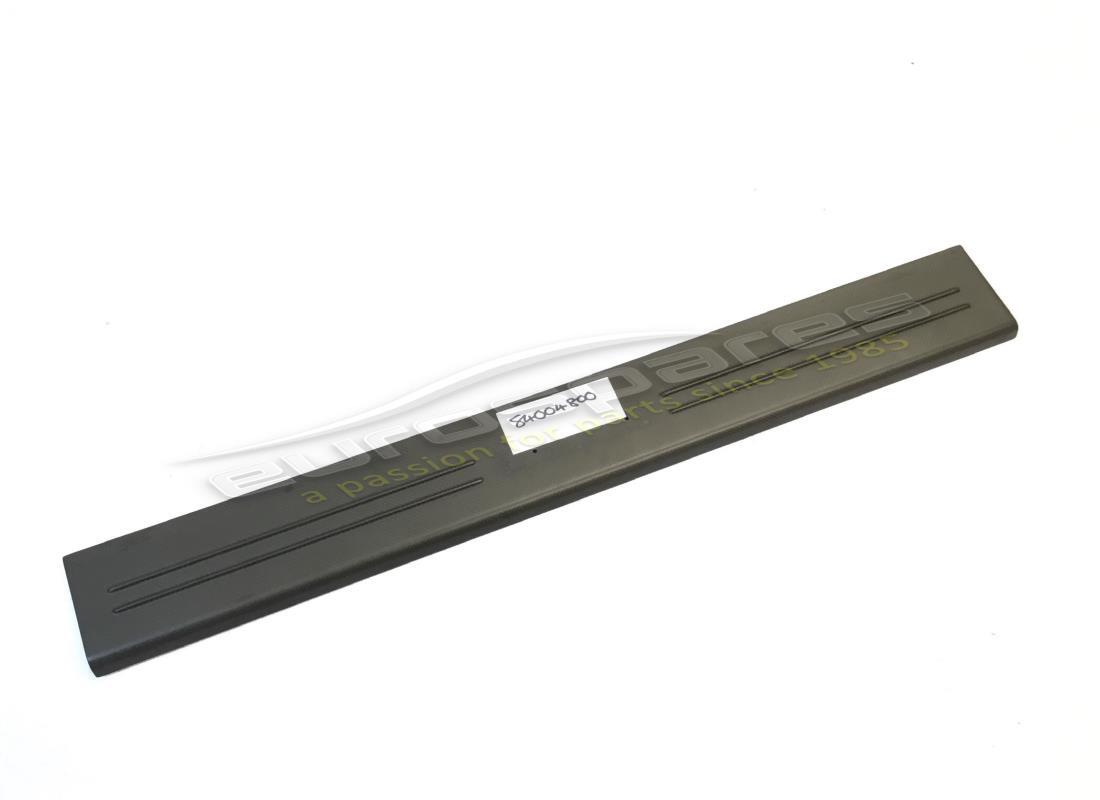

                                                                            RH KICKPLATE
                                                                            -Carbon-
                                                                            from £842.11
                                                                            from £842.11
                                                                            # 011
                                                                            MPN: 84765200
                                                                            RH KICKPLATE

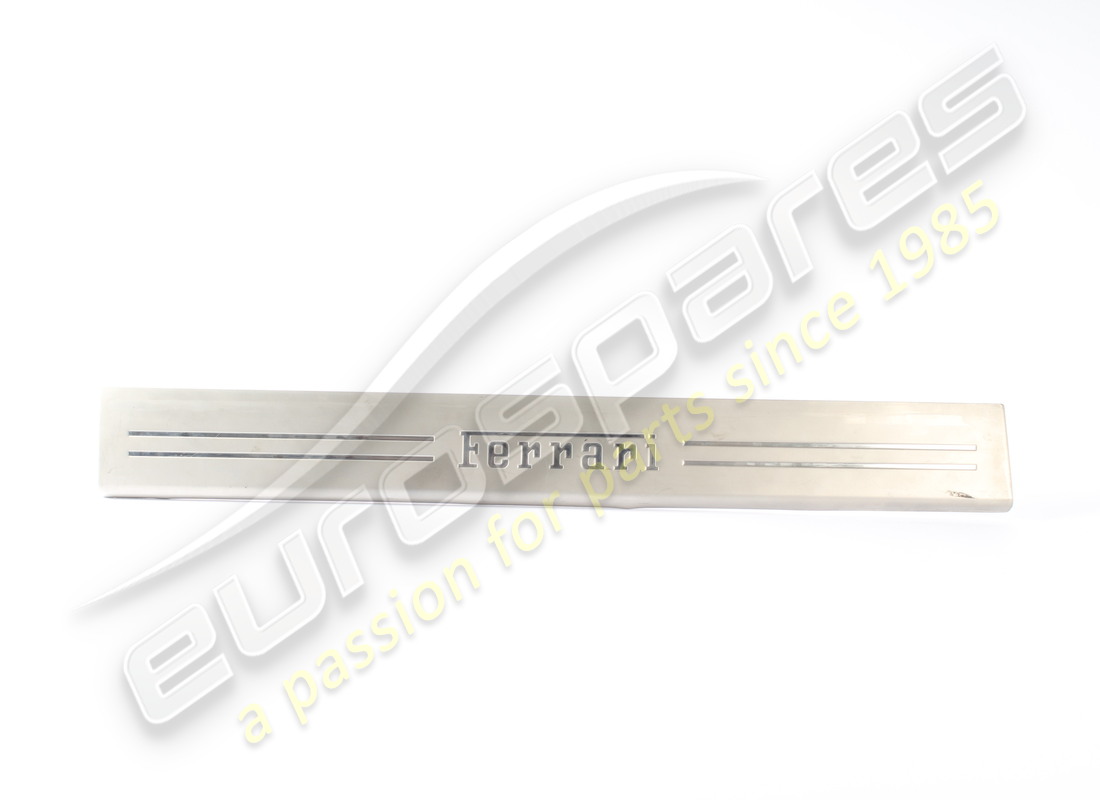

                                                                            -Alutex-
                                                                            from £1,583.65
                                                                            from £1,583.65
                                                                            # 012
                                                                            MPN: 83315200
                                                                            LH KICKPLATE
                                                                            from £341.18
                                                                            from £341.18
                                                                            # 012
                                                                            MPN: 84004800
                                                                            LH KICKPLATE
                                                                            -Carbon-
                                                                            from £842.11
                                                                            from £842.11
                                                                            # 012
                                                                            MPN: 84765300
                                                                            LH KICKPLATE
                                                                            -Alutex-
                                                                            from £1,383.71
                                                                            from £1,383.71
                                                                            # 013
                                                                            MPN: 80874900
                                                                            SCREW
                                                                            from £0.70
                                                                            from £0.70
                                                                            # 014
                                                                            MPN: 11625824
                                                                            SCREW
                                                                            -M6 X 18-
                                                                            from £0.52
                                                                            from £0.52
                                                                            # 014
                                                                            MPN: 80874700
                                                                            SCREW
                                                                            -No longer supplied- -Replaced by 83442900-
                                                                            Supersession
                                                                            Supersession
                                                                            # 014
                                                                            MPN: 80874900
                                                                            SCREW
                                                                            from £0.78
                                                                            from £0.78
                                                                            # 014
                                                                            MPN: 82115900
                                                                            SCREW
                                                                            -M6 X 14- -No longer supplied- -Replaced by 11625824-
                                                                            from £0.52
                                                                            from £0.52
                                                                            # 014
                                                                            MPN: 83442900
                                                                            SCREW
                                                                            -M6 X 22-
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 80874700
                                                                            # 015
                                                                            MPN: 10732414

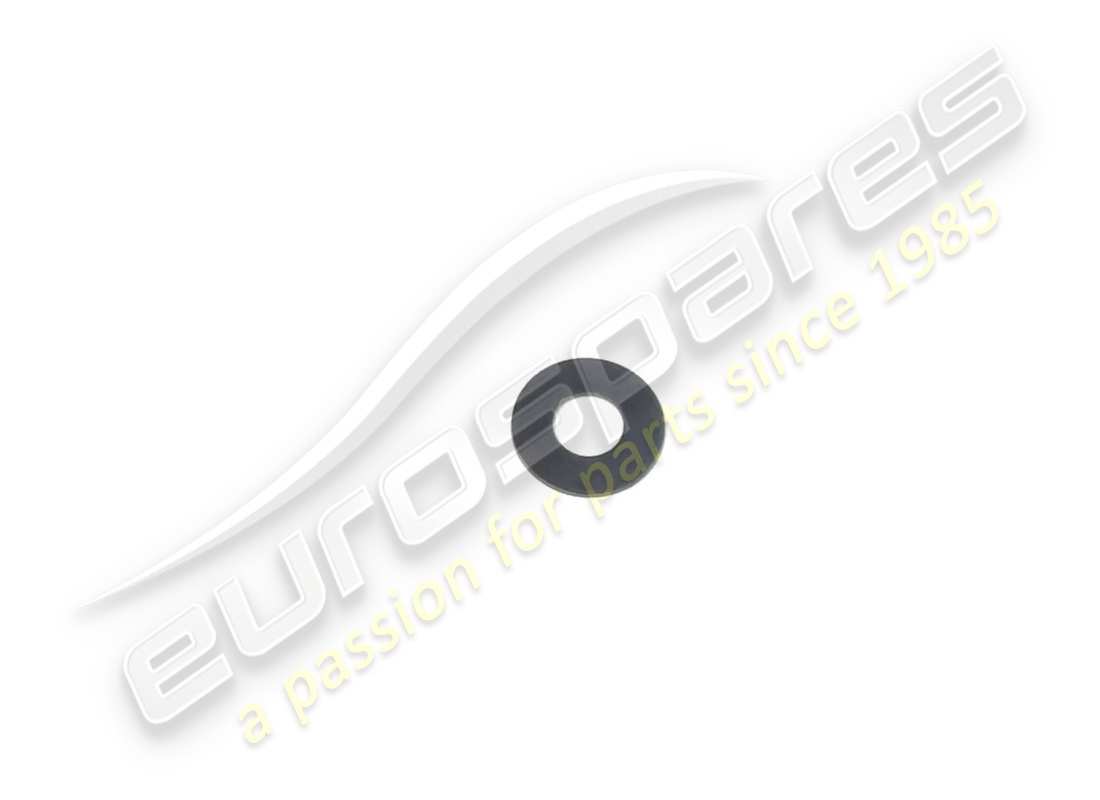

                                                                            WASHER
                                                                            from £5.37
                                                                            from £5.37
                                                                            # 016
                                                                            MPN: 83753300
                                                                            RH LATERAL ENGINE COMPARTMENT COVER
                                                                            -Not for GD- -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 016
                                                                            MPN: 84487300
                                                                            RH LATERAL ENGINE COMPARTMENT COVER
                                                                            -Applicable for GD-
                                                                            from £102.17
                                                                            from £102.17
                                                                            # 016
                                                                            MPN: 84978500
                                                                            RH LATERAL ENGINE COMPARTMENT COVER
                                                                            -Not for GD- -Applicable after depletion of 83753300-
                                                                            from £104.65
                                                                            from £104.65
                                                                            This part replaces part number 83753300
                                                                            # 017
                                                                            MPN: 83896700
                                                                            RH COVER
                                                                            from £218.92
                                                                            from £218.92
                                                                            # 018
                                                                            MPN: 83753400
                                                                            LH LATERAL ENGINE COMPARTMENT COVER
                                                                            -Applicable until depletion-
                                                                            Supersession
                                                                            Supersession
                                                                            # 018
                                                                            MPN: 84978600
                                                                            LH LATERAL ENGINE COMPARTMENT COVER
                                                                            -Applicable after depletion of 83753400-
                                                                            from £104.65
                                                                            from £104.65
                                                                            This part replaces part number 83753400
                                                                            # 019
                                                                            MPN: 83896800
                                                                            LH COVER
                                                                            from £120.41
                                                                            from £120.41
                                                                            # 020
                                                                            MPN: 82502700
                                                                            CENTRAL ENGINE COMPARTMENT COVER
                                                                            from £377.31
                                                                            from £377.31
                                                                            # 021
                                                                            MPN: 83320000
                                                                            RH SEAL
                                                                            from £180.87
                                                                            from £180.87
                                                                            # 022
                                                                            MPN: 83320100
                                                                            LH SEAL
                                                                            from £180.87
                                                                            from £180.87
                                                                            # 023
                                                                            MPN: 83315600
                                                                            UNDERWINDSCREEN TRAY SEAL
                                                                            from £27.29
                                                                            from £27.29
                                                                            # 024
                                                                            MPN: 768316

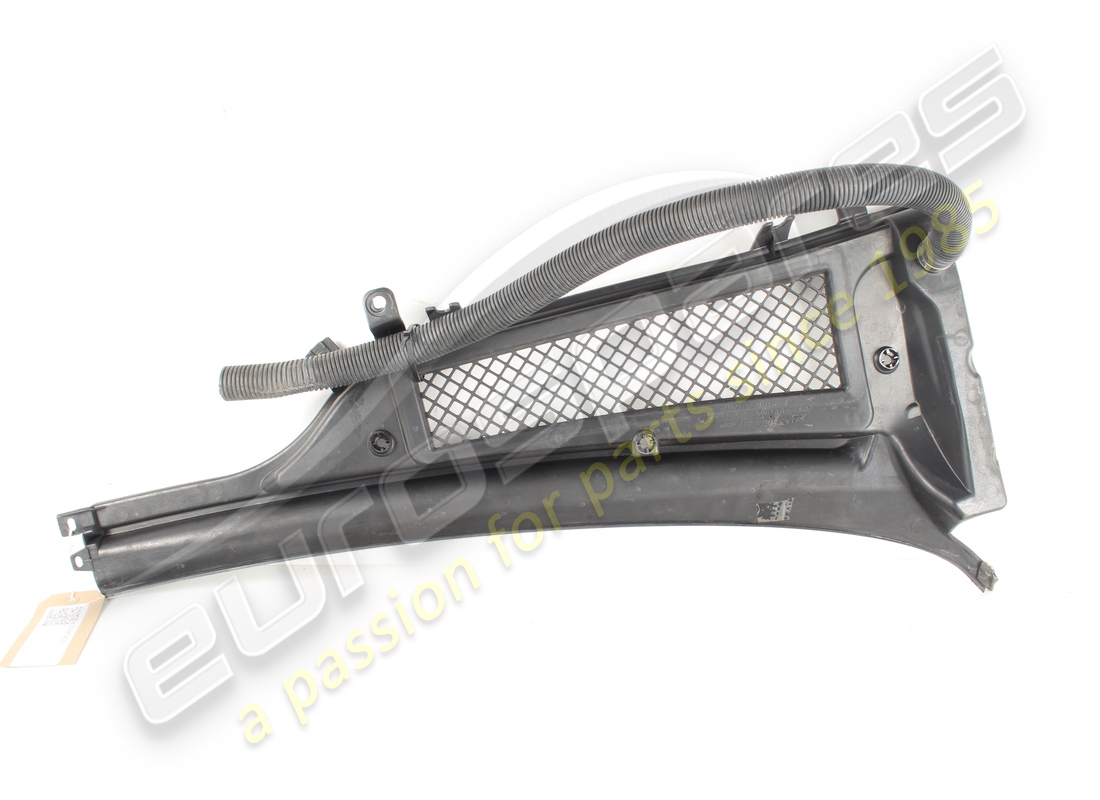

                                                                            COMPL. LH UNDERWINDSCREEN TRAY
                                                                            -Also order LH underwindscreen tray 769100 ref.34- -Not for GD-
                                                                            from £77.58
                                                                            from £77.58
                                                                            This part replaces part number 83765400
                                                                            # 024
                                                                            MPN: 769798

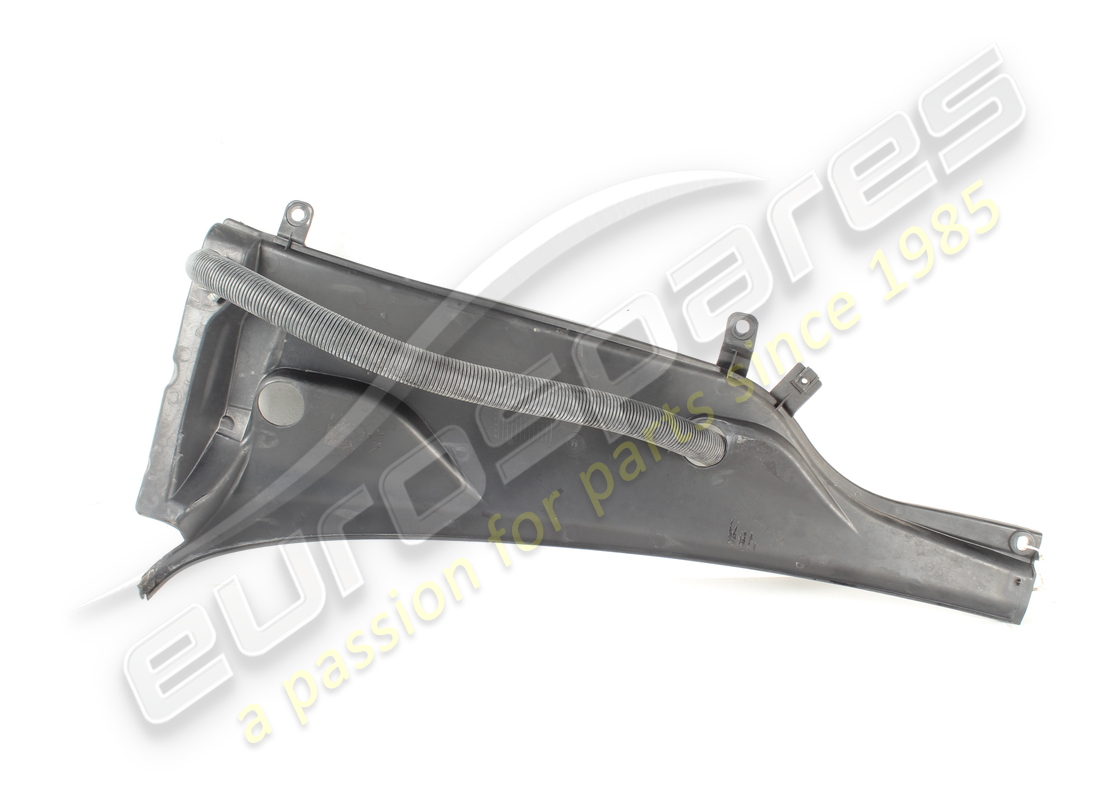

                                                                            COMPL. RH UNDERWINDSCREEN TRAY
                                                                            -Also order LH underwindscreen tray 769800 ref.27- -Applicable for GD-
                                                                            from £86.26
                                                                            from £86.26
                                                                            This part replaces part number 83943300
                                                                            # 024
                                                                            MPN: 83765400
                                                                            COMPL. RH UNDERWINDSCREEN TRAY
                                                                            -Not for GD- -No longer supplied- -Replaced by 768316-
                                                                            Supersession
                                                                            Supersession
                                                                            # 024
                                                                            MPN: 83943300
                                                                            COMPL. RH UNDERWINDSCREEN TRAY
                                                                            -Applicable for GD- -No longer supplied- -Replaced by 769798-
                                                                            Supersession
                                                                            Supersession
                                                                            # 025
                                                                            MPN: 83720000
                                                                            CORRUGATED PIPE
                                                                            -L. 742 mm- -No longer supplied- -Replaced by 84865400-
                                                                            from £2.33
                                                                            from £2.33
                                                                            This part replaces part number 83720100
                                                                            # 025
                                                                            MPN: 84865400
                                                                            CORRUGATED PIPE
                                                                            -L. 792 mm-
                                                                            from £21.88
                                                                            from £21.88
                                                                            # 026
                                                                            MPN: 13000490
                                                                            SCREW COLLAR
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10169090 - and 3 more. Click to view details
                                                                            # 027
                                                                            MPN: 769100

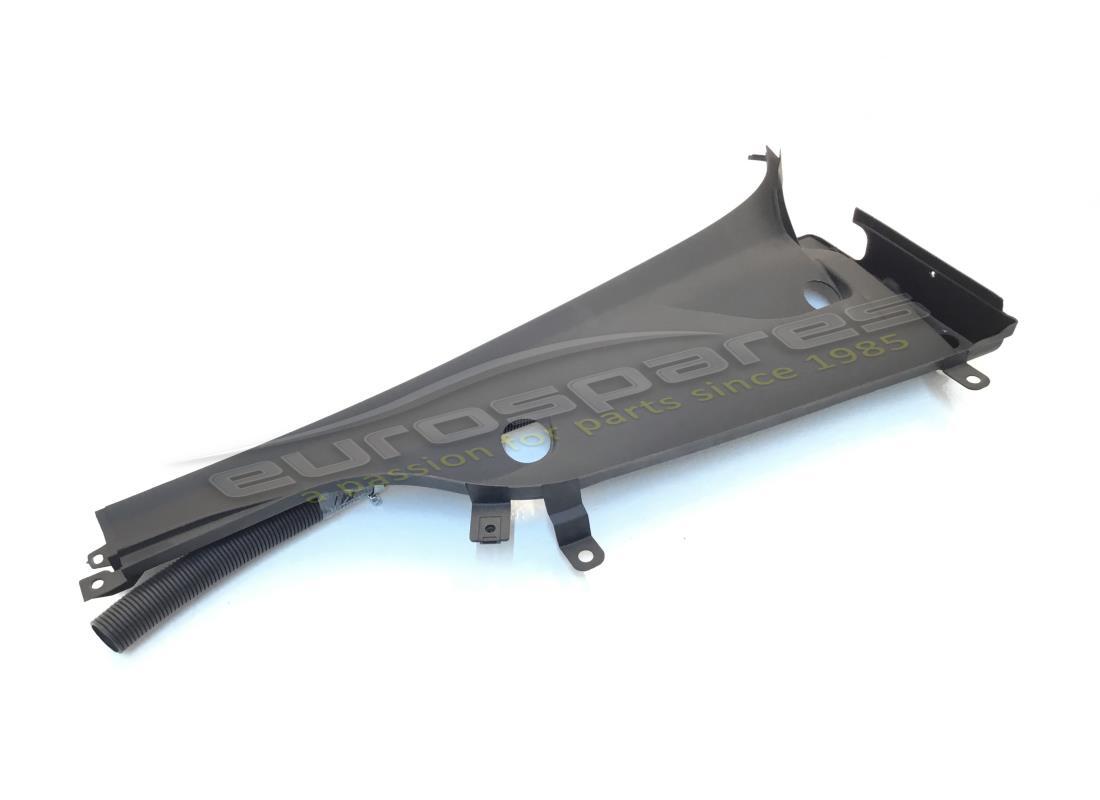

                                                                            COMPL. LH UNDERWINDSCREEN TRAY
                                                                            -Also order RH underwindscreen tray 768316 ref.24- -Not for GD-
                                                                            from £79.11
                                                                            from £79.11
                                                                            # 027
                                                                            MPN: 769800
                                                                            COMPL. LH UNDERWINDSCREEN TRAY
                                                                            -Also order RH underwindscreen tray 769798 ref.24- -Applicable for GD-
                                                                            from £86.26
                                                                            from £86.26
                                                                            This part replaces part number 83943400
                                                                            # 027
                                                                            MPN: 83765500
                                                                            COMPL. LH UNDERWINDSCREEN TRAY
                                                                            -Not for GD- -No longer supplied- -Replaced by 769100-
                                                                            from £83.53
                                                                            from £83.53
                                                                            # 027
                                                                            MPN: 83943400
                                                                            COMPL. LH UNDERWINDSCREEN TRAY
                                                                            -Applicable for GD- -No longer supplied- -Replaced by 769800-
                                                                            Supersession
                                                                            Supersession
                                                                            # 028
                                                                            MPN: 83720000
                                                                            CORRUGATED PIPE
                                                                            -L. 742 mm-
                                                                            from £2.33
                                                                            from £2.33
                                                                            This part replaces part number 83720100
                                                                            # 028
                                                                            MPN: 83720100
                                                                            CORRUGATED PIPE
                                                                            -L. 692 mm- -No longer supplied- -Replaced by 83720000-
                                                                            Supersession
                                                                            Supersession
                                                                            # 029
                                                                            MPN: 13000490
                                                                            SCREW COLLAR
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10169090 - and 3 more. Click to view details
                                                                            # 030
                                                                            MPN: 84020300
                                                                            AC UNIT AIR INTAKE TRAY, MOBILE PART
                                                                            -Not for GD-
                                                                            from £86.30
                                                                            from £86.30
                                                                            # 030
                                                                            MPN: 84027100
                                                                            AC UNIT AIR INTAKE TRAY, MOBILE PART
                                                                            -Applicable for GD-
                                                                            from £88.30
                                                                            from £88.30
                                                                            # 031
                                                                            MPN: 84020200
                                                                            AC UNIT AIR INTAKE TRAY, FIXED PART
                                                                            -Not for GD-
                                                                            from £44.16
                                                                            from £44.16
                                                                            # 031
                                                                            MPN: 84027000
                                                                            AC UNIT AIR INTAKE TRAY, FIXED PART
                                                                            -Applicable for GD-
                                                                            from £68.23
                                                                            from £68.23
                                                                            # 032
                                                                            MPN: 84082700
                                                                            CENTRAL BRACKET FOR COMPL. UNDERWINDSCREEN TRAY
                                                                            from £21.68
                                                                            from £21.68
                                                                            # 033
                                                                            MPN: 16284927
                                                                            SCREW
                                                                            -M5 X 10- -No longer supplied- -Replaced by 16285127-
                                                                            Supersession
                                                                            Supersession
                                                                            # 033
                                                                            MPN: 16285127
                                                                            SCREW
                                                                            -M5 X 16- -No longer supplied- -Replaced by 85692300-
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 033
                                                                            MPN: 85692300
                                                                            SCREW
                                                                            -M5 X 20-
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 83914200
                                                                            # 034
                                                                            MPN: 12638124
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                            # 035
                                                                            MPN: 206739
                                                                            CABLE TIE
                                                                            -No longer supplied-
                                                                            from £3.63
                                                                            from £3.63
                                                                            This part replaces part number 243232
                                                                            # 036

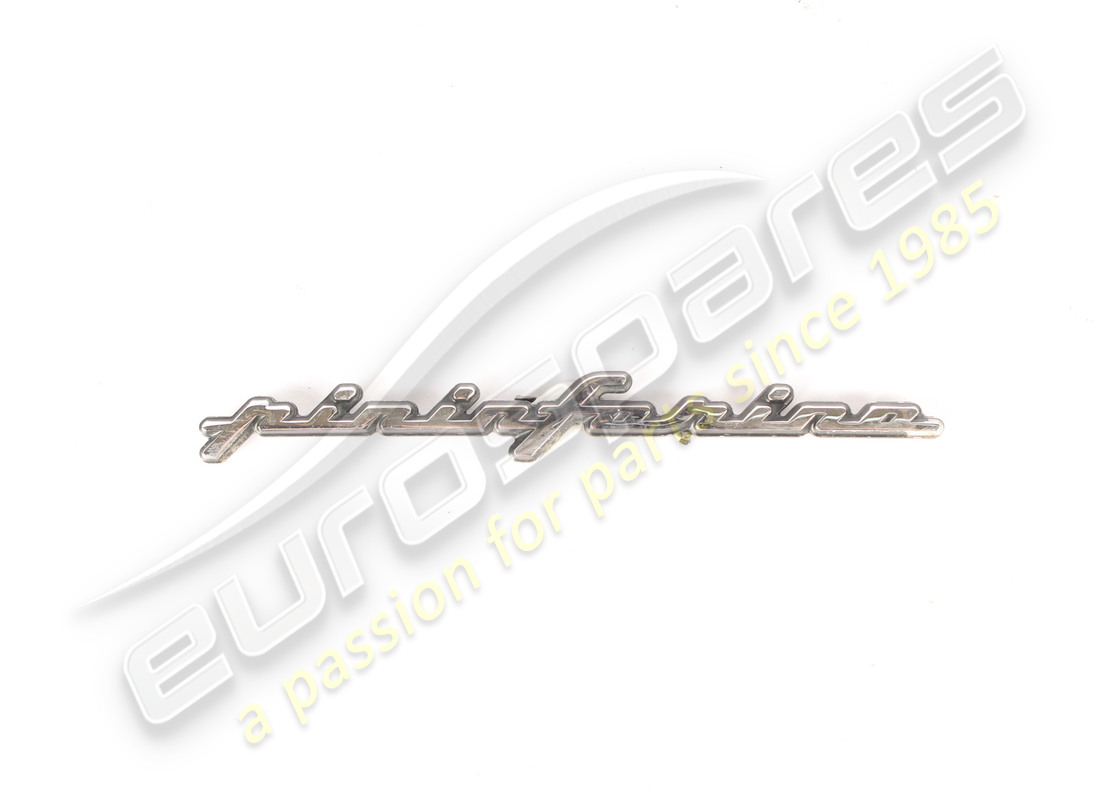

                                                                            MPN: 81604500

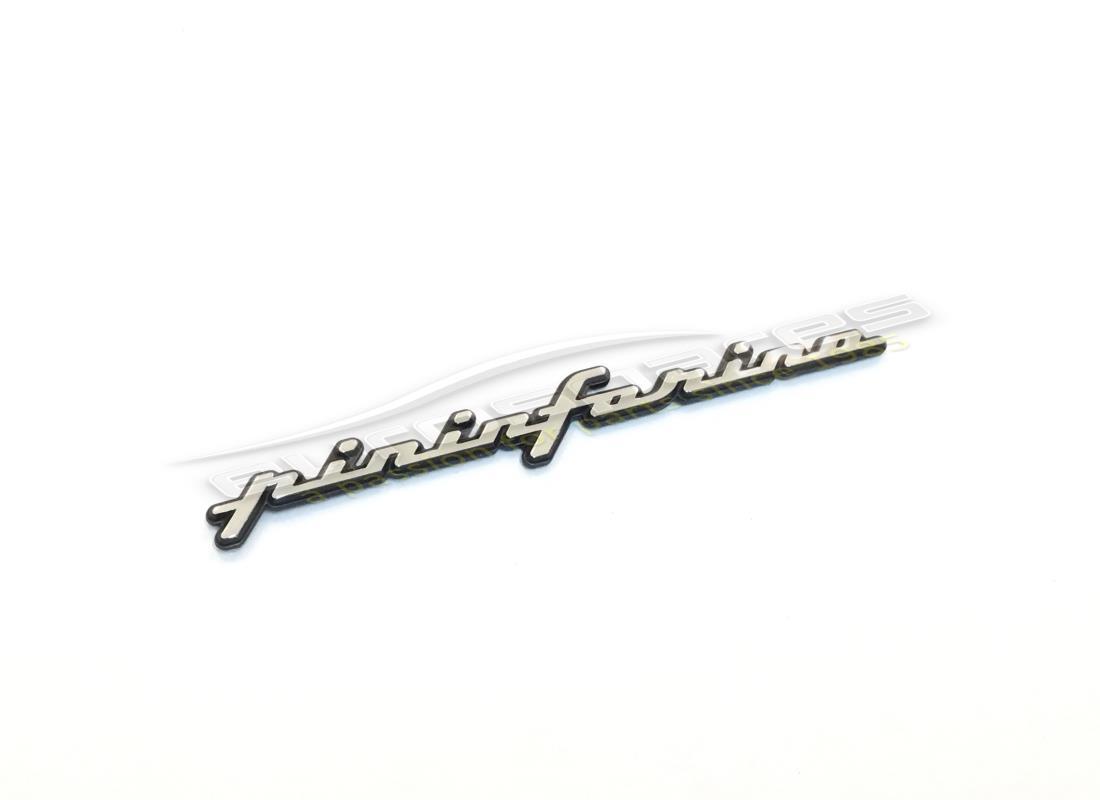

                                                                            PININFARINA BADGE
                                                                            from £23.93
                                                                            from £23.93
                                                                            This part replaces part number 68292600 - and 1 more. Click to view details
                                                                            # 037
                                                                            MPN: 83628100
                                                                            SQUADRA CORSE SHIELD BADGE
                                                                            -Version with shields-
                                                                            from £535.63
                                                                            from £535.63
                                                                            # 038
                                                                            MPN: 67165200
                                                                            CAVALLINO RAMPANTE BADGE
                                                                            from £51.09
                                                                            from £51.09
                                                                            # 039
                                                                            MPN: 16101711
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 16101715
                                                                            # 040
                                                                            MPN: 65394800

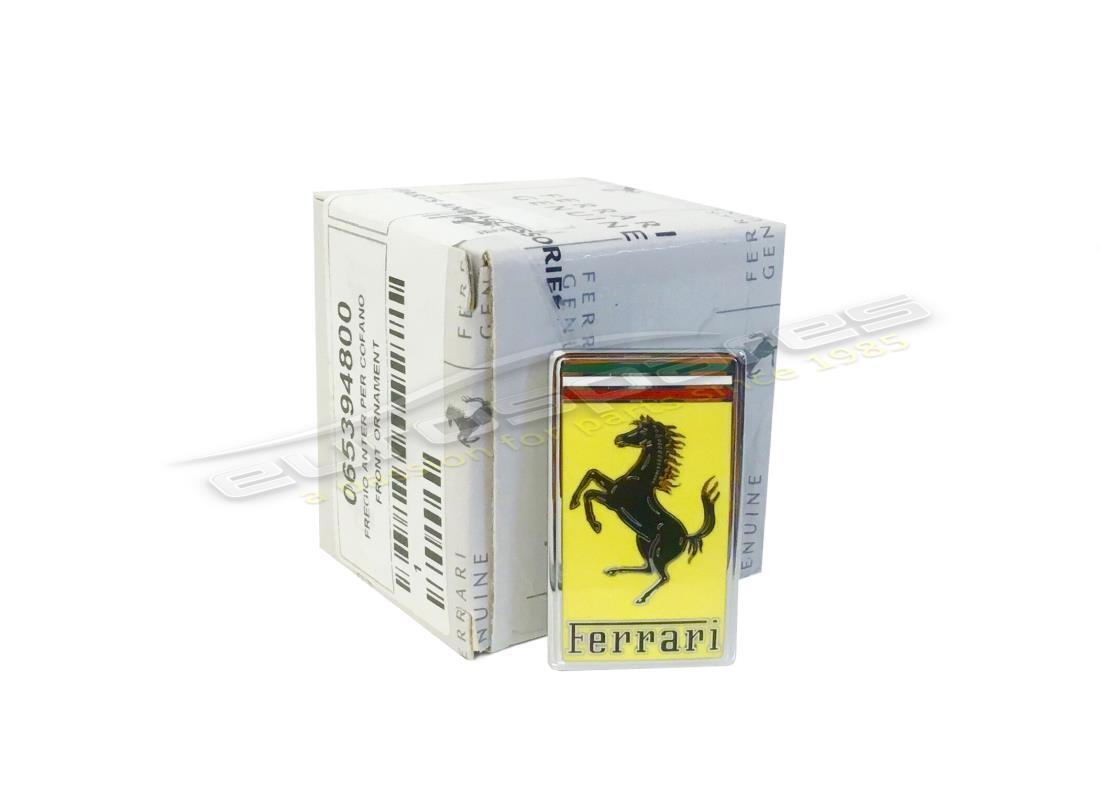

                                                                            front badge
                                                                            from £101.47
                                                                            from £101.47
                                                                            # 041
                                                                            MPN: 113647
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 042
                                                                            MPN: 12638124
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                            # 043
                                                                            MPN: 80214400
                                                                            CHROME HORSE
                                                                            from £41.90
                                                                            from £41.90
                                                                            # 044
                                                                            MPN: 62790300
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 12574011 - and 1 more. Click to view details
                                                                            # 045
                                                                            MPN: 70002076
                                                                            COMPL. FILM KIT
                                                                            -Not for USA, CDN, USA LIGHT-
                                                                            from £2,438.41
                                                                            from £2,438.41
                                                                            # 045
                                                                            MPN: 70002077
                                                                            LH SIDE FILM KIT
                                                                            from £827.87
                                                                            from £827.87
                                                                            # 045
                                                                            MPN: 70002078
                                                                            RH SIDE FILM KIT
                                                                            from £1,704.19
                                                                            from £1,704.19
                                                                            # 045
                                                                            MPN: 70002079
                                                                            FRONT ADHESIVE FILM KIT
                                                                            -Not for USA, CDN, USA LIGHT-
                                                                            from £1,641.22
                                                                            from £1,641.22
                                                                            # 045
                                                                            MPN: 70002080
                                                                            COMPL. FILM KIT
                                                                            -Applicable for USA, CDN, USA LIGHT-
                                                                            from £1,563.85
                                                                            from £1,563.85
                                                                            # 045
                                                                            MPN: 70002081
                                                                            FRONT ADHESIVE FILM KIT
                                                                            -Applicable for USA, CDN, USA LIGHT-
                                                                            from £1,216.33
                                                                            from £1,216.33
                                                                            # 046
                                                                            MPN: 70002083
                                                                            HIGH WEAR FILM KIT
                                                                            from £147.47
                                                                            from £147.47
                                                                            # 047
                                                                            MPN: 14304187
                                                                            SCREW
                                                                            -M5 X 12-
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 87658800
                                                                            # 047
                                                                            MPN: 256490
                                                                            SCREW
                                                                            from £1.11
                                                                            from £1.11
                                                                            This part replaces part number 86607000
                                                                            # 048
                                                                            MPN: 84706300

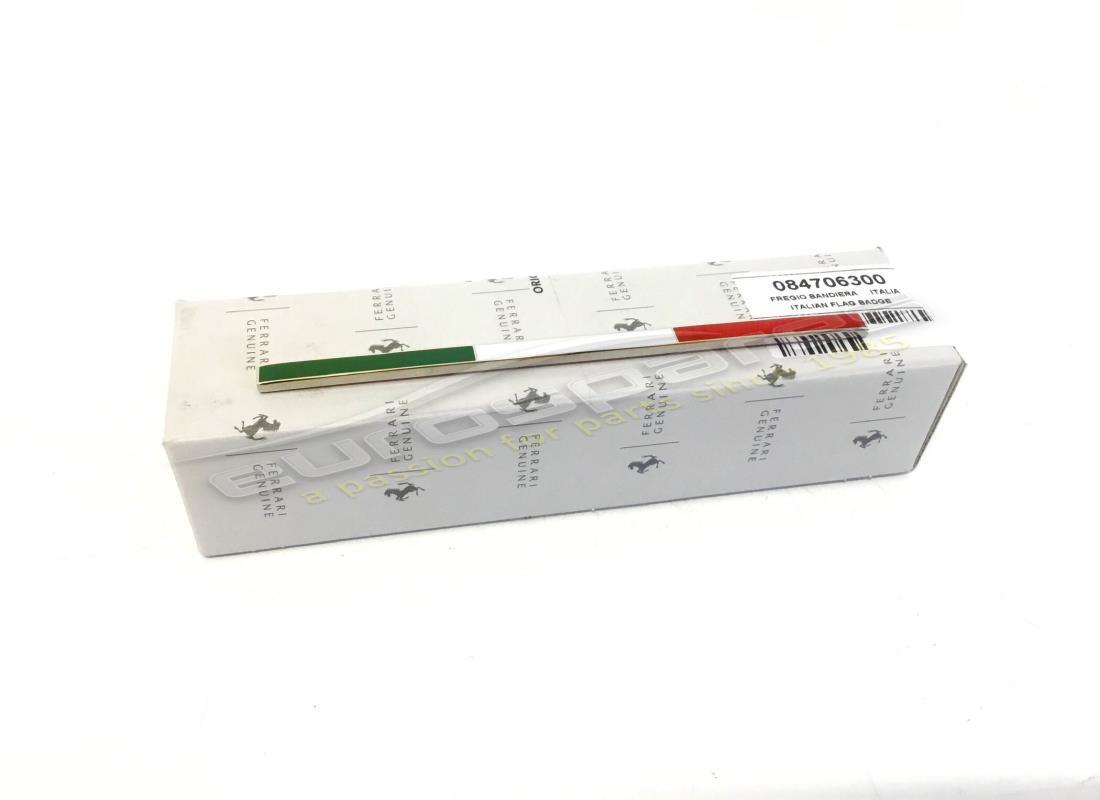

                                                                            ITALIAN FLAG BADGE
                                                                            -Optional-
                                                                            Supersession
                                                                            Supersession
                                                                            # 049
                                                                            MPN: 80874800

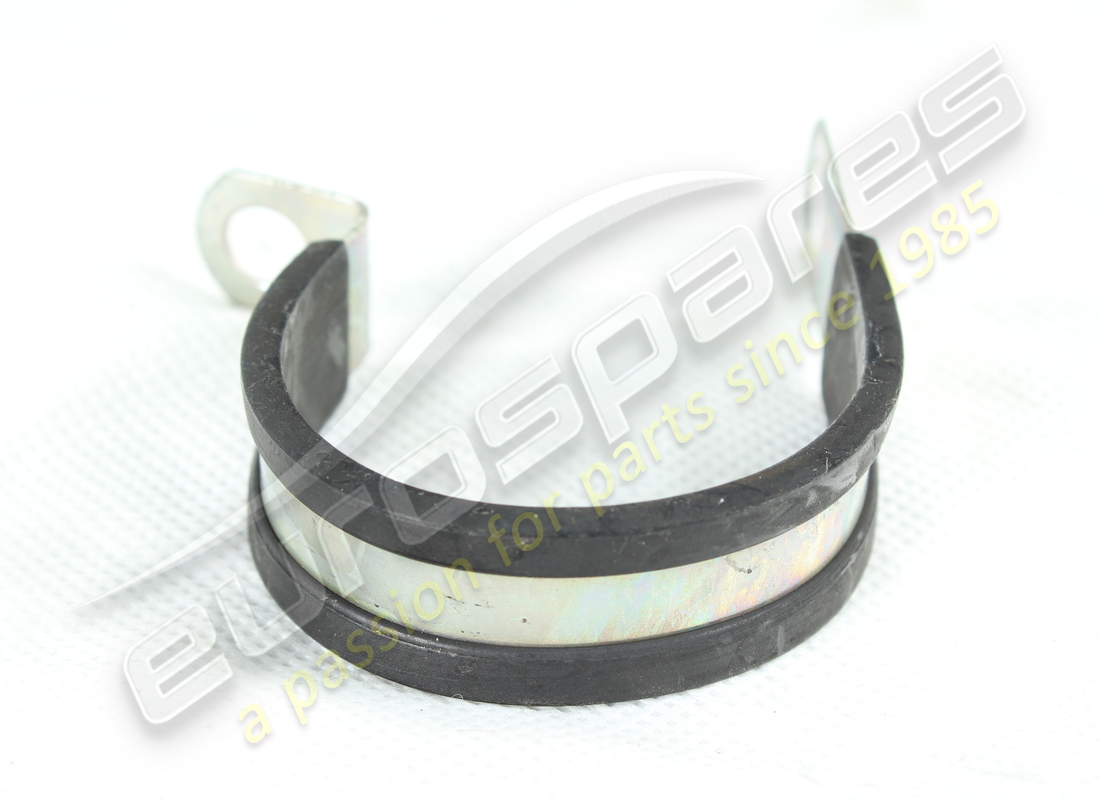

                                                                            CLIP
                                                                            from £2.44
                                                                            from £2.44
                                                                            # 050
                                                                            MPN: 80874300
                                                                            CLIP
                                                                            from £0.60
                                                                            from £0.60
                                                                            # 051
                                                                            MPN: 67278400
                                                                            BRACKET
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 052
                                                                            MPN: 69714400
                                                                            SERIAL NUMBER PLATE
                                                                            -No longer supplied-
                                                                            from £57.35
                                                                            from £57.35
                                                                            This part replaces part number 87749200
                                                                            # 053
                                                                            MPN: 60995100
                                                                            RUBBER RING
                                                                            from £1.84
                                                                            from £1.84
                                                                            # 054
                                                                            MPN: 10519224
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 10519201 which we have in stock
                                                                            # 055
                                                                            MPN: 10448890
                                                                            BRACKET WITH SHEATH
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 056
                                                                            MPN: 14059111
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 057
                                                                            MPN: 84927100

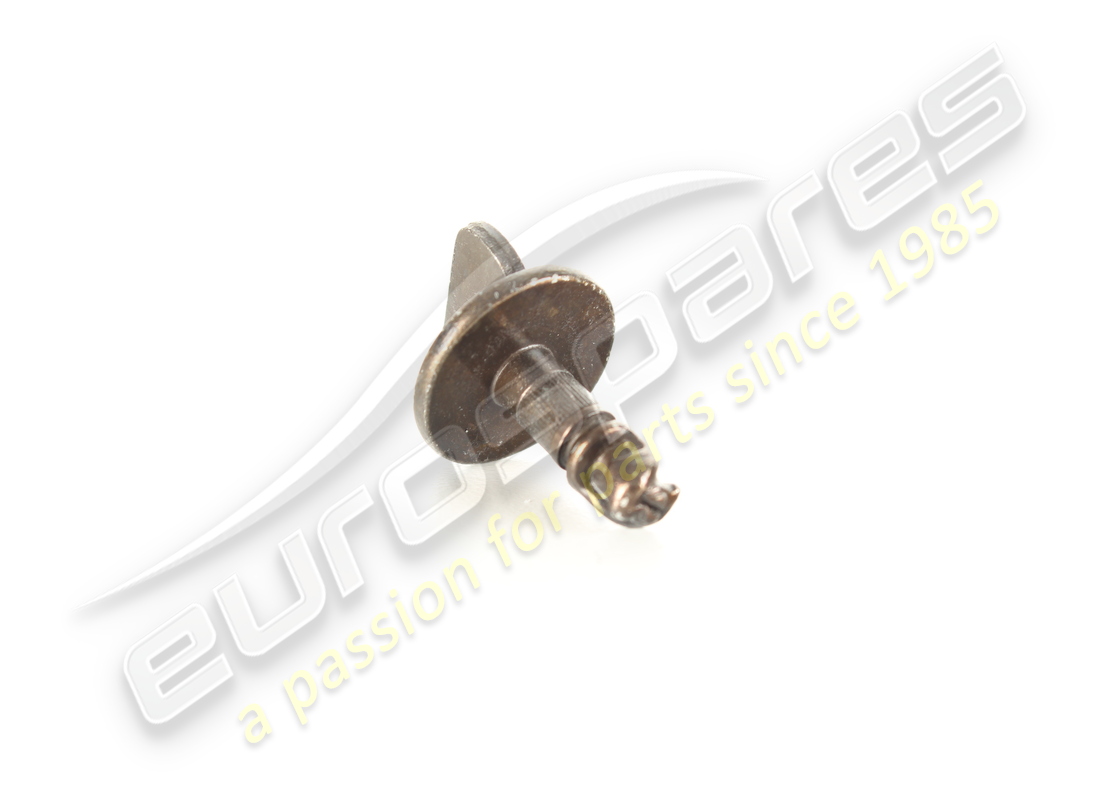

                                                                            QUARTER TURN SCREW
                                                                            from £8.03
                                                                            from £8.03
                                                                            # 058
                                                                            MPN: 83957000
                                                                            FASTENING FOR SCREW
                                                                            from £4.02
                                                                            from £4.02
                                                                            # 059
                                                                            MPN: 83914300
                                                                            CLIP
                                                                            from £8.03
                                                                            from £8.03
                                                                            # 060
                                                                            MPN: 85149300
                                                                            FF LOGO
                                                                            -Applicable for CINA-
                                                                            from £109.48
                                                                            from £109.48
