0134 - VEHICLE ECUs

Ferrari FF (USA) VEHICLE ECUs Parts Diagram

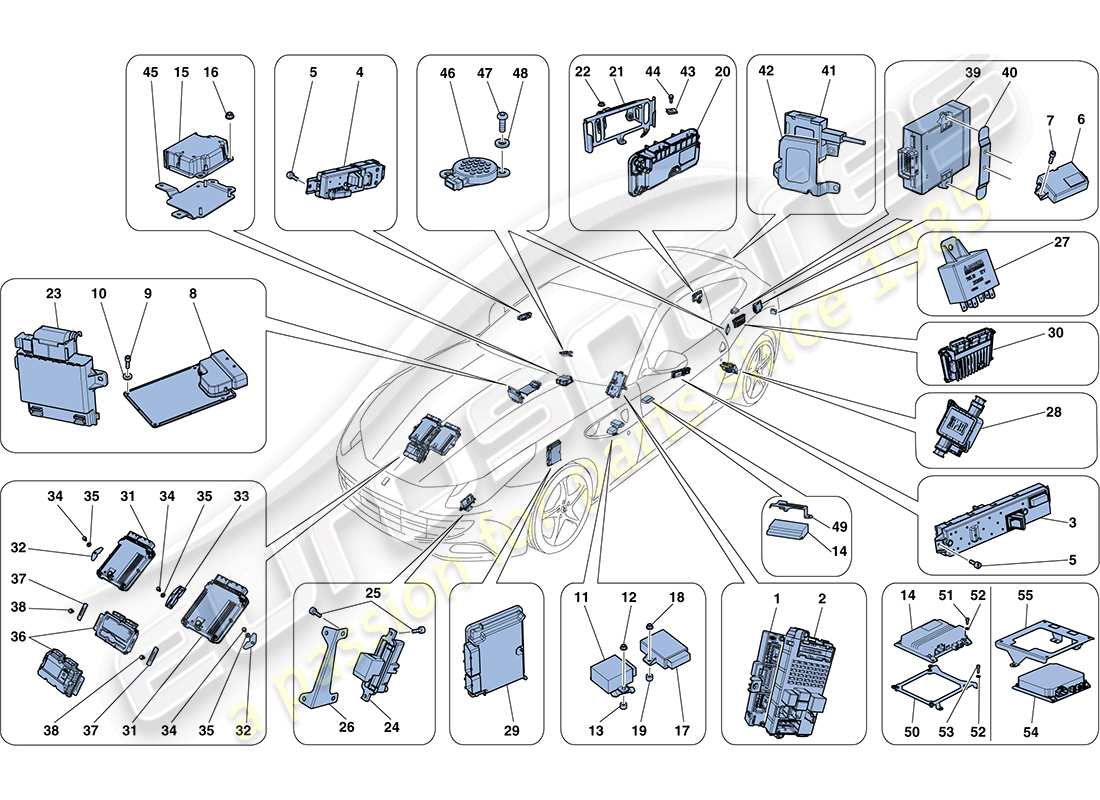

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 261167
                                                  BODY COMPUTER NODE
                                                  -Not for power assisted tailgate- -Not for USA, CDN, USA LIGHT- -Applicable until depletion-
                                                  Supersession
                                                  Supersession
                                                  # 001
                                                  MPN: 283856
                                                  BODY COMPUTER NODE
                                                  -Version with power assisted tailgate- -Applicable after depletion of 261167-
                                                  from £518.87
                                                  from £518.87
                                                  This part replaces part number 261167
                                                  # 002
                                                  MPN: 245788
                                                  DASHBOARD ECU
                                                  from £158.05
                                                  from £158.05
                                                  This part replaces part number 229378 - and 4 more. Click to view details
                                                  # 003
                                                  MPN: 273412
                                                  DRIVER SIDE DOOR NODE ECU
                                                  from £306.04
                                                  from £306.04
                                                  This part replaces part number 232149 - and 2 more. Click to view details
                                                  # 004
                                                  MPN: 273413
                                                  PASSENGER SIDE DOOR NODE ECU
                                                  from £301.00
                                                  from £301.00
                                                  This part replaces part number 232150 which we have in stock - and 1 more. Click to view details
                                                  # 005
                                                  MPN: 13290014
                                                  SCREW
                                                  -M6 X 14- -No longer supplied- -Replaced by 16285127-
                                                  # 005
                                                  MPN: 16285127
                                                  SCREW
                                                  -M5 X 16- -No longer supplied- -Replaced by 85692300-
                                                  from £0.51
                                                  from £0.51
                                                  # 005
                                                  MPN: 85692200
                                                  SCREW
                                                  -M5 X 12-
                                                  from £0.47
                                                  from £0.47
                                                  # 005
                                                  MPN: 85692300
                                                  SCREW
                                                  -M5 X 20- -No longer supplied- -Replaced by 85692200-
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 83914200
                                                  # 006
                                                  MPN: 263290
                                                  PARKING SENSOR NODE ECU
                                                  -Applicable until depletion-
                                                  Supersession
                                                  Supersession
                                                  # 006
                                                  MPN: 270560
                                                  PARKING SENSOR NODE ECU
                                                  -Applicable after depletion of 263290- -No longer supplied- -Replaced by 302489-
                                                  from £83.18
                                                  from £83.18
                                                  This part replaces part number 257068 - and 3 more. Click to view details
                                                  # 006
                                                  MPN: 302489
                                                  PARKING SENSOR NODE ECU
                                                  from £133.90
                                                  from £133.90
                                                  This part replaces part number 270560 which we have in stock - and 1 more. Click to view details
                                                  # 007
                                                  MPN: 231617
                                                  SCREW
                                                  -M6 X 18-
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 14433124 which we have in stock
                                                  # 008
                                                  MPN: 272823
                                                  MAGNERIDE SUSPENSION ECU
                                                  from £665.21
                                                  from £665.21
                                                  # 009
                                                  MPN: 14303474
                                                  SCREW
                                                  from £0.53
                                                  from £0.53
                                                  # 010
                                                  MPN: 12601074
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12601070 which we have in stock
                                                  # 011
                                                  MPN: 272121
                                                  POWER STEERING CONTROL ECU
                                                  from £118.90
                                                  from £118.90
                                                  # 012
                                                  MPN: 14059111
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  # 013
                                                  MPN: 13604115
                                                  SHIM
                                                  -No longer supplied- -Replaced by 65708600-
                                                  from £0.92
                                                  from £0.92
                                                  This part replaces part number 13604111
                                                  # 013
                                                  MPN: 65708600
                                                  SHIM
                                                  from £4.12
                                                  from £4.12
                                                  # 014
                                                  MPN: 267996
                                                  PARKING CAMERA ECU
                                                  -Not for Geneva version-
                                                  from £1,335.79
                                                  from £1,335.79
                                                  # 014
                                                  MPN: 309755
                                                  PARKING CAMERA ECU
                                                  -Applicable for Geneva version- -Not for version with Apple Car Play- -Version with front camera with dual view-
                                                  from £1,080.96
                                                  from £1,080.96
                                                  # 015
                                                  MPN: 271209
                                                  AIRBAG ECU
                                                  from £499.40
                                                  from £499.40
                                                  # 016
                                                  MPN: 14059211
                                                  NUT
                                                  from £0.53
                                                  from £0.53
                                                  # 017
                                                  MPN: 237967
                                                  TPMS ECU
                                                  -Applicable up to Ass. No. 124320- -Applicable until depletion-
                                                  from £248.42
                                                  from £248.42
                                                  # 017
                                                  MPN: 299017
                                                  TPMS ECU
                                                  -Applicable from Ass. No. 124321- -Applicable after depletion of 237967-
                                                  from £247.53
                                                  from £247.53
                                                  This part replaces part number 237967 which we have in stock
                                                  # 018
                                                  MPN: 14059211
                                                  NUT
                                                  from £0.53
                                                  from £0.53
                                                  # 019
                                                  MPN: 13604115
                                                  SHIM
                                                  from £0.92
                                                  from £0.92
                                                  This part replaces part number 13604111
                                                  # 020
                                                  MPN: 271225
                                                  VEHICLE LIFT ECU
                                                  -Applicable for electric pump 257972 tab.42 ref.1- -Applicable until depletion-
                                                  Supersession
                                                  Supersession
                                                  # 020
                                                  MPN: 343008
                                                  VEHICLE LIFT ECU
                                                  -Applicable for electric pump 328447 tab.42 ref.1-
                                                  from £684.61
                                                  from £684.61
                                                  # 020
                                                  MPN: 749880
                                                  VEHICLE LIFT ECU
                                                  -Applicable for electric pump 257972 tab.42 ref.1- -Applicable after depletion of 271225-
                                                  from £684.61
                                                  from £684.61
                                                  This part replaces part number 271225
                                                  # 021
                                                  MPN: 270164
                                                  BRACKET
                                                  from £32.90
                                                  from £32.90
                                                  # 022
                                                  MPN: 14059111
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  # 023
                                                  MPN: 264097
                                                  VOLTAGE STABILIZER
                                                  -Applicable for Stop&Start-
                                                  from £183.30
                                                  from £183.30
                                                  # 024
                                                  MPN: 277281
                                                  ADAPTIVE HEADLIGHT NODE ECU
                                                  from £158.53
                                                  from £158.53
                                                  This part replaces part number 254413
                                                  # 025
                                                  MPN: 14304220
                                                  SCREW
                                                  -M5 X 16-
                                                  from £0.51
                                                  from £0.51
                                                  # 026
                                                  MPN: 277468
                                                  BRACKET
                                                  from £15.12
                                                  from £15.12
                                                  This part replaces part number 260292
                                                  # 027
                                                  MPN: 253060
                                                  INTERMITTENT UNIT FOR WIPER MOTOR
                                                  -Version with rear windscreen wiper-
                                                  from £51.90
                                                  from £51.90
                                                  This part replaces part number 180199 which we have in stock
                                                  # 028
                                                  MPN: 264935
                                                  PWM COMMAND SIGNAL FOR FUEL PUMPS
                                                  from £128.81
                                                  from £128.81
                                                  # 029
                                                  MPN: 269372
                                                  4WD ECU
                                                  -Applicable up to Ass. No. 100044- -Applicable until depletion-
                                                  Supersession
                                                  Supersession
                                                  # 029
                                                  MPN: 280022
                                                  4WD ECU
                                                  -Applicable from Ass. No. 100045 up to Ass. No. 101439- -Applicable after depletion of 269372- -No longer supplied- -Replaced by 283429-
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 269372
                                                  # 029
                                                  MPN: 283429
                                                  4WD ECU
                                                  -Replaces 280022- -Applicable from Ass. No. 101440- -No longer supplied- -Replaced by 287471-
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 280022
                                                  # 029
                                                  MPN: 287471
                                                  ECU 4WD
                                                  -No longer supplied- -Replaced by 292459-
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 283429
                                                  # 029
                                                  MPN: 292459
                                                  4WD ECU
                                                  from £442.47
                                                  from £442.47
                                                  This part replaces part number 287471
                                                  # 030
                                                  MPN: 258974
                                                  DCT GEARBOX ECU
                                                  -Unprogrammed-
                                                  from £4,607.53
                                                  from £4,607.53
                                                  This part replaces part number 244441 - and 7 more. Click to view details
                                                  # 031
                                                  MPN: 238263
                                                  IGNITION ECU
                                                  -Unprogrammed-
                                                  from £877.44
                                                  from £877.44
                                                  This part replaces part number 239971 - and 37 more. Click to view details
                                                  # 032
                                                  MPN: 276047
                                                  RH BRACKET
                                                  from £16.58
                                                  from £16.58
                                                  # 032
                                                  MPN: 276048
                                                  LH BRACKET
                                                  from £16.58
                                                  from £16.58
                                                  # 033
                                                  MPN: 257695
                                                  CENTRE BRACKET
                                                  from £11.89
                                                  from £11.89
                                                  # 034
                                                  MPN: 16296924
                                                  SCREW
                                                  -M6 X 14- -No longer supplied- -Replaced by 16297624-
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 289834
                                                  # 034
                                                  MPN: 16297624
                                                  SCREW
                                                  -M6 X 10-
                                                  from £0.53
                                                  from £0.53
                                                  # 035
                                                  MPN: 12647624
                                                  WASHER
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 12647611
                                                  # 036
                                                  MPN: 262550
                                                  IONISING KNOCK SENSOR CONTROL UNIT
                                                  -Unprogrammed-
                                                  from £288.75
                                                  from £288.75
                                                  This part replaces part number 262549 - and 11 more. Click to view details
                                                  # 036
                                                  MPN: 264704
                                                  IONISING KNOCK SENSOR CONTROL UNIT
                                                  -No longer supplied- -Replaced by 262550-
                                                  Supersession
                                                  Supersession
                                                  # 037
                                                  MPN: 265751
                                                  SHIM
                                                  from £3.14
                                                  from £3.14
                                                  # 038
                                                  MPN: 16296924
                                                  SCREW
                                                  -M6 X 14-
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 289834
                                                  # 039
                                                  MPN: 281088
                                                  POWER LIFTGATE ECU
                                                  from £590.92
                                                  from £590.92
                                                  # 040
                                                  MPN: 281330
                                                  TAILGATE ECU BRACKET
                                                  from £21.27
                                                  from £21.27
                                                  # 041
                                                  MPN: 279054
                                                  FM ANTENNA SPLITTER
                                                  -Not for Geneva version- -Applicable for J-
                                                  from £139.27
                                                  from £139.27
                                                  # 042
                                                  MPN: 281015
                                                  AM/FM SPLITTER MOUNTING BRACKET
                                                  -Not for Geneva version- -Applicable for J-
                                                  from £34.22
                                                  from £34.22
                                                  # 043
                                                  MPN: 66927700
                                                  BRACKET
                                                  from £0.77
                                                  from £0.77
                                                  # 044
                                                  MPN: 16285127
                                                  SCREW
                                                  -M5 X 16- -No longer supplied- -Replaced by 85692300-
                                                  from £0.53
                                                  from £0.53
                                                  # 044
                                                  MPN: 85692300
                                                  SCREW
                                                  -M5 X 20-
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 83914200
                                                  # 045
                                                  MPN: 250693
                                                  BRACKET
                                                  -No longer supplied- -Replaced by 285180-
                                                  Supersession
                                                  Supersession
                                                  # 045
                                                  MPN: 285180
                                                  BRACKET
                                                  from £28.18
                                                  from £28.18
                                                  This part replaces part number 250693
                                                  # 047
                                                  MPN: 65212000
                                                  SCREW
                                                  -M5 X 8- -Front parking sensors- -No longer supplied- -Replaced by 85691900-
                                                  from £0.76
                                                  from £0.76
                                                  # 047
                                                  MPN: 65212000
                                                  SCREW
                                                  -M5 X 8- -Rear parking sensors- -No longer supplied- -Replaced by 85691900-
                                                  from £0.76
                                                  from £0.76
                                                  # 047
                                                  MPN: 85691900
                                                  SCREW
                                                  -M5 X 8- -Front parking sensors-
                                                  from £0.53
                                                  from £0.53
                                                  # 047
                                                  MPN: 85691900
                                                  SCREW
                                                  -M5 X 8- -Rear parking sensors-
                                                  from £0.53
                                                  from £0.53
                                                  # 048
                                                  MPN: 125516
                                                  WASHER
                                                  -Front parking sensors- -No longer supplied-
                                                  from £3.05
                                                  from £3.05
                                                  # 049
                                                  MPN: 267992
                                                  BRACKET
                                                  -Not for Geneva version-
                                                  from £11.42
                                                  from £11.42
                                                  # 050
                                                  MPN: 311387
                                                  BRACKET
                                                  -Applicable for Geneva version- -Not for version with Apple Car Play- -Version with front camera with dual view-
                                                  from £27.39
                                                  from £27.39
                                                  # 051
                                                  MPN: 14302921
                                                  SCREW
                                                  -M4 X 10- -Applicable for Geneva version- -Not for version with Apple Car Play-
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 3099423
                                                  # 052
                                                  MPN: 12601074
                                                  WASHER
                                                  -Applicable for Geneva version- -Not for version with Apple Car Play-
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12601070 which we have in stock
                                                  # 053
                                                  MPN: 14303024
                                                  SCREW
                                                  -M4 X 12- -Applicable for Geneva version- -Not for version with Apple Car Play-
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 14303021 - and 1 more. Click to view details
                                                  # 054
                                                  MPN: 308156
                                                  INODE ECU
                                                  -Applicable for Geneva version- -Version with Apple Car Play-
                                                  from £2,975.50
                                                  from £2,975.50
                                                  # 055
                                                  MPN: 86586300
                                                  NODE COVER FASTENER BRACKET
                                                  -Applicable for Geneva version- -Version with Apple Car Play- -Applicable for GD-
                                                  from £46.84
                                                  from £46.84
