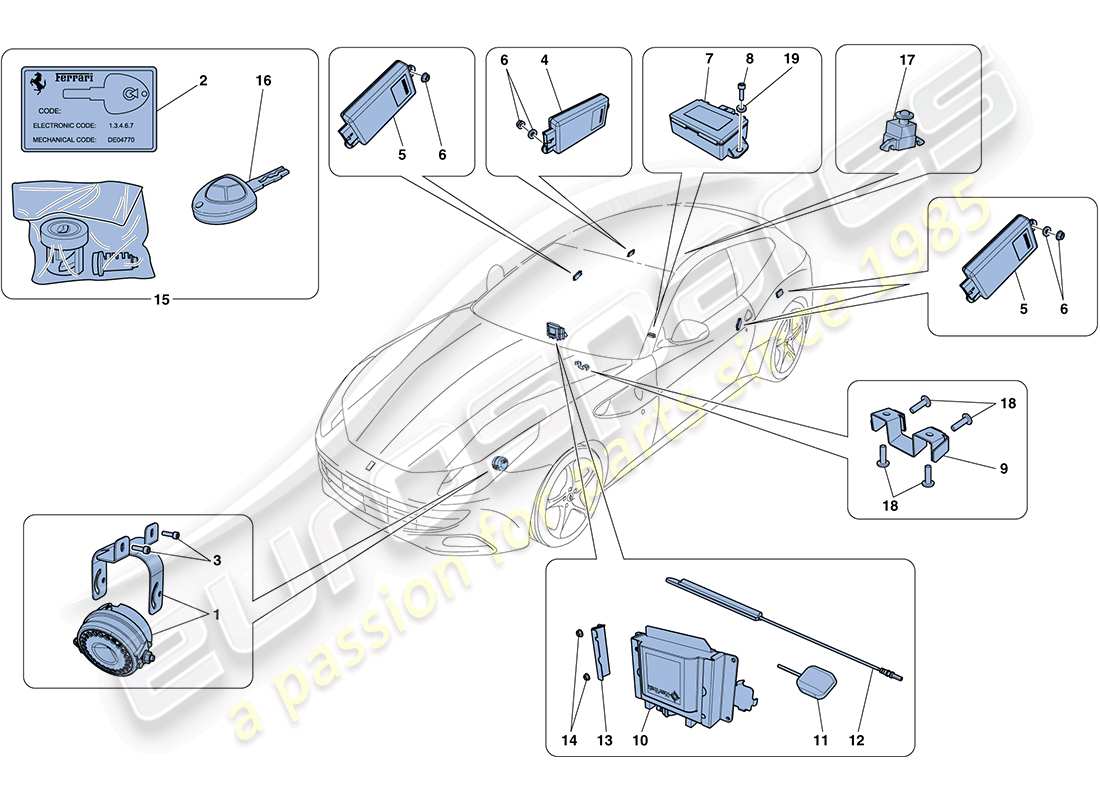

0135 - ANTITHEFT SYSTEM
Ferrari FF (USA) ANTITHEFT SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 272825
COMPL. ANTI-THEFT SYSTEM SIREN
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 196437
# 001
MPN: 282235
COMPL. ANTI-THEFT SYSTEM SIREN
-Applicable after depletion of 272825- -Applicable until depletion-
from £35.76
from £35.76
This part replaces part number 272825 - and 1 more. Click to view details
# 001
MPN: 295278
COMPL. ANTI-THEFT SYSTEM SIREN
-Not for Israel- -Applicable after depletion of 282235-
from £44.69
from £44.69
This part replaces part number 282235 which we have in stock - and 1 more. Click to view details
# 001
MPN: 315744
COMPL. ANTI-THEFT SYSTEM SIREN
-Applicable for Israel-
from £83.32
from £83.32
# 002
MPN: 153603
Ferrari CODE CARD
from £34.32
from £34.32
This part replaces part number 194003
# 003
MPN: 14304220
SCREW
-M5 X 16-
from £0.47
from £0.47
# 004
MPN: 267744
MASTER HYPERFREQUENCY VOLUMETRIC SENSOR
from £66.12
from £66.12
# 005
MPN: 217727
SLAVE HYPERFREQUENCY VOLUMETRIC SENSOR
from £74.47
from £74.47
# 006
MPN: 113647
NUT
from £0.47
from £0.47
# 006
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 - and 1 more. Click to view details
# 007
MPN: 238935

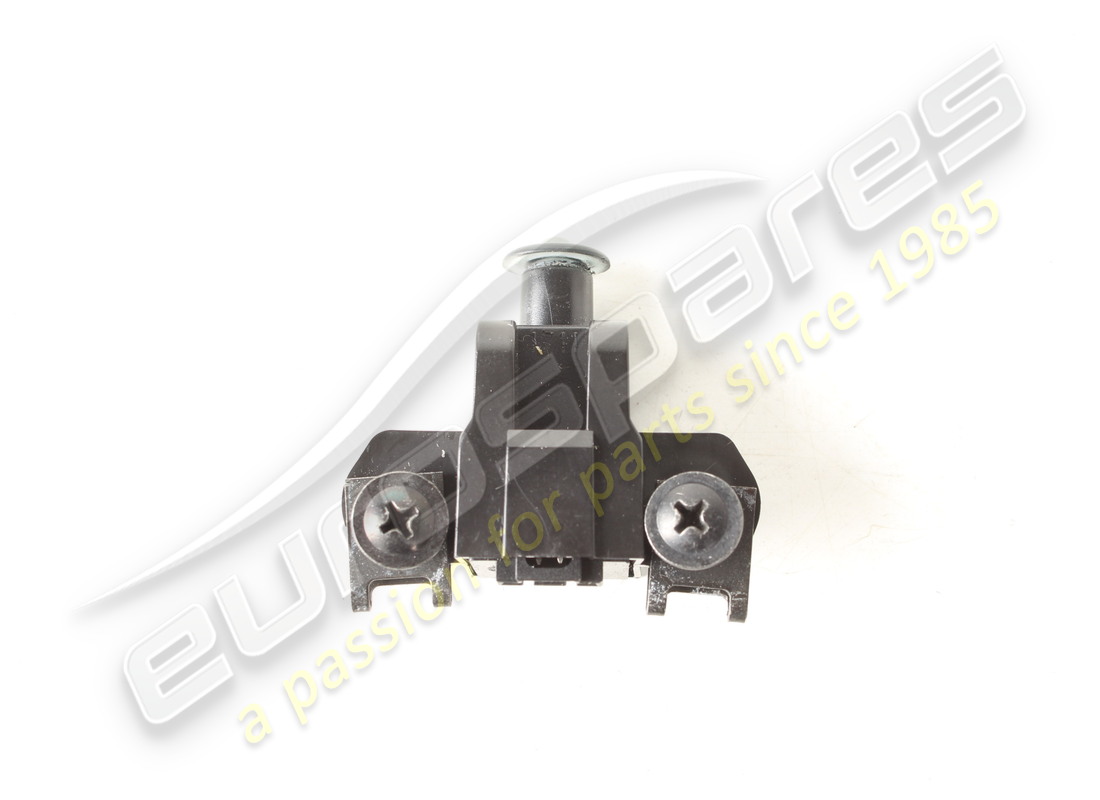

ANTI-LIFT SENSOR
from £99.39
from £99.39
# 008
MPN: 14303024
SCREW
-M4 X 12-
from £0.53
from £0.53
This part replaces part number 14303021 - and 1 more. Click to view details
# 009
MPN: 261366
THEFT DETERRENT LAMP FASTENER BRACKET
from £15.58
from £15.58
# 010
MPN: 235627

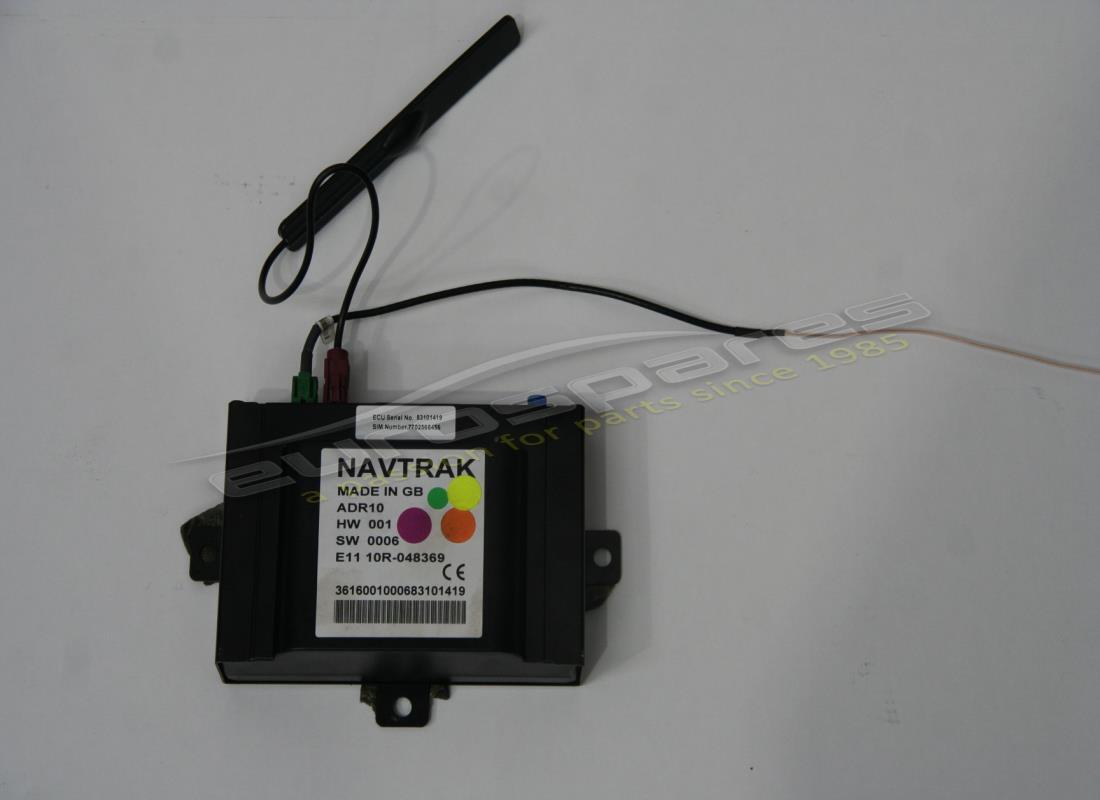

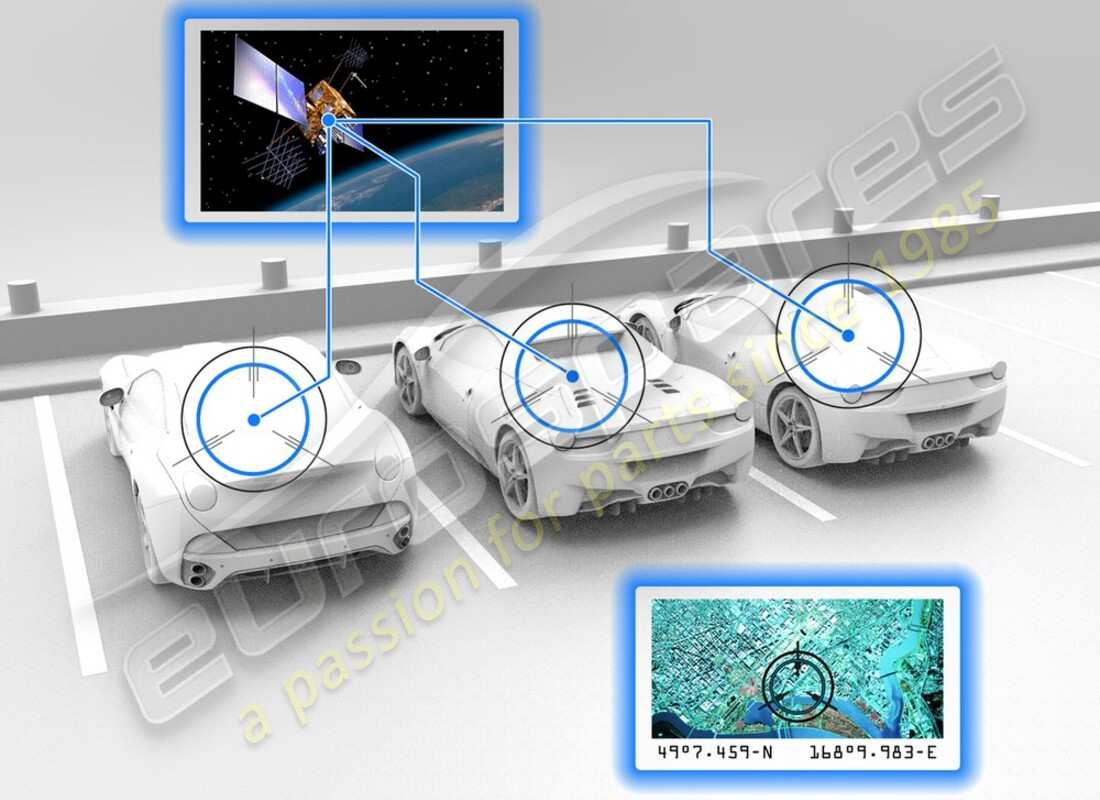

ADR5 SATELLITE ALARM SYSTEM ECU
-Applicable up to Ass. No. 124145- -Applicable until depletion-
Supersession
Supersession
# 010
MPN: 307603
ADR10 SATELLITE ALARM SYSTEM ECU
-Request ASM authorisation- -Applicable from Ass. No. 124146- -Applicable after depletion of 235627- -No longer supplied- -Replaced by 316923-
from £1,375.69
from £1,375.69
This part replaces part number 235627 - and 5 more. Click to view details
# 010
MPN: 316923
ADR10 SATELLITE ALARM SYSTEM ECU
-Applicable from Ass. No. 124146-
from £1,809.75
from £1,809.75
This part replaces part number 277442
# 011
MPN: 274464
GPS ANTENNA
from £33.18
from £33.18
# 012
MPN: 274465
GSM ANTENNA
from £13.92
from £13.92
# 013
MPN: 249839
NAVTRACK FASTENER BRACKET
-Not for GD- -Applicable until depletion-
Supersession
Supersession
# 013
MPN: 282642
NAVTRACK FASTENER BRACKET
-Not for GD- -Applicable after depletion of 249839-
from £5.91
from £5.91
This part replaces part number 249839
# 013
MPN: 282642
NAVTRACK FASTENER BRACKET
-From start of production- -Applicable for GD-
from £5.91
from £5.91
This part replaces part number 249839
# 013
MPN: 86473100
NAVTRACK FASTENER BRACKET
-Applicable for Geneva version- -Version with CD reader-
from £7.41
from £7.41
# 014
MPN: 14059121
NUT
from £0.54
from £0.54
# 015
MPN: 254409

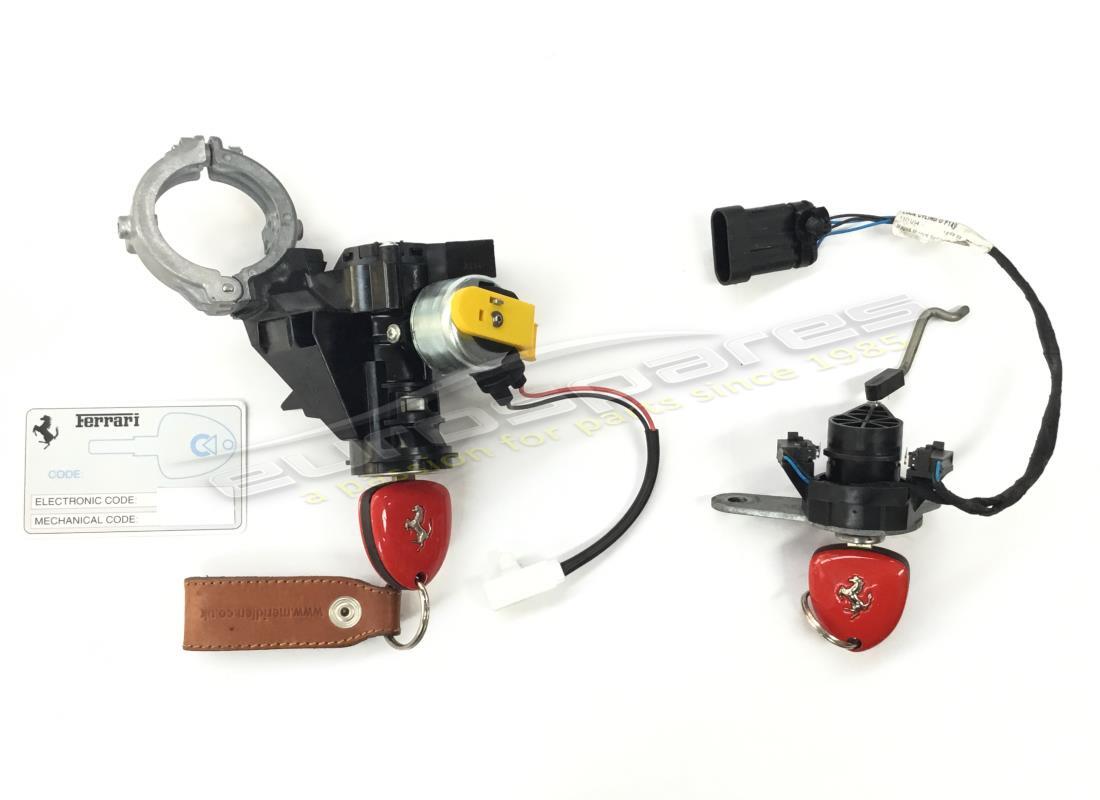

COMPL. KEY AND BLOCK KIT
-Contains 2 keys, 2 ignition switch blocks and 1 code card-
from £926.95
from £926.95
This part replaces part number 241458 - and 1 more. Click to view details
LOCKS SET COMPLETED WITH STE Genuine Ferrari Part - Used In stock
IGNITION BARREL AND DOOR LOCK WITH KEYS AND CARD
IGNITION BARREL AND DOOR LOCK WITH KEYS AND CARD
# 016
MPN: 254332
UNCODED KEY
from £352.14
from £352.14
# 017
MPN: 239744
TWO-TONE INFOLED
from £36.75
from £36.75
This part replaces part number 188253 which we have in stock - and 1 more. Click to view details
# 018
MPN: 65212000
SCREW
-M5 X 8- -No longer supplied- -Replaced by 85691900-
from £0.56
from £0.56
# 018
MPN: 85691900
SCREW
-M5 X 8-
from £0.53
from £0.53
# 019
MPN: 12601074
WASHER
from £0.54
from £0.54
This part replaces part number 12601070 which we have in stock
