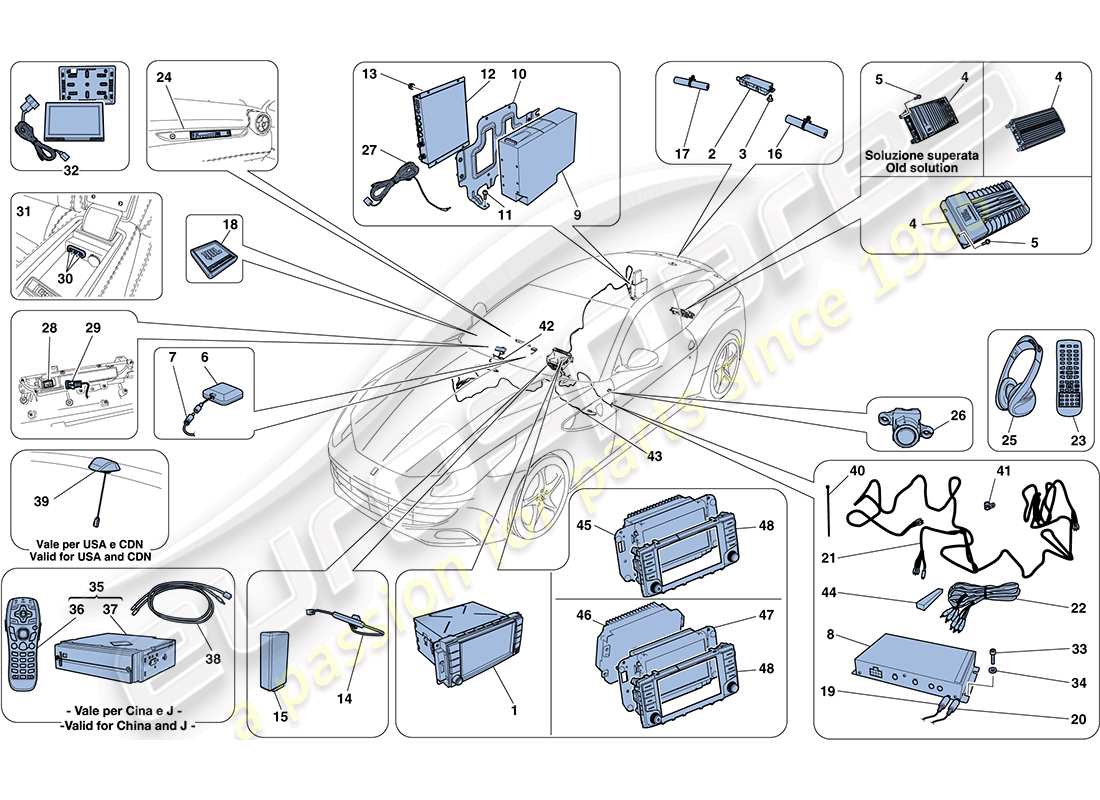

0136 - INFOTAINMENT SYSTEM

Ferrari FF (USA) INFOTAINMENT SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price

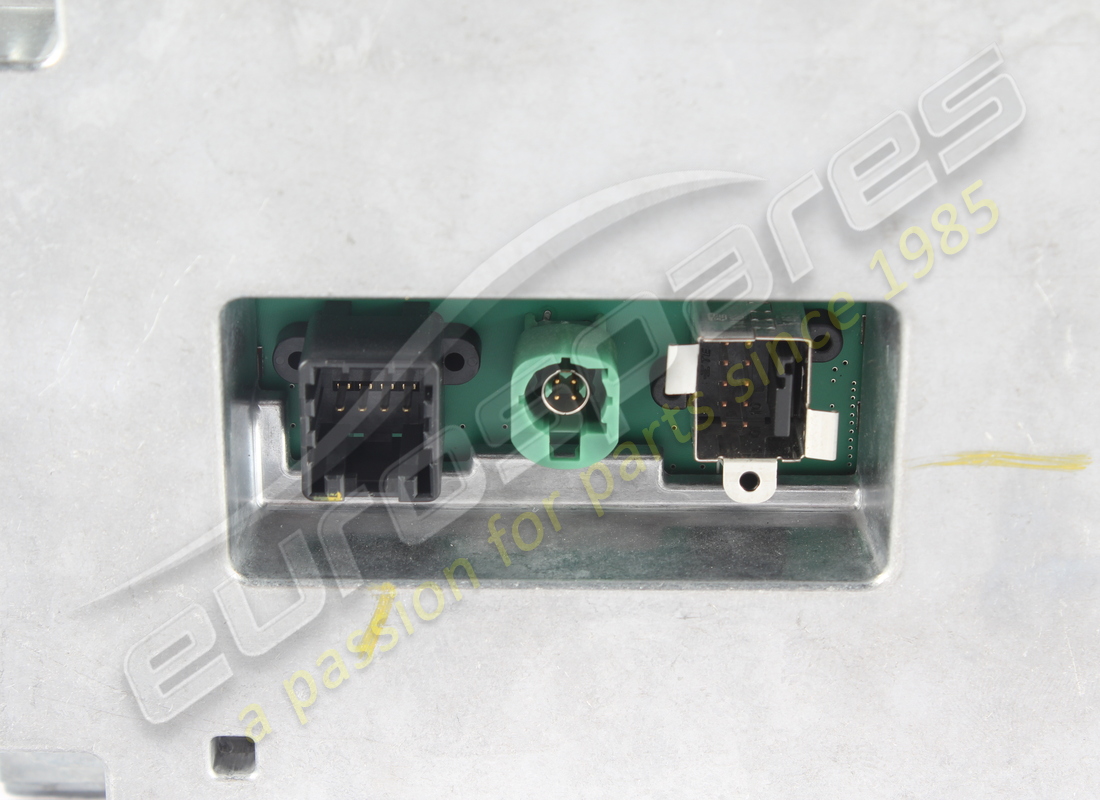

          # 001
          MPN: 234501

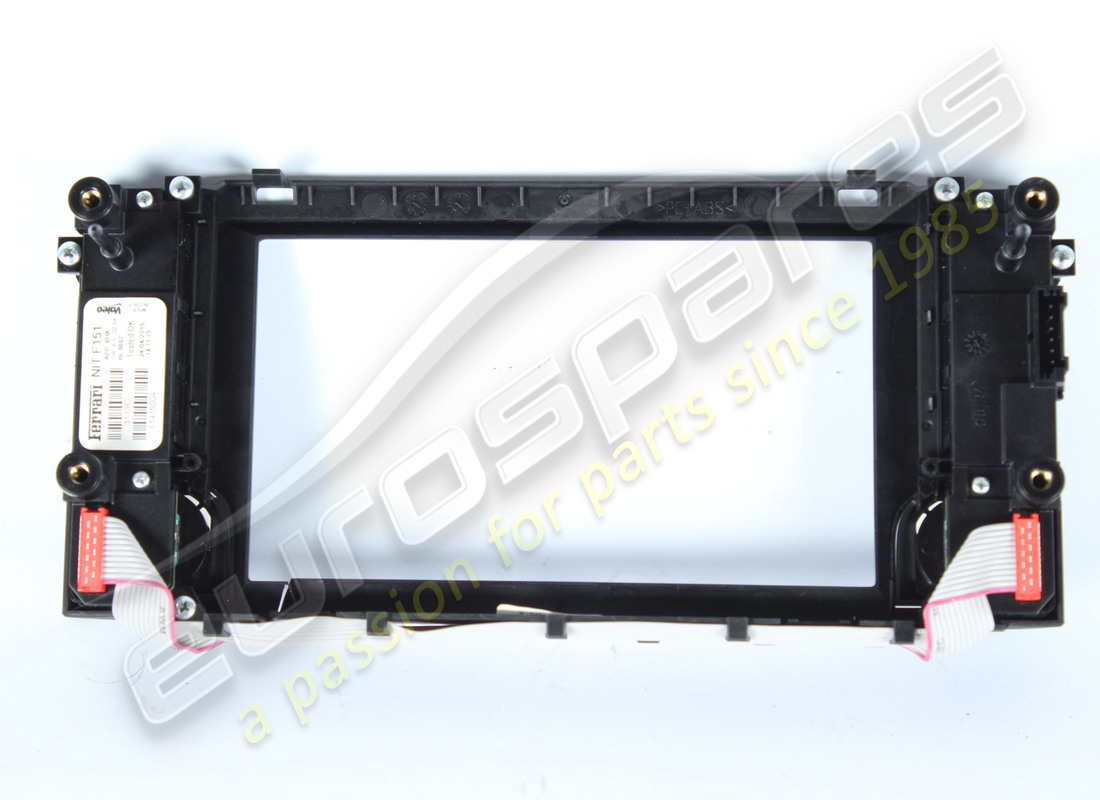

          BECKER NIT
          -Not for Geneva version- -Applicable for EU GS, UK-
          from £4,976.61
          from £4,976.61
          # 001
          MPN: 260845
          BECKER NIT
          -Not for Geneva version- -Applicable for USA, CDN, USA LIGHT-
          from £7,539.80
          from £7,539.80
          # 001
          MPN: 260846
          BECKER NIT
          -Not for Geneva version- -Applicable for J-
          from £6,107.91
          from £6,107.91
          # 001
          MPN: 260847
          BECKER NIT
          -Vehicles with no navigator for countries with no map- -Not for Geneva version- -Applicable for EU GS, GOLFO, GD-
          from £6,107.91
          from £6,107.91
          # 001
          MPN: 260849
          BECKER ROW NIT
          -Standard- -Applicable for South Africa- -Not for Geneva version- -Applicable for AUS, GOLFO-
          from £8,292.74
          from £8,292.74
          # 001
          MPN: 279471
          BECKER NIT
          -Not for Geneva version- -Applicable for CINA-
          from £4,034.94
          from £4,034.94
          # 001
          MPN: 279857
          BECKER NIT
          -Applicable for Russia- -Not for Geneva version-
          from £8,283.34
          from £8,283.34
          # 001
          MPN: 279858
          BECKER NIT
          -Not for Geneva version- -Applicable for GOLFO-
          from £8,473.37
          from £8,473.37

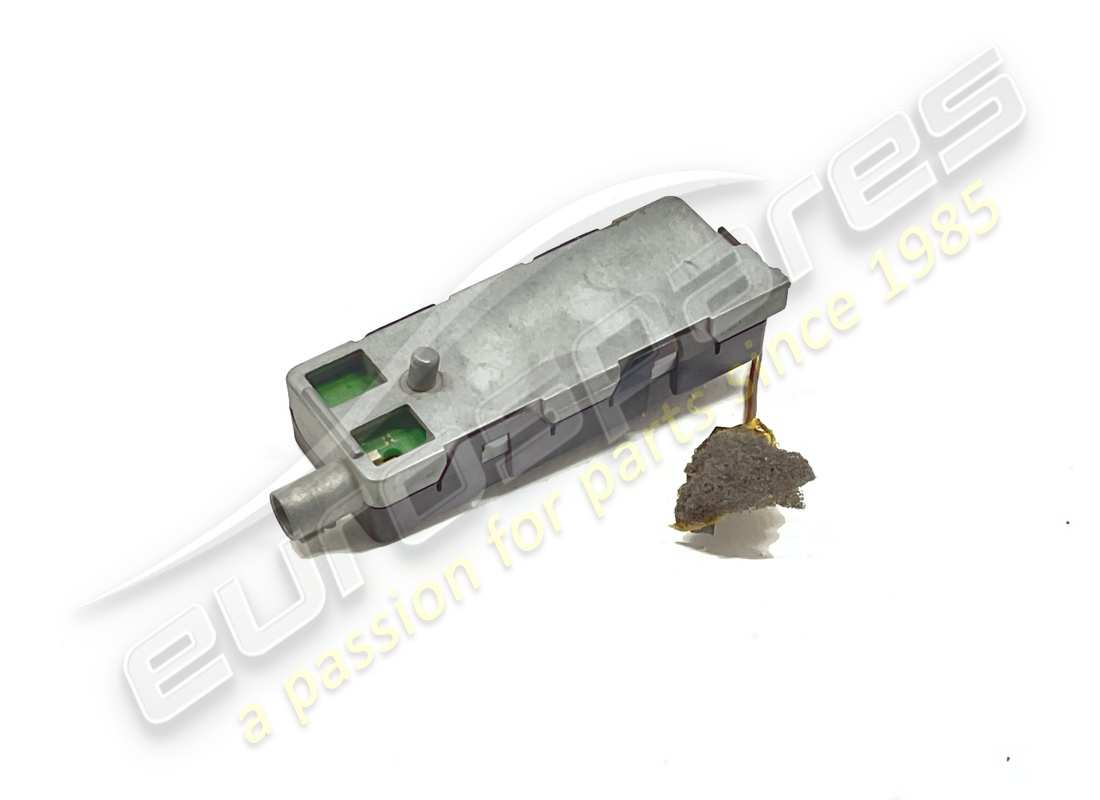

          # 002
          MPN: 261091
          AM/FM-TV1 AMPLIFIER
          -Version with TV Tuner-
          from £95.12
          from £95.12
          # 002
          MPN: 261093
          TV2 AMPLIFIER
          -Version with TV Tuner-
          from £64.60
          from £64.60
          # 002
          MPN: 261094
          AM/FM AMPLIFIER
          -Standard- -Not for Geneva version- -Applicable for J-
          from £90.08
          from £90.08
          # 002
          MPN: 261559
          AM/FM AMPLIFIER
          -Standard- -Not for Geneva version- -Not for J-
          from £80.35
          from £80.35
          # 002
          MPN: 277243
          AM/FM AMPLIFIER
          -Standard- -Applicable for Geneva version-
          from £44.19
          from £44.19
          # 002
          MPN: 298613
          FM2/DAB AMPLIFIER
          -Standard- -Applicable for Geneva version- -Not for USA, CDN, USA LIGHT-
          from £79.27
          from £79.27

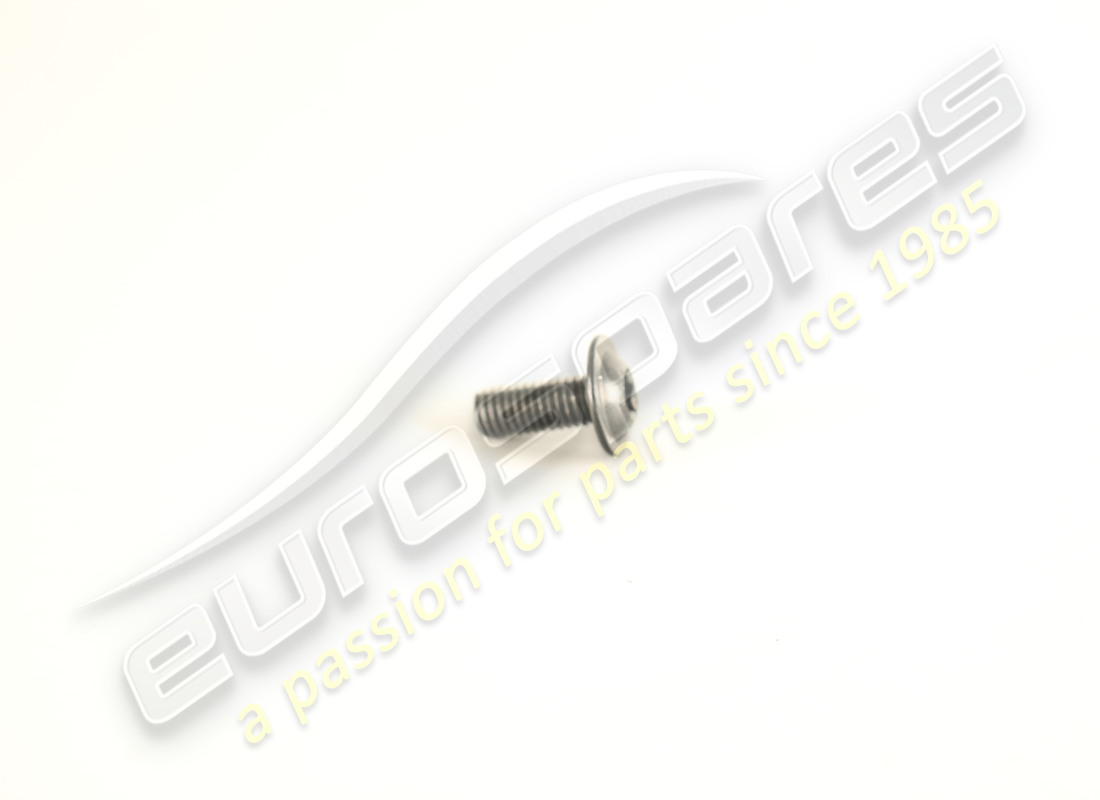

          # 003
          MPN: 64460500
          SCREW
          -M5 X 10- -No longer supplied- -Replaced by 85692000-
          from £0.83
          from £0.83
          # 003
          MPN: 85692000
          SCREW
          -M5 X 10-
          from £0.54
          from £0.54
          # 004
          MPN: 257529
          BECKER AMPLIFIER
          -Hi-Fi version- -Not for Geneva version-
          from £3,311.02
          from £3,311.02
          # 004
          MPN: 268302
          8-CHANNEL AMPLIFIER
          -Standard- -Applicable until depletion-
          Supersession
          Supersession
          # 004
          MPN: 292921
          8-CHANNEL AMPLIFIER
          -Standard- -Not for Geneva version- -Applicable after depletion of 268302-
          from £2,708.98
          from £2,708.98
          This part replaces part number 268302
          # 004
          MPN: 292921
          8-CHANNEL AMPLIFIER
          -Standard- -Applicable for Geneva version-
          from £2,708.98
          from £2,708.98
          This part replaces part number 268302
          # 004
          MPN: 304218
          16-CHANNEL AMPLIFIER
          -Hi-Fi version- -Applicable for Geneva version- -Applicable from Ass. No. 126008- -Applicable after depletion of 309250-
          from £3,118.98
          from £3,118.98
          This part replaces part number 309250
          # 004
          MPN: 309250
          JBL PRO AMPLIFIER
          -Hi-Fi version- -Applicable for Geneva version- -Applicable up to Ass. No. 126007- -Applicable until depletion-
          Supersession
          Supersession
          # 005
          MPN: 231616
          SCREW
          -M6 X 14-
          from £0.53
          from £0.53
          This part replaces part number 14305724 which we have in stock
          # 005
          MPN: 64460500
          SCREW
          -M5 X 10- -Hi-Fi version- -No longer supplied- -Replaced by 85692000-
          from £0.77
          from £0.77
          # 005
          MPN: 68176200
          SCREW
          -M5 X 10- -No longer supplied- -Replaced by 231616-
          from £0.70
          from £0.70
          This part replaces part number 81911300
          # 005
          MPN: 85692000
          SCREW
          -M5 X 10- -Hi-Fi version-
          from £0.52
          from £0.52
          # 006
          MPN: 242694
          GPS ANTENNA
          -Applicable until depletion-
          from £21.58
          from £21.58
          # 006
          MPN: 331961
          GPS ANTENNA
          -Applicable after depletion of 242694- -Applicable until depletion-
          Supersession
          Supersession
          This part replaces part number 242694 which we have in stock
          # 006
          MPN: 789209
          GPS ANTENNA
          -Applicable after depletion of 331961-
          from £25.86
          from £25.86
          This part replaces part number 331961 - and 5 more. Click to view details
          # 007
          MPN: 256394
          GPS ANTENNA EXTENSION CABLE
          -Not for Geneva version- -Not for J-
          from £29.69
          from £29.69
          # 007
          MPN: 281591
          GPS ANTENNA EXTENSION CABLE
          -Not for Geneva version- -Applicable for J-
          from £42.51
          from £42.51
          # 008
          MPN: 255696
          ECU
          -RSE version-
          from £569.30
          from £569.30
          # 009
          MPN: 259474
          DVD READER
          -Version with DVD player-
          from £2,233.95
          from £2,233.95
          # 010
          MPN: 259513
          BRACKET
          -Version with DVD player- -Version with TV Tuner-
          from £49.22
          from £49.22
          # 011
          MPN: 14304220
          SCREW
          -M5 X 16- -Fastening player to bracket- -Version with DVD player-
          from £0.51
          from £0.51
          # 011
          MPN: 65366700
          SCREW
          -M5 X 12- -Fastening bracket- -Version with DVD player- -No longer supplied- -Replaced by 85692200-
          from £0.66
          from £0.66
          # 011
          MPN: 85692200
          SCREW
          -M5 X 12- -Fastening bracket- -Version with DVD player-
          from £0.47
          from £0.47
          # 012
          MPN: 257907
          TV NODE
          -Version with TV Tuner-
          from £449.43
          from £449.43
          # 013
          MPN: 62790300
          NUT
          -Version with TV Tuner-
          from £0.53
          from £0.53
          This part replaces part number 12574011 - and 1 more. Click to view details
          # 014
          MPN: 245789
          PHANTOM POWER MICROPHONE WIRING HARNESS
          -Not for Geneva version-
          from £46.93
          from £46.93
          # 015
          MPN: 260648
          CAN BOX
          -Not for Geneva version-
          from £334.28
          from £334.28
          # 015
          MPN: 286879
          CAN BOX
          -Applicable for Geneva version- -Version with passenger display- -No longer supplied- -Replaced by 313019-
          from £589.56
          from £589.56
          # 015
          MPN: 301460
          CAN BOX
          -Applicable for Geneva version- -Not for version with Apple Car Play-
          from £612.54
          from £612.54
          # 015
          MPN: 308978
          CAN BOX
          -Applicable for Geneva version- -Version with Apple Car Play-
          from £576.36
          from £576.36
          # 015
          MPN: 313019
          CAN BOX
          -Applicable for Geneva version- -Version with passenger display-
          from £612.73
          from £612.73

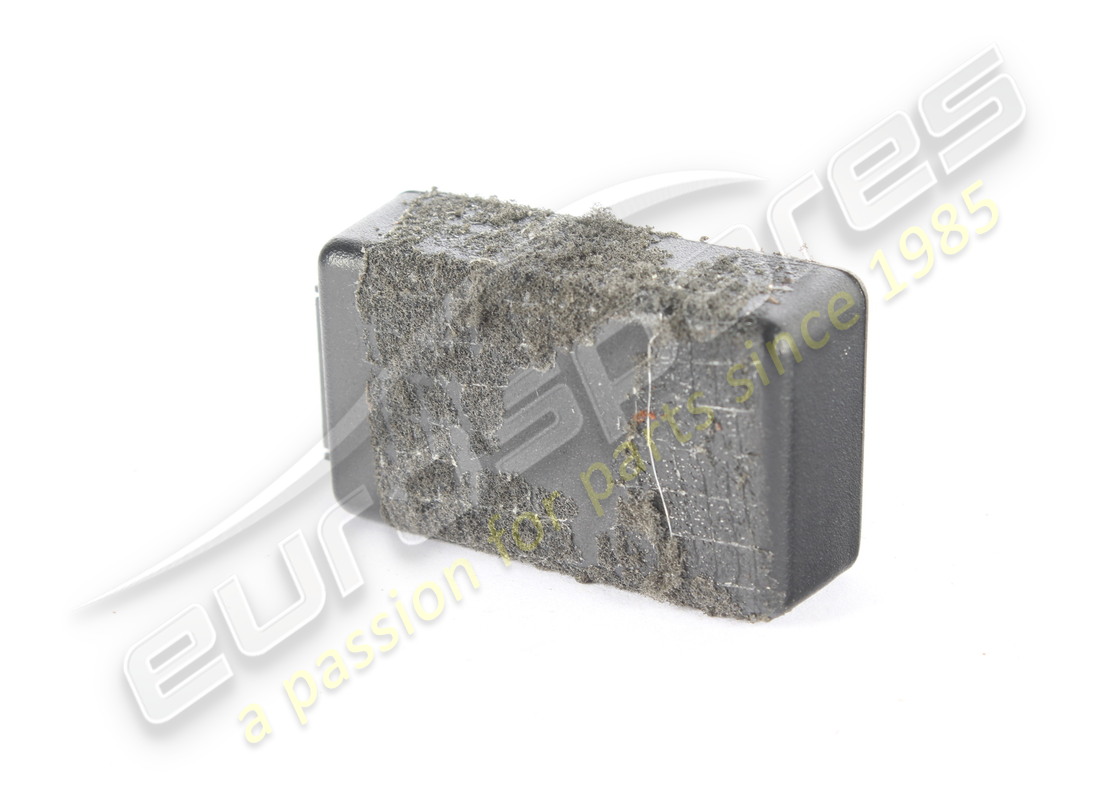

          # 016
          MPN: 263421
          POSITIVE FILTER
          from £21.21
          from £21.21
          This part replaces part number 263423 - and 2 more. Click to view details
          # 017
          MPN: 263421
          POSITIVE FILTER
          -Applicable from Ass. No. 98529- -Applicable after depletion of 263423-
          from £21.21
          from £21.21
          This part replaces part number 263423 - and 2 more. Click to view details
          # 017
          MPN: 263423
          NEGATIVE FILTER
          -Applicable up to Ass. No. 98528- -Applicable until depletion-
          Supersession
          Supersession
          # 018
          MPN: 83198200
          JBL LOGO
          -Hi-Fi version-
          from £14.42
          from £14.42
          # 019
          MPN: 269869
          DISPLAY-RH RSE VIDEO CABLE
          -RSE version-
          from £93.69
          from £93.69
          # 020
          MPN: 269870
          DISPLAY-LH RSE VIDEO CABLE
          -RSE version-
          from £100.89
          from £100.89
          # 021
          MPN: 269871
          RSE / TV VIDEO CABLE
          -RSE version- -No longer supplied- -Replaced by 280065-
          Supersession
          Supersession
          # 021
          MPN: 272233
          PASSENGER COMPARTMENT TV CABLE
          -Version with TV Tuner- -Not for RSE version- -No longer supplied- -Replaced by 280066-
          Supersession
          Supersession
          # 021
          MPN: 280065
          RSE / TV VIDEO CABLE
          -RSE version-
          from £201.78
          from £201.78
          This part replaces part number 269871
          # 021
          MPN: 280066
          PASSENGER COMPARTMENT TV CABLE
          -Version with TV Tuner- -Not for RSE version-
          from £151.34
          from £151.34
          This part replaces part number 272233
          # 022
          MPN: 269872
          RSE / DVD VIDEO CABLE
          -RSE version-
          from £86.48
          from £86.48
          # 023
          MPN: 269876
          REMOTE CONTROL
          -Version with TV Tuner- -Version with DVD player-
          from £172.95
          from £172.95
          # 024
          MPN: 272115
          PASSENGER DISPLAY
          -Version with passenger display- -Not for Geneva version-
          from £1,457.27
          from £1,457.27
          # 024
          MPN: 286844
          PASSENGER DISPLAY
          -Version with passenger display- -Applicable for Geneva version-
          from £1,501.60
          from £1,501.60
          # 025
          MPN: 272113
          CAP
          -RSE version-
          from £151.00
          from £151.00

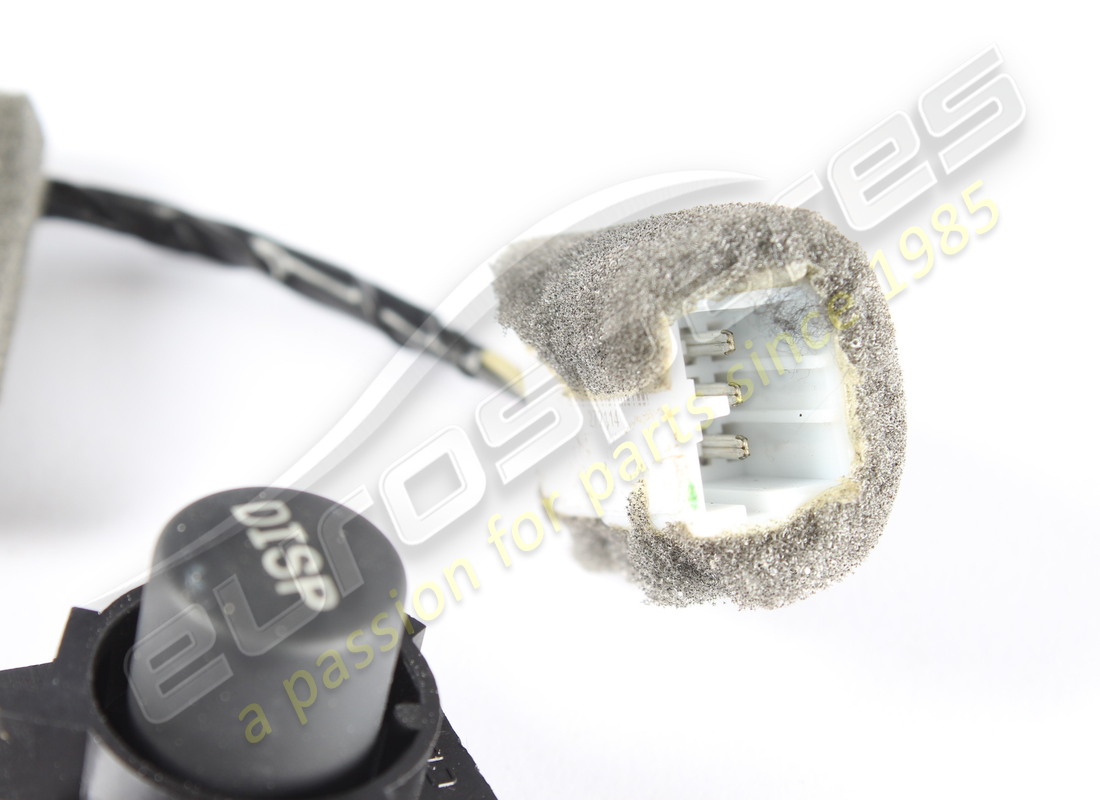

          # 026
          MPN: 272114
          DISPLAY BUTTON
          -Version with passenger display-
          from £27.74
          from £27.74
          This part replaces part number 276974 which we have in stock - and 1 more. Click to view details
          # 026
          MPN: 276974
          DISPLAY BUTTON
          -Version with passenger display- -No longer supplied- -Replaced by 272114-
          from £26.15
          from £26.15
          # 027
          MPN: 269874
          IR/TV CABLE
          -Version with TV Tuner-
          from £136.92
          from £136.92
          # 028
          MPN: 275284
          USB / NIT / RHR CABLE
          -Not for Geneva version- -Not for GD- -Applicable until depletion-
          Supersession
          Supersession
          # 028
          MPN: 281971
          USB / NIT / RHR CABLE
          -Not for GD- -Applicable after depletion of 275284-
          from £28.53
          from £28.53
          This part replaces part number 275284 - and 1 more. Click to view details
          # 028
          MPN: 281971
          USB / NIT / RHR CABLE
          -Applicable for GD-
          from £28.53
          from £28.53
          This part replaces part number 275284 - and 1 more. Click to view details
          # 029
          MPN: 272232
          USB PORT
          -Not for Geneva version-
          from £30.05
          from £30.05
          # 029
          MPN: 303226
          USB SOCKET
          -Applicable for Geneva version-
          from £18.43
          from £18.43
          # 030
          MPN: 276685
          CABLE FOR GLOVE COMPARTMENT POWER SOCKET
          -RSE version- -No longer supplied- -Replaced by 279485-
          Supersession
          Supersession
          # 030
          MPN: 279485
          CABLE FOR GLOVE COMPARTMENT POWER SOCKET
          -RSE version-
          from £86.48
          from £86.48
          This part replaces part number 276685
          # 031
          MPN: 276686
          SURROUND
          -RSE version-
          from £176.56
          from £176.56
          # 032
          MPN: 269868
          REAR DISPLAY WITH VIDEO CABLE
          -RSE version-
          from £812.25
          from £812.25
          # 033
          MPN: 14303474
          SCREW
          from £0.53
          from £0.53
          # 034
          MPN: 12601070
          WASHER
          from £0.47
          from £0.47
          # 035
          MPN: 246389
          NAVIGATOR KIT
          -Applicable for J-
          from £4,879.82
          from £4,879.82
          # 036
          MPN: 246391
          NAVIGATOR REMOTE CONTROL
          -Applicable for J-
          from £352.82
          from £352.82
          # 037
          MPN: 246390
          NAVIGATOR HEAD UNIT
          -Applicable for J-
          from £4,980.98
          from £4,980.98
          # 038
          MPN: 265341
          PASSENGER COMPARTMENT GPS ANTENNA CABLE
          -Applicable for J-
          from £53.98
          from £53.98
          # 039
          MPN: 278518
          SDARS ANTENNA
          -Applicable for USA, CDN, USA LIGHT- -No longer supplied- -Replaced by 856915..-
          from £523.50
          from £523.50
          # 039
          MPN: 856915..
          SDARS ANTENNA
          -Applicable for USA, CDN, USA LIGHT-
          Supersession
          Supersession
          # 040
          MPN: 145854
          RING CLAMP
          from £0.54
          from £0.54
          # 041
          MPN: 10441290
          BRACKET WITH SHEATH
          -D. 10-
          from £0.53
          from £0.53
          # 042
          MPN: 280923
          NAVIGATOR CABLE IN DASHBOARD
          -Not for Geneva version- -Applicable for J-
          from £1,390.82
          from £1,390.82
          # 043
          MPN: 279056
          NAVIGATOR CABLE
          -Not for Geneva version- -Applicable for J-
          from £158.53
          from £158.53
          # 044
          MPN: 284115
          PLUG
          -160 x 24 mm-
          from £2.62
          from £2.62
          # 045
          MPN: 298011
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for EU GS, UK- -Applicable until depletion-
          Supersession
          Supersession
          # 045
          MPN: 298012
          BECKER VP4 NIT
          -With integrated display- -Vehicles with no navigator for countries with no map- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable until depletion-
          Supersession
          Supersession
          # 045
          MPN: 298013
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for J- -No longer supplied- -Replaced by 316865-
          Supersession
          Supersession
          # 045
          MPN: 298014
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion-
          Supersession
          Supersession
          # 045
          MPN: 298015
          BECKER VP4 NIT ROW
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -No longer supplied- -Replaced by 316867-
          Supersession
          Supersession
          # 045
          MPN: 298104
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for CINA- -Applicable until depletion-
          Supersession
          Supersession
          # 045
          MPN: 316863
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for EU GS, UK- -Applicable after depletion of 298011-
          from £4,737.01
          from £4,737.01
          This part replaces part number 298011
          # 045
          MPN: 316864
          BECKER VP4 NIT
          -With integrated display- -Vehicles with no navigator for countries with no map- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable after depletion of 298012-
          from £5,017.91
          from £5,017.91
          This part replaces part number 298012
          # 045
          MPN: 316865
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for J-
          from £5,539.68
          from £5,539.68
          This part replaces part number 298013
          # 045
          MPN: 316866
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for USA, CDN, USA LIGHT- -Applicable after depletion of 298014-
          from £4,917.91
          from £4,917.91
          This part replaces part number 298014
          # 045
          MPN: 316867
          BECKER VP4 NIT ROW
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play-
          from £5,104.05
          from £5,104.05
          This part replaces part number 298015
          # 045
          MPN: 316868
          BECKER VP4 NIT
          -With integrated display- -Applicable for Geneva version- -Not for version with Apple Car Play- -Applicable for CINA- -Applicable after depletion of 298104-
          from £5,104.05
          from £5,104.05
          This part replaces part number 298104
          # 046
          MPN: 309934
          BECKER VP4 NIT
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable for EU GS, UK- -Applicable until depletion-
          from £2,088.33
          from £2,088.33
          # 046
          MPN: 309935
          BECKER VP4 NIT
          -With remote display- -Vehicles with no navigator for countries with no map- -Applicable for Geneva version- -Applicable for version with Apple Car Play-
          from £3,689.00
          from £3,689.00
          # 046
          MPN: 309936
          BECKER VP4 NIT ROW
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable until depletion-
          Supersession
          Supersession
          # 046
          MPN: 309937
          BECKER VP4 NIT
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable for CINA- -No longer supplied- -Replaced by 316874-
          Supersession
          Supersession
          # 046
          MPN: 309938
          BECKER VP4 NIT
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable for J- -No longer supplied- -Replaced by 316871-
          Supersession
          Supersession
          # 046
          MPN: 309939
          BECKER VP4 NIT
          -Applicable for version with Apple Car Play- -Applicable for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 133513- -No longer supplied- -Replaced by 316872-
          Supersession
          Supersession
          # 046
          MPN: 316869
          BECKER VP4 NIT
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable for EU GS, UK- -Applicable after depletion of 309934-
          from £4,475.16
          from £4,475.16
          This part replaces part number 309934 which we have in stock
          # 046
          MPN: 316871
          BECKER VP4 NIT
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable for J-
          from £4,784.57
          from £4,784.57
          This part replaces part number 309938
          # 046
          MPN: 316872
          BECKER VP4 NIT
          -Applicable for version with Apple Car Play- -Applicable for USA, CDN, USA LIGHT- -Applicable from Ass. No. 133514-
          from £4,032.40
          from £4,032.40
          This part replaces part number 309939
          # 046
          MPN: 316873
          BECKER VP4 NIT ROW
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable after depletion of 309936-
          from £4,620.98
          from £4,620.98
          This part replaces part number 309936
          # 046
          MPN: 316874
          BECKER VP4 NIT
          -With remote display- -Applicable for Geneva version- -Applicable for version with Apple Car Play- -Applicable for CINA-
          from £4,796.03
          from £4,796.03
          This part replaces part number 309937
          # 047
          MPN: 307609
          REMOTE DISPLAY
          -Applicable for Geneva version- -Applicable for version with Apple Car Play-
          from £869.32
          from £869.32
          # 048
          MPN: 311362
          NIT BUTTON PANEL
          -Applicable for Geneva version- -Applicable for version with Apple Car Play-
          from £447.88
          from £447.88
          # 048
          MPN: 311500
          NIT BUTTON PANEL
          -Applicable for Geneva version- -Not for version with Apple Car Play-
          from £808.63
          from £808.63
          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
