0137 - INFOTAINMENT SYSTEM

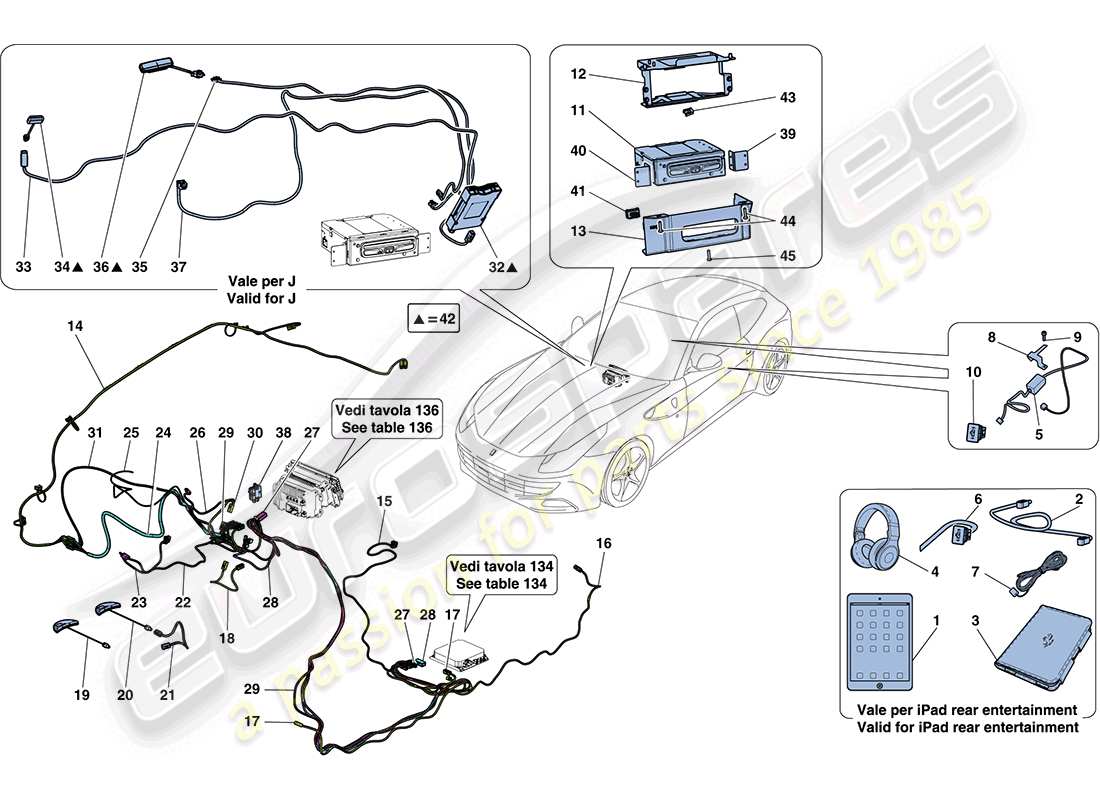

Ferrari FF (USA) INFOTAINMENT SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 303248
MINI IPAD
-Black- -iPad rear entertainment- -Applicable until depletion-
from £1,479.33
from £1,479.33
# 001
MPN: 303528
MINI IPAD
-White- -iPad rear entertainment- -Applicable until depletion-
from £1,479.33
from £1,479.33
# 002
MPN: 302335
ECU-USB CONNECTION WIRING HARNESS
-iPad rear entertainment-
from £79.28
from £79.28
# 003
MPN: 857325..
IPAD CONTAINER
-Leather- -iPad rear entertainment- -STC1- -STC2-
Supersession
Supersession
# 004
MPN: 303247
BT BEATS HEADPHONES
-Black- -iPad rear entertainment- -No longer supplied-
from £627.14
from £627.14
# 004
MPN: 303529
BT BEATS HEADPHONES
-White- -iPad rear entertainment-
from £627.14
from £627.14
# 005
MPN: 301120
ECU USB
-Applicable for Geneva version- -Not for version with Apple Car Play-
from £94.13
from £94.13
# 005
MPN: 302333
ECU USB
-iPad rear entertainment-
from £180.15
from £180.15
# 006
MPN: 288974
USB SOCKET
-iPad rear entertainment-
from £33.96
from £33.96
# 007
MPN: 302327
USB CONNECTOR CABLE
-iPad rear entertainment-
from £108.11
from £108.11
# 008
MPN: 302281
ECU USB MOUNTING BRACKET
-iPad rear entertainment- -Q.ty 1 from Ass.ly No. 125671-
from £7.07
from £7.07
# 008
MPN: 311363
BRACKET
-Applicable for Geneva version- -Not for version with Apple Car Play-
from £21.62
from £21.62
# 009
MPN: 14303024
SCREW
-M4 X 12- -iPad rear entertainment-
from £0.53
from £0.53
This part replaces part number 14303021 - and 1 more. Click to view details
# 010
MPN: 303226
USB SOCKET
-Applicable for Geneva version- -Not for version with Apple Car Play-
from £18.43
from £18.43
# 010
MPN: 309772
USB PORT
-Applicable for Geneva version- -Version with Apple Car Play-
from £71.41
from £71.41
# 011
MPN: 287511
CD READER
-Applicable for Geneva version- -Version with CD reader-
from £415.08
from £415.08
# 012
MPN: 86473000
CD MOUNTING BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable until depletion-
Supersession
Supersession
# 012
MPN: 87223700
CD MOUNTING BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable after depletion of 86473000-
from £72.35
from £72.35
This part replaces part number 86473000
# 013
MPN: 86472900
GLOVE BOX CD HOLDER
-Applicable for Geneva version- -Version with CD reader- -Not for GD-
from £55.50
from £55.50
# 013
MPN: 86518100
GLOVE BOX CD HOLDER
-Applicable for Geneva version- -Version with CD reader- -Applicable for GD-
from £72.05
from £72.05
# 014
MPN: 311373
PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE
-Applicable for Geneva version- -Not for LIB-EG-TUR-ISR-TAI- -Applicable for UK and Eire-
from £57.60
from £57.60
# 014
MPN: 311724
PASSENGER COMPARTMENT AM/FM1/FM2/DAB ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Mexico-
from £42.32
from £42.32
# 014
MPN: 311726
PASSENGER COMPARTMENT AM/FM1/FM2 ANTENNA CABLE
-Applicable for Geneva version- -Applicable for LIB-EG-TUR-ISR-TAIW-IND-INDONESIA-MAL-SIN-THA-SA-MALAYSIA-BRU-CYPRUS-HK-IRAN- -Not for Mexico- -Applicable for AUS, CINA, GOLFO, J-
from £72.49
from £72.49
# 015
MPN: 309771
NDM USB CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Applicable until depletion-
Supersession
Supersession
# 015
MPN: 311948
NDM USB CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Applicable after depletion of 309771-
from £89.38
from £89.38
This part replaces part number 309771 - and 2 more. Click to view details
# 016
MPN: 309774
WIFI ANTENNA CABLE
-Applicable for Geneva version- -Version with Apple Car Play-
from £31.13
from £31.13
# 017
MPN: 309760
NDC/NIT VIDEO CABLE
-Applicable for Geneva version- -Not for version with Apple Car Play- -Version with front camera with dual view-
from £180.15
from £180.15
# 018
MPN: 309775
SPLITTER/NIT GPS CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Not for USA, CDN, USA LIGHT-
from £20.54
from £20.54
# 019
MPN: 286160
BLUETOOTH ANTENNA
-Applicable for Geneva version-
from £158.33
from £158.33
# 020
MPN: 286161
WI-FI ANTENNA
-Applicable for Geneva version- -Version with Apple Car Play-
from £71.64
from £71.64
# 021
MPN: 300328
WI-FI/NTM ANTENNA EXTENSION
-Applicable for Geneva version- -Version with Apple Car Play-
from £66.22
from £66.22
# 022
MPN: 310654
VP4-DISCONNECTOR CONNECTOR CABLE
-Applicable for Geneva version- -Version without CD player-
from £37.49
from £37.49
# 023
MPN: 310655
USB-DISCONNECTOR CONNECTOR CABLE
-Applicable for Geneva version- -Version without CD player-
from £67.16
from £67.16
# 024
MPN: 307690
DASHBOARD AM/FM/DAB RADIO ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Eire- -Not for LIB-EG-TUR-ISR-TAI- -Applicable for EU GS, CINA, GOLFO, UK-
from £31.99
from £31.99
# 025
MPN: 281971
USB / NIT / RHR CABLE
-Applicable for Geneva version- -Not for passenger display version-
from £28.53
from £28.53
This part replaces part number 275284 - and 1 more. Click to view details
# 026
MPN: 311322
GPS ANTENNA EXTENSION CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -After depletion, order 311635 ref. 30 for all versions- -Not for USA, CDN, USA LIGHT- -Applicable until depletion-
from £17.95
from £17.95
# 027
MPN: 309773
NDM/NDR LVDS VIDEO CABLE
-Applicable for Geneva version- -Version with Apple Car Play-
from £345.91
from £345.91
# 028
MPN: 311025
VP4/NDM LVDS CABLE
-Applicable for Geneva version- -Version with Apple Car Play-
from £450.40
from £450.40
# 029
MPN: 309777
SPLITTER/NDM GPS CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Not for Turkey and Israel- -Applicable for Mexico, Eire, India, Indonesia, Singapore, MAL, SA, Malaysia- -Applicable for EU GS, AUS, CINA, GOLFO, UK, J-
from £41.88
from £41.88
# 029
MPN: 311729
SPLITTER/NDM GPS CABLE
-Applicable for Geneva version- -Version with Apple Car Play- -Applicable for Turkey, Israel, Taiwan, Korea, Philippines, Puerto Rico, Dominican Republic, Brunei, Cyprus, Hong Kong, Iran- -Applicable for USA, CDN, USA LIGHT-
from £41.88
from £41.88
# 030
MPN: 311635
GPS ANTENNA EXTENSION CABLE
-Applicable for Geneva version- -Not for USA, CDN, USA LIGHT-
from £22.85
from £22.85
# 030
MPN: 311728
GPS ANTENNA EXTENSION CABLE
-Applicable for Geneva version- -Standard version without Apple Car Play- -Applicable for Mexico-
from £22.85
from £22.85
# 031
MPN: 307692
DASHBOARD AM/FM ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Indonesia markets-IND-MAL-SIN-THA-SA-BRU-CIPRO-MALAISIA-HK-IRAN- -Not for Mexico- -Applicable for AUS, CINA, GOLFO, J-
from £58.17
from £58.17
# 031
MPN: 307694
DASHBOARD AM/FM ANTENNA CABLE
-Applicable for Geneva version- -Applicable for Mexico-
from £32.43
from £32.43
# 032
MPN: 306122
VICS MODULE
-Applicable for Geneva version- -Applicable for J- -No longer supplied-
from £1,869.35
from £1,869.35
# 033
MPN: 311095
RF ANTENNA CABLE
-Applicable for Geneva version- -Applicable for J-
from £32.87
from £32.87
This part replaces part number 308738
# 034
MPN: 306858
VICS 5.8 GHZ ANTENNA
-Applicable for Geneva version- -Applicable for J- -No longer supplied-
# 035
MPN: 311094
VICS ANTENNA CABLE
-Applicable for Geneva version- -Applicable for J-
from £46.84
from £46.84
# 036
MPN: 306859
VICS TRANSCEIVER BEACON
-Applicable for Geneva version- -Applicable for J- -No longer supplied-
# 037
MPN: 311093
USB CABLE
-Applicable for Geneva version- -Applicable for J- -Applicable until depletion-
Supersession
Supersession
# 037
MPN: 314511
VICS CARD READER
- NIT CABLE -Applicable for Geneva version- -Applicable for J- -Applicable after depletion of 311093-
from £76.17
from £76.17
This part replaces part number 311093
# 038
MPN: 293328
GPS ANTENNA SPLITTER
-Applicable for Geneva version- -Version with Apple Car Play- -Not for USA, CDN, USA LIGHT-
from £81.46
from £81.46
# 039
MPN: 86652100
RH CD READER BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable until depletion-
Supersession
Supersession
# 039
MPN: 87223800
RH CD READER BRACKET
-Applicable for Geneva version- -Version with CD reader- -Applicable after depletion of 86652100-
from £71.41
from £71.41
This part replaces part number 86652100
# 040
MPN: 86652200
LH CD READER BRACKET
-Applicable for Geneva version- -Version with CD reader-
from £71.41
from £71.41
# 041
MPN: 272232
USB PORT
-Version with DVD player- -Applicable for Geneva version- -Not for USA, CDN, USA LIGHT-
from £30.05
from £30.05
# 042
MPN: 306860
VICS SYSTEM KIT, JPN
-Applicable for Geneva version- -Applicable for J-
from £4,472.88
from £4,472.88
# 043
MPN: 67278400
BRACKET
-Version with CD reader-
from £1.07
from £1.07
# 044
MPN: 85692300
SCREW
-M5 X 20- -Version with CD reader-
from £0.47
from £0.47
This part replaces part number 83914200
# 045
MPN: 85692000
SCREW
-M5 X 10- -Version with CD reader-
from £0.54
from £0.54
-part-diagram-0138.webp "FERRARI FF (USA) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI FF (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI FF (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI FF (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI FF (USA) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI FF (USA) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI FF (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI FF (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI FF (USA) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI FF (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI FF (USA) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI FF (USA) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI FF (USA) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI FF (USA) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI FF (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI FF (USA) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI FF (USA) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI FF (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI FF (USA) SILENCERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI FF (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI FF (USA) LUBRICATION SYSTEM: TANK PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI FF (USA) COOLING - WATER / OIL PUMP PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI FF (USA) COOLING - HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI FF (USA) COOLING - RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI FF (USA) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI FF (USA) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI FF (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI FF (USA) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI FF (USA) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI FF (USA) PTU SYSTEM PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI FF (USA) PTU REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI FF (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI FF (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI FF (USA) FRONT BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI FF (USA) REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI FF (USA) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI FF (USA) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI FF (USA) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI FF (USA) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI FF (USA) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI FF (USA) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI FF (USA) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI FF (USA) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI FF (USA) WHEELS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI FF (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI FF (USA) VEHICLE LIFT SYSTEM PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI FF (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI FF (USA) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI FF (USA) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI FF (USA) AC SYSTEM - WATER AND FREON PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI FF (USA) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI FF (USA) DASHBOARD AIR DUCTS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI FF (USA) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI FF (USA) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI FF (USA) GREENHOUSE PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI FF (USA) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI FF (USA) CHASSIS COMPLETION PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI FF (USA) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI FF (USA) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI FF (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI FF (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI FF (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI FF (USA) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI FF (USA) REAR LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI FF (USA) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI FF (USA) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI FF (USA) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI FF (USA) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI FF (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI FF (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI FF (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI FF (USA) FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI FF (USA) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI FF (USA) REAR SEAT - SEAT BELTS - INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI FF (USA) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI FF (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI FF (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI FF (USA) AIRBAGS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI FF (USA) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI FF (USA) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI FF (USA) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI FF (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI FF (USA) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI FF (USA) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI FF (USA) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI FF (USA) VEHICLE ECUS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI FF (USA) ANTITHEFT SYSTEM PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI FF (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
