021 - Clutch and Controls

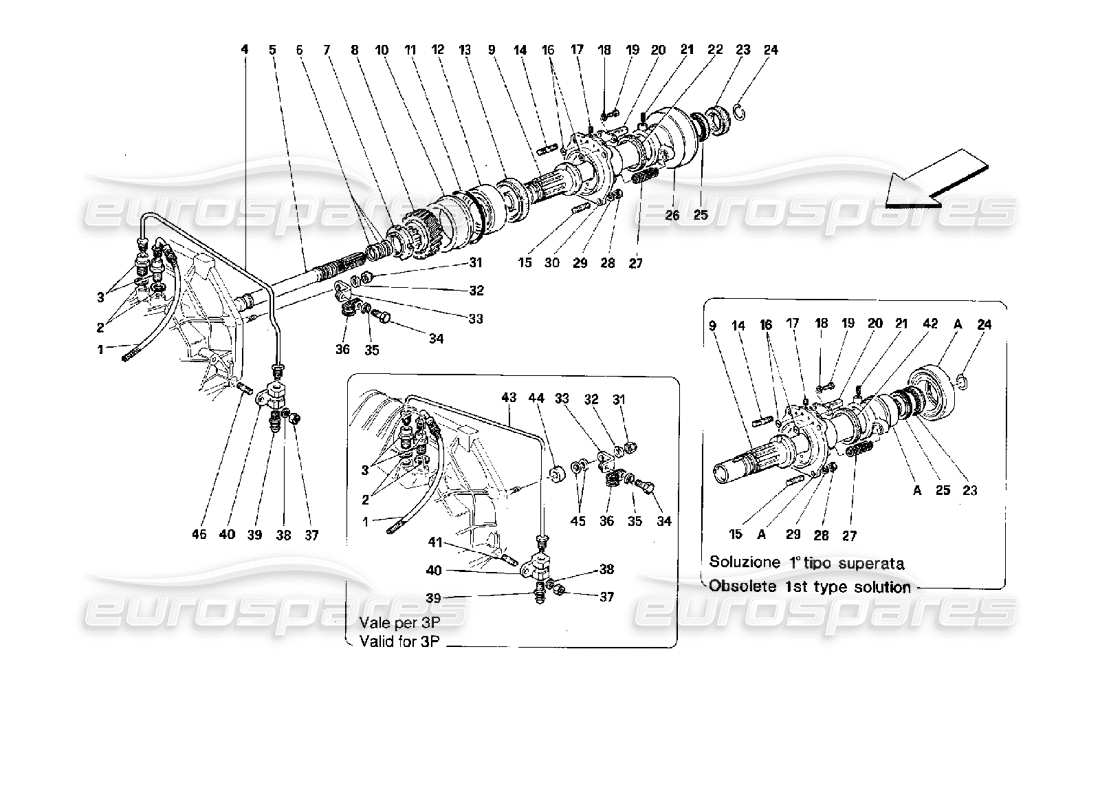

Ferrari Mondial 3.4 t Coupe/Cabrio Clutch and Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
-
1ST TYPE SOLUTION
- A on Picture - Not as spare parts - Replace with 22-26-30 to assembly
# 001
MPN: 137413
CLUTCH CONTROL PIPE
from £613.01
from £613.01
# 002
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 003
MPN: 148604
UNION
from £64.95
from £64.95
This part replaces part number 126496
# 004
MPN: 147839
PIPE
from £113.24
from £113.24
# 005
MPN: 136899
DRIVING SHAFT
from £154.05
from £154.05
# 006
MPN: 137249
RING
from £7.16
from £7.16
# 007
MPN: 131667
RING NUT
Supersession
Supersession
# 008
MPN: 131248

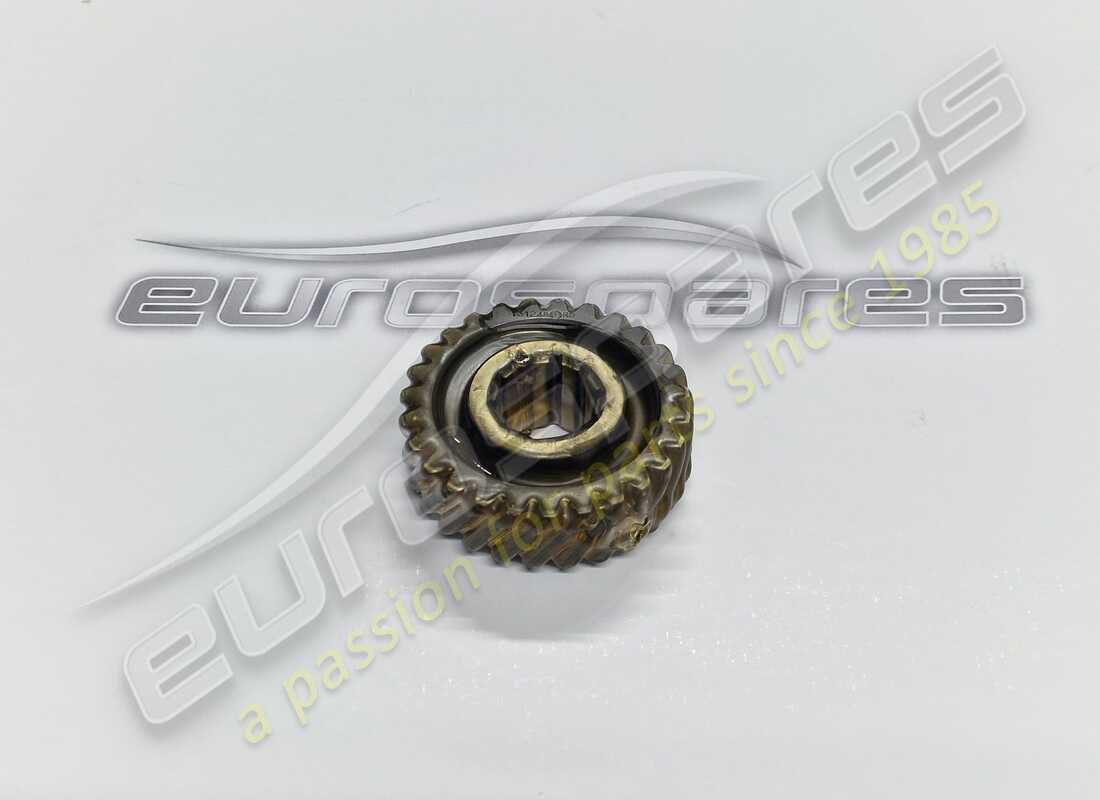

GEAR FOR SHAFT
from £663.25
from £663.25
# 008
MPN: 70000595
CLUTCH-PINION SHAFT TRANSMISSION CYLINDRIC TORQUE
Supersession
Supersession
This part replaces part number 131281 which we have in stock
# 009
MPN: 136898
CLUTCH SHAFT
from £720.87
from £720.87
# 010
MPN: 148667
BEARING
from £1,478.77
from £1,478.77
This part replaces part number 131662
# 011
MPN: 143178
SEAL RING
from £2.65
from £2.65
This part replaces part number 132578
# 012
MPN: 131054
BEARING
from £144.82
from £144.82
This part replaces part number 138338
# 012
MPN: 131054
BEARING
from £144.82
from £144.82
This part replaces part number 138338
# 013
MPN: 131651
SEAL RING
from £28.39
from £28.39
This part replaces part number 141426
# 014
MPN: 12354524
STUD BOLT
from £17.94
from £17.94
This part replaces part number 12354521
# 015
MPN: 13543221
STUD BOLT
from £0.61
from £0.61
# 016
MPN: 166432
O.R. GASKET
from £0.53
from £0.53
# 017
MPN: 65928500
PLUG
from £25.62
from £25.62
This part replaces part number 10267550
# 018
MPN: 127493
WASHER
from £0.53
from £0.53
This part replaces part number 106849 - and 1 more. Click to view details
# 019
MPN: 10977521
SCREW
from £0.53
from £0.53
This part replaces part number 10977501 which we have in stock - and 1 more. Click to view details
# 020
MPN: 138382
PLATE
from £66.05
from £66.05
# 021
MPN: 14163670
PIN
from £0.53
from £0.53
# 022
MPN: 151822
GASKET
from £19.26
from £19.26
This part replaces part number 144989
# 023
MPN: 138387
RING
from £8.74
from £8.74
# 024
MPN: 13398176
STOP RING
from £1.52
from £1.52
# 025
MPN: 139438
SEAL RING
from £7.64
from £7.64
This part replaces part number 131664
# 026
MPN: 177784
THRUST BEARING ASSEMBLY WITH FLANGE
from £877.72
from £877.72
This part replaces part number 165932
# 027
MPN: 121717
SPRING
from £2.45
from £2.45
# 028
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 029
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 030
MPN: 144984
THRUST SUPPORTING FLANGE
from £892.82
from £892.82
This part replaces part number 138378
# 031
MPN: 133989
NUT
from £0.54
from £0.54
This part replaces part number 8 D 4-UNI 207
# 032
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 033
MPN: 142060
BRACKET
from £3.58
from £3.58
# 034
MPN: 10902011
SCREW
from £1.13
from £1.13
This part replaces part number 10902411
# 035
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 036
MPN: 10440990
BRACKET
from £0.85
from £0.85
# 037
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 038
MPN: 14496601
WASHER
Supersession
Supersession
# 039
MPN: 121699
SCREW
from £18.33
from £18.33
# 040
MPN: 139921
BLOCK
from £103.91
from £103.91
# 041
MPN: 13546021
STUD
Supersession
Supersession
# 042
MPN: 139436
SEAL RING
from £18.86
from £18.86
This part replaces part number 131663
# 043
MPN: 139924
BLEEDER PIPE
from £55.52
from £55.52
# 044
MPN: 147683
SPACER
from £1.11
from £1.11
# 045
MPN: 12647121
WASHER
from £0.54
from £0.54
# 046
MPN: 13546621
STUD
from £4.26
from £4.26
