027 - Inside Gearbox Controls

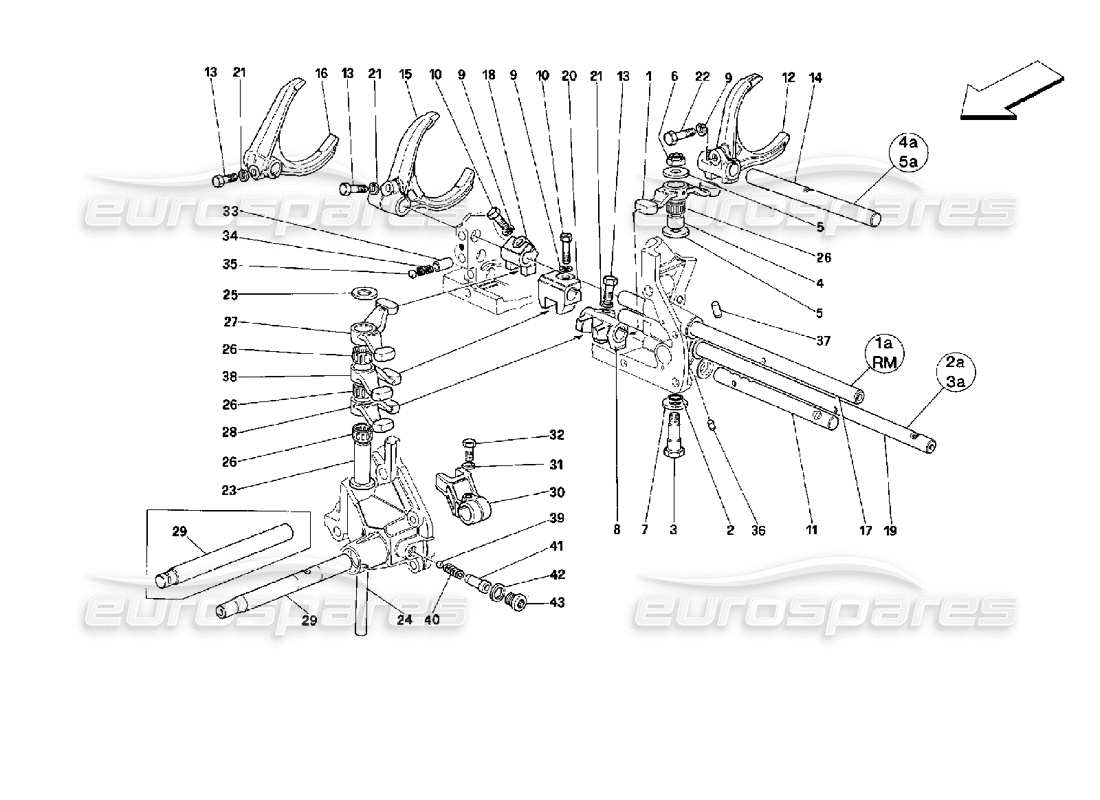

Ferrari Mondial 3.4 t Coupe/Cabrio Inside Gearbox Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 138743
4TH AND 5TH GEAR FORK ROCKER ARM
from £85.11
from £85.11
# 002
MPN: 128702
OR GASKET
from £2.45
from £2.45
# 003
MPN: 138739
ROCKER ARM FASTENING SCREW
from £52.92
from £52.92
# 004
MPN: 138733
BUSH
from £7.49
from £7.49
# 005
MPN: 131930
THRUST WASHER - THICK. MM. 2,0
from £0.51
from £0.51
# 005
MPN: 139725
THRUST WASHER - THICK. MM. 3,0
from £14.23
from £14.23
# 005
MPN: 139726
THRUST WASHER - THICK. MM. 3,1
from £14.23
from £14.23
# 005
MPN: 139727
THRUST WASHER - THICK. MM. 2,5
from £14.98
from £14.98
# 005
MPN: 139728
THRUST WASHER - THICK. MM. 2,6
from £26.20
from £26.20
# 005
MPN: 139729
THRUST WASHER - THICK. MM. 2,7
from £14.83
from £14.83
# 005
MPN: 141208
THRUST WASHER - THICK. MM. 1,9
from £8.09
from £8.09
# 005
MPN: 141210
THRUST WASHER - THICK. MM. 2,1
from £8.09
from £8.09
# 005
MPN: 141211
THRUST WASHER - THICK. MM. 2,2
from £8.10
from £8.10
# 005
MPN: 142187
THRUST WASHER - THICK. MM. 2,3
from £7.96
from £7.96
# 005
MPN: 142188
THRUST WASHER - THICK. MM. 2,4
from £7.96
from £7.96
# 006
MPN: 16109221
NUT
from £0.50
from £0.50
# 007
MPN: 128509
WASHER
from £4.17
from £4.17
# 008
MPN: 138750
4TH AND 5TH GEAR ROCKER ARM CONTROL FORK
from £51.77
from £51.77
# 009
MPN: 10569373
WASHER
from £0.47
from £0.47
# 010
MPN: 14306431
SCREW
from £0.87
from £0.87
# 011
MPN: 138727
4TH AND 5TH GEAR FORK CONTROL ROD
from £26.20
from £26.20
# 012
MPN: 138696

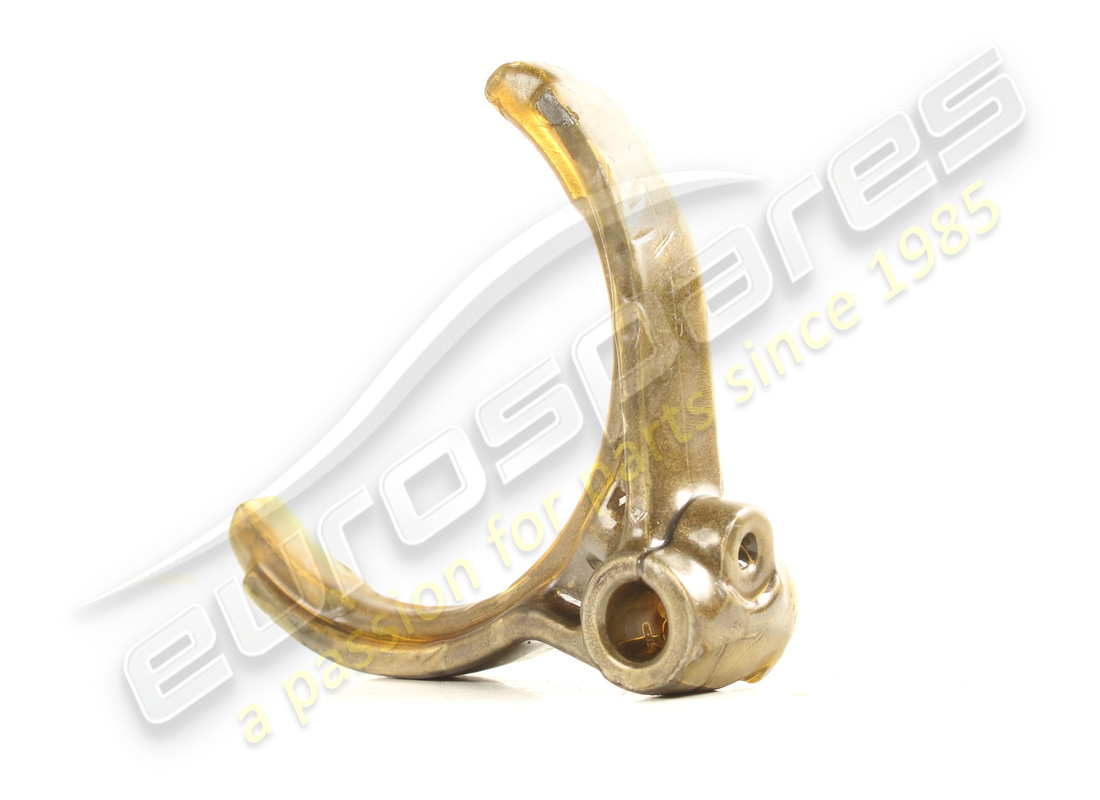

4TH AND 5TH GEAR FORK
from £129.67
from £129.67
# 013
MPN: 16043631
SCREW
from £0.47
from £0.47
# 014
MPN: 138723
4TH AND 5TH GEAR FORK ROD
from £34.82
from £34.82
# 015
MPN: 131077

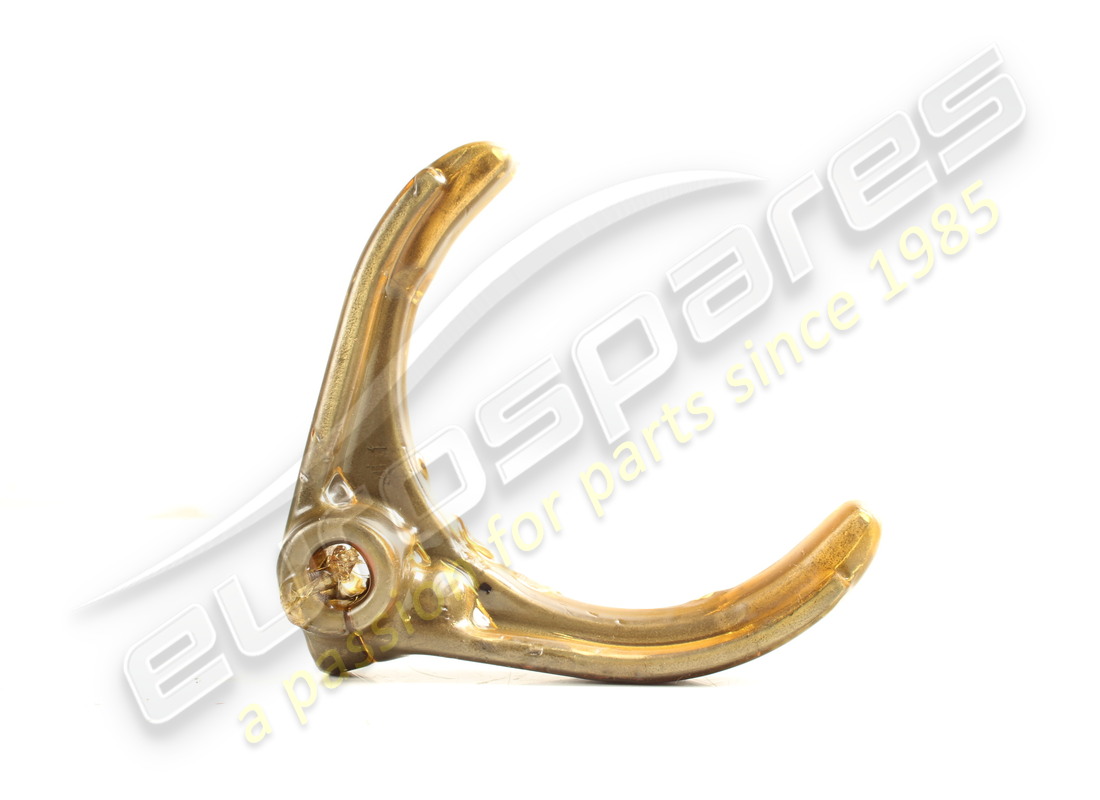

1ST AND REVERSE GEAR FORK
from £102.39
from £102.39
# 016
MPN: 131078
2ND AND 3RD GEAR FORK
from £77.18
from £77.18
# 017
MPN: 131266
1ST AND REVERSE GEAR FORK ROD
from £135.23
from £135.23
# 018
MPN: 131075
1ST AND REVERSE GEAR ROD CONTROL FORK
from £30.65
from £30.65
# 019
MPN: 131267
2ND AND 3RD GEAR FORK ROD
from £353.78
from £353.78
# 020
MPN: 131076
2ND AND 3RD GEAR ROD CONTROL FORK
from £30.15
from £30.15
# 021
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 022
MPN: 16043721
SCREW
from £1.13
from £1.13
# 023
MPN: 131929
TRACK FOR ROCKER ARMS
from £59.02
from £59.02
# 024
MPN: 131928
ROCKER ARMS SEAL PIN
from £11.73
from £11.73
# 025
MPN: 131930
WASHER
from £0.51
from £0.51
# 026
MPN: 131895
ROLLERS CAGE
from £3.53
from £3.53
# 027
MPN: 131073
1S GEAR AND RM FORK CONTROL ROCKER ARM
from £66.69
from £66.69
# 028
MPN: 131074
4TH AND 5TH GEAR FORK CONTROL ROCKER ARM
from £73.36
from £73.36
# 029
MPN: 138755
GEARBOX CONTROL ROD
- Valid for intermediate body 143278 - Valid till stock exhaustion
from £178.18
from £178.18
# 029
MPN: 143316
GEARBOX CONTROL ROD
- Valid for intermediate body 146950 and 149584 - Valid after stock exhaustion of 138755
from £61.51
from £61.51
This part replaces part number 138755 which we have in stock
# 030
MPN: 131072
ROCKER ARMS CONTROL LEVER
Supersession
Supersession
# 031
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 032
MPN: 16043934
SCREW
from £0.53
from £0.53
This part replaces part number 16043921 - and 1 more. Click to view details
# 033
MPN: 115376
BUSH
from £30.28
from £30.28
# 034
MPN: 100750

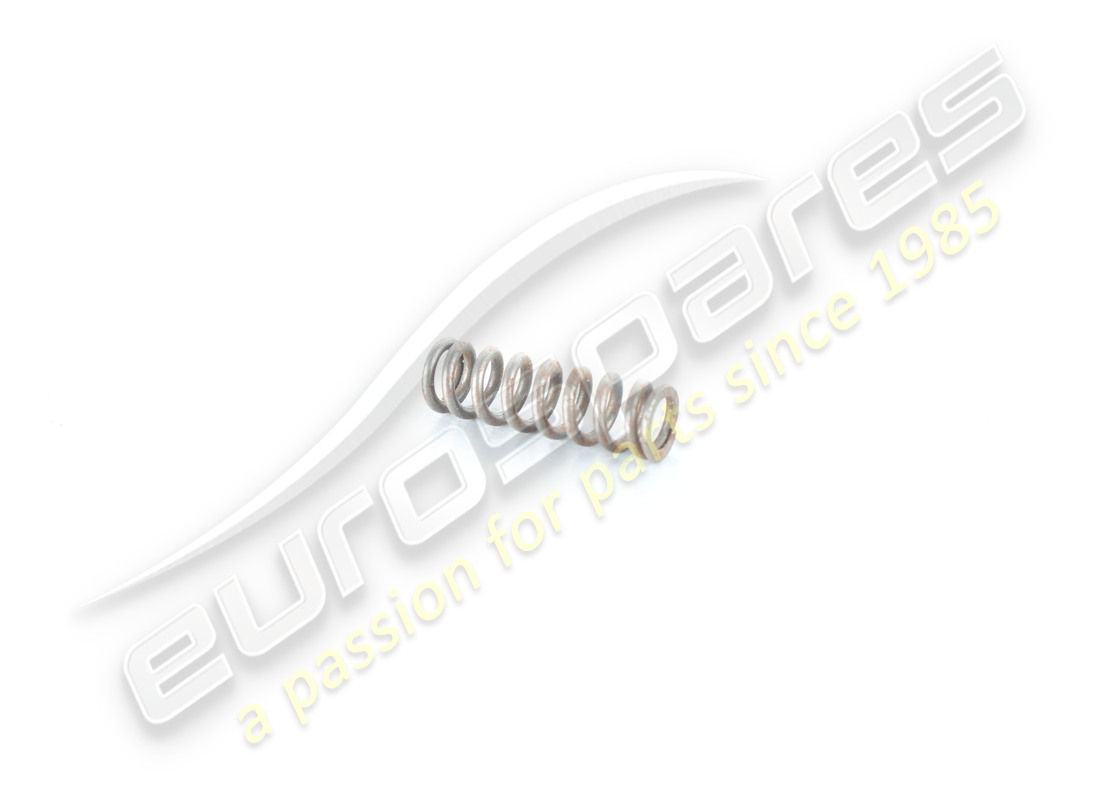

SPRING
from £1.04
from £1.04
This part replaces part number 523899
# 035
MPN: 101612
SPHERE
from £0.73
from £0.73
This part replaces part number 93309
# 036
MPN: 104276
2ND AND 3RD GEAR ROD STOP ROLLER
from £5.72
from £5.72
This part replaces part number 523961
# 037
MPN: 131337
1ST AND RM - 4TH AND 5TH GEAR RODS STOP ROLLER
from £5.97
from £5.97
# 038
MPN: 144018
2ND AND 3TH GEAR FORK CONTROL ROCKER ARM
from £357.00
from £357.00
This part replaces part number 163484 which we have in stock
# 039
MPN: 125858
BALL
from £0.47
from £0.47
# 040
MPN: 142199
SPRING
from £2.48
from £2.48
# 041
MPN: 143325
BUSH
from £2.61
from £2.61
# 042
MPN: 10259960
GASKET
from £0.47
from £0.47
This part replaces part number 95017
# 043
MPN: 10273140
CAP
from £1.53
from £1.53
