ferrari testarossa (1987) clutch and controls parts diagram

027 - Clutch and Controls

Ferrari Testarossa (1987) Clutch and Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Key
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 124098
                                                                                                  PRESSURE PLATE (NOT AVAILABLE AS SPARE PARTS)
                                                                                                  USE 135076
                                                                                                  from £508.98
                                                                                                  from £508.98
                                                                                                  PRESSURE PLATE Genuine Ferrari Part - New (to order)
                                                                                                  # 001
                                                                                                  MPN: 124680

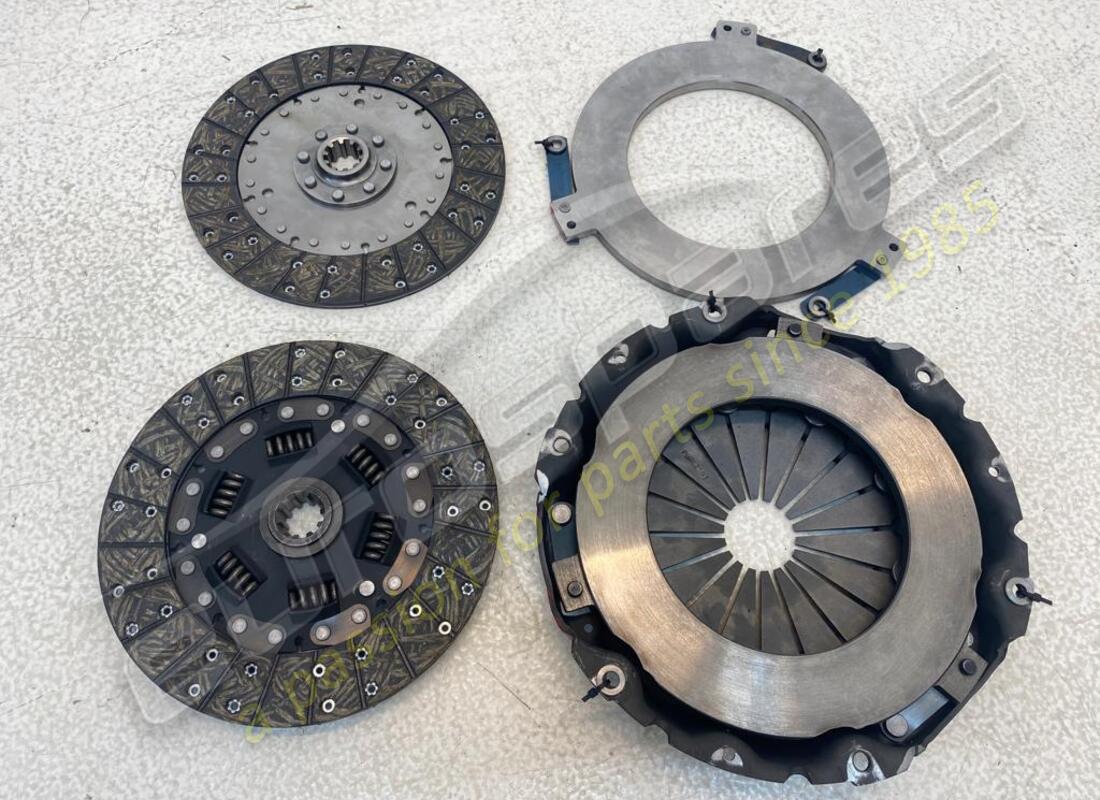

                                                                                                  CLUTCH KIT
                                                                                                  from £1,845.19
                                                                                                  from £1,845.19
                                                                                                  CLUTCH ASSEMBLY Genuine Ferrari Part - New (to order)
                                                                                                  CLUTCH KIT Eurospares Approved Part - New (to order)
                                                                                                  Alternative (#135076) CLUTCH ASSY Eurospares Approved Part - New (to order)
                                                                                                  (FROM CHASSIS 73565)
                                                                                                  # 002
                                                                                                  MPN: 135077

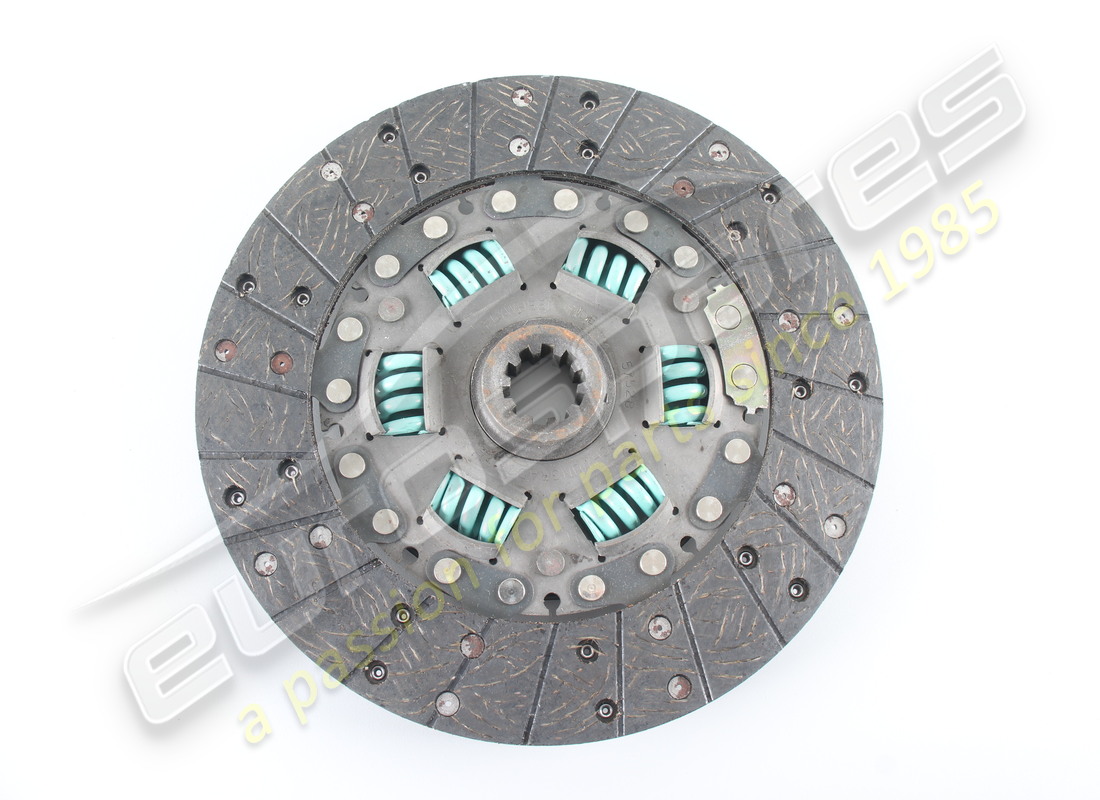

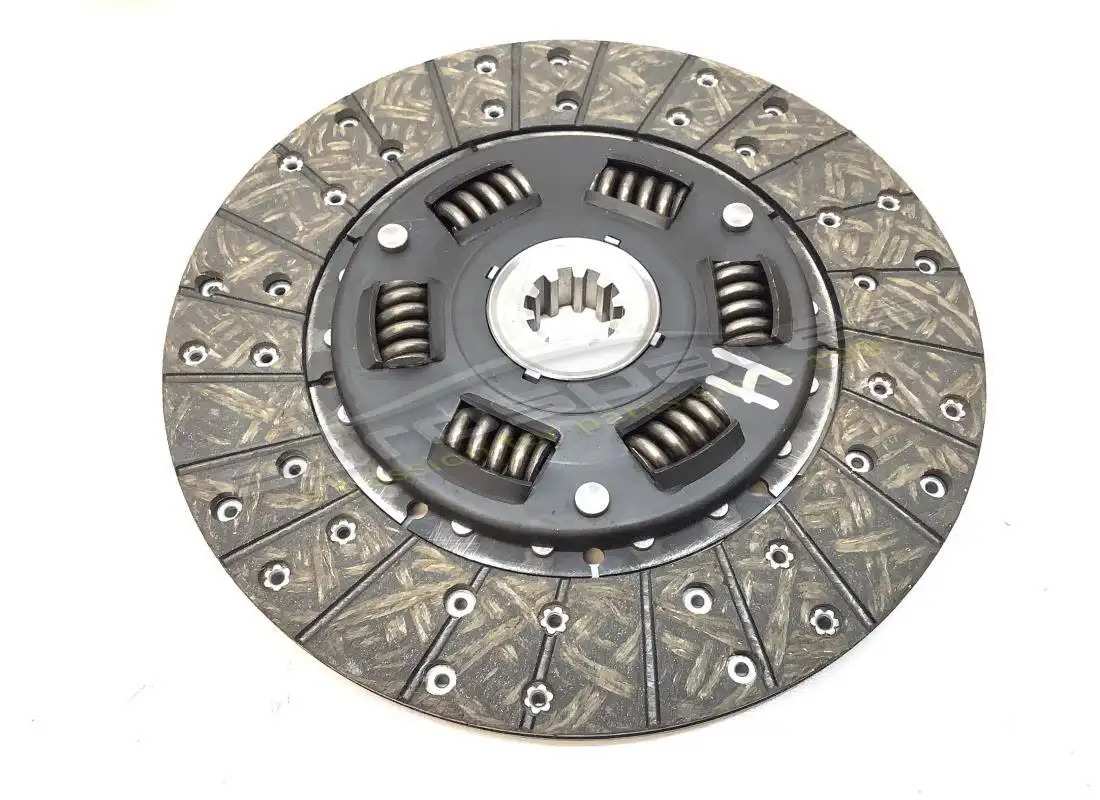

                                                                                                  CLUTCH DISC WITH SPRING DRIVE
                                                                                                  from £377.19
                                                                                                  from £377.19
                                                                                                  This part replaces part number 124099
                                                                                                  CLUTCH DISC Genuine Ferrari Part - New (to order)
                                                                                                  CLUTCH DISC Eurospares Approved Part - New In stock
                                                                                                  # 003
                                                                                                  MPN: 135078

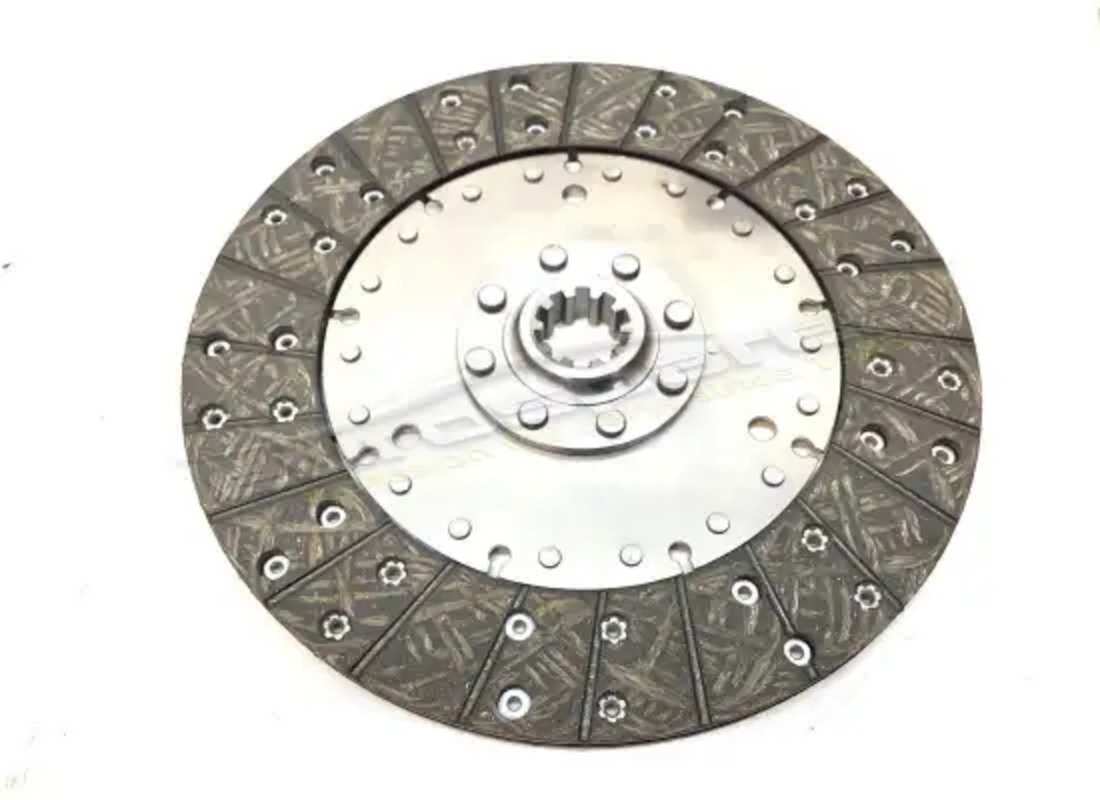

                                                                                                  CLUTCH DISC WITHOUT SPRING DRIVE
                                                                                                  from £326.37
                                                                                                  from £326.37
                                                                                                  This part replaces part number 124100
                                                                                                  CLUTCH DISC Genuine Ferrari Part - New (to order)
                                                                                                  CLUTCH DISC Eurospares Approved Part - New In stock
                                                                                                  # 004
                                                                                                  MPN: 110019
                                                                                                  STUD
                                                                                                  from £39.45
                                                                                                  from £39.45
                                                                                                  STUD Genuine Ferrari Part - New (to order)
                                                                                                  # 005
                                                                                                  MPN: 16100824
                                                                                                  NUT
                                                                                                  from £0.50
                                                                                                  from £0.50
                                                                                                  This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                  NUT Genuine Ferrari Part - New In stock
                                                                                                  NUT Genuine Maserati Part - New In stock
                                                                                                  # 006
                                                                                                  MPN: 127496
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                                                  WASHER Genuine Maserati Part - New In stock
                                                                                                  # 007
                                                                                                  MPN: 124102

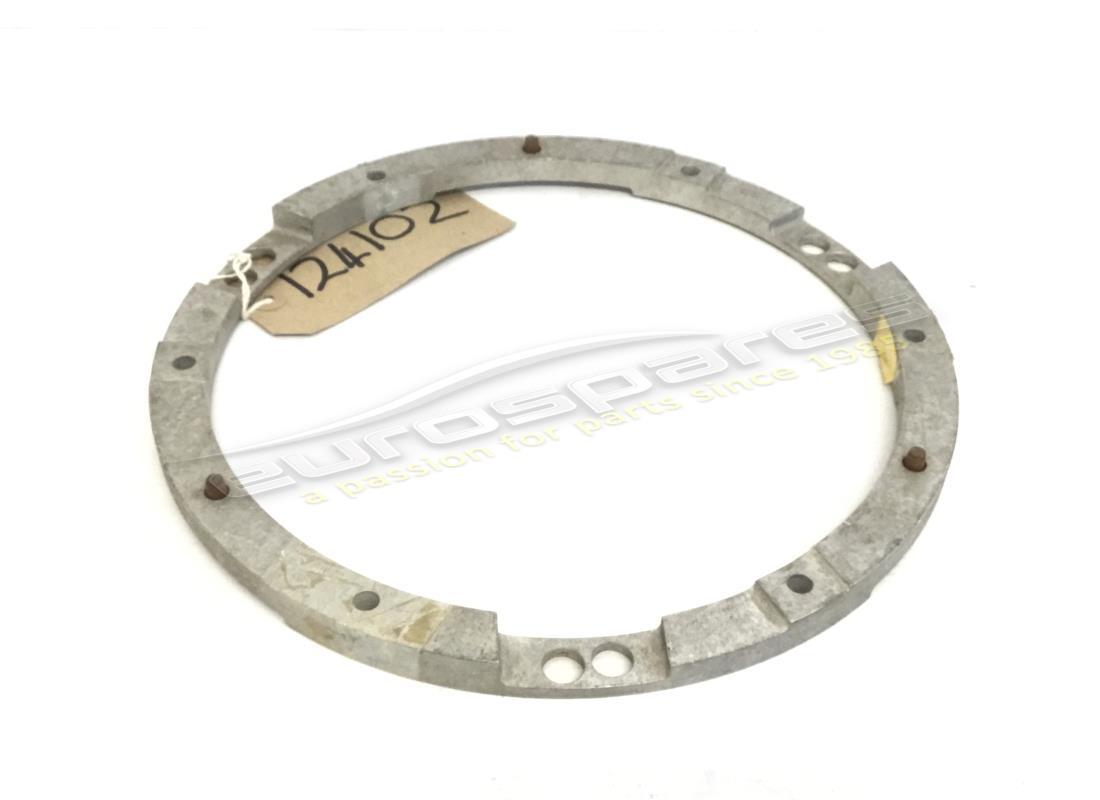

                                                                                                  SPACER RING
                                                                                                  from £252.53
                                                                                                  from £252.53
                                                                                                  TR CLUTCH RING Genuine Ferrari Part - New In stock
                                                                                                  # 008
                                                                                                  MPN: 124101
                                                                                                  INTPRRNEDIATE RING
                                                                                                  CLUTCH RING Genuine Ferrari Part - New (to order)
                                                                                                  # 009
                                                                                                  MPN: 124103
                                                                                                  STUD
                                                                                                  from £23.31
                                                                                                  from £23.31
                                                                                                  BOLT Genuine Ferrari Part - New (to order)
                                                                                                  # 010
                                                                                                  MPN: 104756
                                                                                                  SEAL RING
                                                                                                  from £6.17
                                                                                                  from £6.17
                                                                                                  OIL SEAL Genuine Ferrari Part - New In stock
                                                                                                  # 011
                                                                                                  MPN: 109466
                                                                                                  SPACER
                                                                                                  from £6.20
                                                                                                  from £6.20
                                                                                                  WASHER Genuine Ferrari Part - New (to order)
                                                                                                  # 012
                                                                                                  MPN: 123810
                                                                                                  CLUTCH SHAFT
                                                                                                  from £1,588.62
                                                                                                  from £1,588.62
                                                                                                  SPIGOT SHAFT Genuine Ferrari Part - New (to order)
                                                                                                  # 013
                                                                                                  MPN: 109342
                                                                                                  SHOULDER WASHER
                                                                                                  from £0.82
                                                                                                  from £0.82
                                                                                                  SEAL Genuine Ferrari Part - New (to order)
                                                                                                  # 014
                                                                                                  MPN: 103042
                                                                                                  BEARING
                                                                                                  from £293.35
                                                                                                  from £293.35
                                                                                                  DOUBLE BALL BEARING Genuine Ferrari Part - New (to order)
                                                                                                  # 015
                                                                                                  MPN: 70000567

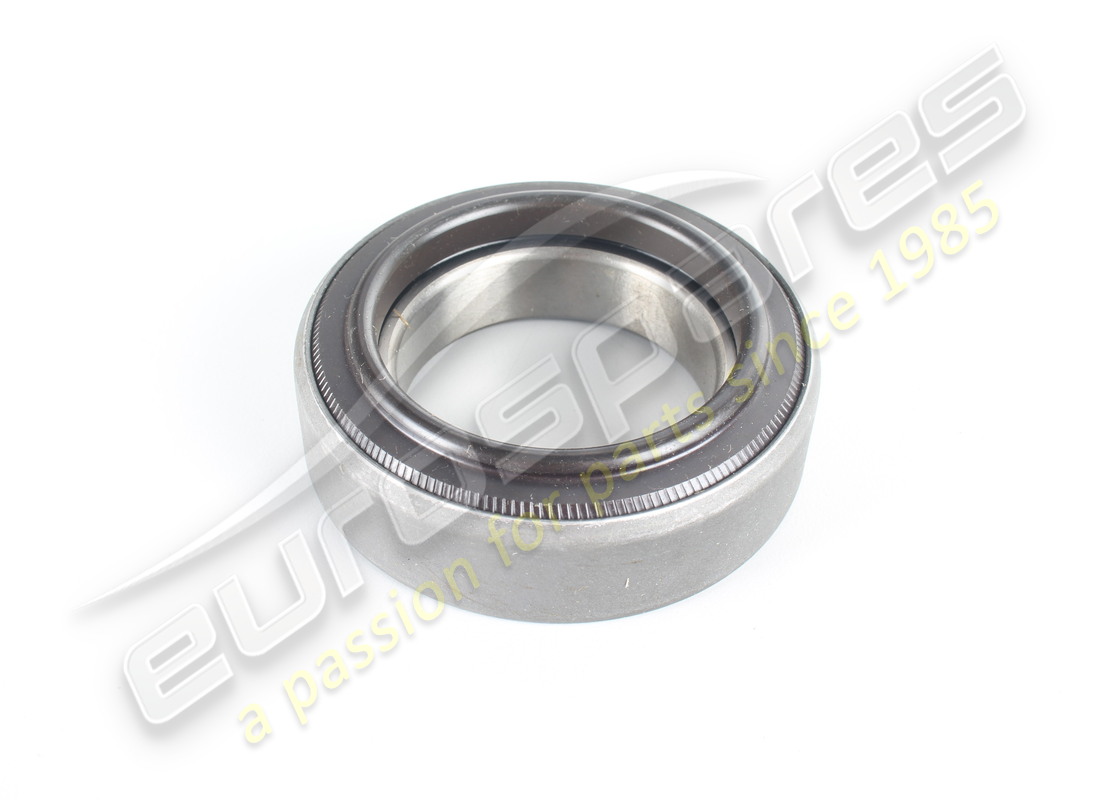

                                                                                                  THRUST BEARING
                                                                                                  from £246.75
                                                                                                  from £246.75
                                                                                                  This part replaces part number 126608 - and 2 more. Click to view details
                                                                                                  SEALED THRUST BEARING Genuine Ferrari Part - New (to order)
                                                                                                  RELEASE BEARING Eurospares Approved Part - New In stock
                                                                                                  # 016
                                                                                                  MPN: 123359
                                                                                                  THRUST BEARING SUPPORTING BUSH
                                                                                                  from £249.68
                                                                                                  from £249.68
                                                                                                  CLUTCH RELEASE CARRIER Genuine Ferrari Part - New (to order)
                                                                                                  CLUTCH RELEASE CARRIER Eurospares Approved Part - New In stock
                                                                                                  CLUTCH RELEASE CARRIER Genuine Ferrari Part - Used In stock
                                                                                                  # 017
                                                                                                  MPN: 123360
                                                                                                  BUSH SUPPORTING FLANGE
                                                                                                  from £1,216.00
                                                                                                  from £1,216.00
                                                                                                  SUPPORT FLANGE Genuine Ferrari Part - New (to order)
                                                                                                  SUPPORT FLANGE Eurospares Approved Part - New (to order)
                                                                                                  SUPPORT FLANGE Genuine Ferrari Part - Used In stock
                                                                                                  # 018
                                                                                                  MPN: 123696
                                                                                                  PLATE
                                                                                                  from £1,162.99
                                                                                                  from £1,162.99
                                                                                                  PLATE Genuine Ferrari Part - New (to order)
                                                                                                  # 019
                                                                                                  MPN: 10977521
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10977501 which we have in stock - and 1 more. Click to view details
                                                                                                  BOLT Genuine Ferrari Part - New In stock
                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                  # 020
                                                                                                  MPN: 106849
                                                                                                  WASHER
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 11195473
                                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                                  # 021
                                                                                                  MPN: 139440

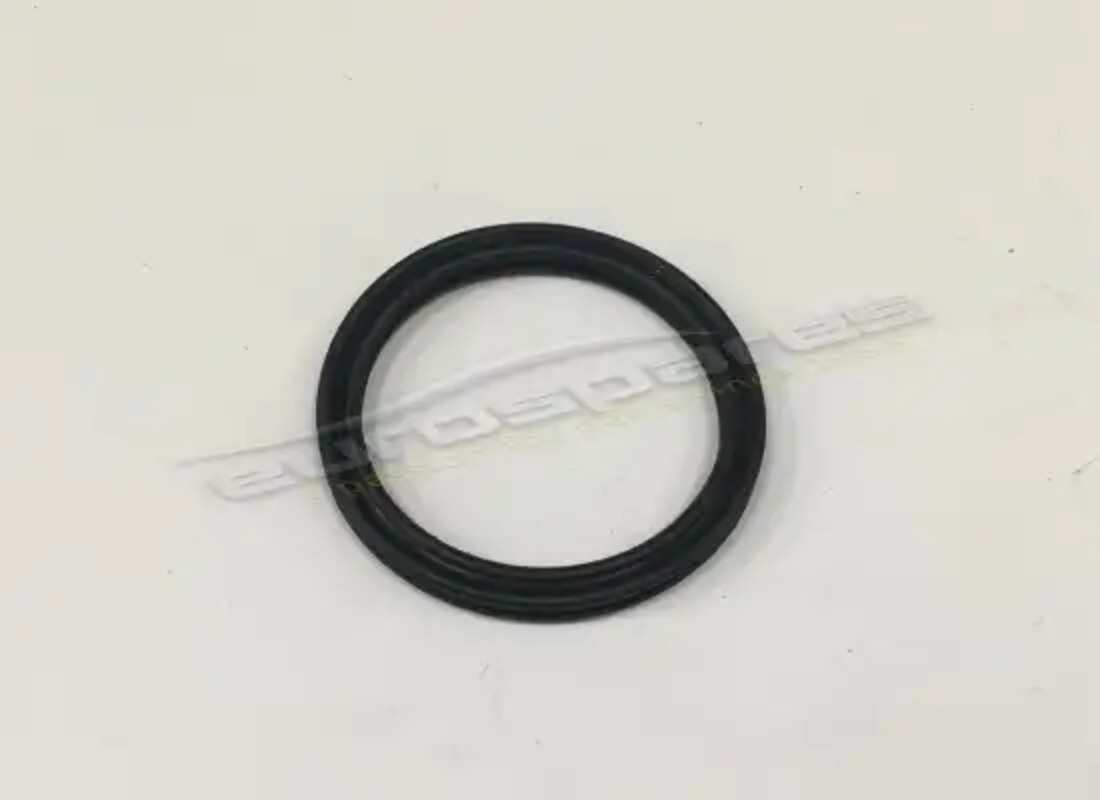

                                                                                                  SEAL RING
                                                                                                  from £39.60
                                                                                                  from £39.60
                                                                                                  This part replaces part number 122033
                                                                                                  T.R. CLUTCH CYLINDER SEAL (NON ORIGINAL) Genuine Ferrari Part - New (to order)
                                                                                                  T.R. CLUTCH CYLINDER SEAL Eurospares Approved Part - New In stock
                                                                                                  # 022
                                                                                                  MPN: 139439
                                                                                                  SEAL RING
                                                                                                  from £47.00
                                                                                                  from £47.00
                                                                                                  This part replaces part number 124674
                                                                                                  CLUTCH SEAL Genuine Ferrari Part - New (to order)
                                                                                                  CLUTCH SEAL Eurospares Approved Part - New In stock
                                                                                                  # 023
                                                                                                  MPN: 65928500
                                                                                                  PLUG
                                                                                                  from £25.62
                                                                                                  from £25.62
                                                                                                  This part replaces part number 10267550
                                                                                                  PLUG Genuine Ferrari Part - New (to order)
                                                                                                  # 024
                                                                                                  MPN: 166432
                                                                                                  O.R. GASKET
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  GASKET Genuine Ferrari Part - New In stock
                                                                                                  O.R. GASKET Genuine Maserati Part - New (to order)
                                                                                                  # 025
                                                                                                  MPN: 121814
                                                                                                  SEAL RING
                                                                                                  from £7.83
                                                                                                  from £7.83
                                                                                                  O RING Genuine Ferrari Part - New In stock
                                                                                                  # 026
                                                                                                  MPN: 138680
                                                                                                  SEAL RING
                                                                                                  from £35.66
                                                                                                  from £35.66
                                                                                                  This part replaces part number 125461 - and 1 more. Click to view details
                                                                                                  SEAL RING Genuine Ferrari Part - New (to order)
                                                                                                  # 027
                                                                                                  MPN: 121717
                                                                                                  PRELOADING SPRING
                                                                                                  from £2.45
                                                                                                  from £2.45
                                                                                                  SPRING Genuine Ferrari Part - New In stock
                                                                                                  SCREW 3BA X3/8 BRASS Genuine Aston Martin - New (to order)
                                                                                                  SPRING Genuine Ferrari Part - Used In stock
                                                                                                  # 028
                                                                                                  MPN: 123110
                                                                                                  CIRCLIP
                                                                                                  from £10.65
                                                                                                  from £10.65
                                                                                                  CIRCLIP Genuine Ferrari Part - New In stock
                                                                                                  # 029
                                                                                                  MPN: 121699
                                                                                                  BLEEDER SCREW
                                                                                                  from £12.06
                                                                                                  from £12.06
                                                                                                  SCREW Genuine Ferrari Part - New In stock
                                                                                                  VITE DI SPURGO CON CAPUCCIO Genuine Maserati Part - New (to order)
                                                                                                  # 030
                                                                                                  MPN: 124841
                                                                                                  PIPE FROM MASTER CYLINDER TO FLEXIBLE
                                                                                                  from £32.23
                                                                                                  from £32.23
                                                                                                  TUBE Genuine Ferrari Part - New (to order)
                                                                                                  # 031
                                                                                                  MPN: 10440990
                                                                                                  PIPE SUPPORTING BRACKET
                                                                                                  from £0.83
                                                                                                  from £0.83
                                                                                                  CLAMP Genuine Ferrari Part - New In stock
                                                                                                  PIPE BRACKET WITH SHEATH Genuine Maserati Part - New (to order)
                                                                                                  # 032
                                                                                                  MPN: 109789
                                                                                                  EXTENSION FOR BREATHER
                                                                                                  from £31.07
                                                                                                  from £31.07
                                                                                                  DOWEL Genuine Ferrari Part - New (to order)
                                                                                                  # 033
                                                                                                  MPN: 13411990
                                                                                                  BRATHER
                                                                                                  from £2.07
                                                                                                  from £2.07
                                                                                                  OIL BREATHER Genuine Ferrari Part - New In stock
                                                                                                  # 034
                                                                                                  MPN: 124840
                                                                                                  FLEXIBLE HOSE FOR CLUTCH HYDRAULIC CONTROL
                                                                                                  from £1,752.80
                                                                                                  from £1,752.80
                                                                                                  CLUTCH HYDRAULIC HOSE Genuine Ferrari Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: 110810
                                                                                                  PIPE SECURING PLATE
                                                                                                  from £1.40
                                                                                                  from £1.40
                                                                                                  This part replaces part number 994922
                                                                                                  HOSE RETAINING CLIP Genuine Ferrari Part - New In stock
                                                                                                  # 035
                                                                                                  MPN: 126082
                                                                                                  CLUTCH HOUSING COMPLETE
                                                                                                  from £806.12
                                                                                                  from £806.12
                                                                                                  CLUTCH HOUSING Genuine Ferrari Part - New In stock
                                                                                                  CLUTCH HOUSING Genuine Ferrari Part - Used In stock
                                                                                                  # 036
                                                                                                  MPN: 123808
                                                                                                  CLUTCH HOUSING .
                                                                                                  With assy P.N. 126082
                                                                                                  HOUSING Genuine Ferrari Part - New (to order)
                                                                                                  # 037
                                                                                                  MPN: 13544621
                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                                  # 038
                                                                                                  MPN: 13544521
                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                                  # 039
                                                                                                  MPN: 13544021
                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                                  # 040
                                                                                                  MPN: 13544221
                                                                                                  STUD
                                                                                                  from £2.25
                                                                                                  from £2.25
                                                                                                  This part replaces part number 13517820 - and 1 more. Click to view details
                                                                                                  STUD Genuine Ferrari Part - New In stock
                                                                                                  # 041
                                                                                                  MPN: 102704
                                                                                                  DOWEL
                                                                                                  from £1.88
                                                                                                  from £1.88
                                                                                                  This part replaces part number 500805
                                                                                                  DOWEL BOLT Genuine Ferrari Part - New In stock
                                                                                                  CENTERING DOWEL Genuine Maserati Part - New (to order)
                                                                                                  # 042
                                                                                                  MPN: 13516621
                                                                                                  STUD
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  STUD BOLT Genuine Ferrari Part - New In stock
                                                                                                  # 043
                                                                                                  MPN: 127496
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                  WASHER Genuine Ferrari Part - New In stock
                                                                                                  WASHER Genuine Maserati Part - New In stock
                                                                                                  # 044
                                                                                                  MPN: 16100824
                                                                                                  NUT
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                  NUT Genuine Ferrari Part - New In stock
                                                                                                  NUT Genuine Maserati Part - New In stock
                                                                                                  # 045
                                                                                                  MPN: 104280
                                                                                                  OIL DRAIN PLUG
                                                                                                  from £4.95
                                                                                                  from £4.95
                                                                                                  This part replaces part number 523977
                                                                                                  MAGNETIC PLUG Genuine Ferrari Part - New In stock
                                                                                                  THREADED PLUG M 22X1.5 Genuine Maserati Part - New In stock
                                                                                                  # 046
                                                                                                  MPN: 10263460
                                                                                                  GASKET
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 95119
                                                                                                  GASKET Genuine Ferrari Part - New In stock
                                                                                                  GASKET 22- 28X 1.5 Genuine Maserati Part - New In stock
                                                                                                  # 047
                                                                                                  MPN: 126496
                                                                                                  UNION
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 121700
                                                                                                  Genuine Ferrari Part (no longer available to order)
                                                                                                  # 048
                                                                                                  MPN: 10257060
                                                                                                  GASKET
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                  GASKET Genuine Ferrari Part - New In stock
                                                                                                  GASKET Genuine Maserati Part - New In stock
                                                                                                  GASKET Original Equipment - New In stock
                                                                                                  # 049
                                                                                                  MPN: 14326150
                                                                                                  PLUG
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12326150
                                                                                                  PLUG Genuine Ferrari Part - New In stock
                                                                                                  TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                                                                                  # 050
                                                                                                  MPN: 104747
                                                                                                  SEAL RING
                                                                                                  from £1.15
                                                                                                  from £1.15

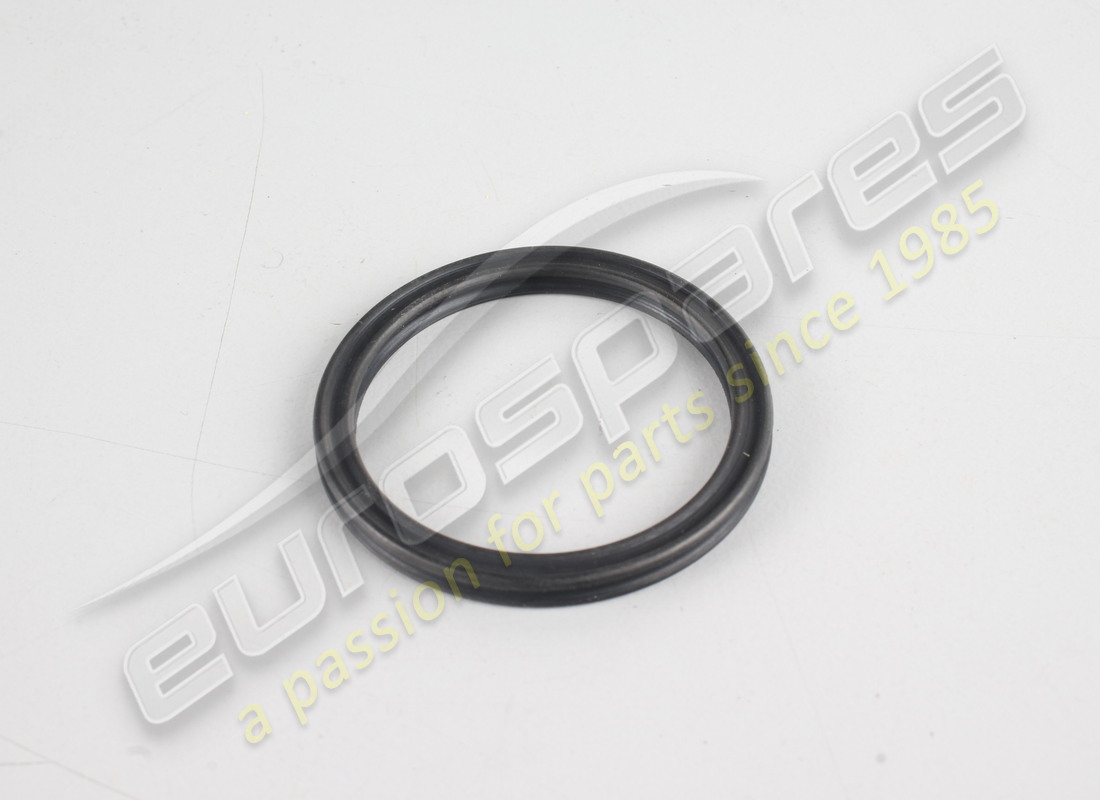

                                                                                                  O RING Genuine Ferrari Part - New In stock
