ferrari testarossa (1990) cylinder head (right) parts diagram

003 - cylinder head (right)

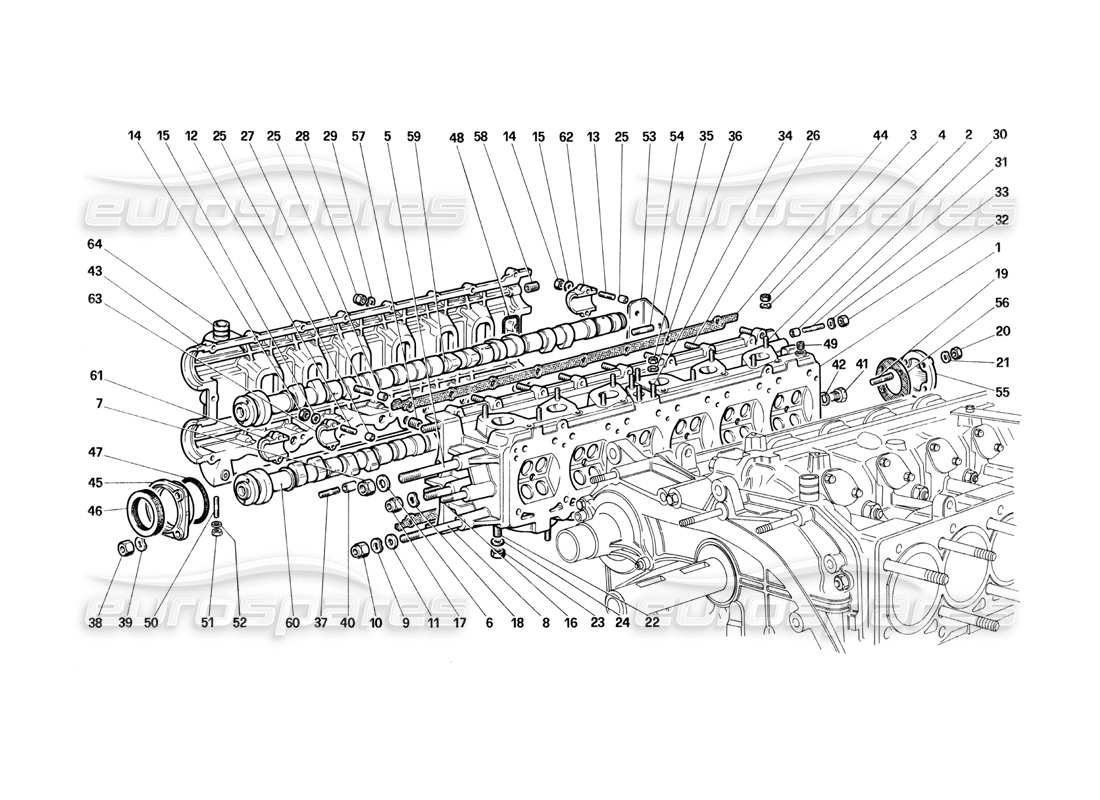

Ferrari Testarossa (1990) Cylinder Head (Right) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 123064
RIGHT CYLINDER HEAD, COMPLETE .
Supersession
Supersession
This part replaces part number 121440 - and 3 more. Click to view details
Genuine Ferrari Part (no longer available to order)
# 002
MPN: 12354524
STUD
from £16.01
from £16.01
This part replaces part number 12354521
STUD Genuine Ferrari Part - New In stock
# 003
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
NUT Genuine Ferrari Part - New In stock
NUT Genuine Maserati Part - New In stock
# 004
MPN: 11194071
WASHER
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 005
MPN: 13953121
STUD
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 006
MPN: 12601471
WASHER
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 007
MPN: 12575611
NUT
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 008
MPN: 13970321
STUD
For B1 and CAT.
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 008
MPN: 13970421
STUD
For US - CH and SA
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 009
MPN: 12604471
WASHER
from £0.47
from £0.47
WASHER Genuine Ferrari Part - New (to order)
# 010
MPN: 16104411
NUT
from £0.54
from £0.54
NUT Genuine Ferrari Part - New In stock
NYLON STOP HEX. NUT M8X8.5 Genuine Maserati Part - New In stock
# 011
MPN: 128010
SPRING WASHER
from £2.16
from £2.16
STAINLESS STEEL WASHER Genuine Ferrari Part - New (to order)
STAINLESS STEEL WASHER Eurospares Approved Part - New (to order)
# 012
MPN: 102735
STUD FOR INNER CAPS
from £11.07
from £11.07
This part replaces part number 4146561
STUD Genuine Ferrari Part - New In stock
# 013
MPN: 102754
STUD FOR OUTER CAPS
from £5.00
from £5.00
STUD Genuine Ferrari Part - New (to order)
# 014
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 015
MPN: 11197773
WASHER
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 016
MPN: 13543421
STUD (BELT STRETCHER)
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 017
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
NUT Genuine Ferrari Part - New In stock
NYLON STOP HEX.NUT M8X8X Genuine Maserati Part - New (to order)
# 018
MPN: 12601371
WASHER
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 019
MPN: 13541021
STUD
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 020
MPN: 101741
NUT
NUT Genuine Ferrari Part - New (to order)
# 021
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
Genuine Ferrari Part (no longer available to order)
# 022
MPN: 13543521
STUD
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 023
MPN: 114748
NUT
In alternative use no. 124525
from £8.67
from £8.67
NUT Genuine Ferrari Part - New In stock
# 024
MPN: 106852
WASHER
For nut no. 105938
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
Genuine Ferrari Part (no longer available to order)
# 025
MPN: 102725
DOWEL
from £0.58
from £0.58
DOWEL BOLT Genuine Ferrari Part - New In stock
CENTRING DOWEL D.8X8 Genuine Maserati Part - New (to order)
# 026
MPN: 13541324
STUD FOR COVERS
from £0.96
from £0.96
This part replaces part number 13541321
STUD BOLT Genuine Ferrari Part - New (to order)
# 027
MPN: 13541421
STUD ON DOWEL
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 028
MPN: 100044
CAP NUT
from £0.29
from £0.29
This part replaces part number 151230 - and 1 more. Click to view details
DOME NUT 6x12 Genuine Ferrari Part - New In stock
DOME NUT 6x12 Genuine Ferrari Part - Used In stock
# 029
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
Genuine Ferrari Part (no longer available to order)
# 030
MPN: 102725
DOWEL
from £0.64
from £0.64
DOWEL BOLT Genuine Ferrari Part - New In stock
CENTRING DOWEL D.8X8 Genuine Maserati Part - New (to order)
# 031
MPN: 13541124
STUD
from £12.30
from £12.30
This part replaces part number 13541121
STUD Genuine Ferrari Part - New (to order)
# 032
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 033
MPN: 11197773
WASHER
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 034
MPN: 13541021
STUD
Supersession
Supersession
Genuine Ferrari Part (no longer available to order)
# 035
MPN: 102741
NUT
from £0.52
from £0.52
This part replaces part number 12575411 - and 1 more. Click to view details
NUT Genuine Ferrari Part - New In stock
NUT Genuine Maserati Part - New In stock
# 036
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
Genuine Ferrari Part (no longer available to order)
# 037
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
STUD Genuine Ferrari Part - New (to order)
# 038
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
NUT Genuine Ferrari Part - New In stock
NUT Genuine Maserati Part - New In stock
# 039
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
Genuine Ferrari Part (no longer available to order)
# 040
MPN: 102725
DOWEL
from £0.63
from £0.63
DOWEL BOLT Genuine Ferrari Part - New In stock
CENTRING DOWEL D.8X8 Genuine Maserati Part - New (to order)
# 041
MPN: 10300740
WATER DRAIN PLUG
from £12.10
from £12.10
DRAIN PLUG Genuine Ferrari Part - New (to order)
# 042
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
GASKET Genuine Ferrari Part - New In stock
GASKET Genuine Maserati Part - New In stock
GASKET Original Equipment - New In stock
# 043
MPN: 128795
RIGHT CAM COVER
RH CYLINDER HEAD COVER Genuine Ferrari Part - New (to order)
# 044
MPN: 150196
GASKET
from £53.52
from £53.52
This part replaces part number 134948 - and 1 more. Click to view details
CAM COVER GASKET Genuine Ferrari Part - New In stock
CAM COVER GASKET Original Equipment - New In stock
CAM COVER GASKET Genuine Ferrari Part - New (other) In stock
New old stock
# 044
MPN: 600014950
O'RINGS SET
O'RINGS SET Genuine Ferrari Part - New (to order)
# 044
MPN: FCCG014
CAM COVER GASKET SET
includes 1x 150196, 1x 150195, 1x 150075 and 1x 150074
from £72.13
from £72.13
CAM COVER SET Genuine Ferrari Part - New (to order)
CAM COVER SET Original Equipment - New In stock
# 045
MPN: 121116
FRONT COVER
from £65.66
from £65.66
FRONT COVER Genuine Ferrari Part - New (to order)
FRONT COVER Genuine Ferrari Part - Used In stock
# 046
MPN: 114639
SEAL RING
In alternative use no. 128260
from £19.51
from £19.51
This part replaces part number 128260
Genuine Ferrari Part (no longer available to order)
Alternative (#133628/A) RH OIL SEAL Genuine Ferrari Part - New In stock
# 047
MPN: 117036
SEAL RING
from £4.93
from £4.93
SEAL RING Genuine Ferrari Part - New In stock
# 048
MPN: 127649
SEAL RING
from £5.33
from £5.33
SEAL RING Genuine Ferrari Part - New In stock
# 049
MPN: 14326150
PLUG (8 X 1,25)
from £0.50
from £0.50
This part replaces part number 12326150
PLUG Genuine Ferrari Part - New (to order)
TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
# 050
MPN: 11500121
STUD
Supersession
Supersession
This part replaces part number 13540820
Genuine Ferrari Part (no longer available to order)
# 051
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
Genuine Ferrari Part (no longer available to order)
Genuine Maserati Part (no longer available to order)
# 052
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
Genuine Ferrari Part (no longer available to order)
# 053
MPN: 124594
BRACKET
from £137.46
from £137.46
BRACKET Genuine Ferrari Part - New In stock
# 054
MPN: 13541124
STUD
from £12.30
from £12.30
This part replaces part number 13541121
STUD Genuine Ferrari Part - New (to order)
# 055
MPN: 103796
REAR COVER
from £167.71
from £167.71
END PLATE COVER Genuine Ferrari Part - New In stock
END PLATE COVER Genuine Ferrari Part - Used In stock
# 056
MPN: 150075
GASKET - WITHOUT AMIANTHUS
from £16.11
from £16.11
This part replaces part number 104694 - and 3 more. Click to view details
END PLATE GASKET Genuine Ferrari Part - New (to order)
END PLATE GASKET Original Equipment - New In stock
END PLATE GASKET Genuine Ferrari Part - New (other) In stock
New old stock
# 057
MPN: 10269750
PLUG
from £0.88
from £0.88
This part replaces part number 95184
PLUG Genuine Ferrari Part - New In stock
# 058
MPN: 13525470
HELI - COIL
from £0.53
from £0.53
This part replaces part number 107333
HELI COIL Genuine Ferrari Part - New (to order)
# 059

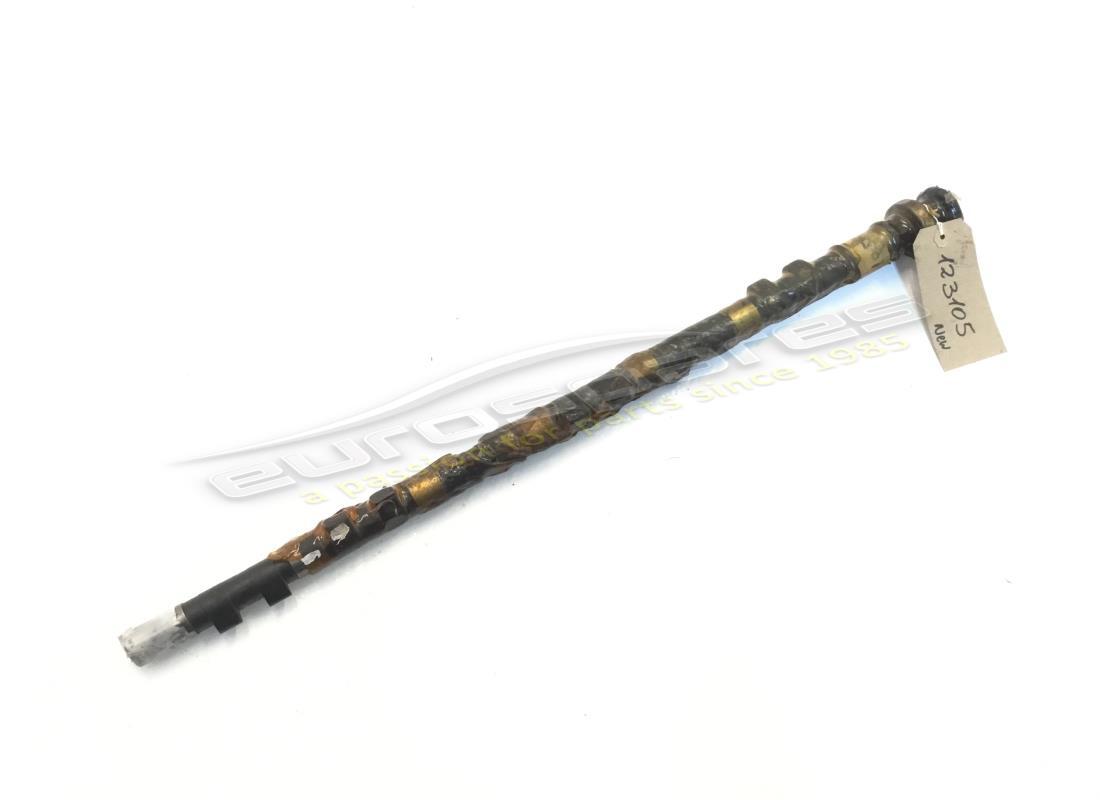

MPN: 143957
RIGHT INTAKE CAMSHAFT, COMPLETE
After exhaustion use no. 143957
from £2,489.60
from £2,489.60
This part replaces part number 123413
RIGHT INTAKE CAMSHAFT Genuine Ferrari Part - New (to order)
# 060
MPN: 123105
RIGHT EXHAUST CAMSHAFT, COMPLETE
from £1,522.44
from £1,522.44
RH EXHAUST CAMSHAFT COMPLETE Genuine Ferrari Part - New In stock
# 061
MPN: 114499
FRONT CAP
With complete cylinder head
FRONT CAMSHAFT CAP Genuine Ferrari Part - New (to order)
# 062
MPN: 114497
REAR CAP
With complete cylinder head
REAR CAMSHAFT CAP Genuine Ferrari Part - New (to order)
# 063
MPN: 126811
INTERMEDIATE CAP
With complete cylinder head
REAR CAM CAP Genuine Ferrari Part - New (to order)
# 064
MPN: 102705
UNION
from £79.26
from £79.26
UNION Genuine Ferrari Part - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
