114 - Accessories and Trims

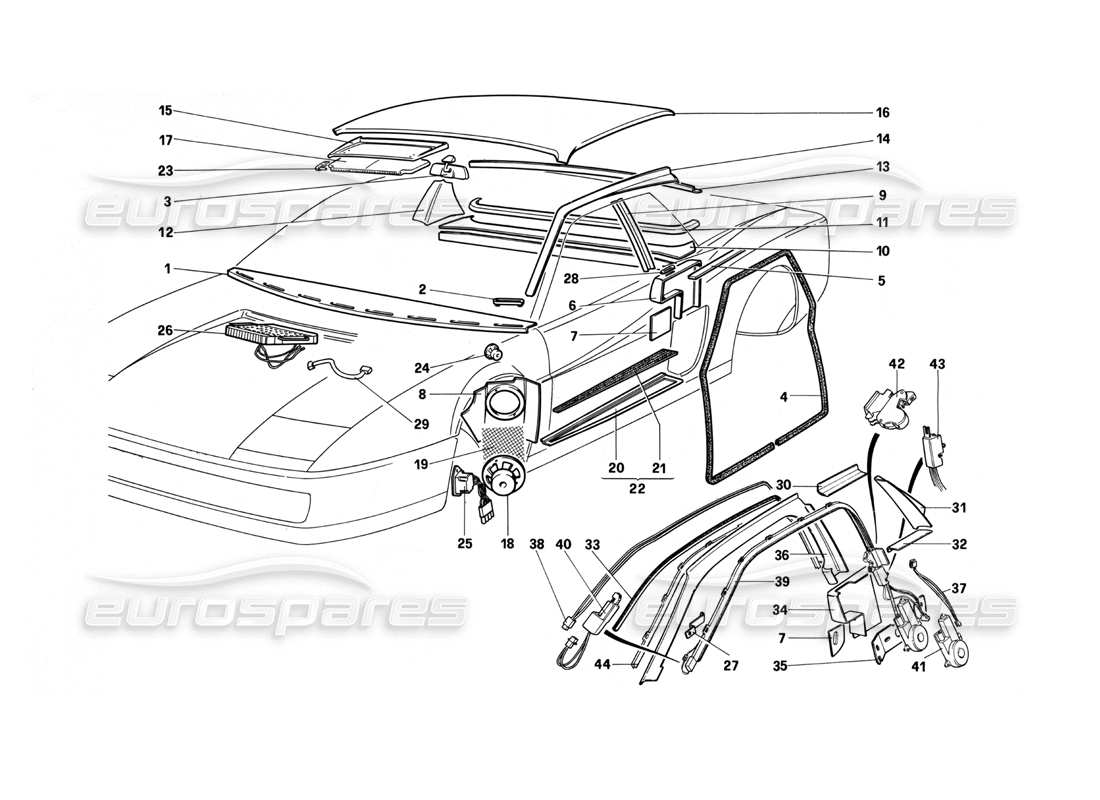

Ferrari Testarossa (1990) Accessories and Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61512100
WINDSHIELD LOWER TRIM
from £331.33
from £331.33
# 002
MPN: 61512200
AIR OUTLET
from £21.82
from £21.82
# 003
MPN: 61548200
INNER REAR VIEW MIRROR
Supersession
Supersession
# 004
MPN: 61528200
DOOR GASKET
from £105.00
from £105.00
# 005
MPN: 61512400
RIGHT SIDE TRIM
Not for US
from £46.81
from £46.81
This part replaces part number 615124.. - and 5 more. Click to view details
# 005
MPN: 61512500
LEFT SIDE TRIM
Not for US
from £54.59
from £54.59
This part replaces part number 615125.. - and 3 more. Click to view details
# 006
MPN: 61512600
RIGHT SIDE REAR PANEL
Not for US
from £463.33
from £463.33
This part replaces part number 615126.. - and 1 more. Click to view details
# 006
MPN: 61512700
LEFT SIDE REAR PANEL
Not for US
from £463.33
from £463.33
This part replaces part number 615127.. - and 1 more. Click to view details
# 007
MPN: 61512800
RIGHT SIDE PANEL
Not for US
from £66.21
from £66.21
This part replaces part number 615128.. - and 1 more. Click to view details
# 007
MPN: 61512900
LEFT SIDE PANEL
Not for US
from £66.21
from £66.21
This part replaces part number 615129.. - and 1 more. Click to view details
# 007
MPN: 61558600
RIGHT SIDE PANEL
For US
from £28.05
from £28.05
This part replaces part number 615586.. - and 1 more. Click to view details
# 007
MPN: 61558700
LEFT SIDE PANEL
For US
from £31.53
from £31.53
This part replaces part number 615587.. - and 1 more. Click to view details
# 008
MPN: 61513000
RIGHT SIDE FRONT PANEL LHD
Not for US
from £293.98
from £293.98
# 008
MPN: 61513100
LEFT SIDE FRONT PANEL LHD
Not for US
from £201.06
from £201.06
# 008
MPN: 61534200
LEFT SIDE FRONT PANEL RHD
from £333.40
from £333.40
# 008
MPN: 61534300
RIGHT SIDE FRONT PANEL RHD
from £333.40
from £333.40
# 008
MPN: 61550600
RH SIDE FRONT PANEL
For US
from £248.15
from £248.15
# 008
MPN: 61550700
LH SIDE FRONT PANEL
For US
from £246.96
from £246.96
# 009
MPN: 61513200
TRIM FOR RIGHT CENTRAL FENDER
Not for US
from £123.82
from £123.82
This part replaces part number 615132.. - and 3 more. Click to view details
# 009
MPN: 61513300
TRIM FOR LEFT CENTRAL FENDER
Not for US
from £168.43
from £168.43
This part replaces part number 615133.. - and 3 more. Click to view details
# 009
MPN: 61556500
TRIM FOR RIGHT CENTRAL FENDER
For US
Supersession
Supersession
# 009
MPN: 61556600
TRIM FOR LEFT CENTRAL FENDER
For US
from £128.20
from £128.20
This part replaces part number 61556612
# 010
MPN: 61513400
REAR WINDOW PLANE
from £204.75
from £204.75
This part replaces part number 615134.. - and 5 more. Click to view details
# 011
MPN: 61513500
REAR WINDOW LOWER TRIM
from £187.25
from £187.25
This part replaces part number 615135.. - and 5 more. Click to view details
# 012
MPN: 61513600
TRIM FOR REAR RIGHT FENDER
Not for US
from £182.08
from £182.08
This part replaces part number 615136.. - and 3 more. Click to view details
# 012
MPN: 61513700
TRIM FOR REAR LEFT FENDER
Not for US
from £114.44
from £114.44
This part replaces part number 615137.. - and 3 more. Click to view details
# 013
MPN: 61513800
REAR WINDOW UPPER TRIM
Not for US
from £301.40
from £301.40
This part replaces part number 615138.. - and 5 more. Click to view details
# 013
MPN: 61556700
REAR WINDOW UPPER TRIM
For US
from £158.52
from £158.52
This part replaces part number 615567.. - and 3 more. Click to view details
# 014
MPN: 61513900
TRIM FOR ROOF RIGHT SIDE
Not for US
from £375.72
from £375.72
This part replaces part number 615139.. - and 1 more. Click to view details
# 014
MPN: 61514000
TRIM FOR ROOF LEFT SIDE
Not for US
from £993.11
from £993.11
This part replaces part number 615140.. - and 1 more. Click to view details
# 015
MPN: 61514300
RIGHT WINDSHIELD UPPER TRIM
This part replaces part number 615143.. - and 5 more. Click to view details
# 015
MPN: 61514400
LEFT WINDSHIELD UPPER TRIM
from £575.89
from £575.89
This part replaces part number 615144.. - and 5 more. Click to view details
# 016
MPN: 61514500
INNER ROOF
from £538.77
from £538.77
This part replaces part number 615145.. - and 3 more. Click to view details
# 017
MPN: 61514600
RIGHT SUN VISOR
from £466.00
from £466.00
This part replaces part number 61514612 - and 2 more. Click to view details
# 017
MPN: 61514700
LEFT SUN VISOR
from £422.04
from £422.04
This part replaces part number 615147.. - and 5 more. Click to view details
# 018
MPN: 146217
loudspeaker
From car No 85012
from £50.35
from £50.35
# 018
MPN: 61643800
loudspeaker
Until exhaustion
Supersession
Supersession
# 018
MPN: 62433000
loudspeaker
After exhaustion PN 61643800 - Until car No 85011
from £116.72
from £116.72
This part replaces part number 61643800
# 019
MPN: 61514800
LOUDSPEAKER GRILL
from £44.71
from £44.71
# 020
MPN: 61514900
FRAME FOR RIGHT UNDERDOOR MOULDING
from £394.52
from £394.52
# 020
MPN: 61515000
FRAME FOR LEFT UNDERDOOR MOULDING
from £298.95
from £298.95
# 021
MPN: 61515100
RUBBER INSERT FOR RIGHT UNDERDOOR MOULC
from £112.36
from £112.36
# 021
MPN: 61515200
RUBBER INSERT FOR LEFT UNDERDOOR MOULDMG
from £260.52
from £260.52
# 022
MPN: 61515300
RIGHT UNDERDOOR MOULDING, COMPLETE
Supersession
Supersession
# 022
MPN: 61515400
LEFT UNDERDOOR MOULDING, COMPLETE
Supersession
Supersession
# 023
MPN: 61515500
RIGHT SUN VISOR SUPPORT
from £19.73
from £19.73
# 023
MPN: 61515600
LEFT SUN VISOR SUPPORT
from £19.73
from £19.73
# 024
MPN: 146216
TWEETER
From car No 85012
from £41.84
from £41.84
# 024
MPN: 61643900
TWEETER
Until exhaustion
Supersession
Supersession
# 024
MPN: 62462700
TWEETER
After exhaustion PN 61643900 - Until car No 85011
from £92.87
from £92.87
This part replaces part number 61643900
# 025

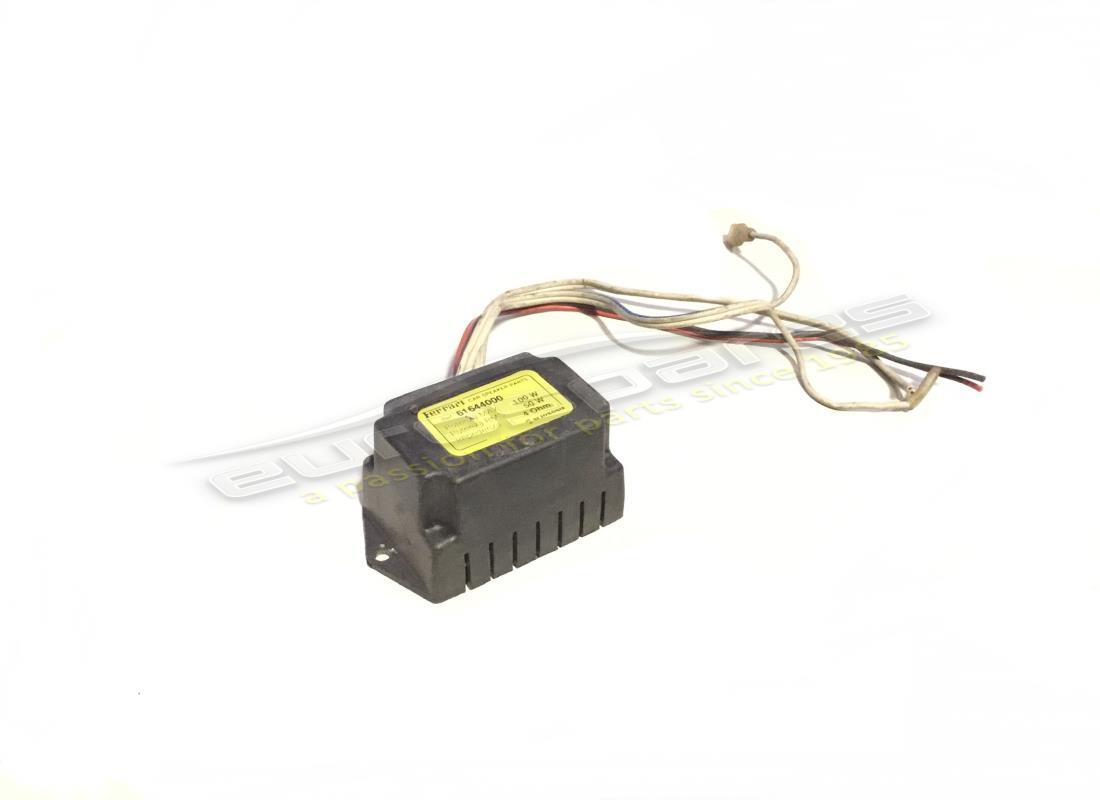

MPN: 61644000
LOUDSPEAKER FILTER
Until car no 850111
from £204.75
from £204.75
# 026
MPN: 62368000
AMPLIFER
For SA - CH
Supersession
Supersession
# 026
MPN: 62515600
AMPLIFER
Not for US - SA - J - CH
from £290.95
from £290.95
This part replaces part number 62368000
# 027
MPN: 61571100
CLIP FOR RH MOULDING
For US
from £12.60
from £12.60
# 027
MPN: 61571200
CLIP FOR LH MOULDING
For US
from £12.60
from £12.60
# 028
MPN: 61547200
SEAT BELTS FRAME
from £12.85
from £12.85
# 029
MPN: 62368100
RADIO - AMPLIFER CABLE
from £100.16
from £100.16
# 030
MPN: 61556300
RH MOULDING
For US
from £95.03
from £95.03
This part replaces part number 615563.. - and 1 more. Click to view details
# 030
MPN: 61556400
LH MOULDING
For US
from £100.04
from £100.04
This part replaces part number 615564.. - and 1 more. Click to view details
# 031
MPN: 61551600
RH MOULDING
For US
from £201.88
from £201.88
This part replaces part number 615516.. - and 1 more. Click to view details
# 031
MPN: 61551700
LH MOULDING
For US
Supersession
Supersession
This part replaces part number 615517.. - and 1 more. Click to view details
# 032
MPN: 61551000
RH MOULDING
For US
from £77.18
from £77.18
This part replaces part number 615510.. - and 1 more. Click to view details
# 032
MPN: 61551100
LH MOULDING
For US
from £57.16
from £57.16
This part replaces part number 615511.. - and 1 more. Click to view details
# 033
MPN: 61561100
UPPER GASKET
For US
from £27.81
from £27.81
# 033
MPN: 61561200
LOWER GASKET
For US
from £27.56
from £27.56
# 034
MPN: 61550800
RH MOULDING
For US
from £690.86
from £690.86
This part replaces part number 615508.. - and 1 more. Click to view details
# 034
MPN: 61550900
LH MOULDING
For US
from £690.86
from £690.86
This part replaces part number 61550912
# 035
MPN: 61557000
RH BRACKET
For US
from £9.02
from £9.02
# 035
MPN: 61557100
LH BRACKET
For US
from £9.02
from £9.02
# 036
MPN: 61551400
RH BRACKET
For US
from £442.08
from £442.08
This part replaces part number 61551412
# 036
MPN: 61551500
LH BRACKET
For US
from £727.46
from £727.46
This part replaces part number 61551512
# 037
MPN: 61562900
CABLES FOR MOTOR
For US
# 038
MPN: 61563000
CABLES FOR GUIDE
For US
from £229.42
from £229.42
# 038
MPN: 61569000
PASSIVE BELTS, ASSY.
Supersession
Supersession
This part replaces part number 61556800
# 039
MPN: 61560300
RH PASSIVE BELT, COMPLETE
Supersession
Supersession
This part replaces part number 61555100
# 039
MPN: 61560400
LH PASSIVE BELT, COMPLETE
Supersession
Supersession
This part replaces part number 61555200
# 040
MPN: 61560500
A STATION
For US
from £98.05
from £98.05
# 041
MPN: 61555100
RH DRIVE MOTOR
For US
Supersession
Supersession
# 041
MPN: 65779300
LH DRIVE MOTOR
For US
from £2,555.03
from £2,555.03
This part replaces part number 61560400
# 042
MPN: 61561300
SLIDER
For US
from £596.51
from £596.51
# 043
MPN: 61560700
B STATION
For US
from £199.20
from £199.20
# 044
MPN: 61560900
RH GUIDE FOR PASSIVE BELT
For US
from £662.07
from £662.07
# 044
MPN: 61561000
LH GUIDE FOR PASSIVE BELT
For US
from £662.07
from £662.07
-part-diagram-115.webp "FERRARI TESTAROSSA (1990) SEATS AND CARPETS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI TESTAROSSA (1990) DASHBOARD (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI TESTAROSSA (1990) DASHBOARD (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI TESTAROSSA (1990) CENTRAL TUNNEL (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI TESTAROSSA (1990) CENTRAL TUNNEL (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI TESTAROSSA (1990) INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI TESTAROSSA (1990) INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI TESTAROSSA (1990) FRONT HEADLIGHT LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI TESTAROSSA (1990) LAMPS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI TESTAROSSA (1990) ELECTRIC SYSTEM PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI TESTAROSSA (1990) VALVES AND RELAYS PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI TESTAROSSA (1990) WINDSHIELD WIPER, WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI TESTAROSSA (1990) HEATER UNIT PARTS DIAGRAM")
-part-diagram-a.webp "FERRARI TESTAROSSA (1990) SPARE PARTS ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI TESTAROSSA (1990) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI TESTAROSSA (1990) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI TESTAROSSA (1990) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI TESTAROSSA (1990) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI TESTAROSSA (1990) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI TESTAROSSA (1990) TIMING SYSTEM - VALVES PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI TESTAROSSA (1990) FUEL PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI TESTAROSSA (1990) FUEL TANKS (NOT FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI TESTAROSSA (1990) FUEL TANKS (FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI TESTAROSSA (1990) ANTI - EVAPORATIVE EMMISION CONTROL SYSTEM (FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI TESTAROSSA (1990) FUEL DISTRIBUTORS LINES - KE - JETRONIC SYSTEM PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI TESTAROSSA (1990) ELECTRIC CONTROLS FOR KE - JETRONIC AND EXHAUST PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI TESTAROSSA (1990) FUEL INJECTION SYSTEM - VALVES AND LINES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI TESTAROSSA (1990) SECONDARY AIR PUMP AND LINES (FOR U.S. AND CH88) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI TESTAROSSA (1990) AIR INJECTION AND LINES (FOR CH87 AND CAT) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI TESTAROSSA (1990) AIR INTAKE MANIFOLDS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI TESTAROSSA (1990) AIR INTAKE PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI TESTAROSSA (1990) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI TESTAROSSA (1990) EXHAUST SYSTEM (FOR B1 - GD1 VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI TESTAROSSA (1990) EXHAUST SYSTEM (FOR US - SA AND CAT VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI TESTAROSSA (1990) BLOW - BY PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI TESTAROSSA (1990) LUBRICATION PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI TESTAROSSA (1990) LUBRICATION -PUMPS AND OIL FILTER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI TESTAROSSA (1990) ENGINE COOLING PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI TESTAROSSA (1990) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI TESTAROSSA (1990) WATER PUMP PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI TESTAROSSA (1990) CLUTCH CONTROLS (UNTIL CAR NO. 80094 - 80145 CH - 80176 US) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI TESTAROSSA (1990) CLUTCH CONTROLS (STARTING FROM CAR NO. 80095 - 80146 CH - 80177 US) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI TESTAROSSA (1990) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI TESTAROSSA (1990) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI TESTAROSSA (1990) GEARBOX - MOUNTING AND COVERS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI TESTAROSSA (1990) GEARBOX PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI TESTAROSSA (1990) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI TESTAROSSA (1990) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI TESTAROSSA (1990) GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI TESTAROSSA (1990) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI TESTAROSSA (1990) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI TESTAROSSA (1990) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI TESTAROSSA (1990) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI TESTAROSSA (1990) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI TESTAROSSA (1990) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI TESTAROSSA (1990) STEERING COLUMN (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI TESTAROSSA (1990) STEERING COLUMN (STARTING FROM CAR NO. 75997 TO CAR NO. 80422) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI TESTAROSSA (1990) STERING COLUMN (STARTING FROM CAR NO. 80423) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - WISHBONES (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - WISHBONES (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - BRAKE DISC (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - BRAKE DISC (STARTING FROM CAR NO.75997) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI TESTAROSSA (1990) WHEEL (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI TESTAROSSA (1990) WHEEL (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI TESTAROSSA (1990) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI TESTAROSSA (1990) CURRENT GENERATION PARTS DIAGRAM")
-part-diagram-057.webp "FERRARI TESTAROSSA (1990) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-058.webp "FERRARI TESTAROSSA (1990) TOOL KIT PARTS DIAGRAM")
-part-diagram-059.webp "FERRARI TESTAROSSA (1990) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-060.webp "FERRARI TESTAROSSA (1990) BRAKE HYDRAULIC SYSTEM - ACCELERATOR CONTROL PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI TESTAROSSA (1990) BODY - EXTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI TESTAROSSA (1990) BODY - INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI TESTAROSSA (1990) BODY - INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI TESTAROSSA (1990) REAR FRAME PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI TESTAROSSA (1990) EXTERNAL FINISHING PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI TESTAROSSA (1990) BUMPERS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI TESTAROSSA (1990) CARPET AND INSULATION PANELS PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI TESTAROSSA (1990) FRONT HOOD PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI TESTAROSSA (1990) REAR HOOD PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI TESTAROSSA (1990) DOOR PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI TESTAROSSA (1990) DOOR - LOCKING DEVICE PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI TESTAROSSA (1990) DOOR - POWER WINDOW PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI TESTAROSSA (1990) GLASS & WINDOWS PARTS DIAGRAM")
