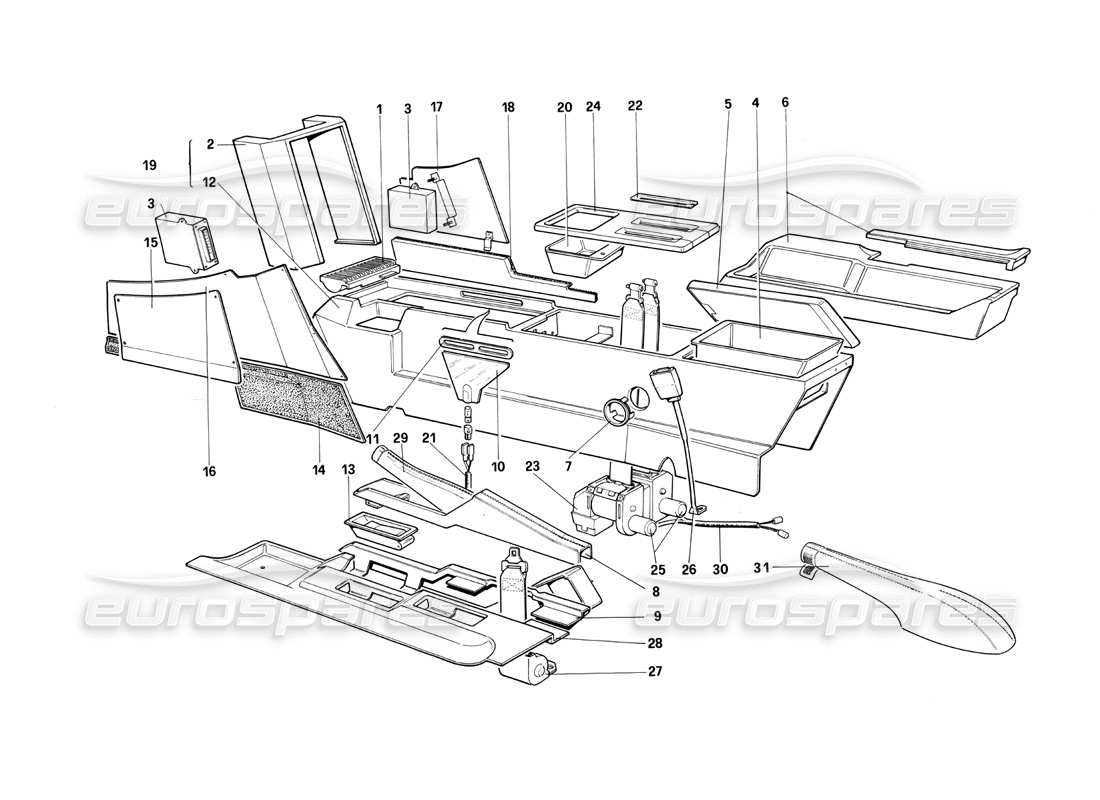

119 - Central Tunnel (for US Version)
Ferrari Testarossa (1990) Central Tunnel (for US Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

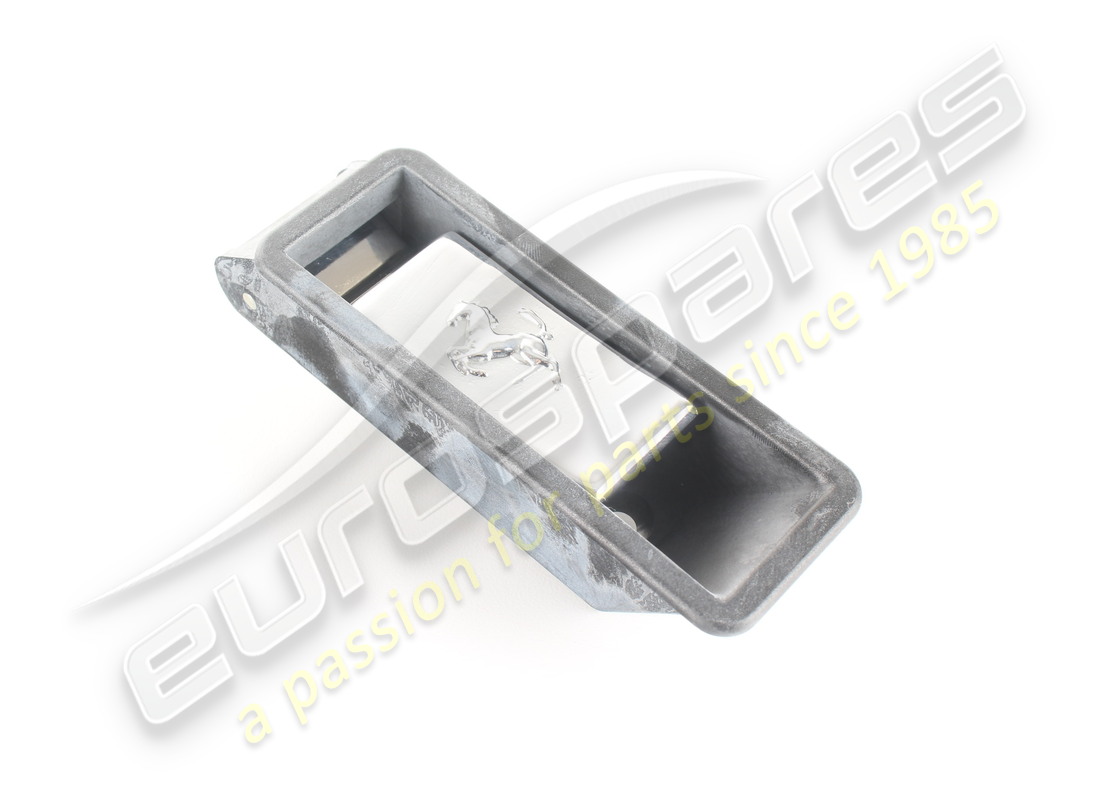

# 001
MPN: 61524900
MONEY CASE
from £31.08
from £31.08
# 002
MPN: 61552500
CENTRAL CONSOLE
from £421.06
from £421.06
# 003
MPN: 65779400
SAFETY BELTS CONTROL UNIT
from £1,044.75
from £1,044.75
This part replaces part number 61568900 which we have in stock
# 004
MPN: 61553000
GLOVE BOX
from £125.95
from £125.95
# 005
MPN: 61553100
GLOVE BOX COVER
from £203.14
from £203.14
# 006
MPN: 61553300
GLOVE BOX FOR PASSENGER
from £655.05
from £655.05
# 007
MPN: 61503600
RING
from £0.47
from £0.47
This part replaces part number 61528400

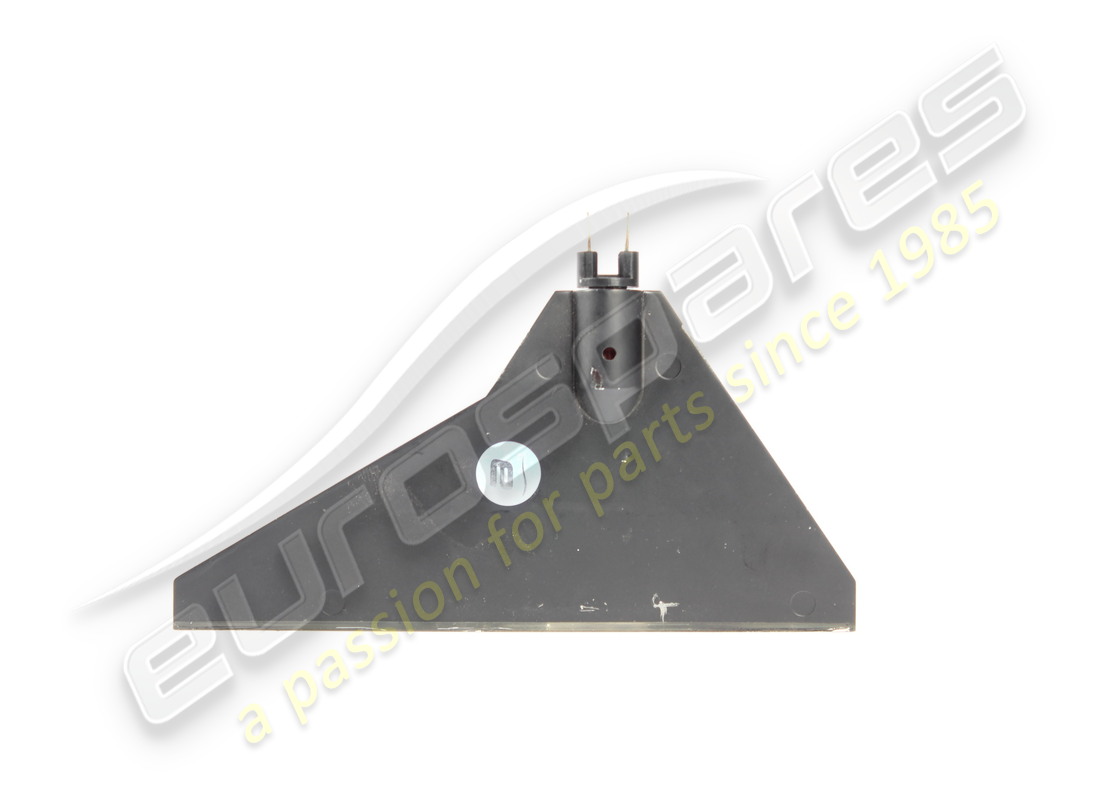

# 008
MPN: 61563700
HANDBRAKE LEVER CONSOLE
Until car No……..
from £209.31
from £209.31
# 009
MPN: 61566300
LH INNER CONSOLE
1st type
from £494.18
from £494.18
# 009
MPN: 61579000
LH INNER CONSOLE
2nd type
from £559.79
from £559.79
# 010
MPN: 61651600
G LASS
from £82.86
from £82.86

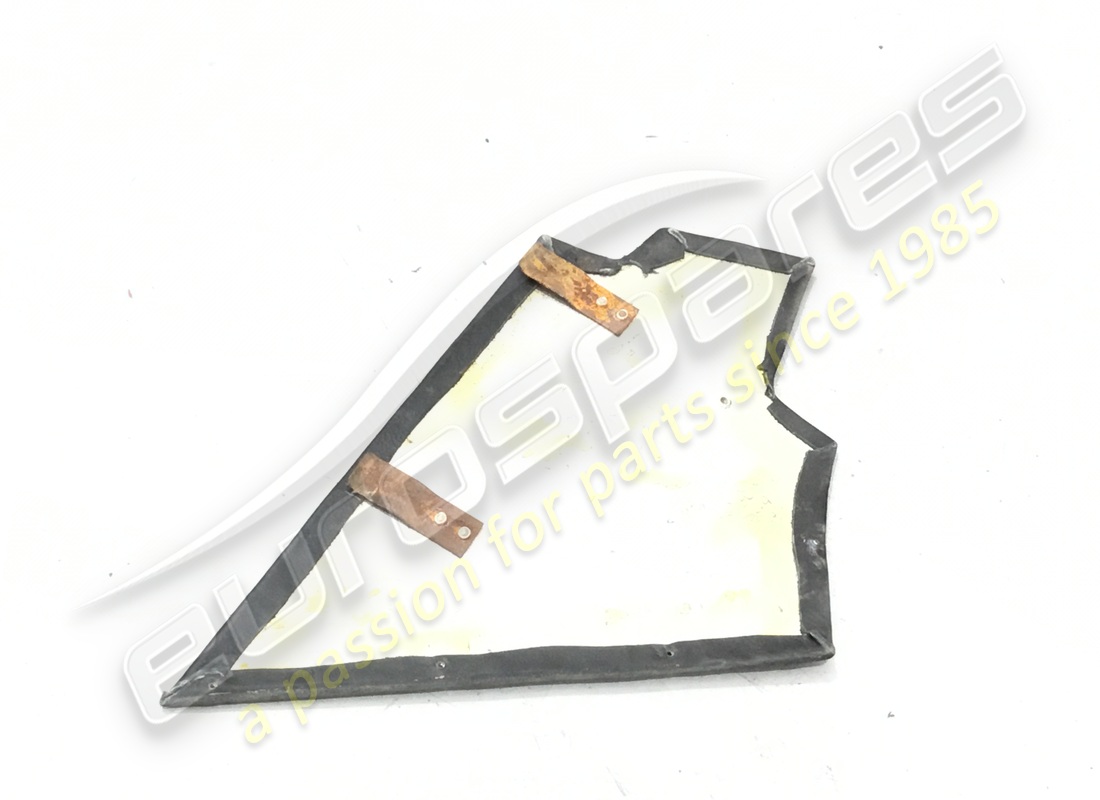

# 011
MPN: 61525800
GLASS FRAME
from £58.43
from £58.43
# 012
MPN: 61552600
TUNNEL
from £840.00
from £840.00

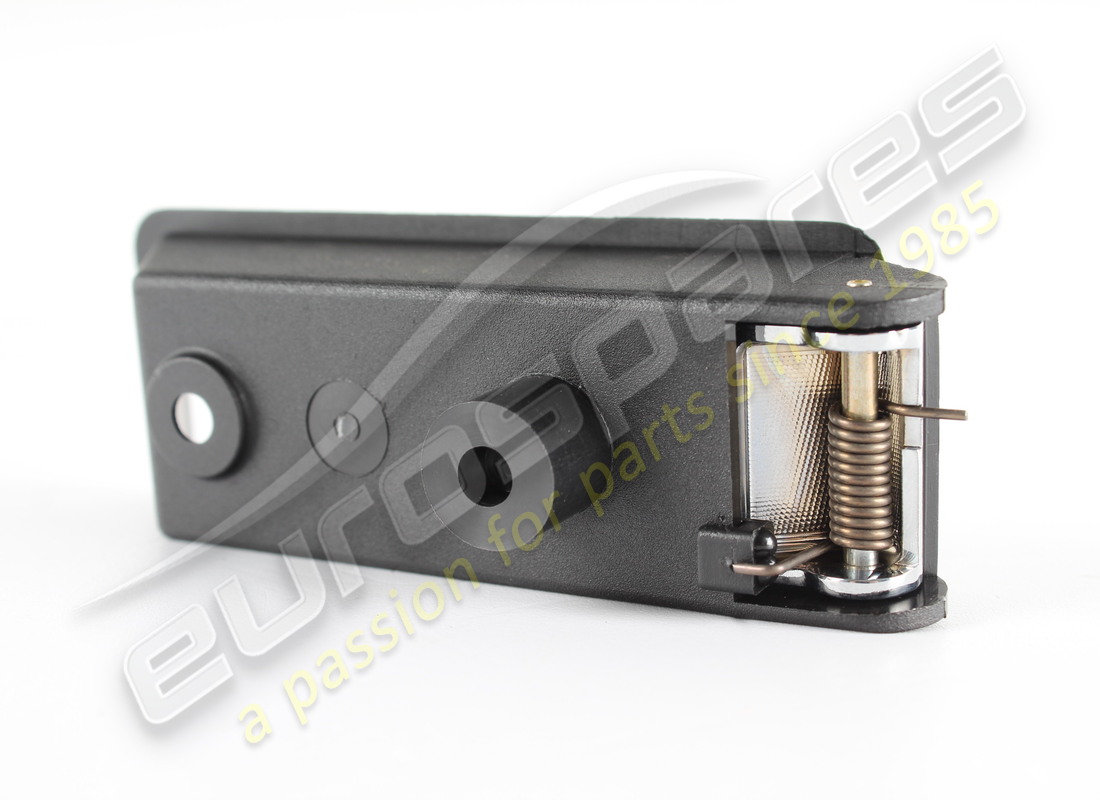

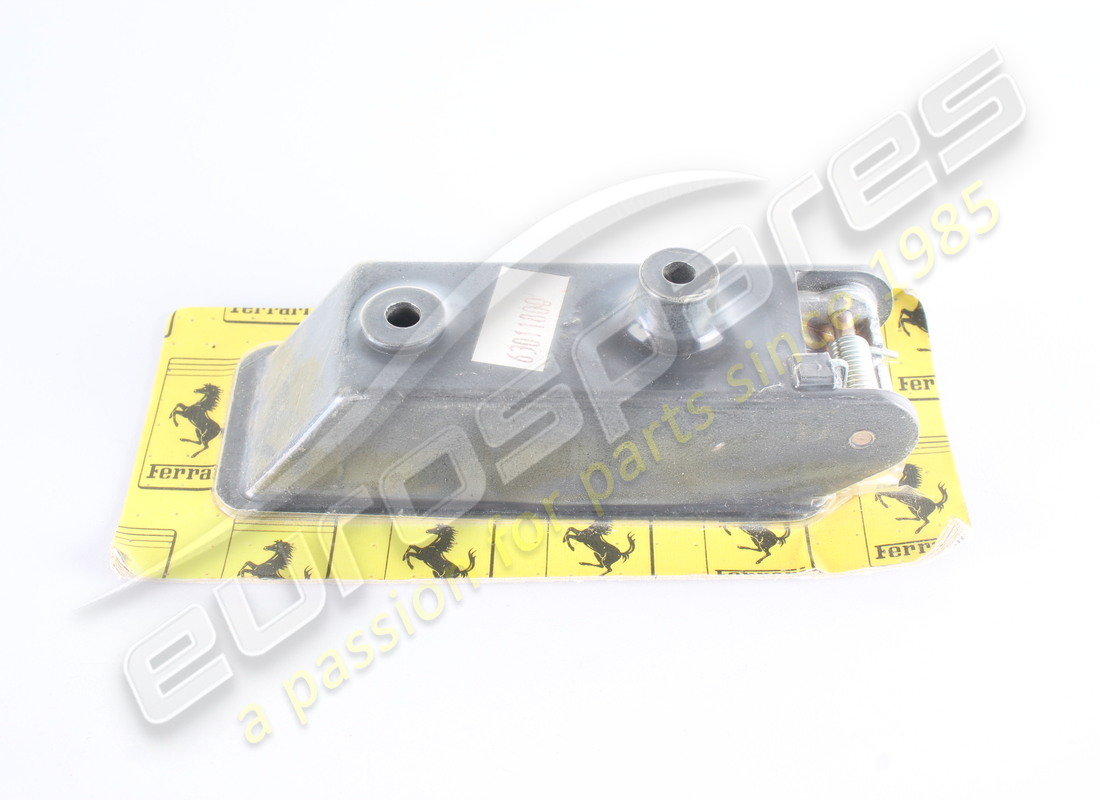

# 013
MPN: 63011800
INNER HANDLE RELEASE
from £94.20
from £94.20
This part replaces part number 60086105 - and 2 more. Click to view details
# 014
MPN: 61530500
CARPET FOR LOWER PANEL
from £28.09
from £28.09
# 014
MPN: 61564100
LH COMPLETE PANEL, LOWER
from £60.70
from £60.70
# 015
MPN: 61530700
PROTECTION
from £33.50
from £33.50

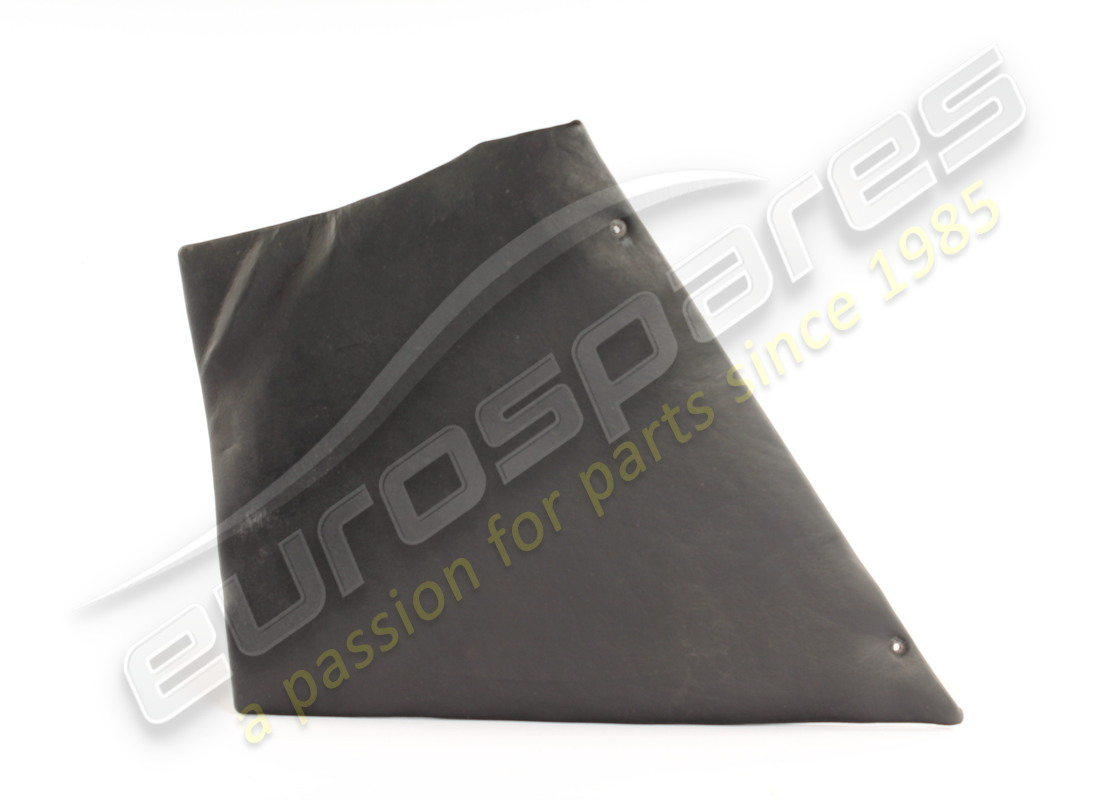

# 016
MPN: 61552800
UPPER PANEL, LH
from £96.78
from £96.78
# 017
MPN: 61552700
UPPER PANEL, RD
from £60.79
from £60.79
# 018
MPN: 61564000
RH COMPLETE PANEL, LOWER
from £63.04
from £63.04
# 018
MPN: 61566900
CARPET FOR LOWER PANEL
# 019
MPN: 61552400
CENTRAL CONSOLE AND TUNNEL
from £1,169.37
from £1,169.37
# 020
MPN: 61552900
GLOVE BOX
from £123.49
from £123.49
# 021
MPN: 124376
CABLE FOR TUNNEL LAMP
from £2.36
from £2.36
# 022
MPN: 61553200
PROTECTION
from £39.16
from £39.16
# 022
MPN: 61557300
SAFETY BELTS, COMPLETE
# 023
MPN: 61552000
RETRACTING MECHANISM
from £2,582.90
from £2,582.90
# 024
MPN: 61553400
COVER
from £175.96
from £175.96
# 025
MPN: 61568100
MOTOR
from £128.36
from £128.36
# 026
MPN: 61557200
LAP BELT ANCHORAGE
from £29.28
from £29.28
# 027
MPN: 61552200
RH LAP BELT
from £309.75
from £309.75
# 027
MPN: 61552300
LH LAP BELT
from £309.75
from £309.75
# 028
MPN: 61566200
LH OUTER CONSOLE
1st type
from £613.70
from £613.70
# 028
MPN: 61579300
LH OUTER CONSOLE
2nd type
from £974.30
from £974.30
# 029
MPN: 61569100
HANDBRAKE COVER
For 1st type console
from £76.57
from £76.57
# 030
MPN: 61568200
BAND WITH CONNECTION
# 031
MPN: 61579100
COVER
For 2nd type console
