lamborghini countach 5000 qv (1985) electrical system parts diagram

007 - electrical system

Lamborghini Countach 5000 QV (1985) Electrical System Parts Diagram

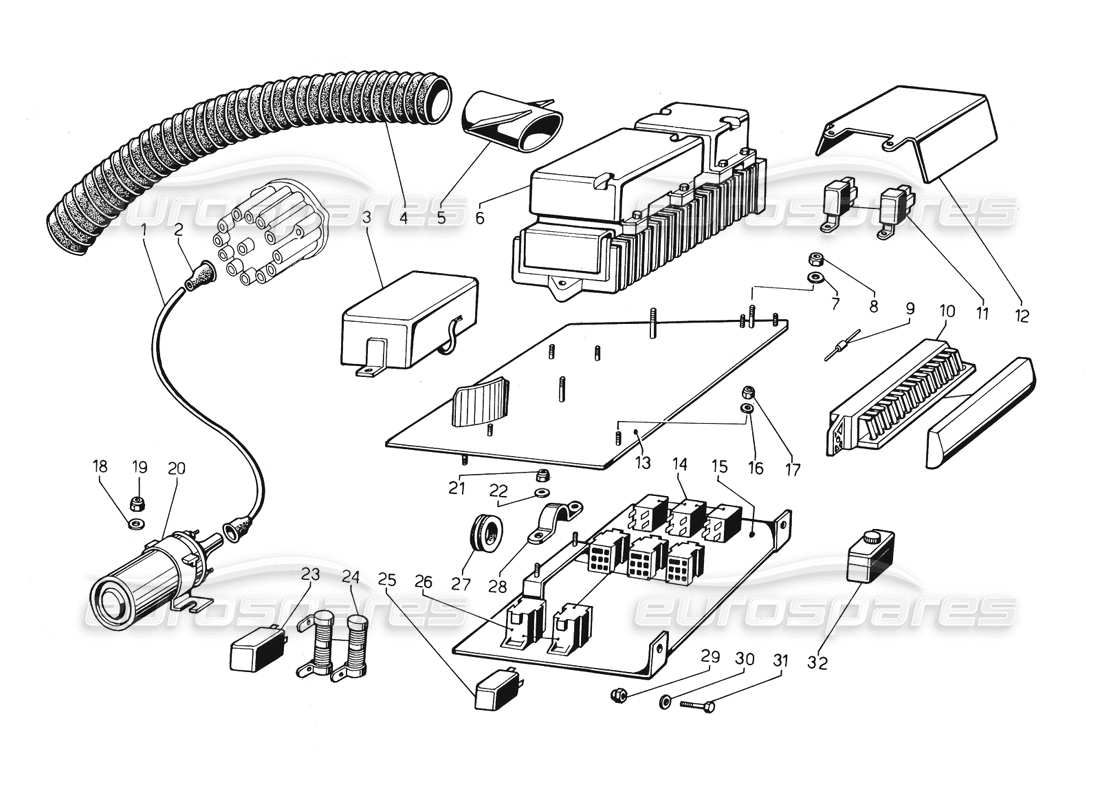

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 001620008
        CABLE
        Cavo dalla bobina alia calot. spint.
        from £30.73
        from £30.73
        COIL-DISTRIBUTOR CAPWIRE Genuine Lamborghini - New (to order)
        # 002
        MPN: 001605394
        CABLE CAP
        Pipetta x cavi sul distributore
        from £3.90
        from £3.90
        SPARK PLUG WIRES PIPE Genuine Lamborghini - New (to order)
        # 003
        MPN: 001619305
        STOPP AIR
        Limitatore di giri per pompa aria
        from £635.94
        from £635.94
        AIR PUMP REV LIMITER31107 Genuine Lamborghini - New (to order)
        # 004
        MPN: 001621237
        PIPE
        Tubo portata aria a centralina
        from £39.95
        from £39.95
        AIR DELIVERY PIPE TOCONTROL UN IT Genuine Lamborghini - New (to order)
        # 005
        MPN: 001622155
        AIR CONVEYOR
        CONVOGLIATORE ARIA
        from £38.88
        from £38.88
        AIR DELIVERY PIPE MANIFOLD Genuine Lamborghini - New (to order)
        # 006
        MPN: 001631621
        CONTROL UNIT
        Centralina elettronica
        from £3,782.82
        from £3,782.82
        This part replaces part number 001619317 - and 1 more. Click to view details
        IGNITION ECU Genuine Lamborghini - New (to order)
        # 007
        MPN: 008400606
        WASHER
        Rond. 6,4 UNI 1734
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 008
        MPN: 008200606
        NUT
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 009
        MPN: 006313708
        DIODO
        Diodo x lamp, ilium, targa 1 N 5408
        from £8.50
        from £8.50
        NUMBER PLATE LIGHT DIODE Genuine Lamborghini - New (to order)
        # 010
        MPN: 006775095
        FUSE BOX
        Portafus. 16 vie 3.032.000
        from £126.00
        from £126.00
        Lamborghini PART 006775095 Genuine Lamborghini - New (to order)
        Lamborghini PART 006775095 Genuine Lamborghini - Used In stock
        plastic lid split see photo
        # 011
        MPN: 006311152
        RELAY
        Relais 03322041 50 fari
        from £74.88
        from £74.88
        LIGHT RELAY Genuine Lamborghini - New (to order)
        # 012
        MPN: 001622696
        BULK HEAD
        Paratia di protezione relais
        from £12.76
        from £12.76
        RELAY GUARD Genuine Lamborghini - New (to order)
        # 013
        MPN: 001621238
        SUPP. GEARBOX
        Piastra porta centralina
        from £78.52
        from £78.52
        CONTROL UNIT HOLDER PLATE ASSE MBLY Genuine Lamborghini - New (to order)
        # 014
        MPN: 006311154
        RELAY
        Relais 0332014151/C
        from £30.30
        from £30.30
        RELAY Genuine Lamborghini - New In stock
        # 015
        MPN: 006320034
        FUSE DASH
        Complessivo plancia porta valvoliera
        from £359.84
        from £359.84
        VALVE PLATE ASSEMBLY Genuine Lamborghini - New (to order)
        # 016
        MPN: 008400401
        WASHER
        Rond. 4,3x9x0,8 UNI 1734
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 017
        MPN: 008200402
        NUT
        Dado 4MA ottone
        from £1.67
        from £1.67
        M4 BRASS SPECIAL NUT Genuine Lamborghini - New In stock
        # 018
        MPN: 008400501
        WASHER
        Rond. 5,8 UNI 1737 AQ45
        from £0.53
        from £0.53
        WASHER 5.8X18X2 Genuine Lamborghini - New In stock
        # 019
        MPN: N0211963
        NUT
        DADO N/70/105M
        from £0.53
        from £0.53
        HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
        HEX. NUT - M5 Genuine Porsche Part - New (to order)
        # 020
        MPN: 001619304
        COIL
        Bobina di trasf. or. bae 202 B vs. 60702202
        from £1,259.58
        from £1,259.58
        COIL Genuine Lamborghini - New (to order)
        # 021
        MPN: 008200606
        NUT
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 022
        MPN: 008400606
        WASHER
        Rond. 6,4 UNI 1734
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 023
        MPN: 006714079
        WARNIN LIGH
        Lampegg. elettronico vs. rif. 0335.200.038
        from £208.10
        from £208.10
        RELAY Genuine Lamborghini - New (to order)
        # 024
        MPN: 001619328
        HEATING MUF
        Resisten. regolaz. velocity mot. riscaldat.
        from £86.04
        from £86.04
        SPEED ADJUSTMENT RESISTOR Genuine Lamborghini - New (to order)
        # 025
        MPN: 006319913
        RELAY
        Relais 87 0332204151
        from £39.80
        from £39.80
        RELAY Genuine Lamborghini - New In stock
        # 026
        MPN: 006714081
        BUTTON BODY
        Zoccolo 3334485008 emerg.
        from £15.17
        from £15.17
        EMERG.HOLDER Genuine Lamborghini - New (to order)
        # 027
        MPN: 008612503
        SEAL RING
        Gomm. dur R 330 N tubo Ris
        from £8.84
        from £8.84
        GROMMET 25X32X2 MM Genuine Lamborghini - New (to order)
        # 028
        MPN: 008830109
        CLAMP RING
        Fasc. fiss. fili plancia/C
        from £4.73
        from £4.73
        DASHBOARD WIRE CLAMP Genuine Lamborghini - New (to order)
        # 029
        MPN: 008200606
        NUT
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 030
        MPN: 008400606
        WASHER
        Rond. 6,4 UNI 1734
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 031
        MPN: 008100603
        BOLT
        Bull. M6x25 UNI 5739-65A 8G
        from £0.94
        from £0.94
        SCREW M6X25 UNI 5739-8G ZG Genuine Lamborghini - New In stock
        # 032
        MPN: 006319296
        P. DIODO
        Portadiodi orig. upem 047
        from £74.54
        from £74.54
        DIODE UPEM 047 Genuine Lamborghini - New (to order)
