lamborghini countach 5000 qv (1985) crankcase parts diagram

011 - crankcase

Lamborghini Countach 5000 QV (1985) Crankcase Parts Diagram

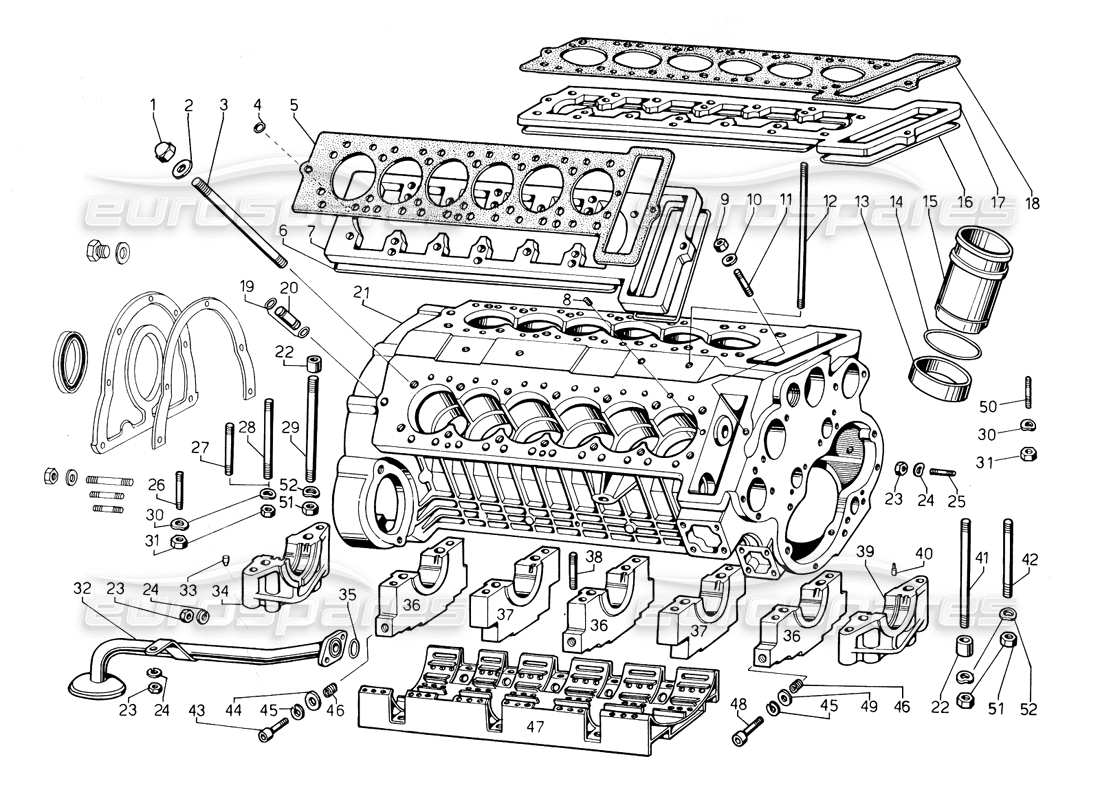

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 00
        MPN: 001820990
        ENGINE COMPLETE
        ENGINE COMPLETE Genuine Lamborghini - New (to order)
        # 000
        MPN: 001526489

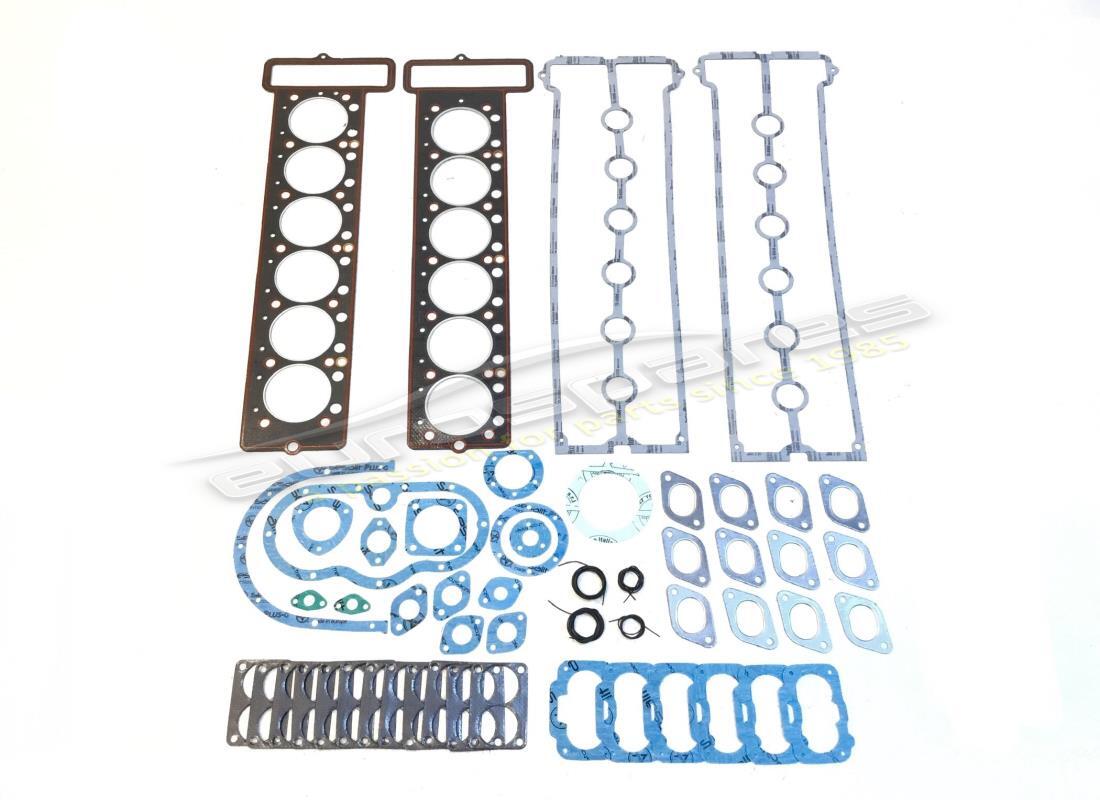

        GASKET SET
        Full gasket set / No oil seals
        from £834.75
        from £834.75
        engine gasket kit Genuine Lamborghini - New (to order)
        GASKET SET Eurospares Approved Part - New In stock
        # 001
        MPN: 001120924
        CAP NUT
        Dado cieco
        from £22.93
        from £22.93
        STUD NUT Genuine Lamborghini - New (to order)
        # 002
        MPN: 008401230
        WASHER
        Rondella x dado cieco
        from £32.72
        from £32.72
        WASHER Genuine Lamborghini - New In stock
        # 003
        MPN: 001821459
        STUD ON B
        Prig, su basam x fiss. testa cilindri
        from £56.21
        from £56.21
        CYLINDER HEAD STUD ON CRANKCAS E. Genuine Lamborghini - New (to order)
        # 004
        MPN: 008601201
        SEAL RING
        ANELLO OR 2050
        from £0.52
        from £0.52
        RING 13 MM OR Genuine Lamborghini - New In stock
        # 005
        MPN: 001120594
        GASKET
        Guam, x testa dx «curty»
        from £251.70
        from £251.70
        RH HEAD GASKET Genuine Lamborghini - New (to order)
        RH HEAD GASKET Eurospares Approved Part - New In stock
        # 005
        MPN: LHGAS003
        PAIR OF HEAD GASKETS
        (pattern)
        PAIR OF HEAD GASKETS Genuine Lamborghini - New (to order)
        # 006
        MPN: 001822508
        S. ROBE
        Cordino dx
        from £16.77
        from £16.77
        LH HEAD SEAL CORD Genuine Lamborghini - New (to order)
        # 007
        MPN: 001821070
        SPACER
        Distanziale dx
        from £2,386.42
        from £2,386.42
        CRANKCASE & RH CYLINDER HEAD S HIM Genuine Lamborghini - New (to order)
        # 008
        MPN: 008850817
        DOWEL
        GRANO
        from £6.43
        from £6.43
        REFERENCE PIN 8X28 C40 Genuine Lamborghini - New (to order)
        # 009
        MPN: N0111849
        NUT
        DADO N/70/108M
        from £1.47
        from £1.47
        This part replaces part number 008200809
        HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
        # 010
        MPN: WHT001514
        LOCK WASHER
        Ros. el. 8,4x17x0,8
        from £15.09
        from £15.09
        This part replaces part number 008410805
        SPRING WASHER Genuine Lamborghini - New (to order)
        # 011
        MPN: 008300815
        STUD
        from £10.53
        from £10.53
        SPECIAL STUD M8X33 Genuine Lamborghini - New (to order)
        # 012
        MPN: 008300870
        STUD
        PRIGIONIERO
        from £11.95
        from £11.95
        SPECIAL STUD M8X158 Genuine Lamborghini - New (to order)
        # 013
        MPN: 001820909
        SPACER
        Distanziale x canna cilindri
        from £179.93
        from £179.93
        CYLINDER LINER SHIM Genuine Lamborghini - New (to order)
        # 014
        MPN: WHT003085
        RUBBER
        Gomma per canna cilindri 78x1,20
        from £2.68
        from £2.68
        CYLINDER LINER RUBBER WASHER M M 78X1 Genuine Lamborghini - New In stock
        # 015
        MPN: 001820907
        CYLINDER LINER
        CANNA CILINDRI
        from £916.53
        from £916.53
        CYLINDER LINER Genuine Lamborghini - New In stock
        # 016
        MPN: 001822508
        S. ROBE
        Cordino sx
        from £16.77
        from £16.77
        LH HEAD SEAL CORD Genuine Lamborghini - New (to order)
        # 017
        MPN: 001821071
        SPACER
        Distanziale sx
        from £2,576.64
        from £2,576.64
        CRANKCASE & LH CYLINDER HEAD S HIM Genuine Lamborghini - New (to order)
        # 018
        MPN: 001120593
        GASKET
        Guam, x testa sx «curty»
        from £251.70
        from £251.70
        LH HEAD GASKET Genuine Lamborghini - New In stock
        LH HEAD GASKET Eurospares Approved Part - New (to order)
        # 018
        MPN: LHGAS003
        PAIR OF HEAD GASKETS
        (pattern)
        PAIR OF HEAD GASKETS Genuine Lamborghini - New (to order)
        # 019
        MPN: WHT003057
        SEAL RING
        ANELLO OR 2031
        from £0.87
        from £0.87
        This part replaces part number WHT003507 which we have in stock
        O-RING Genuine Lamborghini - New In stock
        # 020
        MPN: 001820995
        DOWEL
        GRANO
        from £112.76
        from £112.76
        CRANKCASE CENTRING DOWEL Genuine Lamborghini - New (to order)
        # 021
        MPN: 001820987
        Engine base
        Basamento motore
        Engine base Genuine Lamborghini - New (to order)
        # 022
        MPN: 008851501
        DOWEL
        Grano D. 15x12,5x14
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 023
        MPN: 008200604
        NUT
        DADO M6 UNI 5588-65/8G
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 024
        MPN: 008410603
        LOCK WASHER
        Rond. A6.4UNI 1751 C72
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 025
        MPN: 008300610
        BOLT
        PRIG. 6x1x16 8G
        from £15.47
        from £15.47
        STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New (to order)
        # 026
        MPN: 008300878
        STUD
        PRIGIONIERO
        from £8.87
        from £8.87
        SPECIAL STUD M8X77 Genuine Lamborghini - New (to order)
        # 027
        MPN: 008300877
        STUD
        PRIGIONIERO
        from £21.81
        from £21.81
        SPECIAL STUD M8X95 Genuine Lamborghini - New (to order)
        # 028
        MPN: 008300817
        BOLT
        Prig. 8x1x6038NCD4
        from £10.53
        from £10.53
        STUD M8X1X60 UNI 5919 10K Genuine Lamborghini - New (to order)
        # 029
        MPN: 008301235
        STUD
        PRIGIONIERO
        from £37.11
        from £37.11
        SPECIAL STUD M12X103 Genuine Lamborghini - New (to order)
        # 030
        MPN: WHT001514
        LOCK WASHER
        Ros. el. 8,4x17x0,8
        from £15.09
        from £15.09
        This part replaces part number 008410805
        SPRING WASHER Genuine Lamborghini - New (to order)
        # 031
        MPN: 008200805
        NUT
        from £0.50
        from £0.50
        M8X1X8 8G/B NUT Genuine Lamborghini - New In stock
        # 032
        MPN: 001821865
        PIPE
        Tubo asp. olio dalla coppa
        from £112.76
        from £112.76
        OIL INTAKE PIPE SET Genuine Lamborghini - New (to order)
        # 033
        MPN: 001819519
        DOWEL
        Grano riduz. olio sui supp. inf. alb. motore
        from £14.98
        from £14.98
        LOWER BRACKET OIL REDUCTION DO WEL Genuine Lamborghini - New (to order)
        # 034
        MPN: 001819472
        ENG. SHAFT SUPP.
        Supp. post, albero motore
        SUPPORT C. Genuine Lamborghini - New (to order)
        # 035
        MPN: 008602901
        SEAL RING
        ANELLO OR 41 18
        from £0.54
        from £0.54
        RING 30 MM OR Genuine Lamborghini - New In stock
        # 036
        MPN: 001821837
        INTERM. SUPP.
        Supp. intermedio albero motore N. 2-4-6
        SUPPORT Genuine Lamborghini - New (to order)
        # 037
        MPN: 001822399
        INTERM. SUPP.
        Supp. intermedio albero motore N. 3-5
        SUPPORT Genuine Lamborghini - New (to order)
        # 038
        MPN: 008300847
        BOLT
        Prig. M8x26 8G
        from £0.49
        from £0.49
        SPECIAL STUD M8X26 Genuine Lamborghini - New (to order)
        # 039
        MPN: 001819470
        ENG. SHAFT SUPP.
        Supp. anteriore albero motore
        SUPPORT C. Genuine Lamborghini - New (to order)
        # 040
        MPN: 008850613
        DOWEL BOLT
        Grano supp. albero motore
        Lamborghini PART 008850613 Genuine Lamborghini - New (to order)
        # 041
        MPN: 008301214
        BOLT
        Prig. 12x1,5x94 10K
        from £21.81
        from £21.81
        SPECIAL STUD M12X94 Genuine Lamborghini - New In stock
        # 042
        MPN: 008301213
        BOLT
        Prig. 12x1, 75x98 38NCD4
        from £37.40
        from £37.40
        SPECIAL STUD M12X98 Genuine Lamborghini - New In stock
        # 043
        MPN: 008701012
        SCREW
        Vite a esagono
        from £4.73
        from £4.73
        SCREW M10X25 UNI 5931/8G/B Genuine Lamborghini - New (to order)
        # 044
        MPN: 008401005
        WASHER
        Rondella spaccata x detta vite
        from £1.71
        from £1.71
        WASHER Genuine Lamborghini - New In stock
        # 045
        MPN: 008411005
        WASHER
        Rondel. A1 0,5 UNI 1751
        from £0.54
        from £0.54
        WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
        # 046
        MPN: 008841002
        HELI COIL
        HELI COIL
        from £0.98
        from £0.98
        HELI-COIL M10X1.25X10 Genuine Lamborghini - New (to order)
        # 047
        MPN: 001821887
        BULKHEAD
        Paratia avvol. x albero motore
        from £985.69
        from £985.69
        CRANKSHAFT BULKHEAD Genuine Lamborghini - New (to order)
        # 048
        MPN: 008701013
        SCREW
        Vite esagono
        from £0.65
        from £0.65
        SCREW M10X40 UNI 5931/8G/B Genuine Lamborghini - New (to order)
        # 049
        MPN: 008411005
        WASHER
        Rondella x detta vite
        from £0.52
        from £0.52
        WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
        # 050
        MPN: 008300879
        STUD
        PRIGIONIERO
        from £8.87
        from £8.87
        SPECIAL STUD M8X73 Genuine Lamborghini - New (to order)
        # 051
        MPN: 008201221
        NUT
        DADO 12x1,5x12
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 052
        MPN: 008411302
        LOCK WASHER
        Rondel. 13x24x1,2
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 053
        MPN: 001526469

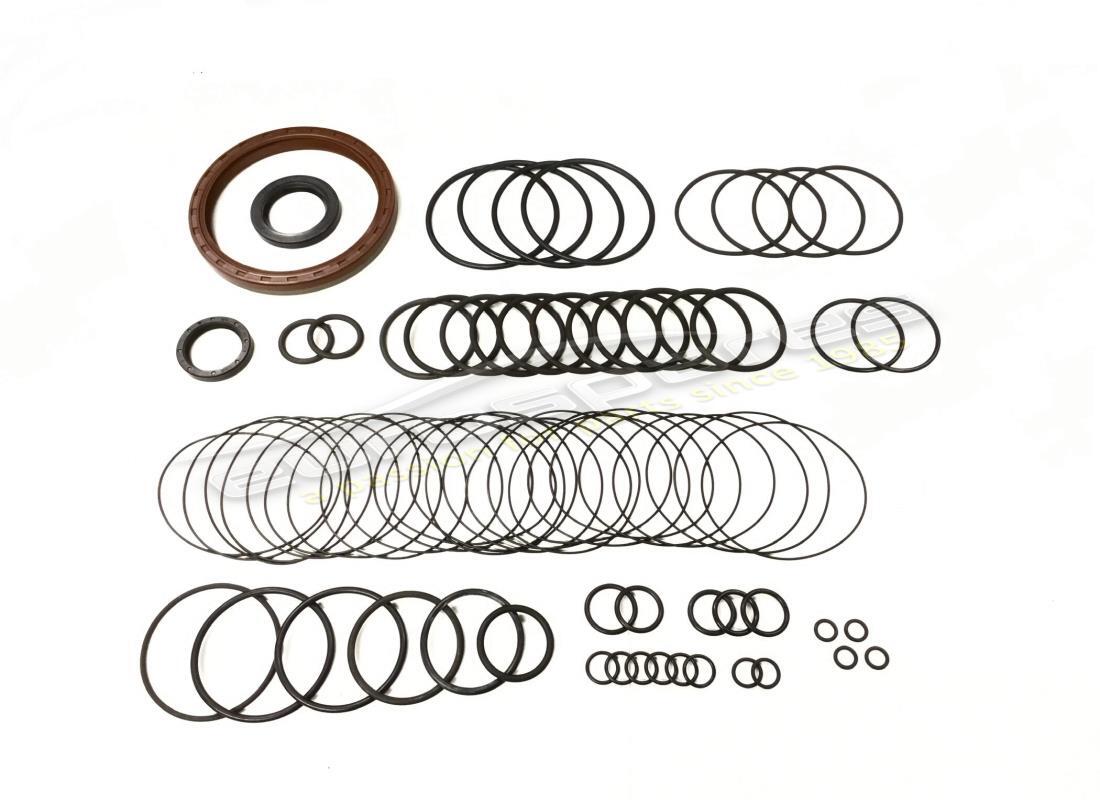

        OIL SEALS
        Complete engine oil seal kit.
        from £87.77
        from £87.77
        GROMMET & OIL SEALS SET Genuine Lamborghini - New In stock
